PEUGEOT EXPERT 2018 Owners Manual

279
Third brake lamp (side-hinged
doors)
Ty p e A, W5W-5W
F
O
pen the left-hand rear door. F

R
emove the lamp.
F
T
urn the bulb holder a quarter turn anti-
clockwise.
F C hange the faulty bulb.
To refit, press on the lamp to clip it in place.
Number plate lamps (side-hinged
doors)
Ty p e A , W5W-5W
F
I
nsert a thin screwdriver into one of the cut-
outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
To refit, press on the lens to clip it in place.
Courtesy lamps (front and rear)
F Remove the plastic cover using a thin screwdriver.
F

U
sing a screwdriver through the aperture,
push the lamp towards the outside.
F

D
isconnect the electrical connector. Ty p e A
, W5W-5W
F
U
nclip the lens by inserting a thin
screwdriver into the cut-outs at each side of
the lamp.
F
P
ull out the bulb and replace it.
F
C
lip the lens in place and ensure that it is
secure.
8
In the event of a breakdown

280
Rear lamps (tailgate)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
1. Brake lamps/sidelamps.
Ty p e B , P21/5W-21/5W
2. Direction indicators.
Ty p e B , PY21W-21W (amber)
3. Reversing lamps.
Ty p e B , P21W-21W
4. Foglamps/sidelamps.
Ty p e B , P21/4W-21/4W
For vehicles with interior trim, contact a
PEUGEOT dealer or a qualified workshop
to have the work done. F

I
dentify the defective bulb then open the
tailgate.
F
F
rom inside, remove the cover, if your
vehicle has one.
F

F
rom the outside, press the interior clips
of the plastic trim then tilt it outwards to
remove it.
F

U
nscrew the two lamp fixing screws.F

W
hile holding the lamp in place, press the
clip located on the inside then carefully
remove the lamp.
F

D
isconnect the electrical connector.
F

S
pread the 3 lugs slightly, then extract the
bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

R
eplace the bulb.
In the event of a breakdown

281
To refit, proceed in reverse order.
Third brake lamp (tailgate)
Ty p e A, W5W-5W
F
O
pen the tailgate. F

U
nclip the trim at each end by turning it
upwards.
F

P
ull the trim to unclip the centre clips, then
remove it.
F

U
sing a screwdriver through the aperture,
push the lamp towards the outside.
F

D
isconnect the electrical connector.
F

R
emove the lamp.
F

T
urn the bulb holder a quarter turn anti-
clockwise.
F

C
hange the faulty bulb.
To refit, proceed in reverse order.
To refit the lamp and trim, press on them to clip
them in place.
Number plate lamps (tailgate)
Ty p e A , W5W-5W
F
I
nsert a thin screwdriver into one of the cut-
outs in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
To refit, press on the lens to clip it in place.
8
In the event of a breakdown

282
For the replacement of this type of LED lamp
and light guides, contact a PEUGEOT dealer or
a qualified workshop.
A replacement kit for the LEDs is available from
PEUGEOT dealers.
Cab floor
Rear lamps
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
1. Direction indicators.
Ty p e B , P21W-21W
2. Brake lamps.
Ty p e B , P21W-21W
3. Sidelamps.
Ty p e B , R10W-10W
4. Reversing lamps.
Ty p e B , P21W-21W
5. Foglamps.
Ty p e B , P21W-21W F

I
dentify the defective bulb.
F

R
emove the four lamp unit fixing screws.
F

P
ull the lamp unit out towards you.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

C
hange the bulb.
To refit, proceed in reverse order.
Courtesy lamps (front and
rear)
In the event of a breakdown

283
Changing a fuse
Access to the tools
F Unclip the cover by pulling at the top left, then right.
F

D
isengage the cover completely and turn it
ove r.
F

T
ake the tweezer from its housing.
Changing a fuse
Before changing a fuse, it is necessary to:
F i dentify the cause of the failure and correct
it,
F

s
witch off all electrical consumers,
F

i
mmobilise the vehicle and switch off the
ignition,
F

i
dentify the defective fuse using the
allocation tables and diagrams.
To replace a fuse, you must:
F

u
se the special tweezers to extract the fuse
from its housing and check the condition of
its filament,
F

a
lways replace the defective fuse with a
fuse of the same rating (same colour); using
a different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop. OK
Failed
Tw e e z e r s
The replacement of a fuse not shown in
the following allocation tables may cause
a serious malfunction of your vehicle.
Contact a PEUGEOT dealer or a qualified
workshop.
The extraction tweezer is located behind the
fusebox cover.
8
In the event of a breakdown

284

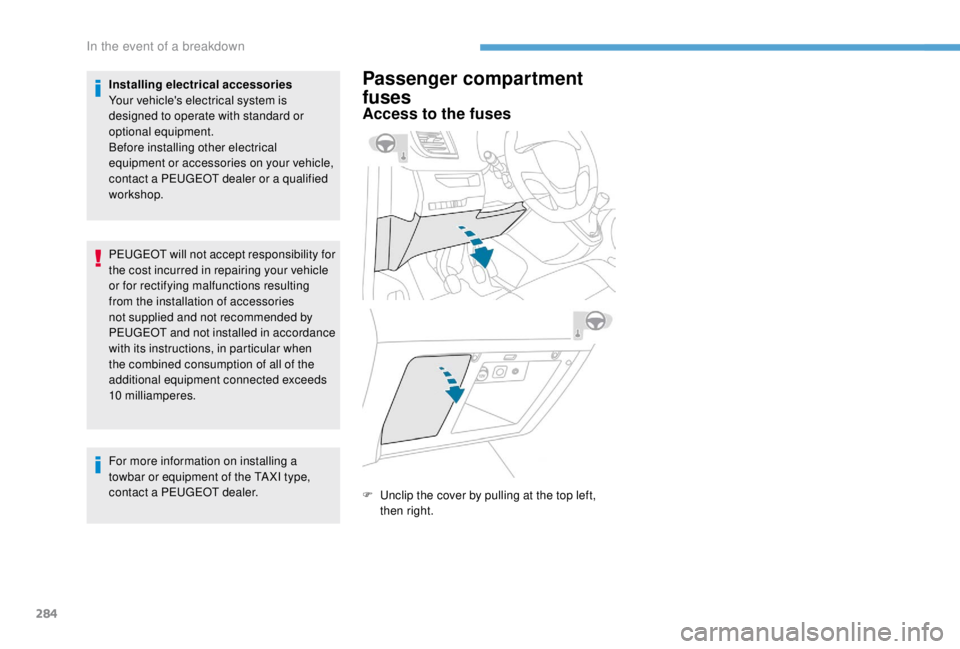

Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your vehicle,
contact a PEUGEOT dealer or a qualified
workshop.
PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10

milliamperes.
For more information on installing a
towbar or equipment of the TA XI type,
contact a PEUGEOT dealer.Passenger compartment
fuses
Access to the fuses
F Unclip the cover by pulling at the top left, then right.
In the event of a breakdown

285
FuseN° Rating
(A) Functions
F1 10Electric power steering, clutch switch.
F4 15Horn.
F5 20Front/rear screenwash pump.
F6 20Front/rear screenwash pump.
F7 10Rear 12
V accessory socket.
F8 20Single or double rear wipers.
F10/F11 30Internal/external locks, front and rear.
F13 10Front air conditioning controls, audio system controls, gear lever,
head-up display.
F14 5Alarm, emergency and assistance calls.
F17 5Instrument panel.
F19 3Steering mounted controls.
F21 3
K

eyless Entry and Starting or anti-theft system.
F22 3Rain and sunshine sensor, multifunction detection camera.
F23 5Seat belt unfastened or not fastened display screen.
F24 5Touch screen, reversing camera and parking sensors.
F25 5Airbags.
F29 20Audio system, touch screen, CD player, navigation.
F31 15Audio system (+ battery).
F32 15Front 12
V accessory socket.
F34 5Blind spot monitoring system, door mirror electric controls.
F35 5Heated washer jets, headlamp beam height control.
F36 5Torch charger, rear courtesy lamp.Version 1 (Eco)
The fuses described below vary according to
the equipment in your vehicle.
8
In the event of a breakdown

286
Version 2 (Full)Fuse N°Rating (A) Functions
F1 3
K

eyless Entry and Starting or anti-theft system.
F5 5Touch screen, reversing camera and parking sensors.
F7 10Rear air conditioning controls, Hi-Fi amplifier.
F8 20Single or double rear wipers.
F10/F11 30Internal/external locks, front and rear.
F12 3Alarm.
F17 10Rear 12
V accessory socket.
F18 5Emergency and assistance calls.
F21 3Torch charger, rear courtesy lamp.
F22 3Glove box lamp, rear courtesy lamps.
F23 5Blind spot monitoring system, door mirror electric controls.
F24 5Steering mounted controls.
F25 5Headlamp beam height control.
F26 3Seat belt unfastened or not fastened display screen.
F27 3Rain and sunshine sensor, multifunction detection camera.
F28 10Front air conditioning controls, radio controls, gear lever, head-up
display.
F30A or B 15Audio system (+ battery).
F31 5Airbags.
F33 15Front 12
V accessory socket.
F35 5Instrument panel.
F36 20Audio system, touch screen, CD player, navigation.
The fuses described below vary according to
the equipment in your vehicle.
In the event of a breakdown

287
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fuses
The fuses described hereafter vary according
to the equipment in your vehicle.
F

R

elease the two latches A .
F

R

emove the cover.
F

C

hange the fuse.
F

W

hen you have finished, close the cover
carefully then engage the two latches A , to
ensure correct sealing of the fusebox. Fuse
No. Rating
(A) Functions
F12 5Heated washer jets.
F14 25Front and rear screenwash pump.
F15 5Emergency braking front radar, electric power steering.
F17 10Built-in systems inter face.
F19 30Front wiper motor.
F20 15Front and rear screenwash pump.
F21 20Headlamp wash pump.
F22 15Horn.
F23 15Right-hand main beam headlamp.
F24 15Left-hand main beam headlamp.
8
In the event of a breakdown

288

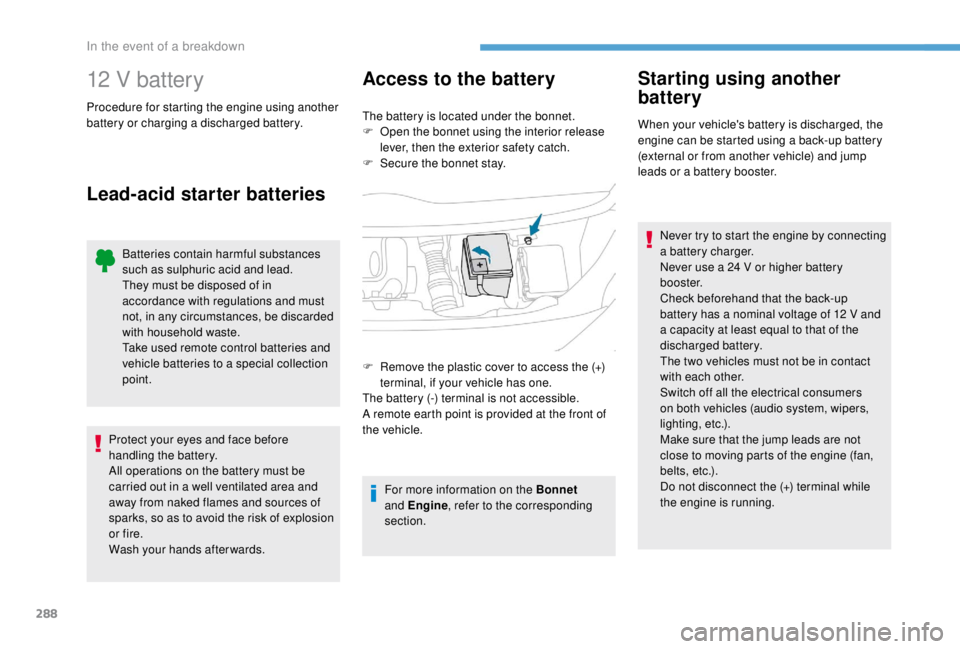

12 V battery
Procedure for starting the engine using another
battery or charging a discharged battery.
Lead-acid starter batteries Access to the battery
The battery is located under the bonnet.
F
O pen the bonnet using the interior release
lever, then the exterior safety catch.
F

S
ecure the bonnet stay.
For more information on the Bonnet
and Engine , refer to the corresponding
section.
Starting using another
battery
When your vehicle's battery is discharged, the
engine can be started using a back-up battery
(external or from another vehicle) and jump
leads or a battery booster.
Never try to start the engine by connecting
a battery charger.
Never use a 24
V or higher battery
b o o s t e r.
Check beforehand that the back-up
battery has a nominal voltage of 12 V and
a capacity at least equal to that of the
discharged battery.
The two vehicles must not be in contact
with each other.
Switch off all the electrical consumers
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are not
close to moving parts of the engine (fan,
belts, etc.).
Do not disconnect the (+) terminal while
the engine is running.
F

R

emove the plastic cover to access the (+)
terminal, if your vehicle has one.
The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources of
sparks, so as to avoid the risk of explosion
or fire.
Wash your hands afterwards.
In the event of a breakdown
