Removing a wheel
Parking the vehicle
Park the vehicle where it does not block
traffic: the ground must be level, stable
and non-slippery.
With a manual gearbox, engage first gear
then switch off the ignition to block the
wheels.
With an automatic gearbox, place the gear
selector to position P then switch off the
ignition to block the wheels.
With an electronic gearbox, place the gear
selector to position A then switch off the
ignition to block the wheels.
Apply the parking brake and check that
the warning lamp is on in the instrument
panel.
The passengers must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.F

P
lace the foot of the jack on the ground and
ensure that it is directly below the A or B
jacking point provided on the underbody,
whichever is closest to the wheel to be
changed.
Do not use:
-

t
he jack for any other purpose than
lifting the vehicle,
-

a j
ack other than the one supplied by
the manufacturer.
F

I
f your vehicle has steel wheels, remove the
hub cap using tool 3 .
F

I
f your vehicle has alloy wheels, remove the
cap from each wheel bolt using tool 3 .
F

I
f your vehicle has security wheel bolts, fit
security bolt socket 4
to wheelbrace 1 to
slacken the security bolt.
F

S
lacken (without removing) the other wheel
bolts using just wheelbrace 1 .
8
In the event of a breakdown

270
F Raise the vehicle using wheelbrace 1, until
there is sufficient space between the wheel
and the ground to admit the spare (not
punctured) wheel easily. Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse – Risk of injury!
Ensure that the jack is positioned only at
one of the jacking points, either A or B
,
under the vehicle, making sure that the
vehicle's contact sur face is centred on the
head of the jack. Other wise there is a risk
of damage to the vehicle and/or of the jack
dropping – Risk of injury!
F
R
emove the bolts and keep them in a clean
place.
F
R
emove the wheel.
Fitting a wheel
F Put the wheel in place on the hub.
F
S crew in the bolts by hand to their stop.
F

I
f your vehicle is so equipped, pre-tighten
the security bolt using the wheelbrace
1
fitted with the security socket 4 .
F

P
re-tighten the other bolts using
wheelbrace 1
o n l y.
F

E

xtend jack 2
, using the hand wheel, until
its head comes into contact with jacking
point A or B , whichever is used, having
the contact sur face A or B on the vehicle
correctly engaged with the central part of
the head of the jack.
In the event of a breakdown

271
F Lower the vehicle again fully.
F F old jack 2 and detach it.
F

I
f your vehicle is so equipped, tighten the
security bolt using the wheelbrace 1
fitted
with the security socket 4 .
F

T
ighten the other bolts using wheelbrace
1
o n l y.
F

S

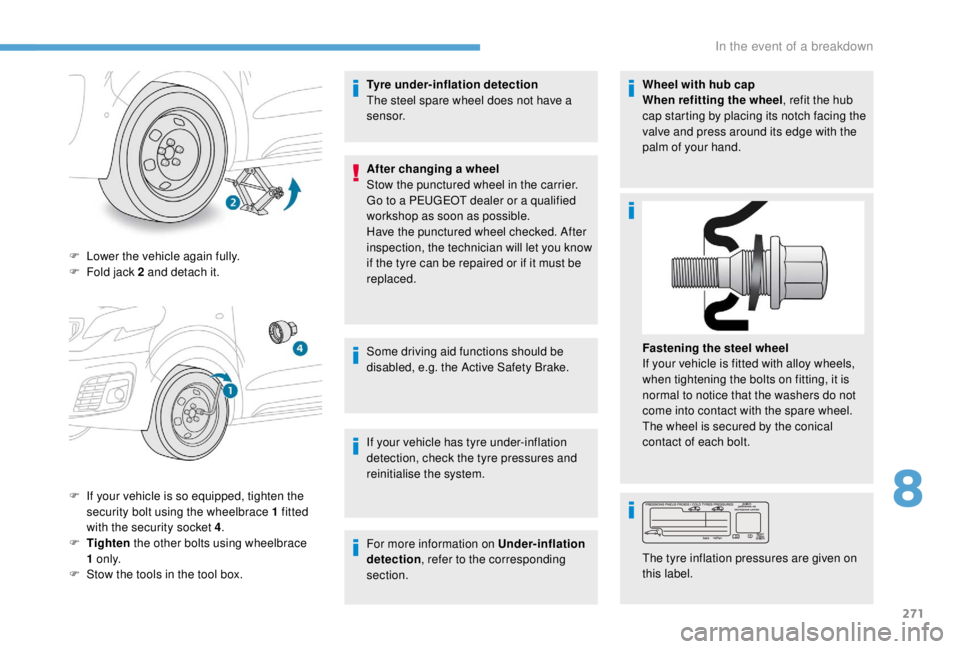

tow the tools in the tool box. Tyre under-inflation detection
The steel spare wheel does not have a
sensor.
After changing a wheel
Stow the punctured wheel in the carrier.
Go to a PEUGEOT dealer or a qualified
workshop as soon as possible.
Have the punctured wheel checked. After
inspection, the technician will let you know
if the tyre can be repaired or if it must be
replaced.
Some driving aid functions should be
disabled, e.g. the Active Safety Brake.
If your vehicle has tyre under-inflation
detection, check the tyre pressures and
reinitialise the system.
For more information on Under-inflation
detection
, refer to the corresponding
section. Wheel with hub cap
When refitting the wheel
, refit the hub
cap starting by placing its notch facing the
valve and press around its edge with the
palm of your hand.
Fastening the steel wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the spare wheel.
The wheel is secured by the conical
contact of each bolt.
The tyre inflation pressures are given on
this label.
8
In the event of a breakdown

272
Changing a bulb
The headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y or
abrasive cloth, nor with a detergent
or solvent product,
F

u
se a sponge and soapy water or a pH
neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals.
Changing a bulb should only be done after
the headlamp has been switched off for
several minutes (risk of serious burns).
F

D
o not touch the bulb directly with your
fingers, use a lint-free cloth.
It is essential only to use anti-ultraviolet
(UV) type bulbs, so as not to damage the
headlamp.
Always replace a failed bulb with a new
bulb with the same type and specification. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps is
normal; it disappears after the lamps have
been on for a few minutes.
Types of bulb
Various types of bulb are fitted to your vehicle.
To remove them:
Ty p e A
Ty p e B
Ty p e C
Ty p e D
All glass bulb: pull gently as it is fitted by
pressure. Bayonet bulb: press on the bulb then turn it
anti-clockwise.
Halogen bulb: release the retaining spring from
its housing.
Halogen bulb: turn the bulb anti-clockwise.
In the event of a breakdown

273
Halogen bulbs must be replaced with
the headlamps having been off for a few
minutes (risk of severe burns). Do not
touch the bulb directly, use a lint-free
cloth.
Ty p e E
When each operation has been
completed, check the operation of the
lighting.
Front lamps
Halogen headlamps
Xenon bulb: xenon bulbs must be changed by
a PEUGEOT dealer or a qualified workshop as
there is a risk of electrocution.For more information on Changing a bulb

and in particular the types of bulb, refer to the
corresponding section.
For H7 type bulbs withlugs, take care to
obser ve their correct installation so as to
ensure the best lighting performance.
Xenon headlamps
For more information on Changing a bulb
and in particular the types of bulb, refer to the
corresponding section.
1. Main beam headlamps.
Ty p e C , H1- 55W
2. Dipped beam headlamps.
Ty p e E , D8S 25W
3. Direction indicators.
Ty p e B , PY21W-21W (amber)
1.
Sidelamps.
Ty p e A , W5W-5W
2. Main beam headlamps.
Ty p e C , H1- 55W
3. Dipped beam headlamps.
Ty p e C , H7- 5 5 W
4. Daytime running lamps.
Ty p e A , W21W LL-21W
5. Direction indicators.
Ty p e B , PY21W-21W (amber)
8
In the event of a breakdown

274
Foglamps
Ty p e D, H11 - 5 5 W
Daytime running lamps/sidelamps
If fitted to your vehicle, contact a PEUGEOT
dealer or a qualified workshop for the
replacement of this type of LED lamp and light
guide.
A replacement kit for the LEDs is available from
PEUGEOT dealers.
Direction indicator side repeater
Ty p e A , W Y5W-5W (amber)
-
P
ush the repeater towards the rear and
disengage it.
-
W

hen refitting, engage the repeater towards
the front and then bring it towards the rear.
Amber coloured bulbs (direction indicators and
side repeaters) must be replaced with bulbs of
identical specification and colour.
Dipped beam headlamps
(halogen headlamps)
Ty p e C , H7- 5 5 W
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.
F

P
ress the upper clip on the cover then tip it
rear wards to remove it.
F

P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P
ull the bulb out and change it.
To refit, proceed in reverse order.
In the event of a breakdown

275
Daytime running lamps (halogen
headlamps)
Ty p e A, W21W LL-21W
Sidelamps (halogen headlamps)
Ty p e A, W5W
Main beam headlamps (halogen
headlamps)
Ty p e C, H1- 55W
F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

P

ress the two side clips on the electrical
connector and remove the assembly of
connector and bulb.
F

P

ull the bulb out and change it.
To refit, proceed in reverse order. F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

P

ress the two side clips on the electrical
connector and remove the assembly of
connector and bulb.
F

P

ull the bulb out and change it.
To refit, proceed in reverse order. F

P
ress the upper clip on the cover then tip it
rear wards to remove it.
F

P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P
ull the bulb out and change it.
To refit, proceed in reverse order.
Be aware that the area behind the right-
hand headlamp (facing forwards) may
be hot, with the risk of burns (degassing
p i p e s).
8
In the event of a breakdown

276
Direction indicators (halogen
headlamps)
Ty p e B, PY21W-21W (amber)
Faster flashing of the direction indicator
lamp (left or right) indicates a failed bulb
on that side.
Dipped beam headlamps
(xenon headlamps)
Ty p e E , D8S 25W
Replacement of D8S xenon bulbs must
be done by a PEUGEOT dealer or a
qualified workshop as there is a risk of
electrocution.
It is recommended that both D8S bulbs be
replaced at the same time, in the event of
the failure of one of them.
Main beam headlamps
(xenon headlamps)
Ty p e C , H1- 55W
When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.
F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

T

urn the bulb holder a quarter turn anti-
clockwise.
F

R

emove the bulb holder.
F

C

hange the faulty bulb.
To refit, proceed in reverse order. F

P
ress the upper clip on the cover then tip it
rear wards to remove it.
F

P
ress the lower clip on the electrical
connector and remove the assembly of
connector and bulb.
F

P
ull the bulb out and change it.
To refit, proceed in reverse order.
In the event of a breakdown

277
Direction indicators (xenon
headlamps)
Ty p e B, PY21W-21W (amber)
Faster flashing of the direction indicator
lamp (left or right) indicates a failed bulb
on that side.
Foglamps
Ty p e D , H11 - 5 5 W
F
B
elow the front bumper, unscrew the fixing
screws for the deflector A .
F

R
emove the deflector A . F

P
ress the locking clip and disconnect the
connector.
F

T
urn the bulb holder a quarter turn anti-
clockwise.
F

R
emove the bulb holder.
F

C
hange the faulty bulb.
To refit, proceed in reverse order.
You can also contact a PEUGEOT
dealer or a qualified workshop for the
replacement of these bulbs.
F

P

ress the upper clip on the cover then tip it
rear wards to remove it.
F

T

urn the bulb holder a quarter turn anti-
clockwise.
F

C

hange the faulty bulb.
To refit, proceed in reverse order.
8
In the event of a breakdown

278
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
1. Brake lamps/sidelamps.
Ty p e B , P21/5W-21/5W
2. Direction indicators.
Ty p e B , PY21W-21W (amber)
3. Reversing lamps.
Ty p e B , P21W-21W
4. Foglamps/sidelamps.
Ty p e B , P21/4W-21/4W
For vehicles with interior trim, contact a
PEUGEOT dealer or a qualified workshop
to have the work done. F

I
dentify the failed bulb then open the rear
doors.
F
F
rom inside, remove the air vent, if your
vehicle has one.
F

F
rom outside, unscrew the two fixing
screws.
F

W
hile holding the lamp in place, press the
clip located on the inside then carefully
remove the lamp.
F

D
isconnect the electrical connector.F

S
pread the 3 lugs slightly, then extract the
bulb holder.
F

R
emove the failed bulb by pressing
lightly on it, then turning it a quarter turn
clockwise.
F

R
eplace the bulb.
To refit, proceed in reverse order.
Rear lamps (side-hinged
rear doors)
In the event of a breakdown
