fold seats Peugeot Expert 2019 Owner's Manual

2
.
.
Instrument Panel 9
W arning and indicator lamps 1 0
Indicators
23
Distance recorders

2
7
Lighting dimmer

2
7
Trip computer

2
8
Setting the time and date

2
9
Electronic key with remote control function
and built-in key,

3
1
Unlocking/Complete or selective unlocking
3

3
Back-up procedures
3

8
Central locking / unlocking

4
1
Electric sliding side door(s)

4
3
General recommendations
for the sliding side doors

4
5
Hands-free sliding side door(s)

4
7
Side-hinged rear doors

4
9
Tailgate
5

0
Tailgate rear screen
5

0
Alarm


51
Electric windows

5
3Correct driving position

5
4
Front seats
5
4
2-seat front bench seat
5
6
Steering wheel adjustment
5
8
Mirrors 59
Moduwork
6
0
Precautions for the seats and bench seats
6
3
Fixed one-piece bench seat 6 4
Fixed rear seat and bench seat 6 6
Rear seat and bench seat on rails 6 8
Individual rear seat(s) on rails

7
1
Crew cab, fixed

7
3
Crew cab, folding

7
4
Interior fittings

7
5
Loading area fittings

7
9
Seating area fittings

8
1
Panoramic sunroof
8

2
Retractable sliding table
8

3
Heating and Ventilation
8

6
Heating
87
Manual air conditioning
8

7
Dual-zone automatic air conditioning
8

8
Recirculation of interior air

9
0
Front demisting - defrosting

9
0
Rear screen and/or door mirrors
demisting - defrosting

9
1
Rear heating - air conditioning
9

2
Additional Heating / Ventilation
9

2
Courtesy lamp(s)

9
5Lighting control stalk

9
7
Direction indicators
9
8
Daytime running lamps/Sidelamps
9
9
Automatic illumination of headlamps
9
9
Guide-me-home and welcome lighting
9
9
Cornering lighting
1
00
Automatic headlamp dipping
1
01
Manual headlamp beam height adjustment 1 02
Interior ambient lighting 1 02
Wiper control stalk 1 03
Automatic wiping
1

04
Changing a wiper blade
1

06
General safety recommendations
1

07
Hazard warning lamps
1

08
Emergency or assistance call
1

08
Audible warning
1

09
Electronic stability control (ESC)

1
09
Advanced Grip Control
1

12
Seat belts
1

13
Airbags


117
Child seats

1
20
Deactivating the front passenger airbag
1

22
ISOFIX child seats

1
29
Manual child lock

1
36
Electric child lock

1
36
Child lock on rear windows

1
37
Over view
Instruments
Access Ease of use and comfort
Safety
Lighting and visibility
Instruments and controls 4
L abels 5
Eco-driving
Contents

55

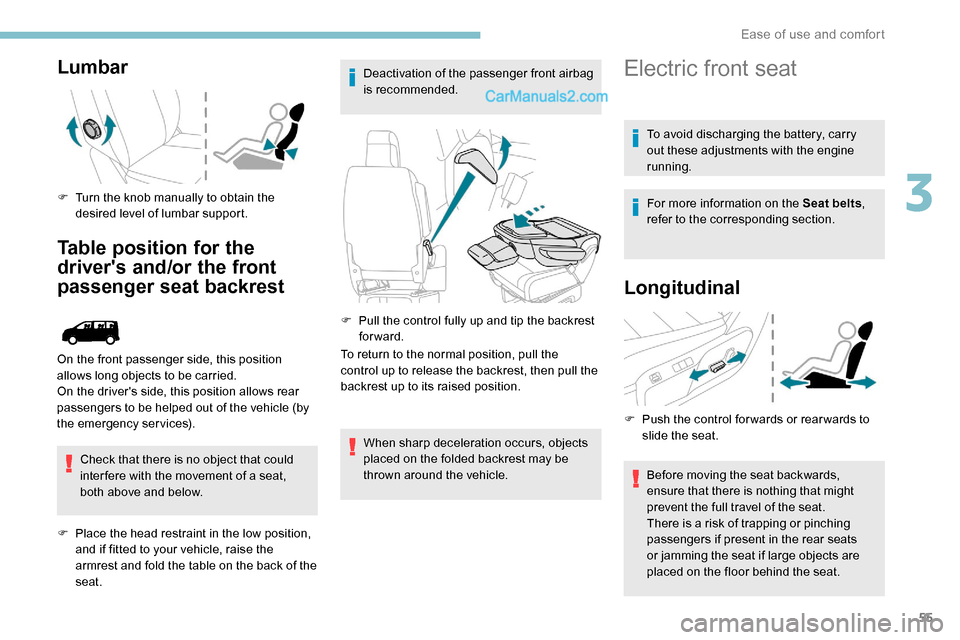

Lumbar
F Turn the knob manually to obtain the desired level of lumbar support.
Table position for the
driver's and/or the front
passenger seat backrest
Check that there is no object that could
inter fere with the movement of a seat,
both above and below.
F

P
lace the head restraint in the low position,
and if fitted to your vehicle, raise the
armrest and fold the table on the back of the
seat. Deactivation of the passenger front airbag
is recommended.
F
P
ull the control fully up and tip the backrest
forward.
To return to the normal position, pull the
control up to release the backrest, then pull the
backrest up to its raised position.
On the front passenger side, this position
allows long objects to be carried.
On the driver's side, this position allows rear
passengers to be helped out of the vehicle (by
the emergency services).
When sharp deceleration occurs, objects
placed on the folded backrest may be
thrown around the vehicle.
Electric front seat
To avoid discharging the battery, carry
out these adjustments with the engine
running.
For more information on the Seat belts,
refer to the corresponding section.
Longitudinal
F Push the control for wards or rear wards to slide the seat.
Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats
or jamming the seat if large objects are
placed on the floor behind the seat.
3
Ease of use and comfort

64

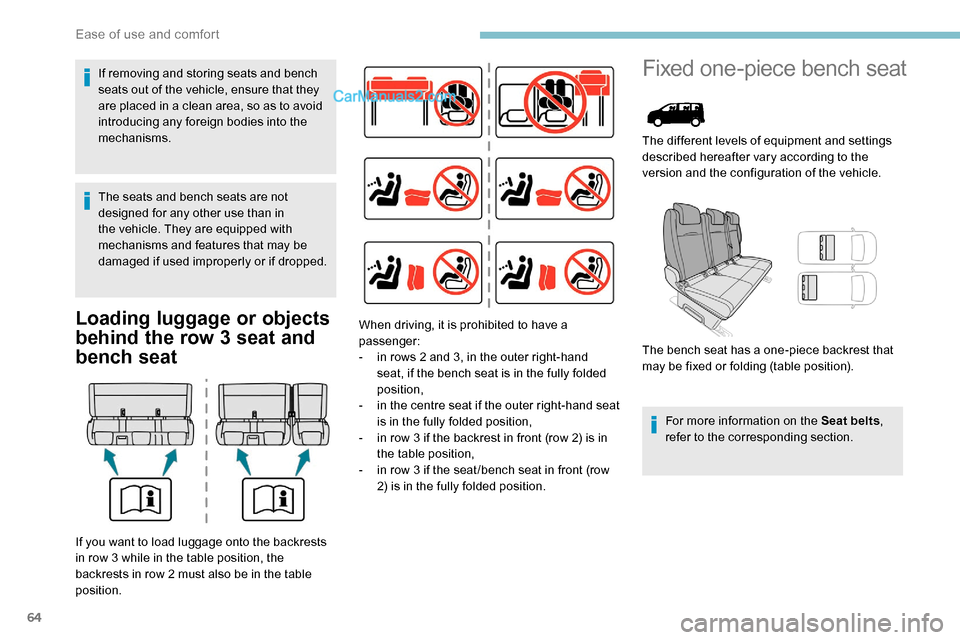

Loading luggage or objects
behind the row 3 seat and
bench seat
Fixed one-piece bench seat
The different levels of equipment and settings
described hereafter vary according to the
version and the configuration of the vehicle.
The bench seat has a one-piece backrest that
may be fixed or folding (table position).For more information on the Seat belts ,
refer to the corresponding section.
When driving, it is prohibited to have a
passenger:
-

i

n rows 2 and 3, in the outer right-hand
seat, if the bench seat is in the fully folded
position,
-

i

n the centre seat if the outer right-hand seat
is in the fully folded position,
-

i

n row 3 if the backrest in front (row 2) is in
the table position,
-

i

n row 3 if the seat /bench seat in front (row
2) is in the fully folded position.
If you want to load luggage onto the backrests
in row 3 while in the table position, the
backrests in row 2 must also be in the table
position. If removing and storing seats and bench
seats out of the vehicle, ensure that they
are placed in a clean area, so as to avoid
introducing any foreign bodies into the
mechanisms.
The seats and bench seats are not
designed for any other use than in
the vehicle. They are equipped with
mechanisms and features that may be
damaged if used improperly or if dropped.
Ease of use and comfort

77
On the passenger side, do not forget to
fold it before placing the seat in the "table"
position.
Do not place hard or heavy objects on
the table. They could become dangerous
projectiles in the event of emergency
braking or impact.
For more information on the Front seats
and, in particular, the "table" position of
the backrest, refer to the corresponding
section.

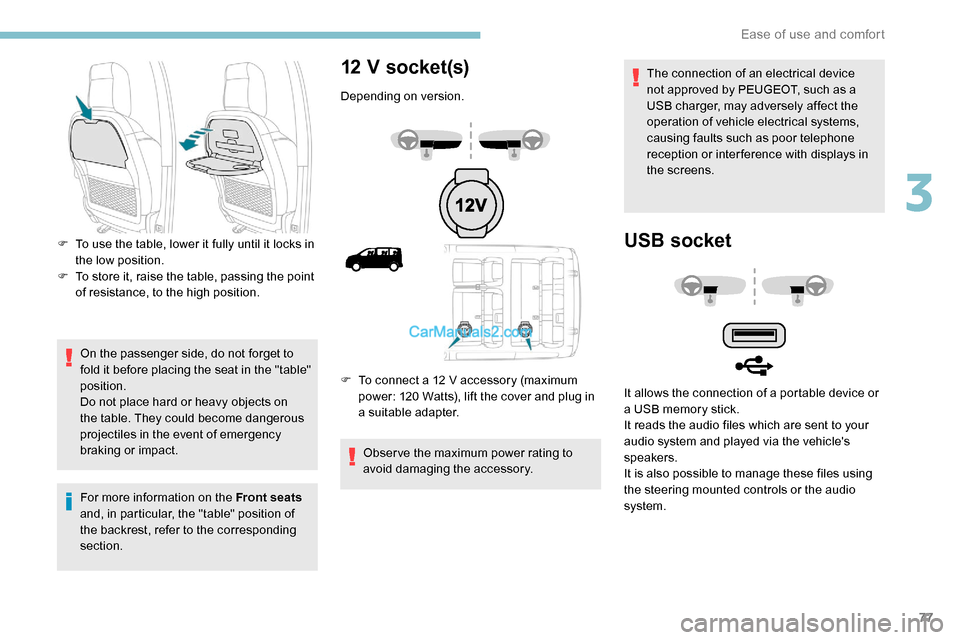

12 V socket(s)
Depending on version.
F
T
o connect a 12 V accessory (maximum
power: 120 Watts), lift the cover and plug in
a suitable adapter.
Obser ve the maximum power rating to
avoid damaging the accessory. The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays in
the screens.
USB socketF To use the table, lower it fully until it locks in
the low position.
F

T
o store it, raise the table, passing the point
of resistance, to the high position.
It allows the connection of a portable device or
a USB memory stick.
It reads the audio files which are sent to your
audio system and played via the vehicle's
speakers.
It is also possible to manage these files using
the steering mounted controls or the audio
system.
3
Ease of use and comfort

81

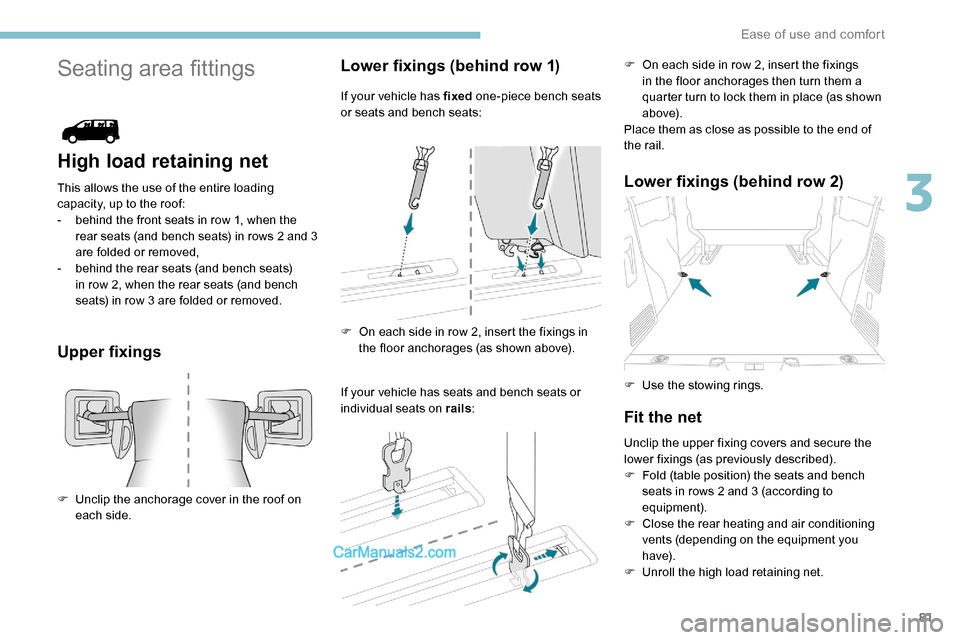

Seating area fittings
High load retaining net
This allows the use of the entire loading
capacity, up to the roof:
-
b
ehind the front seats in row 1, when the
rear seats (and bench seats) in rows 2 and 3
are folded or removed,
-
b

ehind the rear seats (and bench seats)
in row 2, when the rear seats (and bench
seats) in row 3 are folded or removed.
Upper fixings Lower fixings (behind row 1)
If your vehicle has fixed
one-piece bench seats
or seats and bench seats:
If your vehicle has seats and bench seats or
individual seats on rails :
Lower fixings (behind row 2)
Fit the net
F Unclip the anchorage cover in the roof on each side. F

O
n each side in row 2, insert the fixings in
the floor anchorages (as shown above). F
O
n each side in row 2, insert the fixings
in the floor anchorages then turn them a
quarter turn to lock them in place (as shown
a b ove).
Place them as close as possible to the end of
the rail.
F
U
se the stowing rings.
Unclip the upper fixing covers and secure the
lower fixings (as previously described).
F
F
old (table position) the seats and bench
seats in rows 2 and 3 (according to
equipment).
F

C
lose the rear heating and air conditioning
vents (depending on the equipment you
h ave).
F

U
nroll the high load retaining net.
3
Ease of use and comfort

85

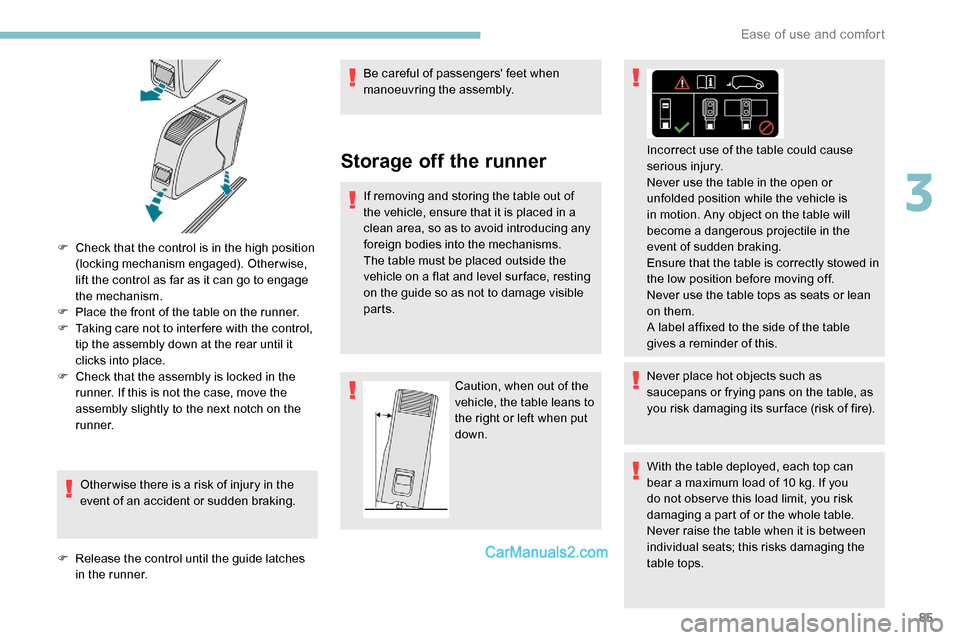

F Check that the control is in the high position (locking mechanism engaged). Otherwise,
lift the control as far as it can go to engage
the mechanism.
F

P
lace the front of the table on the runner.
F

T
aking care not to inter fere with the control,
tip the assembly down at the rear until it
clicks into place.
F

C
heck that the assembly is locked in the
runner. If this is not the case, move the
assembly slightly to the next notch on the
r u n n e r.
Other wise there is a risk of injury in the
event of an accident or sudden braking.
F

R
elease the control until the guide latches
in the runner. Be careful of passengers' feet when
manoeuvring the assembly.
Storage off the runner
If removing and storing the table out of
the vehicle, ensure that it is placed in a
clean area, so as to avoid introducing any
foreign bodies into the mechanisms.
The table must be placed outside the
vehicle on a flat and level sur face, resting
on the guide so as not to damage visible
parts.
Incorrect use of the table could cause
serious injury.
Never use the table in the open or
unfolded position while the vehicle is
in motion. Any object on the table will
become a dangerous projectile in the
event of sudden braking.
Ensure that the table is correctly stowed in
the low position before moving off.
Never use the table tops as seats or lean
on them.
A label affixed to the side of the table
gives a reminder of this.
Caution, when out of the
vehicle, the table leans to
the right or left when put
down. Never place hot objects such as
saucepans or frying pans on the table, as
you risk damaging its surface (risk of fire).
With the table deployed, each top can
bear a maximum load of 10 kg. If you
do not obser ve this load limit, you risk
damaging a part of or the whole table.
Never raise the table when it is between
individual seats; this risks damaging the
table tops.
3
Ease of use and comfort

115

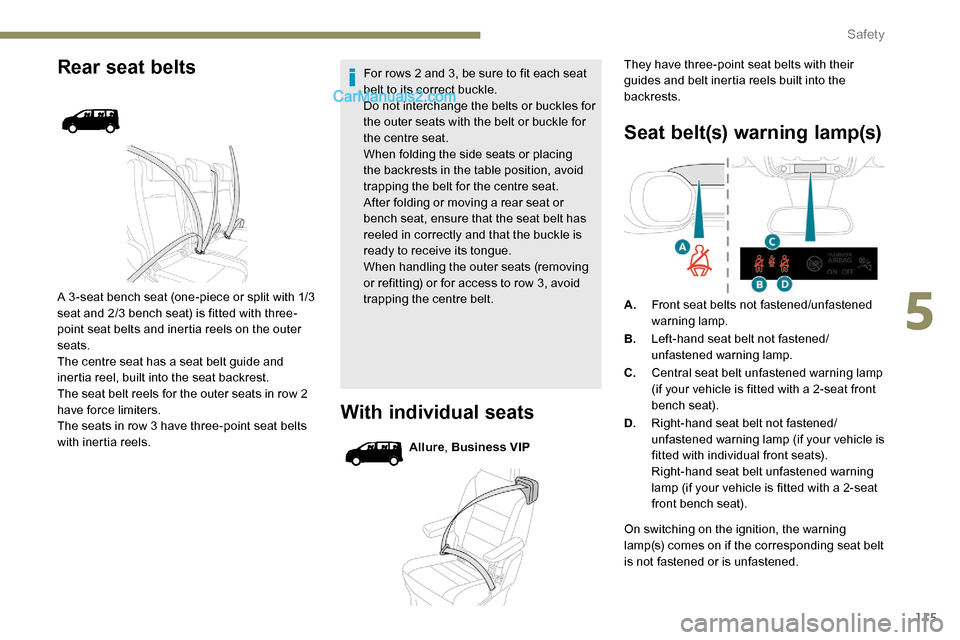

Rear seat belts
A 3 -seat bench seat (one-piece or split with 1/3
seat and 2/3 bench seat) is fitted with three-
point seat belts and inertia reels on the outer
seats.
The centre seat has a seat belt guide and
inertia reel, built into the seat backrest.
The seat belt reels for the outer seats in row 2
have force limiters.
The seats in row 3 have three-point seat belts
with inertia reels.For rows 2 and 3, be sure to fit each seat
belt to its correct buckle.
Do not interchange the belts or buckles for
the outer seats with the belt or buckle for
the centre seat.
When folding the side seats or placing
the backrests in the table position, avoid
trapping the belt for the centre seat.
After folding or moving a rear seat or
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to receive its tongue.
When handling the outer seats (removing
or refitting) or for access to row 3, avoid
trapping the centre belt.
With individual seats
Allure
, Business VIP They have three-point seat belts with their
guides and belt inertia reels built into the
backrests.
Seat belt(s) warning lamp(s)
A.
Front seat belts not fastened/unfastened
warning lamp.
B. Left-hand seat belt not fastened/
unfastened warning lamp.
C. Central seat belt unfastened warning lamp
(if your vehicle is fitted with a 2-seat front
bench seat).
D. Right-hand seat belt not fastened/
unfastened warning lamp (if your vehicle is
fitted with individual front seats).
Right-hand seat belt unfastened warning
lamp (if your vehicle is fitted with a 2-seat
front bench seat).
On switching on the ignition, the warning
lamp(s) comes on if the corresponding seat belt
is not fastened or is unfastened.
5
Safety

124

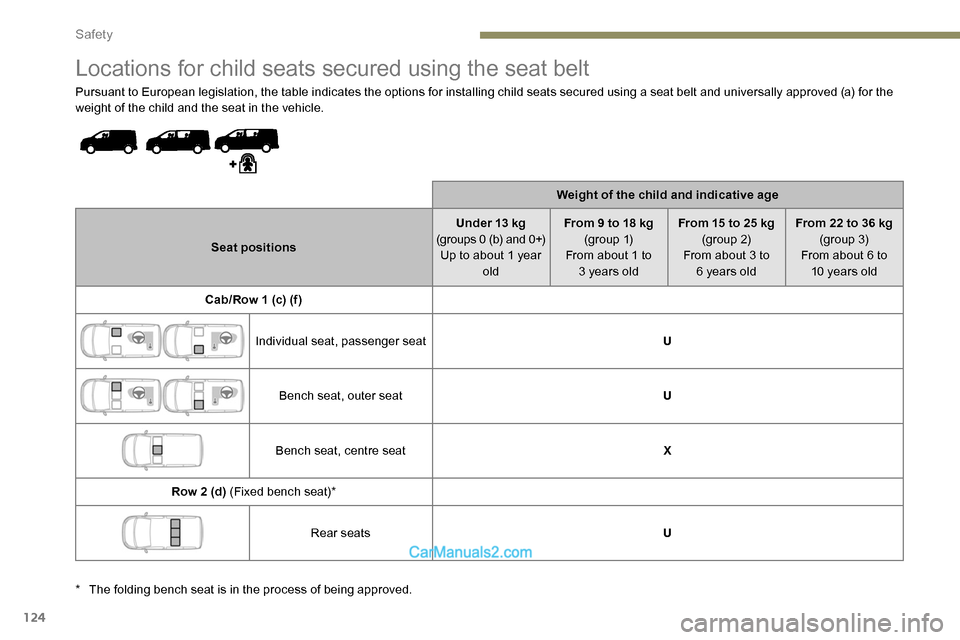

Locations for child seats secured using the seat belt
Pursuant to European legislation, the table indicates the options for installing child seats secured using a seat belt and universally approved (a) for the
weight of the child and the seat in the vehicle.Weight of the child and indicative age
Seat positions Under 13 kg
(groups 0 (b) and 0+) Up to about 1 year old From 9 to 18 kg
(g r o u p 1)
From about 1 to 3 years old From 15 to 25 kg
(group 2)
From about 3 to 6 years old From 22 to 36 kg
(group 3)
From about 6 to 10 years old
Cab/Row 1 (c) (f )
Individual seat, passenger seat U
Bench seat, outer seat U
Bench seat, centre seat X
Row 2 (d) (Fixed bench seat)* Rear seats U
*

T
he folding bench seat is in the process of being approved.
Safety

131

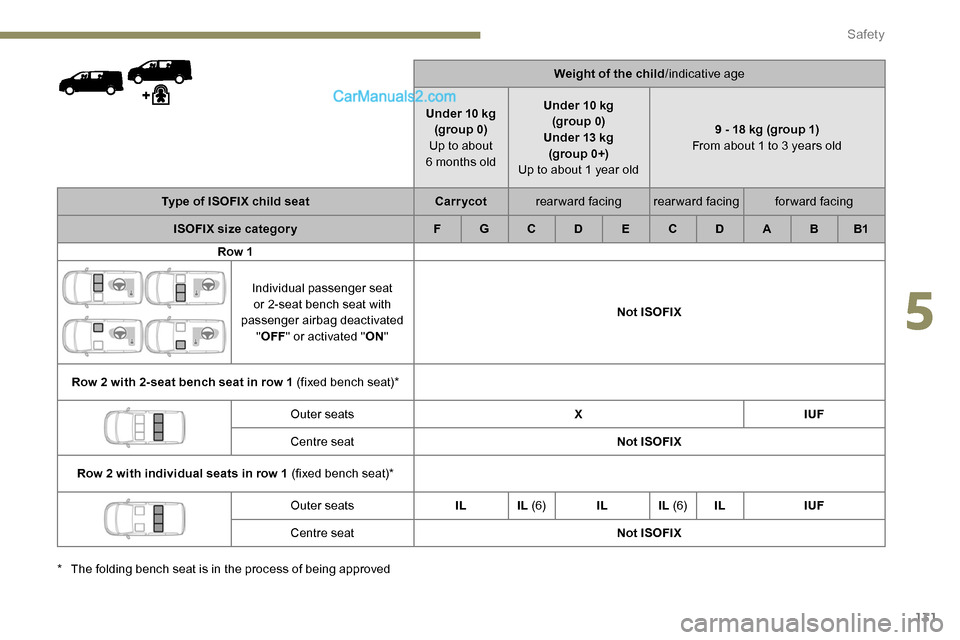

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about
6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old 9 - 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carr ycotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1
Individual passenger seat or 2-seat bench seat with
passenger airbag deactivated "OFF " or activated " ON" Not ISOFIX
Row 2 with 2-seat bench seat in row 1 (fixed bench seat)* Outer seats XIUF
Centre seat Not ISOFIX
Row 2 with individual seats in row 1 (fixed bench seat)* Outer seatsIL IL (6)IL IL (6)IL IUF
Centre seat Not ISOFIX
*

T

he folding bench seat is in the process of being approved
5
Safety

233

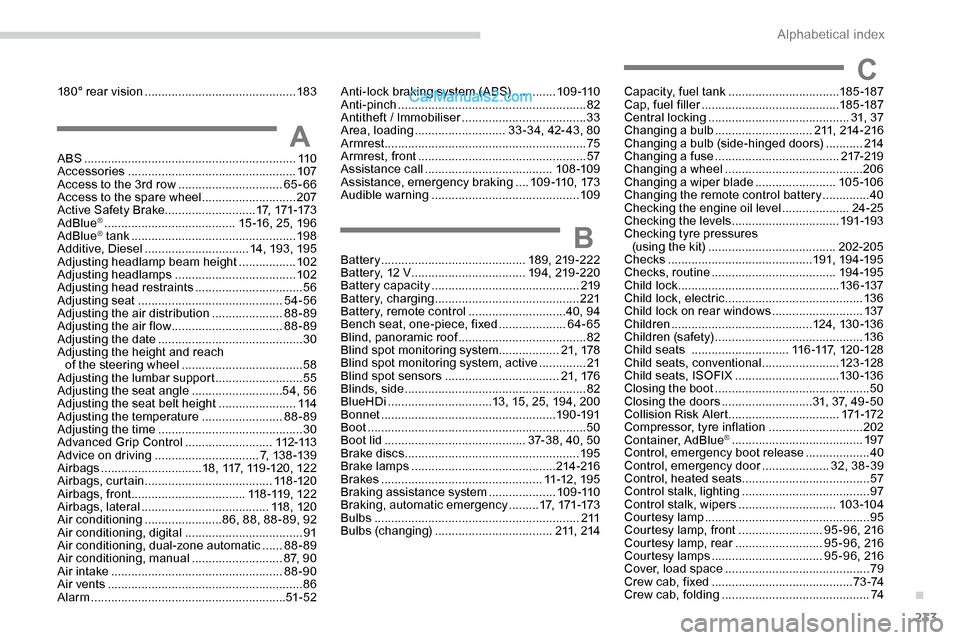

ABS ...............................................................11 0
Accessories .................................................. 107
Access to the 3rd row
...............................65-66
Access to the spare wheel
............................207
Active Safety Brake........................... 17, 171-173
AdBlue
® ....................................... 1 5 -16, 25, 196
AdBlue® tank ................................................. 19 8
Additive, Diesel ............................... 14, 193, 195
Adjusting headlamp beam height
................. 10

2
Adjusting headlamps


.................................... 102
Adjusting head restraints


................................ 56
Adjusting seat


........................................... 54-56
Adjusting the air distribution


.....................88-89
Adjusting the air flow
................................. 8

8-89
Adjusting the date


........................................... 30
Adjusting the height and reach of the steering wheel


.................................... 58
Adjusting the lumbar support
.......................... 55
A

djusting the seat angle

........................... 54, 56
Adjusting the seat belt height
....................... 11

4
Adjusting the temperature


........................88-89
Adjusting the time


........................................... 30
Advanced Grip Control


.......................... 112 -113
Advice on driving


............................... 7, 13 8 -13 9
Airbags
.............................. 1

8, 117, 119 -120, 122
Airbags, curtain


...................................... 11 8 -12 0
Airbags, front .................................. 11 8 -11 9 , 12 2
Airbags, lateral


...................................... 118, 120
Air conditioning


....................... 86, 88, 88 - 89, 92
Air conditioning, digital


................................... 91
Air conditioning, dual-zone automatic


......88-89
Air conditioning, manual
........................... 87

, 90
Air intake


................................................... 88-90
Air vents


.......................................................... 86
Alarm


.......................................................... 51- 5 2Anti-lock braking system (ABS)
.............
109 -110
Anti-pinch
........................................................ 8
2
Antitheft / Immobiliser
..................................... 33
A
rea, loading
...........................
3
3 -34, 42- 43, 80
Armrest
................
............................................
75
Armrest, front ..................................................
57
Assistance call
...............................
.......
108 -109
Assistance, emergency braking

....
109 -110, 173
Audible warning
............................................ 10
9Capacity, fuel tank

.................................
185 -187
Cap, fuel filler
...............................
..........
185 -187
Central locking
.......................................... 3
1, 37
Changing a bulb
............................. 21
1, 214 -216
Changing a bulb (side-hinged doors)
........... 2
14
Changing a fuse
..................................... 21
7-219
Changing a wheel
......................................... 20
6
Changing a wiper blade
........................ 10
5 -10 6
Changing the remote control battery

..............
40
Checking the engine oil level

....................
24-25
Checking the levels ................................
191-193
Checking tyre pressures (using the kit) ......................................202-205
Checks


...........................................191, 19 4 -195
Checks, routine


.....................................19 4 -195
Child lock


................................................13 6 -137
Child lock, electric


.........................................13 6
Child lock on rear windows
...........................137
Children


..........................................124, 13 0 -13 6
Children (safety)


............................................13 6
Child seats

.............................11

6 -117, 12 0 -12 8
Child seats, conventional


.......................123 -128
Child seats, ISOFIX
...............................13 0 -13 6
Closing the boot
..............................................50
Closing the doors


...........................31, 37, 49 -50
Collision Risk Alert ................................. 171-172
Compressor, tyre inflation


............................202
Container, AdBlue
® ....................................... 19 7
Control, emergency boot release ...................40
Control, emergency door
.................... 3

2, 38 -39
Control, heated seats


...................................... 57
Control stalk, lighting


...................................... 97
Control stalk, wipers

............................. 10

3 -104
Courtesy lamp

................................................. 95
Courtesy lamp, front
......................... 95 - 9 6, 216
Courtesy lamp, rear
.......................... 95 - 9 6, 216
Courtesy lamps

................................. 95 - 9 6, 216
Cover, load space

........................................... 79
Crew cab, fixed

.......................................... 7 3 -74
Crew cab, folding


............................................ 74
A
B
C
Battery ........................................... 189, 219-222
Battery, 12 V ............................... ...19 4, 219 -220
Battery capacity


............................................ 219
Battery, charging


........................................... 221
Battery, remote control


.............................40, 94
Bench seat, one-piece, fixed
.................... 6

4-65
Blind, panoramic roof


...................................... 82
Blind spot monitoring system
..................21, 178
Blind spot monitoring system, active
..............21
Blind spot sensors


.................................. 21, 176
Blinds, side


...................................................... 82
BlueHDi


............................... 13, 15, 25, 194, 200
Bonnet


.................................................... 19 0 -191
Boot


................................................................. 50
Boot lid


.......................................... 37-38, 40, 50
Brake discs


.................................................... 195
Brake lamps
...............................

............214 -216
Brakes


................................................ 11 -12 , 1 9 5
Braking assistance system
....................109 -110
Braking, automatic emergency


.........17, 171-173
Bulbs


............................................................. 2 11
Bulbs (changing)


................................... 211, 214
180° rear vision

.............................................
183
.
Alphabetical index
