towing Peugeot Expert 2019 Owner's Manual

3
.
.
Driving recommendations 138
Starting/switching off the engine 1 40
Parking brake

1
44
Hill start assist

1
44
5-speed manual gearbox
1

45
6-speed manual gearbox
1

45
Gear efficiency indicator

1
46
Automatic gearbox

1
46
Electronic gearbox
1

50
Stop & Start

1
52
Tyre under-inflation detection

1
54
Driving and manoeuvring aids - General
recommendations


156
Head-up display

1
58
Memorising speeds

1
59
Speed Limit recognition
and recommendation
1

60
Speed limiter
1

62
Cruise control - particular
recommendations


164
Cruise control

1
65
Adaptive Cruise Control

1
67
Active Safety Brake with Distance Alert and
Intelligent emergency braking assistance
1

71
Lane departure warning system

1
74
Fatigue detection system

1
75
Blind Spot Detection

1
76
Parking sensors
1

78
Reversing camera, interior mirror

1
80
Visiopark 1

1
80Compatibility of fuels 1
85
Refuelling 185
Diesel misfuel prevention

1
87
Snow chains

1
87
Towing device

1
88
Energy economy mode
1

89
Roof bars/Roof rack
1

89
Bonnet


19 0
Engine


191
Checking levels

1
91
Checks
19

4
AdBlue
® (BlueHDi) 1 96
Advice on care 1 99
Warning triangle
2

00
Running out of fuel (Diesel)

2
00
Tool box

2
01
Temporary puncture repair kit
2

02
Spare wheel
20

6
Changing a bulb
2

11
Changing a fuse
2

17
12 V battery

2
19
Towing


222Engine technical data and towed loads

2
24
Dimensions

228
Identification markings
2
31
Driving
Practical information
In the event of a breakdown Technical data
Alphabetical index
Access to additional videos
bit.ly/helpPSA
Audio equipment and telematics
Bluetooth audio system
PEUGEOT Connect Radio
PEUGEOT Connect Nav
.
Contents

49
If the "Hands-free access self-locking "
option is selected in the vehicle menu and
after closing the door, make sure that the
vehicle is locked.
This is because locking will not take place:
-

i
f the ignition is on,
-

i
f one of the doors or the tailgate is
open,
-

i
f a "Keyless Entry and Starting"
remote control is inside the vehicle.
If a number of actions with your foot have
no effect, wait a few seconds before
starting again.
The system is automatically deactivated in
heavy rain or with accumulations of snow.
If it does not work, make sure that the
remote control is not exposed to a
source of electromagnetic interference
(smartphone, etc.).
Operation may be affected if using a
prosthetic leg.
This system may not work correctly if the
vehicle is fitted with a towing device. The side door may open or close
erratically if:
-

t
he vehicle is fitted with a towball,
-

a t
railer is being hitched or unhitched,
-

a b
icycle carrier is being attached or
detached,
-

b
icycles are being loaded or unloaded
on a bicycle carrier,
-

s
omething is being placed or lifted
behind the vehicle,
-
an

animal approaches the bumper,
-

t
he vehicle is being washed,
-
y

our vehicle is being serviced,
-

a w
heel is being changed.
To avoid unwanted operation, keep the
key away from the detection zone (also
from the boot’s interior sides) or deactivate
the function in the vehicle configuration
menu.Side-hinged rear doors
F After first opening the left-hand door, pull the lever A towards you to open the right-
hand door.
Closing
F First close the right-hand door, then the left-hand door.
If the left-hand door is closed
first, a buffer stop located on
the edge of the right-hand
door prevents it closing.
Ensure that no person or object could
prevent the correct opening or closing of
the doors.
Be aware of children when operating the
doors.
If the left-hand side-hinged door is not fully
closed, the "door open" warning lamp comes
on (the right-hand door is not detected). For
more information on the list of warning and
indicator lamps and in particular the door open
warning, refer to the corresponding section.
2
Access

74

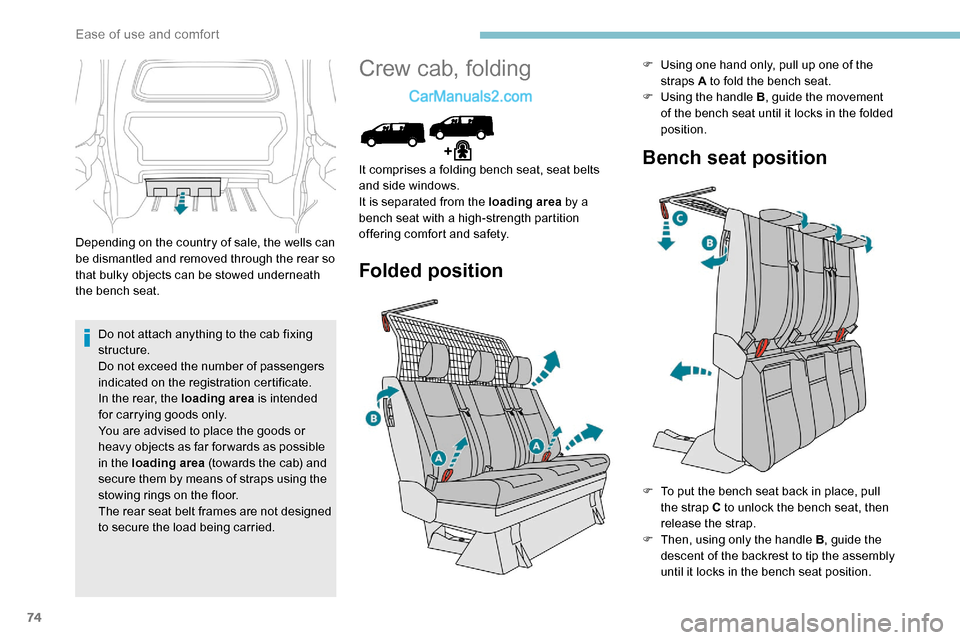

Depending on the country of sale, the wells can
be dismantled and removed through the rear so
that bulky objects can be stowed underneath
the bench seat.Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the loading area is intended
for carrying goods only.
You are advised to place the goods or
heavy objects as far for wards as possible
in the loading area (towards the cab) and
secure them by means of straps using the
stowing rings on the floor.
The rear seat belt frames are not designed
to secure the load being carried.
Crew cab, folding
It comprises a folding bench seat, seat belts
and side windows.
It is separated from the loading area by a
bench seat with a high-strength partition
offering comfort and safety.
Folded position
F Using one hand only, pull up one of the straps A to fold the bench seat.
F

Us
ing the handle B , guide the movement
of the bench seat until it locks in the folded
position.
F

T
o put the bench seat back in place, pull
the strap C to unlock the bench seat, then
release the strap.
F

T
hen, using only the handle B , guide the
descent of the backrest to tip the assembly
until it locks in the bench seat position.
Bench seat position
Ease of use and comfort

75

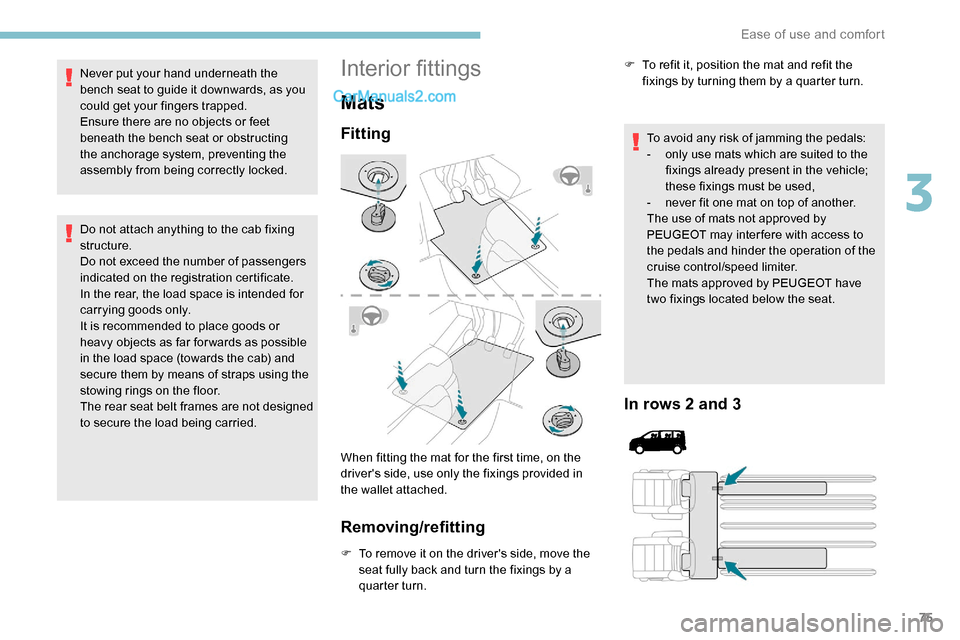

Never put your hand underneath the
bench seat to guide it downwards, as you
could get your fingers trapped.
Ensure there are no objects or feet
beneath the bench seat or obstructing
the anchorage system, preventing the
assembly from being correctly locked.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the load space is intended for
carrying goods only.
It is recommended to place goods or
heavy objects as far for wards as possible
in the load space (towards the cab) and
secure them by means of straps using the
stowing rings on the floor.
The rear seat belt frames are not designed
to secure the load being carried.Interior fittings
Mats
Fitting
When fitting the mat for the first time, on the
driver's side, use only the fixings provided in
the wallet attached.
Removing/refitting
F To remove it on the driver's side, move the seat fully back and turn the fixings by a
quarter turn. F

T
o refit it, position the mat and refit the
fixings by turning them by a quarter turn.
To avoid any risk of jamming the pedals:
-
o
nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-
n
ever fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of the
cruise control/speed limiter.
The mats approved by PEUGEOT have
two fixings located below the seat.
In rows 2 and 3
3
Ease of use and comfort

78
When the USB socket is used, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the portable
device exceeds the amperage supplied by
the vehicle.
For more information on the use of this
equipment, refer to the Audio equipment
and telematics section.
JACK socket
This allows the connection of a portable device
for listening to audio files via the vehicle's
speakers.
The files are managed using the portable
device.
For more details on how to use this
equipment, refer to the Audio equipment
and telematics section.
220 V socket
If your vehicle is so equipped, a 220 V/50 Hz
socket (maximum power: 150 W) is located
underneath the front right-hand seat and is
therefore accessible from the second row.
It operates with the engine running, as well as
in STOP mode of Stop & Start.
F

Ra
ise the cover.
F

C
heck that the indicator lamp is on in green.
F

C
onnect your multimedia or other electrical
device (telephone charger, laptop computer,
CD-DVD player, bottle warmer, etc.).
In the event of a fault, the warning lamp flashes
green.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Luggage retaining net
Attached to the stowing rings on the rear floor,
it allows objects to be held down. Connect only one device at a time to the
socket (no extension lead or multi-socket
connector).
Connect only devices with class II
insulation (shown on the device).
Do not use a device with a metal case.
As a safety measure, when electrical
consumption is high and when required by
the vehicle's electrical system (particular
weather conditions, electrical overload,
etc.), the current supply to the socket will
be cut off; the green indicator lamp goes
of f.
Ease of use and comfort

79

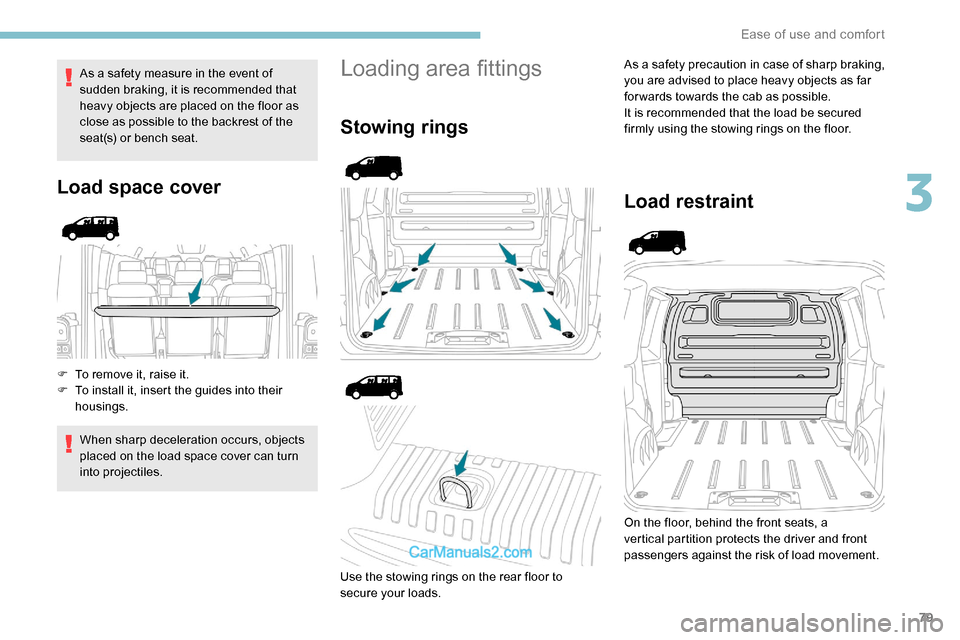

As a safety measure in the event of
sudden braking, it is recommended that
heavy objects are placed on the floor as
close as possible to the backrest of the
seat(s) or bench seat.
Load space cover
F To remove it, raise it.
F T o install it, insert the guides into their
housings.
When sharp deceleration occurs, objects
placed on the load space cover can turn
into projectiles.
Loading area fittings
Stowing rings
As a safety precaution in case of sharp braking,
you are advised to place heavy objects as far
for wards towards the cab as possible.
It is recommended that the load be secured
firmly using the stowing rings on the floor.
Load restraint
On the floor, behind the front seats, a
vertical partition protects the driver and front
passengers against the risk of load movement.
Use the stowing rings on the rear floor to
secure your loads.
3
Ease of use and comfort

80
Recommendations on
loading
The weight of the load must comply with
the Gross Train Weight (GTW).
For more information on Engine
technical data and towed loads, refer to
the corresponding section.
If you are using a carrying system (roof
bars/roof rack), comply with the maximum
loads associated with this system.
For more information on Roof bars/Roof
rack , refer to the corresponding section.
Make sure that the size, shape and
volume of the loads carried are compatible
with the highway code and safety
regulations and do not impair the driver’s
field of vision.
Steel or glass partitions separate the loading
area from the cab.
The load must be evenly distributed in the
loading area so as not to inter fere with
driving the vehicle.
Place the load close to the side panels,
or even push it against the side panels
between the wheel arches.
However, it is recommended that heavy
objects are placed as close to the cab as
possible as a precaution in case of sharp
braking.
Firmly secure all parts of the load using
the stowing rings on the floor of the
loading area.
For more information on the Interior
fittings
and in particular on the stowing
rings, refer to the corresponding section. To avoid the risk of injury or accident, the
load must be made stable so that it cannot
slide, tip over, fall or be thrown. To do this,
use only retaining straps that conform to
current standards (DIN for example).
For more information on putting straps
in place, refer to the manufacturer’s user
guide.
There must not be any empty space
between the components of the load.
To prevent the load sliding, there must not
be any empty space between the load and
the panels of the vehicle.
As well as the straps, optimise the stability
of the load with stable handling equipment
(wedges, rigid blocks of wood or padding).
When washing your vehicle, never clean
the inside directly using a water jet.
Ease of use and comfort

81
Seating area fittings
High load retaining net
This allows the use of the entire loading
capacity, up to the roof:
-
b
ehind the front seats in row 1, when the
rear seats (and bench seats) in rows 2 and 3
are folded or removed,
-
b

ehind the rear seats (and bench seats)
in row 2, when the rear seats (and bench
seats) in row 3 are folded or removed.
Upper fixings Lower fixings (behind row 1)
If your vehicle has fixed
one-piece bench seats
or seats and bench seats:
If your vehicle has seats and bench seats or
individual seats on rails :
Lower fixings (behind row 2)
Fit the net
F Unclip the anchorage cover in the roof on each side. F

O
n each side in row 2, insert the fixings in
the floor anchorages (as shown above). F
O
n each side in row 2, insert the fixings
in the floor anchorages then turn them a
quarter turn to lock them in place (as shown
a b ove).
Place them as close as possible to the end of
the rail.
F
U
se the stowing rings.
Unclip the upper fixing covers and secure the
lower fixings (as previously described).
F
F
old (table position) the seats and bench
seats in rows 2 and 3 (according to
equipment).
F

C
lose the rear heating and air conditioning
vents (depending on the equipment you
h ave).
F

U
nroll the high load retaining net.
3

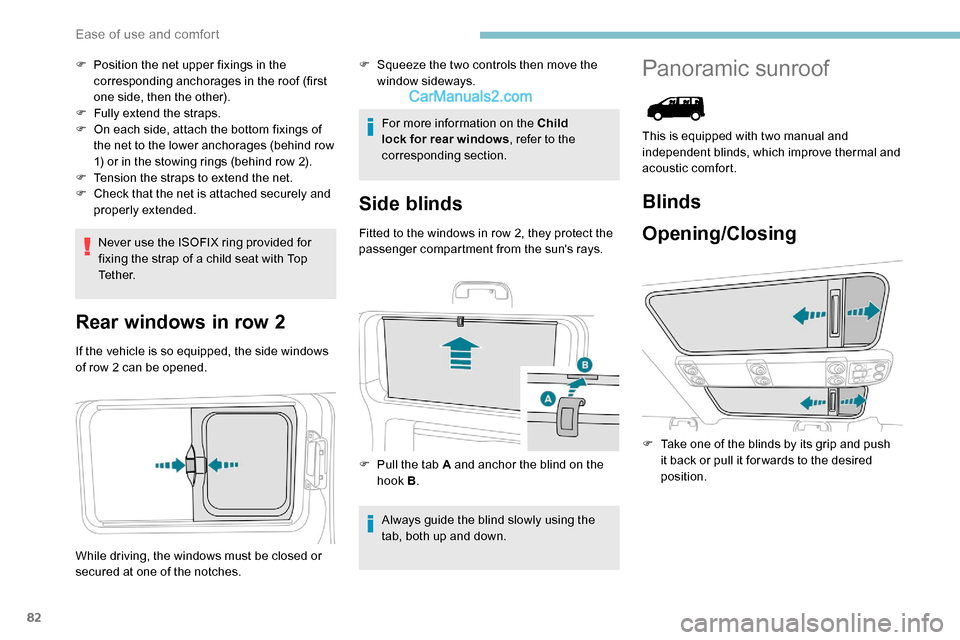

Ease of use and comfort

82
F Position the net upper fixings in the corresponding anchorages in the roof (first
one side, then the other).
F

F
ully extend the straps.
F

O
n each side, attach the bottom fixings of
the net to the lower anchorages (behind row
1) or in the stowing rings (behind row 2).
F

T
ension the straps to extend the net.
F

C
heck that the net is attached securely and
properly extended.
Never use the ISOFIX ring provided for
fixing the strap of a child seat with Top
Tether.
Rear windows in row 2
If the vehicle is so equipped, the side windows
of row 2 can be opened. For more information on the Child
lock for rear windows
, refer to the
corresponding section.
Side blinds
Fitted to the windows in row 2, they protect the
passenger compartment from the sun's rays.
While driving, the windows must be closed or
secured at one of the notches. Always guide the blind slowly using the
tab, both up and down.
F

P
ull the tab A and anchor the blind on the
hook B .
Panoramic sunroof
This is equipped with two manual and
independent blinds, which improve thermal and
acoustic comfort.
Blinds
Opening/Closing
F Take one of the blinds by its grip and push
it back or pull it for wards to the desired
position.
F

S

queeze the two controls then move the
window sideways.
Ease of use and comfort

84
F Pull each table top fully up then pivot them on each side into the horizontal position.
Folding
F Raise each table top, going beyond the point of resistance, to the vertical position.
F

P
ush each table top down into its housing
until it clicks into place.
F

P
ush the control then tip the table assembly
downward until it clicks into place.
Before stowing the table tops, check that
they are clear. Before tipping the assembly
down, check that the two table tops have
clicked home in the low position and that
there is nothing in the cup holder area
(such as a can or pen).
Cup holders
Two cups or cans and small objects (such as
a credit card, portable ashtray or pen) can be
carried in the middle of the unfolded table.
Liquids carried in an open vessel (a cup
or mug) could be spilt, presenting a risk.
Be careful.
Never use the table in this position while
the vehicle is being driven.
Removal
F Raise the control fully to release the anchorages and tip the table assembly
forward.
F

R
emove the table assembly through the
sliding door in row 2.
Changing the direction
Remove a seat to make this easier.
Refitting
F Check that there is no object obstructing the runner and preventing locking.Check that there is nothing in the space
around the runner on the floor, so that the
table disengages cleanly.
With the table removed, you can turn it 180°.
Ease of use and comfort
