PEUGEOT EXPERT 2021 Owners Manual

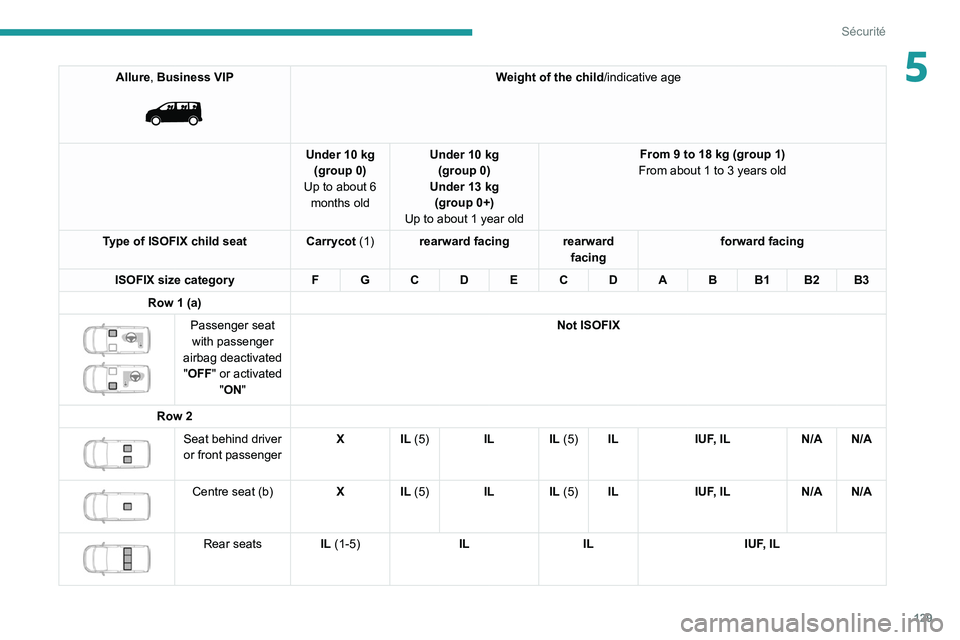

129
Sécurité
5Allure, Business VIP

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 1 (a)


Passenger seat with passenger
airbag deactivated "OFF " or activated
"ON" Not ISOFIX
Row 2


Seat behind driver
or front passenger X IL (5)
IL IL (5)ILIUF, IL N/A N/A


Centre seat (b) X IL (5) IL IL (5)ILIUF, IL N/A N/A


Rear seats IL (1-5) ILIL IUF, IL

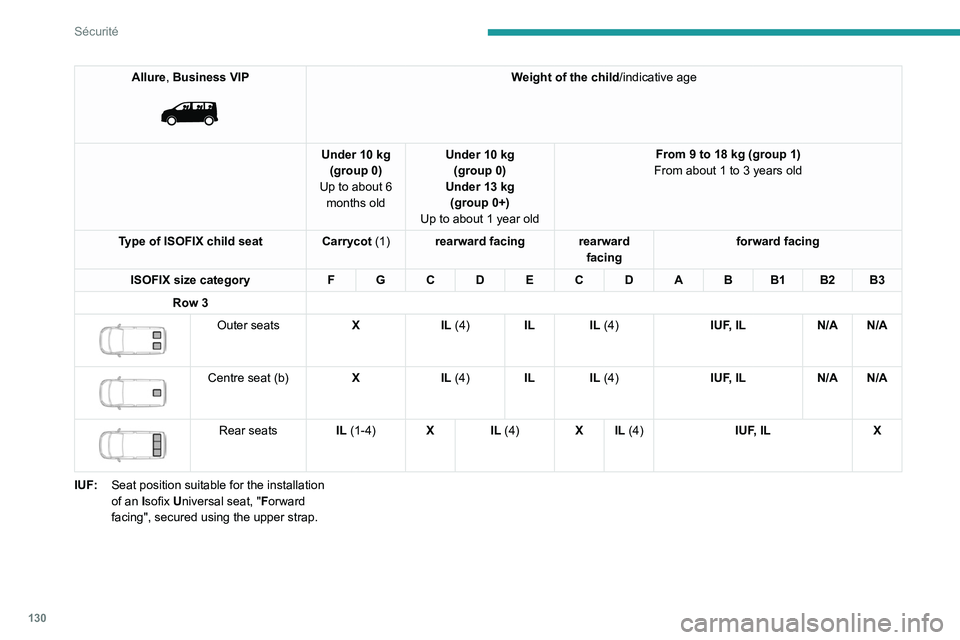

130
Sécurité
Allure, Business VIP

Weight of the child/indicative age
Under 10 kg (group 0)
Up to about 6 months old Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year old From 9 to 18 kg (group 1)
From about 1 to 3 years old
Type of ISOFIX child seat Carrycot (1)rearward facing rearward
facingforward facing
ISOFIX size category F G C D E C D A B B1 B2 B3
Row 3


Outer seats XIL (4)IL IL (4) IUF, ILN/A N/A


Centre seat (b) XIL (4)IL IL (4) IUF, ILN/A N/A


Rear seats IL (1-4)X IL (4) X IL (4) IUF, ILX
IUF: Seat position suitable for the installation
of an Isofix Universal seat, "Forward
facing", secured using the upper strap.

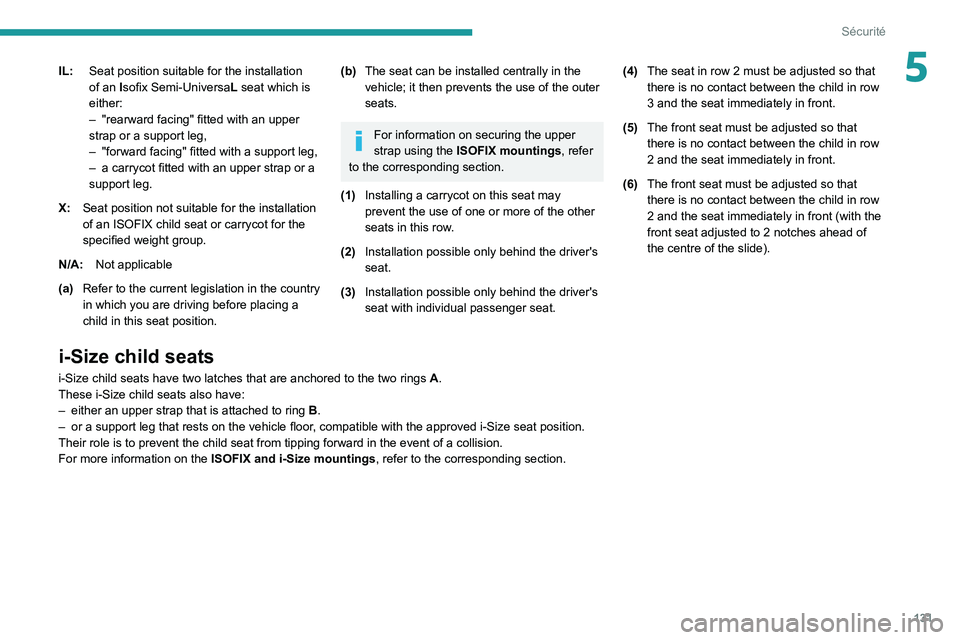

131
Sécurité
5IL:Seat position suitable for the installation
of an
Isofix Semi-Universa L seat which is
either:
–

"rearward facing" fitted with an upper
strap or a support leg,
–


"forward facing" fitted with a support leg,
–


a carrycot fitted with an upper strap or a
support leg.
X: Seat position not suitable for the installation
of

an ISOFIX child seat or carrycot for the
specified weight group.
N/A: Not applicable
(a) Refer to the current legislation in the country
in which you are driving before placing a
child in this seat position.(b)The seat can be installed centrally in the
vehicle; it then prevents the use of the outer
seats.
For information on securing the upper
strap using the ISOFIX mountings , refer
to the corresponding section.
(1) Installing a carrycot on this seat may
prevent the use of one or more of the other
seats in this row.
(2) Installation possible only behind the driver's
seat.
(3) Installation possible only behind the driver's
seat with individual passenger seat. (4)
The seat in row 2 must be adjusted so that
there is no contact between the child in row
3 and the seat immediately in front.
(5) The front seat must be adjusted so that
there is no contact between the child in row
2 and the seat immediately in front.
(6) The front seat must be adjusted so that
there is no contact between the child in row
2 and the seat immediately in front (with the
front seat adjusted to 2 notches ahead of
the centre of the slide).
i-Size child seats
i-Size child seats have two latches that are anchored to the two rings A.
These i-Size child seats also have:
–

either an upper strap that is attached to ring B

.
–

or a support leg that rests on the vehicle floor
, compatible with the approved i-Size seat position.
Their role is to prevent the child seat from tipping forward in the even\
t of a collision.
For more information on the ISOFIX and i-Size mountings , refer to the corresponding section.

132
Sécurité

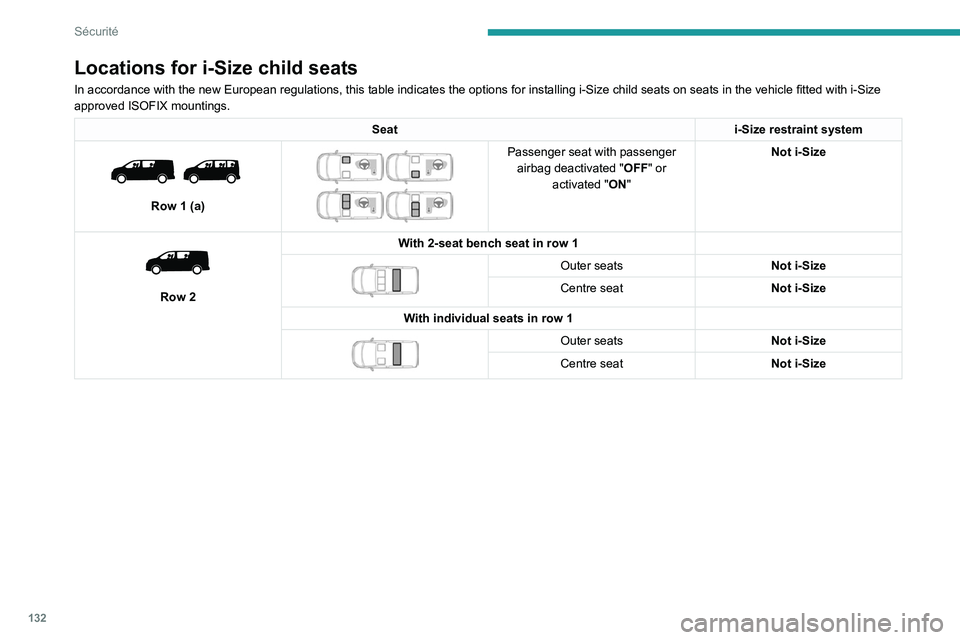

Locations for i-Size child seats
In accordance with the new European regulations, this table indicates the options for installing i-Size child seats on seats in the vehicle fitted with i-Size
approved ISOFIX mountings.
Seati-Size restraint system

Row 1 (a)


Passenger seat with passenger
airbag deactivated " OFF" or
activated "ON" Not i-Size


Row 2 With 2-seat bench seat in row 1


Outer seats
Not i-Size
Centre seat Not i-Size
With individual seats in row 1


Outer seats Not i-Size
Centre seat Not i-Size

133
Sécurité

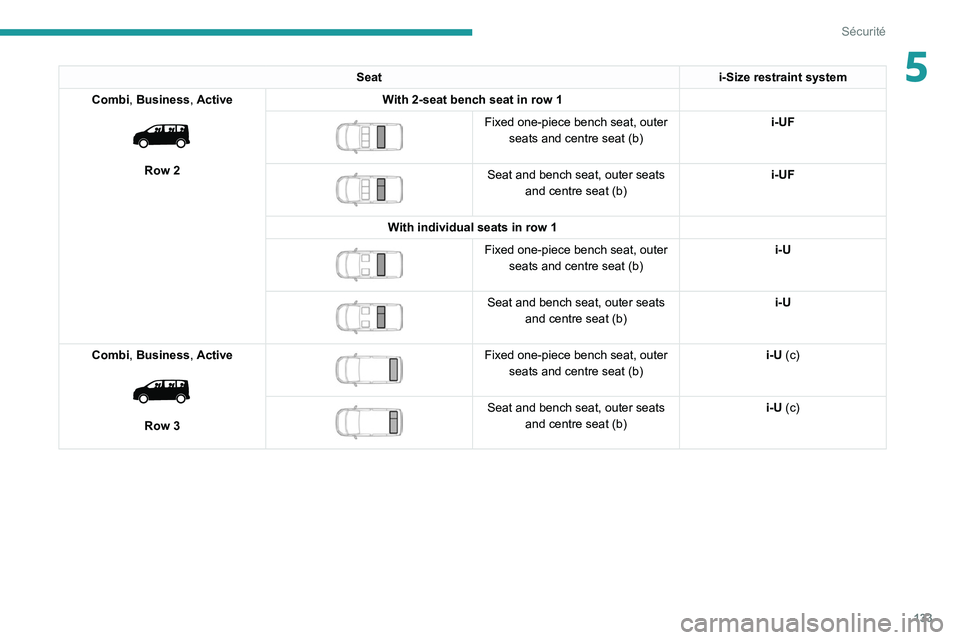

5Seati-Size restraint system
Combi, Business, Active


Row 2 With 2-seat bench seat in row 1


Fixed one-piece bench seat, outer
seats and centre seat (b) i-UF


Seat and bench seat, outer seats
and centre seat (b) i-UF
With individual seats in row 1


Fixed one-piece bench seat, outer seats and centre seat (b) i-U


Seat and bench seat, outer seats
and centre seat (b) i-U
Combi, Business, Active


Row 3


Fixed one-piece bench seat, outer seats and centre seat (b) i-U (c)


Seat and bench seat, outer seats
and centre seat (b) i-U (c)

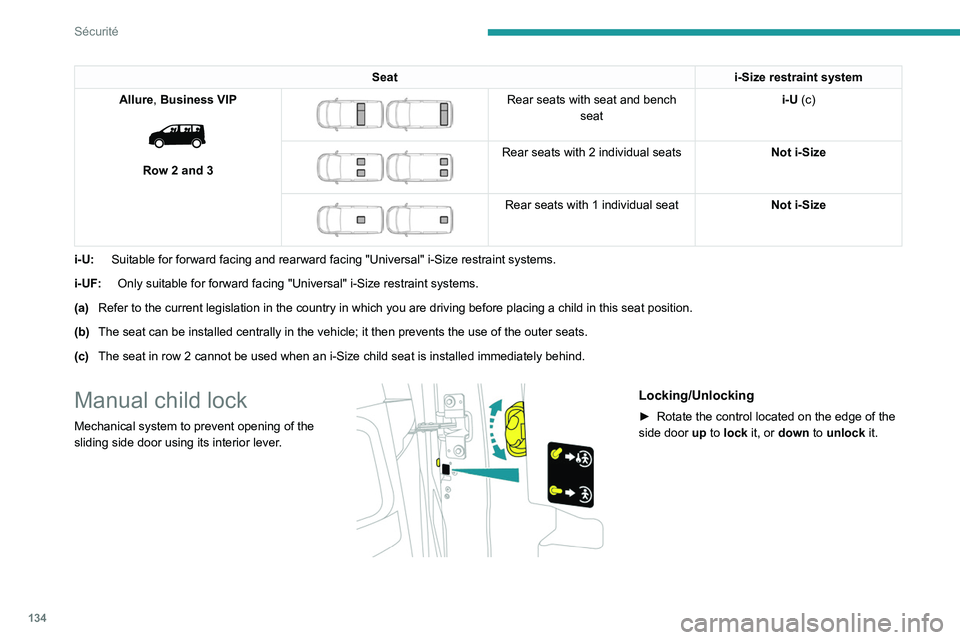

134
Sécurité
Seati-Size restraint system
Allure, Business VIP


Row 2 and 3


Rear seats with seat and bench seat i-U (c)


Rear seats with 2 individual seats
Not i-Size


Rear seats with 1 individual seatNot i-Size
i-U: Suitable for forward facing and rearward facing "Universal" i-Size restr\
aint systems.
i-UF: Only suitable for forward facing "Universal" i-Size restraint systems.
(a) Refer to the current legislation in the country in which you are driving\
before placing a child in this seat position.
(b) The seat can be installed centrally in the vehicle; it then prevents the use of the outer seats.
(c) The seat in row 2 cannot be used when an i-Size child seat is installed \
immediately behind.
Manual child lock
Mechanical system to prevent opening of the
sliding side door using its interior lever.


Locking/Unlocking
► Rotate the control located on the edge of the
side door up
to lock it, or down to unlock it.

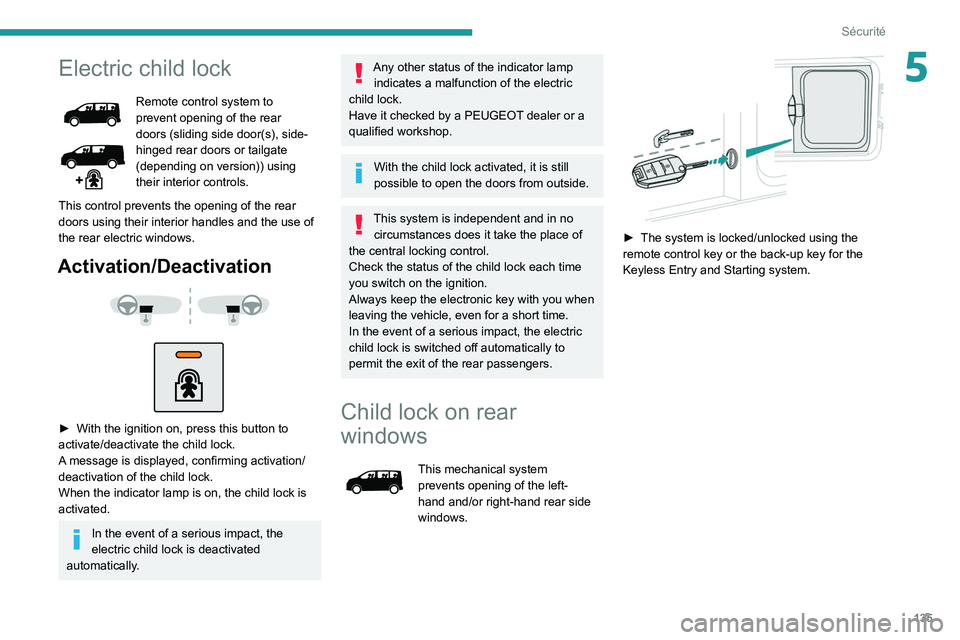

135
Sécurité
5Electric child lock
Remote control system to
prevent opening of the rear
doors (sliding side door(s), side-
hinged rear doors or tailgate
(depending on version)) using
their interior controls.
This control prevents the opening of the rear
doors using their interior handles and the use of
the rear electric windows.
Activation/Deactivation



► With the ignition on, press this button to
activate/deactivate the child lock.
A
message is displayed, confirming activation/
deactivation of the child lock.
When the indicator lamp is on, the child lock is
activated.
In the event of a serious impact, the
electric child lock is deactivated
automatically.
Any other status of the indicator lamp indicates a malfunction of the electric
child lock.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
With the child lock activated, it is still
possible to open the doors from outside.
This system is independent and in no circumstances does it take the place of
the central locking control.
Check the status of the child lock each time
you switch on the ignition.
Always keep the electronic key with you when
leaving the vehicle, even for a short time.
In the event of a serious impact, the electric
child lock is switched off automatically to
permit the exit of the rear passengers.
Child lock on rear
windows
This mechanical system
prevents opening of the left-
hand and/or right-hand rear side
windows.


► The system is locked/unlocked using the
remote control key or the back-up key for the
Keyless Entry and Starting system.

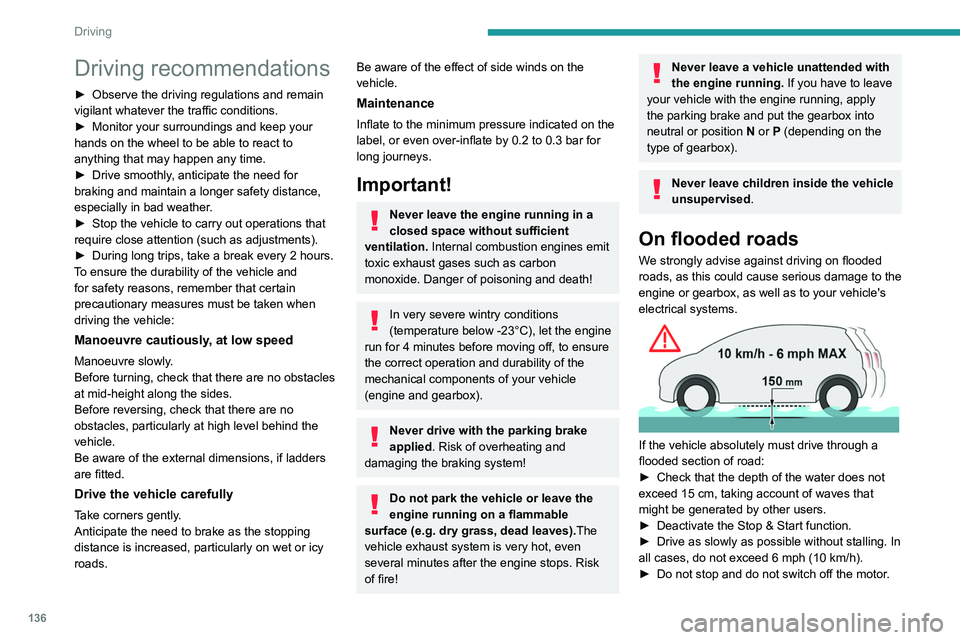

136
Driving
Driving recommendations
► Observe the driving regulations and remain
vigilant whatever the traffic conditions.
►

Monitor your surroundings and keep your
hands on the wheel to be able to react to
anything that may happen any time.
►


Drive smoothly
, anticipate the need for
braking and maintain a longer safety distance,
especially in bad weather.
►

Stop the vehicle to carry out operations that
require close attention (such as adjustments).
►


During long trips, take a break every 2 hours.
T

o ensure the durability of the vehicle and
for safety reasons, remember that certain
precautionary measures must be taken when
driving the vehicle:
Manoeuvre cautiously, at low speed
Manoeuvre slowly.
Before turning, check that there are no obstacles
at mid-height along the sides.
Before reversing, check that there are no
obstacles, particularly at high level behind the
vehicle.
Be aware of the external dimensions, if ladders
are fitted.
Drive the vehicle carefully
Take corners gently.
Anticipate the need to brake as the stopping
distance is increased, particularly on wet or icy
roads.
Be aware of the effect of side winds on the
vehicle.
Maintenance
Inflate to the minimum pressure indicated on the
label, or even over-inflate by 0.2 to 0.3 bar for
long journeys.
Important!
Never leave the engine running in a
closed space without sufficient
ventilation. Internal combustion engines emit
toxic exhaust gases such as carbon
monoxide. Danger of poisoning and death!
In very severe wintry conditions
(temperature below -23°C), let the engine
run for 4 minutes before moving off, to ensure
the correct operation and durability of the
mechanical components of your vehicle
(engine and gearbox).
Never drive with the parking brake
applied . Risk of overheating and
damaging the braking system!
Do not park the vehicle or leave the
engine running on a flammable
surface (e.g. dry grass, dead leaves).The
vehicle exhaust system is very hot, even
several minutes after the engine stops. Risk
of fire!
Never leave a vehicle unattended with
the engine running. If you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral or position N or P (depending on the
type of gearbox).
Never leave children inside the vehicle
unsupervised.
On flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage to the
engine or gearbox, as well as to your vehicle's
electrical systems.


If the vehicle absolutely must drive through a
flooded section of road:
►

Check that the depth of the water does not
exceed 15

cm, taking account of waves that
might be generated by other users.
►

Deactivate the Stop & Start function.
►


Drive as slowly as possible without stalling. In
all cases, do not exceed 6 mph (10

km/h).
►

Do not stop and do not switch off the motor
.
On leaving the flooded road, as soon as safety
conditions allow, make several light brake
applications to dry the brake discs and pads.
If in doubt about the state of your vehicle,
contact a PEUGEOT dealer or a qualified
workshop.
Noise (Electric)
On the outside
Due to the vehicle’s quiet operation when
driving, the driver must pay particular attention.
At speeds of up to 19 mph (30 km/h), the
pedestrian horn warns other road users of the
vehicle’s presence.
Cooling the traction battery
The cooling fan comes on during
charging to cool the on-board charger and the
traction battery.
On the inside
During use, you may hear certain perfectly
normal noises specific to electric vehicles, such
as:
– Traction battery relay when starting.
– Vacuum pump when braking.
– Vehicle tyres or aerodynamics when driving.
– Jolting and knocking noise during hill starts.

137
Driving
6On leaving the flooded road, as soon as safety
conditions allow, make several light brake
applications to dry the brake discs and pads.
If in doubt about the state of your vehicle,
contact a PEUGEOT dealer or a qualified
workshop.
Noise (Electric)
On the outside
Due to the vehicle’s quiet operation when
driving, the driver must pay particular attention.
At speeds of up to 19 mph (30 km/h), the
pedestrian horn warns other road users of the
vehicle’s presence.
Cooling the traction battery
The cooling fan comes on during
charging to cool the on-board charger and the
traction battery.
On the inside
During use, you may hear certain perfectly
normal noises specific to electric vehicles, such
as:
–

T
raction battery relay when starting.
–

V
acuum pump when braking.
–

V
ehicle tyres or aerodynamics when driving.
–

Jolting and knocking noise during hill starts.
Towing
Driving with a trailer places greater
demands on the towing vehicle and
particular care must be taken.
Do not exceed the maximum towable
weights.
At altitude: reduce the maximum load by
10% per 1,000 metres of altitude; the lower
air density at high altitudes decreases engine
performance.
New vehicle: do not tow a trailer until the
vehicle has driven at least 620 miles
(1,000 kilometres).
If the outside temperature is high, let the
engine idle for 1 to 2 minutes after the
vehicle comes to a stop, to help it to cool.
Before setting off
Nose weight
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle and the nose weight (at the point where it
joins your vehicle) approaches the maximum
permitted without exceeding it.
Tyres
► Check the tyre pressures of the towing
vehicle and of the trailer , observing the
recommended pressures.
Lighting
► Check the electrical signalling on the trailer
and the headlamp beam height of your vehicle.
If a genuine PEUGEOT towing device is
used, the rear parking sensors will be
deactivated automatically to avoid the audible
signal.
When driving
Cooling
Towing a trailer uphill causes the coolant
temperature to increase. The maximum towable
load depends on the gradient and the exterior
temperature. The fan’s cooling capacity does not
increase with engine speed.
►

Reduce speed and lower the engine speed to
limit the amount of heating produced.
In all cases, pay attention to the coolant
temperature.
If this warning lamp and the
STOP warning lamp come
on, stop the vehicle and switch off the engine as
soon as possible.

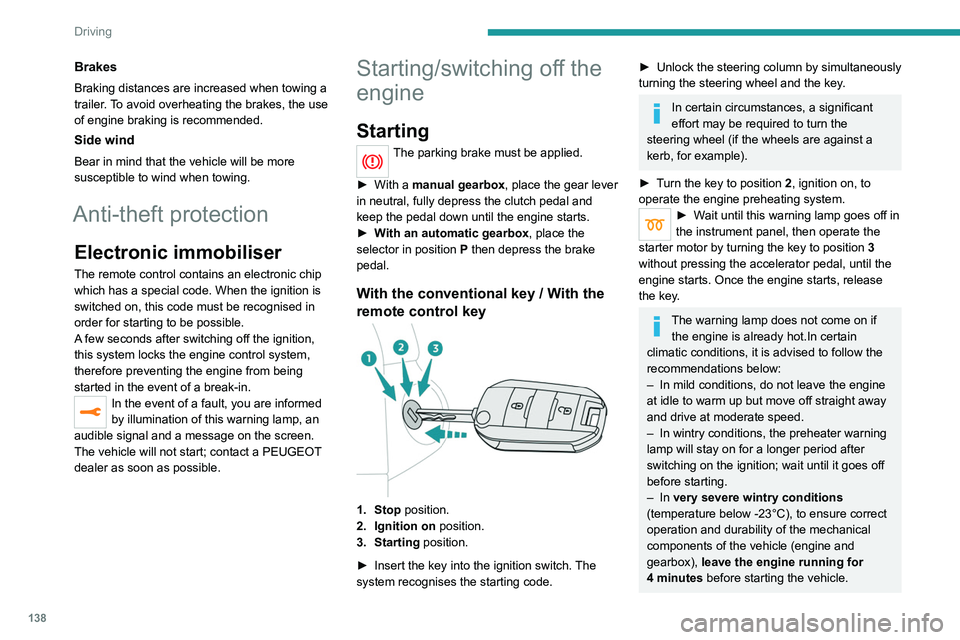

138
Driving
Brakes
Braking distances are increased when towing a
trailer. To avoid overheating the brakes, the use
of engine braking is recommended.
Side wind
Bear in mind that the vehicle will be more
susceptible to wind when towing.
Anti-theft protection
Electronic immobiliser
The remote control contains an electronic chip
which has a special code. When the ignition is
switched on, this code must be recognised in
order for starting to be possible.
A few seconds after switching off the ignition,
this system locks the engine control system,
therefore preventing the engine from being
started in the event of a break-in.
In the event of a fault, you are informed
by illumination of this warning lamp, an
audible signal and a message on the screen.
The vehicle will not start; contact a PEUGEOT
dealer as soon as possible.
Starting/switching off the
engine
Starting
The parking brake must be applied.
►

With a
manual gearbox, place the gear lever
in neutral, fully depress the clutch pedal and
keep the pedal down until the engine starts.
►

W

ith an automatic gearbox, place the
selector in position P then depress the brake
pedal.
With the conventional key / With the
remote control key
1. Stop position.
2. Ignition on position.
3. Starting position.
►

Insert the key into the ignition switch.
The
system recognises the starting code.
► Unlock the steering column by simultaneously
turning the steering wheel and the key.
In certain circumstances, a significant
effort may be required to turn the
steering wheel (if the wheels are against a
kerb, for example).
►

T

urn the key to position
2
, ignition on, to
operate the engine preheating system.
► Wait until this warning lamp goes off in
the instrument panel, then operate the
starter motor by turning the key to position

3

without pressing the accelerator pedal, until the
engine starts. Once the engine starts, release
the key.
The warning lamp does not come on if the engine is already hot.In certain
climatic conditions, it is advised to follow the
recommendations below:
–

In mild conditions, do not leave the engine
at idle to warm up but move off straight away
and drive at moderate speed.
–


In wintry conditions, the preheater warning
lamp will stay on for a longer period after
switching on the ignition; wait until it goes off
before starting.
–


In very severe wintry conditions
(temperature below -23°C), to ensure correct
operation and durability of the mechanical
components of the vehicle (engine and
gearbox), leave the engine running for
4

minutes before starting the vehicle.
Never leave the engine running in an
enclosed area without adequate ventilation:
internal combustion engines emit toxic
exhaust gases, such as carbon monoxide.
Danger of poisoning and death!
If the engine does not start immediately,
switch off the ignition.
Wait a few seconds before operating the
starter motor again. If the engine does not
start after several attempts, do not keep
trying: risk of damaging the starter motor and
the engine.
Contact a PEUGEOT dealer or a qualified
workshop.
With the Keyless Entry and Starting

► Place the remote control inside the vehicle, in
the recognition zone.
► Press the "START/STOP" button.
The steering column unlocks and the engine
starts more or less instantly.
The warning lamp does not come on if the engine is already warm. In some
