technical data PEUGEOT EXPERT 2021 User Guide

228
Technical data
Engines and towed loads - Diesel EURO 6.3

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 140 S&S BVM6
Gearboxes Manual 6-speedManual 6-speed Manual 6-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FDDU - ML6 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 7588103
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,4001,4001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484
* Increased payload.
Engines BlueHDi 150 S&S BVM6BlueHDi 180 S&S EAT8
Gearboxes Automatic 6-speedAutomatic 8-speed
Code DW10FD - ML6 - STTDW10FDCU - AMN8 - STT
Cubic capacity (cc) 1,9971,499
Max. power: EC standard (kW) 11 0130
Fuel DieselDiesel
Length Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)* Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
2,3002,5002,3002,500
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 92
100 92100

229
Technical data

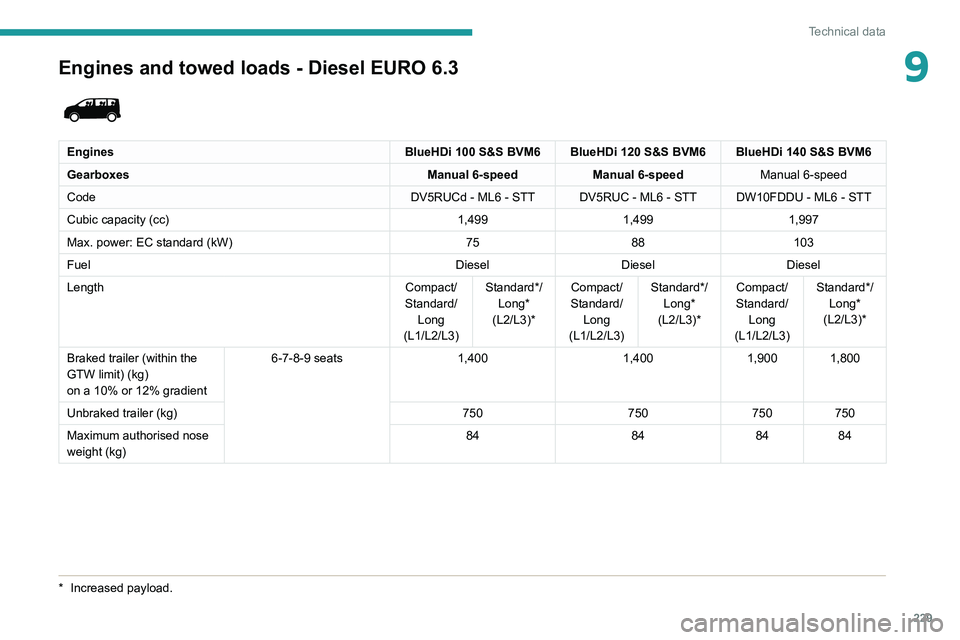

9Engines and towed loads - Diesel EURO 6.3

EnginesBlueHDi 100 S&S BVM6 BlueHDi 120 S&S BVM6 BlueHDi 140 S&S BVM6
Gearboxes Manual 6-speedManual 6-speed Manual 6-speed
Code DV5RUCd - ML6 - STT DV5RUC - ML6 - STT DW10FDDU - ML6 - STT
Cubic capacity (cc) 1,4991,4991,997
Max. power: EC standard (kW) 7588103
Fuel DieselDieselDiesel
Length Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)* Compact/
Standard/ Long
(L1/L2/L3) Standard*/
Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,4001,4001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484
* Increased payloa d.

230
Technical data
Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100/136
Traction battery
Technology Lithium-Ion
Battery pack S: 18 modules (L1/L2/L3)
XL: 27 modules (L2/L3)*
Installed capacity (kWh) 50 or 75
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
* Battery pack not available for right-hand drive Combi, Business, Active, Allure, Business VIP vehicles.

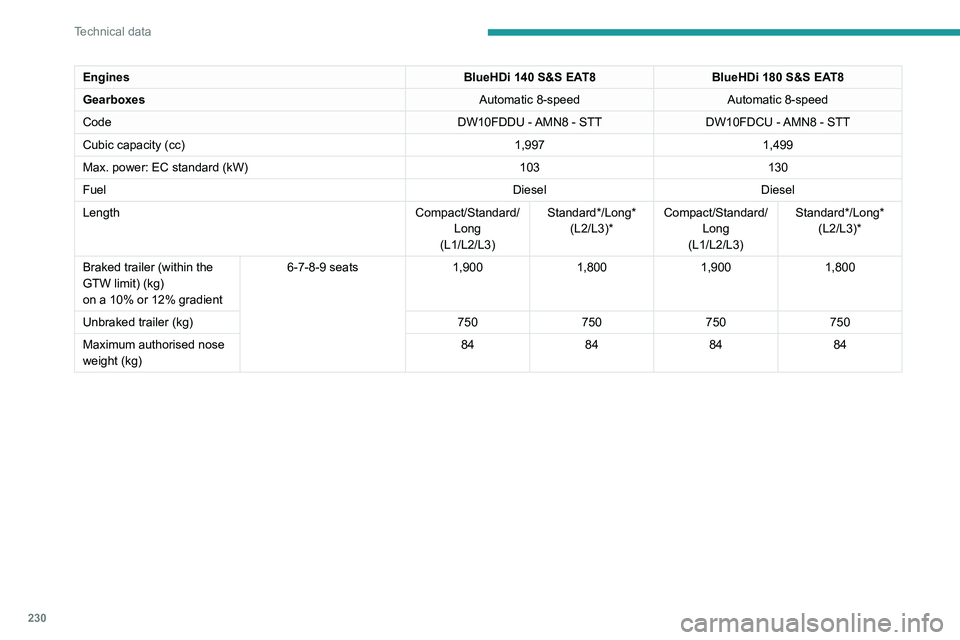

Engines BlueHDi 140 S&S EAT8BlueHDi 180 S&S EAT8
Gearboxes Automatic 8-speedAutomatic 8-speed
Code DW10FDDU - AMN8 - STTDW10FDCU - AMN8 - STT
Cubic capacity (cc) 1,9971,499
Max. power: EC standard (kW) 103130
Fuel DieselDiesel
Length Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)* Compact/Standard/
Long
(L1/L2/L3) Standard*/Long*
(L2/L3)*
Braked trailer (within the
GTW limit) (kg)
on a 10% or 12% gradient 6-7-8-9 seats
1,9001,8001,9001,800
Unbraked trailer (kg) 750750750750
Maximum authorised nose
weight (kg) 84
848484

231
Technical data

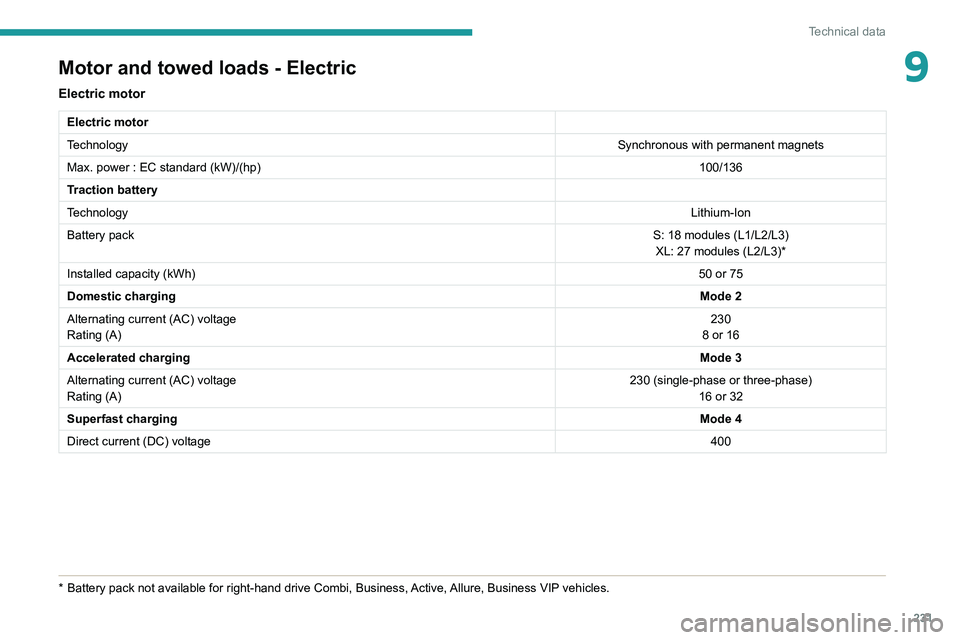

9Motor and towed loads - Electric
Electric motor
Electric motor
TechnologySynchronous with permanent magnets
Max. power : EC standard (kW)/(hp) 100/136
Traction battery
Technology Lithium-Ion
Battery pack S: 18 modules (L1/L2/L3)
XL: 27 modules (L2/L3)*
Installed capacity (kWh) 50 or 75
Domestic charging Mode 2
Alternating current (AC) voltage
Rating (A) 230
8 or 16
Accelerated charging Mode 3
Alternating current (AC) voltage
Rating (A) 230 (single-phase or three-phase)
16 or 32
Superfast charging Mode 4
Direct current (DC) voltage 400
* Battery pack not available for right-hand drive Combi, Business, Active, Allure, Business VIP vehicles.

232
Technical data
Dimensions (mm)
These dimensions have been measured on an unladen vehicle.


Mirrors folded

Side-hinged doors

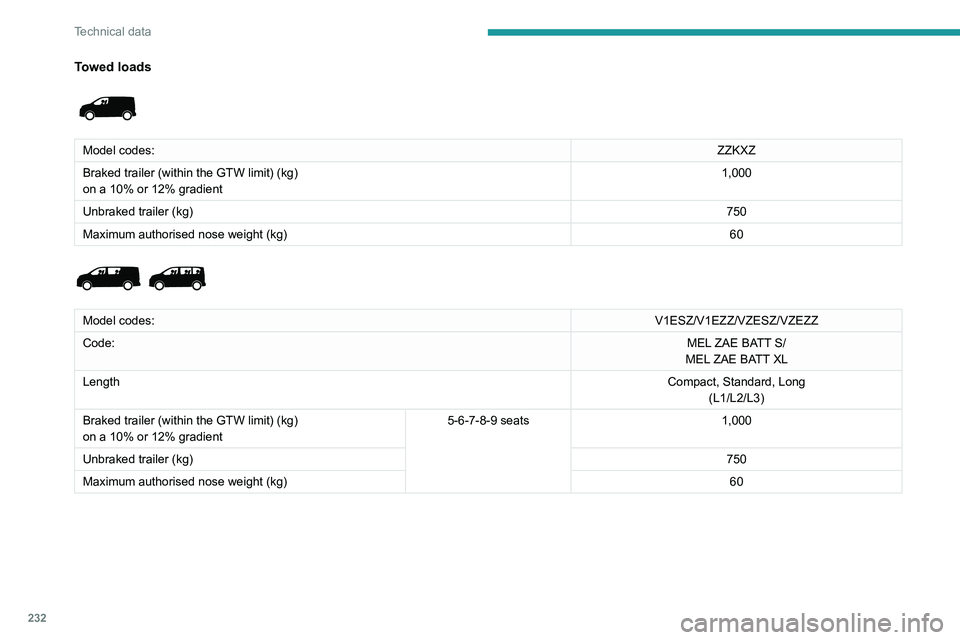

Towed loads

Model codes: ZZKXZ
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,000
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 60


Model codes:V1ESZ/V1EZZ/VZESZ/VZEZZ
Code: MEL ZAE BATT S/
MEL ZAE BATT XL
Length Compact, Standard, Long
(L1/L2/L3)
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 5-6-7-8-9 seats
1,000
Unbraked trailer (kg) 750
Maximum authorised nose weight (kg) 60

233
Technical data

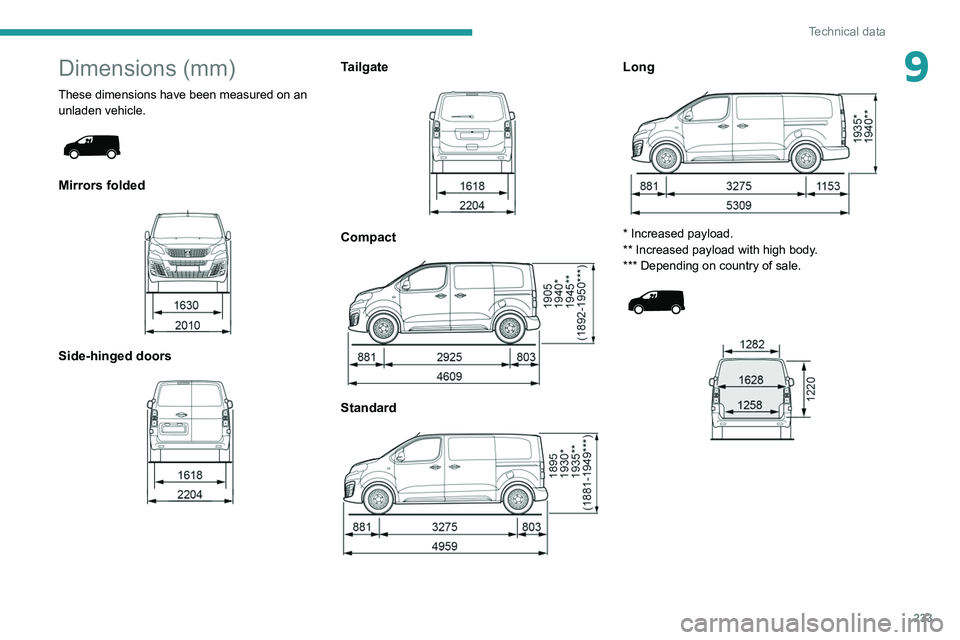

9Dimensions (mm)
These dimensions have been measured on an unladen vehicle.


Mirrors folded

Side-hinged doors

Tailgate

Compact

Standard

Long

* Increased payload.
** Increased payload with high body.
*** Depending on country of sale.

234
Technical data

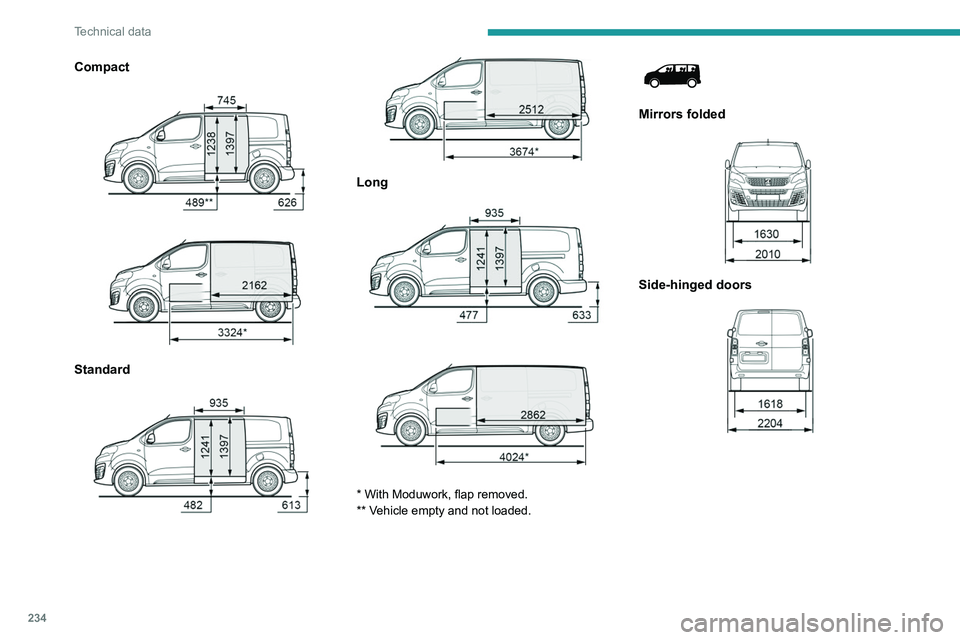

Compact



Standard



Long



* With Moduwork, flap removed.
** Vehicle empty and not loaded.


Mirrors folded

Side-hinged doors

235
Technical data

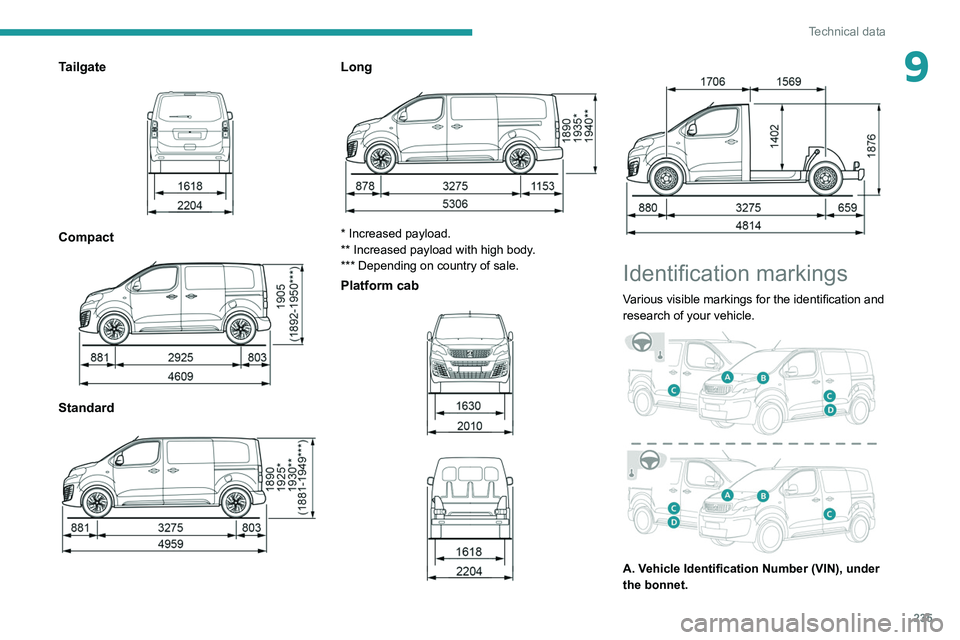

9Tailgate

Compact

Standard

Long

* Increased payload.
** Increased payload with high body.
*** Depending on country of sale.
Platform cab




Identification markings
Various visible
markings for the identification and
research of your vehicle.


A. Vehicle Identification Number (VIN), under
the bonnet.

236
Technical data
Stamped on the chassis.
B. Vehicle Identification Number (VIN), on the
dashboard.
Engraved on a label, visible through the
windscreen.
C. Manufacturer's label.
Affixed to the centre pillar.
Bears the following information:
–
Manufacturer
’s name.
–

European whole vehicle type approval
number

.
–

V
ehicle Identification number (VIN).
–

Gross vehicle weight (GVW).
–


Gross train weight (GTW).
–


Maximum weight on the front axle.
–


Maximum weight on the rear axle.
D. T

yres/paint code label.


Affixed to the driver's door.
Bears the following information about the tyres:
–
T
yre pressures, unladen and laden.
–

T
yre specification, made up of the dimensions
and type as well as the load and speed indices.
–

Spare tyre pressure.
Also indicates the paint colour code.
The vehicle may be originally equipped with tyres with higher load and speed
indices than those indicated on the label,
without affecting tyre pressure (on cold tyres).
In the event of a change in the type of tyres,
contact a PEUGEOT dealer for the tyre fits
approved for the vehicle.

293

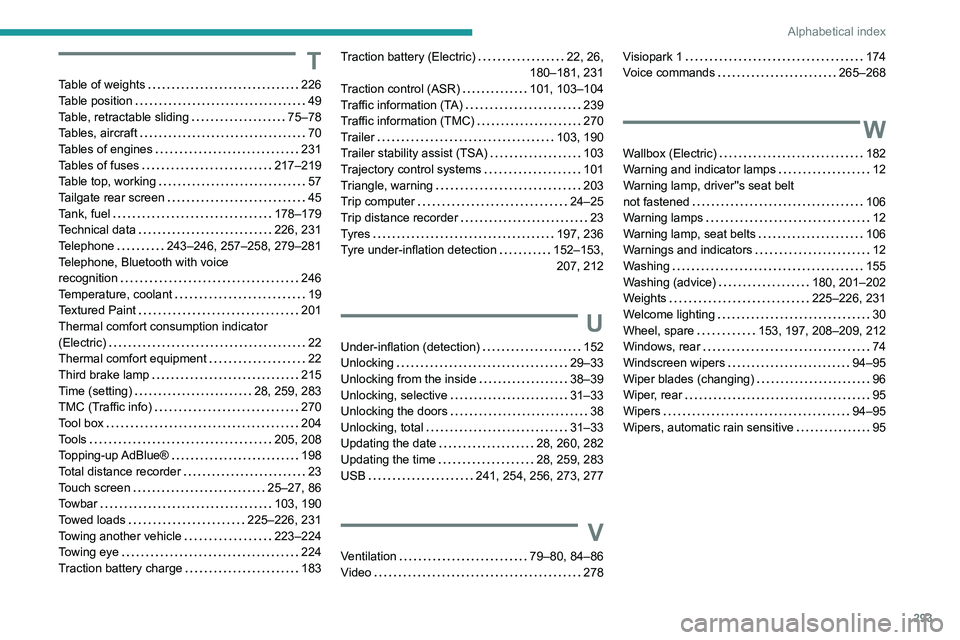

Alphabetical index
T
Table of weights 226
Table position
49
Table, retractable sliding

75–78
Tables, aircraft

70
Tables of engines

231
Tables of fuses

217–219
Table top, working

57
Tailgate rear screen

45
Tank, fuel

178–179
Technical data

226, 231
Telephone

243–246, 257–258, 279–281
Telephone, Bluetooth with voice
recognition

246
Temperature, coolant

19
Textured Paint

201
Thermal comfort consumption indicator
(Electric)

22
Thermal comfort equipment

22
Third brake lamp

215
Time (setting)

28, 259, 283
TMC (Traffic info)

270
Tool box

204
Tools

205, 208
Topping-up AdBlue®

198
Total distance recorder

23
Touch screen

25–27, 86
Towbar

103, 190
Towed loads

225–226, 231
Towing another vehicle

223–224
Towing eye

224
Traction battery charge

183
Traction battery (Electric) 22, 26,
180–181, 231
Traction control (ASR)

101, 103–104
Traffic information (TA)

239
Traffic information (TMC)

270
Trailer

103, 190
Trailer stability assist (TSA)

103
Trajectory control systems

101
Triangle, warning

203
Trip computer

24–25
Trip distance recorder

23
Tyres

197, 236
Tyre under-inflation detection

152–153, 207, 212
U
Under-inflation (detection) 152
Unlocking
29–33
Unlocking from the inside

38–39
Unlocking, selective

31–33
Unlocking the doors

38
Unlocking, total

31–33
Updating the date

28, 260, 282
Updating the time

28, 259, 283
USB

241, 254, 256, 273, 277
V
Ventilation 79–80, 84–86
Video
278
Visiopark 1 174
Voice commands
265–268
W
Wallbox (Electric) 182
Warning and indicator lamps
12
Warning lamp, driver''s seat belt
not fastened

106
Warning lamps

12
Warning lamp, seat belts

106
Warnings and indicators

12
Washing

155
Washing (advice)

180, 201–202
Weights

225–226, 231
Welcome lighting

30
Wheel, spare

153, 197, 208–209, 212
Windows, rear

74
Windscreen wipers

94–95
Wiper blades (changing)

96
Wiper, rear

95
Wipers

94–95
Wipers, automatic rain sensitive

95
