Vehicle care 19
Unclip the cover by pulling at the top
left, then right. Disengage the cover
completely and turn it over.
The extractor has two sides, each
side
is designed for a different type of
fuses. Grab the fuse with the fuse extractor
and withdraw the fuse. Engine compartment fuse
box The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No. Circuit
1 Fuel flap / DCDC converter
2 Three way valve
3 Fuel cell system
4 Fuel cell propulsion system
controllerCarM an uals 2 .c o m

20 Vehicle care
No. Circuit
5 Fuel cell propulsion system
controller
6 H2 sensors
7 Main fuse
8 High temperature pump
9 Relays / RDI sensor / Refuel
button After having changed defective fuses,
close the fuse box cover and lock it.
If the fuse box cover is not closed
correctly, malfunction may occur. Vehicle tools

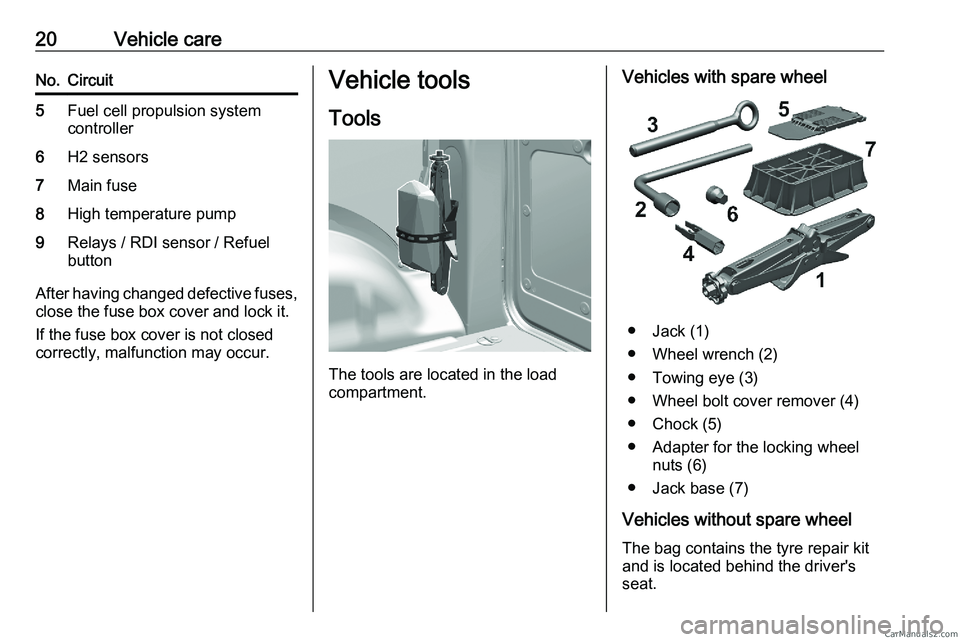

Tools The tools are located in the load
compartment. Vehicles with spare wheel
● Jack (1)
●
Wheel wrench (2)
● Towing eye (3)
● Wheel bolt cover remover (4)
● Chock (5)
● Adapter for the locking wheel nuts (6)
● Jack base (7)
Vehicles without spare wheel The bag contains the tyre repair kit
and is located behind the driver's
seat.CarM an uals 2 .c o m

Vehicle care 21
Wheels and tyres

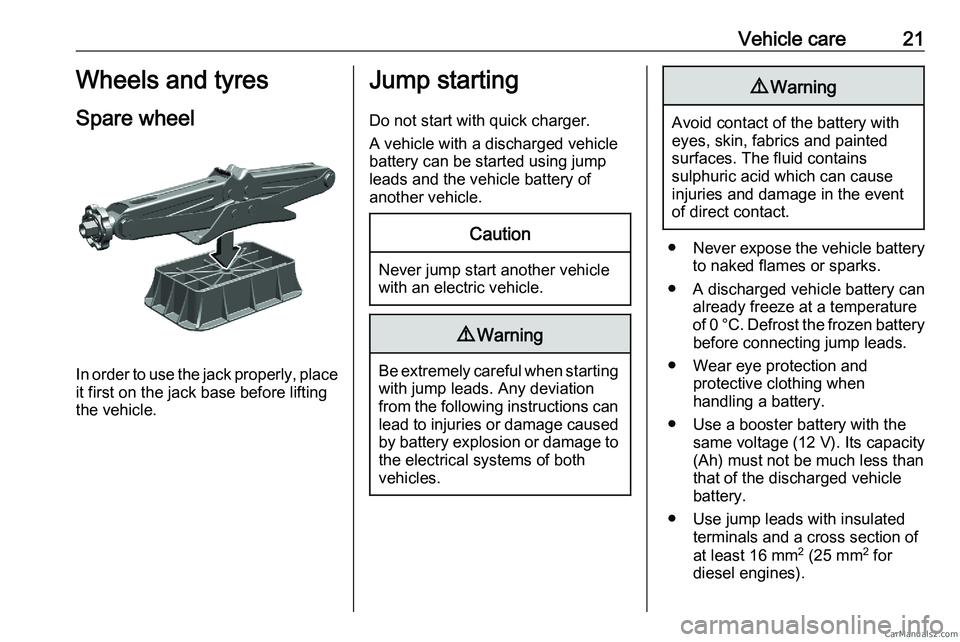

Spare wheel In order to use the jack properly, place
it first on the jack base before lifting
the vehicle. Jump starting
Do not start with quick charger.
A vehicle with a discharged vehicle
battery can be started using jump
leads and the vehicle battery of
another vehicle. Caution
Never jump start another vehicle
with an electric vehicle.
9
Warning Be extremely careful when starting
with jump leads. Any deviation
from
the following instructions can
lead to injuries or damage caused
by battery explosion or damage to the electrical systems of both
vehicles. 9
Warning Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact. ● Never
expose the vehicle battery
to naked flames or sparks.
● A discharged vehicle battery can already freeze at a temperature
of 0 °C. Defrost the frozen batterybefore connecting jump leads.
● Wear eye protection and protective clothing when
handling a battery.
● Use a booster battery with the same voltage (12 V). Its capacity
(Ah) must not be much less than
that of the discharged vehicle
battery.
● Use jump leads with insulated terminals and a cross section of
at least 16 mm 2
(25 mm 2
for
diesel engines).CarM an uals 2 .c o m

22 Vehicle care

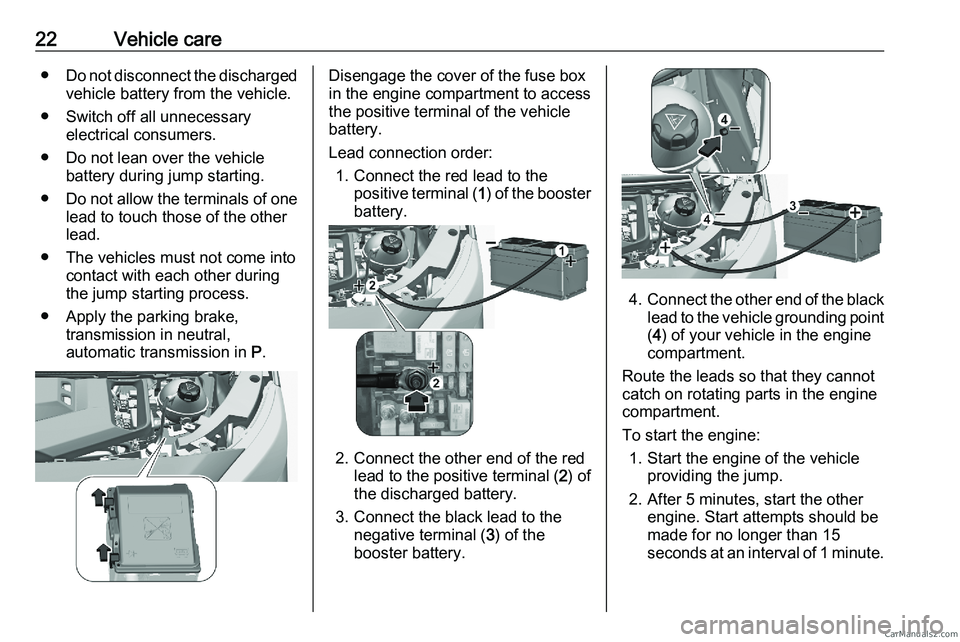

● Do not disconnect the discharged vehicle battery from the vehicle.
● Switch off all unnecessary electrical consumers.
● Do not lean over the vehicle battery during jump starting.
● Do not allow the terminals of one lead to touch those of the other
lead.
● The vehicles must not come into contact with each other during
the jump starting process.
● Apply the parking brake, transmission in neutral,
automatic transmission in P. Disengage the cover of the fuse box
in the engine compartment to access
the positive terminal of the vehicle
battery.
Lead connection order:
1.
Connect the red lead to the
positive terminal (1) of the booster
battery. 2. Connect the other end of the red
lead to the positive terminal ( 2) of
the discharged battery.
3.

Connect the black lead to the
negative terminal ( 3) of the
booster battery. 4. Connect

the other end of the black
lead to the vehicle grounding point
(4) of your vehicle in the engine
compartment.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine: 1. Start the engine of the vehicle providing the jump.
2. After 5 minutes, start the other engine. Start attempts should be
made for no longer than 15
seconds at an interval of 1 minute.CarM an uals 2 .c o m

Vehicle care 23

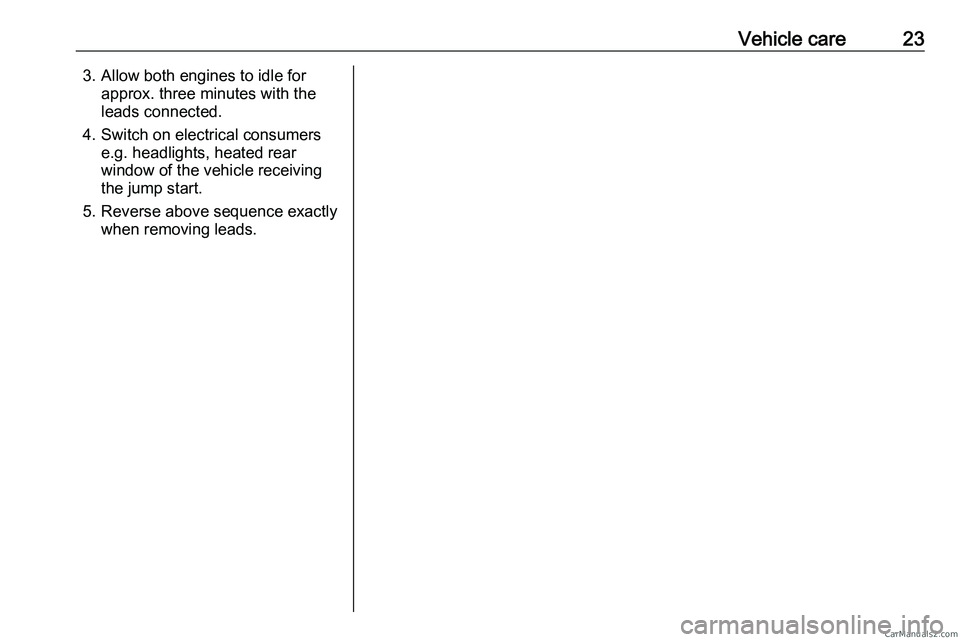

3. Allow both engines to idle for approx. three minutes with the
leads connected.
4.
Switch on electrical consumers
e.g. headlights, heated rear
window of the vehicle receiving
the jump start.
5. Reverse above sequence exactly when removing leads.CarM an uals 2 .c o m

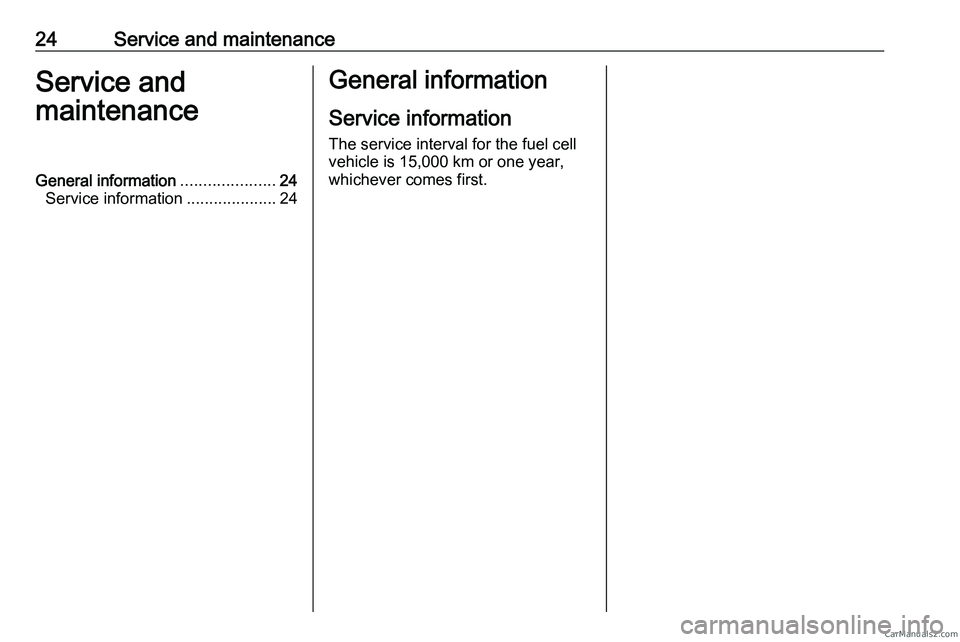

24 Service and maintenance
Service and
maintenance
General information .....................24
Service information ....................24 General information
Service information The service interval for the fuel cell
vehicle is 15,000 km or one year,
whichever comes first.CarM an uals 2 .c o m

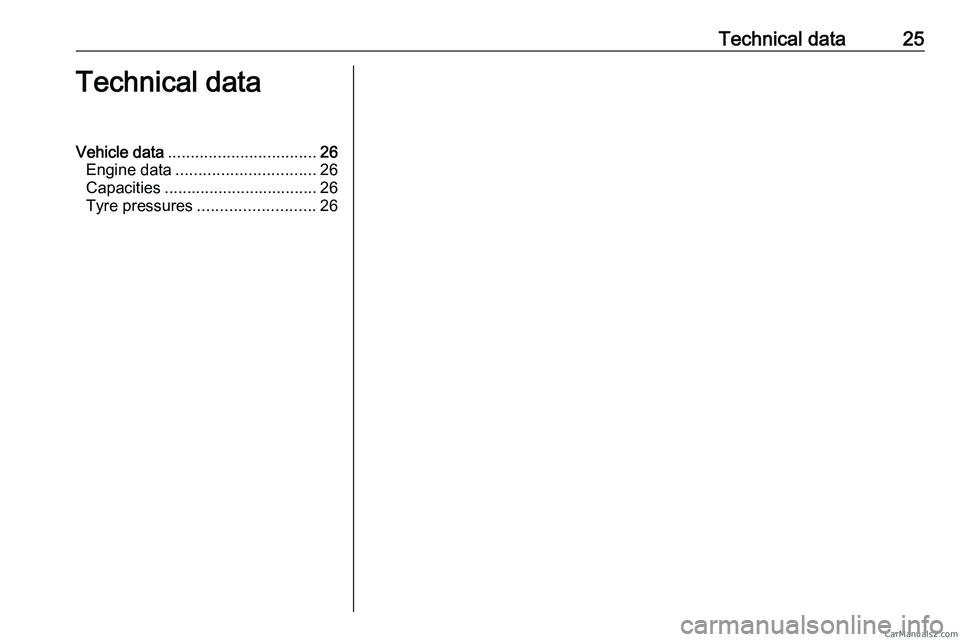

Technical data 25
Technical data
Vehicle data ................................. 26
Engine data ............................... 26
Capacities .................................. 26
Tyre pressures .......................... 26CarM an uals 2 .c o m

26 Technical data

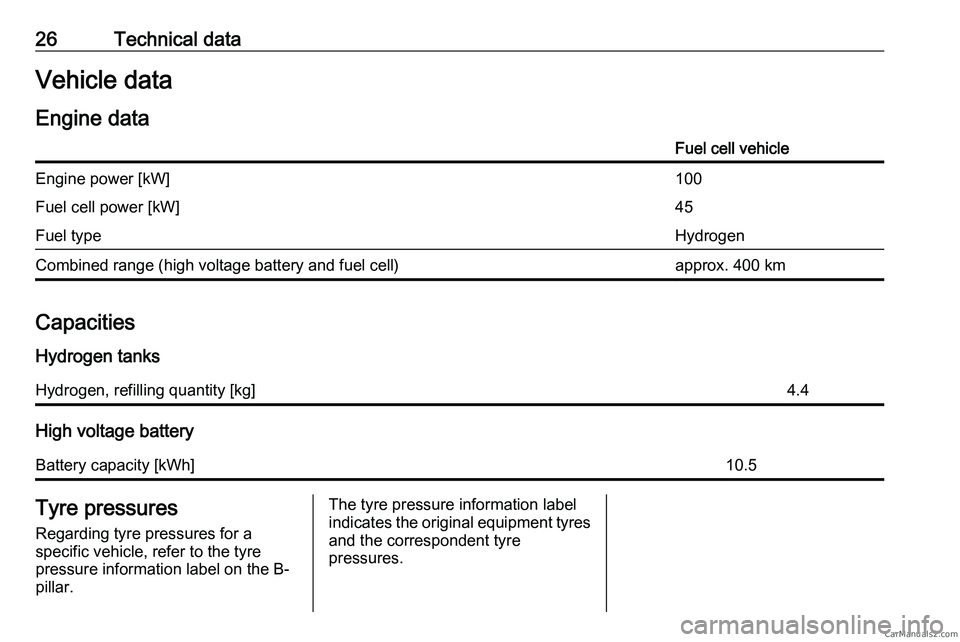

Vehicle data Engine data Fuel cell vehicle
Engine power [kW] 100
Fuel cell power [kW] 45
Fuel type Hydrogen
Combined range (high voltage battery and fuel cell) approx. 400 kmCapacities
Hydrogen tanks
Hydrogen, refilling quantity [kg] 4.4High voltage battery
Battery capacity [kWh] 10.5Tyre pressures
Regarding tyre pressures for a
specific vehicle, refer to the tyre
pressure information label on the B-
pillar. The tyre pressure information label
indicates
the original equipment tyres
and the correspondent tyre
pressures.CarM an uals 2 .c o m

Technical data 27

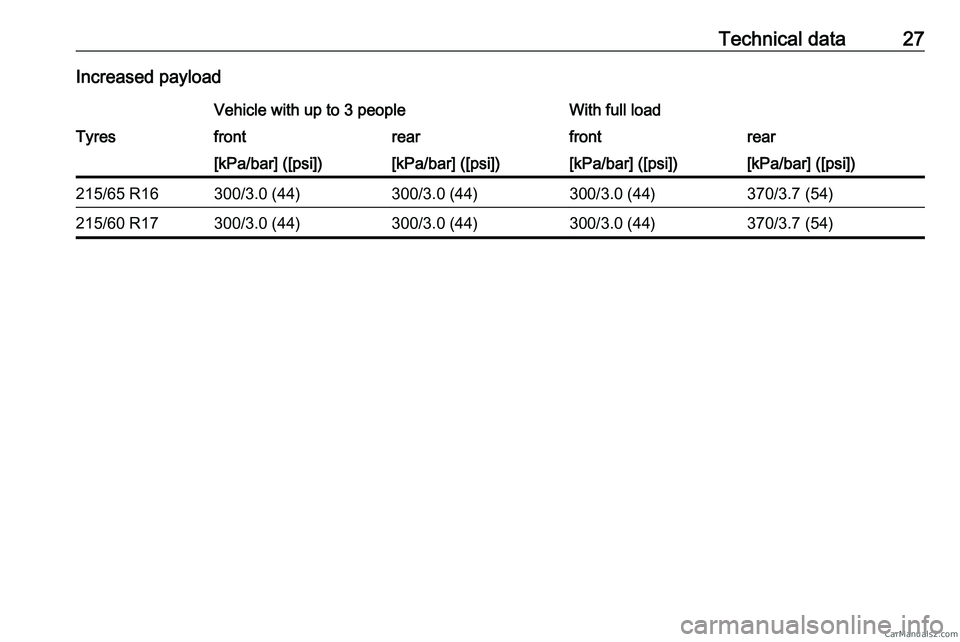

Increased payload Vehicle with up to 3 people With full load
Tyres front rearfrontrear
[kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi]) [kPa/bar] ([psi])
215/65 R16 300/3.0 (44) 300/3.0 (44)300/3.0 (44)370/3.7 (54)
215/60 R17 300/3.0 (44) 300/3.0 (44)300/3.0 (44)370/3.7 (54)CarM an uals 2 .c o m
