fuses PEUGEOT EXPERT 2023 Owners Manual

3
Contents
6-speed manual gearbox 141
Gear shift indicator 142
Automatic gearbox 142
Drive selector (Electric) 145
Driving modes (Electric) 146
Stop & Start 147
Tyre under-inflation detection 148
Driving and manoeuvring aids - General
recommendations
150
Memorising speeds 151
Road signs recognition 152
Speed limiter 154
Cruise control - Specific recommendations 156
Cruise control 156
Adaptive cruise control 158
Active Safety Brake with Collision Risk Alert and
Intelligent emergency braking assistance
162
Lane departure warning 165
Distraction detection 166
Blind spot monitoring 167
Parking sensors 168
Visiopark 1 170
 7Practical informationCompatibility of fuels 174
Refuelling 174
Diesel misfuel prevention 175
Charging system (Electric) 176
Charging the traction battery (Electric) 183
Energy economy mode 187
Snow chains 188
Towing device 188
Roof bars/Roof rack 189
Bonnet 190
Engine compartment 191
Checking levels 191
Checks 194
AdBlue® (BlueHDi) 196
Free-wheeling 198
Advice on care and maintenance 199
 8In the event of a breakdownWarning triangle 202
Running out of fuel (Diesel) 202
Tool box 203
Temporary puncture repair kit 204
Spare wheel 207
Changing a bulb 2 11
Fuses 216
12

V battery

/ Accessory battery 216
Towing the vehicle 220
 9Technical dataEngine technical data and towed loads 223
Diesel engines 224
Electric motor 227
Dimensions 229
Identification markings 231
 10Bluetooth® audio systemFirst steps 232
Steering mounted controls 233
Menus 233
Radio 234
DAB (Digital Audio Broadcasting) radio 235
Media 236
Telephone 238
Frequently asked questions 241
  11Audio System with Touch ScreenFirst steps 244
Steering mounted controls 245
Menus 246
Applications 247
Radio 247
DAB (Digital Audio Broadcasting) radio 249
Media 249
Telephone 251
Settings 254
Frequently asked questions 255
 123D Connected NavigationFirst steps 257
Steering mounted controls 258
Menus 258
Voice commands 260
Navigation 263
Connected navigation 266
Applications 268
Radio 271
DAB (Digital Audio Broadcasting) radio 272
Media 272
Telephone 274
Settings 276
Frequently asked questions 278
 13Vehicle data recording and privacy
 ■
Alphabetical index
 ■
Appendix
 ■
Hydrogen electric motor supplement CarM an uals 2 .c o m

4
Overview
Presentation
Instruments and controls
These illustrations and descriptions are intended
as a guide. The presence and location of some
components varies according to the version or
trim level.


1.Glove box
Deactivation of the front passenger airbag
2.12 V (120 W) accessory sockets
3. USB socket
4. JACK socket
5. Instrument panel
6. Storage
Cup/can holder
7. Storage compartment
8. Upper storage compartment
9. 220
V (120 W) accessory socket
10.Horn
11

.Courtesy lamp
Warning lamps display for seat belts and
front passenger airbag
Interior rear view mirror
Emergency and assistance call buttons
12. Heating/Air conditioning
Front demisting – de-icing
Rear screen demisting – de-icing
13. "START/STOP" button
14. Gearbox or drive selector
Choice of driving mode
15. Monochrome screen with audio system
Touch screen
16. Bonnet release
17. Dashboard fuses
18. Head-up display
19. Electric parking brake
Depending on the vehicle's equipment,
the storage compartments may be open
or closed. This configuration is shown as an
example.
Steering-mounted controls

1. Exterior lighting/Direction indicators control
stalks
2. Wiper controls/Screenwash/Trip computer
3. Audio system setting controls
4. Controls for Cruise control/Speed limiter/
Adaptive cruise control
5. Instrument panel display mode selection
wheel
6. Voice synthesis control
Volume adjustment
7. Audio system setting controls
Central control bar


CarM an uals 2 .c o m

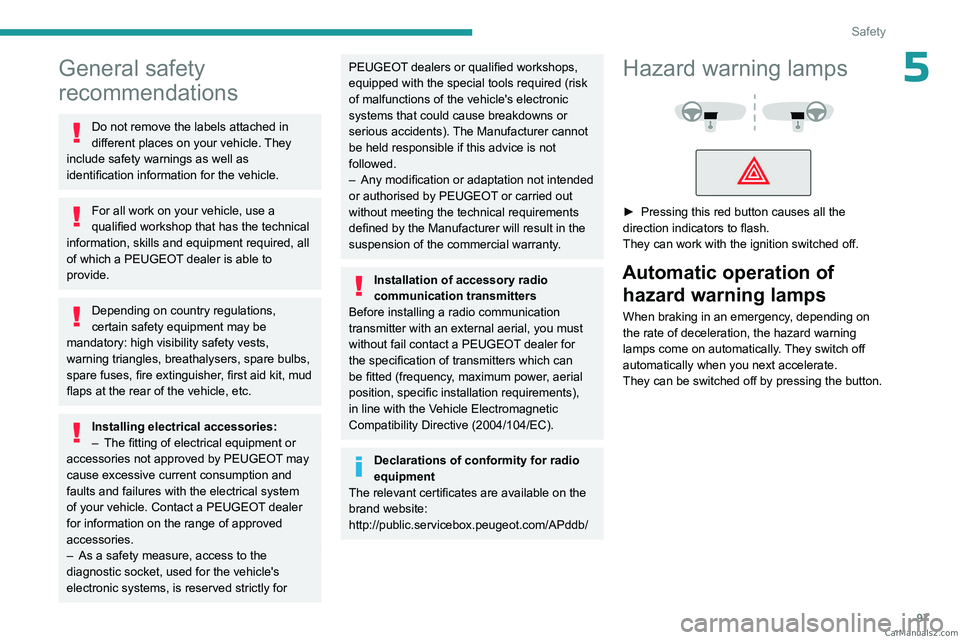

97
Safety
5General safety
recommendations
Do not remove the labels attached in
different places on your vehicle. They
include safety warnings as well as
identification information for the vehicle.
For all work on your vehicle, use a
qualified workshop that has the technical
information, skills and equipment required, all
of which a PEUGEOT dealer is able to
provide.
Depending on country regulations,
certain safety equipment may be
mandatory: high visibility safety vests,
warning triangles, breathalysers, spare bulbs,
spare fuses, fire extinguisher, first aid kit, mud
flaps at the rear of the vehicle, etc.
Installing electrical accessories:
– The fitting of electrical equipment or
accessories not approved by PEUGEOT
may
cause excessive current consumption and
faults and failures with the electrical system
of your vehicle. Contact a PEUGEOT dealer
for information on the range of approved
accessories.
–

As a safety measure, access to the
diagnostic socket, used for the vehicle's
electronic systems, is reserved strictly for
PEUGEOT dealers or qualified workshops,
equipped with the special tools required (risk
of malfunctions of the vehicle's electronic
systems that could cause breakdowns or
serious accidents). The Manufacturer cannot
be held responsible if this advice is not
followed.
–

Any modification or adaptation not intended
or authorised by PEUGEOT

or carried out
without meeting the technical requirements
defined by the Manufacturer will result in the
suspension of the commercial warranty.
Installation of accessory radio
communication transmitters
Before installing a radio communication
transmitter with an external aerial, you must
without fail contact a PEUGEOT dealer for
the specification of transmitters which can
be fitted (frequency, maximum power, aerial
position, specific installation requirements),
in line with the Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).
Declarations of conformity for radio
equipment
The relevant certificates are available on the
brand website:
http://public.servicebox.peugeot.com/APddb/
Hazard warning lamps



► Pressing this red button causes all the
direction indicators to flash.
They can work with the ignition switched off.
Automatic operation of hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, the hazard warning
lamps come on automatically. They switch off
automatically when you next accelerate.
They can be switched off by pressing the button. CarM an uals 2 .c o m

191
Practical information
7Closing
► Hold the bonnet and pull out the stay from the
support slot.
►

Clip the stay in its housing.
►


Lower the bonnet and release it near the end
of its travel.
►


Pull on the bonnet to check that it is locked
correctly

.
Because of the presence of electrical
equipment under the bonnet, it is strongly
recommended that exposure to water (rain,
washing, etc.) be limited.
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following components may
vary:
–

Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
–


Priming pump.
* Depending on engine.
Diesel engine

1. Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
10. Priming pump*
11 . Power steering fluid reservoir
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
Electric motor

1. Screenwash fluid reservoir
2. Engine coolant reservoir (level only)
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. 400
V electrical circuit
8. Emergency circuit-breaker for emergency
services and maintenance technicians
9. Power steering fluid reservoir
For more information on the Charging system
(Electric), refer to the corresponding section.
Checking levels
Check all of the following levels regularly in
accordance with the Manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a PEUGEOT
dealer or a qualified workshop. CarM an uals 2 .c o m

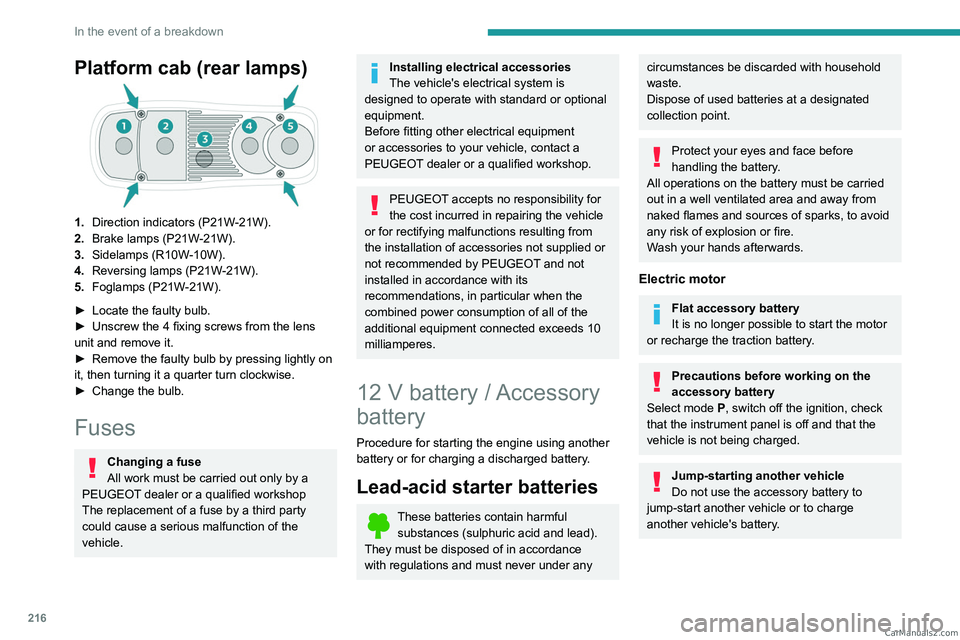

216
In the event of a breakdown
Platform cab (rear lamps)
1.Direction indicators (P21W-21W).
2. Brake lamps (P21W-21W).
3. Sidelamps (R10W-10W).
4. Reversing lamps (P21W-21W).
5. Foglamps (P21W-21W).
►

Locate the faulty bulb.
►


Unscrew the 4 fixing screws from the lens
unit and remove it.
►


Remove the faulty bulb by pressing lightly on
it, then turning it a quarter turn clockwise.
►


Change the bulb.
Fuses
Changing a fuse
All work must be carried out only by a
PEUGEOT dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
PEUGEOT dealer or a qualified workshop.
PEUGEOT accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by PEUGEOT and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery / Accessory
battery
Procedure for starting the engine using another
battery or for charging a discharged battery.
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electric motor
Flat accessory battery
It is no longer possible to start the motor
or recharge the traction battery.
Precautions before working on the
accessory battery
Select mode
P, switch off the ignition, check
that the instrument panel is off and that the
vehicle is not being charged.
Jump-starting another vehicle
Do not use the accessory battery to
jump-start another vehicle or to charge
another vehicle's battery. CarM an uals 2 .c o m

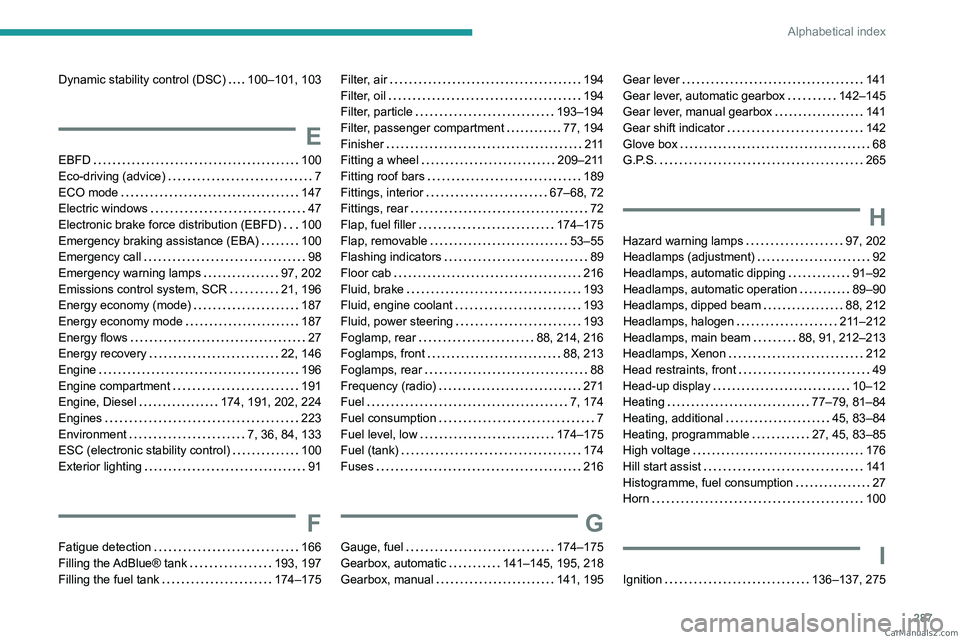

287
Alphabetical index
Dynamic stability control (DSC) 100–101, 103
E
EBFD 100
Eco-driving (advice)
7
ECO mode

147
Electric windows

47
Electronic brake force distribution (EBFD)

100
Emergency braking assistance (EBA)

100
Emergency call

98
Emergency warning lamps

97, 202
Emissions control system, SCR

21, 196
Energy economy (mode)

187
Energy economy mode

187
Energy flows

27
Energy recovery

22, 146
Engine

196
Engine compartment

191
Engine, Diesel

174, 191, 202, 224
Engines

223
Environment

7, 36, 84, 133
ESC (electronic stability control)

100
Exterior lighting

91
F
Fatigue detection 166
Filling the AdBlue® tank
193, 197
Filling the fuel tank

174–175
Filter, air 194
Filter, oil
194
Filter, particle

193–194
Filter, passenger compartment

77, 194
Finisher

2 11
Fitting a wheel

209–211
Fitting roof bars

189
Fittings, interior

67–68, 72
Fittings, rear

72
Flap, fuel filler

174–175
Flap, removable

53–55
Flashing indicators

89
Floor cab

216
Fluid, brake

193
Fluid, engine coolant

193
Fluid, power steering

193
Foglamp, rear

88, 214, 216
Foglamps, front

88, 213
Foglamps, rear

88
Frequency (radio)

271
Fuel

7, 174
Fuel consumption

7
Fuel level, low

174–175
Fuel (tank)

174
Fuses

216
G
Gauge, fuel 174–175
Gearbox, automatic
141–145, 195, 218
Gearbox, manual

141, 195
Gear lever 141
Gear lever, automatic gearbox
142–145
Gear lever, manual gearbox

141
Gear shift indicator

142
Glove box

68
G.P.S.

265
H
Hazard warning lamps 97, 202
Headlamps (adjustment)
92
Headlamps, automatic dipping

91–92
Headlamps, automatic operation

89–90
Headlamps, dipped beam

88, 212
Headlamps, halogen

211–212
Headlamps, main beam

88, 91, 212–213
Headlamps, Xenon

212
Head restraints, front

49
Head-up display

10–12
Heating

77–79, 81–84
Heating, additional

45, 83–84
Heating, programmable

27, 45, 83–85
High voltage

176
Hill start assist

141
Histogramme, fuel consumption

27
Horn

100
I
Ignition 136–137, 275 CarM an uals 2 .c o m

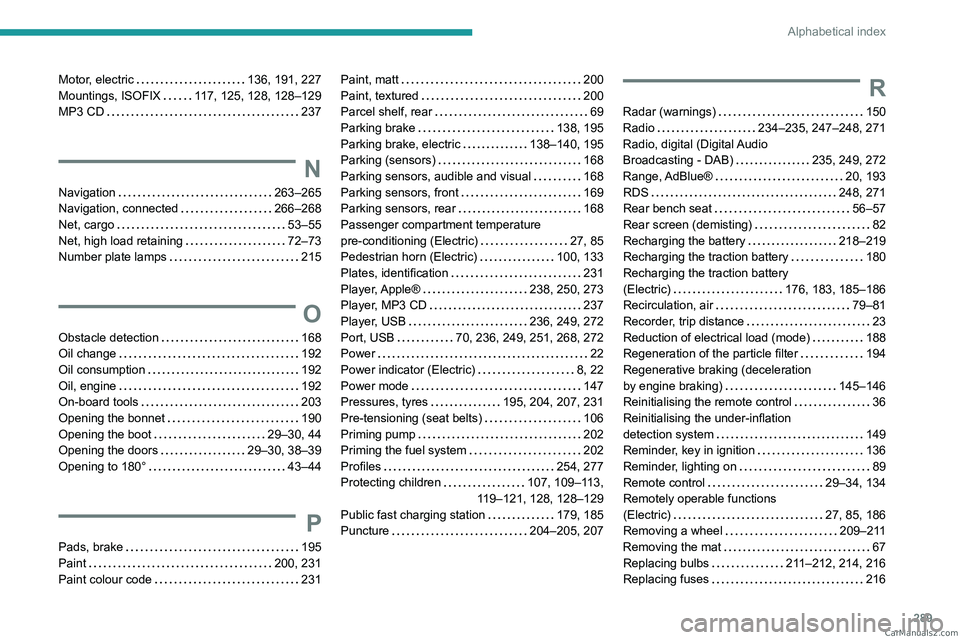

289
Alphabetical index
Motor, electric 136, 191, 227
Mountings, ISOFIX
117, 125, 128, 128–129
MP3 CD

237
N
Navigation 263–265
Navigation, connected
266–268
Net, cargo

53–55
Net, high load retaining

72–73
Number plate lamps

215
O
Obstacle detection 168
Oil change
192
Oil consumption

192
Oil, engine

192
On-board tools

203
Opening the bonnet

190
Opening the boot

29–30, 44
Opening the doors

29–30, 38–39
Opening to 180°

43–44
P
Pads, brake 195
Paint
200, 231
Paint colour code

231
Paint, matt 200
Paint, textured
200
Parcel shelf, rear

69
Parking brake

138, 195
Parking brake, electric

138–140, 195
Parking (sensors)

168
Parking sensors, audible and visual

168
Parking sensors, front

169
Parking sensors, rear

168
Passenger compartment temperature
pre-conditioning (Electric)

27, 85
Pedestrian horn (Electric)

100, 133
Plates, identification

231
Player, Apple®

238, 250, 273
Player, MP3 CD

237
Player, USB

236, 249, 272
Port, USB

70, 236, 249, 251, 268, 272
Power

22
Power indicator (Electric)

8, 22
Power mode

147
Pressures, tyres

195, 204, 207, 231
Pre-tensioning (seat belts)

106
Priming pump

202
Priming the fuel system

202
Profiles

254, 277
Protecting children

107, 109–113,
119–121, 128, 128–129
Public fast charging station

179, 185
Puncture

204–205, 207R
Radar (warnings) 150
Radio
234–235, 247–248, 271
Radio, digital (Digital Audio
Broadcasting - DAB)

235, 249, 272
Range, AdBlue®

20, 193
RDS

248, 271
Rear bench seat

56–57
Rear screen (demisting)

82
Recharging the battery

218–219
Recharging the traction battery

180
Recharging the traction battery
(Electric)

176, 183, 185–186
Recirculation, air

79–81
Recorder, trip distance

23
Reduction of electrical load (mode)

188
Regeneration of the particle filter

194
Regenerative braking (deceleration
by engine braking)

145–146
Reinitialising the remote control

36
Reinitialising the under-inflation
detection system

149
Reminder, key in ignition

136
Reminder, lighting on

89
Remote control

29–34, 134
Remotely operable functions
(Electric)

27, 85, 186
Removing a wheel

209–211
Removing the mat

67
Replacing bulbs

211–212, 214, 216
Replacing fuses

216 CarM an uals 2 .c o m

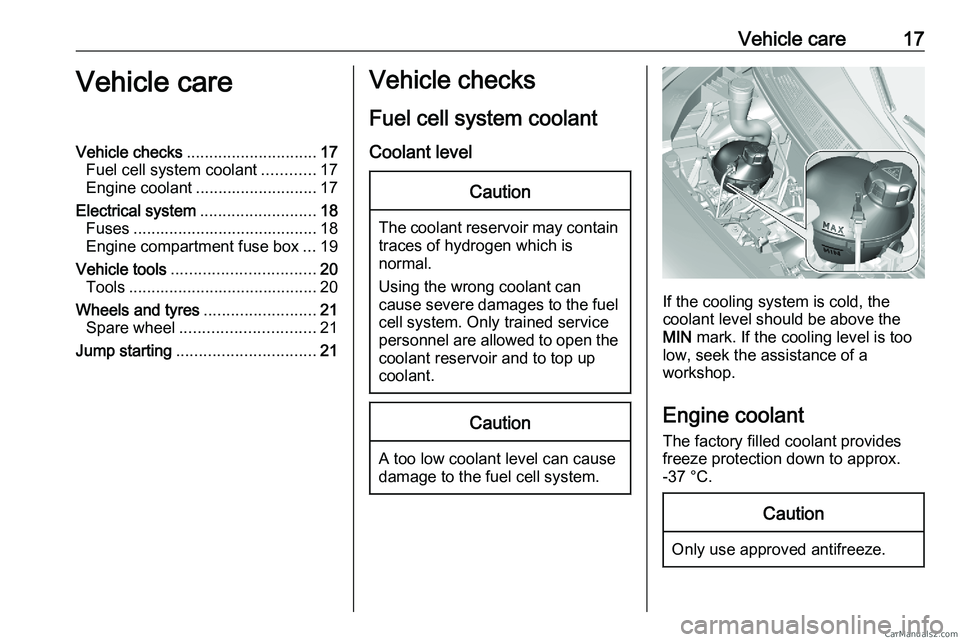

Vehicle care 17
Vehicle care
Vehicle checks ............................. 17
Fuel cell system coolant ............17
Engine coolant ........................... 17
Electrical system ..........................18
Fuses ......................................... 18
Engine compartment fuse box ...19
Vehicle tools ................................ 20
Tools .......................................... 20
Wheels and tyres .........................21
Spare wheel .............................. 21
Jump starting ............................... 21 Vehicle checks
Fuel cell system coolant Coolant level Caution
The coolant reservoir may contain
traces of hydrogen which is
normal.
Using the wrong coolant can
cause
severe damages to the fuel
cell system. Only trained service
personnel are allowed to open the
coolant reservoir and to top up
coolant. Caution
A too low coolant level can cause
damage to the fuel cell system. If the cooling system is cold, the
coolant level should be above the
MIN mark. If the cooling level is too
low, seek the assistance of a
workshop.
Engine coolant
The factory filled coolant provides
freeze protection down to approx.
-37 °C

. Caution
Only use approved antifreeze.CarM an uals 2 .c o m

18 Vehicle care

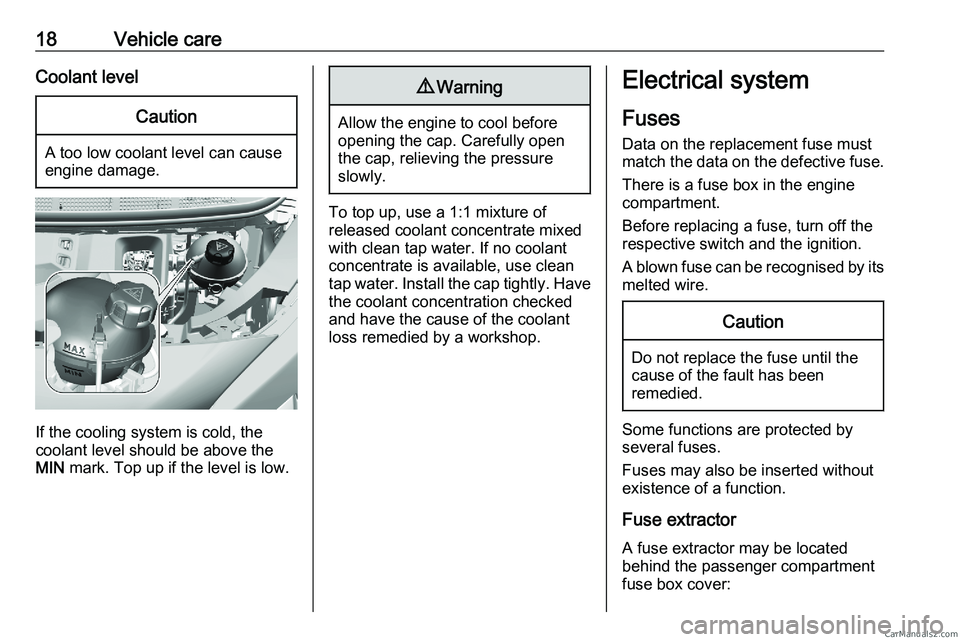

Coolant level Caution
A too low coolant level can cause
engine damage.
If the cooling system is cold, the
coolant level should be above the
MIN mark. Top up if the level is low. 9
Warning Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
To top up, use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap
water. Install the cap tightly. Have
the coolant concentration checked
and have the cause of the coolant
loss remedied by a workshop. Electrical system
Fuses
Data on the replacement fuse must
match

the data on the defective fuse.
There is a fuse box in the engine
compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire. Caution
Do not replace the fuse until the
cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Fuse extractorA fuse extractor may be located
behind the passenger compartment
fuse box cover:CarM an uals 2 .c o m

Vehicle care 19
Unclip the cover by pulling at the top
left, then right. Disengage the cover
completely and turn it over.
The extractor has two sides, each
side
is designed for a different type of
fuses. Grab the fuse with the fuse extractor

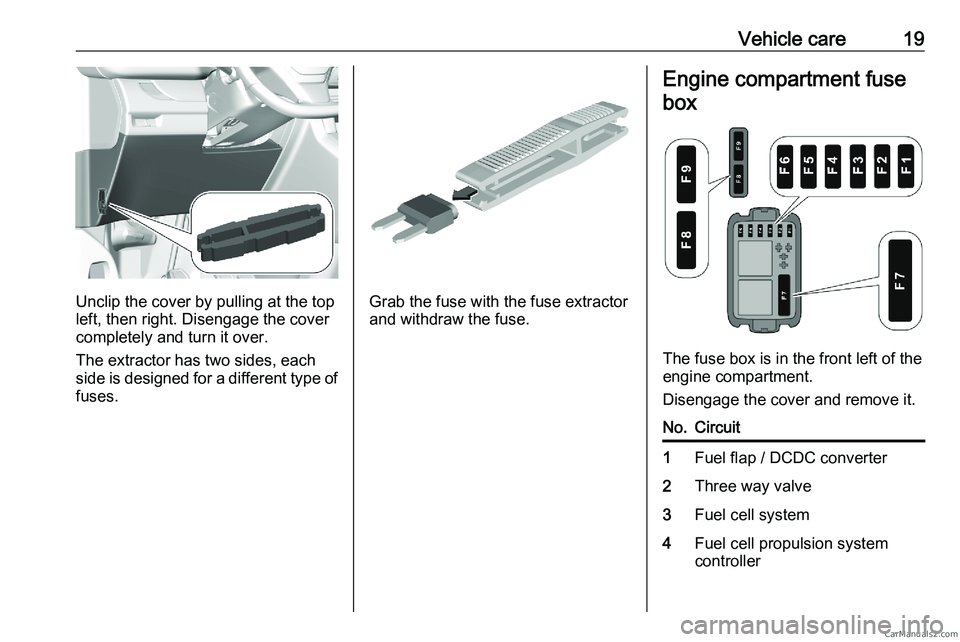

and withdraw the fuse. Engine compartment fuse
box The fuse box is in the front left of the
engine compartment.
Disengage the cover and remove it.
No. Circuit
1 Fuel flap / DCDC converter
2 Three way valve
3 Fuel cell system
4 Fuel cell propulsion system
controllerCarM an uals 2 .c o m
