Page 121 of 149

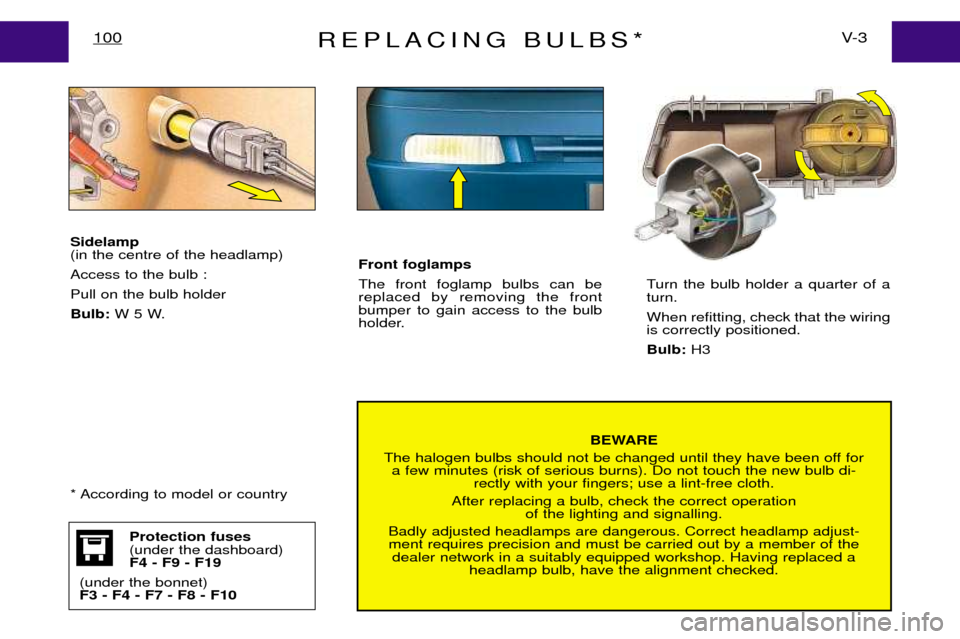

REPLACING BULBS*V- 3
100
BEWARE
The halogen bulbs should not be changed until they have been off for a few minutes (risk of serious burns). Do not touch the new bulb di- rectly with your fingers; use a lint-free cloth.
After replacing a bulb, check the correct operation of the lighting and signalling.
Badly adjusted headlamps are dangerous. Correct headlamp adjust- ment requires precision and must be carried out by a member of the dealer network in a suitably equipped workshop. Having replaced a headlamp bulb, have the alignment checked.
Sidelamp (in the centre of the headlamp) Access to the bulb :Pull on the bulb holderBulb:
W 5 W. Turn the bulb holder a quarter of a turn. When refitting, check that the wiring is correctly positioned. Bulb:
H3
Protection fuses (under the dashboard)F4 - F9 - F19
(under the bonnet)F3 - F4 - F7 - F8 - F10
Front foglamps The front foglamp bulbs can be replaced by removing the frontbumper to gain access to the bulb
holder.
* According to model or country
Page 122 of 149
REPLACING BULBS*101V- 3

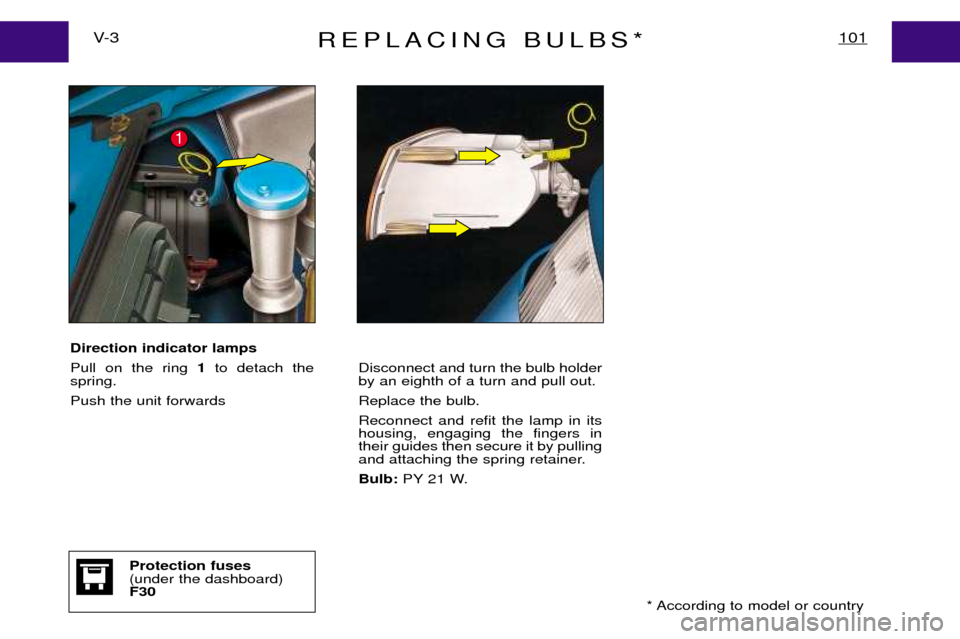

Direction indicator lamps Pull on the ring 1to detach the
spring.Push the unit forwards Disconnect and turn the bulb holder by an eighth of a turn and pull out. Replace the bulb.Reconnect and refit the lamp in its housing, engaging the fingers intheir guides then secure it by pulling
and attaching the spring retainer. Bulb:
PY 21 W.
1
* According to model or country
Protection fuses (under the dashboard)F30
Page 123 of 149
REPLACING BULBSV- 3
102
Identify the failed bulb. Unscrew the two screws at the rear of the lamp (inside the vehicle). Remove the lamp and disconnect it. Squeeze the retaining lugs of the bulb holder torelease it from the lamp.
Rear lamp cluster Bulbs
1 Stop lamps and sidelamps
2 Direction indicators
3 Reversing lamps
4 Foglamp
Protection fuses (under the dashboard)F4 - F9 - F12 -F18 - F26 - F30
1
2
3
4
1
2
3
4
Page 124 of 149
REPLACING BULBS103V- 3
Third stop lamp* Remove the nut from the inside.From outside, take out the housing to gain access to the bulb.Interior lamps Unclip the lens cover with a small screwdriver to obtain access to thebulb.
Rear number plate lamp
Unclip the transparent cover.
* According to model or country
Protection fuses (under the dashboard)F3Protection fuses (under the dashboard)F15 - F25 - F30Protection fuses (under the dashboard)F9
Page 125 of 149
ROOF BARS105V- 4
Always keep within the load capacity.
Maximum load spread evenly: 100 kg.
Roof bars
The design of your vehicle is such that only roof bars approved by the manufacturer should be used. The use of such roof bars will ensure your safety and will avoid damaging your vehicle. Follow the fitting instructions. Recommendations:
¥ Spread the load evenly, avoid overloading one side.
¥ Keep heavy objects at the bottom of the load.
¥ Strap the load securely, and signal any overhanging load.
¥ Drive gently, the effect of side winds will be increased.
The stability of your vehicle may be affected.
¥ Remove the roof rack or roof bars when not in use.
Page 126 of 149
CHANGING A WHEELV- 5
106

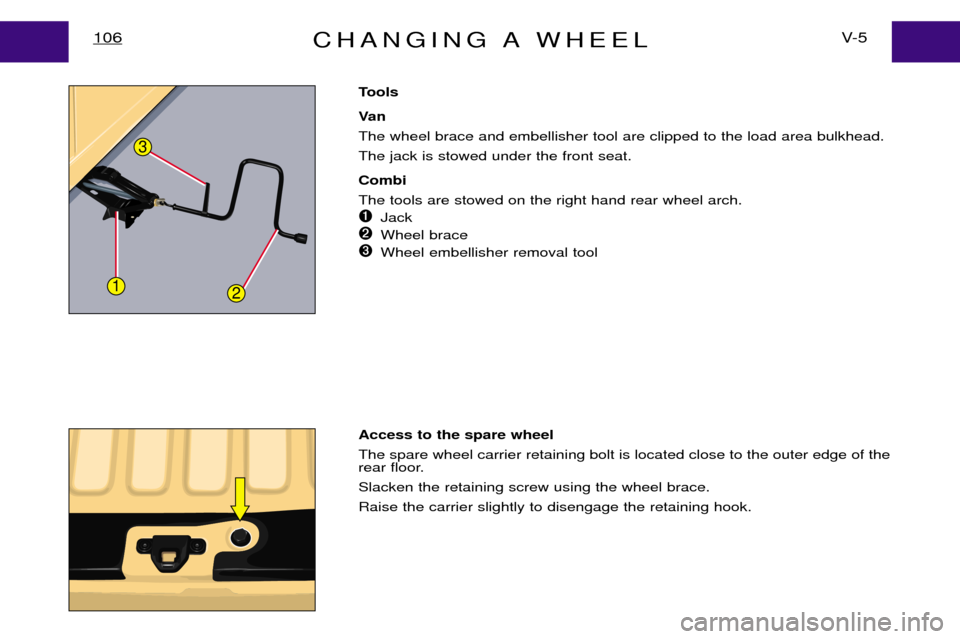

Tools
Va n The wheel brace and embellisher tool are clipped to the load area bulkhead.The jack is stowed under the front seat. Combi The tools are stowed on the right hand rear wheel arch.
Jack
Wheel brace
Wheel embellisher removal tool
Access to the spare wheelThe spare wheel carrier retaining bolt is located close to the outer edge of the
rear floor. Slacken the retaining screw using the wheel brace.Raise the carrier slightly to disengage the retaining hook.
3
12
Page 127 of 149
CHANGING A WHEEL107V- 5
Removal1 - If possible, place the car on firm, level ground. Engage the handbrake firmly.
2 - Wait until the vehicle has reached maximum height then switch off the ignition and engage 1st or reverse gear depen-
ding on the incline.
3 - Position the jack at one of the four jacking points on the underside of the vehicle adjacent to the wheels. Using the
wheel brace, extend the jack until it touches the ground.
4 - To remove the embellisher, pull on one of the holes in the embellisher using the end of the wheel brace.
5 - Extend the jack until the wheel is a few centimetres off the ground.
6 - Unscrewing the wheel bolts and remove the wheel.
EE
E
Page 128 of 149
CHANGING A WHEELV- 5
108
WARNING
Never get under a jacked up vehicle
unless it is correctly supported by axle stands.
To refit
1 - Fit the wheel onto the hub, making sure that it is correctly positioned.
2 - Screw in the bolts but do not fully tighten them.
3 - Lower the jack and remove it.
4 - Using the wheel brace, fully tighten the wheel bolts.
5 - Refit the wheel embellisher, aligning the tyre valve aperture with the valve, then pressing it home around its circum-
ference.
6 - Refit the repaired original wheel as soon as possible.
7 - Correct the inflation section (Ç Tyres È) and have the balance checked.
Page 129 of 149
CHANGING A WHEEL109V- 5

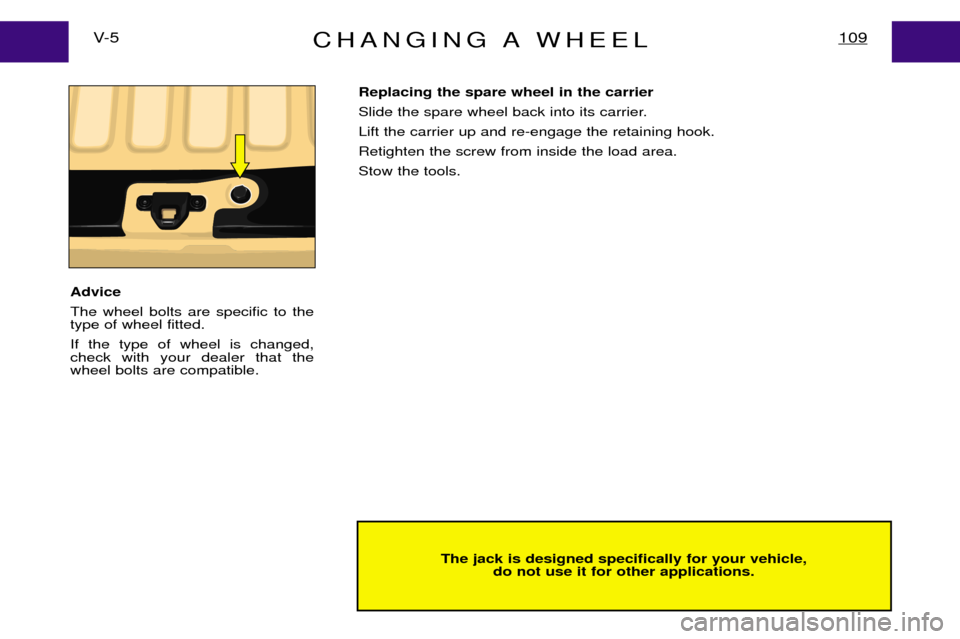

The jack is designed specifically for your vehicle,do not use it for other applications.
Replacing the spare wheel in the carrier
Slide the spare wheel back into its carrier.Lift the carrier up and re-engage the retaining hook.Retighten the screw from inside the load area.Stow the tools.
AdviceThe wheel bolts are specific to the type of wheel fitted. If the type of wheel is changed, check with your dealer that thewheel bolts are compatible.
Page 130 of 149
TOWING - LIFTINGV- 6
110
BEWARE
If the engine is not running,
the steering and braking systems will not be power-assisted.
Towing with the front or rear wheels lifted Use special towing equipment with a rigid bar and straps.Attach the hooks to each of the suspension arms.
Take the necessary precautions to protect the bumper and the front or rear of the vehicle.
NEVER TOW THE VEHICLE WITH THE FRONT OR REAR ENDS LIFTED AND THE WHEELS HANGING FREE. Towing with all wheels on theground
Towing rings are situated at the front and rear of the vehicle.
To prevent the steering from loc- king, the ignition key must be inposition "A". Use a bar with hooks to attach to the rings. Advice In exceptional circumstances, it is permitted to tow the vehicle
at low
speed over a short distance (in
accordance with the local legisla-tion in force). In all other cases, the vehicle must be transported by a trans-
porter.
