Peugeot Expert Dag 2001.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2001.5, Model line: Expert Dag, Model: Peugeot Expert Dag 2001.5Pages: 149, PDF Size: 5.87 MB
Page 141 of 149

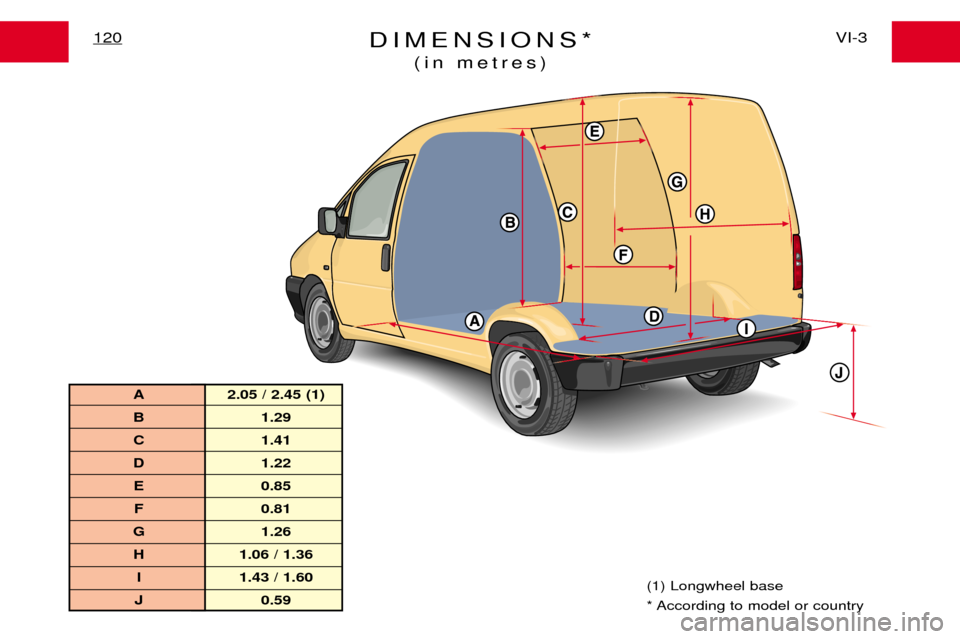

DIMENSIONS*(in metres)VI-3
120
(1) Longwheel base
* According to model or country
A 2.05 / 2.45 (1)
B 1.29
C 1.41
D 1.22
E 0.85 F 0.81
G 1.26 H 1.06 / 1.36 I 1.43 / 1.60
J 0.59
Page 142 of 149

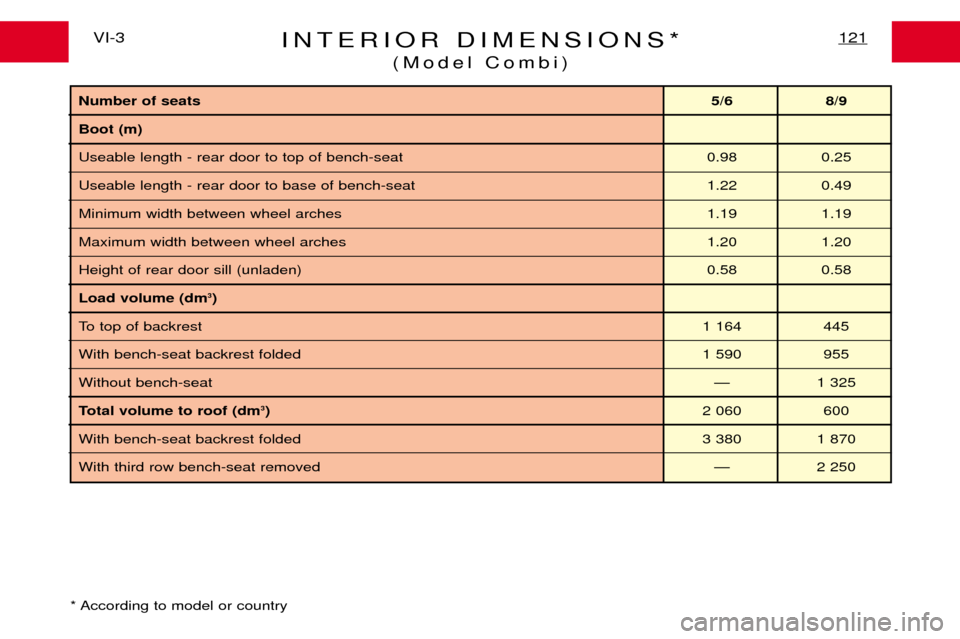

INTERIOR DIMENSIONS*(Model Combi)121VI-3
* According to model or country
Number of seats 5/6 8/9
Boot (m) Useable length - rear door to top of bench-seat 0.98 0.25
Useable length - rear door to base of bench-seat 1.22 0.49
Minimum width between wheel arches 1.19 1.19
Maximum width between wheel arches 1.20 1.20
Height of rear door sill (unladen) 0.58 0.58
Load volume (dm 3
)
To top of backrest 1 164 445
With bench-seat backrest folded 1 590 955
Without bench-seat Ñ 1 325
Total volume to roof (dm 3
) 2 060 600
With bench-seat backrest folded 3 380 1 870
With third row bench-seat removed Ñ 2 250
Page 143 of 149

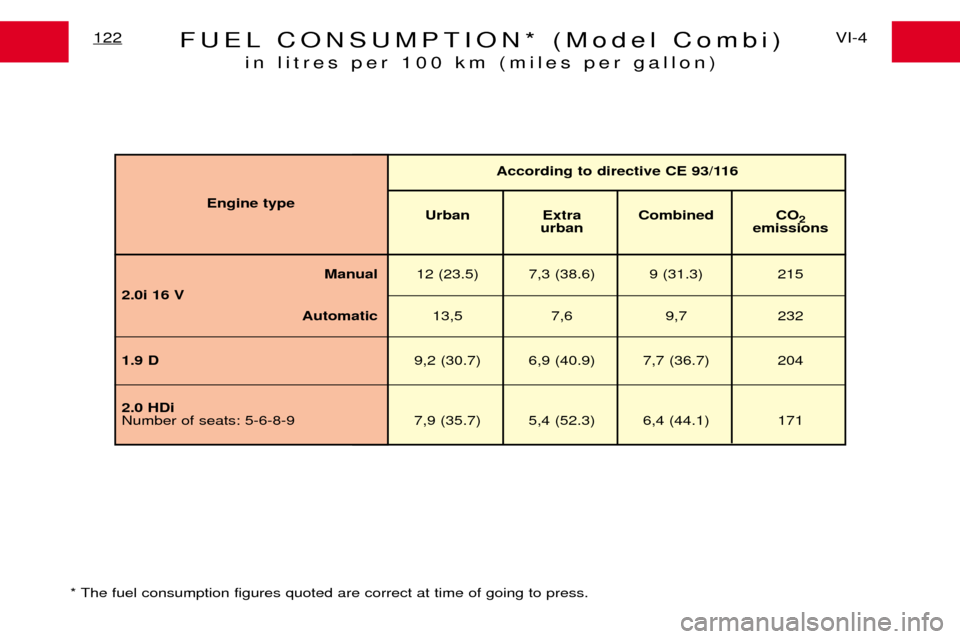

FUEL CONSUMPTION* (Model Combi)in litres per 100 km (miles per gallon)VI-4
122
Manual 12 (23.5) 7,3 (38.6) 9 (31.3) 215
2.0i 16 V Automatic13,5 7,6 9,7 232
1.9 D 9,2 (30.7) 6,9 (40.9) 7,7 (36.7) 204
2.0 HDi
Number of seats: 5-6-8-9 7,9 (35.7) 5,4 (52.3) 6,4 (44.1) 171 Engine type
According to directive CE 93/116
Urban Extra Combined CO 2
urban emissions
* The fuel consumption figures quoted are correct at time of going to press.
Page 144 of 149
VEHICLE IDENTIFICATION*123VI-5
Chassis number plate
On the left hand front door pillar.1 :Type approval number.
2 : Vehicle Identification Number (VIN).
3 : Gross vehicle weight.
4 : Gross train weight.
5 : Maximum weight on front axle.
6 : Maximum weight on rear axle.
7 : Colour code.
All original replacement parts are available from the manufacturer.
It is in the user's interest, for his safety and for the sake of the warranty, to reject all other parts.
Fitting parts or units not supplied by the manufacturer may even result in violation of the law, if it results in non-com-
pliance with the regulations, especially as regards safety, pollution control, interference suppression and the noise level
of the vehicle. Fitting such parts or units could deprive the user of any recourse against the manufacturer.
* According to model or country
1 2 3 456 7
Page 145 of 149
ACCESSORIESVI-6
124
When choosing accessories for your vehicle, you should consult
your dealer. He is in the best position to advise you, as a result of hisproduct knowledge and the close contact maintained with the manu-
facturer.
Accessories, replacement parts
Your vehicle incorporates the most modern technology so as to providethe highest levels of active and pas-
sive security. It is important that these qualities are retained and that the characte-ristics of the vehicle are not altered. Advice Use only accessories and replace- ment parts approved by the manu-facturer for your vehicle. These accessories and replace- ment parts are designed specifical-ly for your vehicle and have beentested and approved for reliability
and safety. The manufacturer can-not provide this assurance for anyother products.
A large range of genuine approved and guaranteed accessories is availablefrom our dealer network:
- Security
: Glass etching, alarms, wheel bolt locks.
- Protection : Seat covers, carpets.
- Communication : Radio-telephone, radio/cassette, CD changer, CB.
- Customising : Body styling, spoilers, interior wood finishers,
wooden steering wheel, leather, etc.
- Comfort : Air conditioning, additional heating, sun roof,
storage, etc.
- Leisure : Tow bar, roof bars, ski carrier etc.
- Children : Child restraints, sun blinds, etc.
- Maintenance : Screenwash fluid, engine coolant, cleaning products
for interior and exterior.
Page 146 of 149
TYRE PRESSURES125VI-7
MAKE SURE THAT THE TYRES ARE ALWAYSIN GOOD CONDITION AND THAT
THE TYRE PRESSURES ARE ALWAYS SET CORRECTLY.
See pressures indicated on the tyre pressure label on the driver's door pillar.
Advice - Recommendations
For your safety, it is essential that the tyres are in good condition. Ensure that the tyre pressures, including the spare, are maintained at the recommended
pressures. They should be checked regularly, once a month for example, and
before every long journey. The pressures should only be checked when thetyres are
coldas pressure increases as the tyre temperature increases with
driving. Never reduce the pressure of a warm tyre.
Page 147 of 149

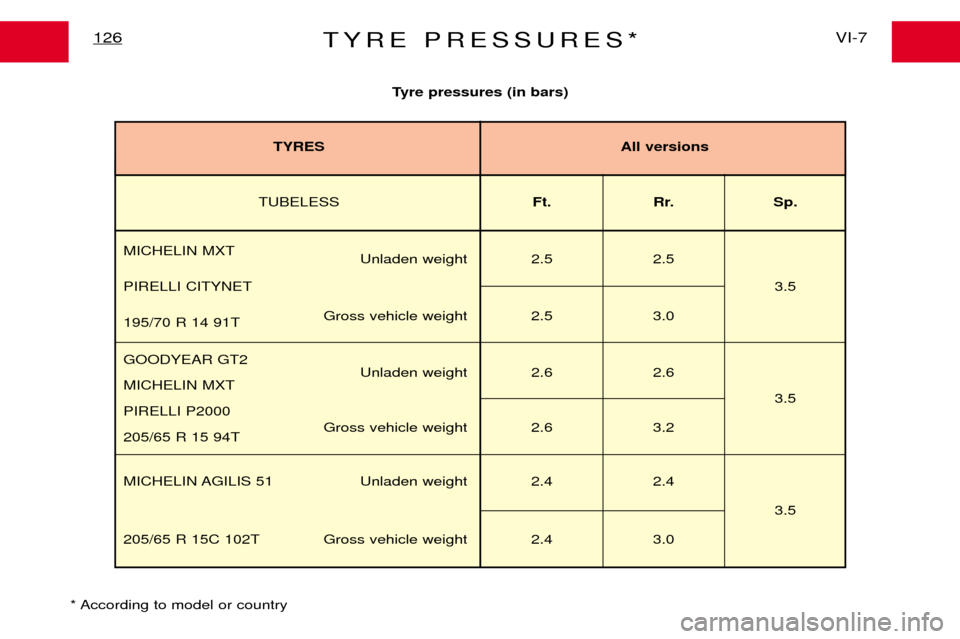

TYRE PRESSURES*VI-7
126
Tyre pressures (in bars)
* According to model or country
TUBELESS Ft. Rr. Sp.
MICHELIN MXT Unladen weight 2.5 2.5
PIRELLI CITYNET 3.5
Gross vehicle weight 2.5 3.0
195/70 R 14 91T
MICHELIN AGILIS 51 Unladen weight 2.4 2.4
3.5
205/65 R 15C 102T Gross vehicle weight 2.4 3.0
GOODYEAR GT2
Unladen weight 2.6 2.6
MICHELIN MXT 3.5
PIRELLI P2000
Gross vehicle weight 2.6 3.2
205/65 R 15 94T TYRES
All versions
Page 148 of 149
F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
AC TIV AD IESE L 7000
10W 40
A C
TIV AD IESEL 9000
5W 40
A C
TIVA 9000
5W 30*
U
LT R A
D
IES EL
10W 40
U LT R A
5W 30*
U LT R O
N
D IES EL
5W 40
QU
AR TZ D IES
EL 7000
10W 40
Q U
AR TZ 9000
5W 40
Q UAR TZ 9000
5W 30*
AC TIV A 7000
10W 40
AC TIV
A
9000
5W 40
AC TIVA 9000
5W 30*
Q UAR
TZ 7000
15W 50
U
LT R A
10W 40
U LT R A
5W 30*
U LT R O
N
5W 40
U LT R O
N
0W 30
QU
AR TZ 7000
10W 40
Q UA R
TZ 9000
0W 40
Q UAR TZ 9000
5W 40
Q U
AR
TZ 9000
5W 30*

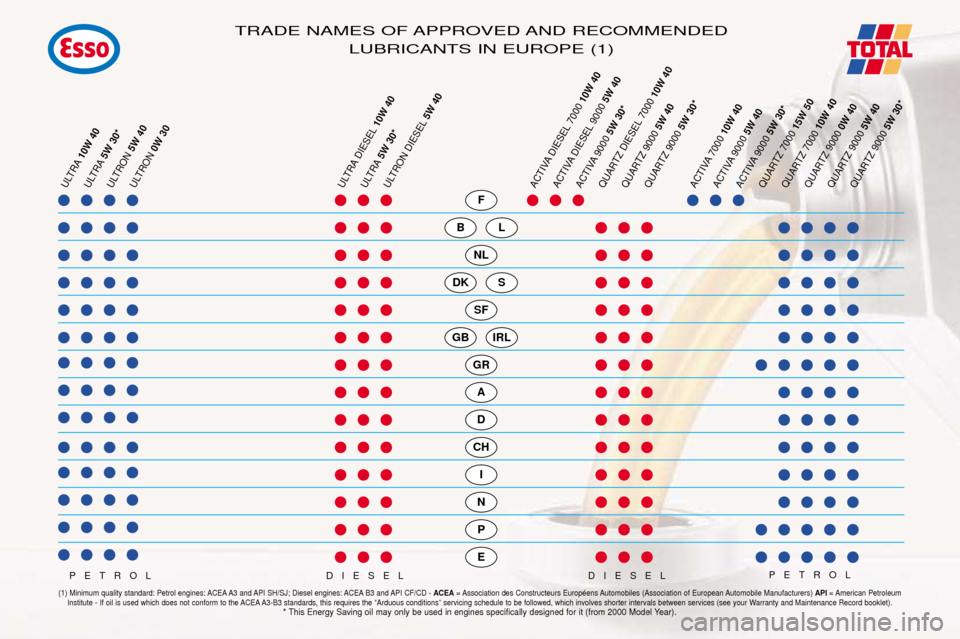

TRADE NAMES OF APPROVED AND RECOMMENDED
LUBRICANTS IN EUROPE (1)
PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ; Diesel engines: ACEA B3 and API CF/CD - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) API= American Petroleum
Institute - If oil is used which does not conform to the ACEA A3-B3 standards, this requires the ÒArduous conditionsÓ servicing schedule to be followed, which involves shorter intervals between services (see your Warranty and Maintenance Record booklet).
* This Energy Saving oil may only be used in engines specifically designed for it (from 2000 Model Year).
PETROL DIESEL
DIESEL
Page 149 of 149
RECOMMENDATIONS FORAPPROVED LUBRICANTSVI-8
128
The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at whichthe oils are to be used. It is also possible to use synthetic oils of 'superior quality'. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJquality (for petrol engines), orCD/CF quality (for diesel engines)may be used by following the'Arduous Conditions' maintenanceschedule which specifies shorterintervals. Do not hesitate to ask for advice
from a PEUGEOT dealer to main-tain driving pleasure and to minimi-se the maintenance cost of yourvehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
0 W2 0 4 0
5 0
2 0 W
1 5 W
1 0 W
5 W
3 0
ESSENTIAL ESSENTIAL
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W-80 PR 9736.41 75W-80
Automatic gearbox ESSENTIAL
ATF 4HP20-AL4 PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Other approved products
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000
ESSENTIAL Protection to minus 35 ¡C
