Peugeot Expert Tepee 2013 Owner's Manual

139


Snow screen

QUICK HELP
7
REMOVABLE SNOW SCREEN

According to country, the removable snow
screen is installed on the lower part of the
front bumper to prevent the accumulation of
snow at the radiator cooling fan.

FITTING



- Offer up the snow screen facing its
centring pin A
on the front bumper.

- Put it in place by pressing at each clip B

located in the four corners.

Do not forget to remove the snow screen
when the exterior temperature is higher than
10°C (no risk of snowfall) and when towing.

REMOVAL



- Pass a screwdriver into the hole located
near each of the clips.

- Use the screwdriver as a lever to unclip
the four clips B
in turn.



6. REFITTING THE REPAIREDWHEEL

The wheel is refitted as described in step 5,
not forgetting to refit the wheel trim.
Refer to the "Identification markings"
section of chapter 8 to locate the tyre
label.
The spare wheel is not designed to
be used over long distances. Have
the tightening of the bolts and the tyre
pressure checked by a PEUGEOT dealer or
a qualified workshop as soon as possible.
Also, have the original wheel repaired and
refitted by a PEUGEOT dealer or a qualified
workshop as soon as possible.

140


Snow chains

SNOW CHAINS


In wintry conditions, snow chains improve
traction as well as the behaviour of the
vehicle when braking.

The snow chains must be fitted only to
the driving wheels. They must never be
fitted to "space-saver" type spare wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.

Advice on installation



)
If you have to fit the chains during
a journey, stop the vehicle on a flat
surface on the side of the road.

)
Apply the parking brake and position any
wheel chocks to prevent movement of
your vehicle.

)
Fit the chains following the instructions
provided by the manufacturer.

)
Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).

)
Stop your vehicle and check that the
snow chains are correctly tightened.


Avoid driving on roads that have been
cleared of snow, to avoid damaging
your vehicle's tyres and the road surface. It
is recommended that before you leave, you
practise fitting the snow chains on a level
and dry surface. If your vehicle is fitted with
alloy wheels, check that no part of the chain
or its fixings is in contact with the wheel rim.


Use only the chains designed to be fitted to
the type of wheel fitted to your vehicle:
For more information on snow chains,
contact a PEUGEOT dealer or a qualified
workshop.

Original tyre size
Maximum link size.

215/65 R15

12 mm
215/60 R16
MICHELIN

215/60 R16
BRIDGESTONE

141
Changing a bulb
QUICK HELP
7

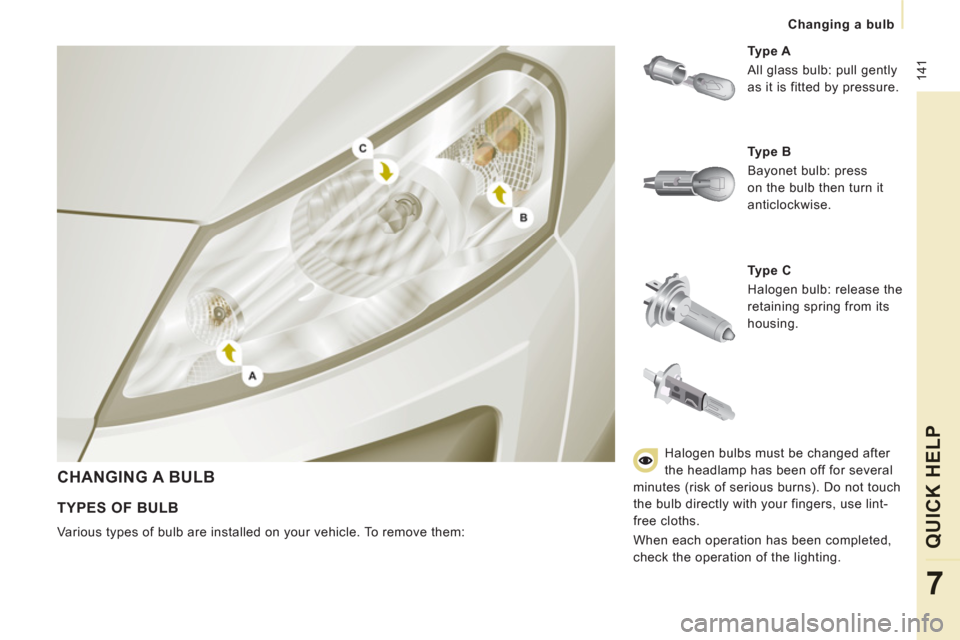

CHANGING A BULB


Ty p e C
Halogen bulb: release the
retaining spring from its
housing.
Ty p e A
All glass bulb: pull gently
as it is fitted by pressure.

TYPES OF BULB

Various types of bulb are installed on your vehicle. To remove them:
Ty p e B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Halogen bulbs must be changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fingers, use lint-
free cloths.
When each operation has been completed,
check the operation of the lighting.

142
Changing a bulb

3.
Direction indicators
Type B
, PY21W - 21W (amber)


- Turn the bulb holder a quarter turn
anticlockwise.

- Remove the bulb by pressing it lightly
while turning it anticlockwise.

- Change the bulb.

4.
Foglamps
Type C
, H1 - 55W
- Ensure that the cover is refitted
correctly all the way round to ensure
sealing.

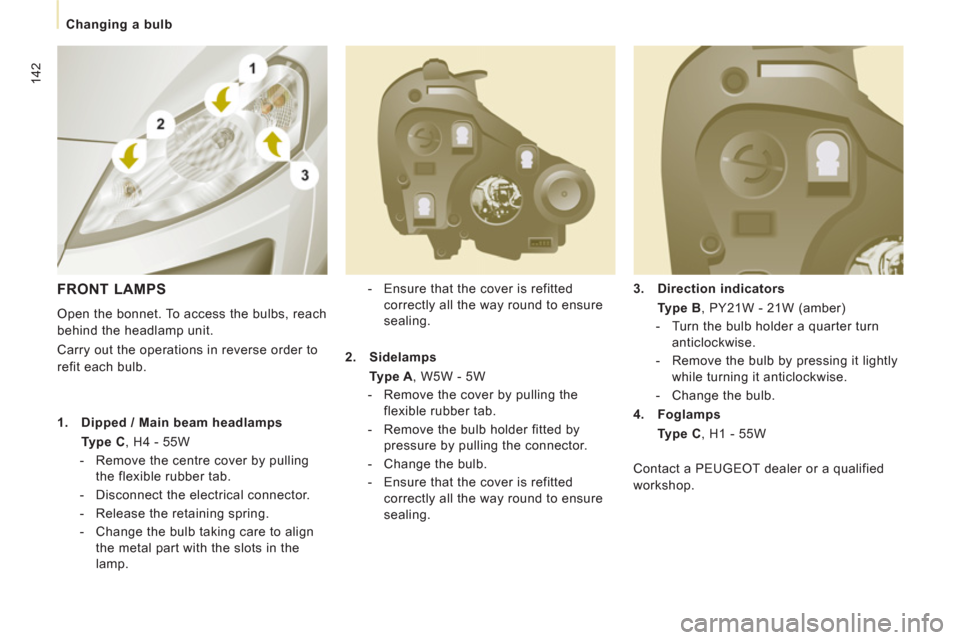

FRONT LAMPS

Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Carry out the operations in reverse order to
refit each bulb.


1.
Dipped / Main beam headlamps
Type C
, H4 - 55W


- Remove the centre cover by pulling
the flexible rubber tab.

- Disconnect the electrical connector.

- Release the retaining spring.

- Change the bulb taking care to align
the metal part with the slots in the
lamp.
2.
Sidelamps
Type A
, W5W - 5W


- Remove the cover by pulling the
flexible rubber tab.

- Remove the bulb holder fitted by
pressure by pulling the connector.

- Change the bulb.

- Ensure that the cover is refitted
correctly all the way round to ensure
sealing. Contact a PEUGEOT dealer or a qualified
workshop.

143
Changing a bulb
QUICK HELP
7

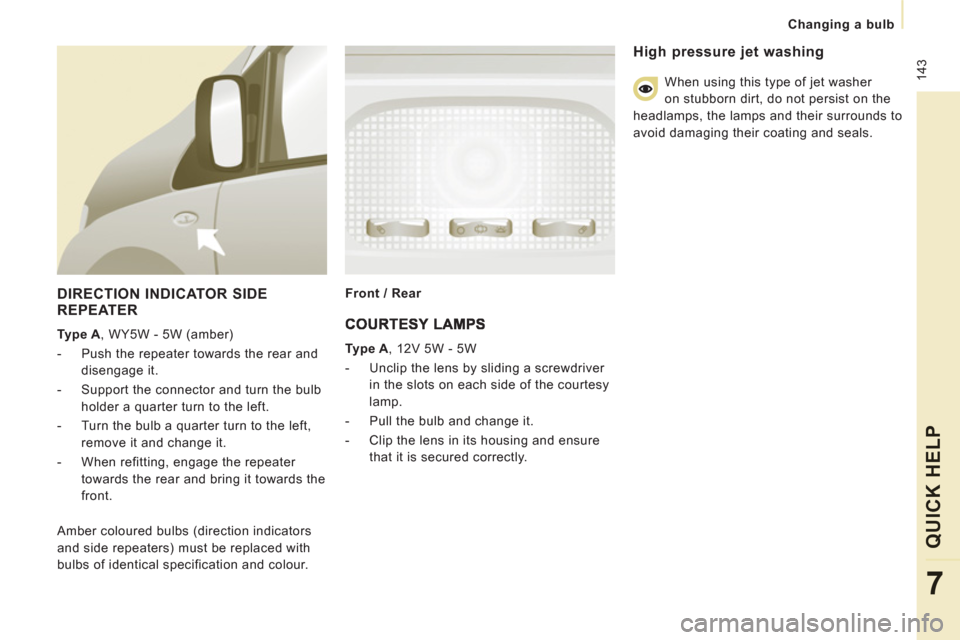

DIRECTION INDICATOR SIDEREPEATER


Type A
, WY5W - 5W (amber)


- Push the repeater towards the rear and
disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Front / Rear

Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A
, 12V 5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the courtesy
lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.


High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

144
Changing a bulb

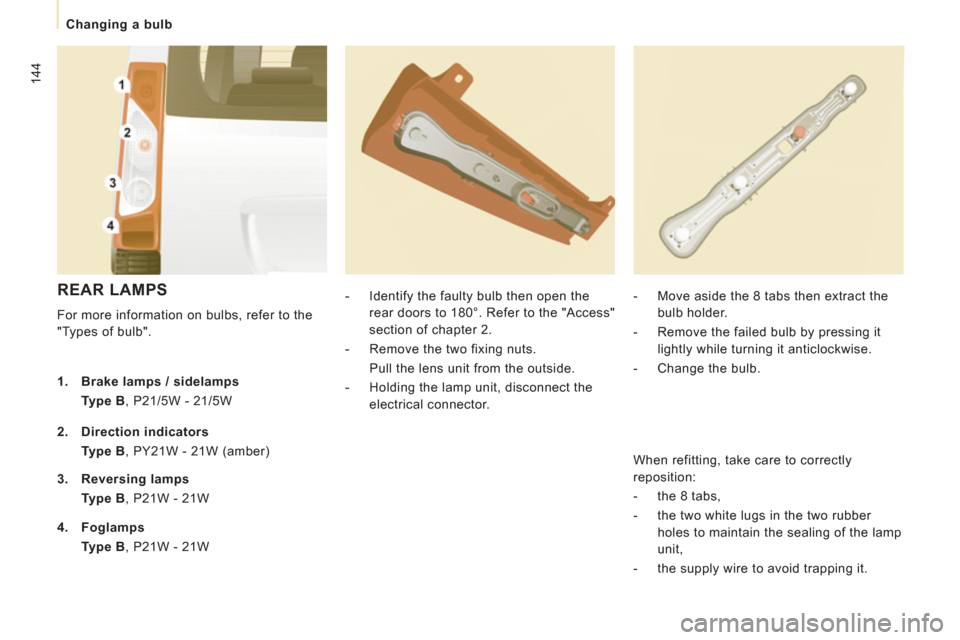

REAR LAMPS

For more information on bulbs, refer to the
"Types of bulb".

- Identify the faulty bulb then open the
rear doors to 180°. Refer to the "Access"
section of chapter 2.

- Remove the two fixing nuts.
Pull the lens unit from the outside.

- Holding the lamp unit, disconnect the
electrical connector.
- Move aside the 8 tabs then extract the
bulb holder.

- Remove the failed bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake lamps / sidelamps
Type B
, P21/5W - 21/5W

2.
Direction indicators
Type B
, PY21W - 21W (amber)

3.
Reversing lamps
Type B
, P21W - 21W

4.
Foglamps
Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the lamp
unit,

- the supply wire to avoid trapping it.

Changing a bulb
QUICK HELP
7

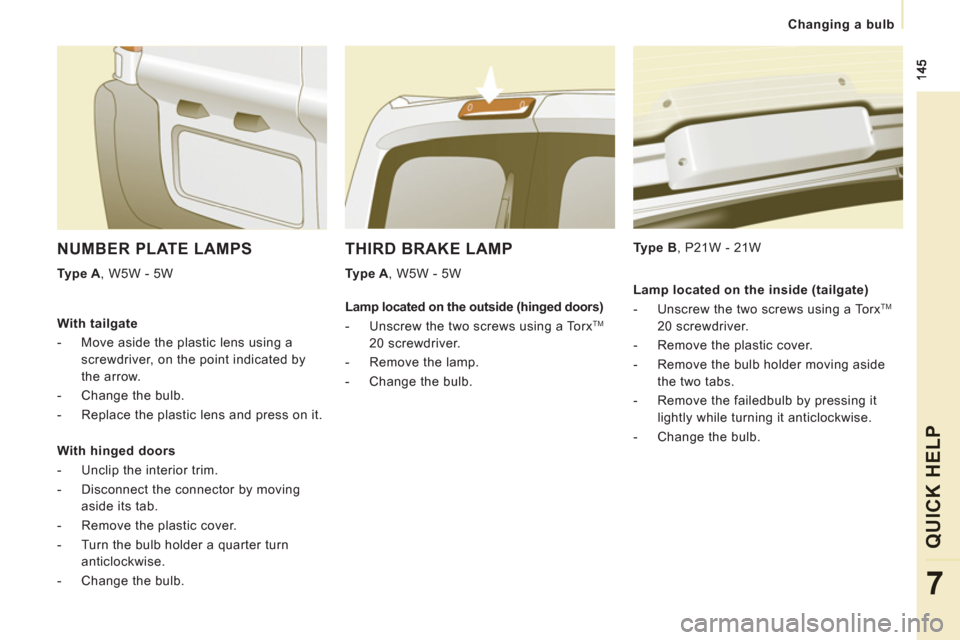

THIRD BRAKE LAMP

Type A
, W5W - 5W
Type B
, P21W - 21W

NUMBER PLATE LAMPS


Type A
, W5W - 5W

With tailgate


- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.

- Change the bulb.

- Replace the plastic lens and press on it.


With hinged doors


- Unclip the interior trim.

- Disconnect the connector by moving
aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.


Lamp located on the outside (hinged doors)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the lamp.

- Change the bulb.
Lamp located on the inside (tailgate)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the plastic cover.

- Remove the bulb holder moving aside
the two tabs.

- Remove the failedbulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

146
Changing a fuse

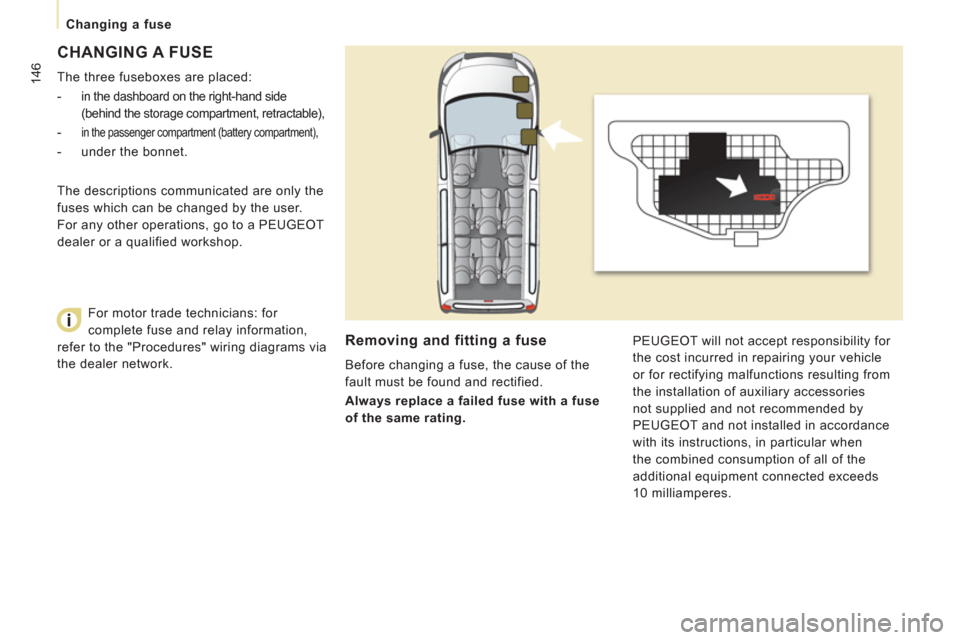

CHANGING A FUSE

The three fuseboxes are placed:


-
in the dashboard on the right-hand side
(behind the storage compartment, retractable),

- in the passenger compartment (battery compartment),


- under the bonnet.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.

Always replace a failed fuse with a fuse
of the same rating. PEUGEOT will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade technicians: for
complete fuse and relay information,
refer to the "Procedures" wiring diagrams via
the dealer network.

147
Changing a fuse
QUICK HELP
7

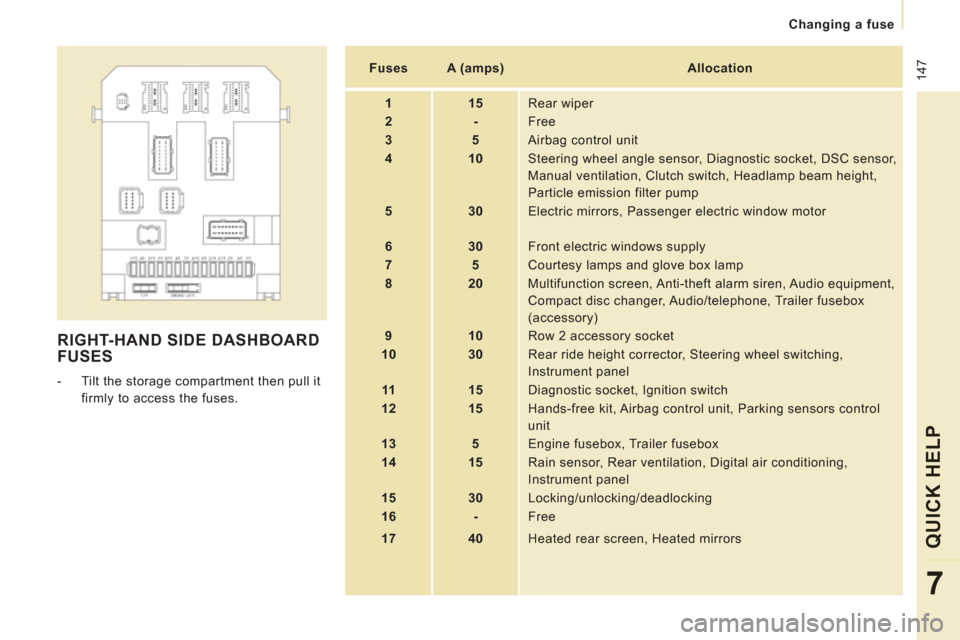

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, DSC sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

148
Changing a fuse

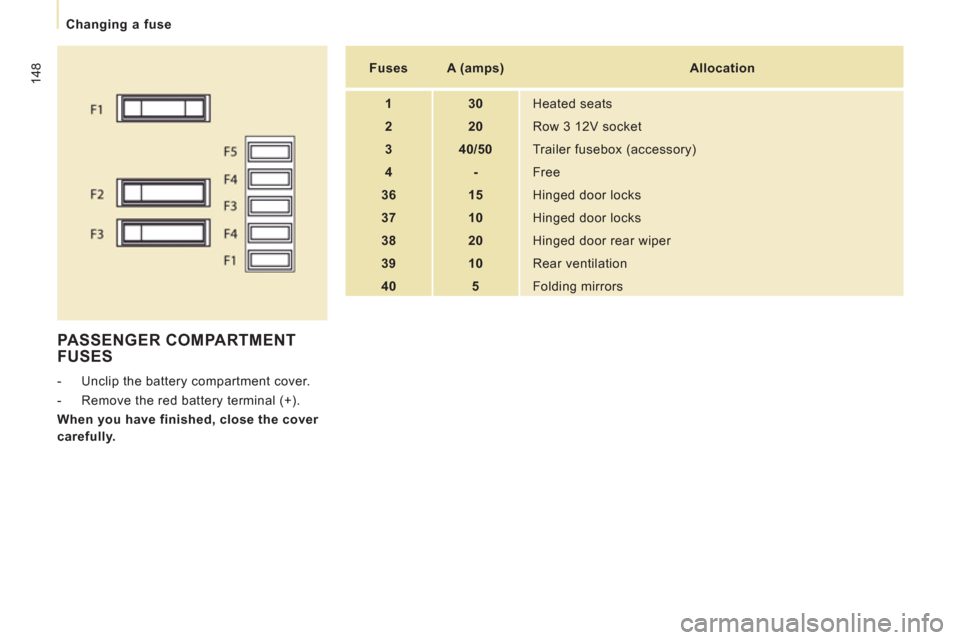

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors
