Changing a fuse
QUICK HELP
7

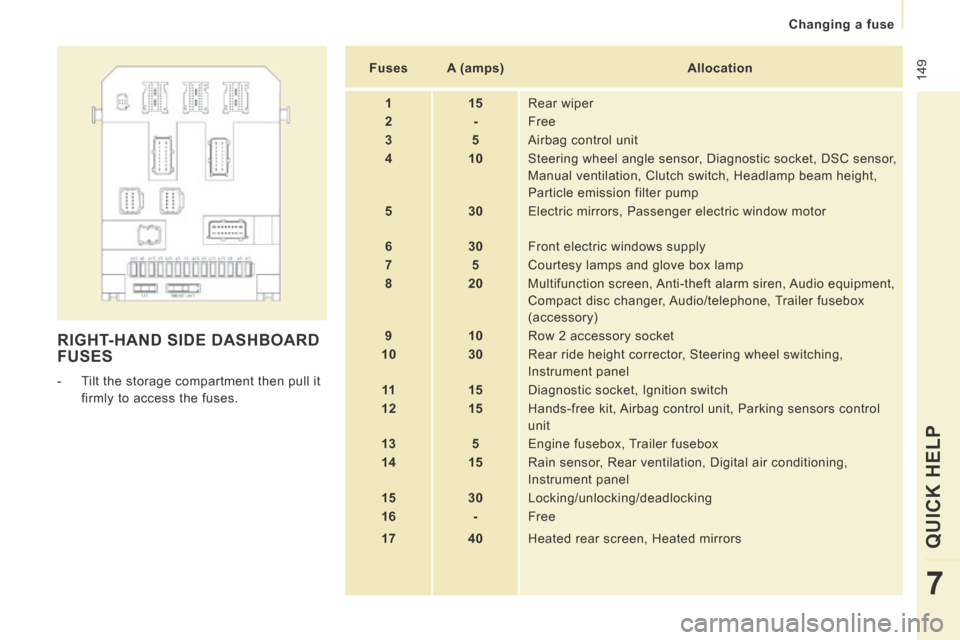

RIGHT-HAND SIDE DASHBOARD FUSES
- Tilt the storage compartment then pull it firmly to access the fuses. Fuses
A (amps) Allocation
1 15 Rear wiper
2 - Free
3 5 Airbag control unit
4 10 Steering wheel angle sensor, Diagnostic socket, DSC sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump
5 30 Electric mirrors, Passenger electric window motor
6 30 Front electric windows supply
7 5 Courtesy lamps and glove box lamp
8 20 Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)
9 10 Row 2 accessory socket
10 30 Rear ride height corrector, Steering wheel switching,
Instrument panel
11 15 Diagnostic socket, Ignition switch
12 15 Hands-free kit, Airbag control unit, Parking sensors control
unit
13 5 Engine fusebox, Trailer fusebox
14 15 Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel
15 30 Locking/unlocking/deadlocking
16 - Free
17 40 Heated rear screen, Heated mirrors

150
Changing a fuse

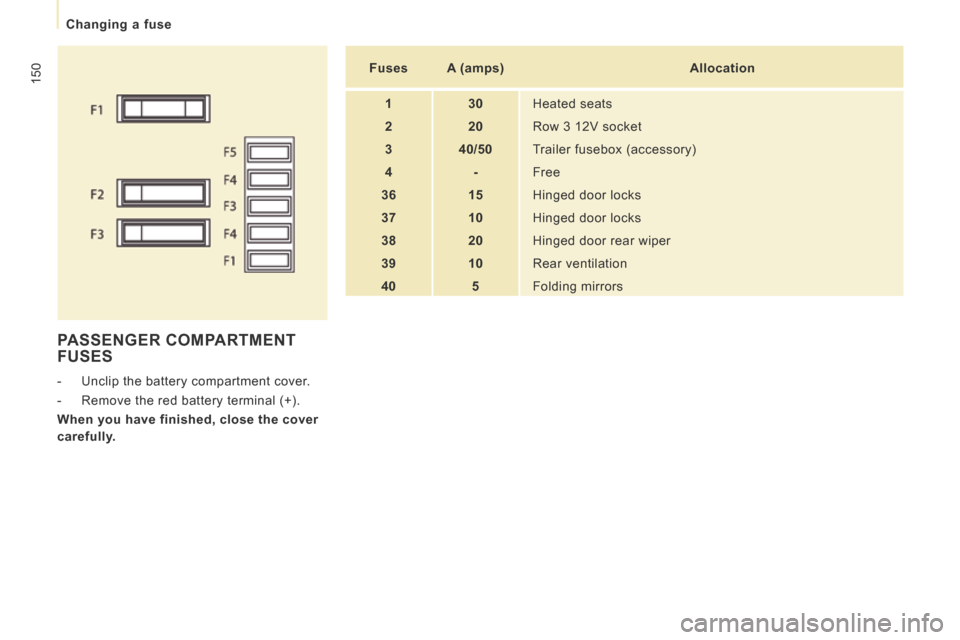

PASSENGER COMPARTMENT FUSES
- Unclip the battery compartment cover.
- Remove the red battery terminal (+).
When you have finished, close the cover
carefully. Fuses
A (amps) Allocation
1 30 Heated seats
2 20 Row 3 12V socket
3 40/50 Trailer fusebox (accessory)
4 - Free
36 15 Hinged door locks
37 10 Hinged door locks
38 20 Hinged door rear wiper
39 10 Rear ventilation
40 5 Folding mirrors

151
Changing a fuse
QUICK HELP
7

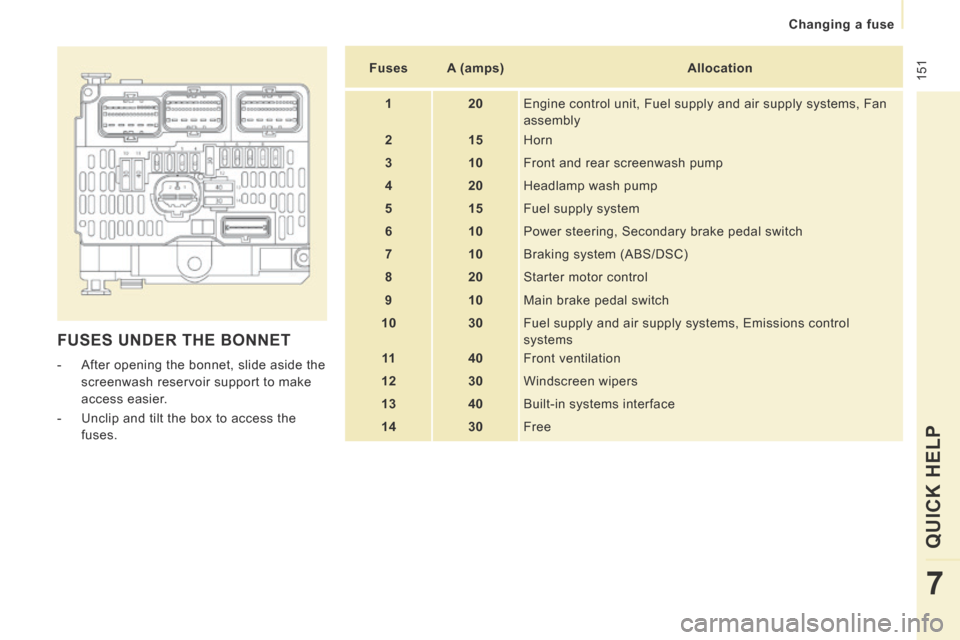

FUSES UNDER THE BONNET
- After opening the bonnet, slide aside the screenwash reservoir support to make
access easier.
- Unclip and tilt the box to access the fuses. Fuses
A (amps) Allocation
1 20 Engine control unit, Fuel supply and air supply systems, Fan
assembly
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump
5 15 Fuel supply system
6 10 Power steering, Secondary brake pedal switch
7 10 Braking system (ABS/DSC)
8 20 Starter motor control
9 10 Main brake pedal switch
10 30 Fuel supply and air supply systems, Emissions control
systems
11 40 Front ventilation
12 30 Windscreen wipers
13 40 Built-in systems interface
14 30 Free

152

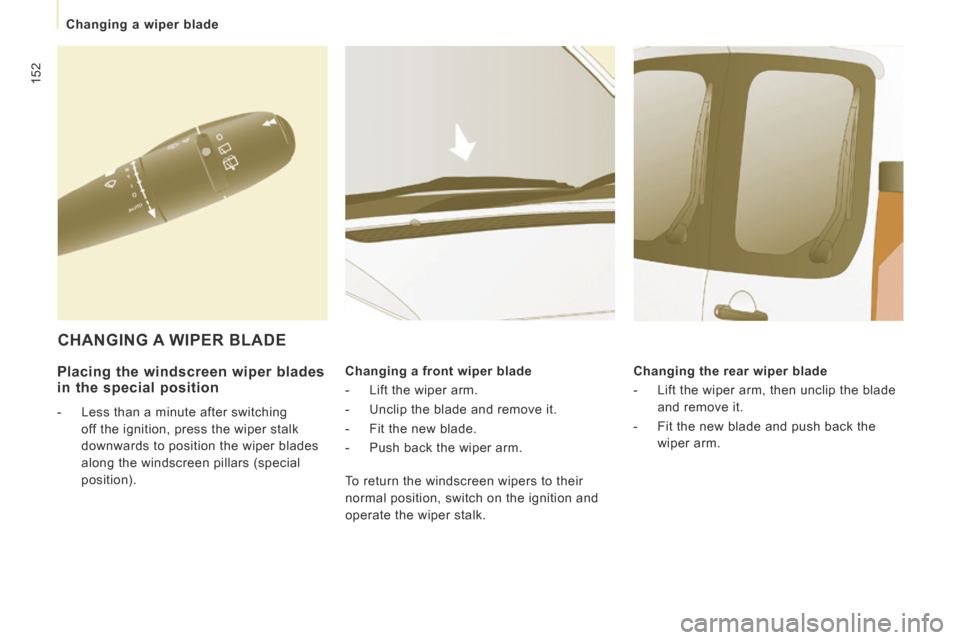

Changing a wiper blade
Placing the windscreen wiper blades in the special position
- Less than a minute after switching off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the blade
and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WIPER BLADE
To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.

153
Having your vehicle towed
QUICK HELP
7
Without lifting (4 wheels on the ground)
You should always use a towing bar.
From the front
- Unclip the cover by pressing at the bottom,
- Fully screw in the removable towing eye.

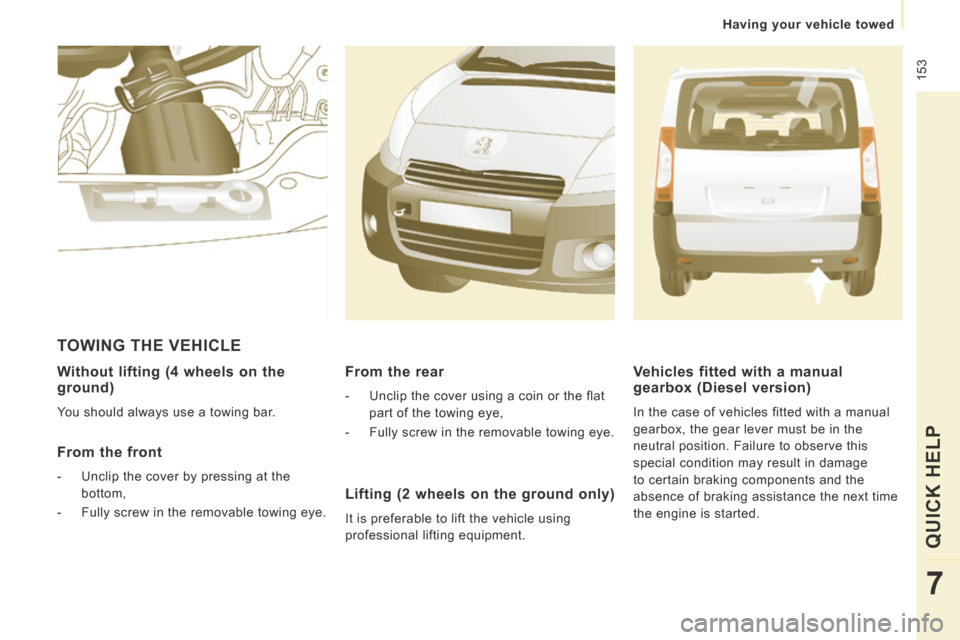

TOWING THE VEHICLE
Lifting (2 wheels on the ground only)
It is preferable to lift the vehicle using
professional lifting equipment.
From the rear
- Unclip the cover using a coin or the flat part of the towing eye,
- Fully screw in the removable towing eye.
Vehicles fitted with a manual gearbox (Diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

154
Having your vehicle towed

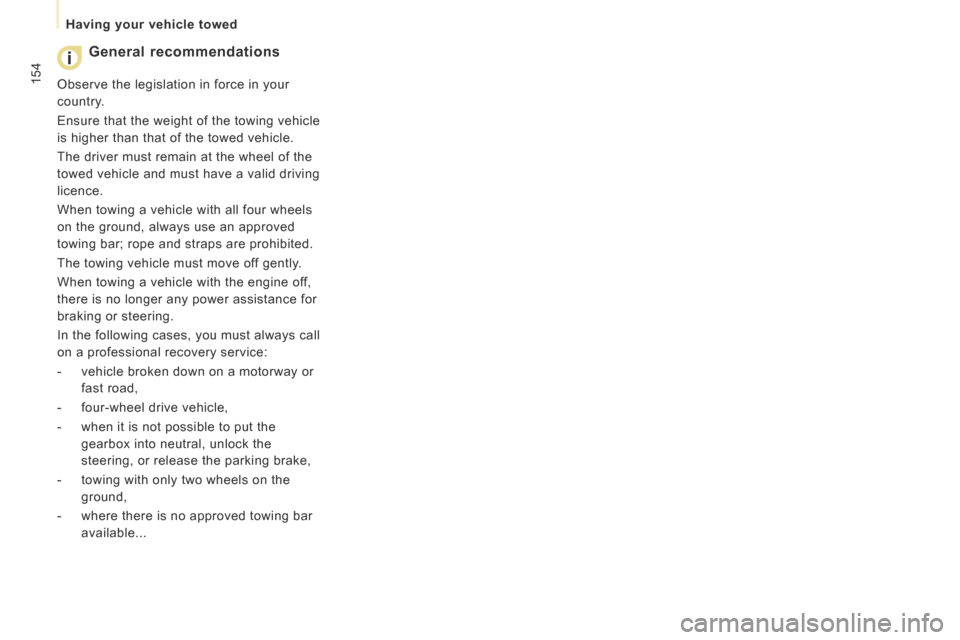

General recommendations
Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
- vehicle broken down on a motorway or fast road,
- four-wheel drive vehicle,
- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...

155
Environment
QUICK HELP
7
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com
website. As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and harsh acceleration,
- observe the service intervals; we recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control systems, do
not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).

156
Dimensions

157
Dimensions

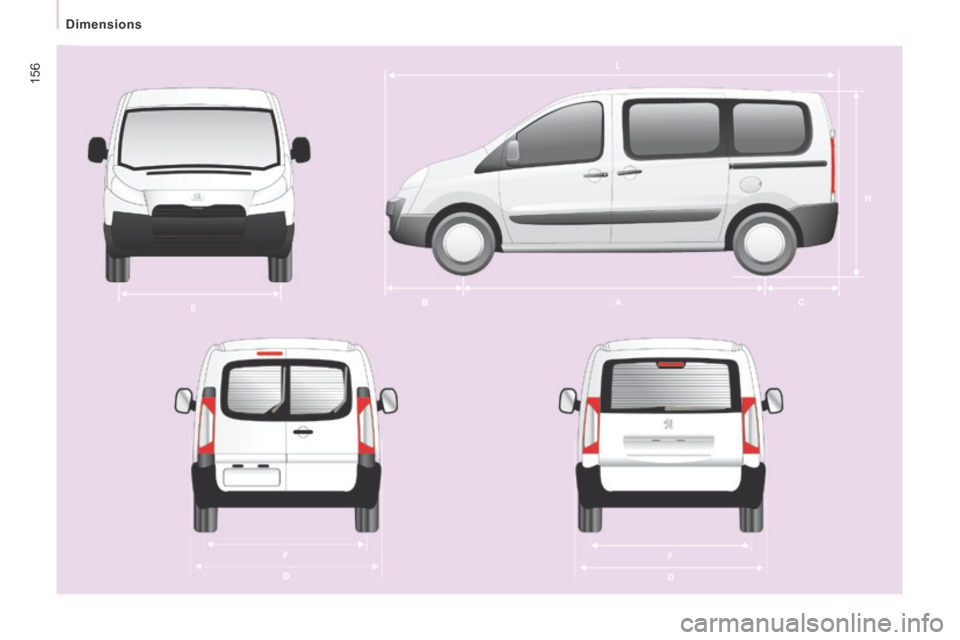

TECHNICAL DATA
8
H1
L Overall length 4 805 5 135
H Overall height pneumatic / metal suspension 1 895/1 942
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 1 038
Overall width:
on panel 1 870
D with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front tracks 1 574
F Width of rear tracks 1 574
Turning circle between kerbs (m) 12.18 12.59
Maximum loads (kg)
Payload 1 000
On roof 170

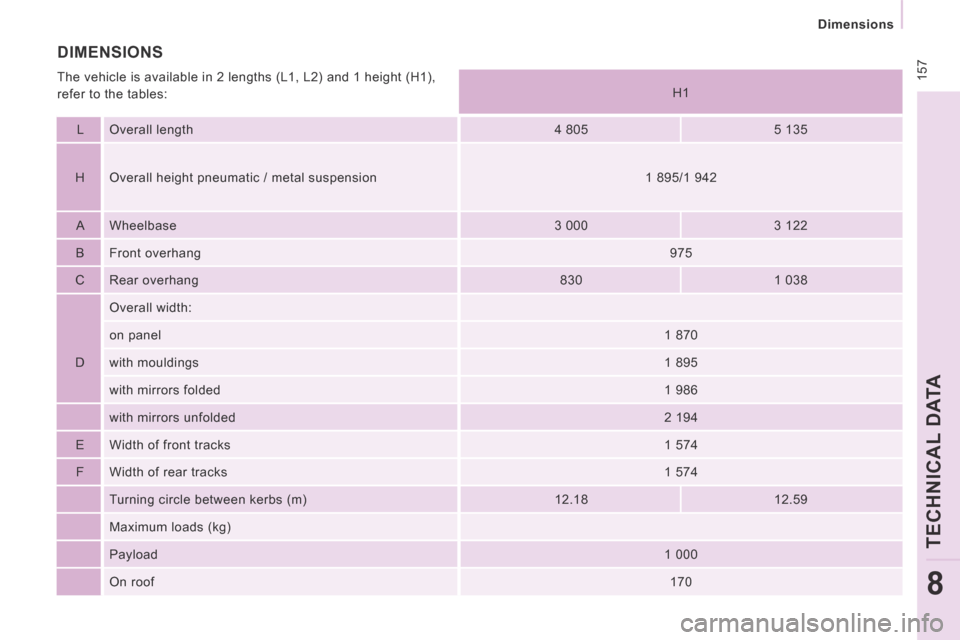

DIMENSIONS
The vehicle is available in 2 lengths (L1, L2) and 1 height (H1),
refer to the tables:

158
Dimensions
REAR DOORS (mm)
L1 L2

H1
N Usable height 1 272
O Usable width 1 237
