Under the bonnet

CHECK
S
6

DIESEL ENGINES


8 -
Power steering reservoir.

9 -
Removable towing eye.

10 -

Repriming pump
( a
: 1.6 litre HDi; b
: 2 litre HDi).

11 -
Engine oil filling funnel (2 litre HDi).
7.1 -
Engine oil filler cap.
If your vehicle is fitted with this oil filler tube,
proceed as follows:

A -
Remove the oil filler cap.

B -
Remove the filler tube from its location.

C -
Place the filler tube in the filler opening
as shown on the illustration.

D -
Turn it a 1/4 of a turn to the left to lock it
then top up the oil.
To refit, proceed in the reverse order without
forgetting to retighten the cap A
correctly.

UNDER THE BONNET


1 -
Windscreen/headlamp wash
reservoir.

2 -
Fuse box.

3 -
Coolant reservoir.

4 -
Brake and clutch fluid reservoir.

5 -
Air filter.

6 -
Dipstick.

7 -
Engine oil filler cap.

104
Under the bonnet

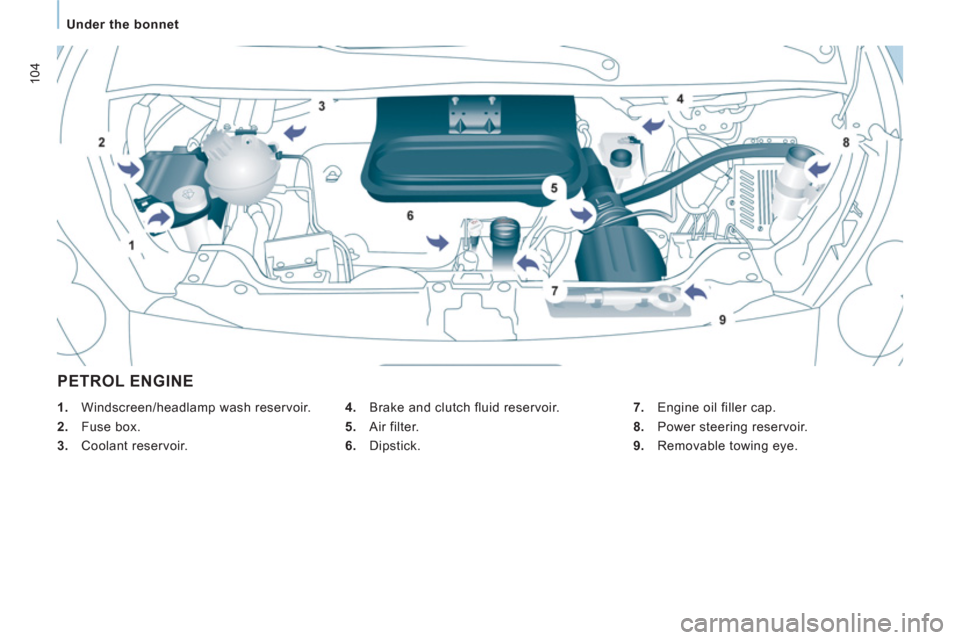

PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Dipstick.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

1.
Windscreen/headlamp wash reservoir.

2.
Fuse box.

3.
Coolant reservoir.

126


Changing a fuse


CHANGING A FUSE

The three fuseboxes are placed:


- in the dashboard on the right-hand
side (behind the storage compartment,
retractable),

- in the passenger compartment (battery
compartment),

- under the bonnet.
If fitted on your vehicle, a further fusebox
is added for towing, the towbar and the
connections for the coachbuilder and
platform cab conversions. It is located on
the right behind the load retaining partition.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.
Always replace a faulty fuse with a fuse
of the same rating.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade use: for complete
fuse and relay information, consult the
"Procedures" wiring diagrams via the dealer
network.

12
7


Changing a fuse

QUICK HELP
7

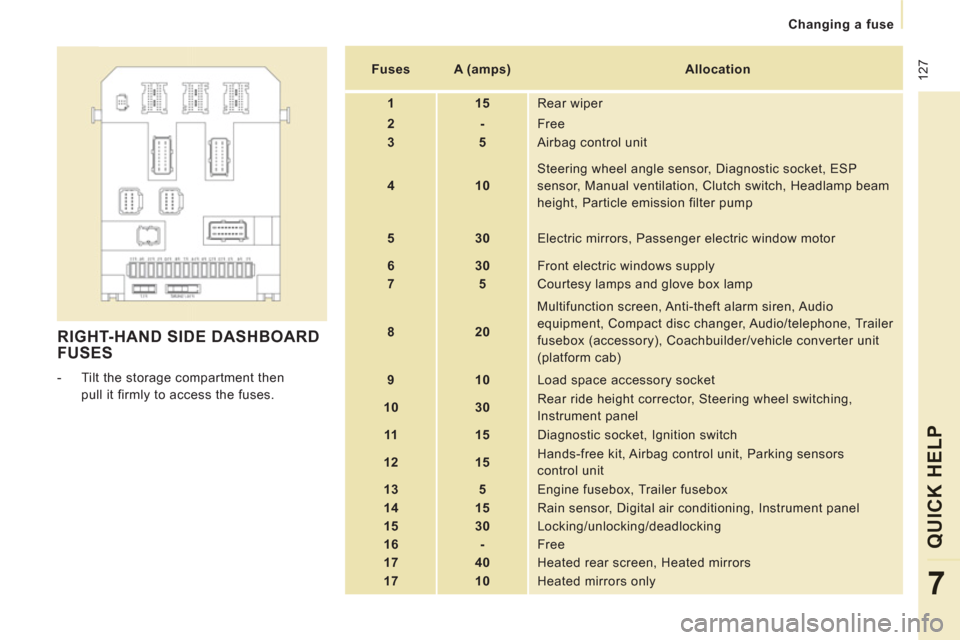

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then
pull it firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors
control unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40 Heated rear screen, Heated mirrors


17


10
Heated mirrors only

128


Changing a fuse

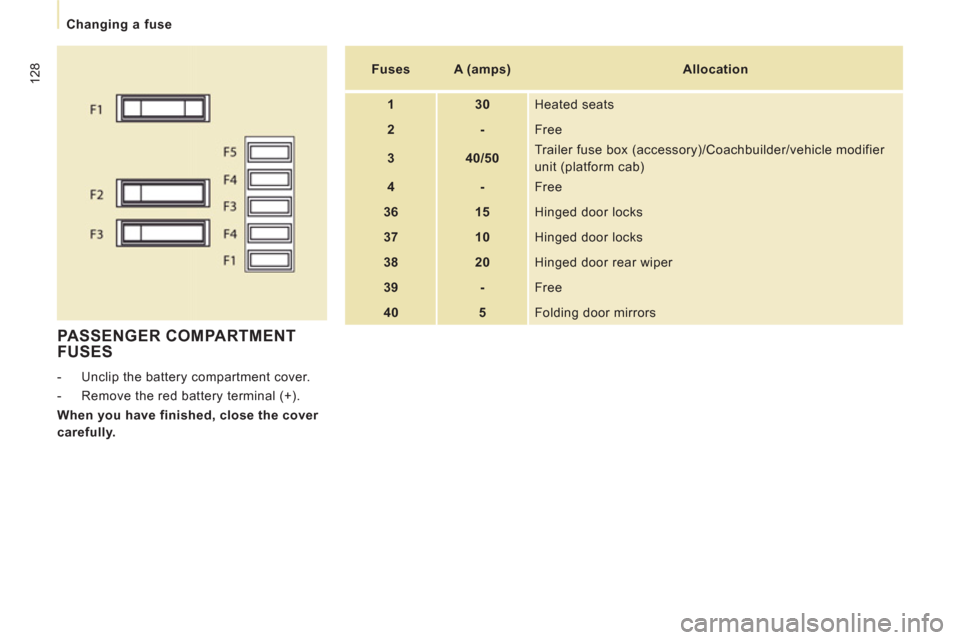

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


-
Free


3


40/50
Trailer fuse box (accessory)/Coachbuilder/vehicle modifier
unit (platform cab)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


-
Free


40


5
Folding door mirrors

12
9


Changing a fuse

QUICK HELP
7

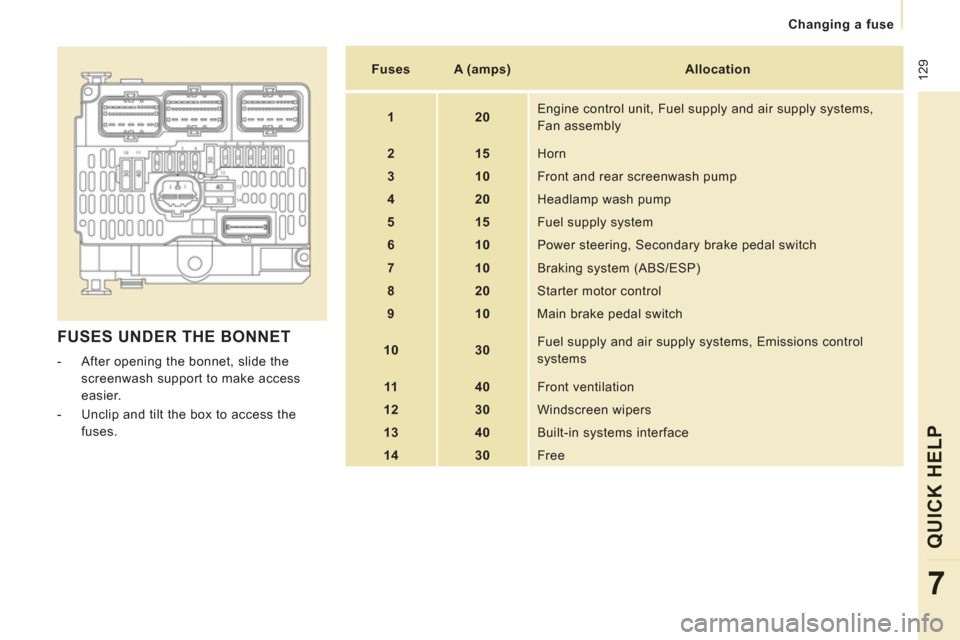

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control systems


11


40
Front ventilation


12


30 Windscreen wipers


13


40
Built-in systems interface


14


30
Free

130


Changing a fuse

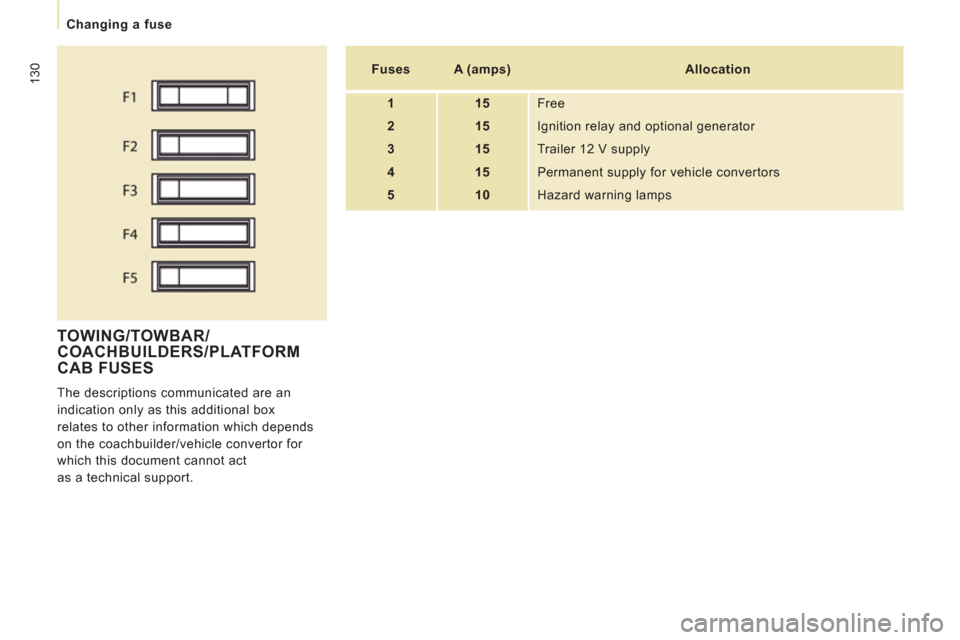

TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box
relates to other information which depends
on the coachbuilder/vehicle convertor for
which this document cannot act
as a technical support.

Fuses


A (amps)

Allocation


1


15
Free


2


15
Ignition relay and optional generator


3


15
Trailer 12 V supply


4


15
Permanent supply for vehicle convertors


5


10
Hazard warning lamps

145


Instruments and controls

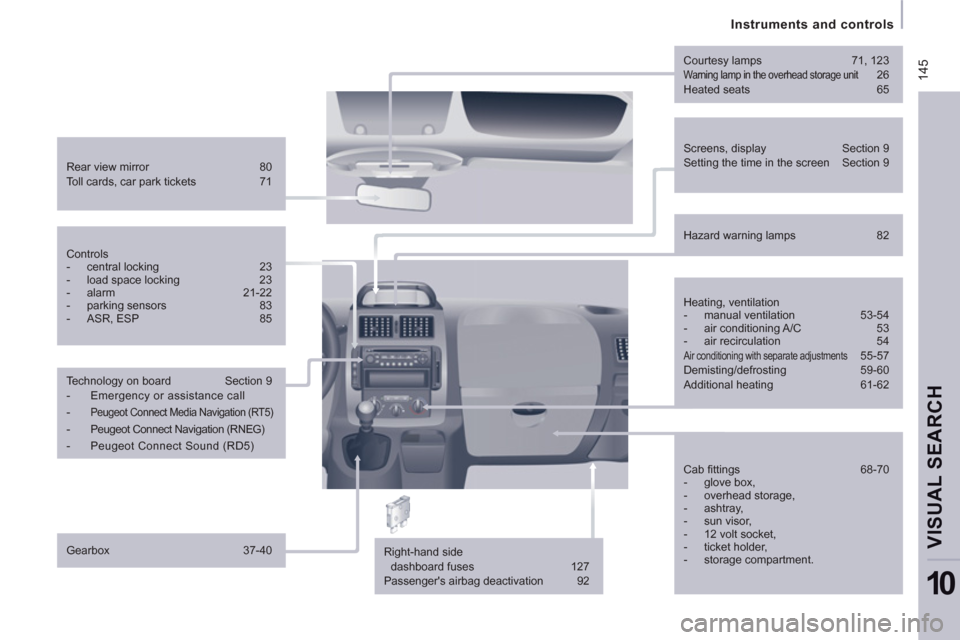

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 80
Toll cards, car park tickets 71
Courtesy lamps 71, 123

Warning lamp in the overhead storage unit 26
Heated seats 65

Right-hand side
dashboard fuses 127
Passenger's airbag deactivation 92
Controls


- central locking 23

- load space locking 23

- alarm 21-22

- parking sensors 83

- ASR, ESP 85


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 37-40
Hazard warning lamps 82

Heating, ventilation


- manual ventilation 53-54

- air conditioning A/C 53

- air recirculation 54

Air conditioning with separate adjustments 55-57
Demisting/defrosting 59-60
Additional heating 61-62

Cab fi ttings 68-70


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

146

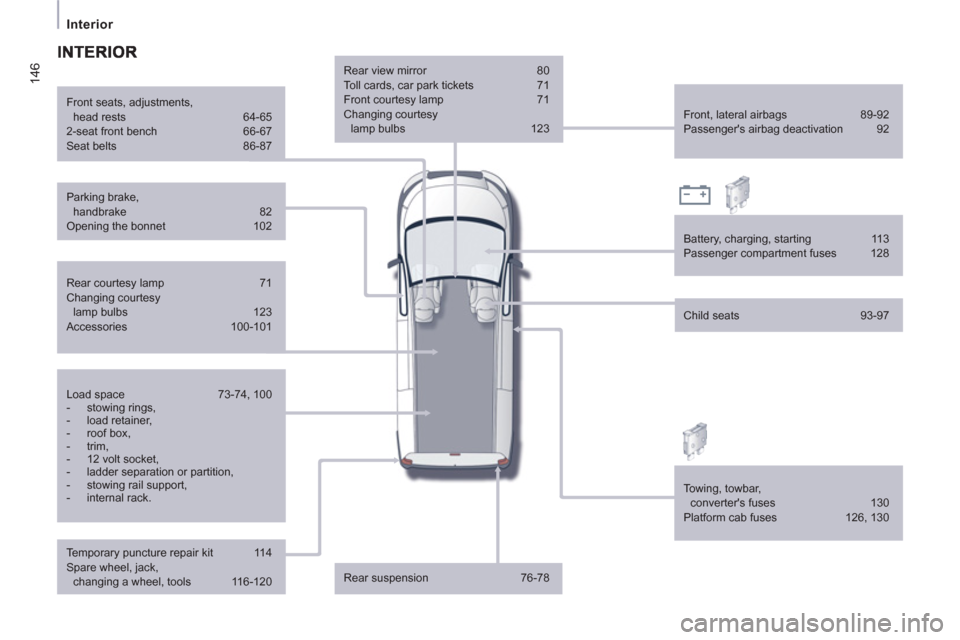

Interior


Rear view mirror 80
Toll cards, car park tickets 71
Front courtesy lamp 71
Changing courtesy
lamp bulbs 123
Rear suspension 76-78 Front, lateral airbags 89-92
Passenger's airbag deactivation 92
Parking brake,
handbrake 82
Opening the bonnet 102
Battery, charging, starting 113
Passenger compartment fuses 128 Front seats, adjustments,
head rests 64-65
2-seat front bench 66-67
Seat belts 86-87
Child seats 93-97

Rear courtesy lamp 71
Changing courtesy
lamp bulbs 123
Accessories 100-101
Towing, towbar,
converter's fuses 130
Platform cab fuses 126, 130 Load space 73-74, 100


- stowing rings,

- load retainer,

- roof box,

- trim,

- 12 volt socket,

- ladder separation or partition,

- stowing rail support,

- internal rack.
Temporary puncture repair kit 114
Spare wheel, jack,
changing a wheel, tools 116-120

Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE

Identifi cation markingss, serial number,
paint code, tyres 142
Engine fuses 129
Windscreen/headlamp wash, levels 106
Bulbs, lighting,
changing bulbs 121-125
Opening the bonnet, stay 102 Warning lamps 28-33
Changing a wiper blade 131
Under the bonnet


- Diesel 103

- petrol 104
Fuel cut-off, Diesel priming 111-112
Engine technical data 141
Van dimensions 134-137
Platform cab dimensions 138-139
Weights 140
Model code 148 Checks 107-108


- battery,

- gearbox,

- carbon/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 35 Water bleeding, Diesel fi lter 108 Levels 105-106


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant,

- screen and headlamp wash
fl uid.
Towing, lifting 132-133
Towed loads 140
