18

Limit the causes of
excess consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom of
the boot, as close as possible to the rear
seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, trailer...). Use a roof
box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres
on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil filter, air filter...) and observe
the schedule of operations recommended
by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid any
overflow.

At the wheel of your new vehicle, it is only
after the first 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

65

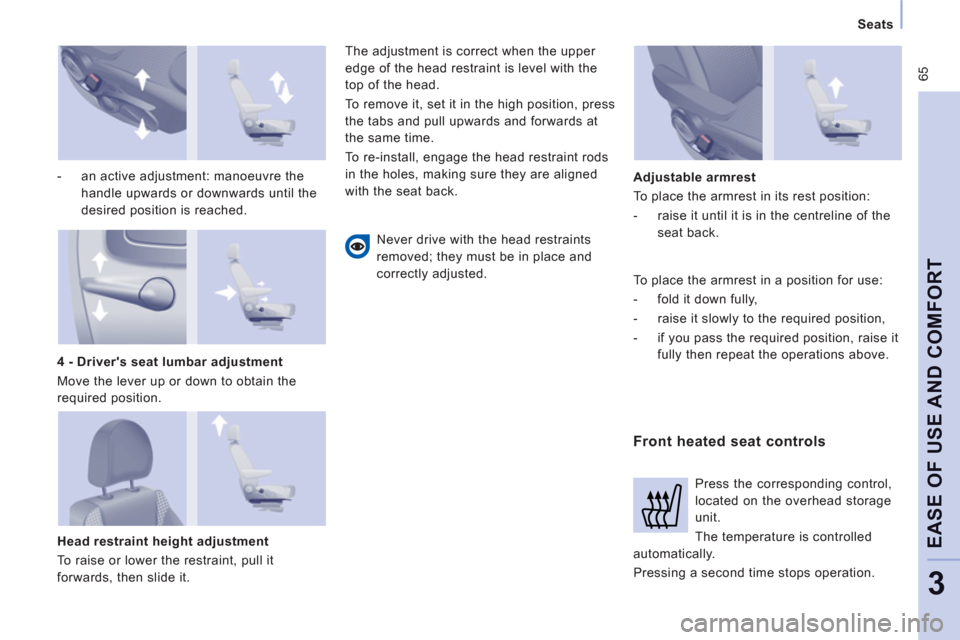

Seats
EASE OF USE AND COMFOR
T
3


- an active adjustment: manoeuvre the
handle upwards or downwards until the
desired position is reached.


Head restraint height adjustment
To raise or lower the restraint,
pull it
forwards, then slide it. The ad
justment is correct when the upper
ed
ge of the head restraint is level with the
top o
f the head.
To remove it, set it in the high position, press
the tabs and pull upwards and
forwards at
th
e same time.
To re-install, en
gage the head restraint rods
in the holes, makin
g sure they are aligned
w
ith the seat back.
N
ever drive with the head restraints
removed; they must be in place and
correctly adjusted.

Front heated seat controls


Adjustable armrest
To place the armrest in its rest position:


- raise it until it is in the centreline of the
seat back.

4 - Driver's seat lumbar adjustment

Move the lever up or down to obtain the
required position.
Press the correspondin
g control,
located on the overhead storage
unit.

The temperature is controlled
automatically.

Pressing a second time stops operation. To place the armrest in a position for use:


- fold it down fully,

- raise it slowly to the required position,

- if you pass the required position, raise it
fully then repeat the operations above.

66
Seats

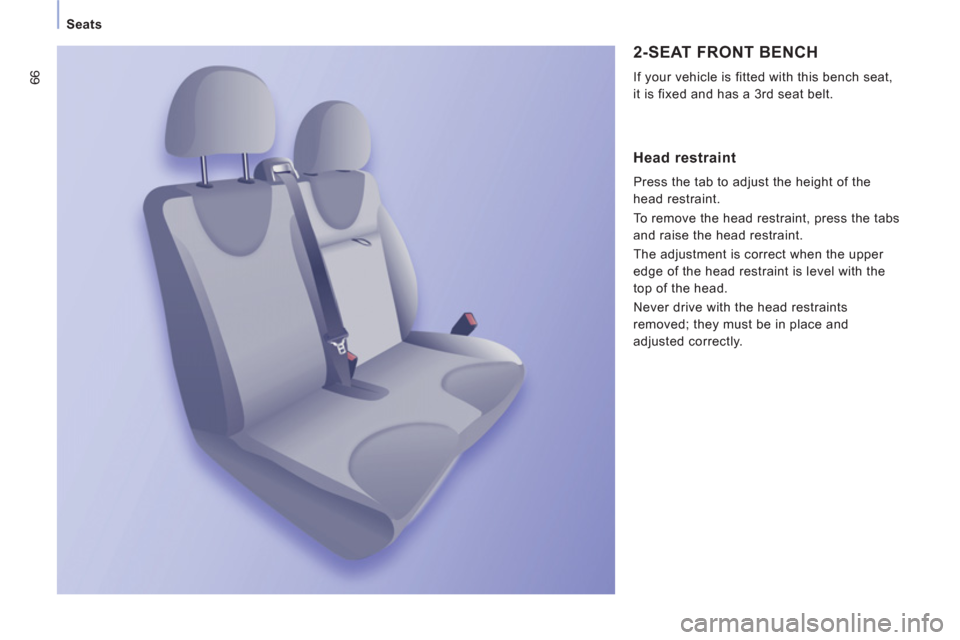

2-SEAT FRONT BENCH

If your vehicle is fitted with this bench seat,
it is fixed and has a
3rd seat belt.
Head restraint

Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The ad
justment is correct when the upper
edge of the head restraint is level with the
top o
f the head.

Never drive with the head restraints
removed; they must be in place and
ad
justed correctly.

90

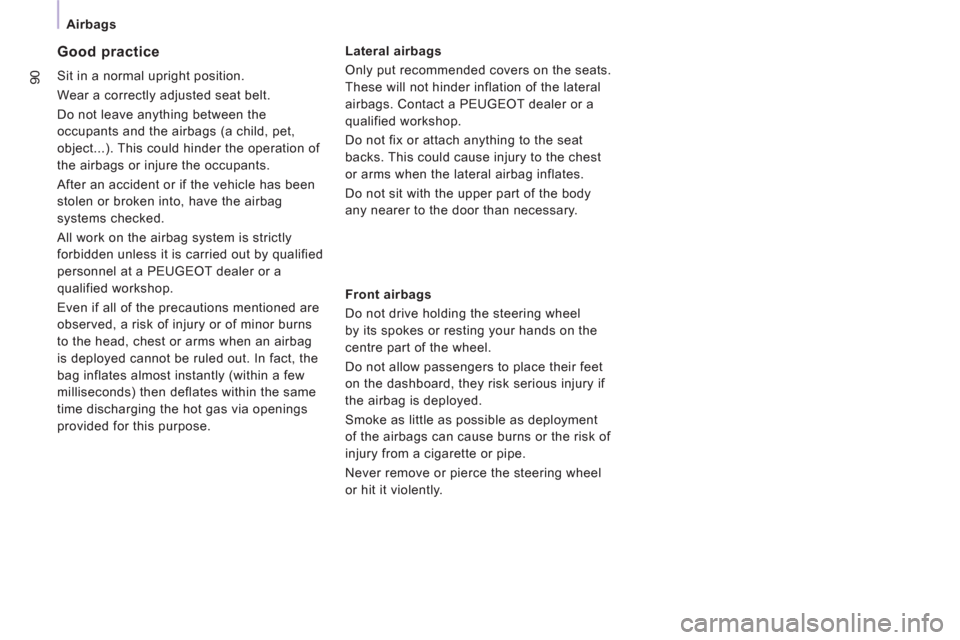

Airbags

Good practice

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...). This could hinder the operation of
the airbags or injure the occupants.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system is strictly
forbidden unless it is carried out by qualified
personnel at a PEUGEOT dealer or a
qualified workshop.
Even if all of the precautions mentioned are
observed, a risk of injury or of minor burns
to the head, chest or arms when an airbag
is deployed cannot be ruled out. In fact, the
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.
Lateral airbags
Only put recommended covers on the seats.
These will not hinder inflation of the lateral
airbags. Contact a PEUGEOT dealer or a
qualified workshop.
Do not fix or attach anything to the seat
backs. This could cause injury to the chest
or arms when the lateral airbag inflates.
Do not sit with the upper part of the body
any nearer to the door than necessary.

Front airbags
Do not drive holding the steering wheel
by its spokes or resting your hands on the
centre part of the wheel.
Do not allow passengers to place their feet
on the dashboard, they risk serious injury if
the airbag is deployed.
Smoke as little as possible as deployment
of the airbags can cause burns or the risk of
injury from a cigarette or pipe.
Never remove or pierce the steering wheel
or hit it violently.

97

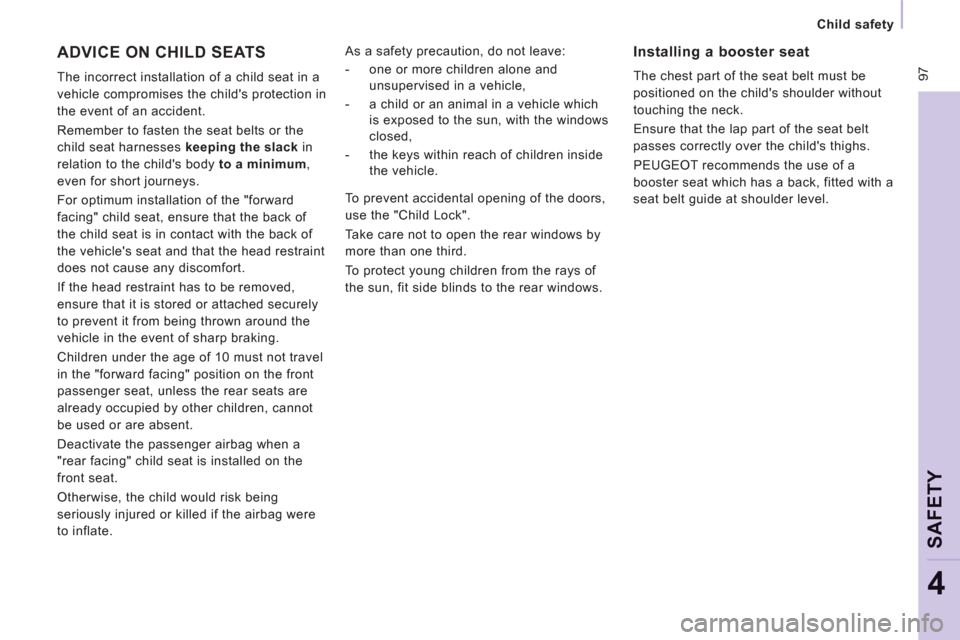

Child safety

SAFETY
4

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
in
relation to the child's body to a minimum
,
even for short journeys.
For optimum installation of the "forward
facing" child seat, ensure that the back of
the child seat is in contact with the back of
the vehicle's seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached securely
to prevent it from being thrown around the
vehicle in the event of sharp braking.
Children under the age of 10 must not travel
in the "forward facing" position on the front
passenger seat, unless the rear seats are
already occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag when a
"rear facing" child seat is installed on the
front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag were
to inflate.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle which
is exposed to the sun, with the windows
closed,

- the keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the "Child Lock".
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds to the rear windows.


Installing a booster seat

The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fitted with a
seat belt guide at shoulder level.

128


Changing a fuse


PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


-
Free


3


40/50
Trailer fuse box (accessory)/Coachbuilder/vehicle modifier
unit (platform cab)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


-
Free


40


5
Folding door mirrors
