Dimensions

Dimensions

TECHNI
CAL DAT
A
8


*
Value for rear suspension.
L1
L2

H1
H1
H2

L Overall length
4 805 to 4 813
5 135 to 5 143

H Overall height
1 894 * / 1 942
2 204 * / 2 276

A Wheelbase
3 000
3 122

B Front overhang

975

C Rear overhang
830 to 838
1 038 to 1 046

D Overall width:
over panels

1 870
with mouldings

1 895
with mirrors folded

1 986
with mirrors unfolded
2 194

E Width of front track
1 562 to 1 570

F Width of rear track
1 596 to 1 604

I Length of interior floor
2 254
2 584

J Maximum interior height under roof
1 449
1 750

K Maximum interior width
1 600

M Interior width between wheel arches
1 245
Turning circle between kerbs (m)
12.18
12.59
Maximum loads (kg)
Payload

1 000 to 1 200
On roof

170
m
3

5
6
7

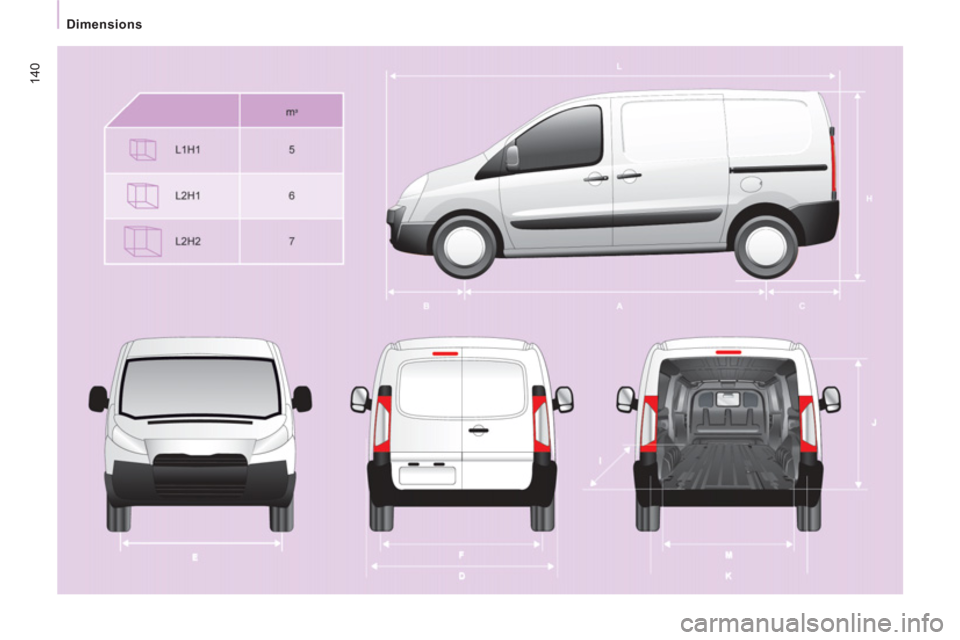

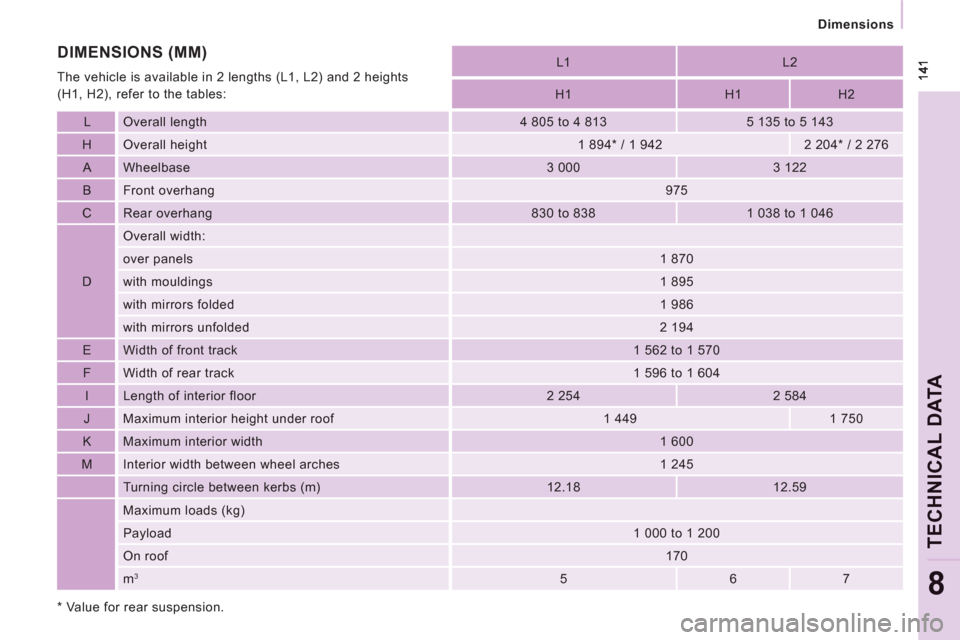

DIMENSIONS (MM)

The vehicle is available in 2 lengths (L1, L2) and 2 heights
(H1, H2), refer to the tables:

142
Dimensions

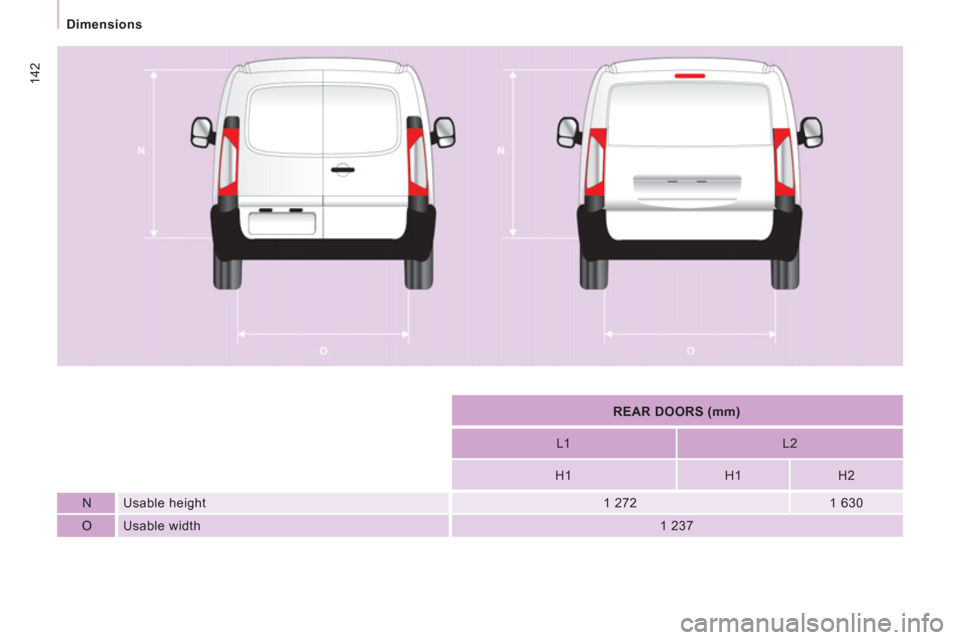

REAR DOORS (mm)


L1
L2

H1
H1
H2

N Usable height
1 272
1 630

O Usable width

1 237

Dimensions

TECHNI
CAL DAT
A
8

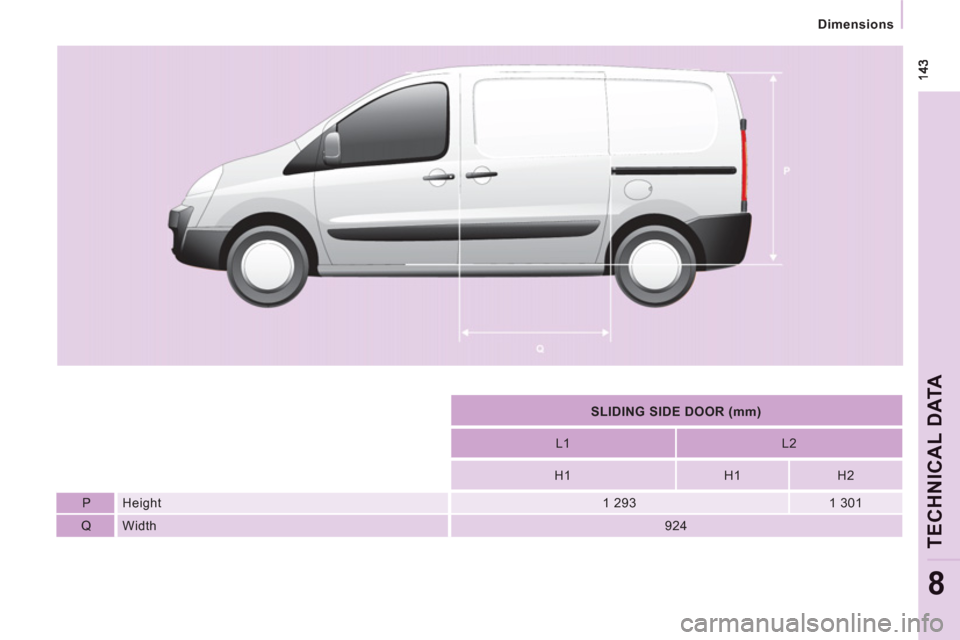

SLIDING SIDE DOOR (mm)


L1
L2

H1
H1
H2

P
Height

1 293
1 301

Q
Width

924

144
Dimensions

145


Dimensions

TECHNI
CAL DAT
A
8

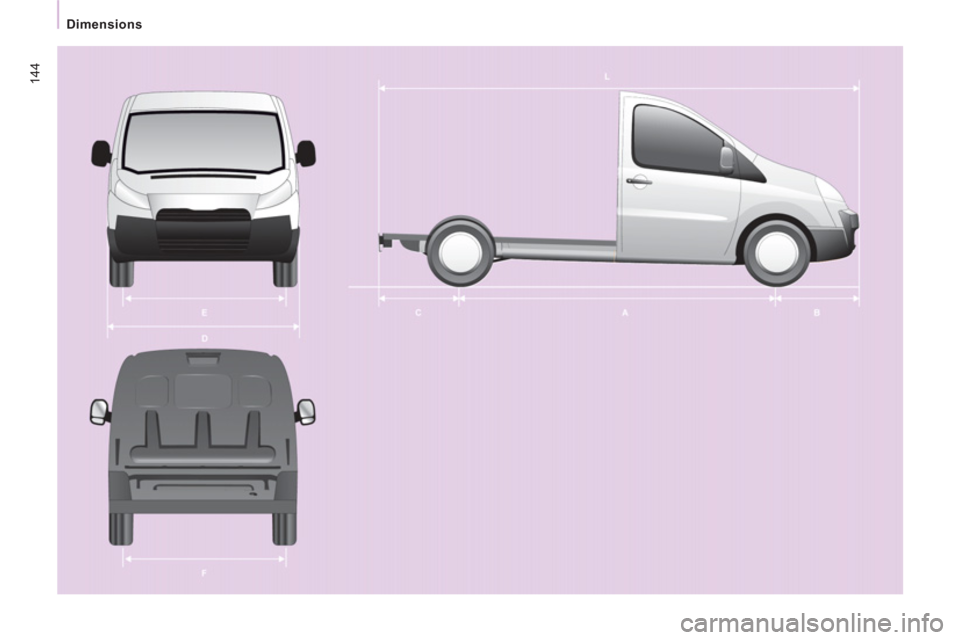

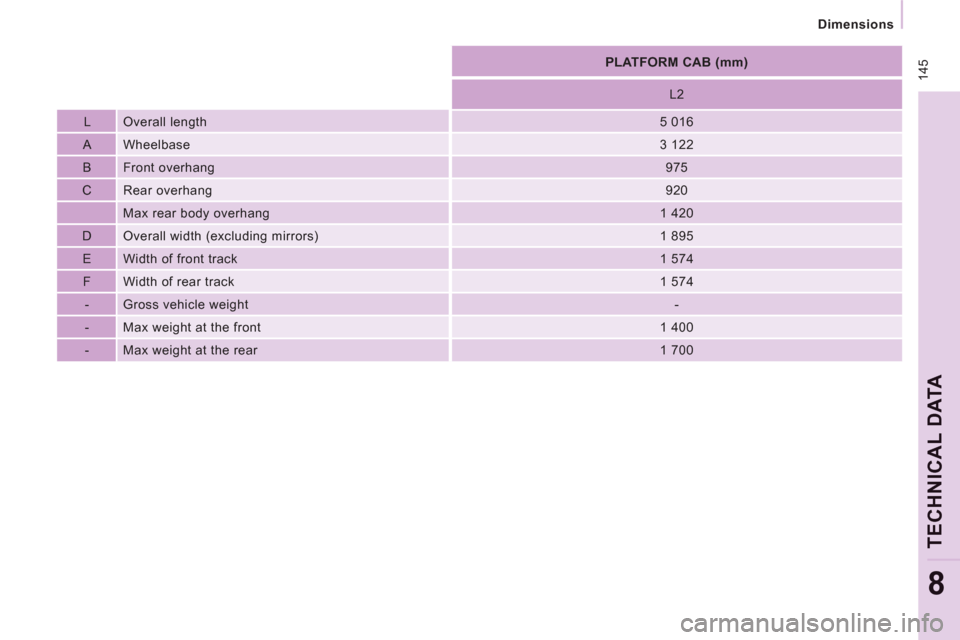

PLATFORM CAB (mm)


L2

L Overall length

5 016

A Wheelbase

3 122

B Front overhang

975

C Rear overhang

920
Max rear body overhang
1 420

D Overall width (excluding mirrors)
1 895

E Width of front track

1 574

F Width of rear track

1 574

- Gross vehicle weight

-

- Max weight at the front
1 400

- Max weight at the rear
1 700

146

Weights

WEIGHTS AND TOWED LOADS (KG)

For further information, refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. To find out your vehicle's towing
capabilities and its gross train weight, contact a PEUGEOT dealer.

Load transfer

If the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the weight of the trailer and the GTW, indicated on your registration certificate.
Observe the towing capacities of your vehicle.

The weight of a braked trailer with load transfer can be increased on condition that the equivalent weight is removed from the vehicle and
the GTW is not exceeded.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine. If the ambient temperature is
above 37 °C, limit the towed load to 700 kg, without any transfer of load.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

Diesel - Petrol engines
TECHNI
CAL DAT
A
8



Diesel
Petrol

1.6 HDi
90
1.6 HDi
90 PEF
2.0 HDi 98 PEF
2.0 HDi 128 PEF
2.0 HDi 164 PEF
2.0 PETROL 140
Cubic capacity (cc)
1 560
1 997
1 997
1 997
1 997
Bore x stroke (mm)
75 x 88
85 x 88
85 x 88
85 x 88
85 x 88
Power (hp)
90
98
128
164
138
EU standard maximum power (kW)
66
72
94
120
103
Max power engine speed (rpm)
3 500
4 000
4 000
4 000
6 000
EU standard max torque (Nm)
180
260
320
340
180
Max torque engine speed (rpm)
1 500
1 500
2 000

2 000
2 500
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
-
Particle emission filter
No
Ye s
Ye s
Ye s
Ye s
/
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Unleaded
Gearbox
Manual
Manual


Automatic

Manual
Gears
5
6
6
6
5

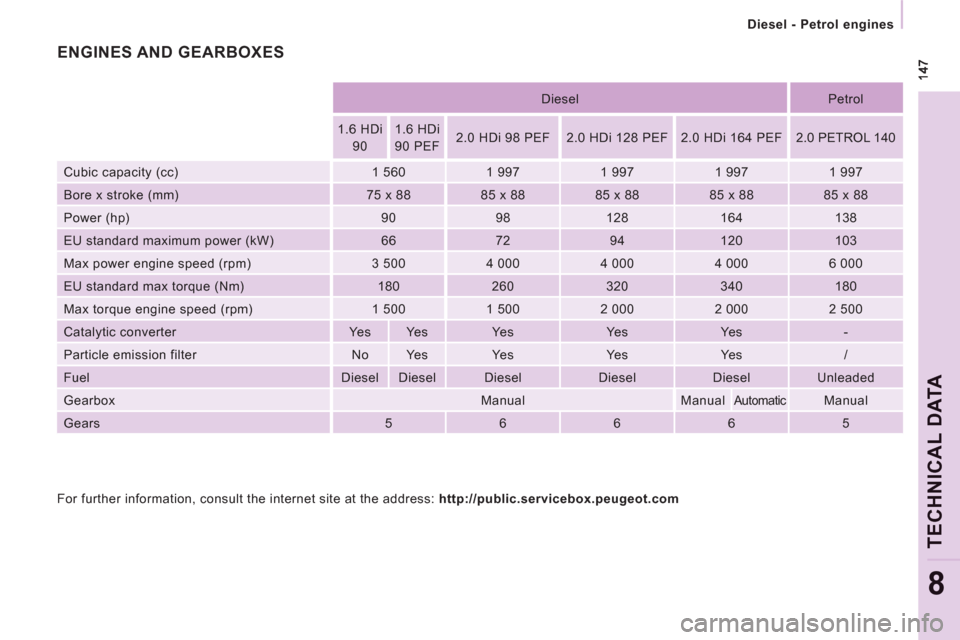

ENGINES AND GEARBOXES


For further information, consult the internet site at the address: http://public.servicebox.peugeot.com

148


Identification markings

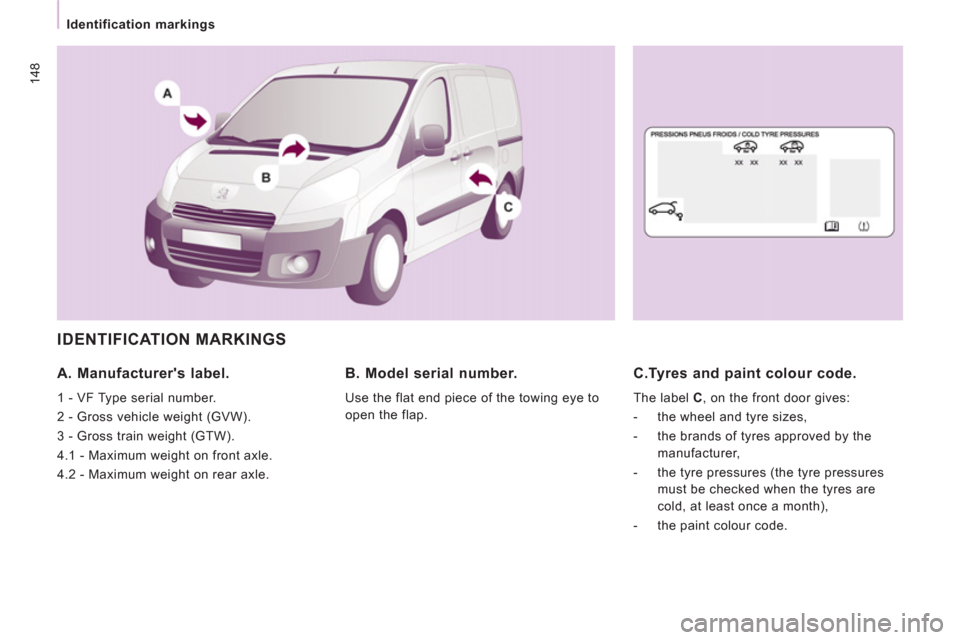

IDENTIFICATION MARKINGS


A. Manufacturer's label.

1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.


B. Model serial number.

Use the flat end piece of the towing eye to
open the flap.


C.Tyres and paint colour code.

The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre pressures
must be checked when the tyres are
cold, at least once a month),

- the paint colour code.
