Under the bonnet

CHECK
S
6

DIESEL ENGINES


8 -
Power steering reservoir.

9 -
Removable towing eye.

10 -
Priming pump ( a
: 1.6 litre HDi;
b
: 2 litre HDi).

11 -
Engine oil filling funnel (2 litre HDi).
7.1 -
Engine oil filler cap.
If your vehicle is fitted with this oil filler tube,
proceed as follows:

A -
Remove the oil filler cap.

B -
Remove the filler tube from its location.

C -
Place the filler tube in the filler opening
as shown on the illustration.

D -
Turn it a 1/4 of a turn to the left to lock it
then top up the oil.
To refit, proceed in the reverse order without
forgetting to retighten the cap A
correctly.

UNDER THE BONNET


1 -
Screen/headlamp wash reservoir.

2 -
Fusebox.

3 -
Coolant header tank.

4 -
Brake and clutch fluid reservoir.

5 -
Air filter.

6 -
Engine oil dipstick.

7 -
Engine oil filler cap.

108


Under the bonnet


PETROL ENGINE


4.
Brake and clutch fluid reservoir.

5.
Air filter.

6.
Engine oil dipstick.
7.
Engine oil filler cap.

8.
Power steering reservoir.

9.
Removable towing eye.

1.
Screen/headlamp wash reservoir.

2.
Fusebox.

3.
Coolant header tank.

131


Changing a fuse

QUICK HEL
P
7

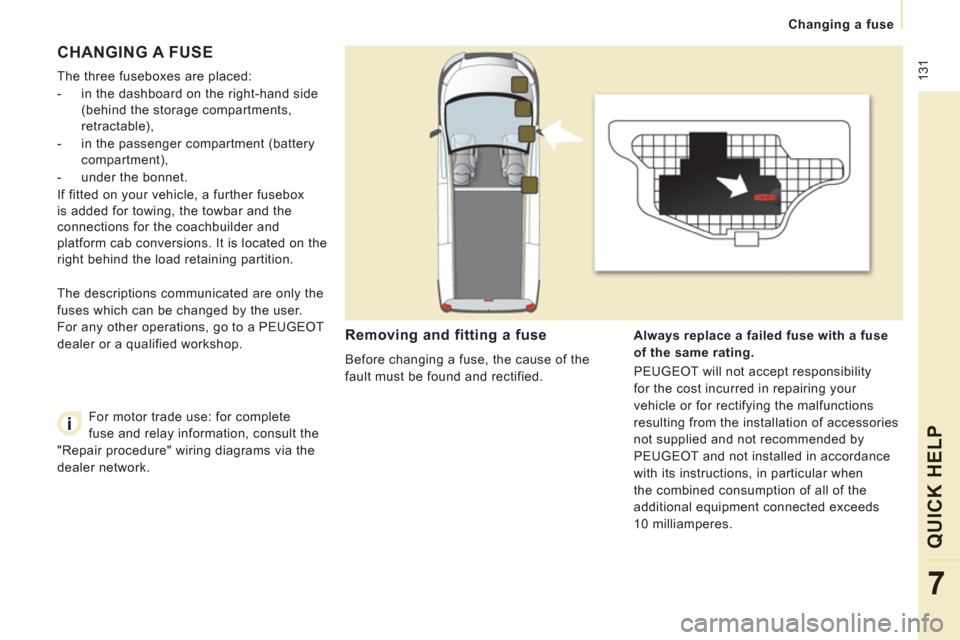

CHANGING A FUSE

The three fuseboxes are placed:


- in the dashboard on the right-hand side
(behind the storage compartments,
retractable),

- in the passenger compartment (battery
compartment),

- under the bonnet.
If fitted on your vehicle, a further fusebox
is added for towing, the towbar and the
connections for the coachbuilder and
platform cab conversions. It is located on the
right behind the load retaining partition.

Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.
Always replace a
failed
fuse with a fuse
of the same rating.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
PEUGEOT and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a PEUGEOT
dealer or a qualified workshop.
For motor trade use: for complete
fuse and relay information, consult the
"Repair procedure" wiring diagrams via the
dealer network.

132


Changing a fuse


RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses
F


Amperes
A

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, ESP
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone,
Trailer fusebox (accessory), Coachbuilder/vehicle
converter unit (platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors


17


10 Heated mirrors only

133


Changing a fuse

QUICK HEL
P
7

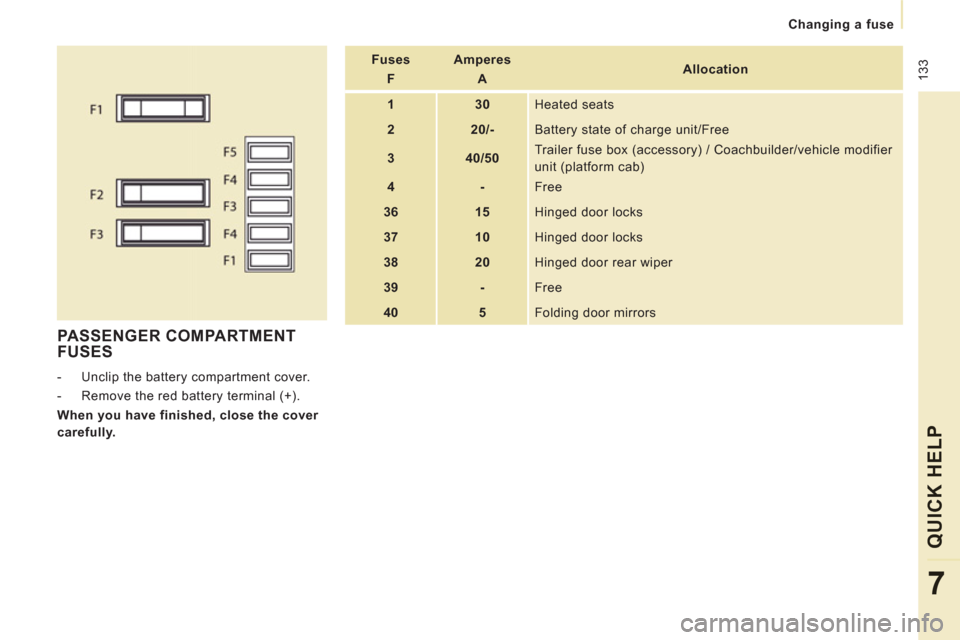

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses
F


Amperes
A

Allocation


1


30
Heated seats


2


20/-
Battery state of charge unit/Free


3


40/50 Trailer fuse box (accessory) / Coachbuilder/vehicle modifier
unit (platform cab)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


-
Free



40


5
Folding door mirrors

134


Changing a fuse

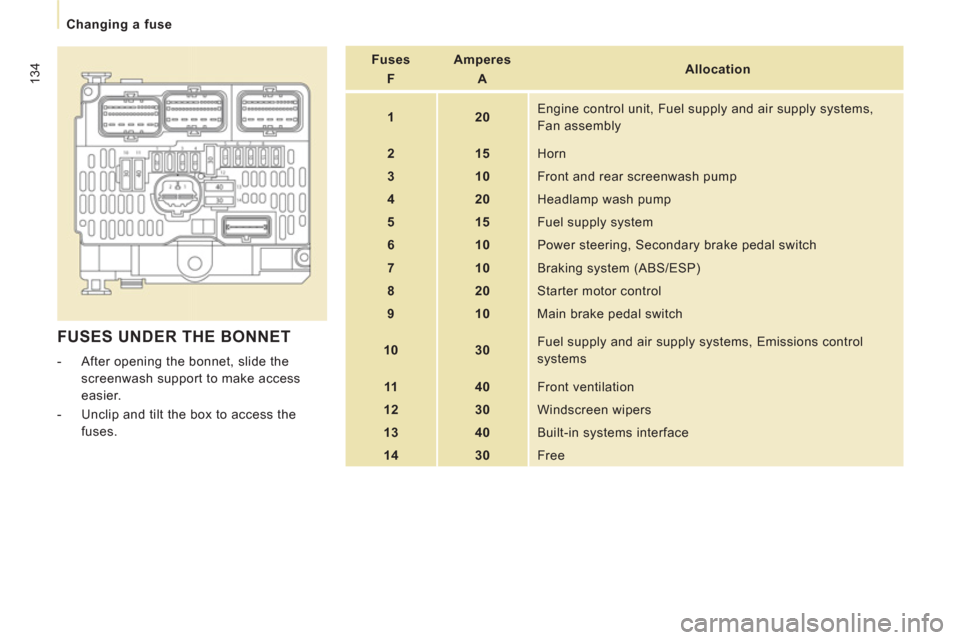

FUSES UNDER THE BONNET



- After opening the bonnet, slide the
screenwash support to make access
easier.

- Unclip and tilt the box to access the
fuses.

Fuses
F


Amperes
A

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/ESP)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems


11


40
Front ventilation


12


30
Windscreen wipers


13


40 Built-in systems interface


14


30
Free

135


Changing a fuse

QUICK HEL
P
7

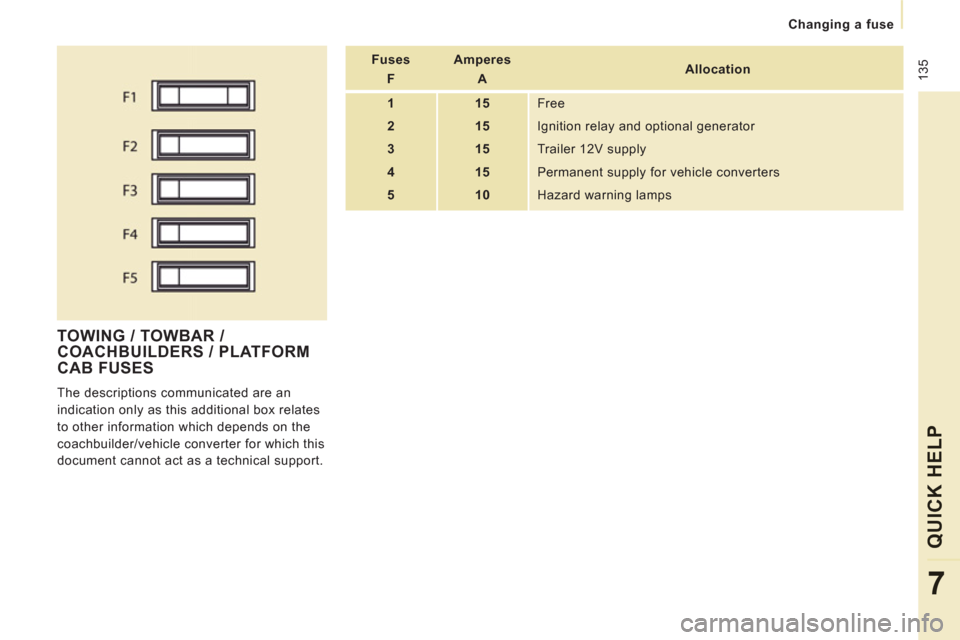

TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FUSES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle converter for which this
document cannot act as a technical support.

Fuses
F


Amperes
A

Allocation


1


15
Free


2


15
Ignition relay and optional generator


3


15
Trailer 12V supply


4


15
Permanent supply for vehicle converters


5


10
Hazard warning lamps

15
1


Instruments and controls

VISUAL SEARC
H
10


Screens, display Section 9
Setting the time in the screen Section 9

Rear view mirror 82
Toll cards, car park tickets 74
Courtesy lamps 74, 128

Warning lamp in the overhead storage unit 27
Heated seats 68

Right-hand side dashboard
fuses 131-132
Passenger's airbag deactivation 96
Controls


- central locking 20, 24

- load space
locking 20, 24

- alarm 22-23

- parking sensors 85

- ASR, ESP 87


Technology on board Section 9


- Emergency or assistance call

-
Peugeot Connect Media Navigation (RT5)


- Peugeot Connect Navigation (RNEG)

- Peugeot Connect Sound (RD5)


Gearbox 39, 40-42
Hazard warning lamps 84

Heating, ventilation


- manual ventilation 56-57

- air conditioning A/C 56

- air recirculation 57
Air conditioning with separate
adjustments 58-60
Demisting/defrosting 62-63
Additional heating 64-65

Cab fi ttings 71-73


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.

152

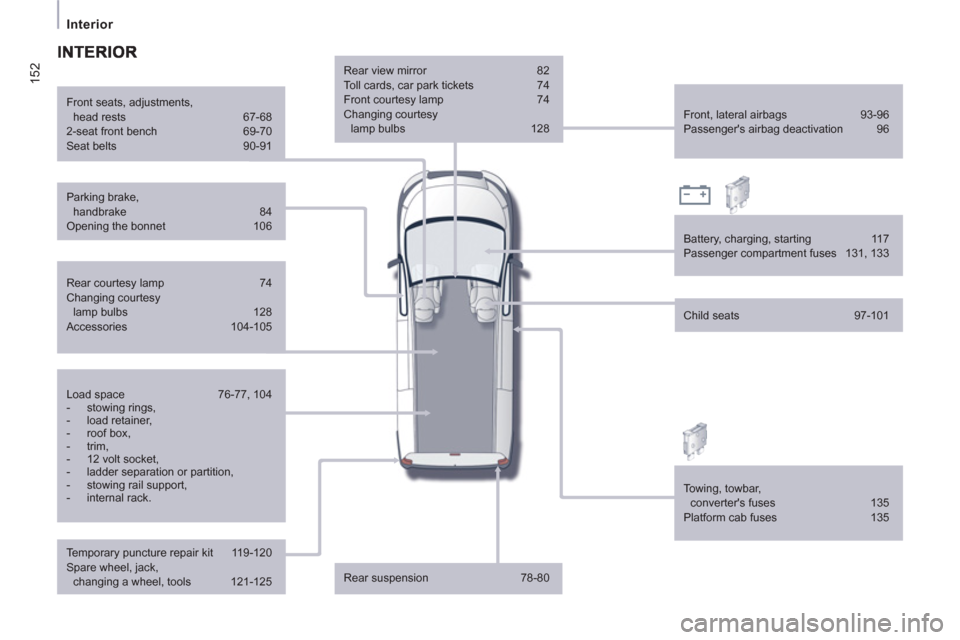

Interior


Rear view mirror 82
Toll cards, car park tickets 74
Front courtesy lamp 74
Changing courtesy
lamp bulbs 128
Rear suspension 78-80 Front, lateral airbags 93-96
Passenger's airbag deactivation 96
Parking brake,
handbrake 84
Opening the bonnet 106
Battery, charging, starting 117
Passenger compartment fuses 131, 133 Front seats, adjustments,
head rests 67-68
2-seat front bench 69-70
Seat belts 90-91
Child seats 97-101

Rear courtesy lamp 74
Changing courtesy
lamp bulbs 128
Accessories 104-105
Towing, towbar,
converter's fuses 135
Platform cab fuses 135 Load space 76-77, 104


- stowing rings,

- load retainer,

- roof box,

- trim,

- 12 volt socket,

- ladder separation or partition,

- stowing rail support,

- internal rack.
Temporary puncture repair kit 119-120
Spare wheel, jack,
changing a wheel, tools 121-125

Technical data - Maintenance

VISUAL SEARC
H
10

TECHNICAL DATA - MAINTENANCE

Identifi cation markings, serial number,
paint code, tyres 148
Engine fuses 131, 134
Windscreen / headlamp wash, levels 110
Bulbs, lighting,
changing bulbs 126-130
Opening the bonnet, stay 106 Warning lamps 29-34
Changing a wiper blade 136
Under the bonnet


- Diesel 107

- petrol 108
Fuel cut-off,
Diesel priming 115-116
Engine technical data 147
Van dimensions 140-143
Platform cab dimensions 144-145
Weights 146
Model code 154 Checks 111-112


- battery,

- gearbox,

- carbon/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.
Emissions controls (EOBD) 36 Water bleeding, Diesel fi lter 112 Levels 109-110


- Diesel additive,

- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant,

- screenwash and headlamp wash fl uid.
Towing, lifting 137-138
Towed loads 146
