Peugeot Expert VU 2013 User Guide

9


Interior

FAMILIARISATIO
N
1

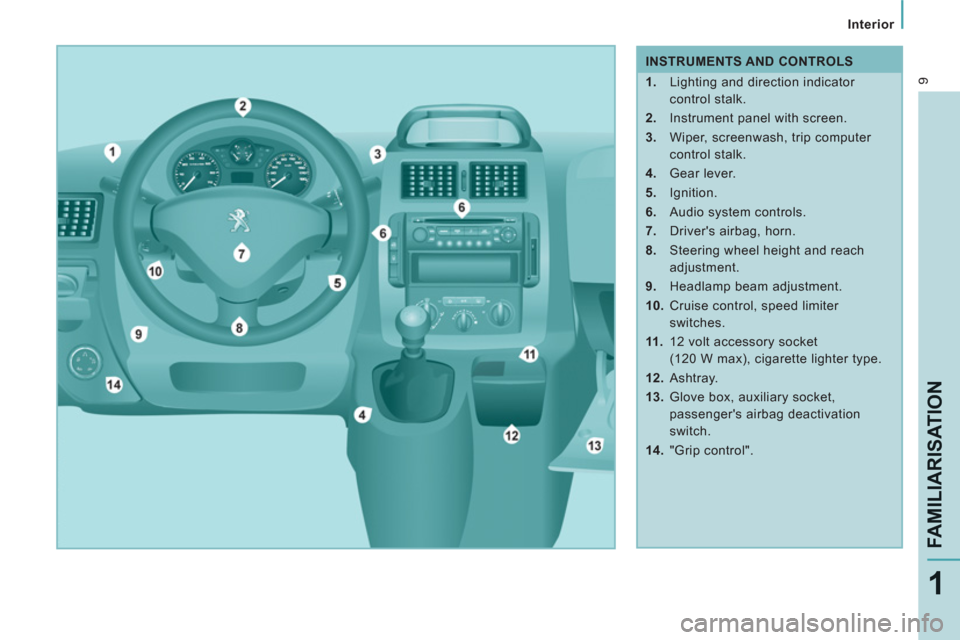

INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator
control stalk.

2.
Instrument panel with screen.

3.
Wiper, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket
(120 W max), cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

14.
"Grip control".

Interior
10

CENTRE CONSOLE AND OVERHEAD
STORAGE UNIT


1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation of the DSC,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp.

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer
to "Adjusting the date and time" in
section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.
Depending on the configuration of your
vehicle, you have either:

3
11


Interior

FAMILIARISATIO
N
1


Driver's seat

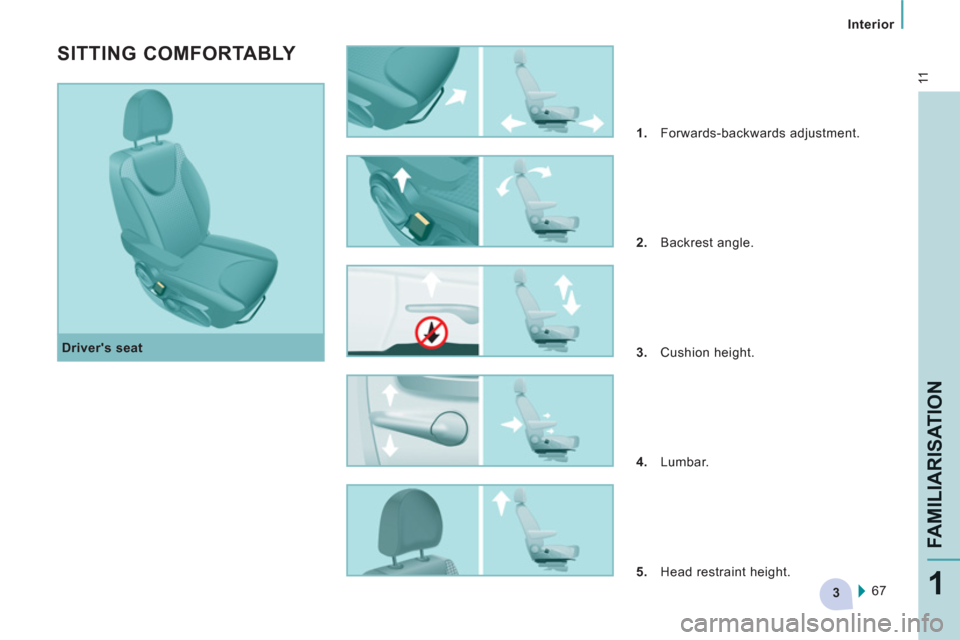

SITTING COMFORTABLY



1.
Forwards-backwards adjustment.

2.
Backrest angle.

3.
Cushion height.

4.
Lumbar.

5.
Head restraint height.
67

2
4
3
3
Interior
12

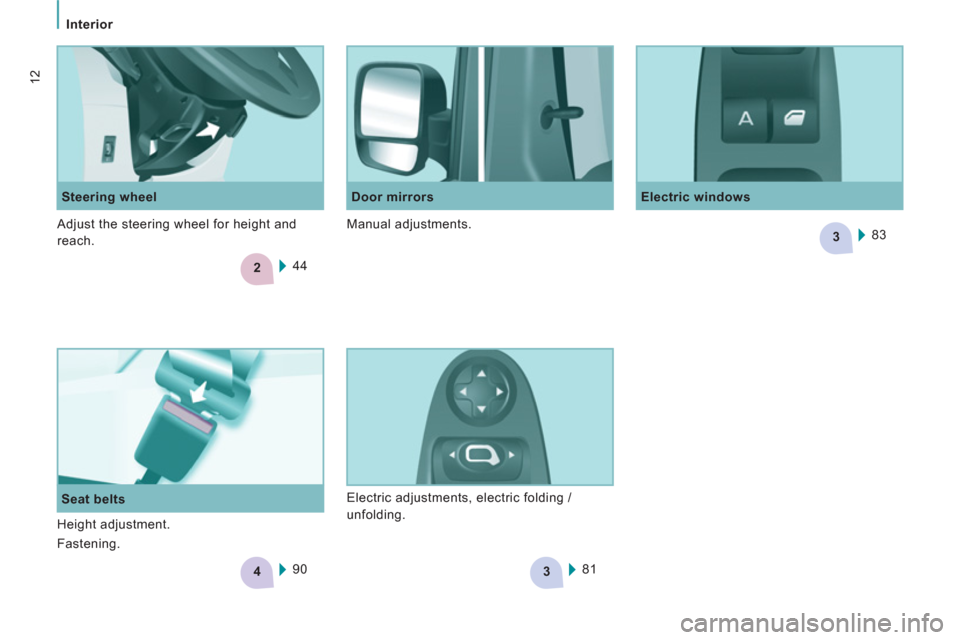

Seat belts
Steering wheel

Electric windows

Door mirrors
44
90 83

81 Electric adjustments, electric folding /
unfolding.
Height adjustment.
Fastening. Adjust the steering wheel for height and
reach. Manual adjustments.

3
3
7
13


Interior

FAMILIARISATIO
N
1

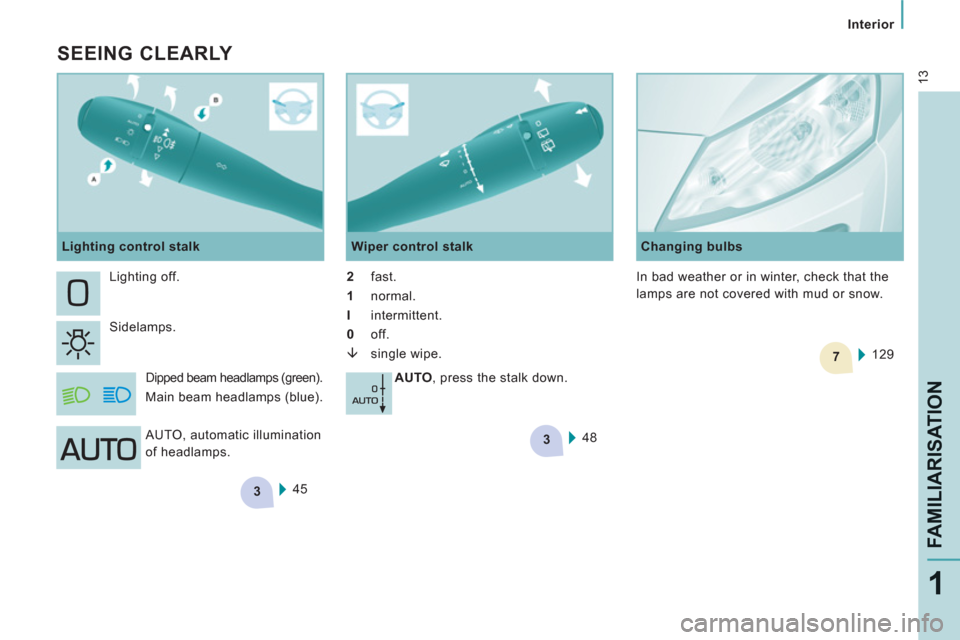

SEEING CLEARLY

45 Lighting off.
Sidelamps.

Dipped beam headlamps (green).
Main beam headlamps (blue).
Wiper control stalk

2
fast.
1
normal.
I
intermittent.
0
off.
È
single wipe.

AUTO
, press the stalk down.
AUTO, automatic illumination
of headlamps.
Lighting control stalk
48
Changing bulbs
129
In bad weather or in winter, check that the
lamps are not covered with mud or snow.

9
9
3
4
3
9 Interior
14

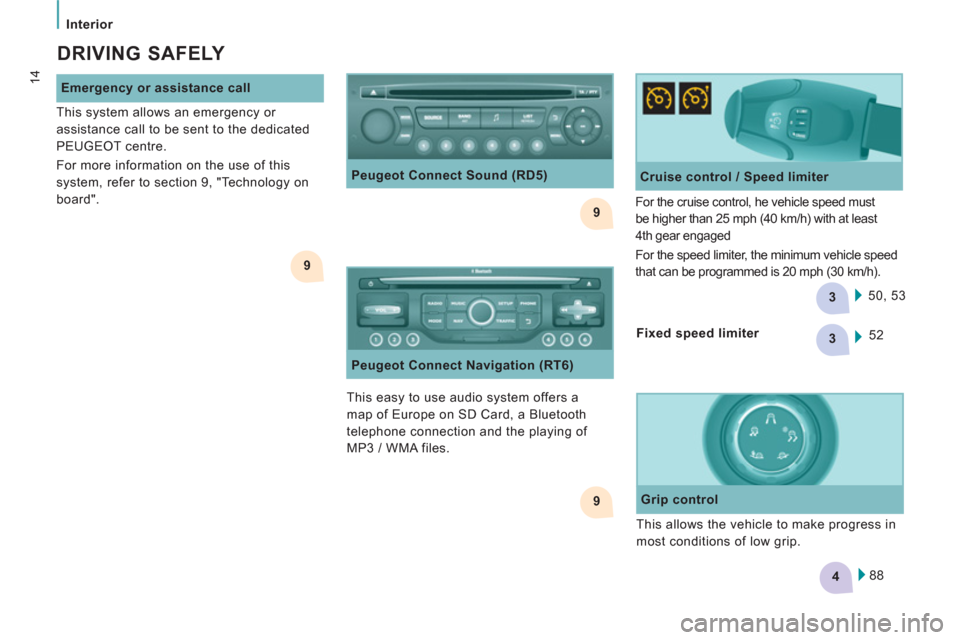

DRIVING SAFELY


Emergency or assistance call
This easy to use audio system offers a
map of Europe on SD Card, a Bluetooth
telephone connection and the playing of
MP3 / WMA files. 50, 53
Cruise control / Speed limiter
For the cruise control, he vehicle speed must
be higher than 25 mph (40 km/h) with at least
4th gear engaged
For the speed limiter, the minimum vehicle speed
that can be programmed is 20 mph (30 km/h).
Peugeot Connect Sound (RD5) This system allows an emergency or
assistance call to be sent to the dedicated
PEUGEOT centre.
For more information on the use of this
system, refer to section 9, "Technology on
board".

Peugeot Connect Navigation (RT6)
Fixed speed limiter
52
88


Grip control
This allows the vehicle to make progress in
most conditions of low grip.

3
33
15


Interior

FAMILIARISATIO
N
1


Overhead storage unit
73

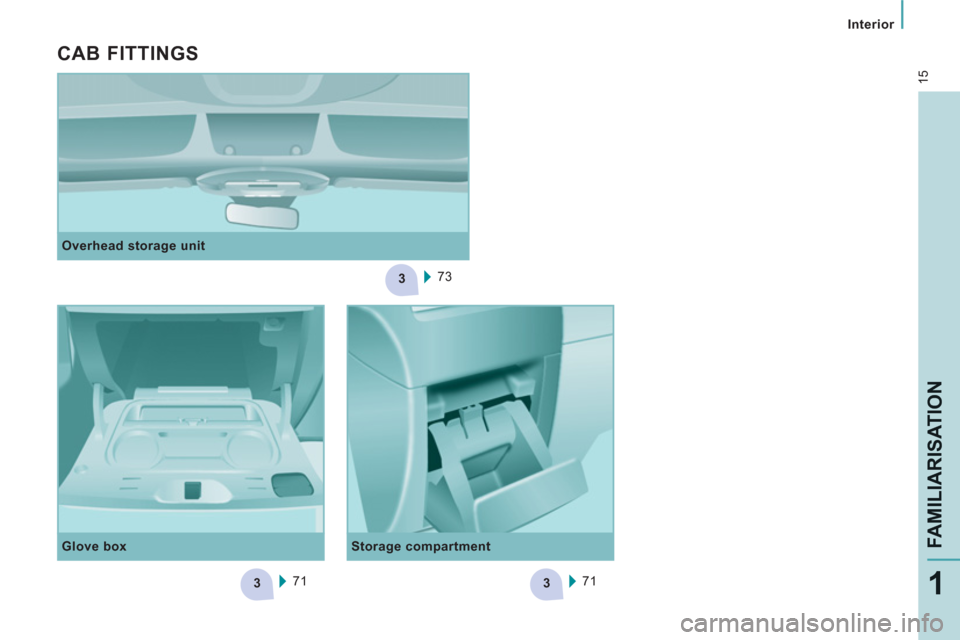

CAB FITTINGS


Glove box
71 71

Storage compartment

5
333
Interior
16

Location for stowing rail
Lashing rings
Interior rack
106

Vertical partition
77
76
76
You are advised to immobilise the load by
securing it firmly using the lashing rings on
the floor.

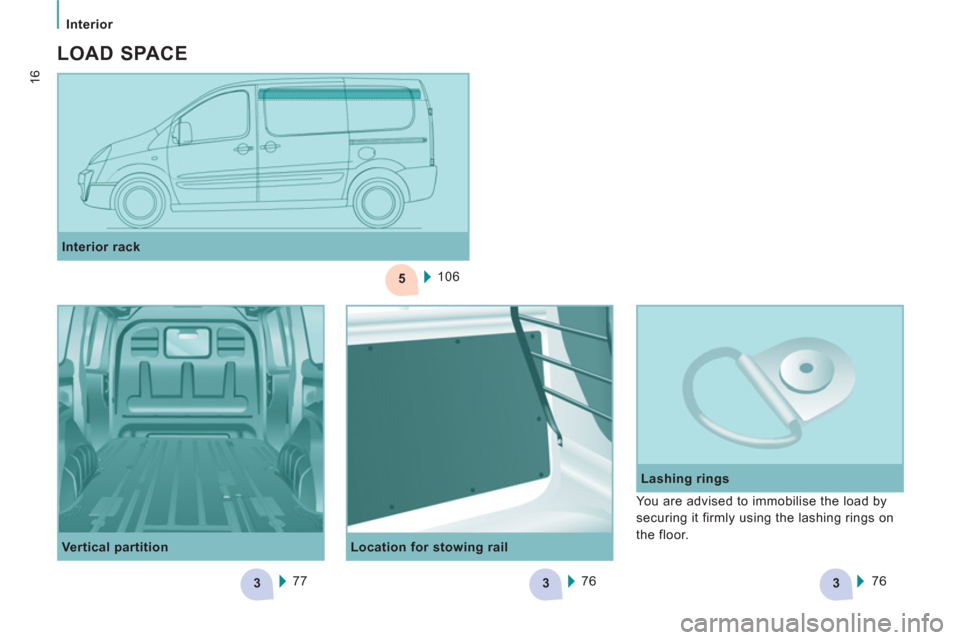

LOAD SPACE

3
3
17


Interior

FAMILIARISATIO
N
1


Manual controls

Digital controls, with separate driver
and passenger settings
58 56

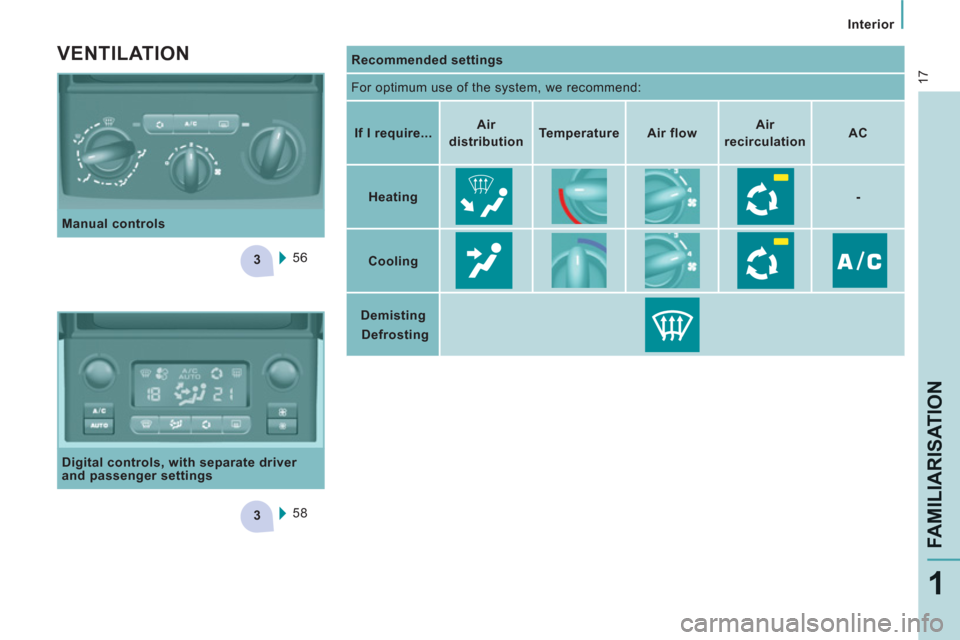

VENTILATION


Recommended settings

For optimum use of the system, we recommend:


If I require...


Air
distribution


Temperature


Air flow


Air
recirculation


AC



Heating

-


Cooling



Demisting
Defrosting

Interior
18

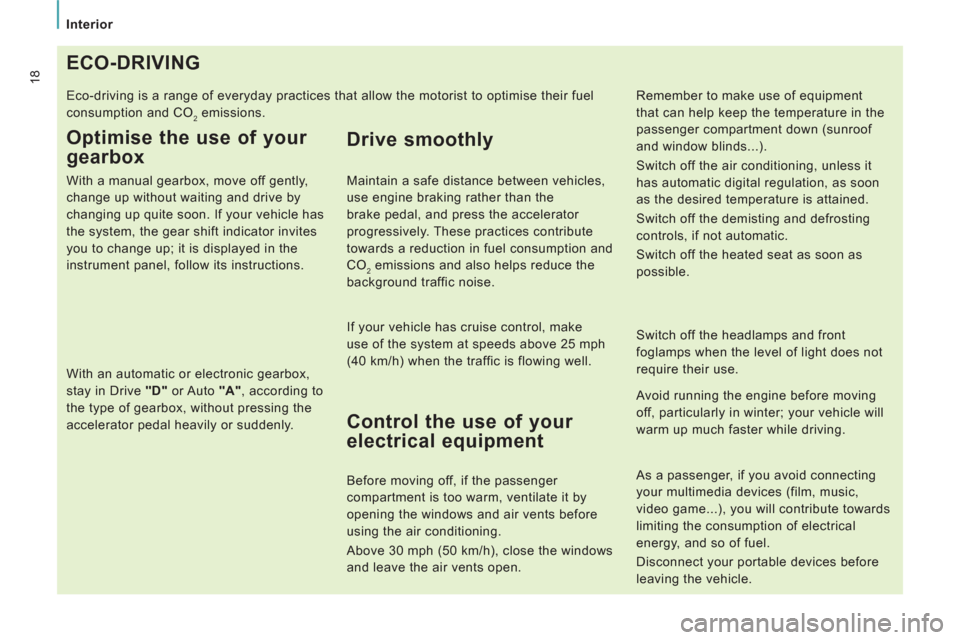

ECO-DRIVING

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel
consumption and CO
2 emissions.

Optimise the use of your
gearbox

With a manual gearbox, move off gently,
change up without waiting and drive by
changing up quite soon. If your vehicle has
the system, the gear shift indicator invites
you to change up; it is displayed in the
instrument panel, follow its instructions.

With an automatic or electronic gearbox,
stay in Drive "D"
or Auto "A"
, according to
the type of gearbox, without pressing the
accelerator pedal heavily or suddenly.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Switch off the headlamps and front
foglamps when the level of light does not
require their use.

Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.


Drive smoothly


Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffic noise.

If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffic is flowing well.


As a passenger, if you avoid connecting
your multimedia devices (film, music,
video game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.
Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sunroof
and window blinds...).
Switch off the air conditioning, unless it
has automatic digital regulation, as soon
as the desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
