Changing a fuse
QUICK HELP
7
AP-EXPERT-VU_EN_CHAP07_AIDE RAPIDE_ED01-2014

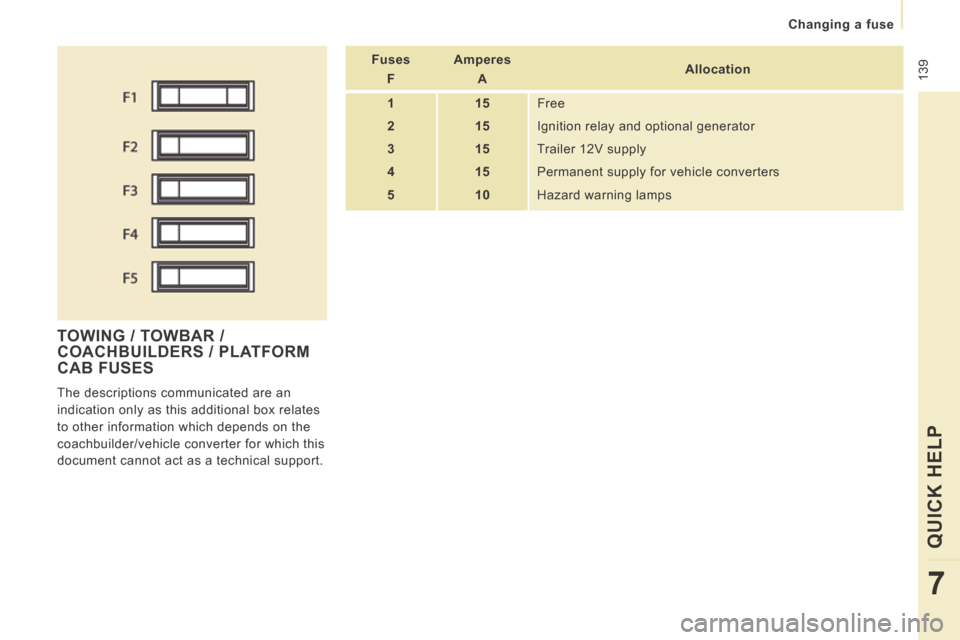

TOWING / TOWBAR / COACHBUILDERS / PLATFORM CAB FUSES
The descriptions communicated are an
indication only as this additional box relates
to other information which depends on the
coachbuilder/vehicle converter for which this
document cannot act as a technical support. Fuses

F Amperes


A Allocation

1 15 Free
2 15 Ignition relay and optional generator
3 15 Trailer 12V supply
4 15 Permanent supply for vehicle converters
5 10 Hazard warning lamps

140
Changing a wiper blade
AP-EXPERT-VU_EN_CHAP07_AIDE RAPIDE_ED01-2014
Placing the windscreen wiper blades
in the special position
- Less than a minute after switching off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
Changing the rear wiper blade
- Lift the wiper arm, then unclip the blade
and remove it.
- Fit the new blade and push back the wiper arm.

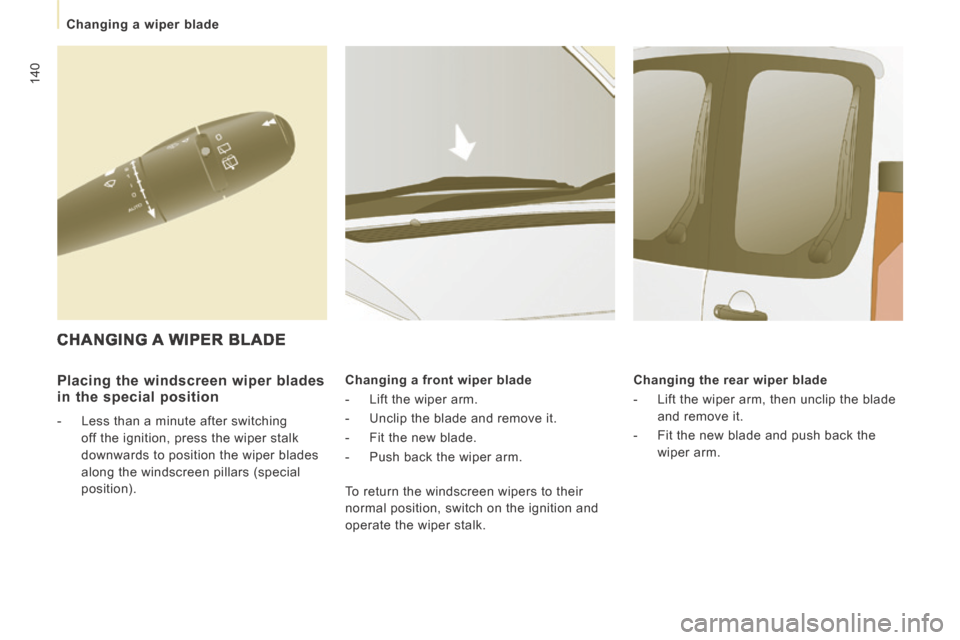

CHANGING A WIPER BLADE
To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.

141
Having your vehicle towed
QUICK HELP
7
AP-EXPERT-VU_EN_CHAP07_AIDE RAPIDE_ED01-2014
Without lifting (4 wheels on the
ground)
You should always use a towing bar.
From the front
- Unclip the cover by pressing at the bottom,
- Fully screw in the removable towing eye.

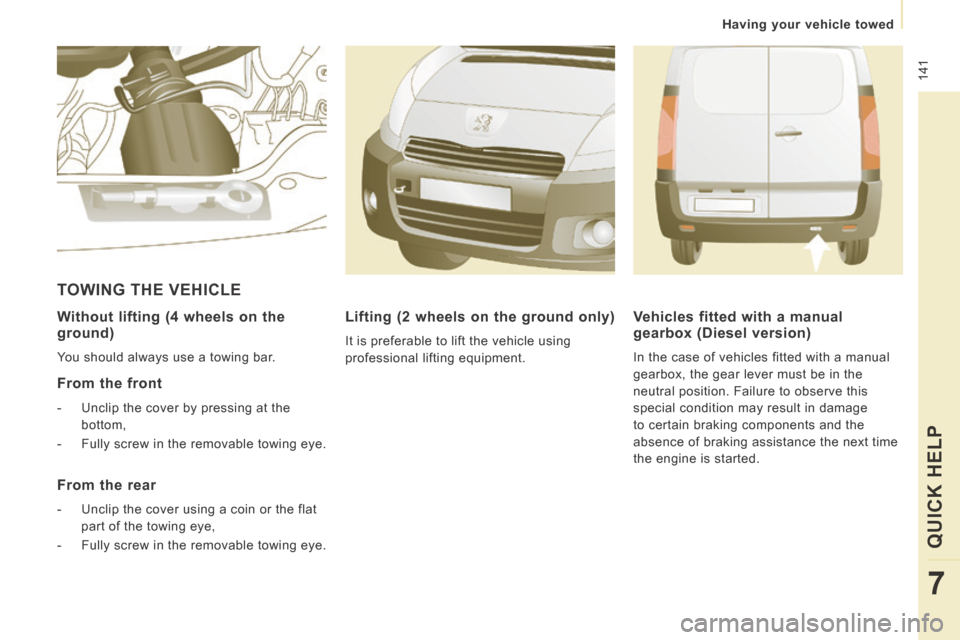

TOWING THE VEHICLE
Lifting (2 wheels on the ground only)
It is preferable to lift the vehicle using
professional lifting equipment.
From the rear
- Unclip the cover using a coin or the flat part of the towing eye,
- Fully screw in the removable towing eye.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with a manual
gearbox, the gear lever must be in the
neutral position. Failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance the next time
the engine is started.

142
Having your vehicle towed
AP-EXPERT-VU_EN_CHAP07_AIDE RAPIDE_ED01-2014
General recommendations
Observe the legislation in force in your
country.
Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
The driver must remain at the wheel of the
towed vehicle and must have a valid driving
licence.
When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
In the following cases, you must always call
on a professional recovery service:
- vehicle broken down on a motorway or fast road,
- four-wheel drive vehicle,
- when it is not possible to put the gearbox into neutral, unlock the
steering, or release the parking brake,
- towing with only two wheels on the ground,
- where there is no approved towing bar available...

143
Environment
QUICK HELP
7
AP-EXPERT-VU_EN_CHAP07_AIDE RAPIDE_ED01-2014
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com
website. As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and harsh acceleration,
- observe the service intervals; we recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control systems, do
not use engine oil additives. Refer to information in this handbook
on eco-driving (at the end of section 1).

144
Dimensions
AP-EXPERT-VU_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

145
Dimensions
TECHNICAL DATA
8
AP-EXPERT-VU_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014
* Value for rear suspension.
L1
L2
H1 H1 H2
L Overall length 4 805 to 4 813 5 135 to 5 143
H Overall height 1 894 * / 1 942 2 204 * / 2 276
A Wheelbase 3 000 3 122
B Front overhang 975
C Rear overhang 830 to 838 1 038 to 1 046
D Overall width:

over panels 1 870
with mouldings 1 895
with mirrors folded 1 986
with mirrors unfolded 2 194
E Width of front track 1 562 to 1 570
F Width of rear track 1 596 to 1 604
I Length of interior floor 2 254 2 584
J Maximum interior height under roof 1 449 1 750
K Maximum interior width 1 600
M Interior width between wheel arches 1 245
Turning circle between kerbs (m) 12.18 12.59
Maximum loads (kg)
Payload 1 000 to 1 200
On roof 170
m
3 5 6 7

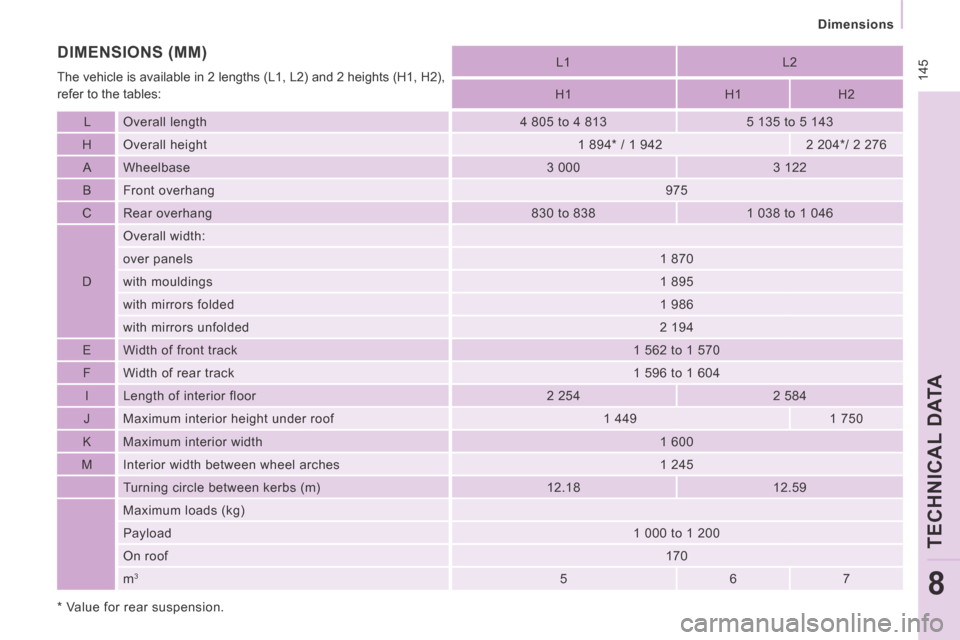

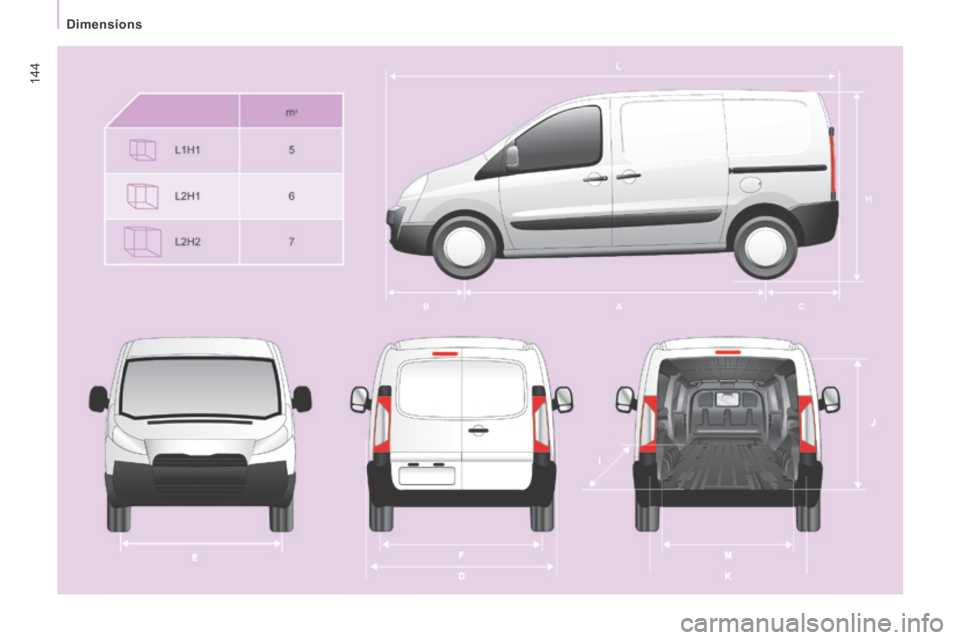

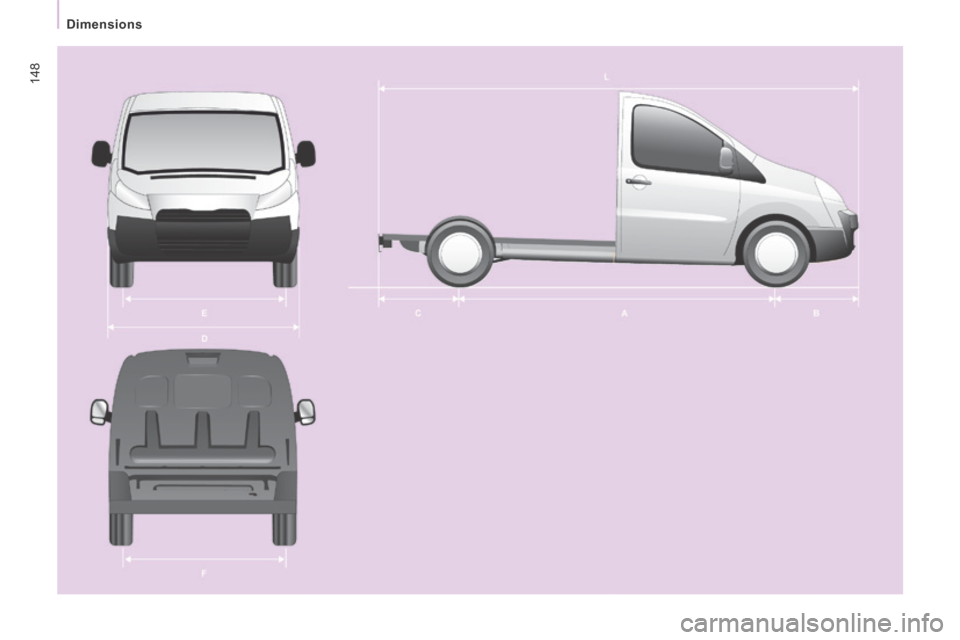

DIMENSIONS (MM)
The vehicle is available in 2 lengths (L1, L2) and 2 heights (H1, H2)\
,
refer to the tables:

146
Dimensions
AP-EXPERT-VU_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

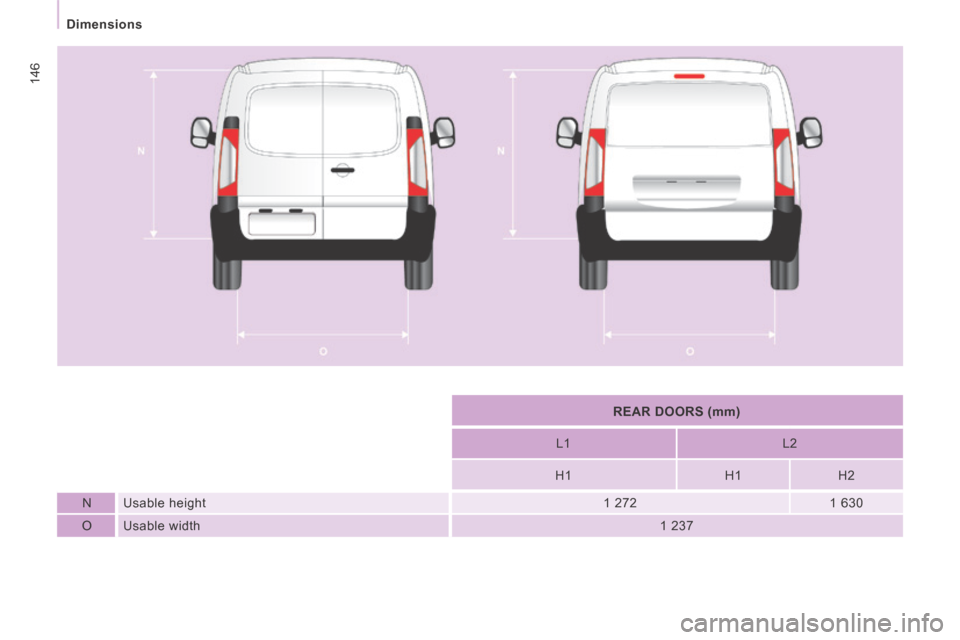

REAR DOORS (mm)
L1 L2
H1 H1 H2
N Usable height 1 272 1 630
O Usable width 1 237

147
Dimensions
TECHNICAL DATA
8
AP-EXPERT-VU_EN_CHAP08_CARACTERISTIQUES TECHNIQUES_ED01-2014

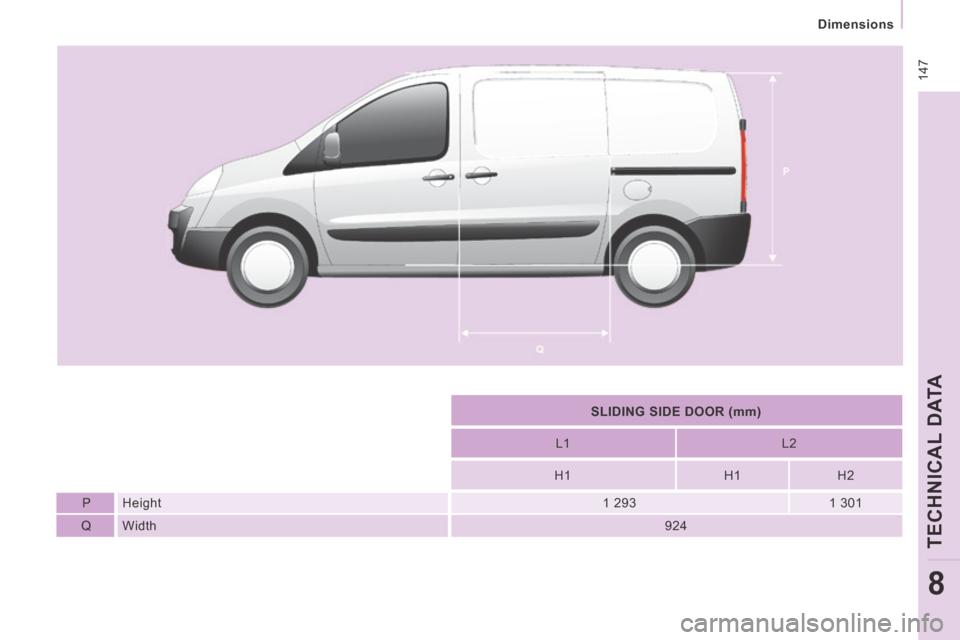

SLIDING SIDE DOOR (mm)
