Peugeot Expert VU 2014 User Guide

9
Interior
FAMILIARISATION
1
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

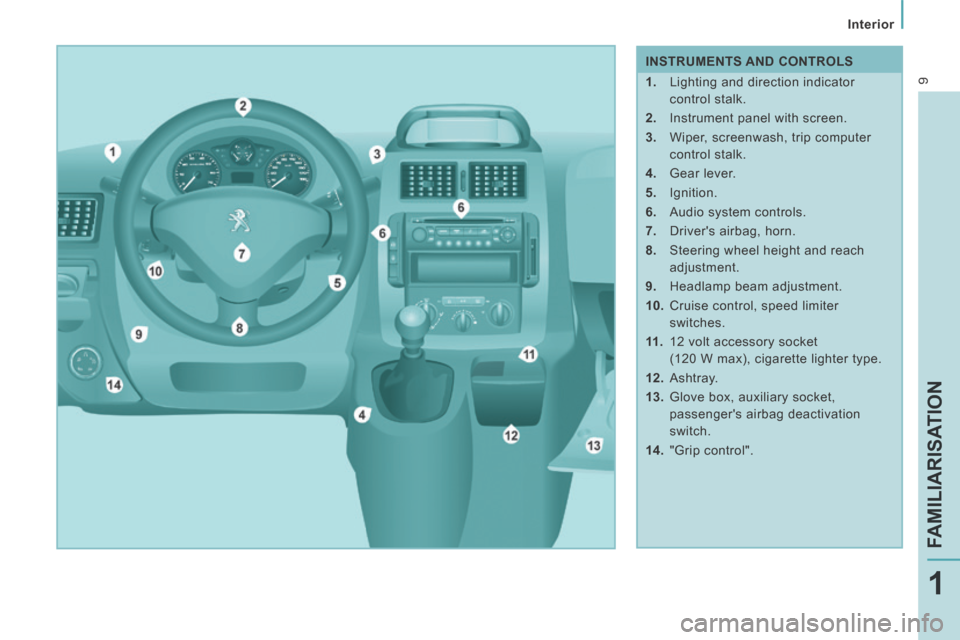

INSTRUMENTS AND CONTROLS
1. Lighting and direction indicator control stalk.
2. Instrument panel with screen.
3. Wiper, screenwash, trip computer control stalk.
4. Gear lever.
5. Ignition.
6. Audio system controls.
7. Driver's airbag, horn.
8. Steering wheel height and reach adjustment.
9. Headlamp beam adjustment.
10. Cruise control, speed limiter switches.
11 . 12 volt accessory socket
(120 W max), cigarette lighter type.
12. Ashtray.
13. Glove box, auxiliary socket, passenger's airbag deactivation
switch.
14. "Grip control".

Interior
10
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

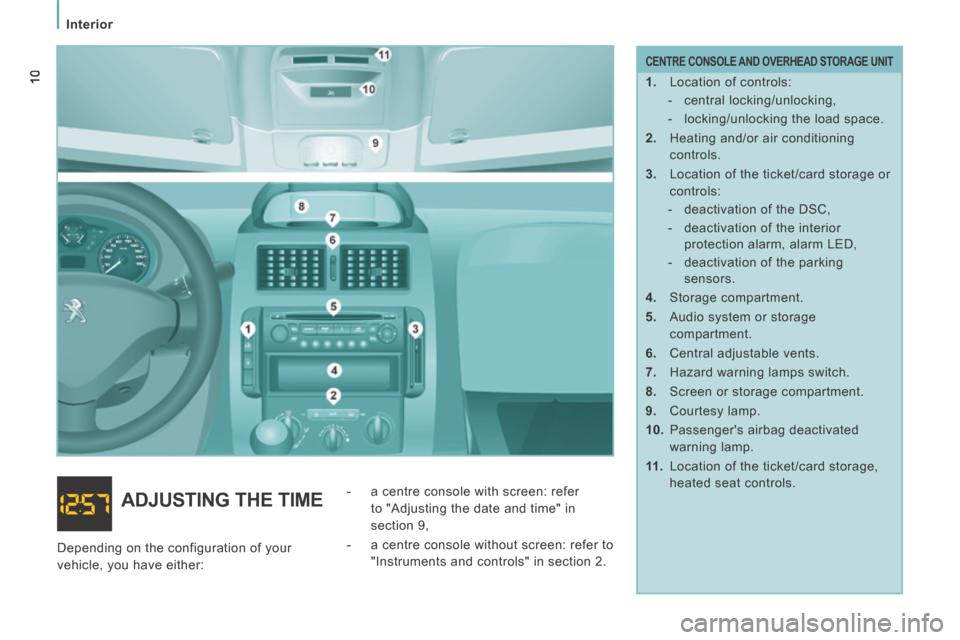

CENTRE CONSOLE AND OVERHEAD STORAGE UNIT
1. Location of controls: - central locking/unlocking,
- locking/unlocking the load space.
2. Heating and/or air conditioning controls.
3. Location of the ticket/card storage or controls:
- deactivation of the DSC,
- deactivation of the interior protection alarm, alarm LED,
- deactivation of the parking sensors.
4. Storage compartment.
5. Audio system or storage compartment.
6. Central adjustable vents.
7. Hazard warning lamps switch.
8. Screen or storage compartment.
9. Courtesy lamp.
10. Passenger's airbag deactivated warning lamp.
11 . Location of the ticket/card storage,
heated seat controls.
ADJUSTING THE TIME - a centre console with screen: refer to "Adjusting the date and time" in
section 9,
- a centre console without screen: refer to "Instruments and controls" in section 2.
Depending on the configuration of your
vehicle, you have either:

3
11
Interior
FAMILIARISATION
1
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

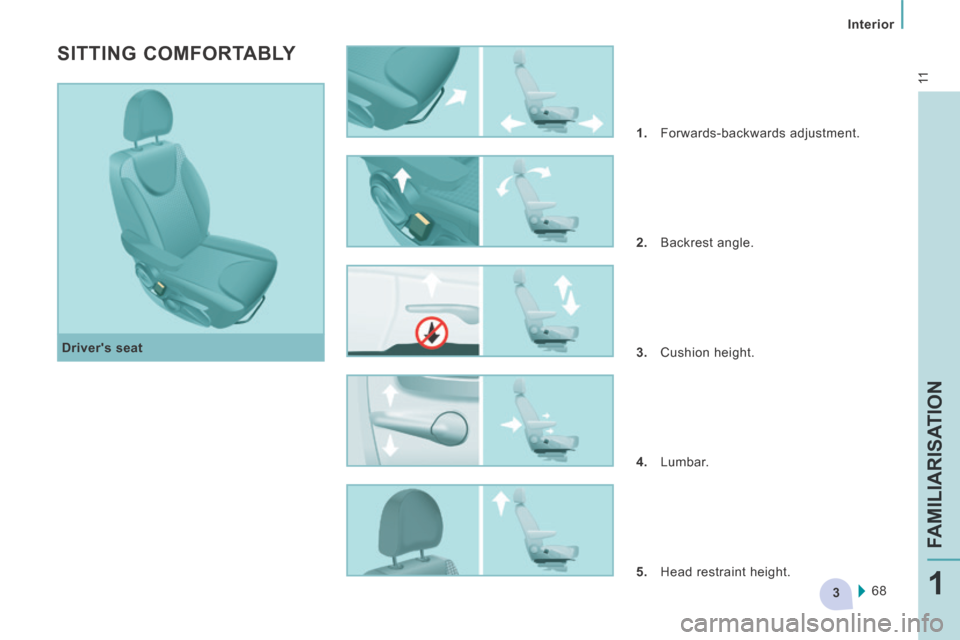

Driver's seat
SITTING COMFORTABLY
1. Forwards-backwards adjustment.
2. Backrest angle.
3. Cushion height.
4. Lumbar.
5. Head restraint height. 68

2
4
3
3
Interior
12
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

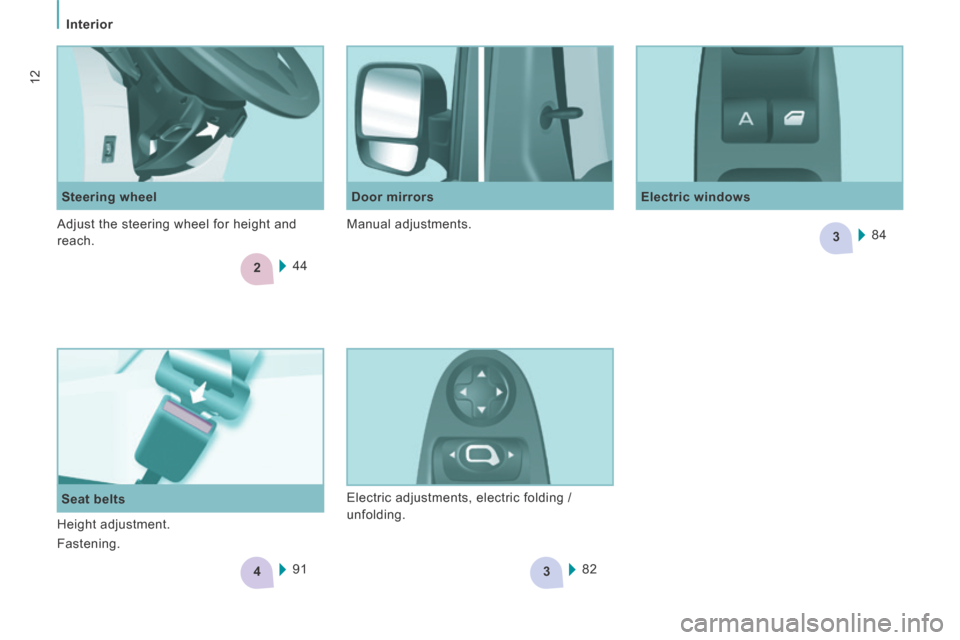

Seat belts Steering wheel
Electric windows
Door mirrors
44
91 84
82
Electric adjustments, electric folding /
unfolding.
Height adjustment.
Fastening. Adjust the steering wheel for height and
reach. Manual adjustments.

3
3
7
13
Interior
FAMILIARISATION
1
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

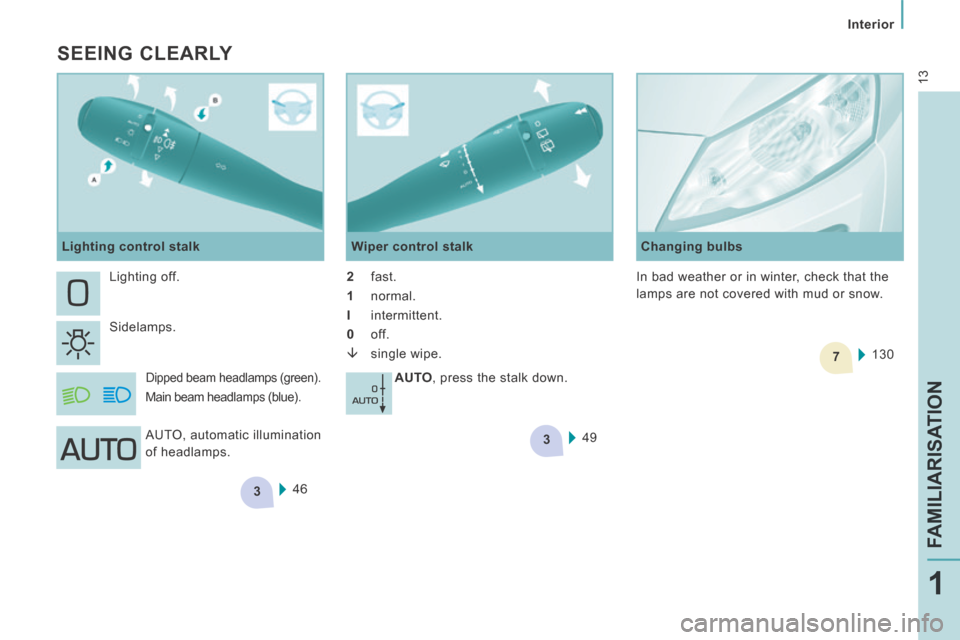

SEEING CLEARLY
46
Lighting off.
Sidelamps.
Dipped beam headlamps (green).
Main beam headlamps (blue).
Wiper control stalk
2 fast.
1 normal.

I intermittent.

0 off.

 single wipe.
AUTO , press the stalk down.
AUTO, automatic illumination
of headlamps.
Lighting control stalk
49 Changing bulbs
130
In bad weather or in winter, check that the
lamps are not covered with mud or snow.

9
9
3
4
3
9
Interior
14
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

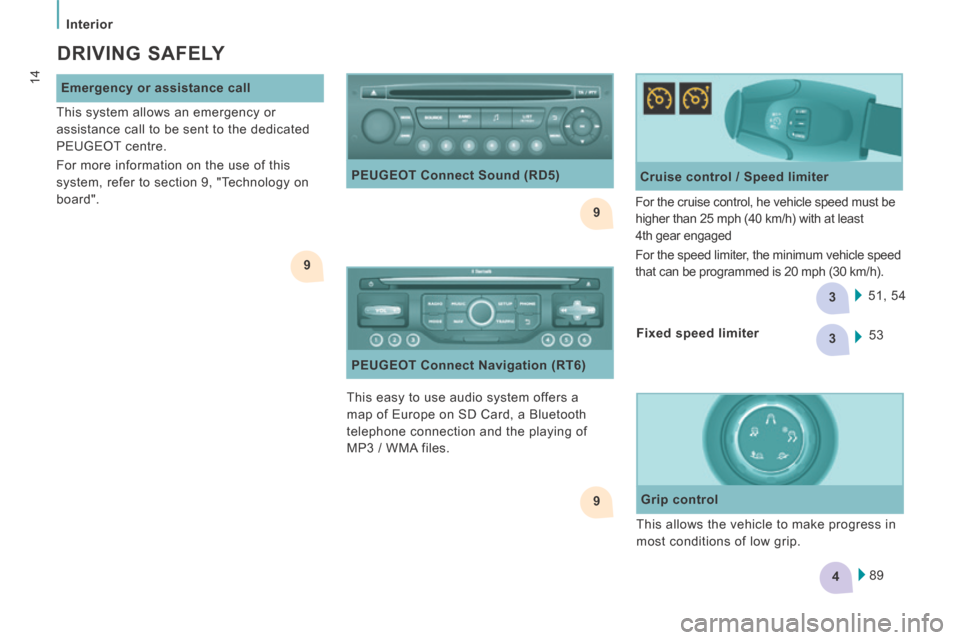

DRIVING SAFELY
Emergency or assistance call
This easy to use audio system offers a
map of Europe on SD Card, a Bluetooth
telephone connection and the playing of
MP3 / WMA files. 51, 54
Cruise control / Speed limiter
For the cruise control, he vehicle speed must be
higher than 25 mph (40 km/h) with at least
4th gear engaged
For the speed limiter, the minimum vehicle speed
that can be programmed is 20 mph (30 km/h).
PEUGEOT Connect Sound (RD5)
This system allows an emergency or
assistance call to be sent to the dedicated
PEUGEOT centre.
For more information on the use of this
system, refer to section 9, "Technology on
board".
PEUGEOT Connect Navigation (RT6) Fixed speed limiter
53
89
Grip control
This allows the vehicle to make progress in
most conditions of low grip.

3
33
15
Interior
FAMILIARISATION
1
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

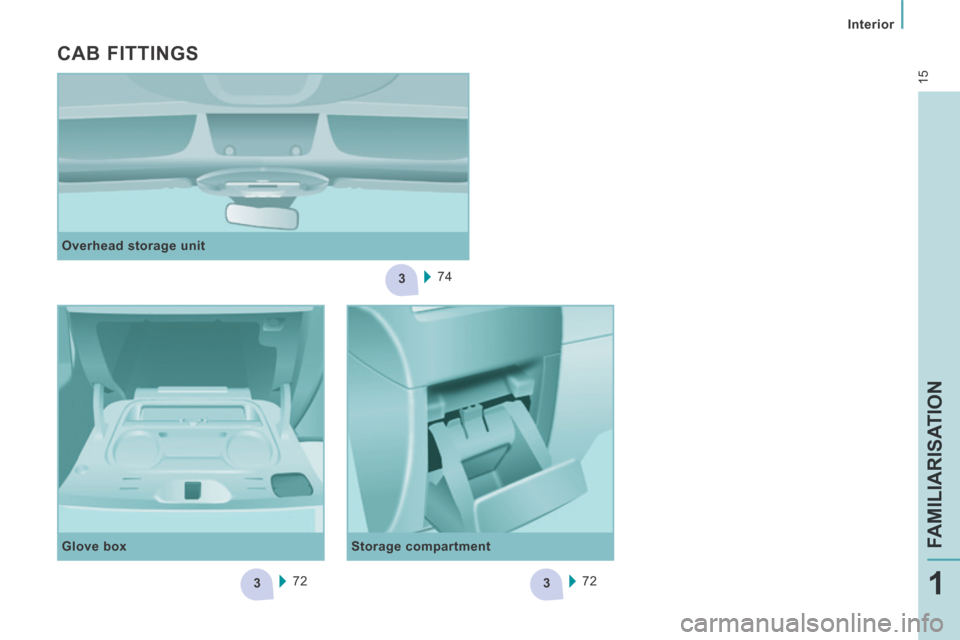

Overhead storage unit 74
CAB FITTINGS
Glove box
72 72
Storage compartment

5
333
Interior
16
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

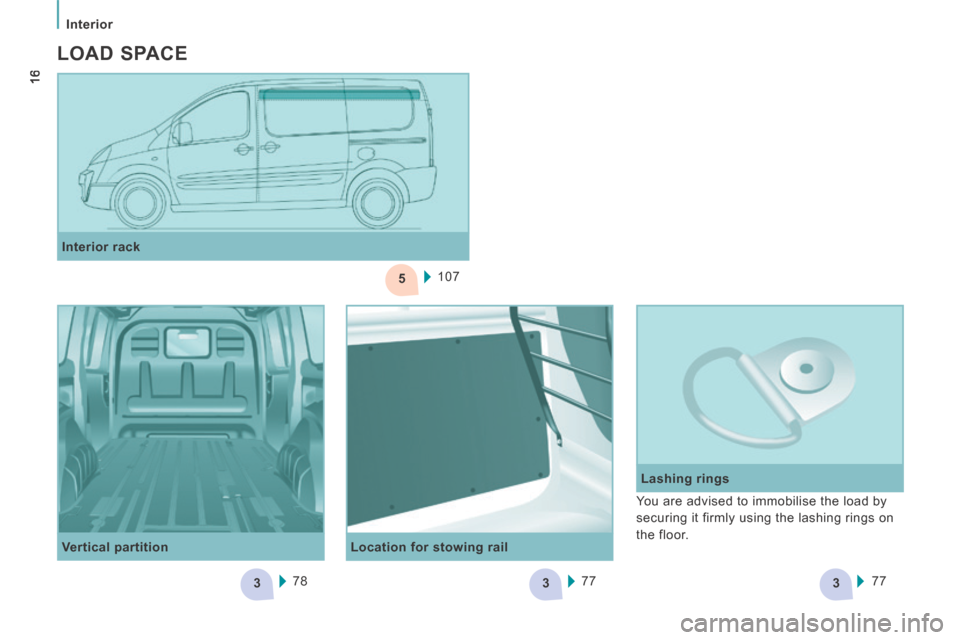

Location for stowing rail Lashing rings
Interior rack
107
Vertical partition 78 77
77 You are advised to immobilise the load by
securing it firmly using the lashing rings on
the floor.
LOAD SPACE

3
3
17
Interior
FAMILIARISATION
1
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014
Manual controls
Digital controls, with separate driver
and passenger settings 59 57
VENTILATION Recommended settings
For optimum use of the system, we recommend:
If I require... Air
distribution Temperature
Air flow Air
recirculation AC

Heating -
Cooling
Demisting
Defrosting

18
AP-EXPERT-VU_EN_CHAP01_PRISE EN MAIN_ED01-2014

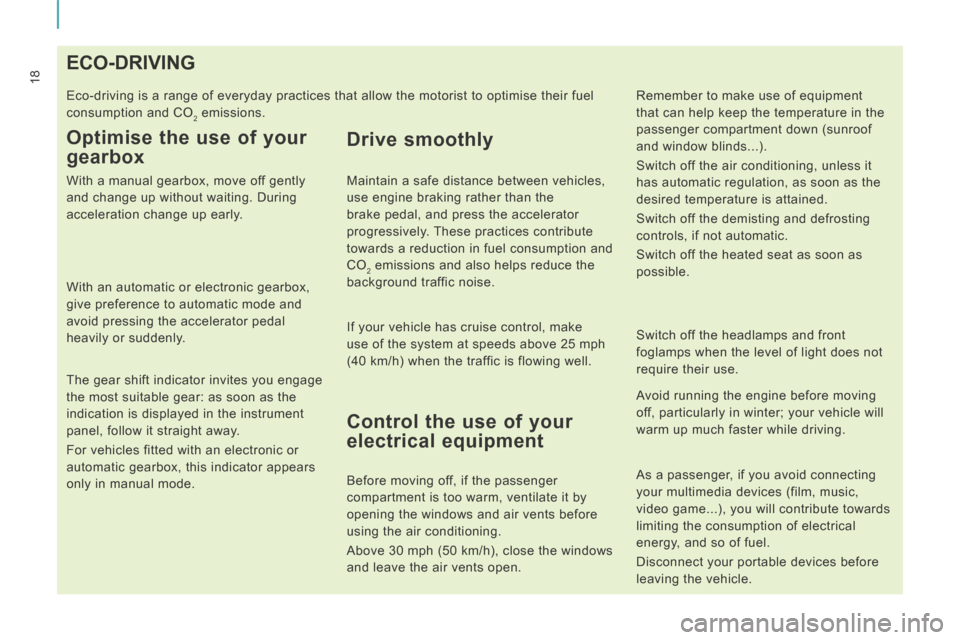

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to \
optimise their fuel
consumption and CO
2 emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently
and change up without waiting. During
acceleration change up early.
With an automatic or electronic gearbox,
give preference to automatic mode and
avoid pressing the accelerator pedal
heavily or suddenly.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open. Switch off the headlamps and front
foglamps when the level of light does not
require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO
2 emissions and also helps reduce the
background traffic noise.
If your vehicle has cruise control, make
use of the system at speeds above 25 mph
(40 km/h) when the traffic is flowing well.
As a passenger, if you avoid connecting
your multimedia devices (film, music,
video game...), you will contribute towards
limiting the consumption of electrical
energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle. Remember to make use of equipment
that can help keep the temperature in the
passenger compartment down (sunroof
and window blinds...).
Switch off the air conditioning, unless it
has automatic regulation, as soon as the
desired temperature is attained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.
The gear shift indicator invites you engage
the most suitable gear: as soon as the
indication is displayed in the instrument
panel, follow it straight away.
For vehicles fitted with an electronic or
automatic gearbox, this indicator appears
only in manual mode.
