Peugeot Expert VU 2014 Manual PDF

69
Seats
EASE OF USE
and
COMFORT
3
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

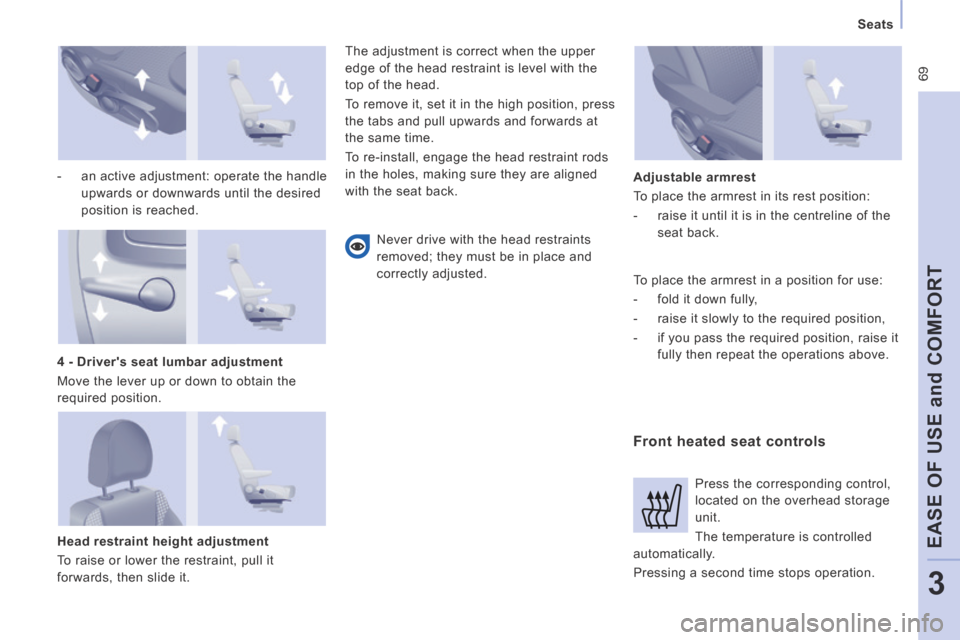

- an active adjustment: operate the handle upwards or downwards until the desired
position is reached.
Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls
Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the seat back.
4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position.
Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.
To place the armrest in a position for use:
- fold it down fully,
- raise it slowly to the required position,
- if you pass the required position, raise it fully then repeat the operations above.

70
Seats
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

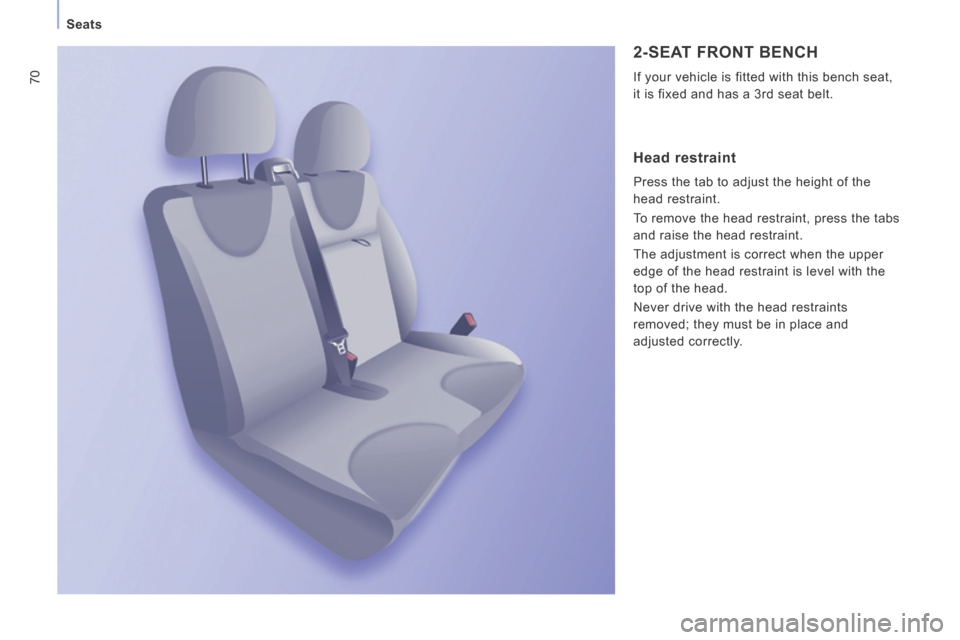

2-SEAT FRONT BENCH
If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

71
Seats
EASE OF USE
and
COMFORT
3
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

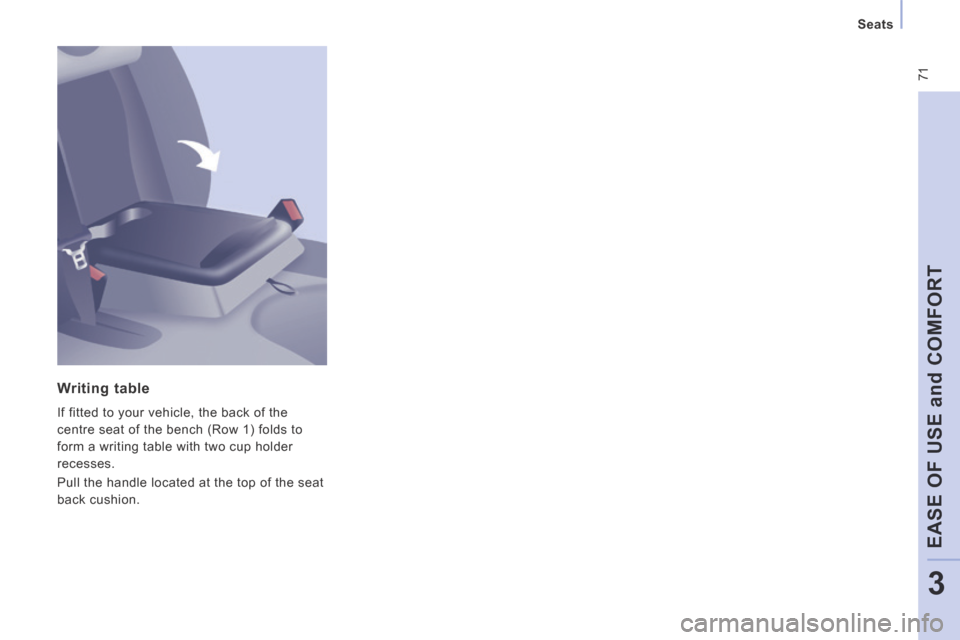

Writing table
If fitted to your vehicle, the back of the
centre seat of the bench (Row 1) folds to
form a writing table with two cup holder
recesses.
Pull the handle located at the top of the seat
back cushion.

72
Practical information
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

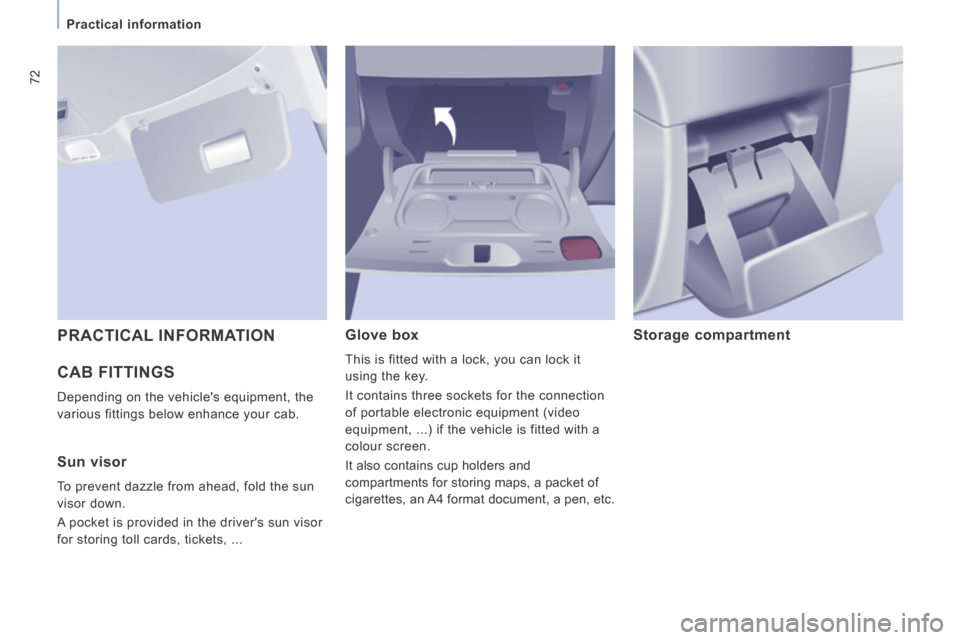

CAB FITTINGS
Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with a
colour screen.
It also contains cup holders and
compartments for storing maps, a packet of
cigarettes, an A4 format document, a pen, etc.
Storage compartment PRACTICAL INFORMATION
Sun visor
To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

73
Practical information
EASE OF USE
and
COMFORT
3
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

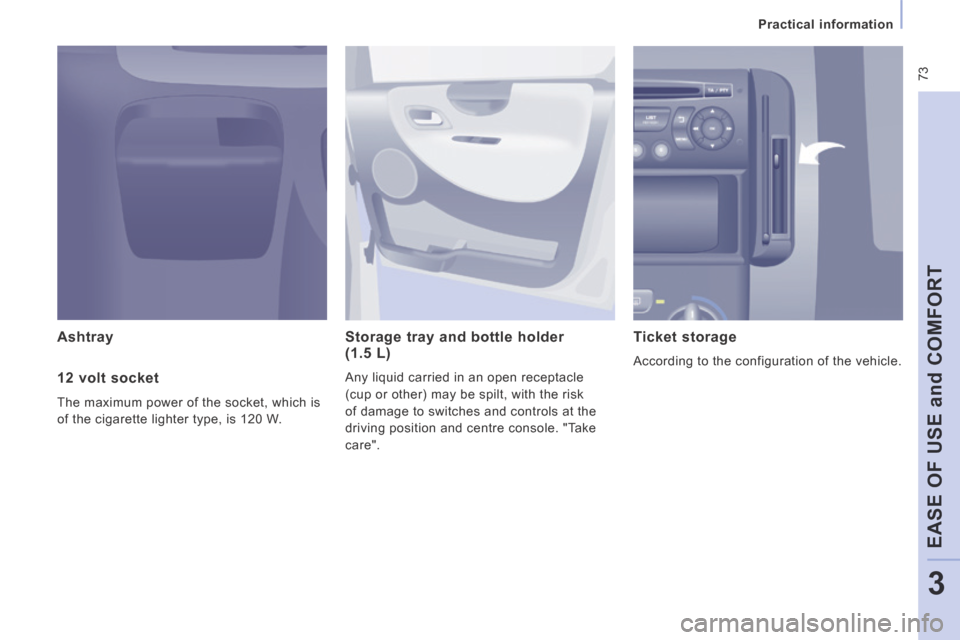

Ashtray Storage tray and bottle holder (1.5 L)
Any liquid carried in an open receptacle
(cup or other) may be spilt, with the risk
of damage to switches and controls at the
driving position and centre console. "Take
care".
Ticket storage
According to the configuration of the vehicle.
12 volt socket
The maximum power of the socket, which is
of the cigarette lighter type, is 120 W.

74
Practical information
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

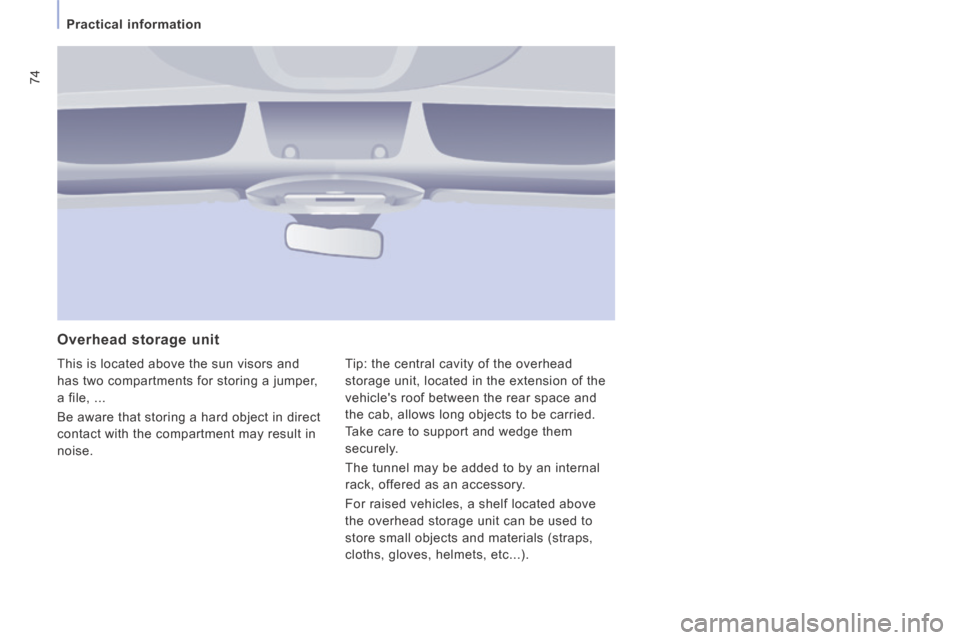

Overhead storage unit
This is located above the sun visors and
has two compartments for storing a jumper,
a file, ...
Be aware that storing a hard object in direct
contact with the compartment may result in
noise.
Tip: the central cavity of the overhead
storage unit, located in the extension of the
vehicle's roof between the rear space and
the cab, allows long objects to be carried.
Take care to support and wedge them
securely.
The tunnel may be added to by an internal
rack, offered as an accessory.
For raised vehicles, a shelf located above
the overhead storage unit can be used to
store small objects and materials (straps,
cloths, gloves, helmets, etc...).

75
Practical information
EASE OF USE
and
COMFORT
3
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

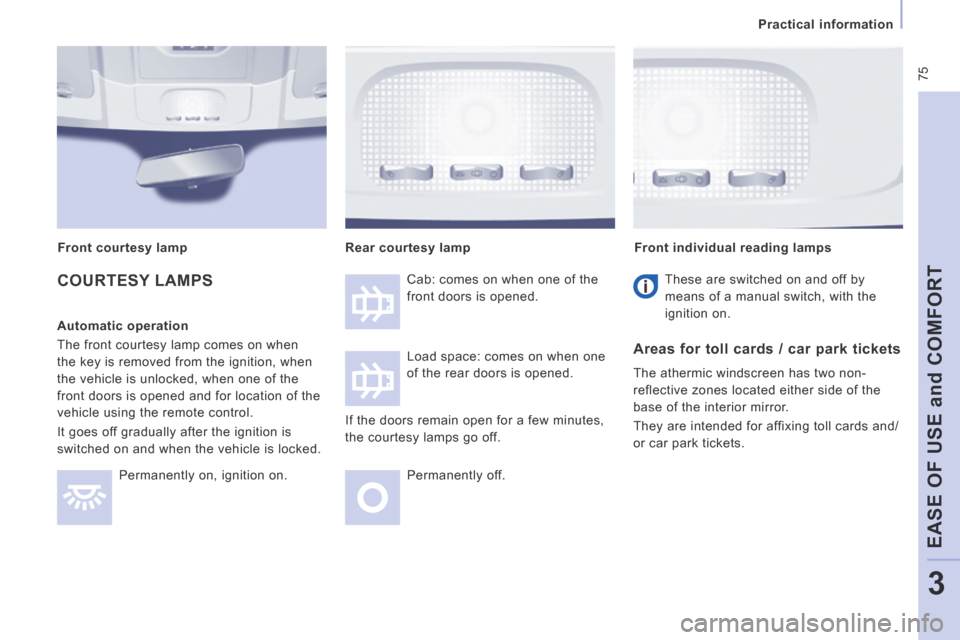

COURTESY LAMPS
Automatic operation
The front courtesy lamp comes on when
the key is removed from the ignition, when
the vehicle is unlocked, when one of the
front doors is opened and for location of the
vehicle using the remote control.
It goes off gradually after the ignition is
switched on and when the vehicle is locked.
Permanently on, ignition on.
Cab: comes on when one of the
front doors is opened.
Load space: comes on when one
of the rear doors is opened.
Permanently off.
Front individual reading lamps
Rear courtesy lamp
These are switched on and off by
means of a manual switch, with the
ignition on.
Areas for toll cards / car park tickets
The athermic windscreen has two non-
reflective zones located either side of the
base of the interior mirror.
They are intended for affixing toll cards and/
or car park tickets.
Front courtesy lamp
If the doors remain open for a few minutes,
the courtesy lamps go off.

76
Practical information
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

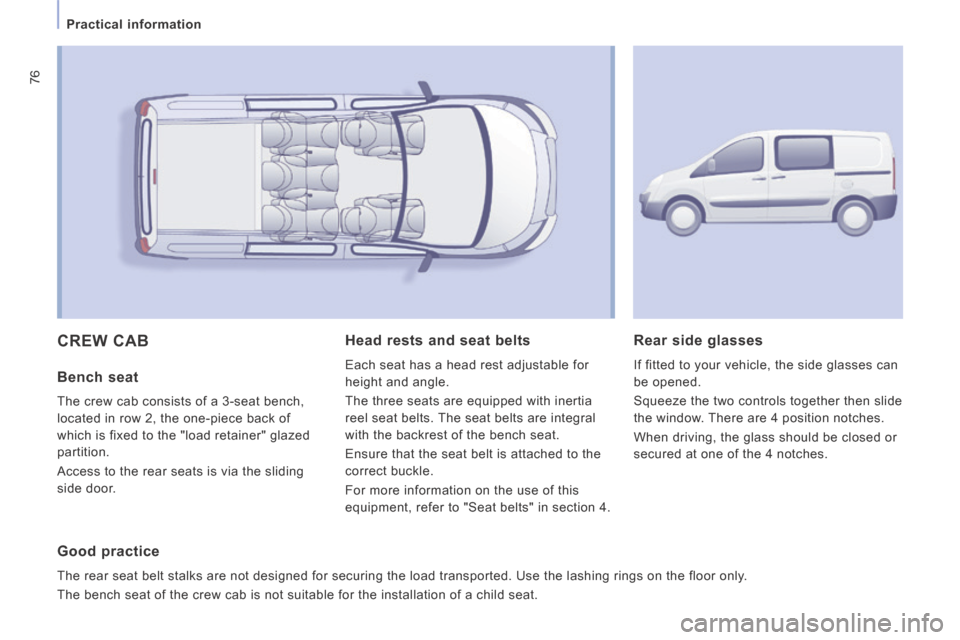

CREW CAB
Bench seat
The crew cab consists of a 3-seat bench,
located in row 2, the one-piece back of
which is fixed to the "load retainer" glazed
partition.
Access to the rear seats is via the sliding
side door.
Head rests and seat belts
Each seat has a head rest adjustable for
height and angle.
The three seats are equipped with inertia
reel seat belts. The seat belts are integral
with the backrest of the bench seat.
Ensure that the seat belt is attached to the
correct buckle.
For more information on the use of this
equipment, refer to "Seat belts" in section 4.
Good practice
The rear seat belt stalks are not designed for securing the load transpo\
rted. Use the lashing rings on the floor only.
The bench seat of the crew cab is not suitable for the installation of a\
child seat.
Rear side glasses
If fitted to your vehicle, the side glasses can
be opened.
Squeeze the two controls together then slide
the window. There are 4 position notches.
When driving, the glass should be closed or
secured at one of the 4 notches.

77
Practical information
EASE OF USE
and
COMFORT
3
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

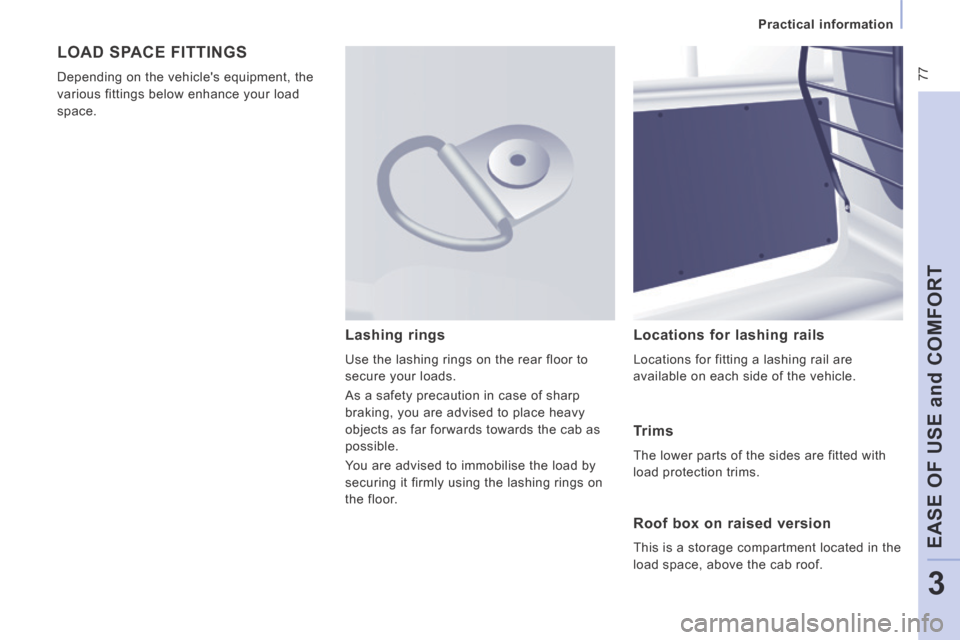

LOAD SPACE FITTINGS
Depending on the vehicle's equipment, the
various fittings below enhance your load
space.
Locations for lashing rails
Locations for fitting a lashing rail are
available on each side of the vehicle.
Lashing rings
Use the lashing rings on the rear floor to
secure your loads.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.
You are advised to immobilise the load by
securing it firmly using the lashing rings on
the floor.
Trims
The lower parts of the sides are fitted with
load protection trims.
Roof box on raised version
This is a storage compartment located in the
load space, above the cab roof.

78
Practical information
AP-EXPERT-VU_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

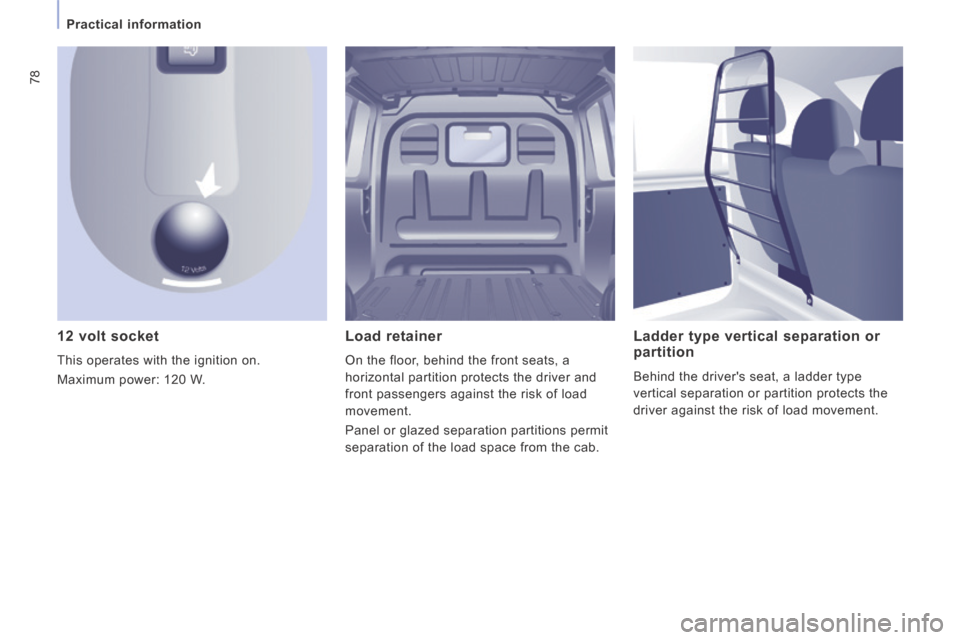

12 volt socket
This operates with the ignition on.
Maximum power: 120 W.
Load retainer
On the floor, behind the front seats, a
horizontal partition protects the driver and
front passengers against the risk of load
movement.
Panel or glazed separation partitions permit
separation of the load space from the cab.
Ladder type vertical separation or partition
Behind the driver's seat, a ladder type
vertical separation or partition protects the
driver against the risk of load movement.
