109 TECHNICAL DATA
-

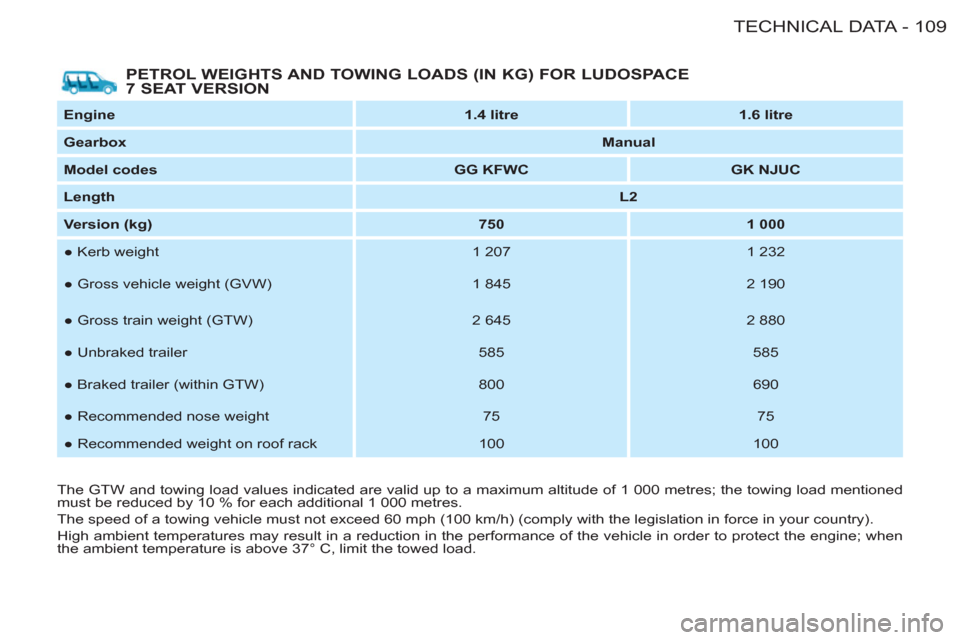

PETROL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
7 SEAT VERSION

Engine


1.4 litre



1.6 litre



Gearbox


Manual



Model codes


GG KFWC



GK NJUC



Length



L2



Version (kg)


750



1 000


● Kerb weight
1 207
1 232
● Gross vehicle weight (GVW)
1 845
2 190
● Gross train weight (GTW)
2 645
2 880
● Unbraked trailer
585
585
● Braked trailer (within GTW)
800
690
● Recommended nose weight
75
75
● Recommended weight on roof rack
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37° C, limit the towed load.

TECHNICAL DATA
11 0 -

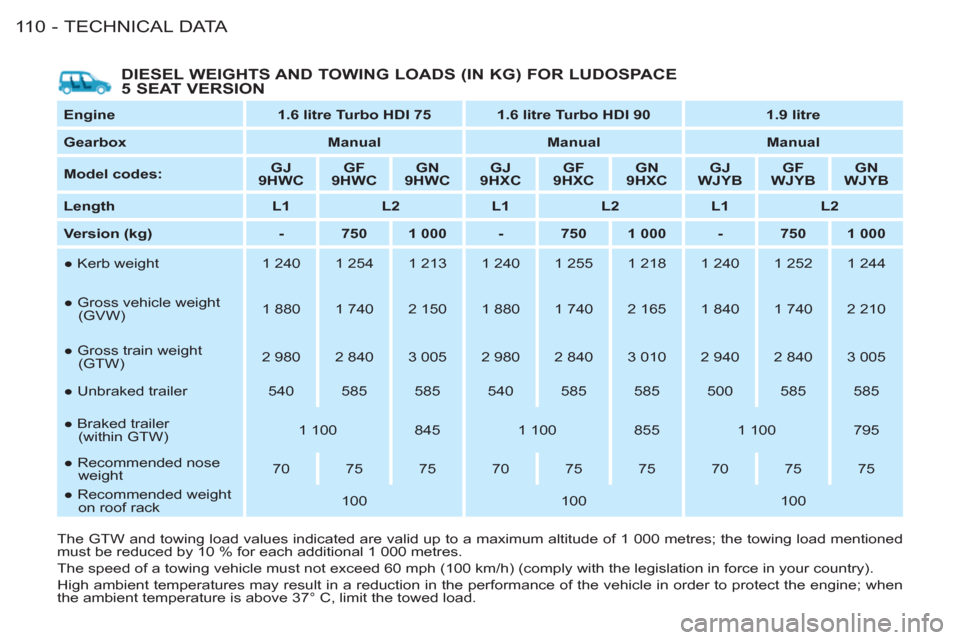

DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
5 SEAT VERSION

Engine



1.6 litre Turbo HDI 75


1.6 litre Turbo HDI 90

1.9 litre


Gearbox


Manual



Manual



Manual



Model codes:


GJ
9HWC



GF
9HWC



GN
9HWC



GJ
9HXC



GF
9HXC



GN
9HXC



GJ
WJYB



GF
WJYB



GN
WJYB



Length


L1



L2



L1



L2



L1



L2



Version (kg)


-



750



1 000



-



750



1 000



-



750



1 000


● Kerb weight
1 240
1 254

1 213
1 240
1 255
1 218
1 240
1 252
1 244
● Gross vehicle weight
(GVW)
1 880
1 740
2 150
1 880
1 740
2 165
1 840
1 740
2 210
● Gross train weight
(GTW)
2 980
2 840
3 005
2 980
2 840
3 010
2 940
2 840
3 005
● Unbraked trailer
540
585
585
540
585
585
500
585
585
● Braked trailer
(within GTW)
1 100
845
1 100
855
1 100
795
● Recommended nose
weight
70
75
75
70
75
75
70
75
75
● Recommended weight
on roof rack
100
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37° C, limit the towed load.

111 TECHNICAL DATA
-

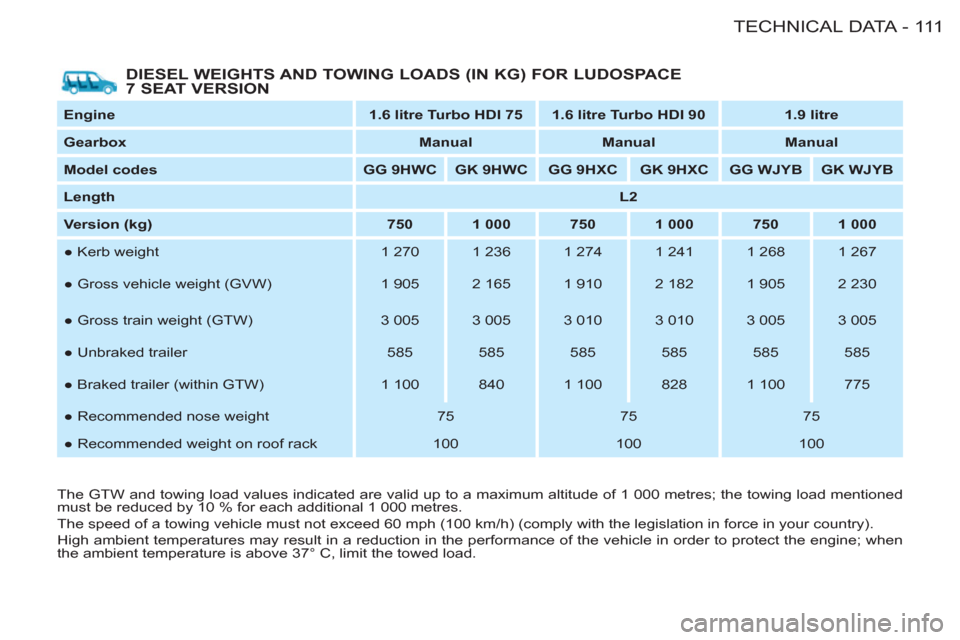

DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
7 SEAT VERSION

Engine


1.6 litre Turbo HDI 75



1.6 litre Turbo HDI 90



1.9 litre



Gearbox


Manual



Manual



Manual



Model codes


GG 9HWC



GK 9HWC



GG 9HXC



GK 9HXC



GG WJYB



GK WJYB



Length



L2



Version (kg)


750



1 000



750



1 000



750



1 000


● Kerb weight
1 270
1 236
1 274
1 241
1 268
1 267
● Gross vehicle weight (GVW)
1 905
2 165
1 910
2 182
1 905
2 230
● Gross train weight (GTW)
3 005
3 005
3 010
3 010
3 005
3 005
● Unbraked trailer

585
585
585
585
585
585
● Braked trailer (within GTW)
1 100
840
1 100
828
1 100
775
● Recommended nose weight
75
75
75
● Recommended weight on roof rack
100
100
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is above 37° C, limit the towed load.

TECHNICAL DATA
11 2 -

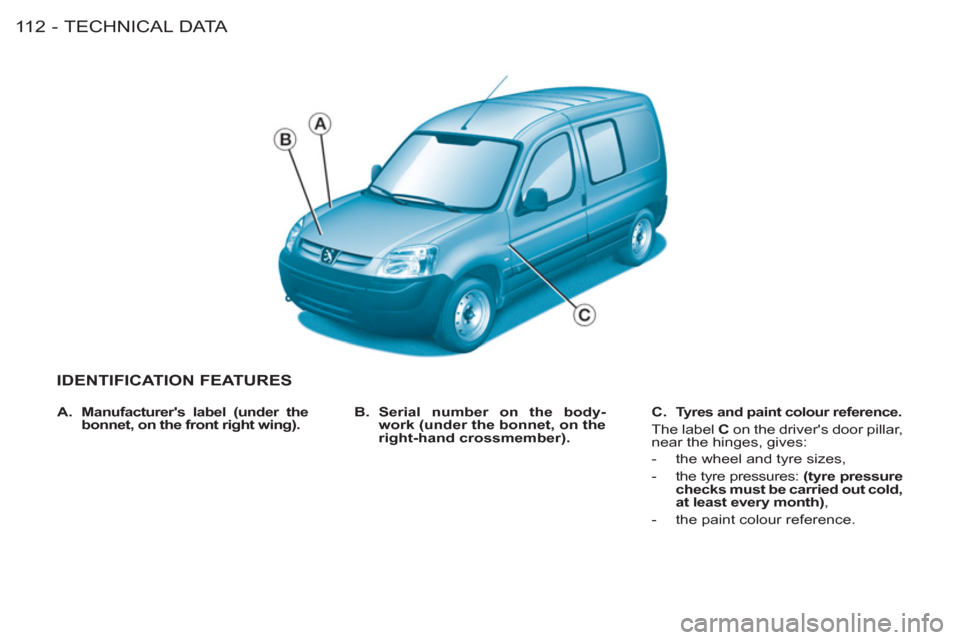

IDENTIFICATION FEATURES

B.
Serial number on the body-
work (under the bonnet, on the
right-hand crossmember).

C.
Tyres and paint colour reference.


The label C
on the driver's door pillar,
near the hinges, gives:


- the wheel and tyre sizes,

- the tyre pressures: (tyre pressure
checks must be carried out cold,
at least every month)
,

- the paint colour reference.

A.
Manufacturer's label (under the
bonnet, on the front right wing).

129 VISUAL INDEX-

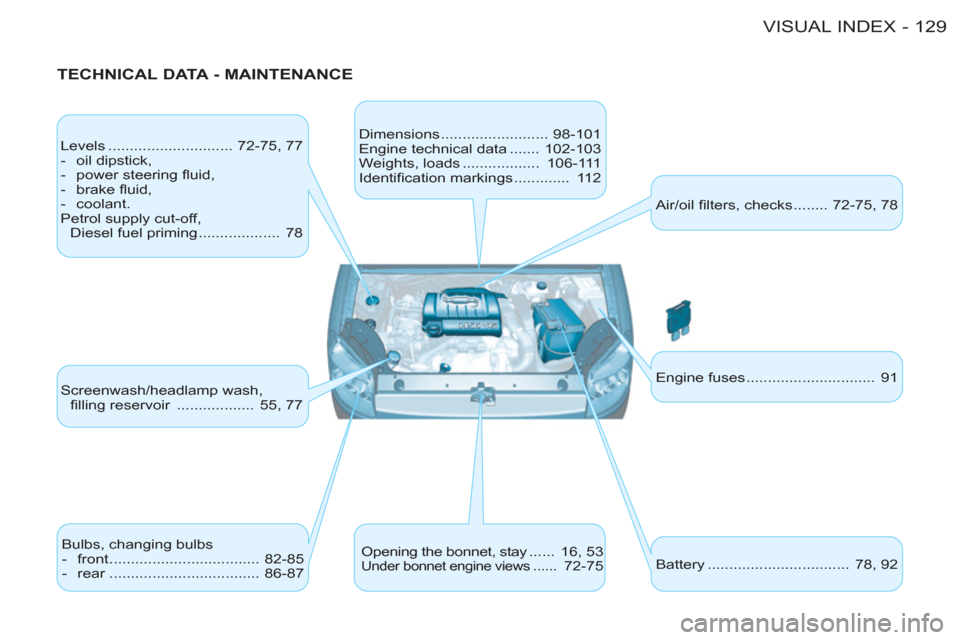

TECHNICAL DATA - MAINTENANCE

Levels ............................. 72-75, 77


- oil dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Petrol supply cut-off,
Diesel fuel priming ................... 78
Screenwash/headlamp wash,
fi lling reservoir .................. 55, 77
Bulbs, changing bulbs


- front ................................... 82-85

- rear ................................... 86-87 Dimensions ......................... 98-101
Engine technical data ....... 102-103
Weights, loads .................. 106-111
Identifi cation markings ............. 112
Opening the bonnet, stay ...... 16, 53

Under bonnet engine views ...... 72-75 Air/oil fi lters, checks ........ 72-75, 78
Engine fuses .............................. 91
Battery ................................. 78, 92
