Peugeot M59 2011 Owner's Manual

Handbook

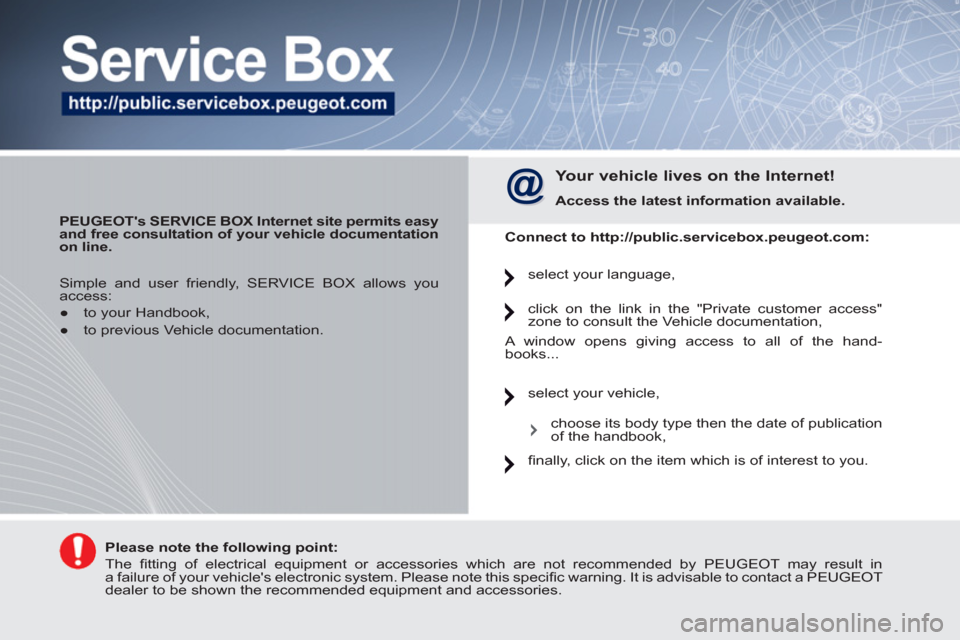

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.


Your vehicle lives on the Internet!


Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you
access:


●
to your Handbook,

●
to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
A window opens giving access to all of the hand-
books...
select your vehicle,
choose its body type then the date of publication
of the handbook,
fi nally, click on the item which is of interest to you.

Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in
a failure of your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT
dealer to be shown the recommended equipment and accessories.

1
Consulting your "Handbook" should
enable you to adjust the equipment
and confi gurations available on your
vehicle for optimum comfort and driv-
ing conditions.
Two levels of reading:
the 1
st offers general instructions to
welcome you at a glance.
the 2
nd, from the contents, lists the
functions. They are marked by a
graphic and guide you in detail.
Key

This key will allow you to distinguish
the special features of your vehicle:

Key


this symbol marks warnings
which it is essential to ob-
serve for your own safety,
for the safety of others or to
avoid any risk of damaging
your vehicle.
this symbol invites you to
refer to the pages which pro-
vide details of the function.

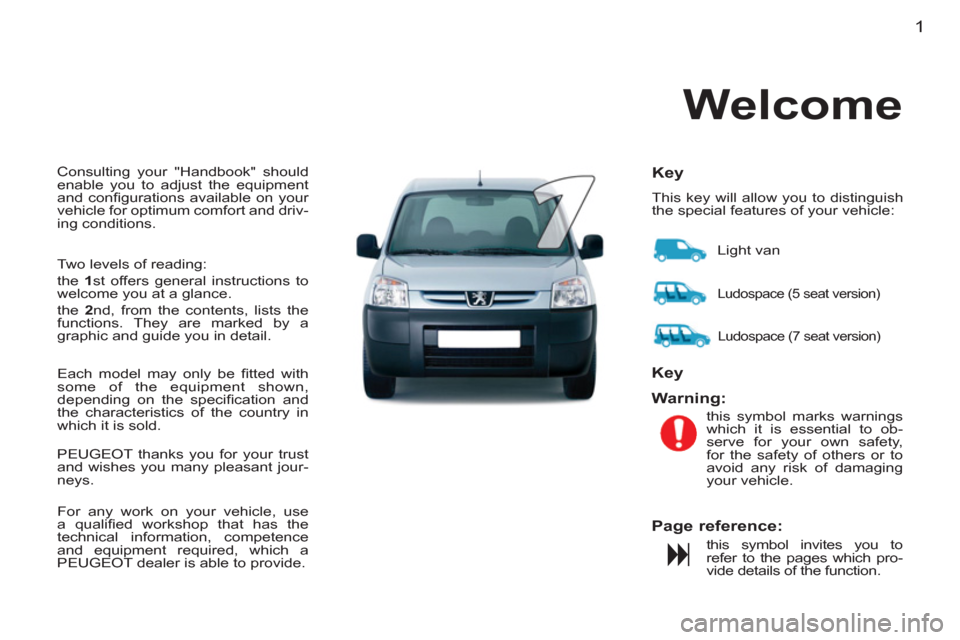

Welcome

PEUGEOT thanks you for your trust
and wishes you many pleasant jour-
neys. Light van

Ludospace (5 seat version)

Each model may only be fi tted with
some of the equipment shown,
depending on the specifi cation and
the characteristics of the country in
which it is sold.

Warning:

Page reference:

Ludospace (7 seat version)



For any work on your vehicle, use
a qualifi ed workshop that has the
technical information, competence
and equipment required, which a
PEUGEOT dealer is able to provide.

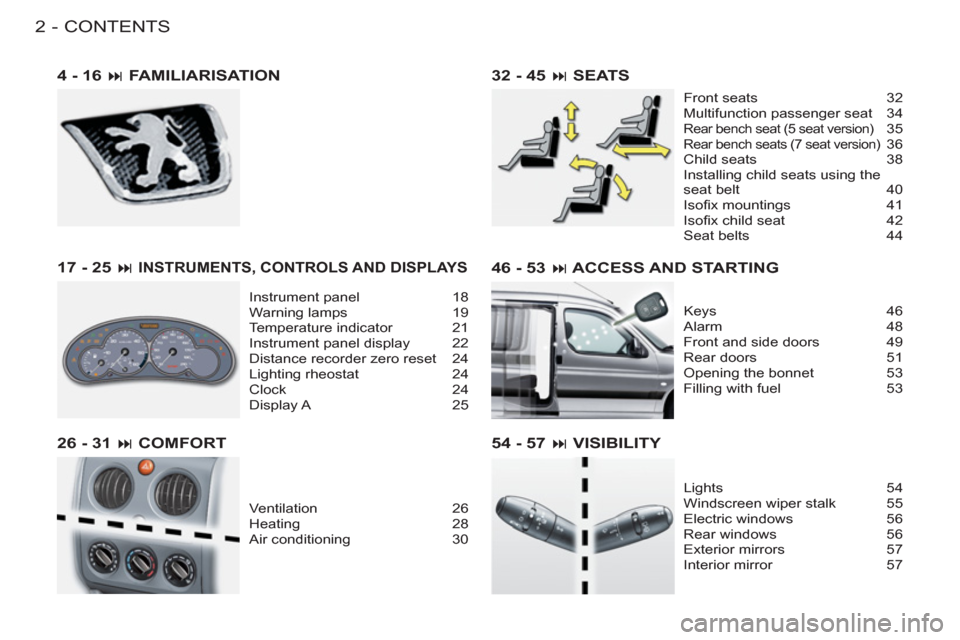

CONTENTS
2-
54 - 57  VISIBILITY
Lights 54
Windscreen wiper stalk 55
Electric windows 56
Rear windows 56
Exterior mirrors 57
Interior mirror 57
32 - 45  SEATS
Front seats 32
Multifunction passenger seat 34
Rear bench seat (5 seat version) 35Rear bench seats (7 seat version) 36
Child seats 38
Installing child seats using the
seat belt 40
Isofi x mountings 41
Isofi x child seat 42
Seat belts 44
46 - 53  ACCESS AND STARTING
Keys 46
Alarm 48
Front and side doors 49
Rear doors 51
Opening the bonnet 53
Filling with fuel 53
4 - 16  FAMILIARISATION
17 - 25
INSTRUMENTS, CONTROLS AND DISPLAYS
Instrument panel 18
Warning lamps 19
Temperature indicator 21
Instrument panel display 22
Distance recorder zero reset 24
Lighting rheostat 24
Clock 24
Display A 25
26 - 31  COMFORT
Ventilation 26
Heating 28
Air conditioning 30

3CONTENTS
-
98 - 112  TECHNICAL DATA
Dimensions 98
Engines 102
Light van weights and loads 106
Ludospace weights and loads 108
Identifi cation features 112
125 - 129  VISUAL INDEX 58 - 63  COMFORT AND SAFETY
Front layout 58
Courtesy lights 59
Headlamp adjustment 60
Steering wheel adjustment 60
Lashing rings 61
Rear layout 62
64 - 71  DRIVING
Handbrake 64
ABS and EBFD systems 64
Speed limiter 65
Cruise control 67
Airbags 69
72 - 97  PRACTICAL INFORMATION
Under the bonnet 72
Levels 77
Checks 78
Changing a wheel 79
Changing a bulb 82
Changing a fuse 88
Battery 92
Energy economy mode 92
Fitting audio equipment, speakers 93
Snow screen 94
Towing 95
Towing a trailer 96
Accessories 97
113 - 124  AUDIO EQUIPMENT
Peugeot Connect Sound 113

FAMILIARISATION4-

5 FAMILIARISATION
-

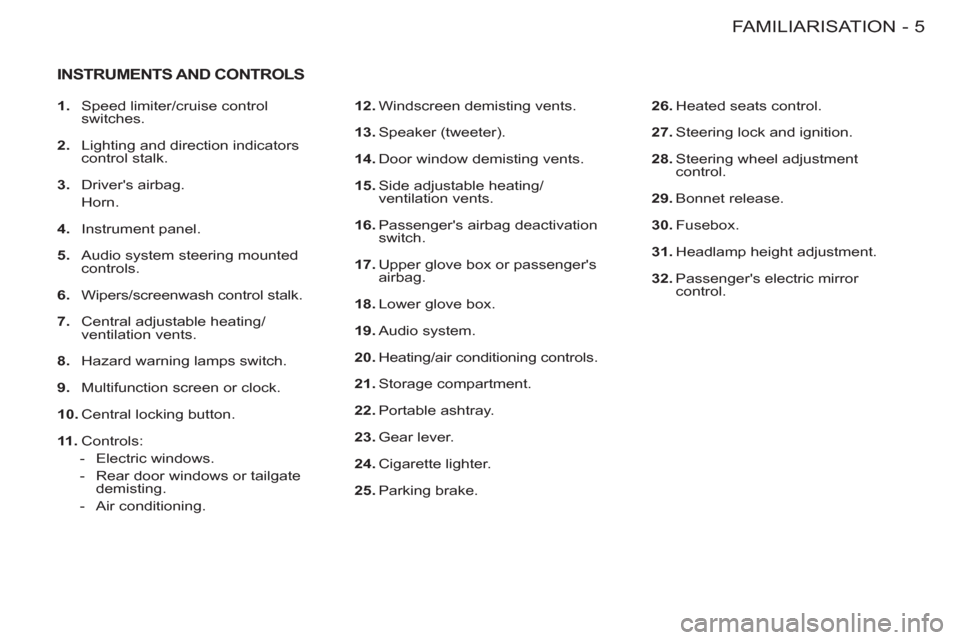

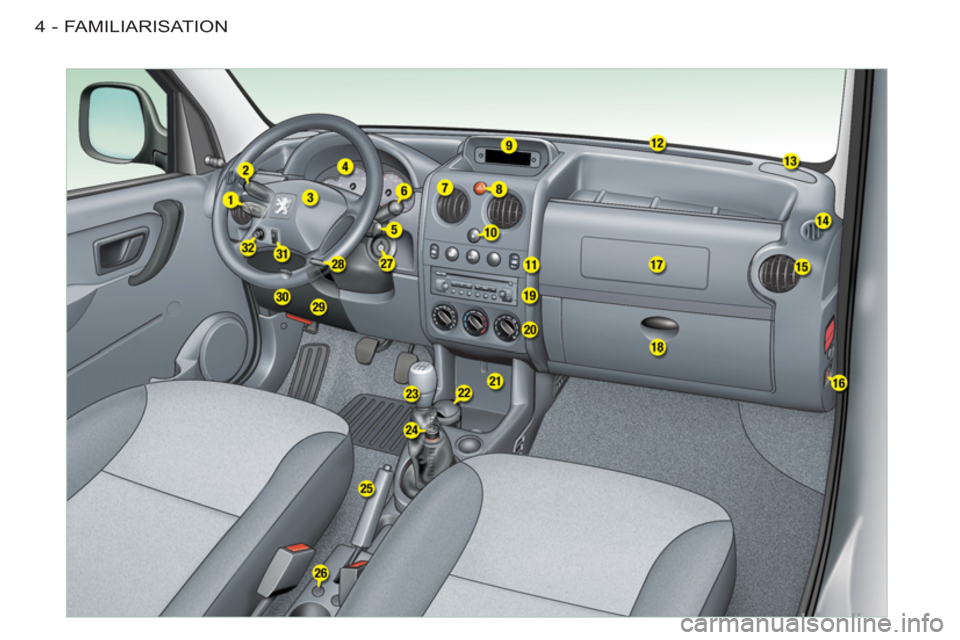

INSTRUMENTS AND CONTROLS


12.
Windscreen demisting vents.

13.
Speaker (tweeter).

14.
Door window demisting vents.

15.
Side adjustable heating/
ventilation vents.

16.
Passenger's airbag deactivation
switch.

17.
Upper glove box or passenger's
airbag.

18.
Lower glove box.

19.
Audio system.

20.
Heating/air conditioning controls.

21.
Storage compartment.

22.
Portable ashtray.

23.
Gear lever.

24.
Cigarette lighter.

25.
Parking brake.
26.
Heated seats control.

27.
Steering lock and ignition.

28.
Steering wheel adjustment
control.

29.
Bonnet release.

30.
Fusebox.

31.
Headlamp height adjustment.

32.
Passenger's electric mirror
control.

1.
Speed limiter/cruise control
switches.

2.
Lighting and direction indicators
control stalk.

3.
Driver's airbag.
Horn.

4.
Instrument panel.

5.
Audio system steering mounted
controls.

6.
Wipers/screenwash control stalk.

7.
Central adjustable heating/
ventilation vents.

8.
Hazard warning lamps switch.

9.
Multifunction screen or clock.

10.
Central locking button.

11 .
Controls:


- Electric windows.

- Rear door windows or tailgate
demisting.

- Air conditioning.

FAMILIARISATION6-

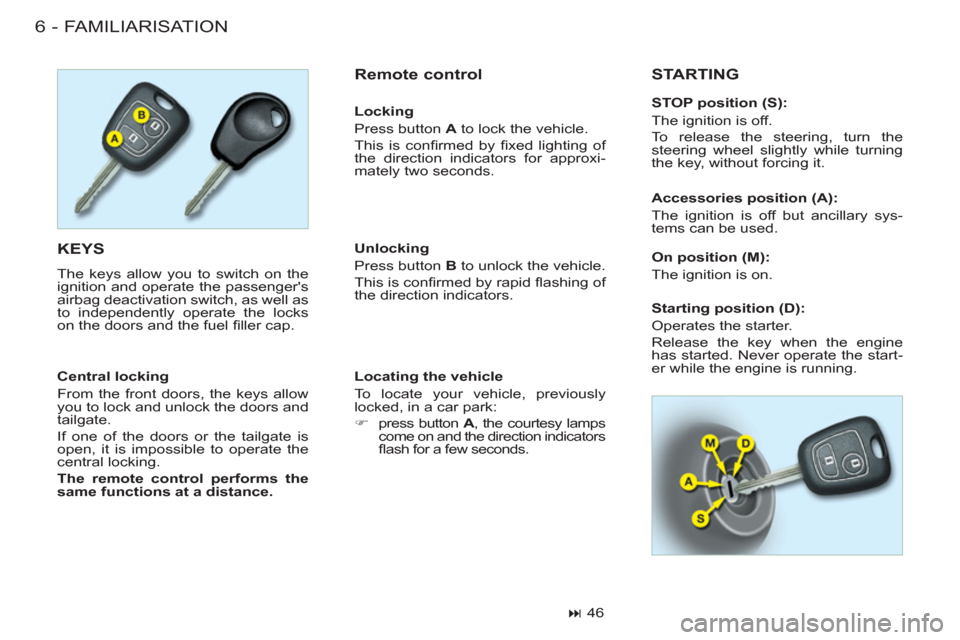

KEYS

The keys allow you to switch on the
ignition and operate the passenger's
airbag deactivation switch, as well as
to independently operate the locks
on the doors and the fuel fi ller cap.
STARTING

Remote control


Central locking
From the front doors, the keys allow
you to lock and unlock the doors and
tailgate.
If one of the doors or the tailgate is
open, it is impossible to operate the
central locking.

The remote control performs the
same functions at a distance.



Unlocking
Press button B
to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.

Locating the vehicle
To locate your vehicle, previously
locked, in a car park:


)
press button A
, the courtesy lamps
come on and the direction indicators
fl ash for a few seconds.



46


Locking
Press button A
to lock the vehicle.
This is confi rmed by fi xed lighting of
the direction indicators for approxi-
mately two seconds.
STOP position (S):
The ignition is off.
To release the steering, turn the
steering wheel slightly while turning
the key, without forcing it.

Accessories position (A):
The ignition is off but ancillary sys-
tems can be used.

On position (M):
The ignition is on.

Starting position (D):
Operates the starter.
Release the key when the engine
has started. Never operate the start-
er while the engine is running.

7 FAMILIARISATION
-

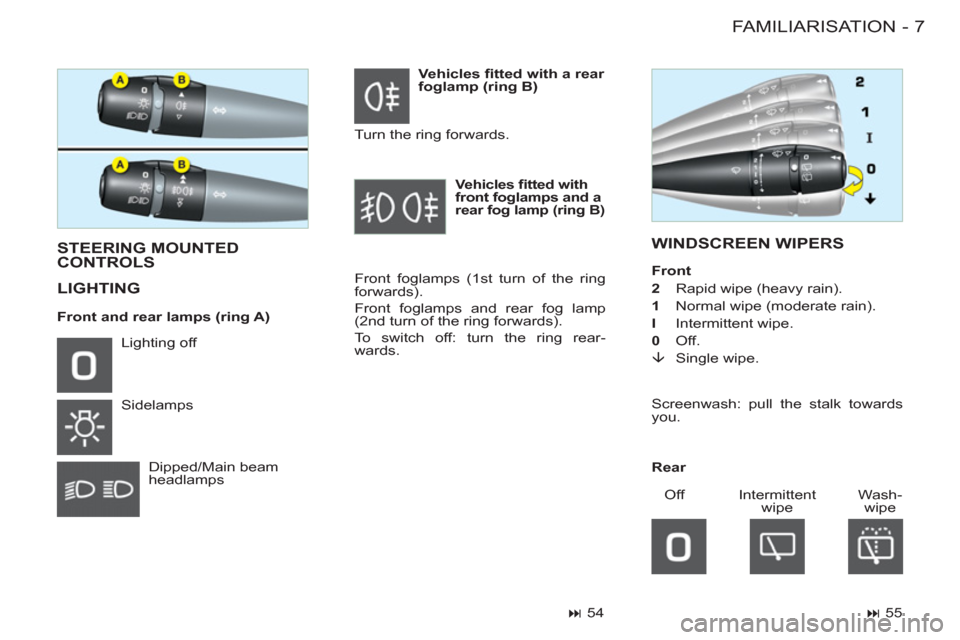

WINDSCREEN WIPERS
STEERING MOUNTED
CONTROLS
LIGHTING

Front foglamps (1 st turn of the ring
forwards).
Front foglamps and rear fog lamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rear-
wards. Lighting off
Sidelamps
Dipped/Main beam
headlamps
Vehicles fi tted with a rear
foglamp (ring B)
Turn the ring forwards.


Vehicles fi tted with
front foglamps and a
rear fog lamp (ring B)
Off Wash-
wipe Intermittent
wipe
Rear



54




55


Front and rear lamps (ring A)
Front

2
Rapid wipe (heavy rain).

1
Normal wipe (moderate rain).

I
Intermittent wipe.

0
Off.

È
Single wipe.
Screenwash: pull the stalk towards
you.

FAMILIARISATION8-

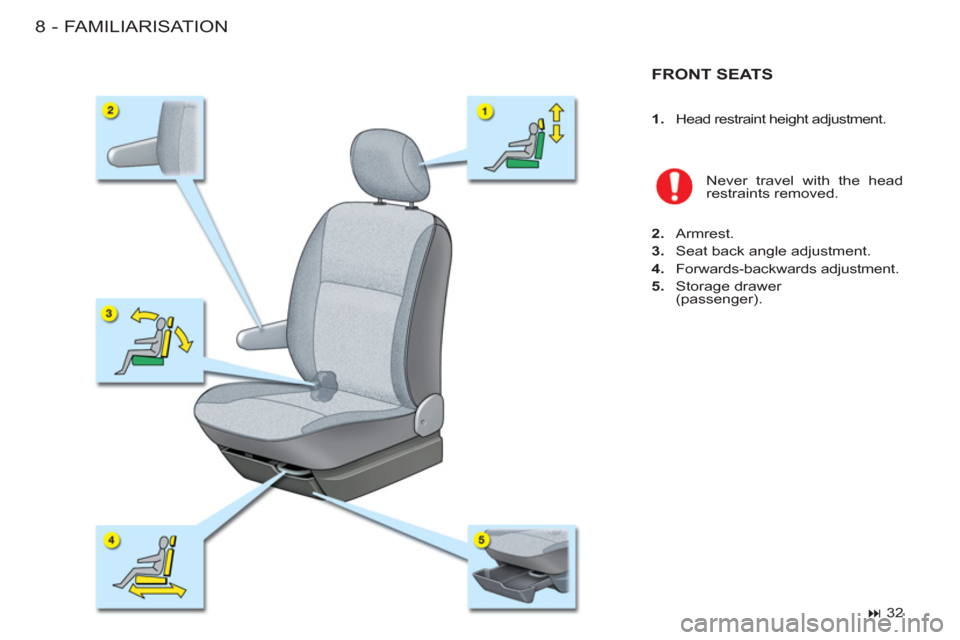

FRONT SEATS
Never travel with the head
restraints removed.

2.
Armrest.

3.
Seat back angle adjustment.

4.
Forwards-backwards adjustment.

5.
Storage drawer
(passenger).



32




1.
Head restraint height adjustment.
