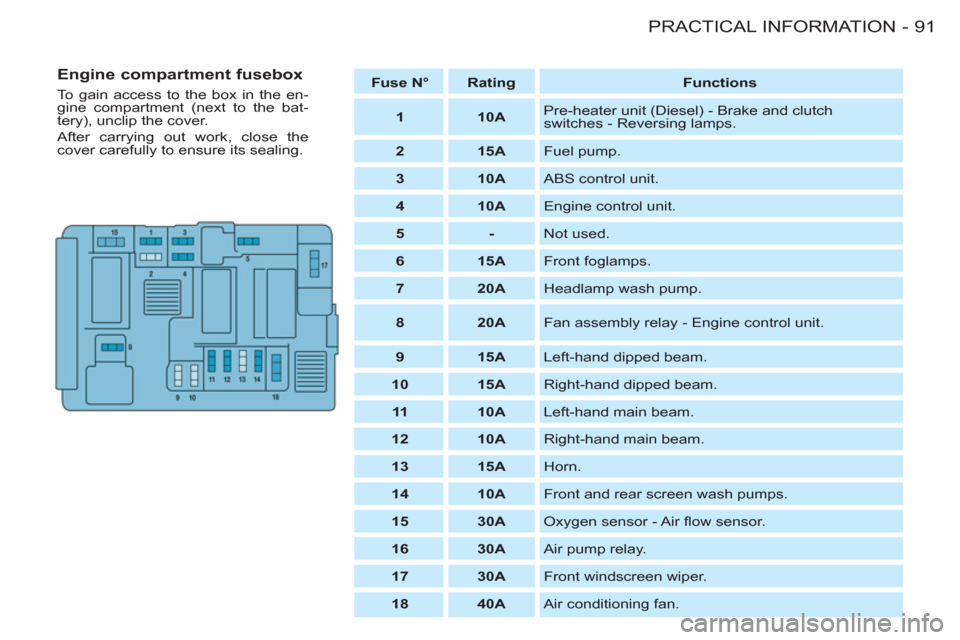

91 PRACTICAL INFORMATION
-


Fuse N°



Rating



Functions




1



10A

Pre-heater unit (Diesel) - Brake and clutch
switches - Reversing lamps.


2



15A

Fuel pump.


3



10A

ABS control unit.


4



10A

Engine control unit.


5



-

Not used.


6



15A

Front foglamps.


7



20A

Headlamp wash pump.


8



20A

Fan assembly relay - Engine control unit.


9



15A

Left-hand dipped beam.


10



15A

Right-hand dipped beam.


11



10A

Left-hand main beam.


12



10A

Right-hand main beam.


13



15A

Horn.


14



10A

Front and rear screen wash pumps.


15



30A

Oxygen sensor - Air fl ow sensor.



16



30A

Air pump relay.


17



30A

Front windscreen wiper.


18



40A

Air conditioning fan.


Engine compartment fusebox

To gain access to the box in the en-
gine compartment (next to the bat-
tery), unclip the cover.
After carrying out work, close the
cover carefully to ensure its sealing.
