79 PRACTICAL INFORMATION
-

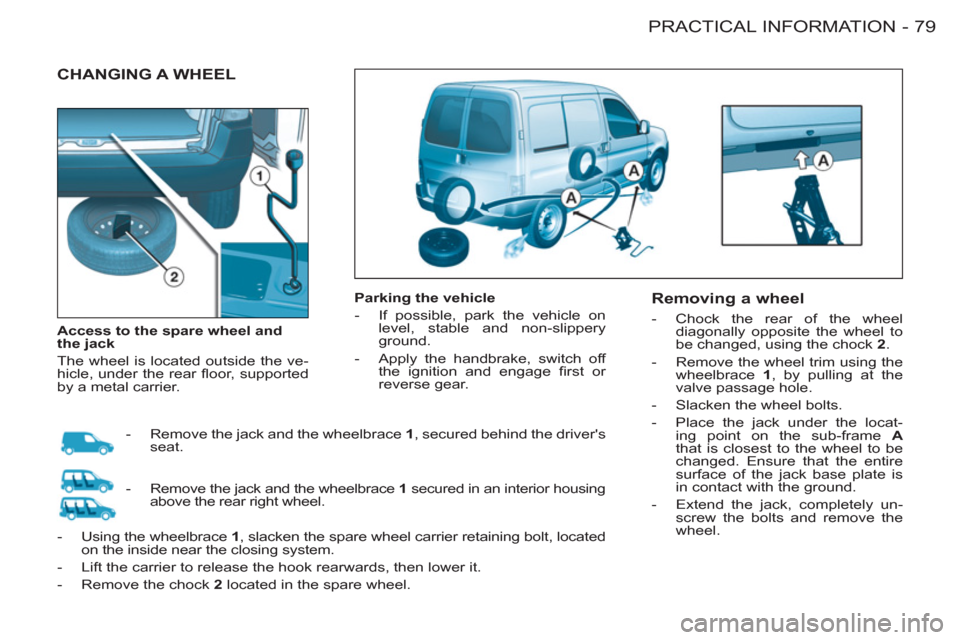

CHANGING A WHEEL


Parking the vehicle


- If possible, park the vehicle on
level, stable and non-slippery
ground.

- Apply the handbrake, switch off
the ignition and engage fi rst or
reverse gear.



Removing a wheel



- Chock the rear of the wheel
diagonally opposite the wheel to
be changed, using the chock 2
.

- Remove the wheel trim using the
wheelbrace 1
, by pulling at the
valve passage hole.

- Slacken the wheel bolts.

- Place the jack under the locat-
ing point on the sub-frame A

that is closest to the wheel to be
changed. Ensure that the entire
surface of the jack base plate is
in contact with the ground.

- Extend the jack, completely un-
screw the bolts and remove the
wheel.

Access to the spare wheel and
the jack
The wheel is located outside the ve-
hicle, under the rear fl oor, supported
by a metal carrier.


- Remove the jack and the wheelbrace 1, secured behind the driver's
seat.

- Remove the jack and the wheelbrace 1
secured in an interior housing
above the rear right wheel.

- Using the wheelbrace 1, slacken the spare wheel carrier retaining bolt, located
on the inside near the closing system.

- Lift the carrier to release the hook rearwards, then lower it.

- Remove the chock 2
located in the spare wheel.

PRACTICAL INFORMATION
80 -
For your safety, always change
a wheel:


- on level, stable and non slippery
ground,

- with the handbrake applied,

- with fi rst or reverse gear engaged,

- with the vehicle chocked,

- making absolutely sure that the
occupants get out of the vehicle
and wait in a safe location.
Never go underneath the vehicle
when it is raised using the jack only.
The jack and the tool kit are specifi c
to your vehicle. Do not use them for
other purposes.

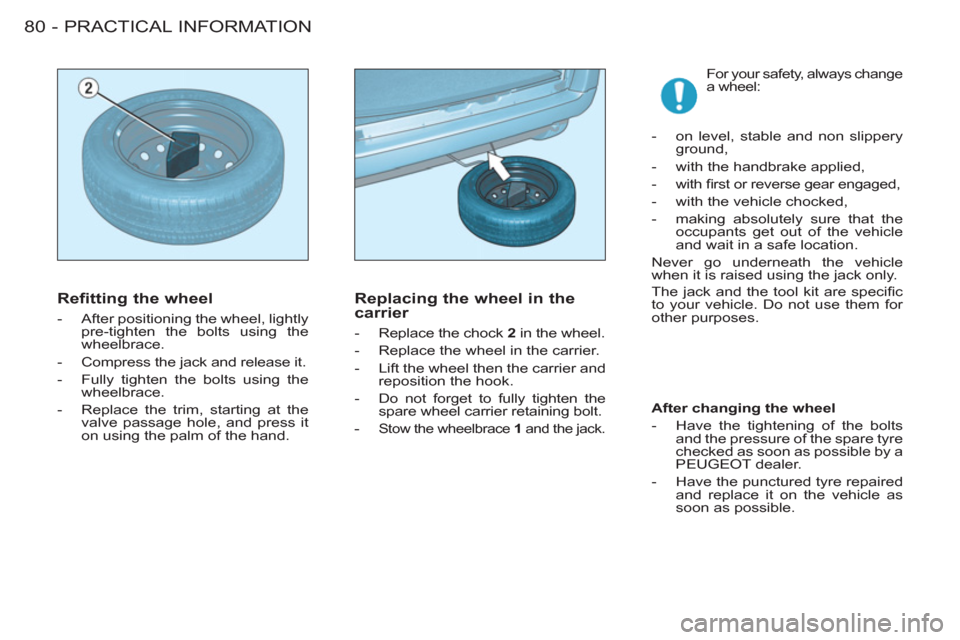

Refitting the wheel



- After positioning the wheel, lightly
pre-tighten the bolts using the
wheelbrace.

- Compress the jack and release it.

- Fully tighten the bolts using the
wheelbrace.

- Replace the trim, starting at the
valve passage hole, and press it
on using the palm of the hand.



Replacing the wheel in the
carrier


- Replace the chock 2
in the wheel.

- Replace the wheel in the carrier.

- Lift the wheel then the carrier and
reposition the hook.

- Do not forget to fully tighten the
spare wheel carrier retaining bolt.

- Stow the wheelbrace 1
and the jack.
After changing the wheel


- Have the tightening of the bolts
and the pressure of the spare tyre
checked as soon as possible by a
PEUGEOT dealer.

- Have the punctured tyre repaired
and replace it on the vehicle as
soon as possible.

81 PRACTICAL INFORMATION
-

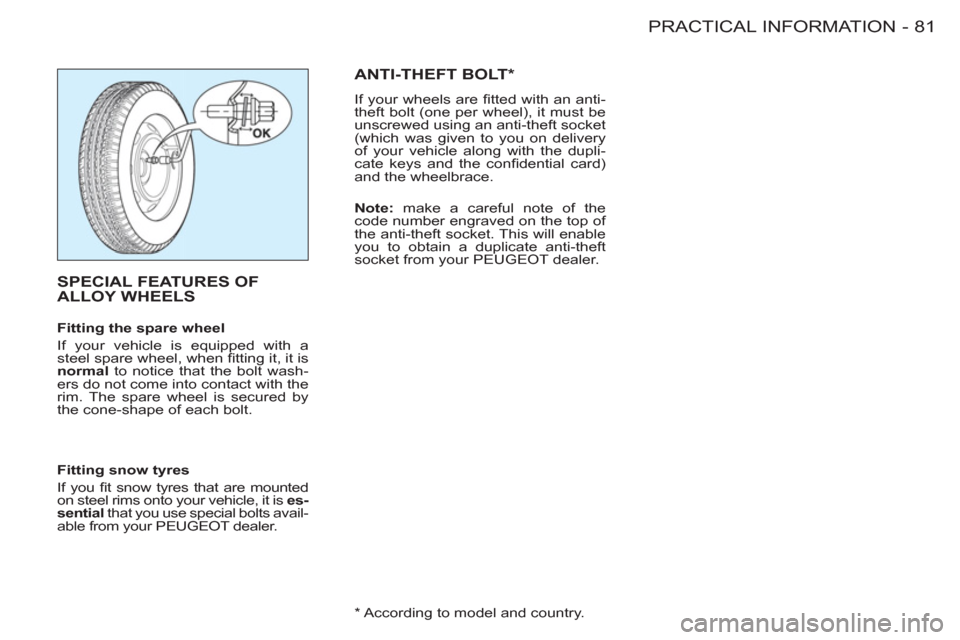

SPECIAL FEATURES OF
ALLOY WHEELS


Fitting the spare wheel
If your vehicle is equipped with a
steel spare wheel, when fi tting it, it is
normal
to notice that the bolt wash-
ers do not come into contact with the
rim. The spare wheel is secured by
the cone-shape of each bolt.

Fitting snow tyres
If you fi t snow tyres that are mounted
on steel rims onto your vehicle, it is es-
sential
that you use special bolts avail-
able from your PEUGEOT dealer.


* According to model and country.

ANTI-THEFT BOLT *

If your wheels are fi tted with an anti-
theft bolt (one per wheel), it must be
unscrewed using an anti-theft socket
(which was given to you on delivery
of your vehicle along with the dupli-
cate keys and the confi dential card)
and the wheelbrace.

Note:
make a careful note of the
code number engraved on the top of
the anti-theft socket. This will enable
you to obtain a duplicate anti-theft
socket from your PEUGEOT dealer.

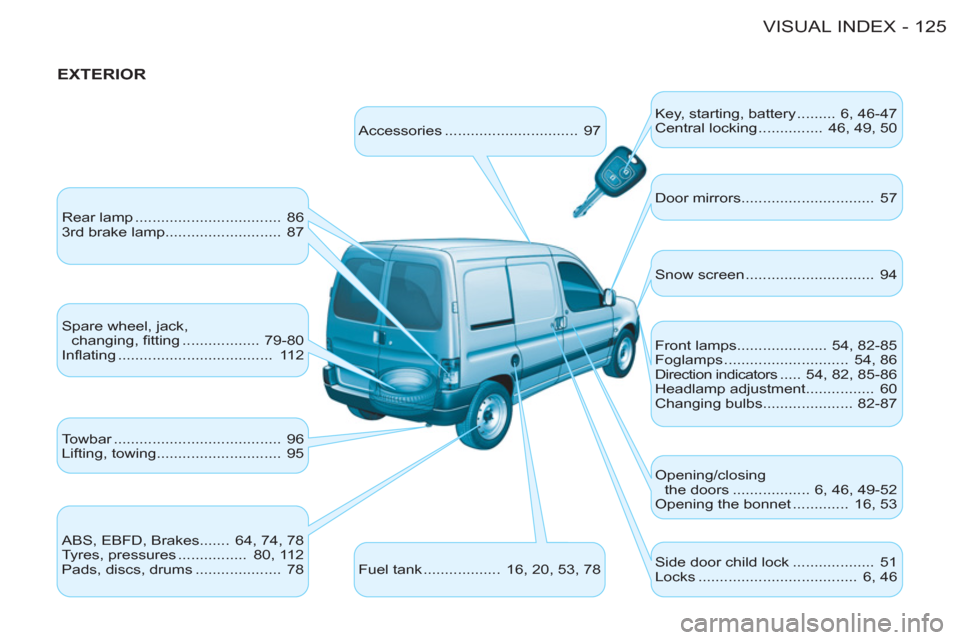

125 VISUAL INDEX-

EXTERIOR

Accessories ............................... 97 Key, starting, battery ......... 6, 46-47
Central locking ............... 46, 49, 50
Rear lamp .................................. 86
3rd brake lamp........................... 87
Spare wheel, jack,
changing, fi tting .................. 79-80
Infl ating .................................... 112
ABS, EBFD, Brakes....... 64, 74, 78
Tyres, pressures ................ 80, 112
Pads, discs, drums .................... 78
Fuel tank .................. 16, 20, 53, 78 Door mirrors ............................... 57
Snow screen .............................. 94
Front lamps..................... 54, 82-85
Foglamps ............................. 54, 86
Direction indicators ..... 54, 82, 85-86
Headlamp adjustment................ 60
Changing bulbs..................... 82-87
Opening/closing
the doors .................. 6, 46, 49-52
Opening the bonnet ............. 16, 53
Side door child lock ................... 51
Locks ..................................... 6, 46 Towbar ....................................... 96
Lifting, towing............................. 95
