Accesses
READY TO SET OFF
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESSES
Security of use
REMOTE CONTROL
Unlocking Unlocking the load space Central locking
Press this button to lock the
vehicle completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h o n c e .
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed padlock
o n t h e r e m o t e c o n t r o l w i t h i n fi v e
seconds after locking changes the
locking to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked.
Press this control to lock the
vehicle completely.
Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h t w i c e .
Page 18 of 153
22
Accesses

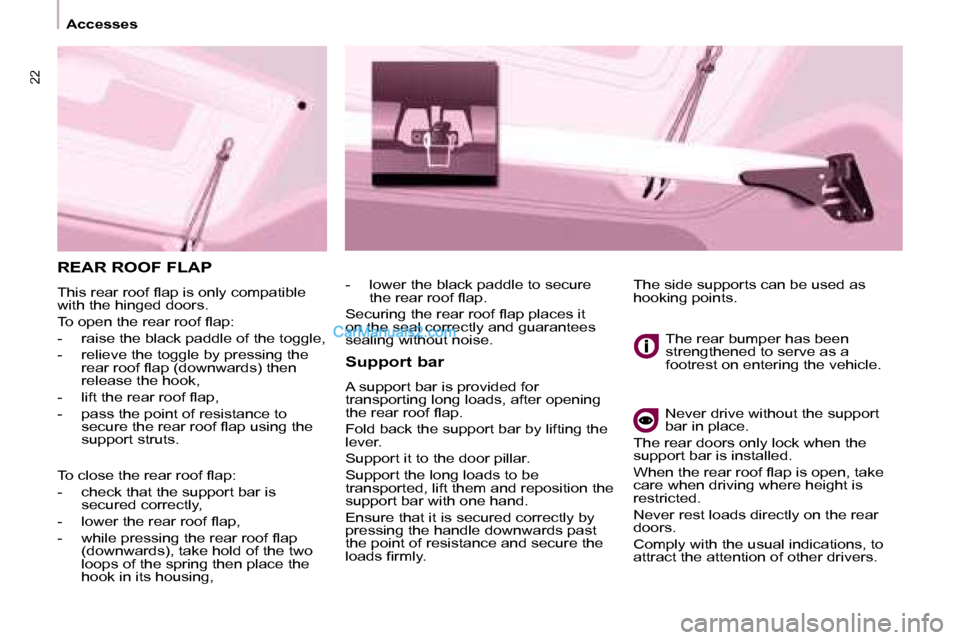

REAR ROOF FLAP
T h i s r e a r r o o f fl a p i s o n l y c o m p a t i b l e
with the hinged doors.
T o o p e n t h e r e a r r o o f fl a p :
- raise the black paddle of the toggle,
- relieve the toggle by pressing the r e a r r o o f fl a p ( d o w n w a r d s ) t h e n
release the hook,
- l i f t t h e r e a r r o o f fl a p ,
- pass the point of resistance to s e c u r e t h e r e a r r o o f fl a p u s i n g t h e
support struts. Support bar
A support bar is provided for
transporting long loads, after opening
t h e r e a r r o o f fl a p .
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
l o a d s fi r m l y . The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.
Never drive without the support
bar in place.
The rear doors only lock when the
support bar is installed.
W h e n t h e r e a r r o o f fl a p i s o p e n , t a k e
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
attract the attention of other drivers.
The side supports can be used as
hooking points.
- lower the black paddle to secure
t h e r e a r r o o f fl a p .
S e c u r i n g t h e r e a r r o o f fl a p p l a c e s i t
on the seal correctly and guarantees
sealing without noise.
T o c l o s e t h e r e a r r o o f fl a p :
- check that the support bar is secured correctly,
- l o w e r t h e r e a r r o o f fl a p ,
- w h i l e p r e s s i n g t h e r e a r r o o f fl a p (downwards), take hold of the two
loops of the spring then place the
hook in its housing,
Page 58 of 153
59
ERGONOMICS and COMFORT
33
Seats
Storage compartment under the seat
cushion
Raise the centre seat cushion to gain
access to the storage compartment.
This space can be made secure by
fi t t i n g a p a d l o c k ( n o t s u p p l i e d ) .

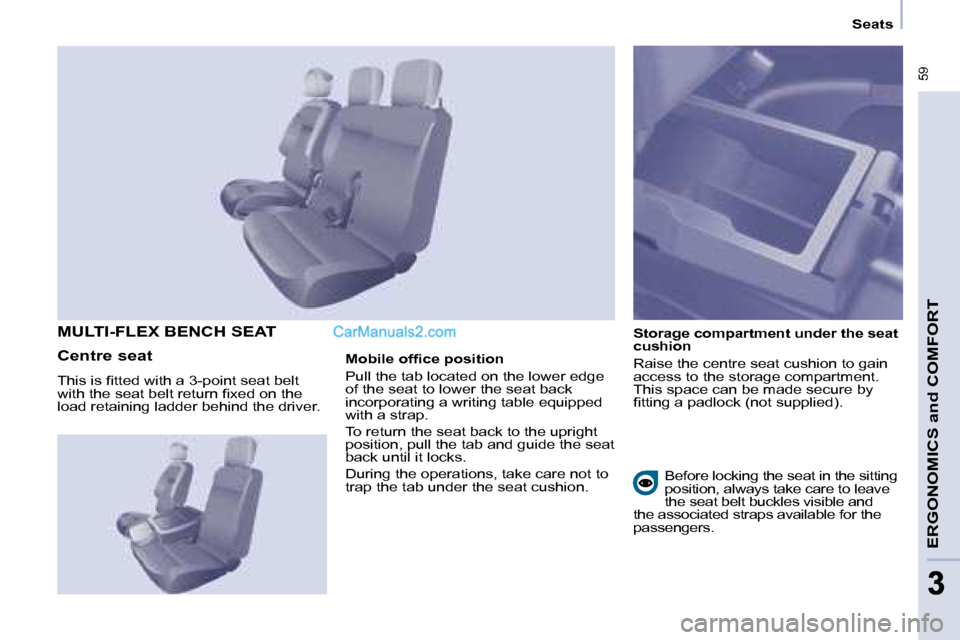

MULTI-FLEX BENCH SEAT
Centre seat
T h i s i s fi t t e d w i t h a 3 - p o i n t s e a t b e l t
w i t h t h e s e a t b e l t r e t u r n fi x e d o n t h e
load retaining ladder behind the driver. M o b i l e o f fi c e p o s i t i o n
Pull the tab located on the lower edge
of the seat to lower the seat back
incorporating a writing table equipped
with a strap.
To return the seat back to the upright
position, pull the tab and guide the seat
back until it locks.
During the operations, take care not to
trap the tab under the seat cushion.
Before locking the seat in the sitting
position, always take care to leave
the seat belt buckles visible and
the associated straps available for the
passengers.
Page 62 of 153
63
ERGONOMICS and COMFORT
33
Practical information

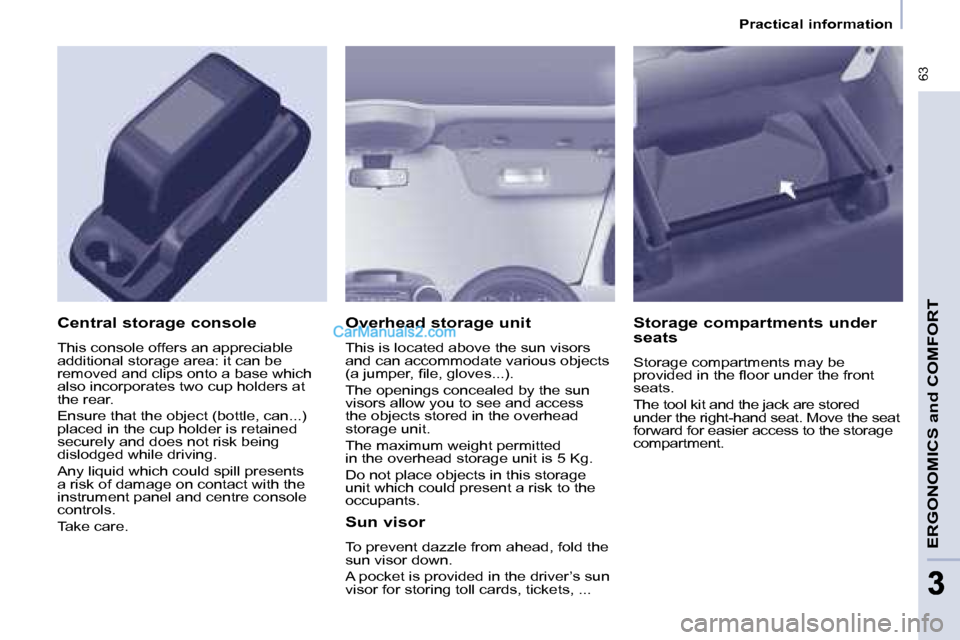

Overhead storage unit
This is located above the sun visors
and can accommodate various objects
( a j u m p e r , fi l e , g l o v e s . . . ) .
The openings concealed by the sun
visors allow you to see and access
the objects stored in the overhead
storage unit.
The maximum weight permitted
in the overhead storage unit is 5 Kg.
Do not place objects in this storage
unit which could present a risk to the
occupants.
Central storage console
This console offers an appreciable
additional storage area: it can be
removed and clips onto a base which
also incorporates two cup holders at
the rear.
Ensure that the object (bottle, can...)
placed in the cup holder is retained
securely and does not risk being
dislodged while driving.
Any liquid which could spill presents
a risk of damage on contact with the
instrument panel and centre console
controls.
Take care.
Sun visor
To prevent dazzle from ahead, fold the
sun visor down.
A pocket is provided in the driver’s sun
visor for storing toll cards, tickets, ... Storage compartments under
seats
Storage compartments may be
p r o v i d e d i n t h e fl o o r u n d e r t h e f r o n t
seats.
The tool kit and the jack are stored
under the right-hand seat. Move the seat
forward for easier access to the storage
compartment.
Page 66 of 153
67
ERGONOMICS and COMFORT
33
Practical information

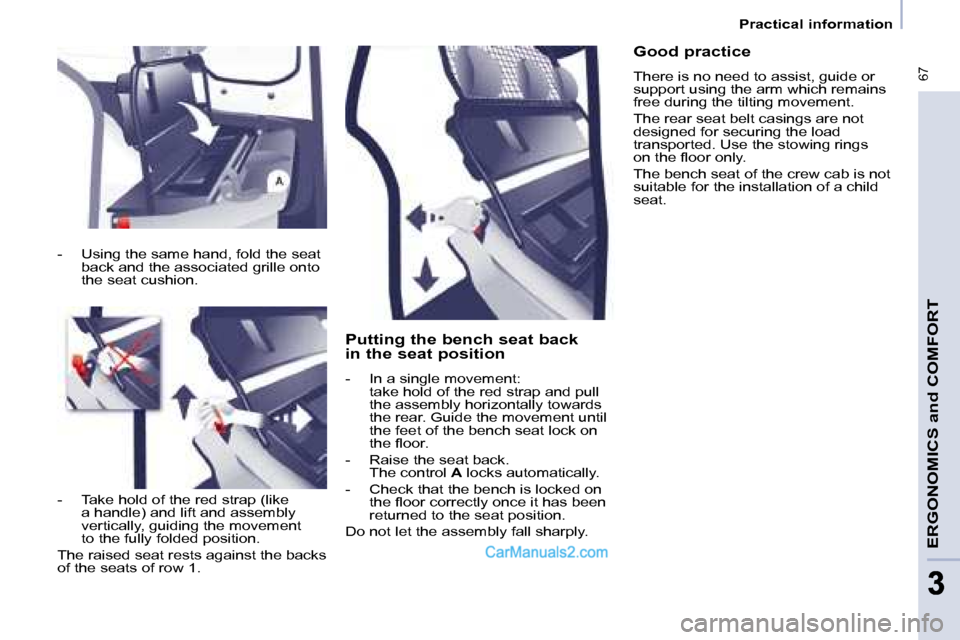

Putting the bench seat back
in the seat position
- In a single movement: take hold of the red strap and pull
the assembly horizontally towards
the rear. Guide the movement until
the feet of the bench seat lock on
t h e fl o o r .
- Raise the seat back. The control A locks automatically.
- Check that the bench is locked on t h e fl o o r c o r r e c t l y o n c e i t h a s b e e n
returned to the seat position.
Do not let the assembly fall sharply. Good practice
There is no need to assist, guide or
support using the arm which remains
free during the tilting movement.
The rear seat belt casings are not
designed for securing the load
transported. Use the stowing rings
o n t h e fl o o r o n l y .
The bench seat of the crew cab is not
suitable for the installation of a child
seat.
- Using the same hand, fold the seat back and the associated grille onto
the seat cushion.
- Take hold of the red strap (like a handle) and lift and assembly
vertically, guiding the movement
to the fully folded position.
The raised seat rests against the backs
of the seats of row 1.
Page 67 of 153
68
Practical information

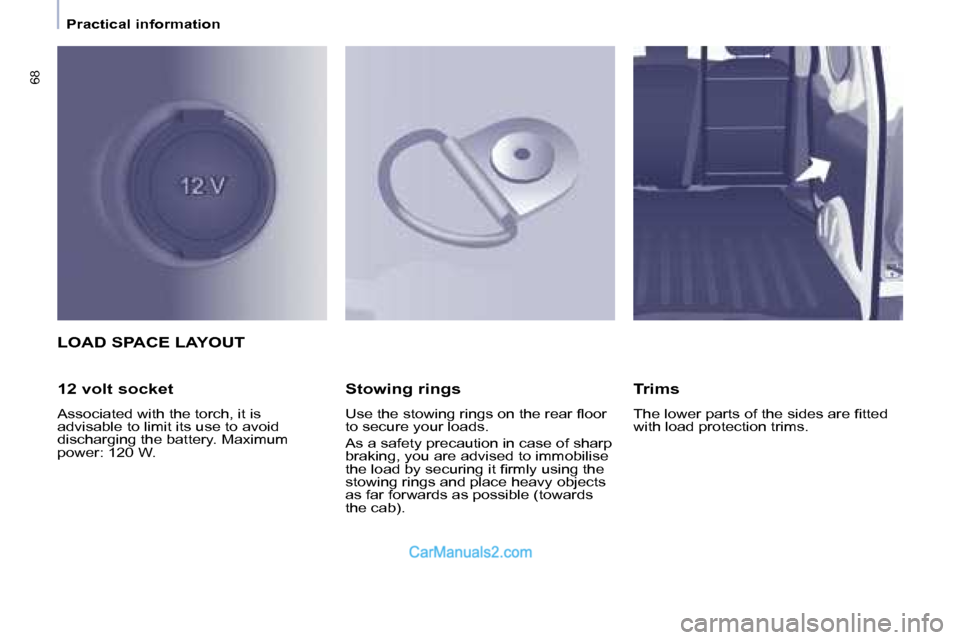

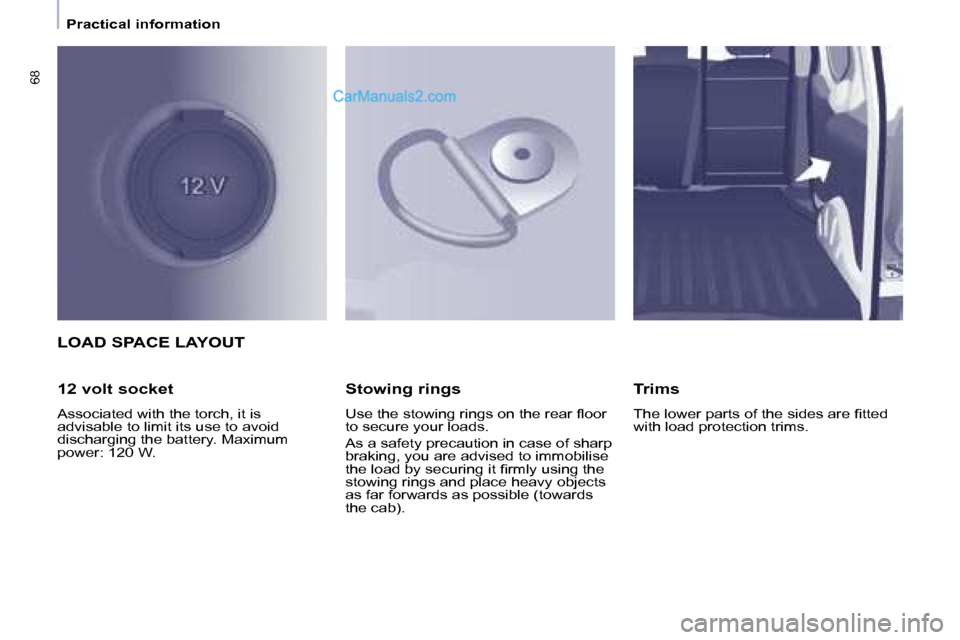

LOAD SPACE LAYOUT
12 volt socket
Associated with the torch, it is
advisable to limit its use to avoid
discharging the battery. Maximum
power: 120 W. Stowing rings
U s e t h e s t o w i n g r i n g s o n t h e r e a r fl o o r
to secure your loads.
As a safety precaution in case of sharp
braking, you are advised to immobilise
t h e l o a d b y s e c u r i n g i t fi r m l y u s i n g t h e
stowing rings and place heavy objects
as far forwards as possible (towards
the cab). Trims
T h e l o w e r p a r t s o f t h e s i d e s a r e fi t t e d
with load protection trims.
Page 68 of 153
69
ERGONOMICS and COMFORT
33
Practical information
Ladder P a r t i t i o n w i t h fl a p
Mid-height partition
Load retainers
Your vehicle can be equipped with a
wide range of load retainers to effectively
protect the driver and front passenger(s),
while maintaining the loading adaptability. Removable flap
T h e fl a p l o c a t e d o n t h e p a n e l s e c t i o n
of the mid-height partition, behind
the passenger seat(s), can be removed
to permit the loading of long objects.
- Turn the control located at the top
o f t h e fl a p t o r e l e a s e i t .
- L i f t t h e fl a p t o r e m o v e i t f r o m i t s location.
- P i v o t t h e fl a p b y 9 0 ° t o t h e r i g h t .
- Store it behind the driver’s seat, clipping it into the securing lugs.
Contact a PEUGEOT dealer for
information about the different
accessory load retainer models.
Page 69 of 153
68
Practical information
LOAD SPACE LAYOUT
12 volt socket
Associated with the torch, it is
advisable to limit its use to avoid
discharging the battery. Maximum
power: 120 W. Stowing rings
U s e t h e s t o w i n g r i n g s o n t h e r e a r fl o o r
to secure your loads.
As a safety precaution in case of sharp
braking, you are advised to immobilise
t h e l o a d b y s e c u r i n g i t fi r m l y u s i n g t h e
stowing rings and place heavy objects
as far forwards as possible (towards
the cab). Trims
T h e l o w e r p a r t s o f t h e s i d e s a r e fi t t e d
with load protection trims.
Page 70 of 153
70
Practical information

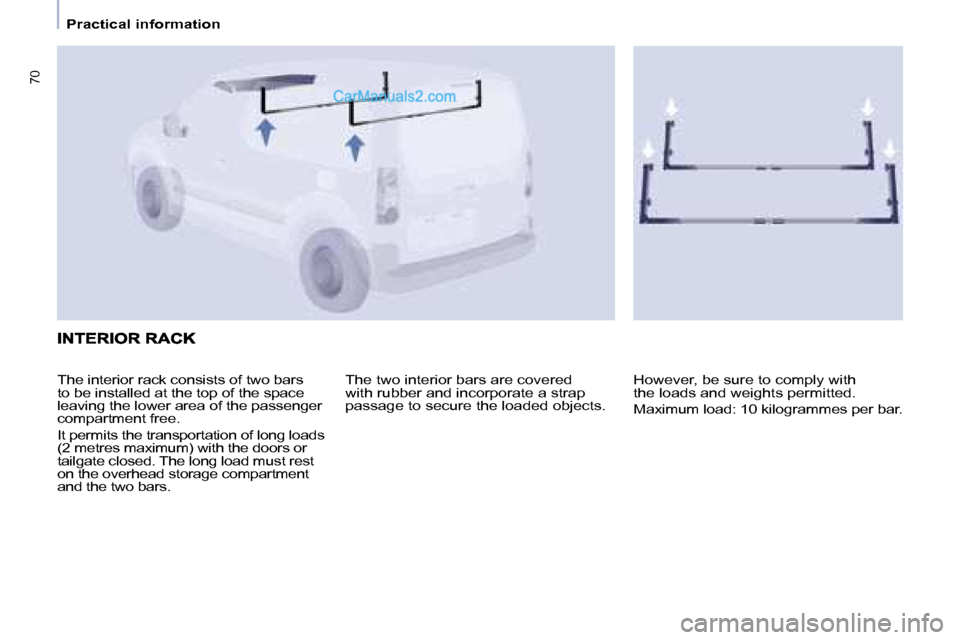

The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
The interior rack consists of two bars
to be installed at the top of the space
leaving the lower area of the passenger
compartment free.
It permits the transportation of long loads
(2 metres maximum) with the doors or
tailgate closed. The long load must rest
on the overhead storage compartment
and the two bars. However, be sure to comply with
the loads and weights permitted.
Maximum load: 10 kilogrammes per bar.
Page 75 of 153
75
ERGONOMICS and COMFORT
33
Mirrors and windows

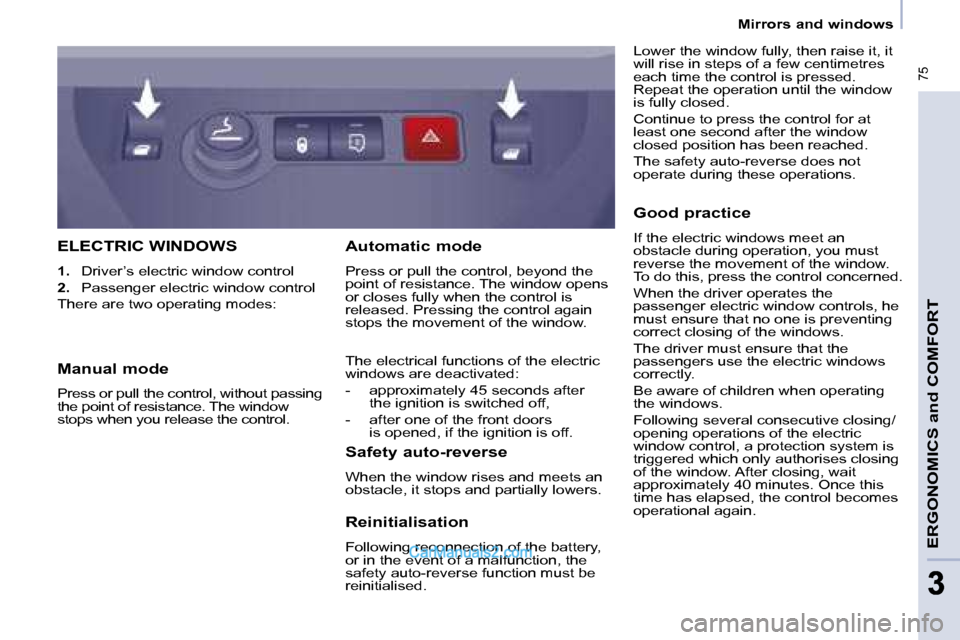

ELECTRIC WINDOWS
1. Driver’s electric window control
2. Passenger electric window control
There are two operating modes:
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers.
Automatic mode
Press or pull the control, beyond the
point of resistance. The window opens
or closes fully when the control is
released. Pressing the control again
stops the movement of the window.
The electrical functions of the electric
windows are deactivated:
- approximately 45 seconds after
the ignition is switched off,
- after one of the front doors is opened, if the ignition is off.
Manual mode
Press or pull the control, without passing
the point of resistance. The window
stops when you release the control.
Reinitialisation
Following reconnection of the battery,
or in the event of a malfunction, the
safety auto-reverse function must be
reinitialised. Good practice
If the electric windows meet an
obstacle during operation, you must
reverse the movement of the window.
To do this, press the control concerned.
When the driver operates the
passenger electric window controls, he
must ensure that no one is preventing
correct closing of the windows.
The driver must ensure that the
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Following several consecutive closing/
opening operations of the electric
window control, a protection system is
triggered which only authorises closing
of the window. After closing, wait
approximately 40 minutes. Once this
time has elapsed, the control becomes
operational again.
Lower the window fully, then raise it, it
will rise in steps of a few centimetres
each time the control is pressed.
Repeat the operation until the window
is fully closed.
Continue to press the control for at
least one second after the window
closed position has been reached.
The safety auto-reverse does not
operate during these operations.
