Page 133 of 153
127
TROUBLESHOOTING
8
Changing a bulb
CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type A
Entirely glass bulb: pull
g e n t l y a s i t i s fi t t e d b y
pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
o r d e r t o r e fi t e a c h b u l b a n d c h e c k t h a t
the bonnet is closed securely.
Type C
Halogen bulb: release
the retaining spring from
its housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi n g e r s , u s e l i n t - f r e e c l o t h s .
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lights operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are installed on
your vehicle. To remove them:
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.
Page 134 of 153

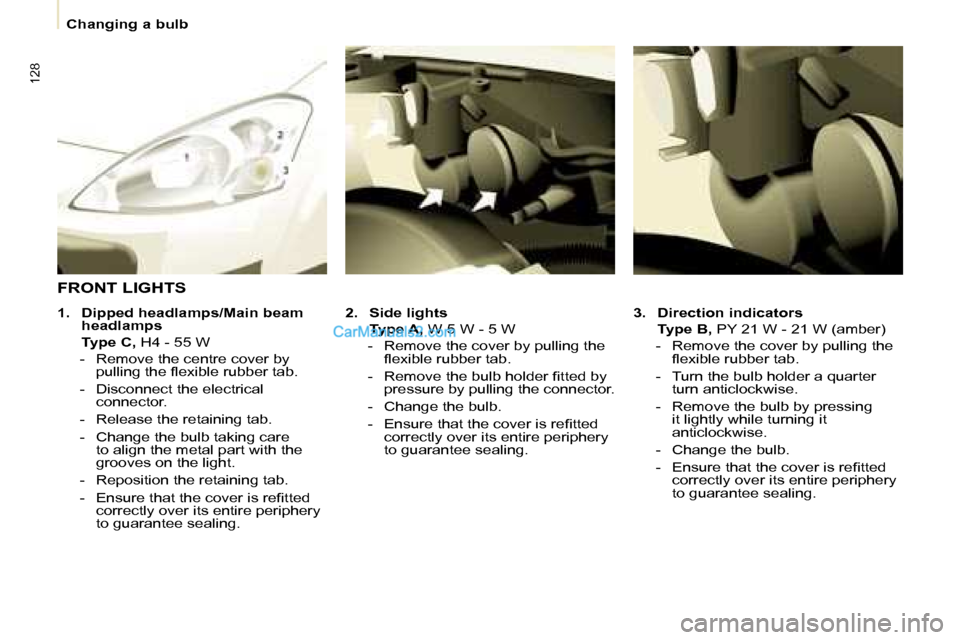

128
Changing a bulb
3. Direction indicators
Type B, PY 21 W - 21 W (amber)
- Remove the cover by pulling the fl e x i b l e r u b b e r t a b .
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.
2. Side lights
Type A, W 5 W - 5 W
- Remove the cover by pulling the fl e x i b l e r u b b e r t a b .
- R e m o v e t h e b u l b h o l d e r fi t t e d b y pressure by pulling the connector.
- Change the bulb.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.
FRONT LIGHTS
1. Dipped headlamps/Main beam
headlamps
Type C, H4 - 55 W
- Remove the centre cover by p u l l i n g t h e fl e x i b l e r u b b e r t a b .
- Disconnect the electrical connector.
- Release the retaining tab.
- Change the bulb taking care to align the metal part with the
grooves on the light.
- Reposition the retaining tab.
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d correctly over its entire periphery
to guarantee sealing.
