Accesses
READY to SET OFF
2
KEY
This locks and unlocks the locks on the
vehicle and starts the engine.
ACCESSES
Security of use
REMOTE CONTROL
Unlocking Unlocking the load space Central locking
Press this button to lock the
vehicle completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h o n c e .
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
fi v e s e c o n d s a f t e r l o c k i n g c h a n g e s t h e
locking to deadlocking.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g
of the direction indicators for
a p p r o x i m a t e l y t w o s e c o n d s .
D e a d l o c k i n g r e n d e r s t h e e x t e r i o r
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control,
it will change to normal locking when
the vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked.
Press this control to lock the
vehicle completely.
Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
T h e d i r e c t i o n i n d i c a t o r s fl a s h t w i c e .
Page 12 of 185
16
Accesses
Good practice
Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.
REMOTE CONTROL
Programming the remote
control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reprogrammed.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi v e s e c o n d s w i t h i n t h e n e x t t e n
seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.
Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at any other approved
collection point.
Folding/unfolding the key
Changing the battery
Battery ref.: CR1620/3 volts.
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n
by an audible signal, accompanied by
a message on the display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
There is a risk of damage if the
replacement battery does not conform. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.
Page 13 of 185
17
Accesses
READY to SET OFF
2
When purchasing a second-hand
vehicle:
- have the keys memorised by a PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a PEUGEOT dealer with the
vehicle’s V5 registration document and
y o u r i d e n t i fi c a t i o n d o c u m e n t .
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- e x t e r i o r p r o t e c t i o n : i t s o u n d s i f a
front/rear door or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
I f y o u r v e h i c l e i s fi t t e d w i t h a s e p a r a t i o n
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
o n t h e b u t t o n , fl a s h e s o n c e p e r
second.
Page 14 of 185
17
Accesses
READY to SET OFF
2
When purchasing a second-hand
vehicle:
- have the keys memorised by a PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a PEUGEOT dealer with the
vehicle’s V5 registration document and
y o u r i d e n t i fi c a t i o n d o c u m e n t .
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- e x t e r i o r p r o t e c t i o n : i t s o u n d s i f a
front/rear door or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger compartment
changes (breaking of a window or a
movement inside the vehicle).
I f y o u r v e h i c l e i s fi t t e d w i t h a s e p a r a t i o n
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
o n t h e b u t t o n , fl a s h e s o n c e p e r
second.
Page 15 of 185
18
Accesses
FRONT DOORS
From the inside
Use the door opening control to unlock
and open the door concerned.
From the outside
Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.
Triggering
The siren sounds, the direction
i n d i c a t o r s fl a s h f o r a p p r o x i m a t e l y
3 0 s e c o n d s a n d t h e r e d d i o d e fl a s h e s
rapidly.
- To switch it off, insert the key and switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered
for the eleventh time) it is deactivated.
Repeat the rules for setting the alarm. Locking the vehicle without
alarm
- Insert the key in the lock on the
driver’s door and lock it.
Do not set the alarm when washing
your vehicle.
Failure of the remote control
When the alarm is set but the remote
control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- S w i t c h o n t h e i g n i t i o n i n t h e n e x t t e n seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the
red diode remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
a u t o m a t i c a l l y a p p r o x i m a t e l y 2 m i n u t e s
after the last door is closed.
To prevent triggering of the alarm when
a door is opened, it is imperative to
press the remote control unlocking
button again.
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
s h o u l d c h o o s e e x t e r i o r p r o t e c t i o n o n l y .
- Switch off the ignition.
- I n t h e n e x t t e n s e c o n d s , press the button until
the red diode is on
continuously.
- Get out of the vehicle.
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t the alarm by locking or deadlocking
using the remote control (the red
d i o d e fl a s h e s o n c e a s e c o n d ) .
Disarming
- Unlock the vehicle with the remote
control or switch on the ignition, the
red diode goes out.
Page 16 of 185
18
Accesses
FRONT DOORS
From the inside
Use the door opening control to unlock
and open the door concerned.
From the outside
Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.
Triggering
The siren sounds, the direction
i n d i c a t o r s fl a s h f o r a p p r o x i m a t e l y
3 0 s e c o n d s a n d t h e r e d d i o d e fl a s h e s
rapidly.
- To switch it off, insert the key and switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered
for the eleventh time) it is deactivated.
Repeat the rules for setting the alarm. Locking the vehicle without
alarm
- Insert the key in the lock on the
driver’s door and lock it.
Do not set the alarm when washing
your vehicle.
Failure of the remote control
When the alarm is set but the remote
control does not operate:
- Unlock the doors with the key and open the door. The alarm is
triggered.
- S w i t c h o n t h e i g n i t i o n i n t h e n e x t t e n seconds. The alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the
red diode remains on for ten seconds,
there is a fault in the siren connection.
Contact a PEUGEOT dealer to have
the system checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
a u t o m a t i c a l l y a p p r o x i m a t e l y 2 m i n u t e s
after the last door is closed.
To prevent triggering of the alarm when
a door is opened, it is imperative to
press the remote control unlocking
button again.
D o n o t m a k e a n y m o d i fi c a t i o n s
to the alarm system as this could
cause faults.
Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
s h o u l d c h o o s e e x t e r i o r p r o t e c t i o n o n l y .
- Switch off the ignition.
- I n t h e n e x t t e n s e c o n d s , press the button until
the red diode is on
continuously.
- Get out of the vehicle.
- W i t h i n t h e n e x t fi v e m i n u t e s , s e t the alarm by locking or deadlocking
using the remote control (the red
d i o d e fl a s h e s o n c e a s e c o n d ) .
Disarming
- Unlock the vehicle with the remote
control or switch on the ignition, the
red diode goes out.
Page 17 of 185
19
Accesses
READY to SET OFF
2
From the inside
Unlock and open the side door using
this handle, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open. Good practice
Take care not to block the guide space
o n t h e fl o o r t o a l l o w t h e d o o r t o s l i d e
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side door open.
SLIDING SIDE DOOR
From the outside
Pull the handle towards you then
towards the rear and open the side
door, guiding the rearward sliding to
beyond the point of resistance to hold
it open.
Operation in the event of a
battery failure
Front and side passenger doors
In the event of a malfunction of the
battery or of the central locking, use
the lock to lock the doors mechanically.
To open the door and get out of the
vehicle, pull the interior control.
To lock the door, insert the key in the
lock, located on the edge of the door,
then turn it one eighth of a turn .
Driver’s door
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.
Page 18 of 185
Accesses Practice
It is possible to drive with the right-hand
door open to make the transportation of
long loads easier. The left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
This closed door must not be used as a
load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to attract
the attention of other drivers.

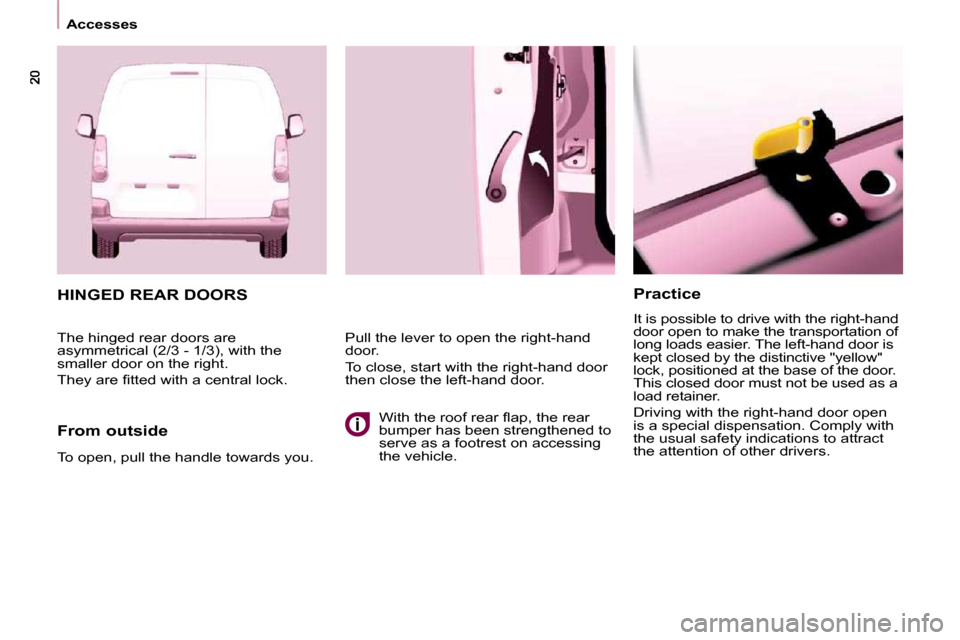

HINGED REAR DOORS
From outside Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
To open, pull the handle towards you.
The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
T h e y a r e fi t t e d w i t h a c e n t r a l l o c k .
W i t h t h e r o o f r e a r fl a p , t h e r e a r
bumper has been strengthened to
serve as a footrest on accessing
the vehicle.
Page 19 of 185
21
Accesses
READY to SET OFF
2
From inside
Pull the handle towards you to open
the left-hand door.

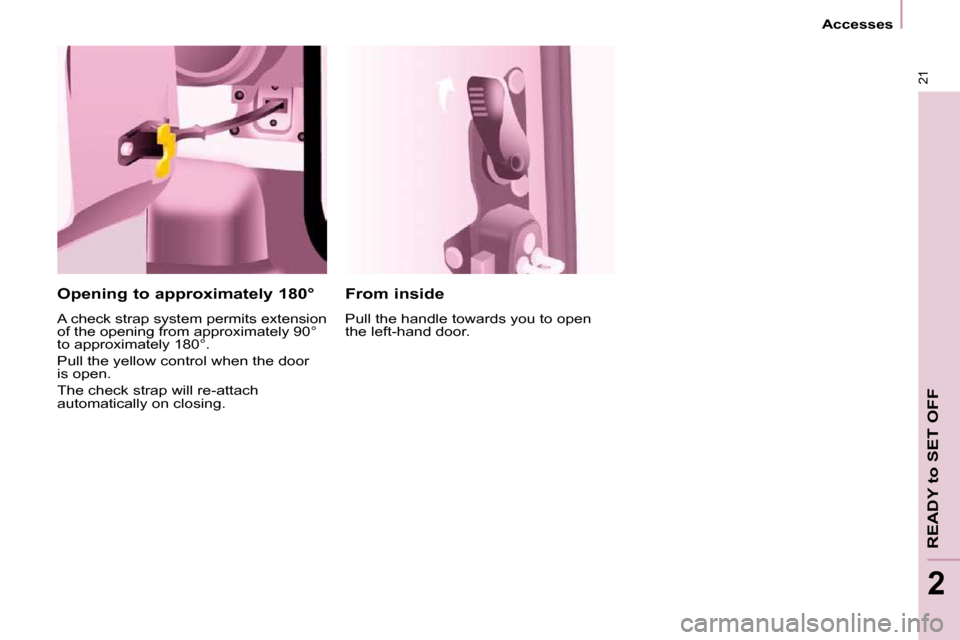

Opening to approximately 180°
A c h e c k s t r a p s y s t e m p e r m i t s e x t e n s i o n
o f t h e o p e n i n g f r o m a p p r o x i m a t e l y 9 0 °
t o a p p r o x i m a t e l y 1 8 0 ° .
Pull the yellow control when the door
is open.
The check strap will re-attach
automatically on closing.
Page 20 of 185
22
Accesses
REAR ROOF FLAP
T h i s r e a r r o o f fl a p i s o n l y c o m p a t i b l e
with the hinged doors.

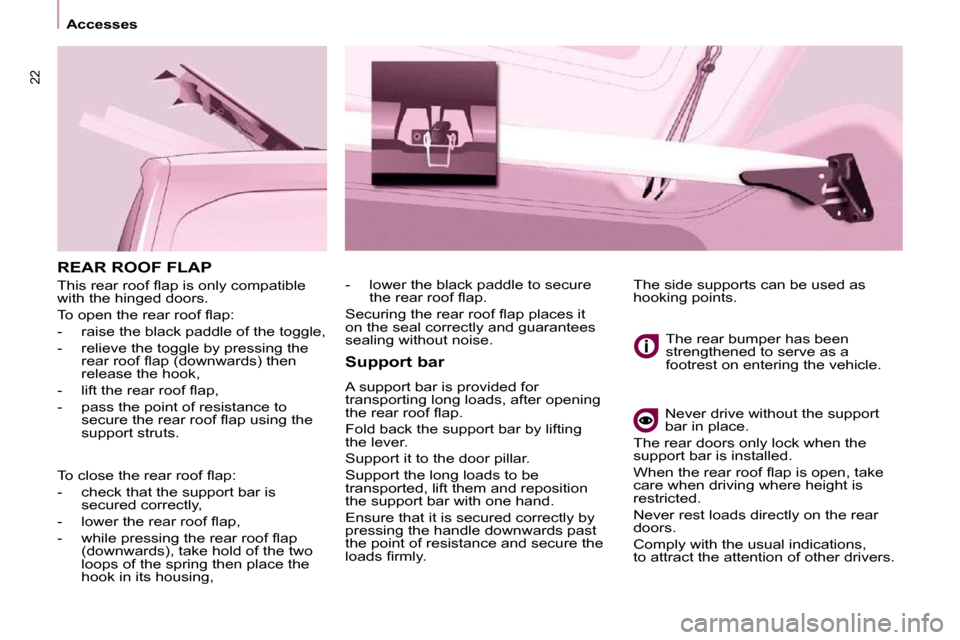

T o o p e n t h e r e a r r o o f fl a p :
- raise the black paddle of the toggle,
- relieve the toggle by pressing the r e a r r o o f fl a p ( d o w n w a r d s ) t h e n
release the hook,
- l i f t t h e r e a r r o o f fl a p ,
- pass the point of resistance to s e c u r e t h e r e a r r o o f fl a p u s i n g t h e
support struts. Support bar
A support bar is provided for
transporting long loads, after opening
t h e r e a r r o o f fl a p .
Fold back the support bar by lifting
the lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition
the support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
l o a d s fi r m l y . The rear bumper has been
strengthened to serve as a
footrest on entering the vehicle.
Never drive without the support
bar in place.
The rear doors only lock when the
support bar is installed.
W h e n t h e r e a r r o o f fl a p i s o p e n , t a k e
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications,
to attract the attention of other drivers.
The side supports can be used as
hooking points.
- lower the black paddle to secure
t h e r e a r r o o f fl a p .
S e c u r i n g t h e r e a r r o o f fl a p p l a c e s i t
on the seal correctly and guarantees
sealing without noise.
T o c l o s e t h e r e a r r o o f fl a p :
- check that the support bar is secured correctly,
- l o w e r t h e r e a r r o o f fl a p ,
- w h i l e p r e s s i n g t h e r e a r r o o f fl a p (downwards), take hold of the two
loops of the spring then place the
hook in its housing,
