stop start Peugeot Partner 2015 Owner's Manual

2
Partner-2-VU_en_Chap00a_Sommaire_ed02-2014
Key 18
Remote control 18
Alarm
20
Doors

21
Rear roof flap


25
T

ailgate 26
Central locking

27
Instrument panel


28
Adjusting the time


29
W

arning lamps
30
Fuel gauge


38
Coolant

38
Under-inflation detection

39
Service indicator


41
Lighting dimmer


42
Steering wheel


adjustment
43
Manual gearbox

43
Gear shift indicator


44
6-speed electronic


gearbox

45
Stop & Start


47
Starting and stopping


50
Hill start assist


51Lighting control

52 wipers
55
Cruise control

57
Speed limiter


60
Heating /

Air conditioning
manual
63
digital


65
Demisting


and defrosting

67
Front seats


69
Individual


passenger seat

70
Multi-Flex bench seat


71
Configurations


73
Front fittings


74
Courtesy lamps


76
Crew cab


77
Load space


79
Roof bars


81
Mirrors

82
Electric windows

84
3.

18-51
READY TO SET OFF
5.
85-106
SAFETY

Location
Exterior 5
Interior
6
Instruments and controls

8
Instruments and controls Left hand drive


12
Right hand drive


13
T

echnical data -
Maintenance
14
1.

4-14
OVERVIEW

Hazard warning lamps 85
Parking brake 85
Parking sensors

86
Anti-lock braking system (ABS)

88
Emergency braking assistance
88
ASR and DSC

89
Grip control


90
Seat belts


92
Airbags


94
Child seats


98
Deactivating the passenger's


front airbag

1
00
Recommended seats

103
Installation

104
4.

52-84
EASE OF USE

and COMFORT
2.


15-17
ECO-DRIVING

Environment 15
Eco-driving 16
The "Visual Search "
(visual
index) section
assists you in finding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle.

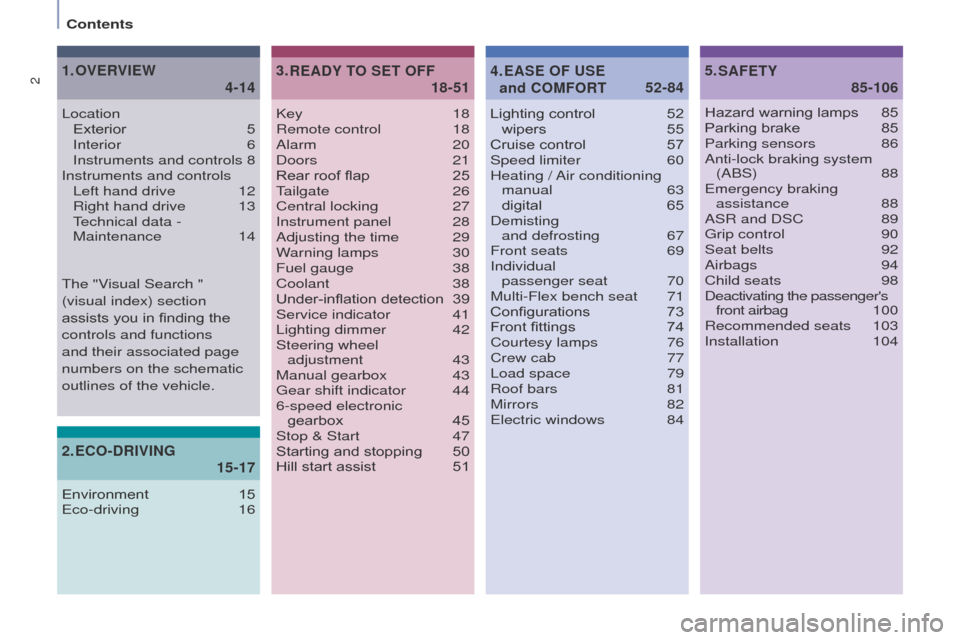

Contents

7
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014

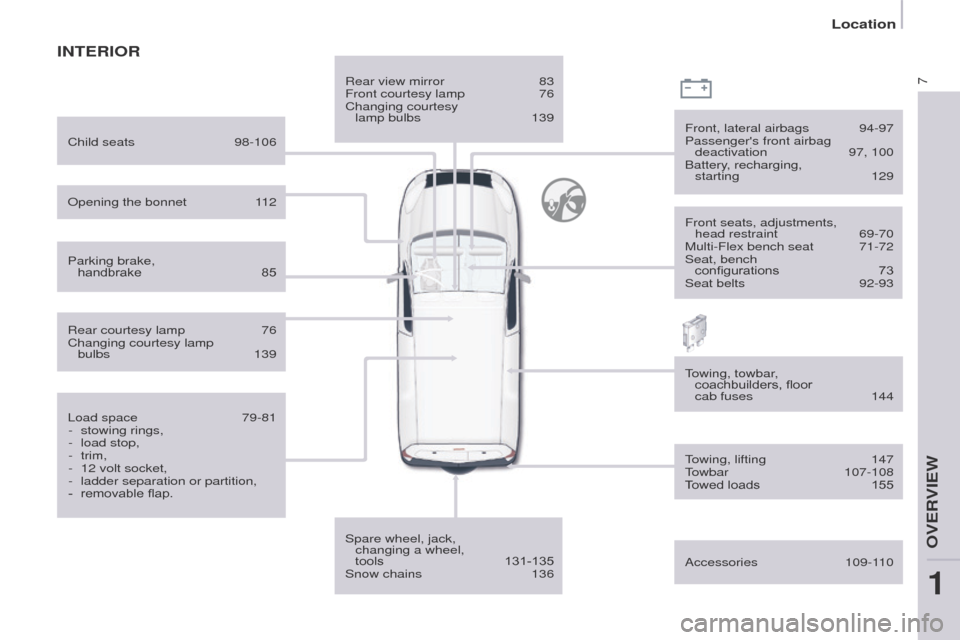

INTERIOR
Rear view mirror 83
Front courtesy lamp 76
Changing courtesy

lamp bulbs

139
Spare wheel, jack,


changing a wheel,
tools

131-135
Snow chains


136 Front, lateral airbags


94-97
Passenger's front airbag deactivation


97, 100
Battery

, recharging,
starting
129
Child seats

98-106
Parking brake,


handbrake

85 Front seats, adjustments,


head restraint

69-70
Multi-Flex bench seat


71-72
Seat, bench


configurations

73
Seat belts


92-93
T

owing, lifting
147
T

owbar
107-108
T

owed loads
155
Rear courtesy lamp


76
Changing courtesy lamp


bulbs

139
Load space


79-81
-


stowing rings,
-


load stop,
-


trim,
-


12 volt socket,
-


ladder separation or partition,
-


removable flap.
Opening the bonnet


1

12
Accessories

109-1
10
Towing, towbar,
coachbuilders, floor
cab fuses

144
1
OVERVIEW
Location

8
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014
DSC 89
Parking sensors 86-87
Electric mirrors

82-83Headlamp beam height adjustment 54
Stop & Start
47-49 Starter motor
, ignition switch
50
Wipers controls

55-56
Automatic wiping

55
Windscreen / headlamp

wash
56, 1
16
Trip computer
Chapter 10
Cruise control


57-59
Speed limiter


60-62
Lighting controls


52-54
Automatic illumination of headlamps


53-54
Foglamps


53
LED daytime runing lamps


53

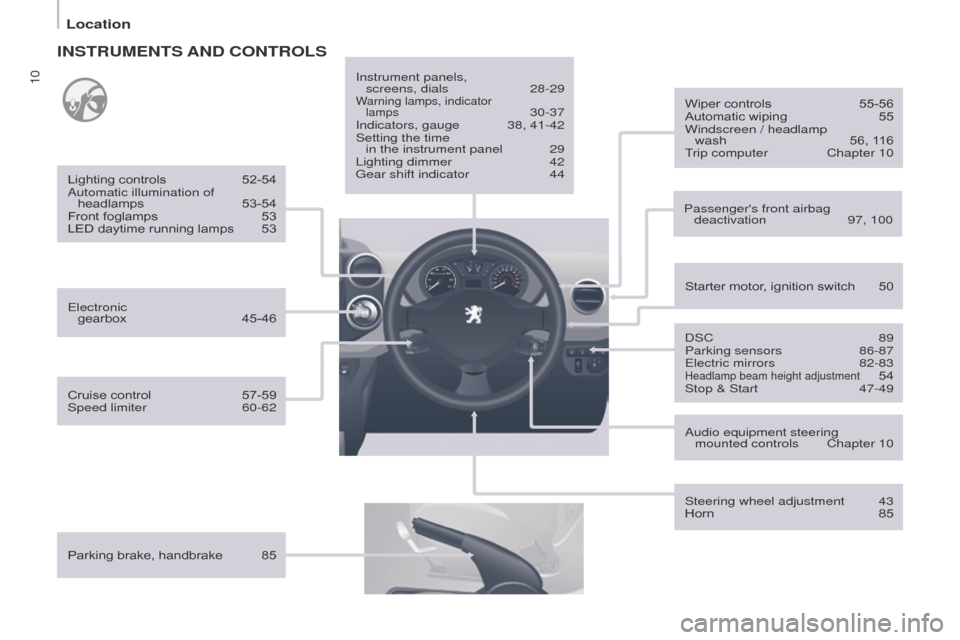

INSTRUMENTS AND CONTROLS
Dashboard, passenger
compartment fuses 142-144
Opening the bonnet

1
12
Parking brake, handbrake

85 Instrument panels,


screens, dials
28-29
W
arning lamps, indicator
lamps
30-37
Indicators, gauge

38, 41-42
Setting the time in

the instrument panel
29
Lighting dimmer

42
Gear shift indicator

44
Audio equipment steering mounted controls

Chapter 10
Steering wheel adjustment
43
Horn

85
Electronic


gearbox
45-46
Location

10
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014

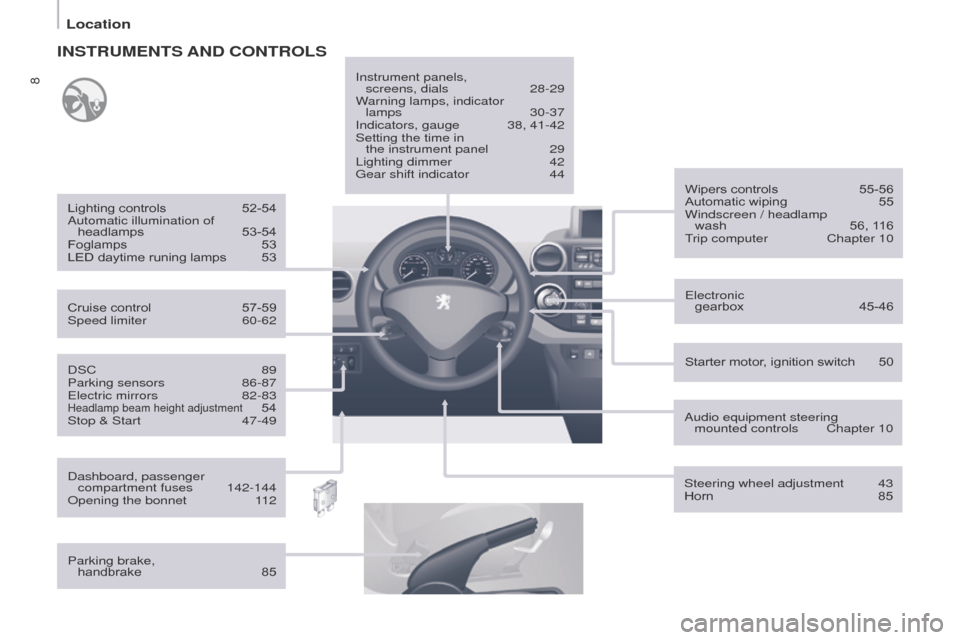

INSTRUMENTS AND CONTROLS
Parking brake, handbrake 85Instrument panels,
screens, dials
28-29Warning lamps, indicator
lamps 30-37
Indicators, gauge 38, 41-42
Setting the time

in the instrument panel

29
Lighting dimmer


42
Gear shift indicator


44 Passenger's front airbag deactivation


97, 100
DSC

89
Parking sensors

86-87
Electric mirrors


82-83Headlamp beam height adjustment 54
Stop & Start
47-49
Starter motor
, ignition switch

50
Wiper controls


55-56
Automatic wiping


55
Windscreen / headlamp


wash

56, 1
16
Trip computer

Chapter 10
Audio equipment steering mounted controls


Chapter 10
Steering wheel adjustment


43
Horn


85
Electronic


gearbox

45-46
Lighting controls


52-54
Automatic illumination of headlamps


53-54
Front foglamps


53
LED daytime running lamps


53
Cruise control


57-59
Speed limiter


60-62
Location

12
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014
INSTRUMENTS AND CONTROLS

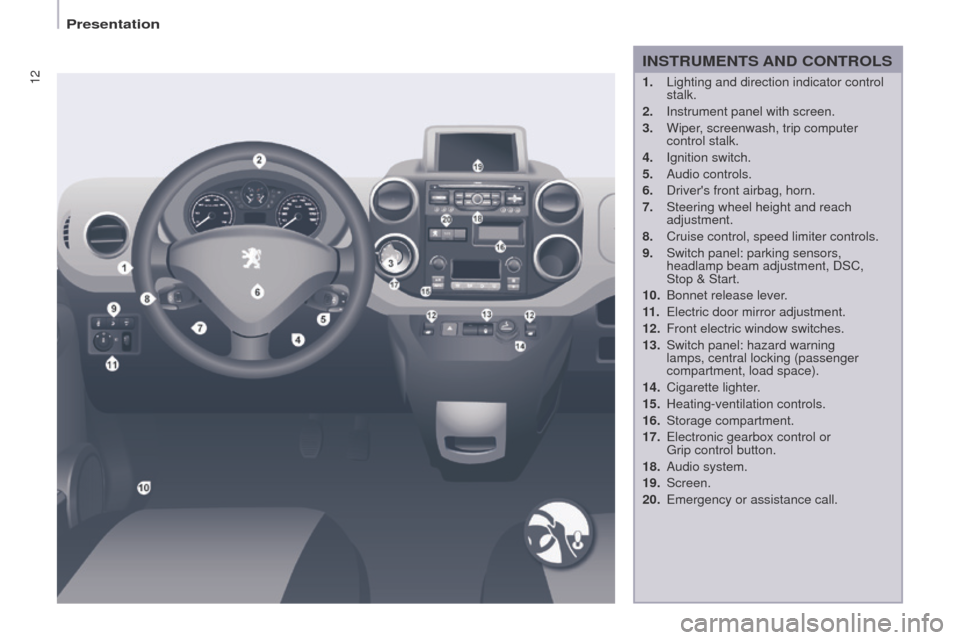

1. Lighting and direction indicator control
stalk.
2.

Instrument panel with screen.
3.


Wiper
, screenwash, trip computer
control stalk.
4.

Ignition switch.
5.


Audio controls.
6.


Driver's front airbag, horn.
7.


Steering wheel height and reach
adjustment.
8.


Cruise control, speed limiter controls.
9.


Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start.
10.


Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.


Front electric window switches.
13.


Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.


Cigarette lighter
.
15.

Heating-ventilation controls.
16.


Storage compartment.
17.


Electronic gearbox control or
Grip

control button.
18.

Audio system.
19.

Screen.
20.

Emergency or assistance call.
Presentation

13
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2014

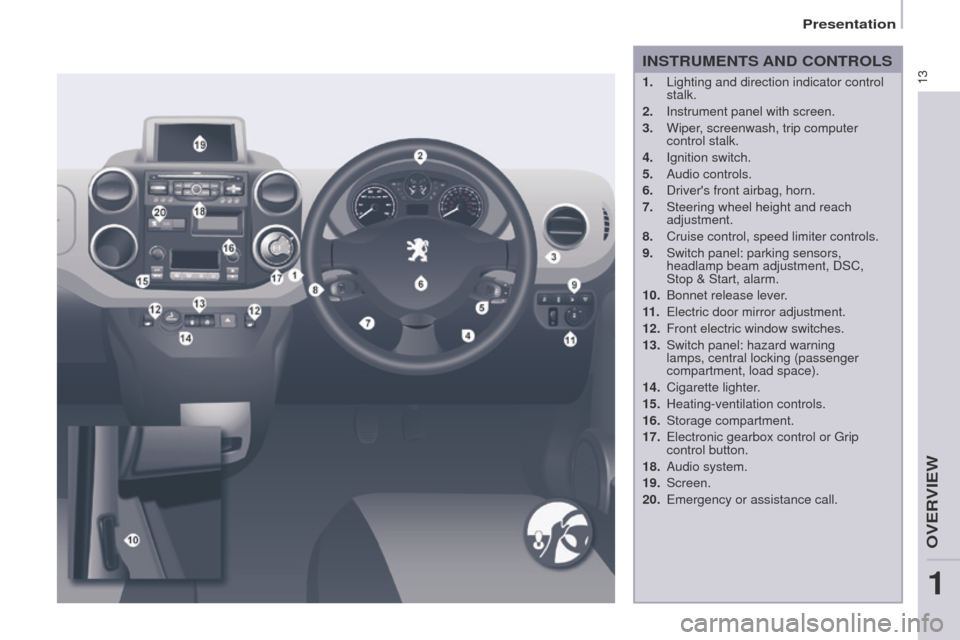

1. Lighting and direction indicator control
stalk.
2.

Instrument panel with screen.
3.


Wiper
, screenwash, trip computer
control stalk.
4.

Ignition switch.
5.


Audio controls.
6.


Driver's front airbag, horn.
7.


Steering wheel height and reach
adjustment.
8.


Cruise control, speed limiter controls.
9.


Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start, alarm.
10.


Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.


Front electric window switches.
13.


Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.


Cigarette lighter
.
15.

Heating-ventilation controls.
16.


Storage compartment.
17.


Electronic gearbox control or Grip
control button.
18.


Audio system.
19.

Screen.
20.

Emergency or assistance call.
INSTRUMENTS AND CONTROLS
1
OVERVIEW
Presentation

18
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2014

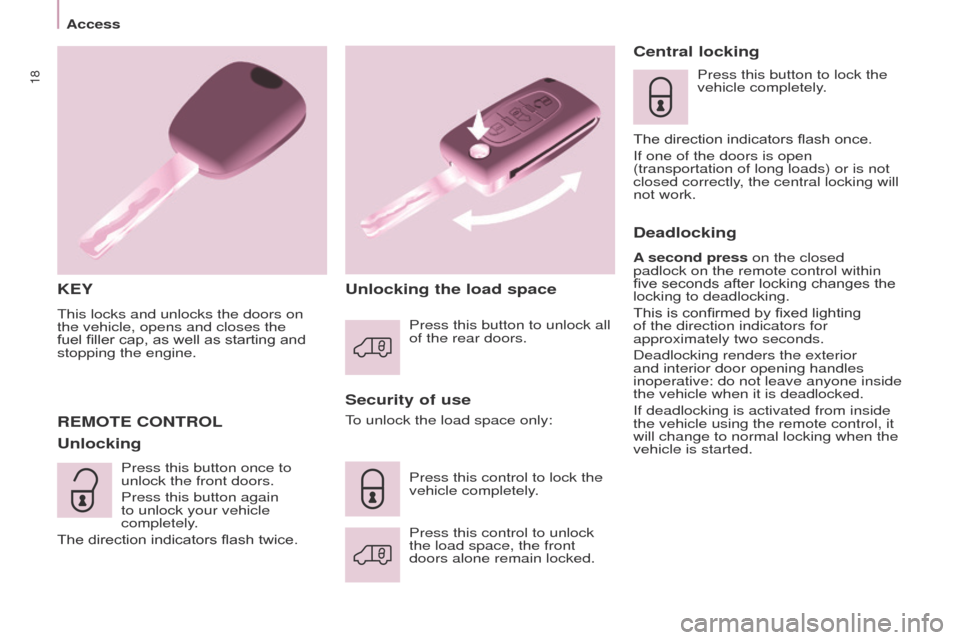

KEY
This locks and unlocks the doors on
the vehicle, opens and closes the
fuel filler cap, as well as starting and
stopping the engine.
Security of use
REMOTE CONTROL
Unlocking Unlocking the load spaceCentral locking
Press this button to lock the
vehicle completely.
The direction indicators flash once.
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
five
seconds after locking changes the
locking to deadlocking.
This is confirmed by fixed lighting
of the direction indicators for
approximately two
seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked. Press this control to lock the
vehicle completely. Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
The direction indicators flash twice.
Access

30
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2014Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2014

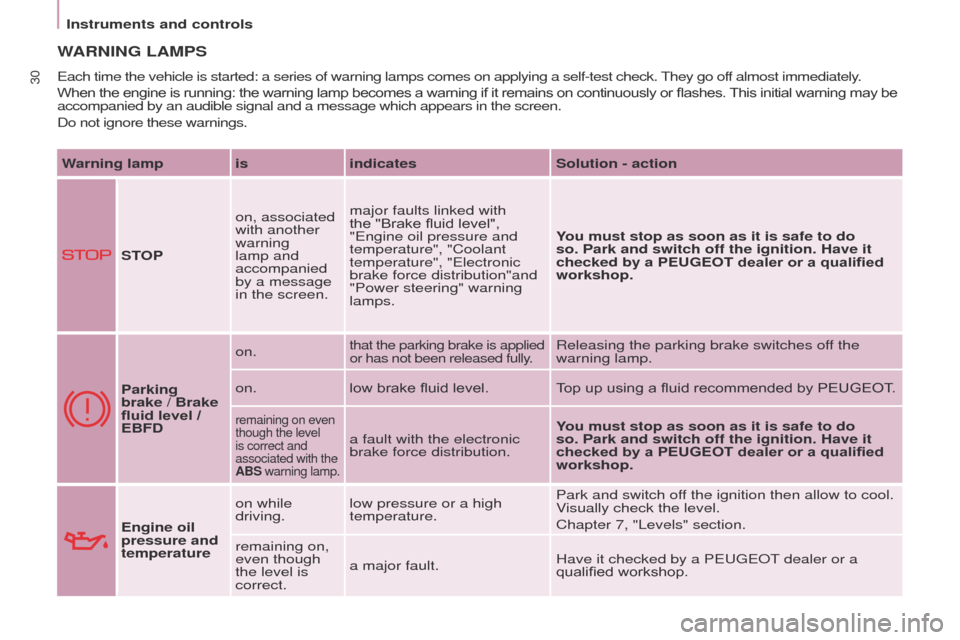

WARNING LAMPS
Each time the vehicle is started: a series of warning lamps comes on app\
lying a self-test check. They go off almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message which appears in the scre\
en.
Do not ignore these warnings.
Warning lamp is indicatesSolution - action
STOP on, associated
with another
warning
lamp and
accompanied
by a message
in the screen. major faults linked with
the "Brake fluid level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution"and
"Power steering" warning
lamps.
You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Parking
brake
/ Brake
fluid level /
EBFD on.
that the parking brake is applied
or has not been released fully.Releasing the parking brake switches off the
warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a PEUGEOT dealer or a qualified
workshop.
Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.
remaining on,
even though
the level is
correct. a major fault.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Instruments and controls

31
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2014

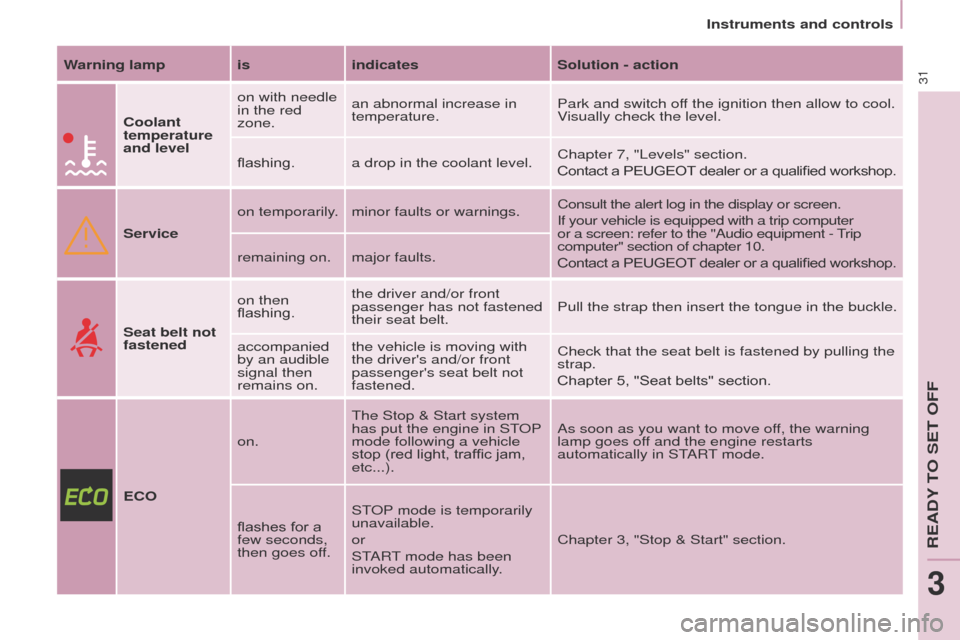

Warning lamp isindicatesSolution - action
Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. a drop in the coolant level. Chapter 7, "Levels" section.
Contact a PEUGEOT


dealer or a qualified workshop.
Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer
or a screen: refer to the "Audio equipment - Trip
computer" section of chapter 10.
Contact a PEUGEOT dealer or a qualified workshop.
remaining on. major faults.
Seat belt not
fastened on then
flashing.
the driver and/or front
passenger has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.
ECO on.
The Stop & Start
system
has put the engine in STOP
mode following a vehicle
stop (red light, traffic jam,
etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
flashes for a
few seconds,
then goes off. STOP mode is temporarily
unavailable.
or
START mode has been
invoked automatically.
Chapter 3, "Stop & Start" section.
READY TO SET OFF
3
Instruments and controls

47
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2014
STOP & START
The Stop & Start system puts the
engine temporarily on standby - ST OP
mode - during stops in the traffic (red
lights, traffic jams, or other...). The
engine restarts automatically - START
mode - as soon as you want to move
off. The restart takes place instantly,
quickly and silently.
Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions as well as the noise
level when stationary.
Operation
Going into engine STOP mode
The "ECO" warning lamp
comes on in the instrument
panel and the engine goes into
standby:
-

with a manual gearbox
, at speeds
below 12 mph (20 km/h), when you
put the gear lever into neutral and
release the clutch pedal,
-

with the 6-speed electronic gear
control gearbox

, at a speed below
5 mph (8 km/h), when you press
the brake pedal or put the gear
lever into position N. If your vehicle is fitted with the system,
a time counter calculates the sum of
the periods in STOP mode during a
journey. It rests itself to zero every time
the ignition is switched on with the key.
With the automatic gearbox
system, for your comfort during
parking manoeuvres, STOP mode
is not available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as
braking, power steering, for example.
Never refuel with the engine in
STOP mode; you must switch off
the ignition with the key. Special cases: STOP mode
unavailable
STOP mode is not invoked when:
-

the driver's door is open,
-

the driver's seat belt is not
fastened,
-

the vehicle has not exceeded
6

mph (10 km/h) since the last
engine start using the key,
-
the engine is needed to maintain
a comfortable temperature in the
passenger compartment,
-

demisting is on,
-

some special conditions (battery
charge, engine temperature,
braking assistance, ambient
temperature...) where the engine
is needed to assure control of a
system.
In this case, the
"ECO"
warning lamp flashes for a
few seconds, then goes off.
This operation is perfectly normal.
READY TO SET OFF
3
Stop & Start
