Peugeot Partner Tepee 2011 Owner's Manual

9.43
05
42
3
1
5

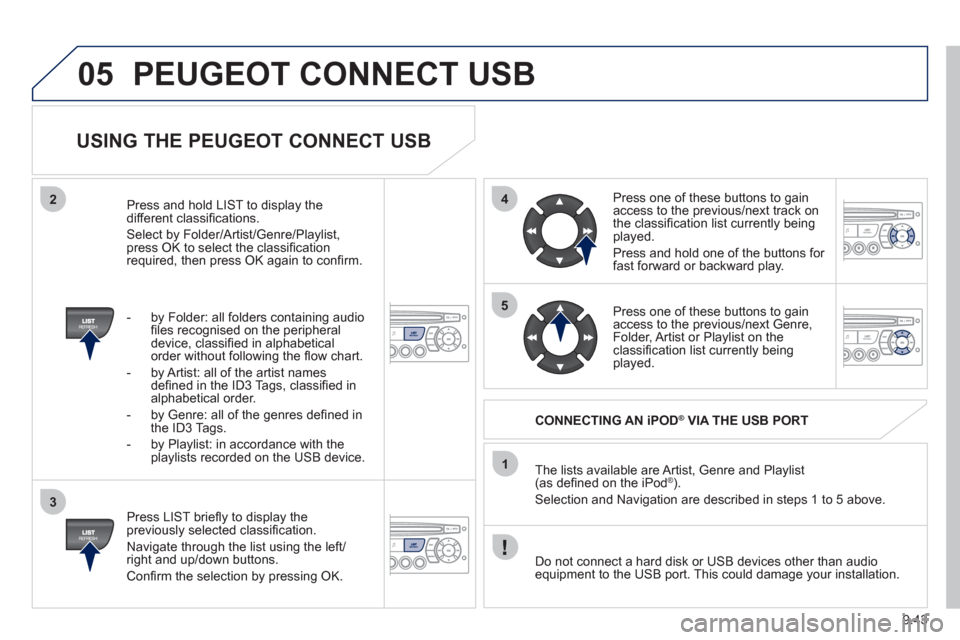

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist(as defi ned on the iPod ®).

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or U
SB devices other than audioequipment to the USB port. This could damage your installation.


CONNECTING AN iPOD ®
VIA THE USB PORT ®


Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Press one of these buttons to
gain
access to the previous/next Genre,
Folder, Artist or Playlist on theclassifi cation list currently being played.
Press and hold LI
ST to display the different classifi cations.
Select b
y Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.


- by Folder: all
folders containing audio fi les recognised on the peripheral
device, classifi ed in alphabetical
order without following the fl ow chart.

- b
y Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in alphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

- b
y Playlist: in accordance with the
playlists recorded on the USB device.

9.44
05
1
21
2
The display and control is via the portable device. First ad
just the volume of your portable device.
Then ad
just the volume of your audio system.

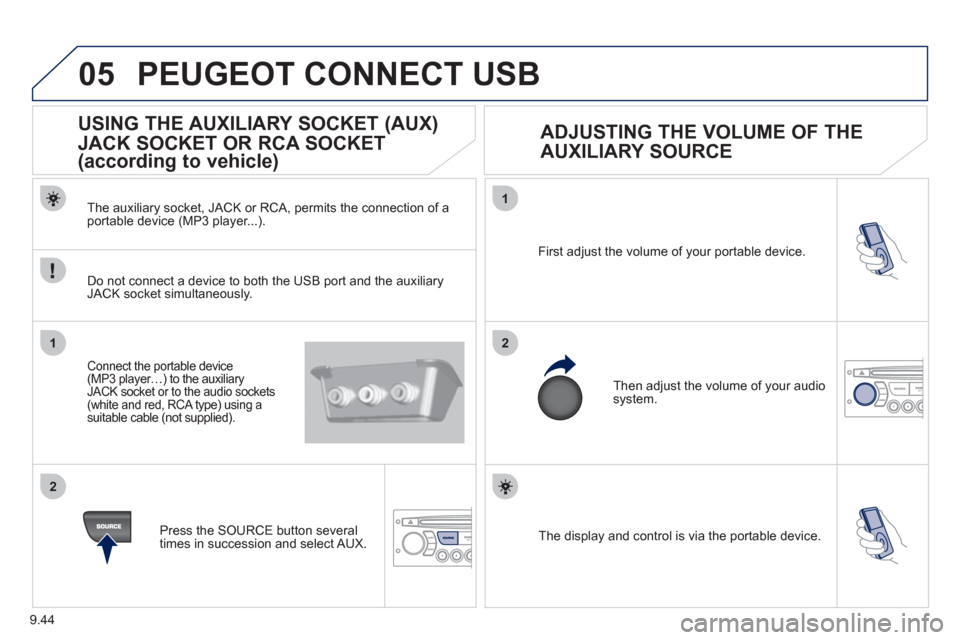

USING THE AUXILIARY SOCKET (AUX)
JACK SOCKET OR RCA SOCKET
(according to vehicle)
ADJUSTING THE VOLUME OF THE
AUXILIARY SOURCE
PEUGEOT CONNECT USB
The auxiliary socket, JACK or RCA, permits the connection of a portable device (MP3 player...).
Do not connect a device to both the USB port and the auxiliar
yJACK socket simultaneously.

Connect the portable device(MP3 player…) to the auxiliary JACK socket or to the audio sockets(white and red, RCA type) using asuitable cable (not supplied).

Press the SOURCE button several
times in succession and select AUX.

9.45
06
1
2
3
4
5
6
7
8
9
10

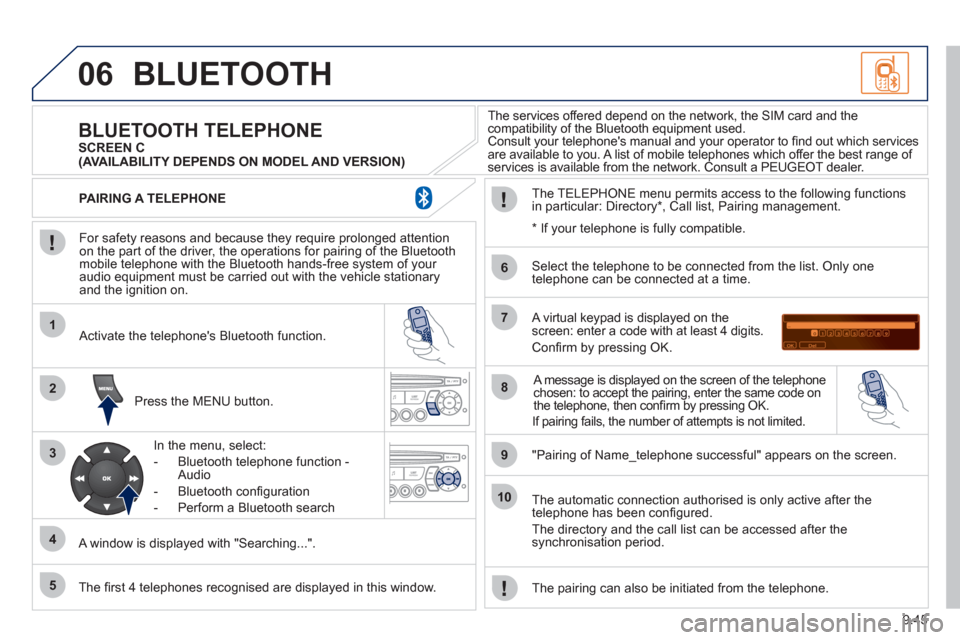

BLUETOOTH

For safety reasons and because they require prolonged attentionon the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free system of your
audio equipment must be carried out with the vehicle stationary
and the ignition on.
Press the MENU button.

A window is displa
yed with "Searching...".
Activate the telephone's Bluetooth
function.
In the menu, select:
- Bluetooth telephone
function -
Audio
- Bluetooth con
fi guration
- P
erform a Bluetooth search
The services offered de
pend on the network, the SIM card and thecompatibility of the Bluetooth equipment used.
Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of
services is available from the network. Consult a PEUGEOT dealer.







BLUETOOTH TELEPHONE SCREEN C

The TELEPH
ONE menu permits access to the following functions
in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones reco
gnised are displayed in this window.
A virtual keypad is displayed on thescreen: enter a code with at least 4 digits.

Confi rm by pressing OK.

"Pairin
g of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list.
Only one
telephone can be connected at a time.

A messa
ge is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on
the telephone, then confi rm by pressing OK.
The automatic connection authorised is onl
y active after the
telephone has been confi gured.
The directory and the call list can be accessed a
fter thesynchronisation period.
PAIRING A TELEPHONE

The pairin
g can also be initiated from the telephone.

(AVAILABILITY DEPENDS ON MODEL AND VERSION)


* If
your telephone is fully compatible.

If pairin
g fails, the number of attempts is not limited.

9.46
06
2
1
2
2
3

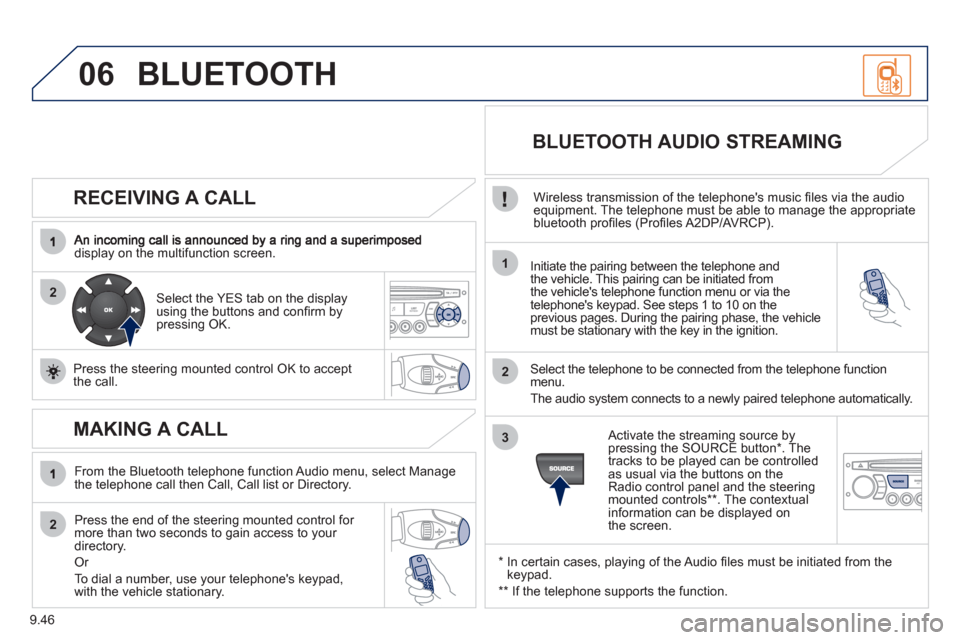

RECEIVING A CALL
display on the multifunction screen.Initiate the pairing between the telephone and
the vehicle. This pairing can be initiated from
the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle
must be stationary with the key in the ignition.
Select the tele
phone to be connected from the telephone function
menu.
The audio s
ystem connects to a newly paired telephone automatically.
Select the YES tab on the display
using the buttons and confi rm bypressing OK.

Press the steerin
g mounted control OK to accept
the call.







BLUETOOTH AUDIO STREAMING


Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate
bluetooth profi les (Profi les A2DP/AVRCP).
*

In certain cases, playing of the Audio fi les must be initiated from the keypad.
** If the tele
phone supports the function.
Activate the streamin
g source by
pressing the SOURCE button * . The
tracks to be played can be controlled as usual via the buttons on theRadio control panel and the steering
mounted controls ** . The contextual
information can be displayed on
the screen.
BLUETOOTH

MAKING A CALL


From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end o
f the steering mounted control for more than two seconds to gain access to your
directory.

Or
To dial a number, use
your telephone's keypad,with the vehicle stationary.

9.47
07
1
2
3
4
5
6
7
8

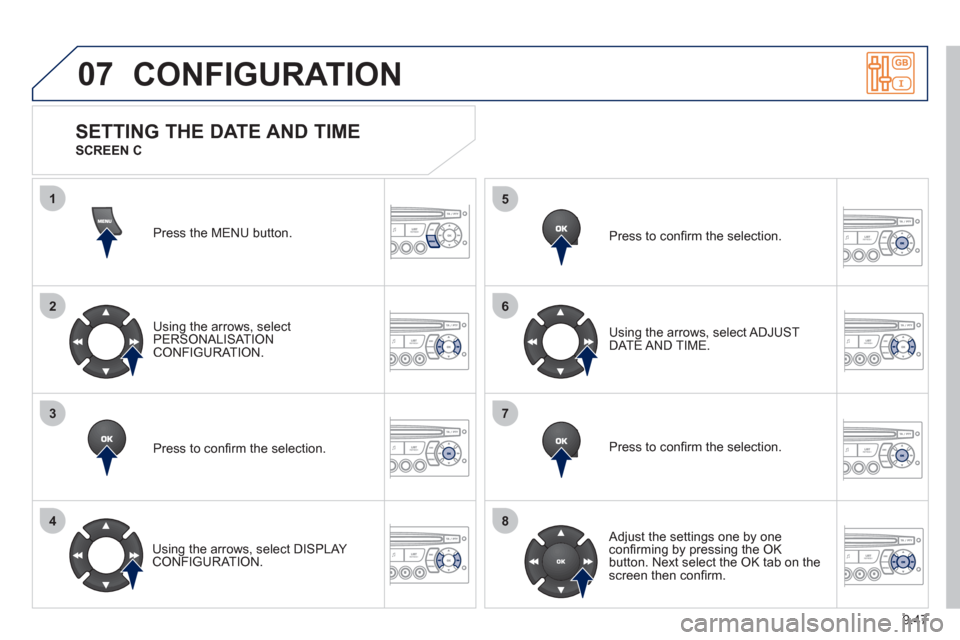

CONFIGURATION
Press the MENU button.
Usin
g the arrows, select
PERSONALISAT ION CONFIGURATION.
Pr
ess to confi rm the selection.

Usin
g the arrows, select DISPLAY CONFIGURATION. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection. Usin
g the arrows, select ADJUST DATE AND TIME.
Adjust the settings one by one confi rming by pressing the OKbutton. Next select the OK tab on thescreen then confi rm.









SETTING THE DATE AND TIME
SCREEN C

9.48
1
08

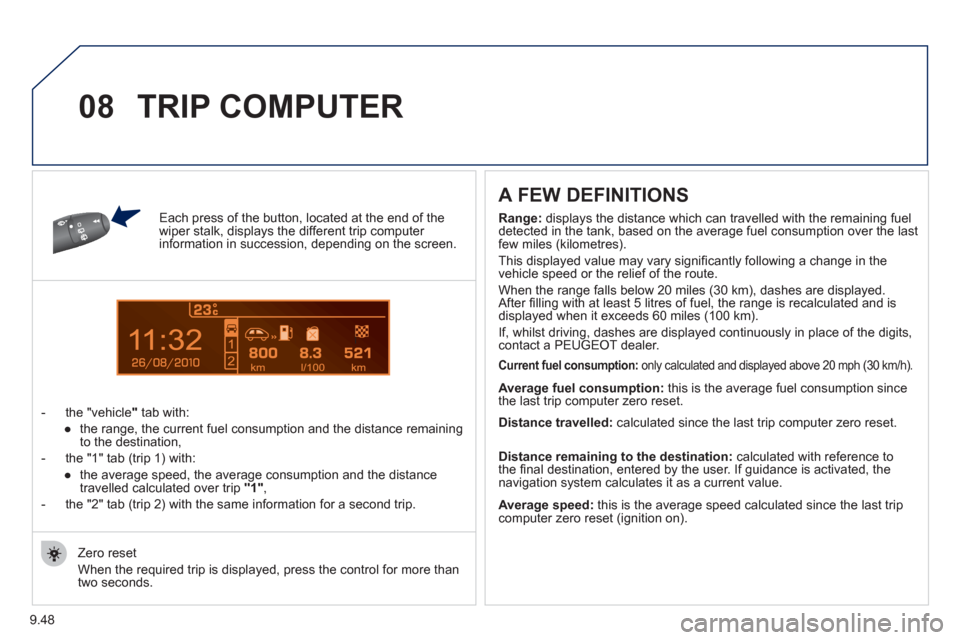

Each press of the button, located at the end of the wiper stalk, displays the different trip computer information in succession, depending on the screen.
- t
he "vehicle"tab with:


●
the ran
ge, the current fuel consumption and the distance remainingto the destination,
- the "1" tab
(trip 1) with:


●
the avera
ge speed, the average consumption and the distance
travelled calculated over trip "1",

- the "2" tab
(trip 2) with the same information for a second trip.


A FEW DEFINITIONS


Zero reset
When the required trip is displa
yed, press the control for more than
two seconds.
TRIP COMPUTER
Range: displays the distance which can travelled with the remaining fuel
detected in the tank, based on the average fuel consumption over the last few miles (kilometres).
This displayed value may vary signi
fi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.
After fi lling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst drivin
g, dashes are displayed continuously in place of the digits,contact a PEUGEOT dealer.
Current fuel consumption:only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption: this is the average fuel consumption since
the last trip computer zero reset.
Average speed: this is the average speed calculated since the last trip computer zero reset (ignition on).
Distance travelled:
calculated since the last trip computer zero reset.
Distance remaining to the destination:calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the
navigation system calculates it as a current value.

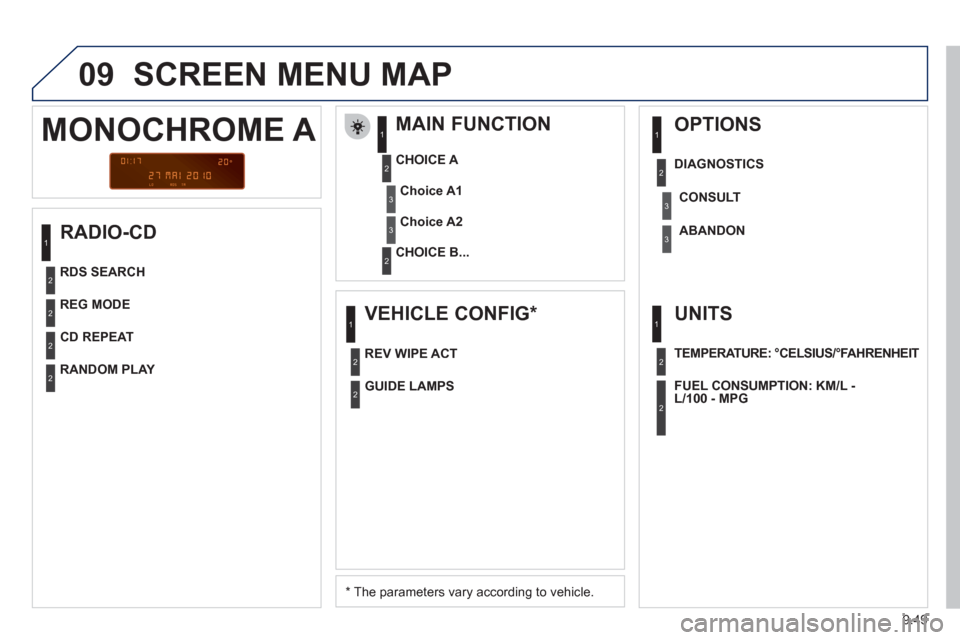

9.49
09 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


* The parameters vary according to vehicle.
CHOICE A

CHOICE B...
MONOCHROME A
Choice A1
Choice A2
REG MODE
CD REPEAT
RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS
DIAGNO
STICS
RDS SEARCHCONSUL
T
ABANDON

UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CONSUMPTION: KM/L -
L/100 - MPG
1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

9.50
09

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2

9.51
09 SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on thescreen:
MONOCHROME C
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext


RADIO
activate/deactivate Intro


CD/MP3 CD
activate/deactivate track repeat(the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate random play(the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate track repeat(of the current folder/artist/genre/playlist)


USB
activate/deactivate random play(of the current folder/artist/genre/playlist)
1
1
1
1
1
1
1
1

9.52
09

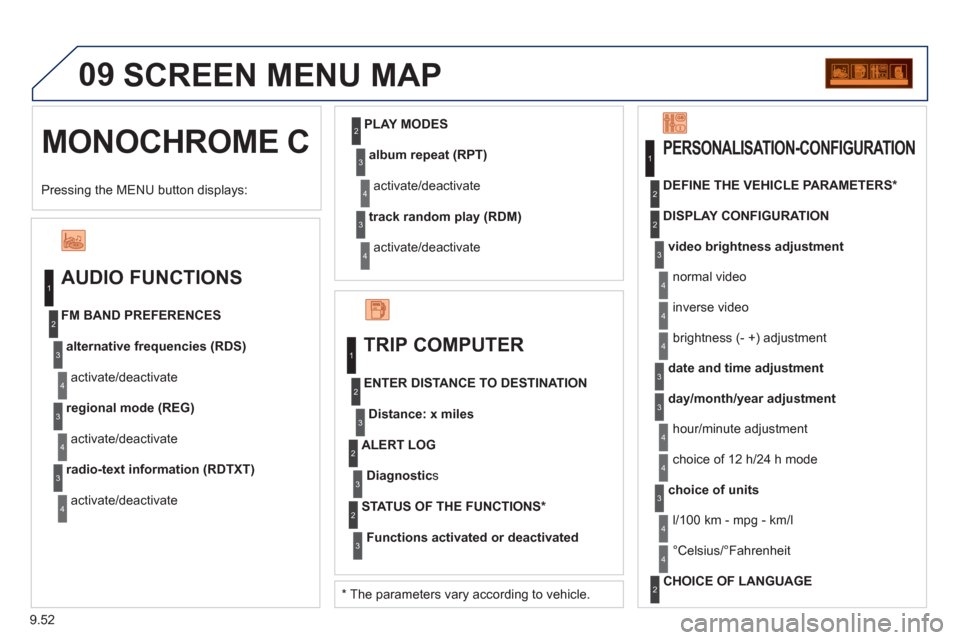

MONOCHROME C SCREEN MENU MAP

AUDIO FUNCTIONS
alternative frequencies (RDS)
activate/deactivate FM BAND PREFERENCES
regional mode (REG)
activate/deactivate
radio-text information (RDTXT)
activate/deactivate
1
2
3
4
3
4
3
4
PLAY MODES
album repeat (RPT)
activate/deactivate
track random play (RDM)

activate/deactivate

2
3
4
3
4


TRIP COMPUTER
Distance: x miles
ENTER DISTANCE TO DESTINATION
Diagnostics


ALERT LOG
Functions activated or deactivated


STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2
video brightness adjustment
DISPLAY CONFIGURATION DEFINE THE VEHICLE PARAMETERS *


PERSONALISATION-CONFIGURATION
normal video
inverse video
brightness (- +) adjustment
date and time adjustmen
t
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mp
g - km/l
°
Celsius/°Fahrenheit
CHOICE OF LANGUAGE

1
2
4
3
2
4
4
3
3
4
4
2
3
4
4
Pressing the MENU button displays:

*
The parameters vary according to vehicle.
