Peugeot Partner Tepee 2013 - RHD (UK, Australia) User Guide

4
2
9
9
1
FAMILIARISATIO
N


Interior

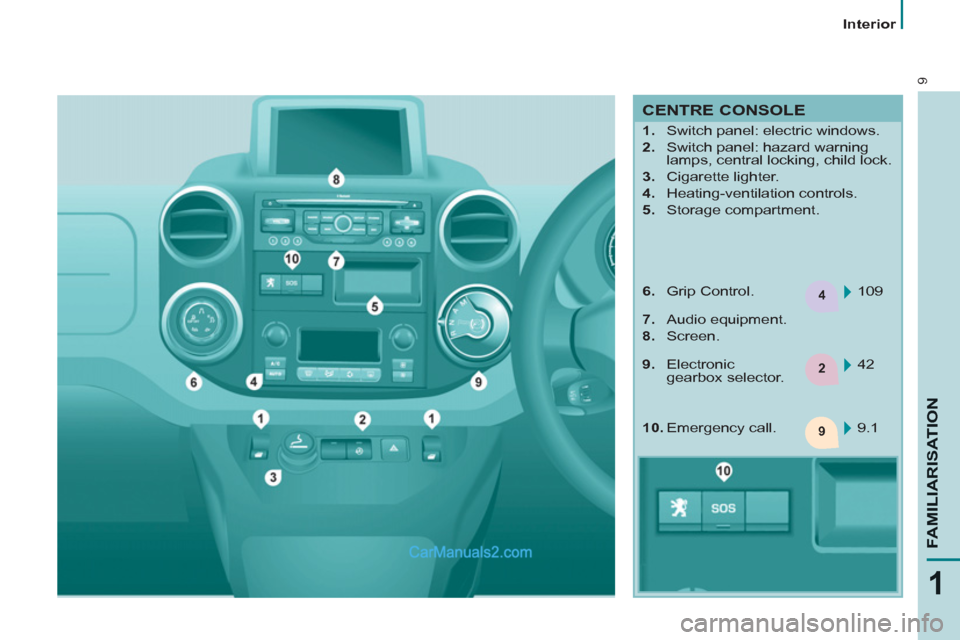

CENTRE CONSOLE




1.
Switch panel: electric windows.

2.
Switch panel: hazard warning
lamps, central locking, child lock.

3.
Cigarette lighter.

4.
Heating-ventilation controls.

5.
Storage compartment.
109

6.
Grip Control.

7.
Audio equipment.

8.
Screen.
42
9.1



10.
Emergency call.
9.
Electronic
gearbox selector.

2
34
3
3
10
Interior

Steering wheel
Storage compartments


1.

Forwards-backwards
adjustment.
2.
Angle.

3.

Seat cushion
height.
4.
Head restraint
height and
angle.

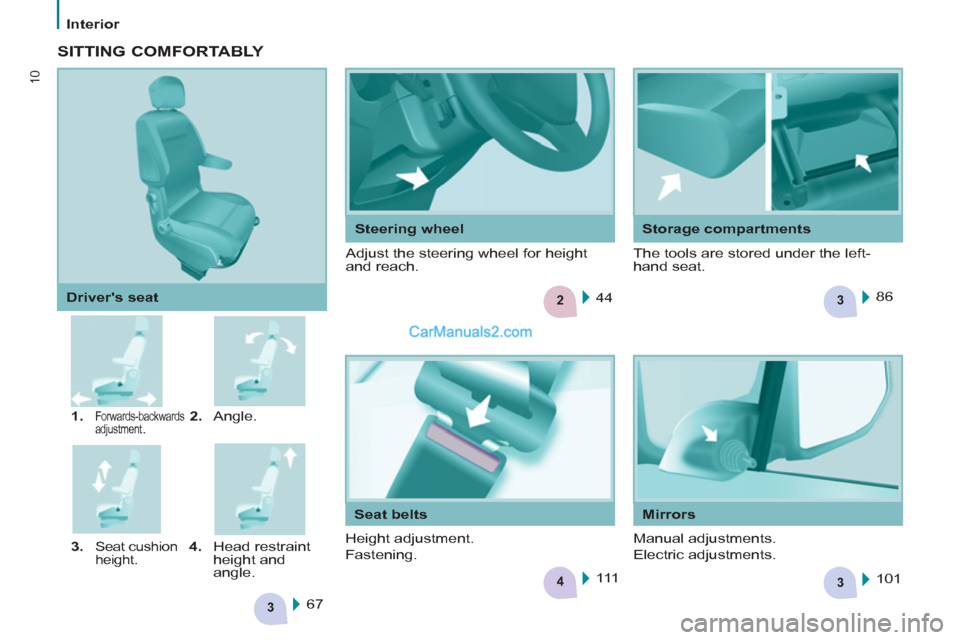

Driver's seat
67 44 86
111
101



SITTING COMFORTABLY

The tools are stored under the left-
hand seat. Adjust the steering wheel for height
and reach.

Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.

3
3
7
3
11
1
FAMILIARISATIO
N


Interior

Lighting off.
Sidelamps.

Main beam headlamps (blue).
Dipped beam headlamps (green).
2 fast.
1 normal.
I intermittent.
0 park.
È
single wipe.
AUTO, press the stalk down.
Reactivate if the ignition
has been off for more than
one minute.
AUTO, automatic
illumination of headlamps.
50 53

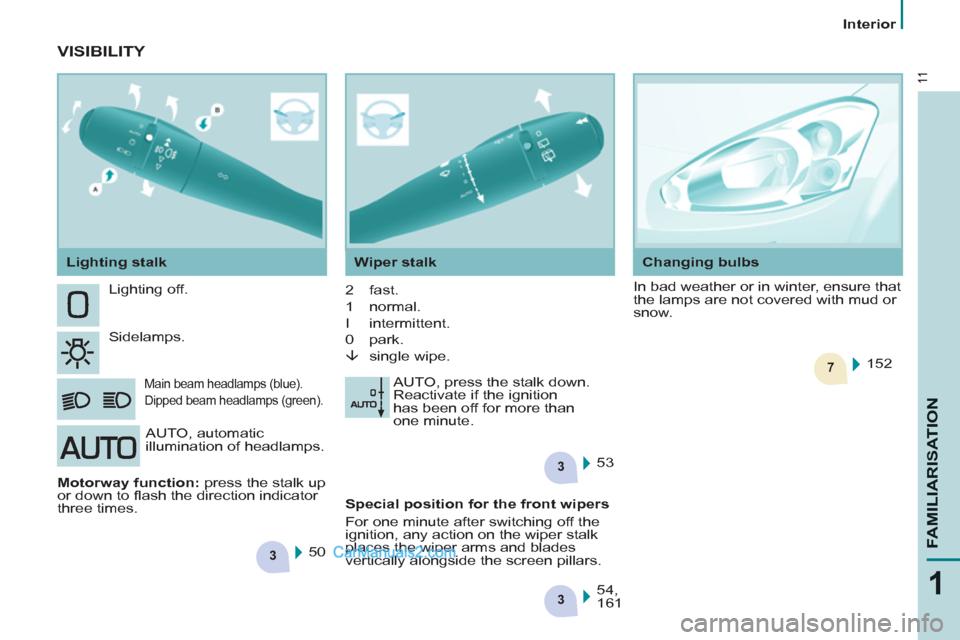

VISIBILITY


Motorway function:
press the stalk up
or down to fl ash the direction indicator
three times. 152


Lighting stalk
Wiper stalk
Changing bulbs
In bad weather or in winter, ensure that
the lamps are not covered with mud or
snow.

Special position for the front wipers
For one minute after switching off the
ignition, any action on the wiper stalk
places the wiper arms and blades
vertically alongside the screen pillars.
54,
161

3
29
3
9
4
12
Interior

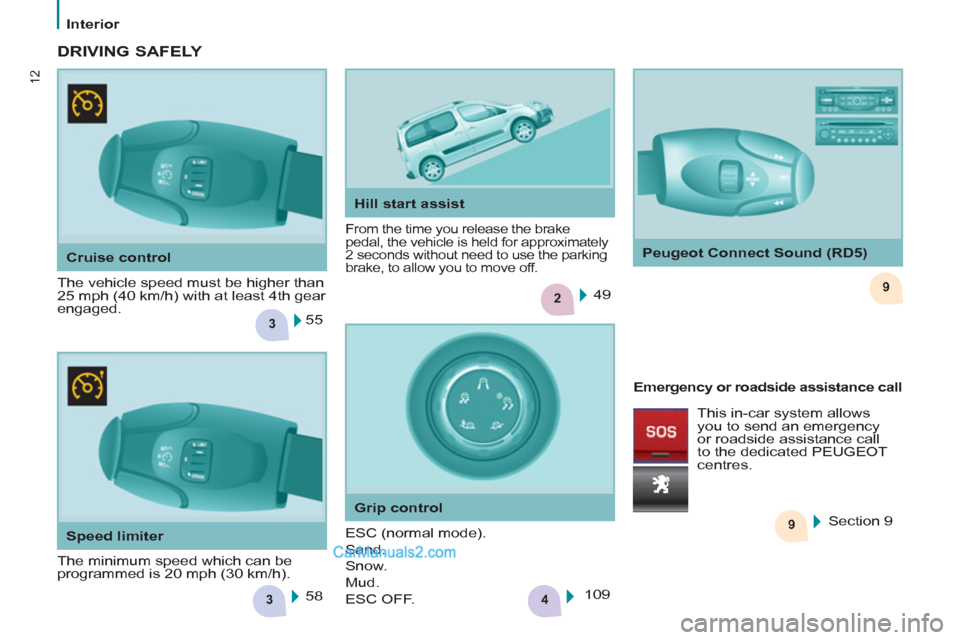

Cruise control
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged.
From the time you release the brake
pedal, the vehicle is held for approximately
2 seconds without need to use the parking
brake, to allow you to move off.
55 49

DRIVING SAFELY

The minimum speed which can be
programmed is 20 mph (30 km/h).
58
Emergency or roadside assistance call
Section 9
Hill start assist

Peugeot Connect Sound (RD5)

Grip control

Speed limiter This in-car system allows
you to send an emergency
or roadside assistance call
to the dedicated PEUGEOT
centres.
ESC (normal mode).
Sand.
Snow.
Mud.
ESC OFF. 109

39
3
3
13
1
FAMILIARISATIO
N


Interior


Armrest

USB player
Zenith roof, Scented air freshener

PASSENGER COMPARTMENT SPACE

If the vehicle is fi tted with the additional console and an
armrest, remove the console or the armrest to fold the
passenger seat to the table position. 84
88, 90
68
The multifunction roof console extends the overhead
storage compartment.
The fragrance is diffused in the passenger compartment
from the vents of the roof console.
Front fi ttings

3
3
3
3
14
Interior

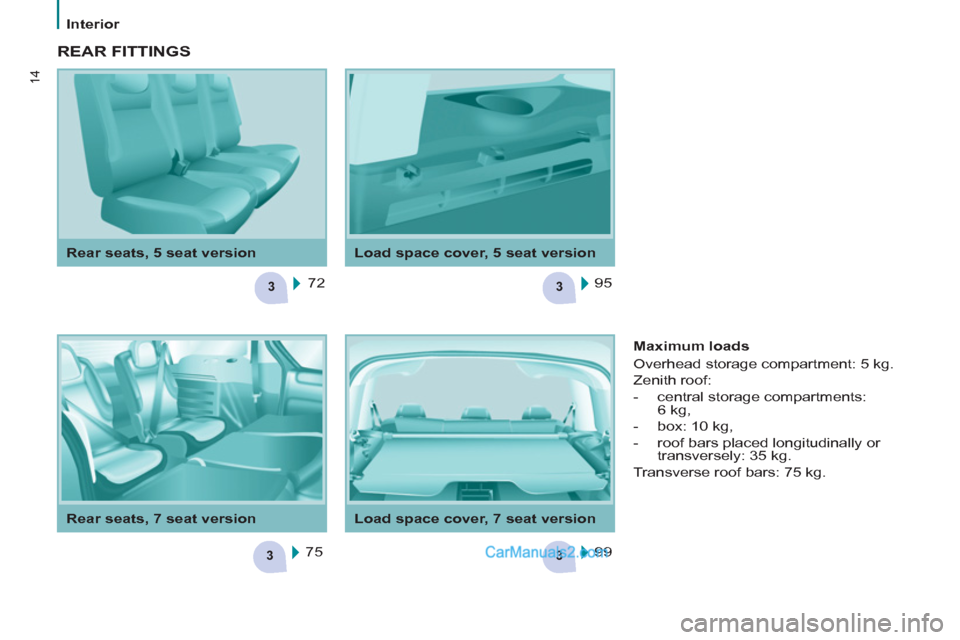

Load space cover, 5 seat version

Rear seats, 5 seat version

REAR FITTINGS

72
75 95
99
Maximum loads
Overhead storage compartment: 5 kg.
Zenith roof:


- central storage compartments:
6 kg,

- box: 10 kg,

- roof bars placed longitudinally or
transversely: 35 kg.
Transverse roof bars: 75 kg.



Load space cover, 7 seat version

Rear seats, 7 seat version

3
3
4
4
4
15
1
FAMILIARISATIO
N


Interior

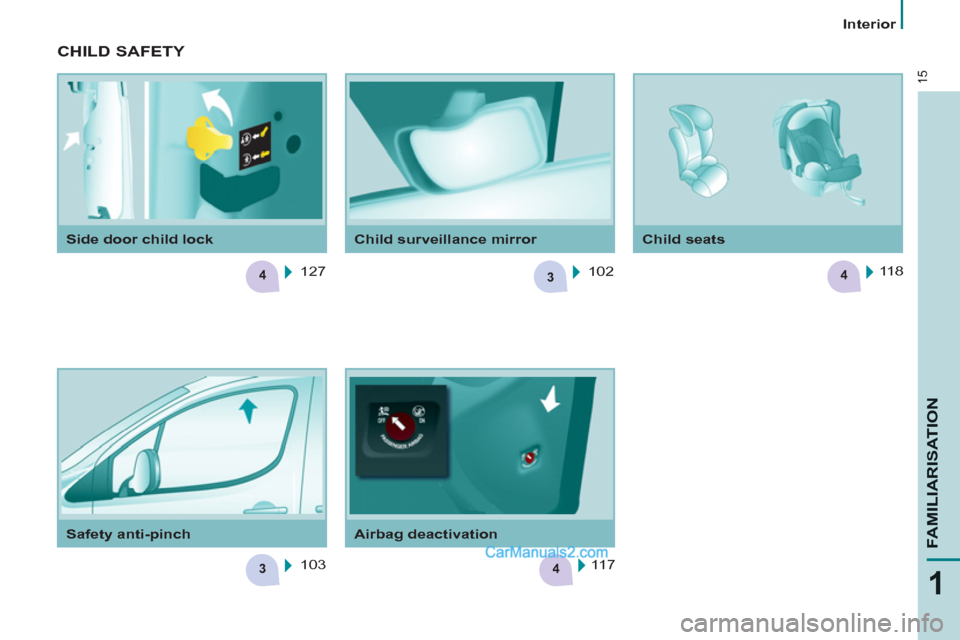

Safety anti-pinch
Airbag deactivation
Child seats

Side door child lock
Child surveillance mirror

CHILD SAFETY

127
103 102 118

117

3
3
3
3
16
Interior

VENTILATION



Recommended settings for Manual Air Conditioning


For optimum use of the system, we recommend:



If I require…



Air
distribution


Temperature


Air fl ow


Air
recirculation


AC



Heating
-


Cooling



Demisting
Defrosting



65

With Digital Air Conditioning, operation in AUTO mode is recommended at all
times.

Remember to switch the system off when the ambient air suits
your requirements.
63
Heating

Air conditioning

Digital air conditioning 61 61

17
1
FAMILIARISATIO
N
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2
emissions.

Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change
up; it is displayed in the instrument
panel, follow its instructions.

With an automatic or electronic
gearbox, stay in Drive "D"
or
Auto "A"
, according to the type
of gearbox, without pressing
the accelerator pedal heavily or
suddenly.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds
…).
Switch off the headlamps and front
foglamps when the level of light does
not require their use.

Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster
while driving.


Drive smoothly


Maintain a safe distance between
vehicles, use engine braking rather
than the brake pedal, and press the
accelerator progressively. These
practices contribute towards a
reduction in fuel consumption and CO
2
emissions and also helps reduce the
background traffi c noise.

If your vehicle has cruise control,
make use of the system at speeds
above 25 mph (40 km/h) when the
traffi c is fl owing well.


As a passenger, if you avoid
connecting your multimedia devices
(fi lm, music, video game
…), you
will contribute towards limiting the
consumption of electrical energy, and
so of fuel.
Disconnect your portable devices
before leaving the vehicle.
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and
defrosting controls, if not automatic.
Switch off the heated seat as soon as
possible.

18

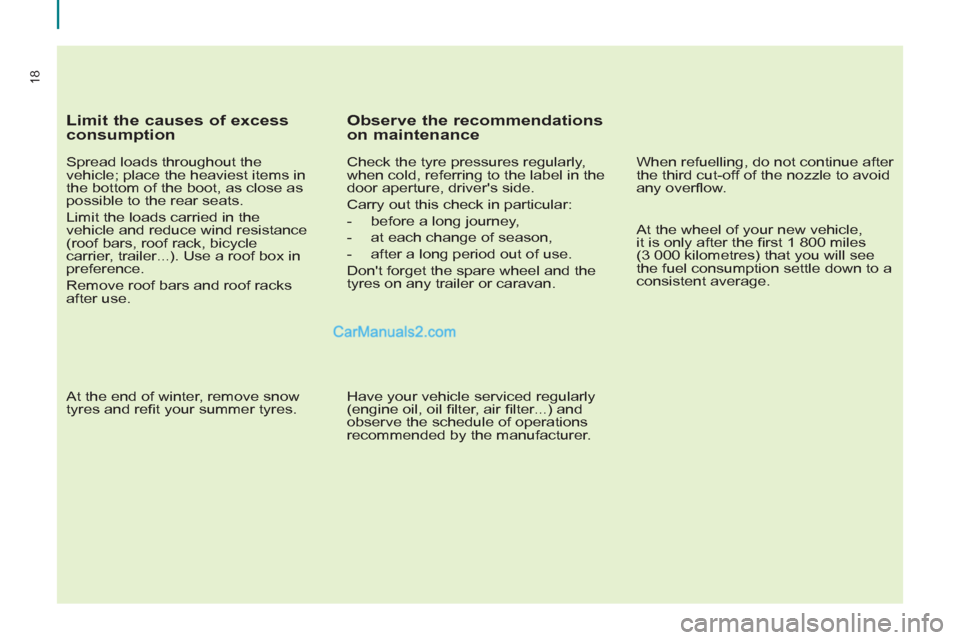

Limit the causes of excess
consumption

Spread loads throughout the
vehicle; place the heaviest items in
the bottom of the boot, as close as
possible to the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer
…). Use a roof box in
preference.
Remove roof bars and roof racks
after use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter
…) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
