Peugeot Partner Tepee 2013 Owner's Manual - RHD (UK, Australia)
Manufacturer: PEUGEOT, Model Year: 2013, Model line: Partner Tepee, Model: Peugeot Partner Tepee 2013Pages: 268, PDF Size: 11.25 MB
Page 1 of 268
Page 2 of 268
Page 3 of 268

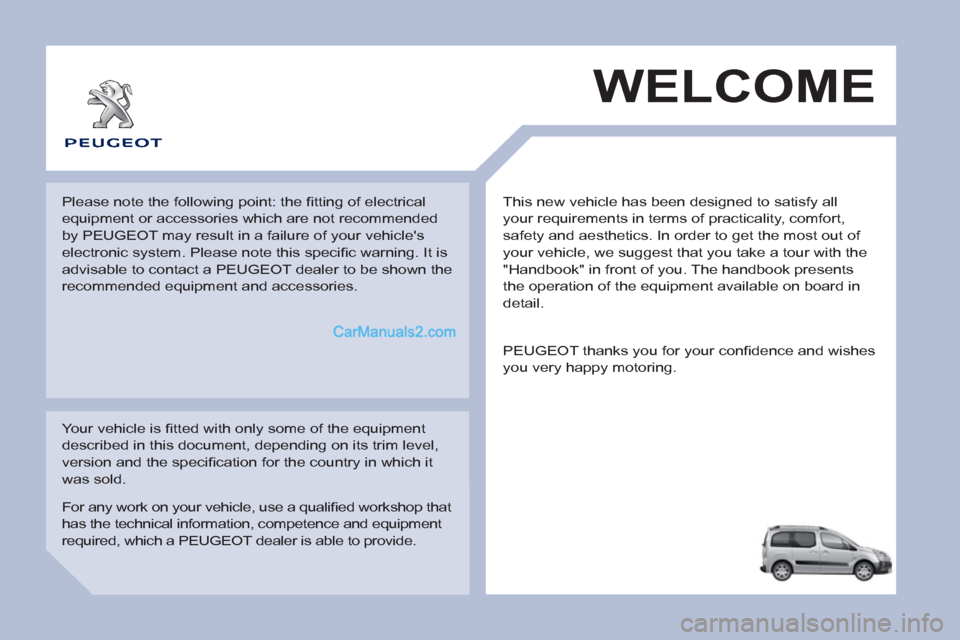

This new vehicle has been designed to satisfy all
your requirements in terms of practicality, comfort,
safety and aesthetics. In order to get the most out of
your vehicle, we suggest that you take a tour with the
"Handbook" in front of you. The handbook presents
the operation of the equipment available on board in
detail.
WELCOME
Your vehicle is fi tted with only some of the equipment
described in this document, depending on its trim level,
version and the specifi cation for the country in which it
was sold. Please note the following point: the fi tting of electrical
equipment or accessories which are not recommended
by PEUGEOT may result in a failure of your vehicle's
electronic system. Please note this specifi c warning. It is
advisable to contact a PEUGEOT dealer to be shown the
recommended equipment and accessories.
PEUGEOT thanks you for your confi dence and wishes
you very happy motoring.
For any work on your vehicle, use a qualifi ed workshop that
has the technical information, competence and equipment
required, which a PEUGEOT dealer is able to provide.
Page 4 of 268
2

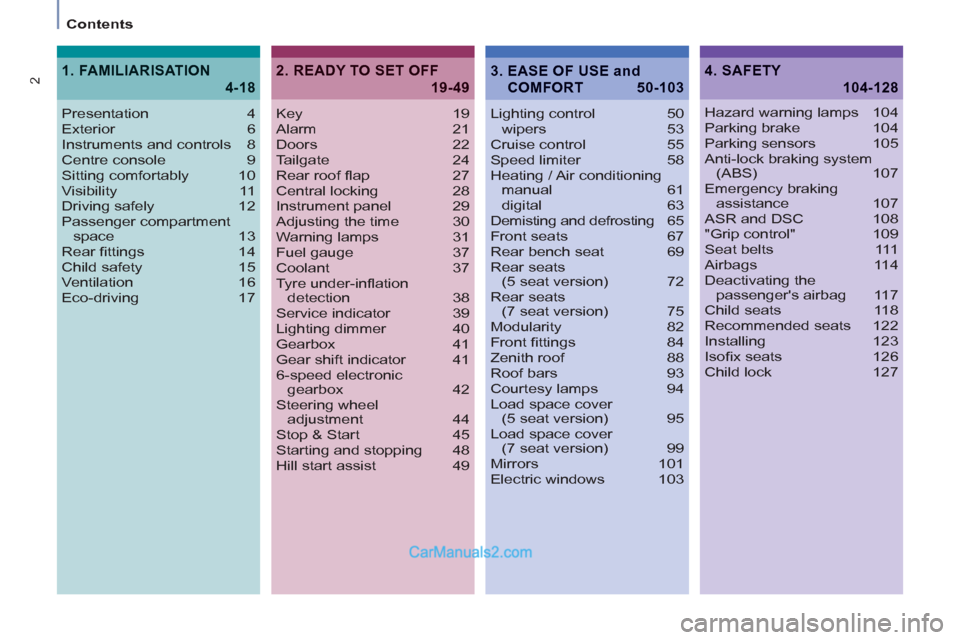

Contents
Key 19
Alarm 21
Doors 22
Tailgate 24
Rear roof fl ap 27
Central locking 28
Instrument panel 29
Adjusting the time 30
Warning lamps 31
Fuel gauge 37
Coolant 37
Tyre under-infl ation
detection 38
Service indicator 39
Lighting dimmer 40
Gearbox 41
Gear shift indicator 41
6-speed electronic
gearbox 42
Steering wheel
adjustment 44
Stop & Start 45
Starting and stopping 48
Hill start assist 49Lighting control 50
wipers 53
Cruise control 55
Speed limiter 58
Heating / Air conditioning
manual 61
digital 63
Demisting and defrosting 65
Front seats 67
Rear bench seat 69
Rear seats
(5 seat version) 72
Rear seats
(7 seat version) 75
Modularity 82
Front fi ttings 84
Zenith roof 88
Roof bars 93
Courtesy lamps 94
Load space cover
(5 seat version) 95
Load space cover
(7 seat version) 99
Mirrors 101
Electric windows 103
2. READY TO SET OFF
19-49
4. SAFETY
104-128
Presentation 4
Exterior 6
Instruments and controls 8
Centre console 9
Sitting comfortably 10
Visibility 11
Driving safely 12
Passenger compartment
space 13
Rear fi ttings 14
Child safety 15
Ventilation 16
Eco-driving 17
1. FAMILIARISATION
4-18
Hazard warning lamps 104
Parking brake 104
Parking sensors 105
Anti-lock braking system
(ABS) 107
Emergency braking
assistance 107
ASR and DSC 108
"Grip control" 109
Seat belts 111
Airbags 114
Deactivating the
passenger's airbag 117
Child seats 118
Recommended seats 122
Installing 123
Isofi x seats 126
Child lock 127
3. EASE OF USE and
COMFORT 50-103

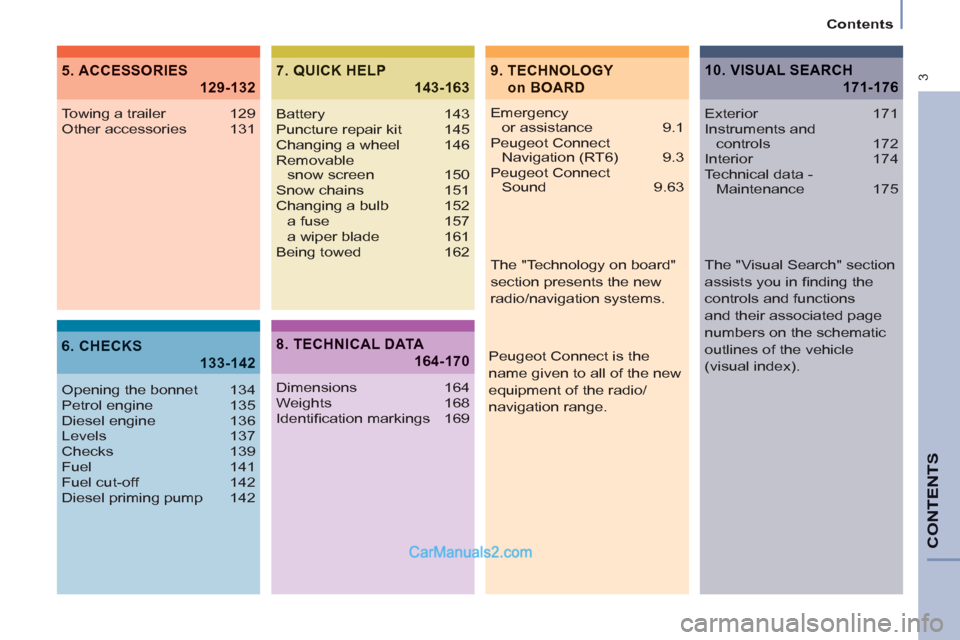

Page 5 of 268
3
Contents
CONTENT
S
9. TECHNOLOGY
on BOARD
5. ACCESSORIES
129-132
6. CHECKS
133-142
7. QUICK HELP
143-163
Emergency
or assistance 9.1
Peugeot Connect
Navigation (RT6) 9.3
Peugeot Connect
Sound 9.63 Towing a trailer 129
Other accessories 131
Opening the bonnet 134
Petrol engine 135
Diesel engine 136
Levels 137
Checks 139
Fuel 141
Fuel cut-off 142
Diesel priming pump 142Battery 143
Puncture repair kit 145
Changing a wheel 146
Removable
snow screen 150
Snow chains 151
Changing a bulb 152
a fuse 157
a wiper blade 161
Being towed 162
8. TECHNICAL DATA
164-170
Dimensions 164
Weights 168
Identifi cation markings 169
10. VISUAL SEARCH
171-176
Exterior 171
Instruments and
controls 172
Interior 174
Technical data -
Maintenance 175
Peugeot Connect is the
name given to all of the new
equipment of the radio/
navigation range.
The "Technology on board"
section presents the new
radio/navigation systems.
The "Visual Search" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle
(visual index).
Page 6 of 268

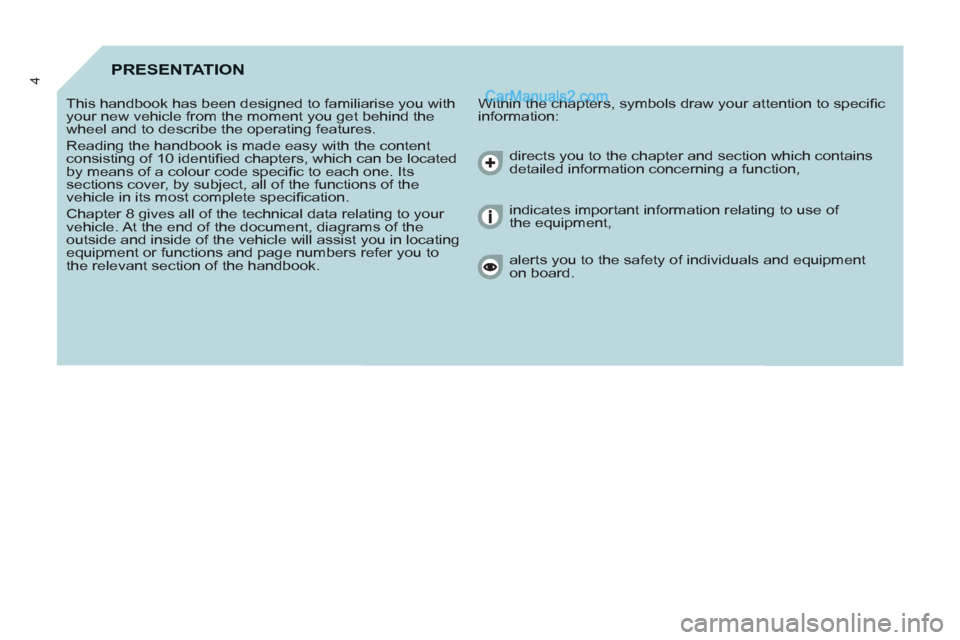

4PRESENTATION
Within the chapters, symbols draw your attention to specifi c
information: This handbook has been designed to familiarise you with
your new vehicle from the moment you get behind the
wheel and to describe the operating features.
Reading the handbook is made easy with the content
consisting of 10 identifi ed chapters, which can be located
by means of a colour code specifi c to each one. Its
sections cover, by subject, all of the functions of the
vehicle in its most complete specifi cation.
Chapter 8 gives all of the technical data relating to your
vehicle. At the end of the document, diagrams of the
outside and inside of the vehicle will assist you in locating
equipment or functions and page numbers refer you to
the relevant section of the handbook. directs you to the chapter and section which contains
detailed information concerning a function,
indicates important information relating to use of
the equipment,
alerts you to the safety of individuals and equipment
on board.
Page 7 of 268
5
Page 8 of 268
2d
2a
6a
2b
6b
7a
7b
2c
2e
4
4
6

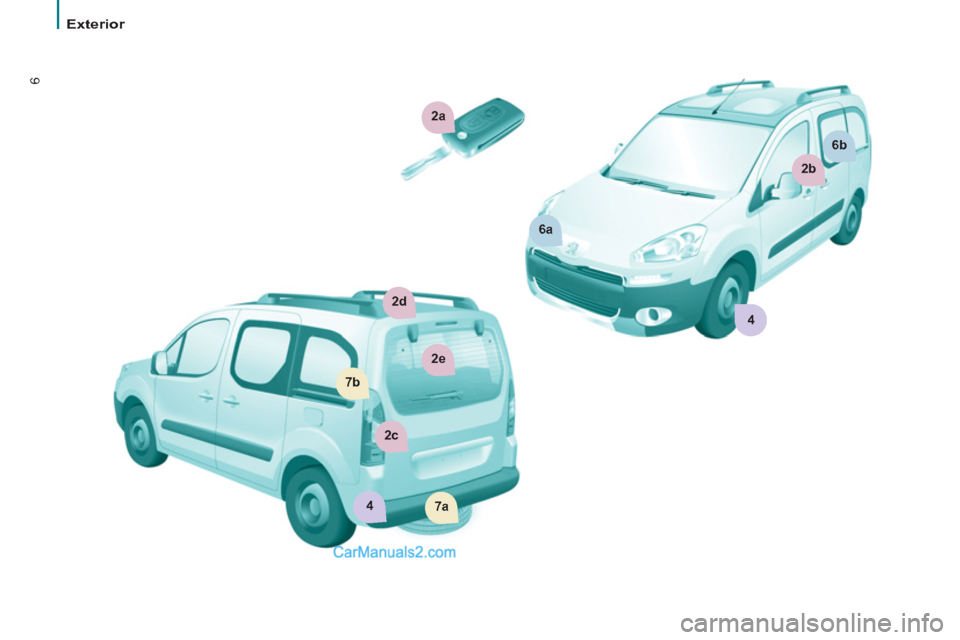

Exterior
Page 9 of 268
2c
2e
2b7a4
6a
7b
2a6b
4
2d
7
1
FAMILIARISATIO
N

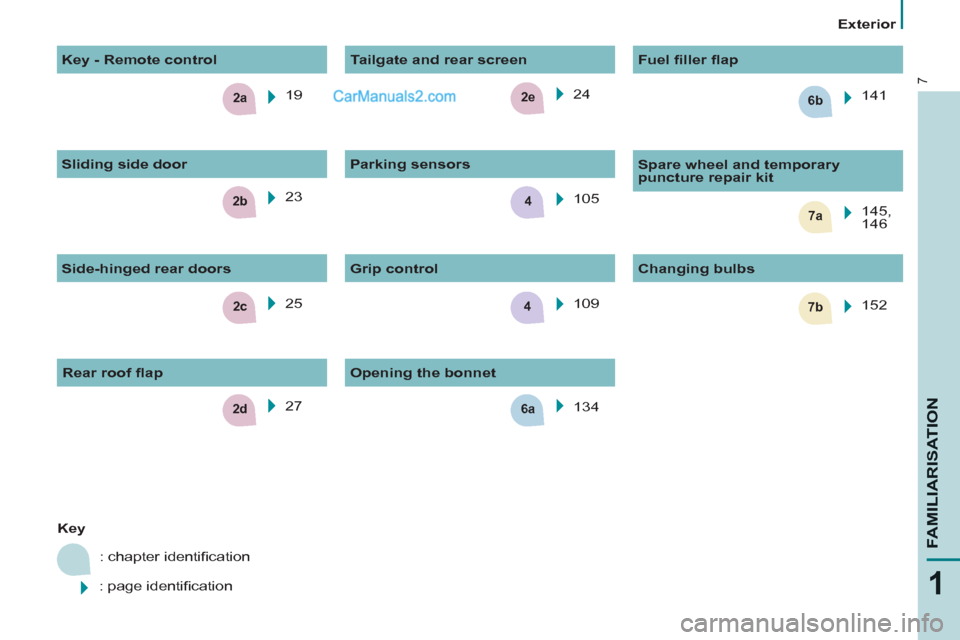

Exterior
Key
: chapter identifi cation
: page identifi cation 19
25 24
105
109
Grip control
Changing bulbs
152
141
Fuel fi ller fl ap
Parking sensors
Opening the bonnet
134 23
Key - Remote control
Side-hinged rear doors
Sliding side door
Tailgate and rear screen
Spare wheel and temporary
puncture repair kit
145,
146
27
Rear roof fl ap
Page 10 of 268
8

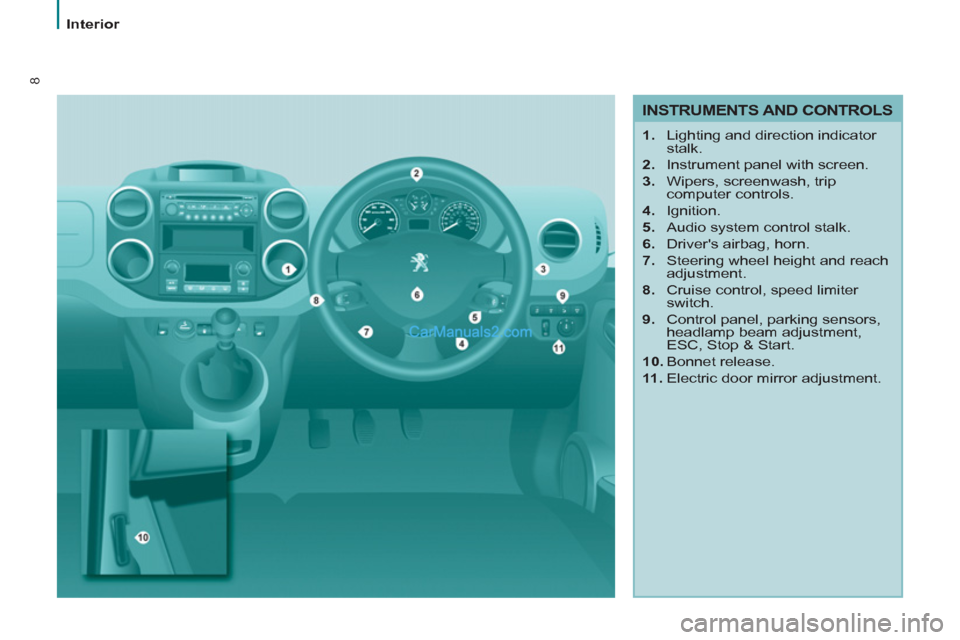

Interior
INSTRUMENTS AND CONTROLS
1.
Lighting and direction indicator
stalk.
2.
Instrument panel with screen.
3.
Wipers, screenwash, trip
computer controls.
4.
Ignition.
5.
Audio system control stalk.
6.
Driver's airbag, horn.
7.
Steering wheel height and reach
adjustment.
8.
Cruise control, speed limiter
switch.
9.
Control panel, parking sensors,
headlamp beam adjustment,
ESC, Stop & Start.
10.
Bonnet release.
11 .
Electric door mirror adjustment.
