Peugeot Partner Tepee 2013 - RHD (UK, Australia) Manual PDF

69
EASE OF
USE and
COMFOR
T
3


Seats

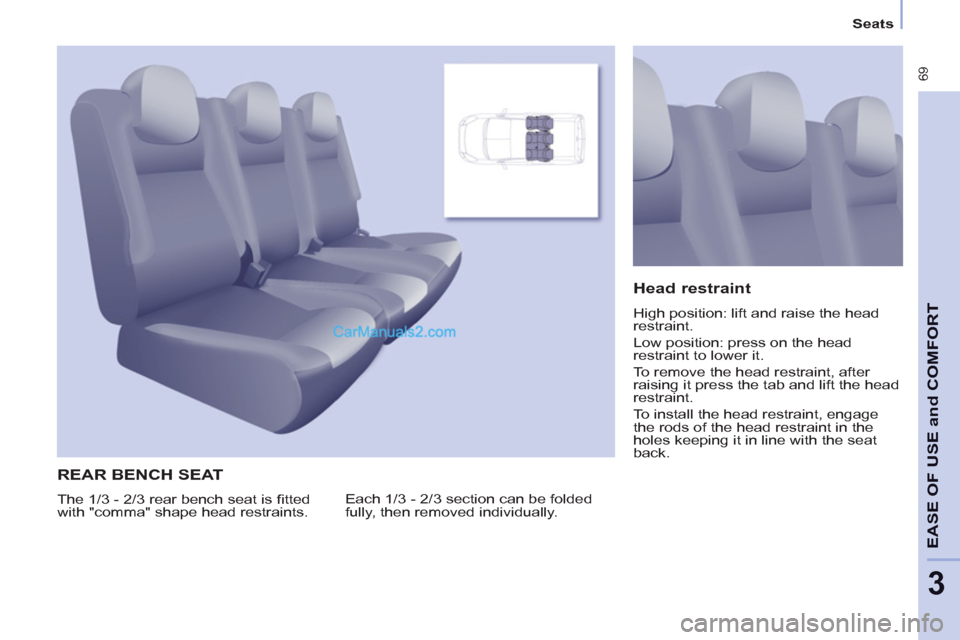

REAR BENCH SEAT

Each 1/3 - 2/3 section can be folded
fully, then removed individually.

Head restraint

High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
The 1/3 - 2/3 rear bench seat is fi tted
with "comma" shape head restraints.

70
Seats

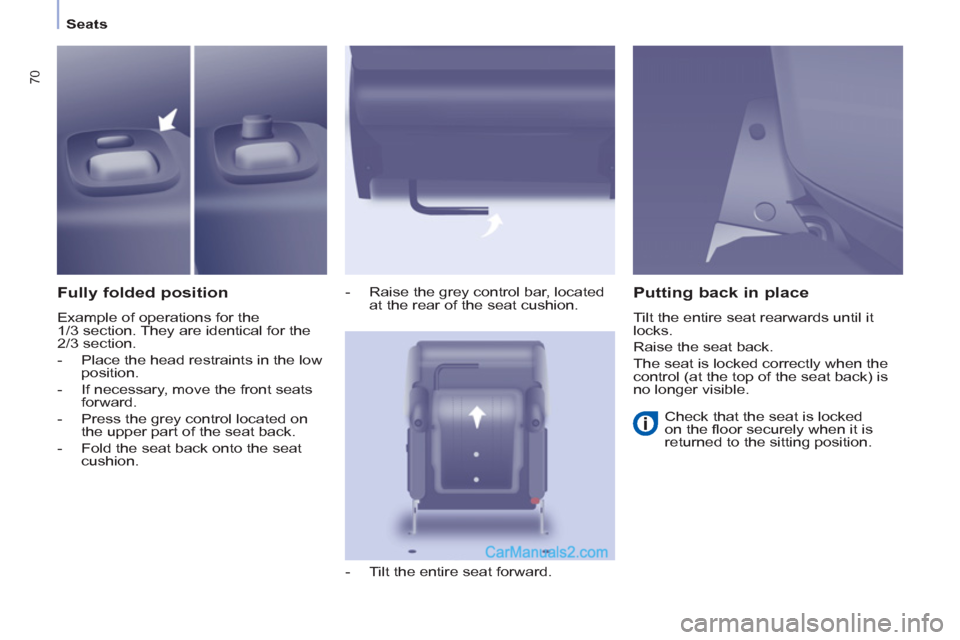

Fully folded position

Example of operations for the
1/3 section. They are identical for the
2/3 section.


- Place the head restraints in the low
position.

- If necessary, move the front seats
forward.

- Press the grey control located on
the upper part of the seat back.

- Fold the seat back onto the seat
cushion.
- Raise the grey control bar, located
at the rear of the seat cushion.

- Tilt the entire seat forward.



Putting back in place

Tilt the entire seat rearwards until it
locks.
Raise the seat back.
The seat is locked correctly when the
control (at the top of the seat back) is
no longer visible.
Check that the seat is locked
on the fl oor securely when it is
returned to the sitting position.

71
EASE OF
USE and
COMFOR
T
3


Seats

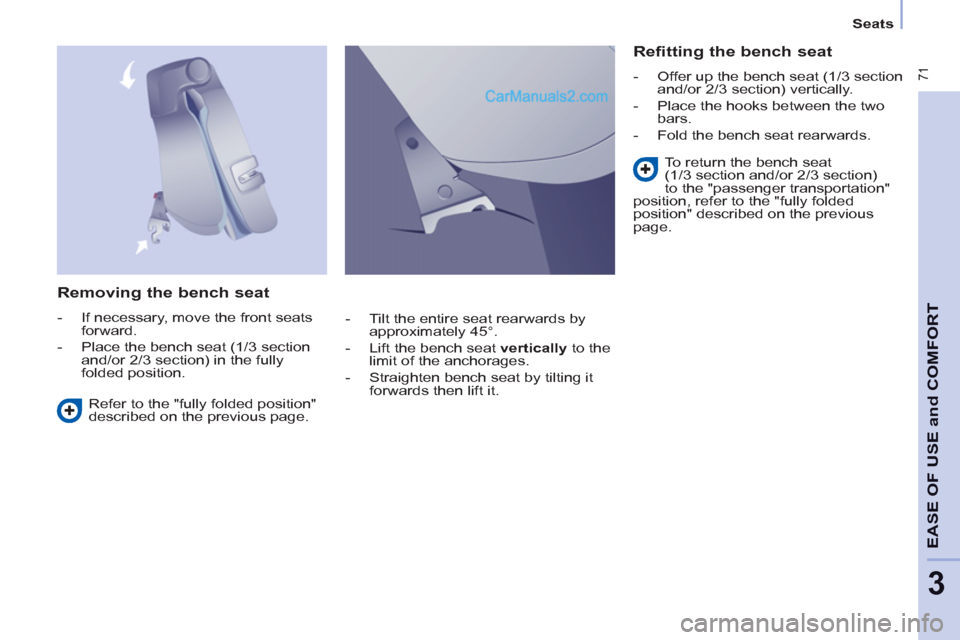

Removing the bench seat



- If necessary, move the front seats
forward.

- Place the bench seat (1/3 section
and/or 2/3 section) in the fully
folded position.


Refitting the bench seat



- Offer up the bench seat (1/3 section
and/or 2/3 section) vertically.

- Place the hooks between the two
bars.

- Fold the bench seat rearwards.
Refer to the "fully folded position"
described on the previous page. To return the bench seat
(1/3 section and/or 2/3 section)
to the "passenger transportation"
position, refer to the "fully folded
position" described on the previous
page.

- Tilt the entire seat rearwards by
approximately 45°.

- Lift the bench seat vertically
to the
limit of the anchorages.

- Straighten bench seat by tilting it
forwards then lift it.

72
Seats

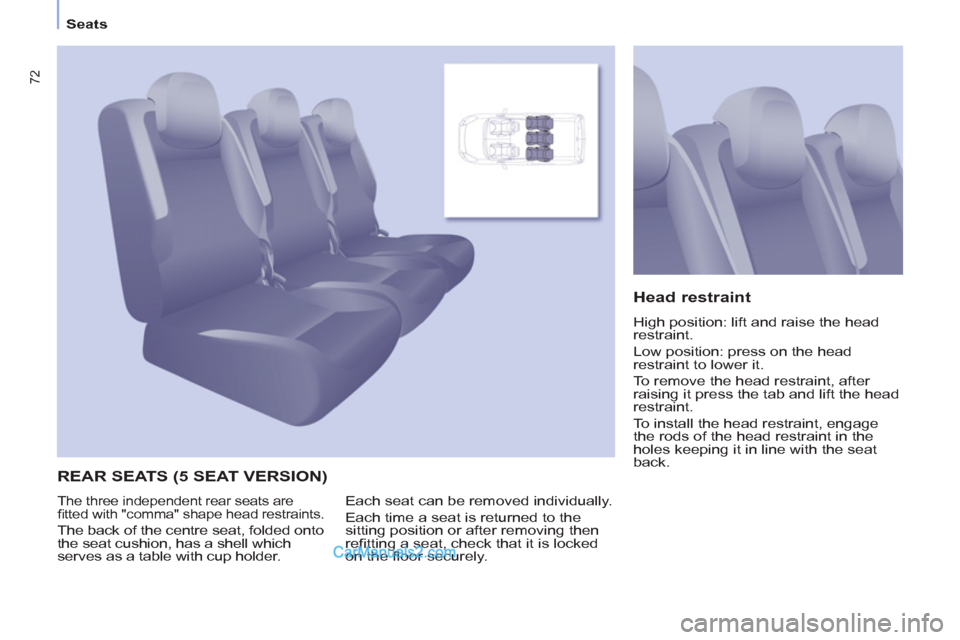

REAR SEATS (5 SEAT VERSION)
Head restraint

High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refi tting a seat, check that it is locked
on the fl oor securely.

The three independent rear seats are
fi tted with "comma" shape head restraints.

The back of the centre seat, folded onto
the seat cushion, has a shell which
serves as a table with cup holder.

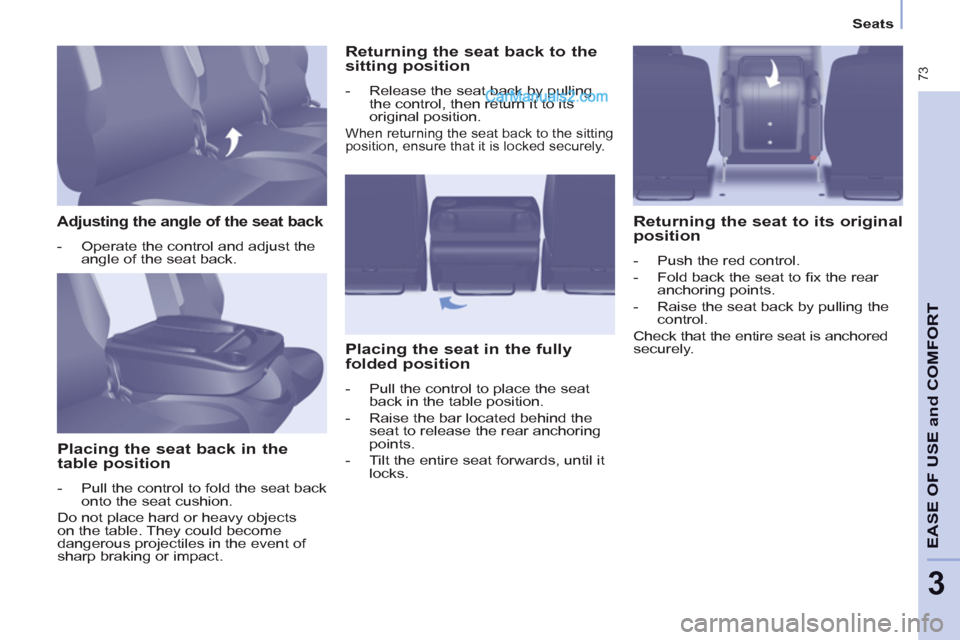

73
EASE OF
USE and
COMFOR
T
3


Seats



Adjusting the angle of the seat back



- Operate the control and adjust the
angle of the seat back.



Placing the seat back in the
table position


- Pull the control to fold the seat back
onto the seat cushion.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.


Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.

When returning the seat back to the sitting
position, ensure that it is locked securely.


Placing the seat in the fully
folded position


- Pull the control to place the seat
back in the table position.

- Raise the bar located behind the
seat to release the rear anchoring
points.

- Tilt the entire seat forwards, until it
locks.



Returning the seat to its original
position


- Push the red control.

- Fold back the seat to fi x the rear
anchoring points.

- Raise the seat back by pulling the
control.
Check that the entire seat is anchored
securely.

74
Seats

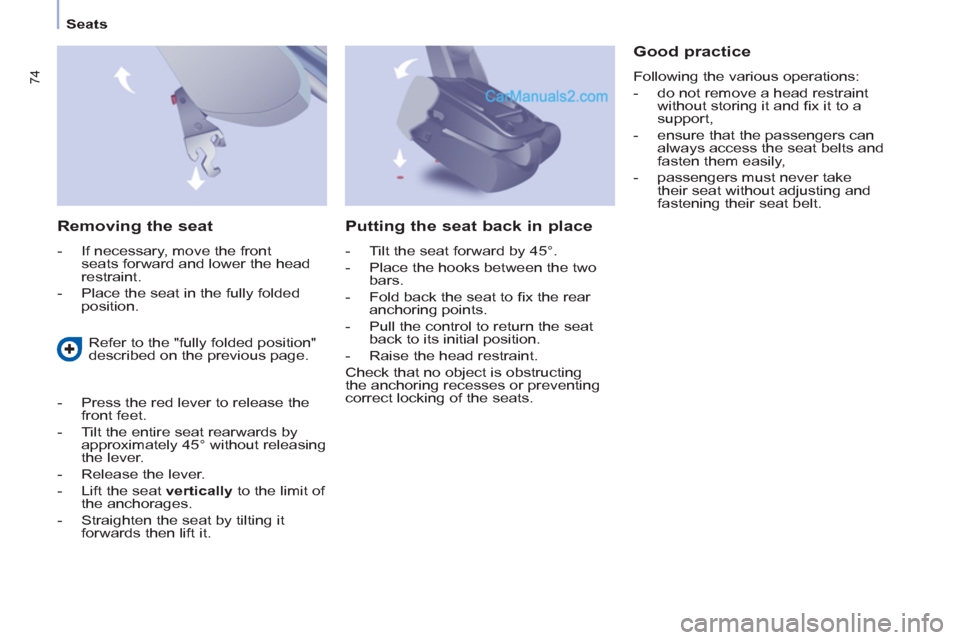

Removing the seat



- If necessary, move the front
seats forward and lower the head
restraint.

- Place the seat in the fully folded
position.


Good practice

Following the various operations:


- do not remove a head restraint
without storing it and fi x it to a
support,

- ensure that the passengers can
always access the seat belts and
fasten them easily,

- passengers must never take
their seat without adjusting and
fastening their seat belt.

Refer to the "fully folded position"
described on the previous page.

- Press the red lever to release the
front feet.

- Tilt the entire seat rearwards by
approximately 45° without releasing
the lever.

- Release the lever.

- Lift the seat vertically
to the limit of
the anchorages.

- Straighten the seat by tilting it
forwards then lift it.



Putting the seat back in place



- Tilt the seat forward by 45°.

- Place the hooks between the two
bars.

- Fold back the seat to fi x the rear
anchoring points.

- Pull the control to return the seat
back to its initial position.

- Raise the head restraint.
Check that no object is obstructing
the anchoring recesses or preventing
correct locking of the seats.

75
EASE OF
USE and
COMFOR
T
3


Seats

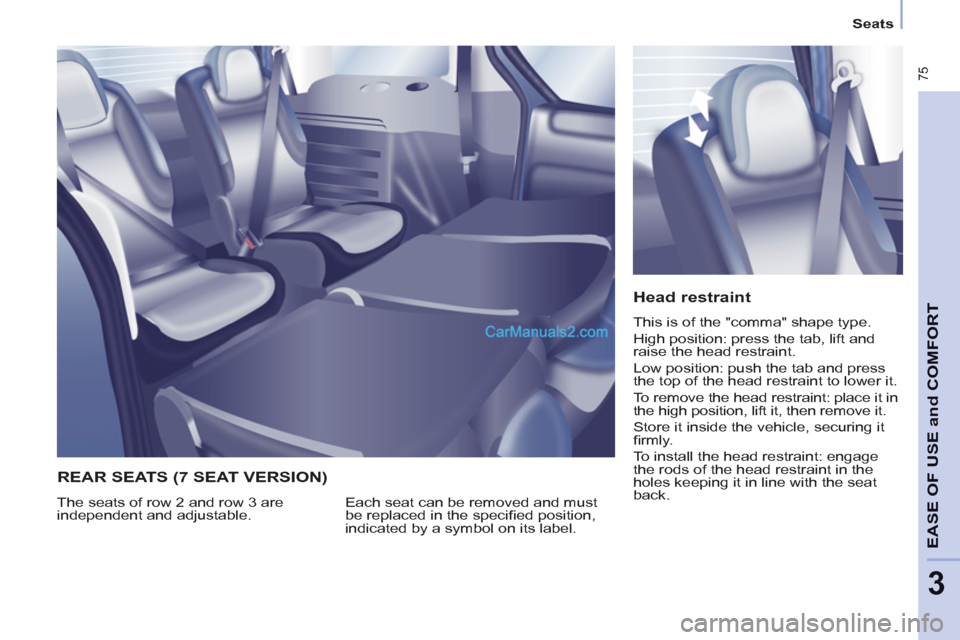

Head restraint

This is of the "comma" shape type.
High position: press the tab, lift and
raise the head restraint.
Low position: push the tab and press
the top of the head restraint to lower it.
To remove the head restraint: place it in
the high position, lift it, then remove it.
Store it inside the vehicle, securing it
fi rmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed and must
be replaced in the specifi ed position,
indicated by a symbol on its label.
The seats of row 2 and row 3 are
independent and adjustable.
REAR SEATS (7 SEAT VERSION)

76
Seats

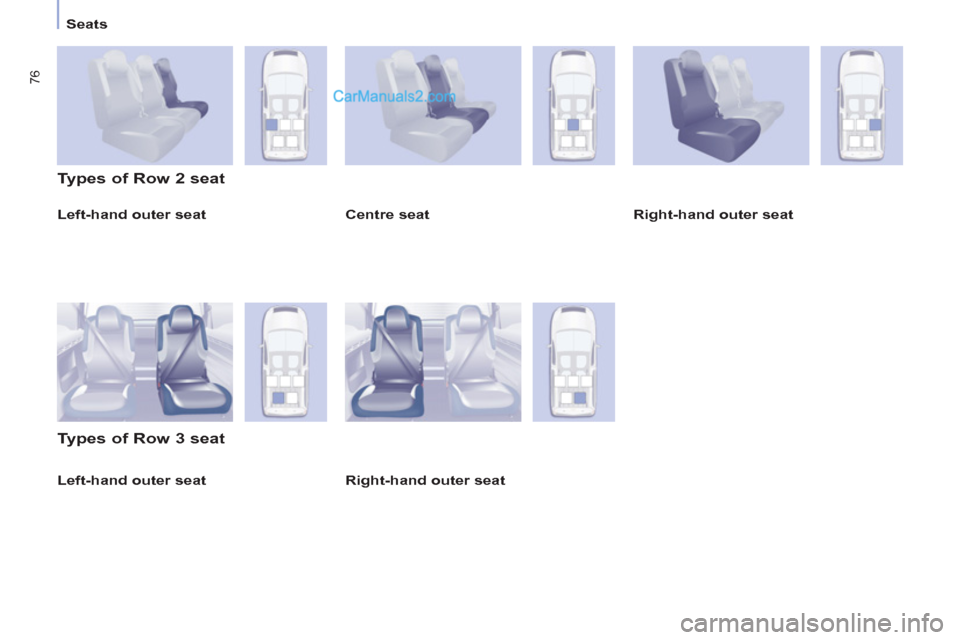

Left-hand outer seat


Types of Row 2 seat

Types of Row 3 seat


Centre seat
Right-hand outer seat


Right-hand outer seat


Left-hand outer seat

77
EASE OF
USE and
COMFOR
T
3


Seats


Adjusting the angle of the seat back


- Operate the control and adjust the
angle.


Placing the seat in the table position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.

Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.

Placing the seat in the fully folded
position


- Place the seat in the table position.

- Pull the red strap, located behind
the seat, to release the feet of the
seat from their anchorage on the
fl oor.

- Tilt the entire seat forwards.



Row 2 seat adjustments

Returning the seat to its original
position


- Fold back the entire seat.
Before folding the seat,
ensure that:


- in row 3, no passenger's foot is at
one of the seat anchorages on the
fl oor,

- the seat is locked securely on the
fl oor,

- the seat belt is available for the
passenger.

78
Seats

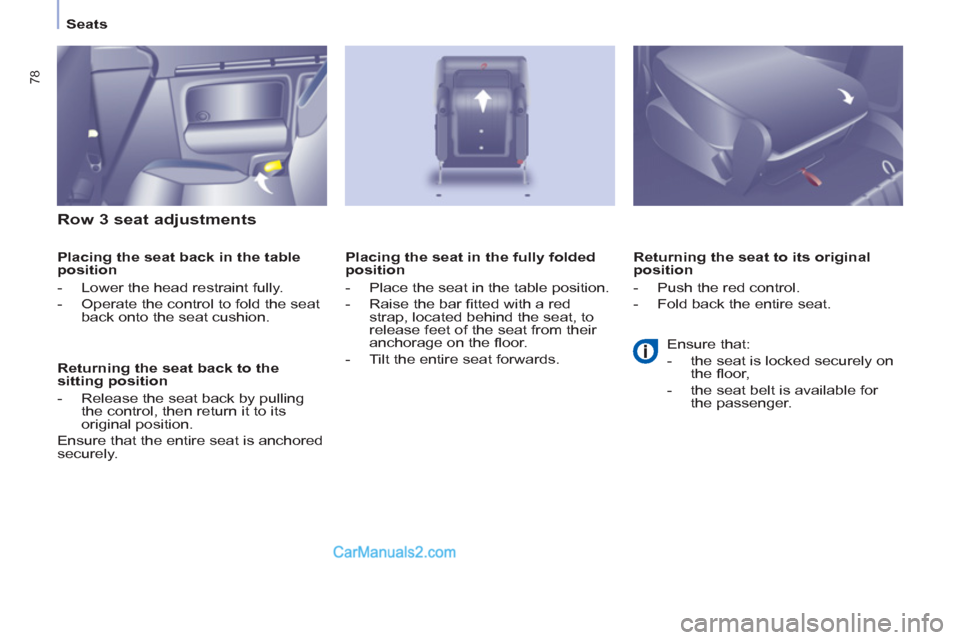

Row 3 seat adjustments


Placing the seat back in the table
position


- Lower the head restraint fully.

- Operate the control to fold the seat
back onto the seat cushion.


Returning the seat back to the
sitting position


- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.
Returning the seat to its original
position


- Push the red control.

- Fold back the entire seat.
Placing the seat in the fully folded
position


- Place the seat in the table position.

- Raise the bar fi tted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the fl oor.

- Tilt the entire seat forwards.
Ensure that:


- the seat is locked securely on
the fl oor,

- the seat belt is available for
the passenger.
