QUICK HELP
7


Changing a fuse

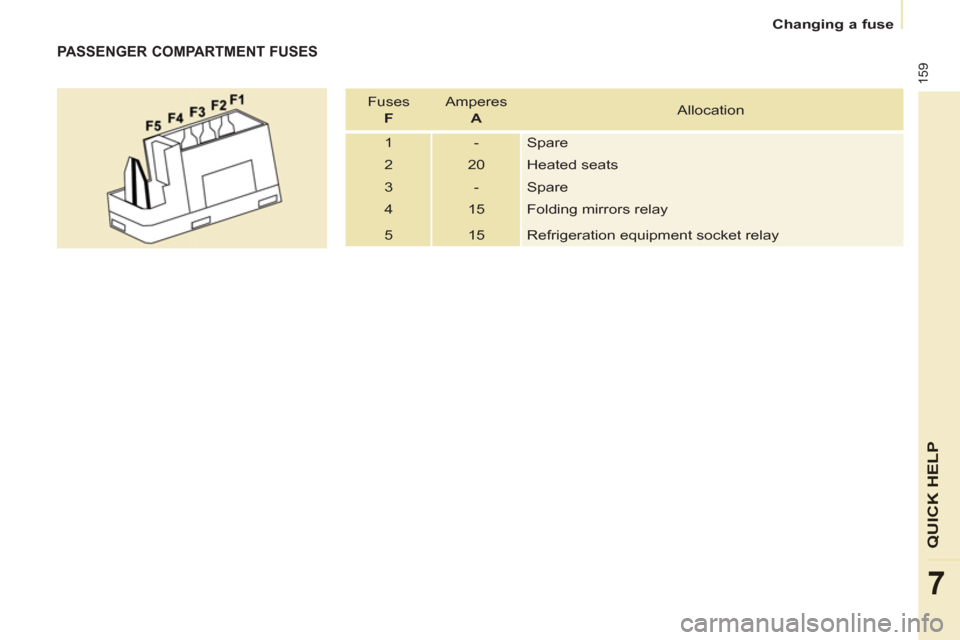

PASSENGER COMPARTMENT FUSES

Fuses
F
Amperes
A
Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay

160


Changing a fuse

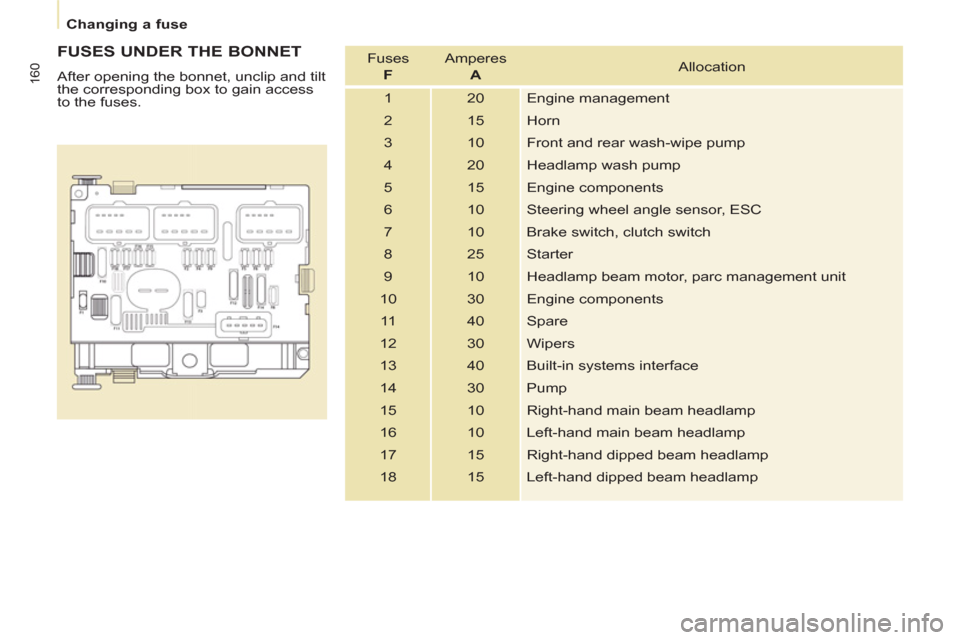

FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

161
QUICK HELP
7


Changing a wiper blade



Placing the windscreen wiper
blades in the special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.



CHANGING A WIPER BLADE

162


Having your vehicle towed



Without lifting (4 wheels on the
road)
You should always use a towing bar.

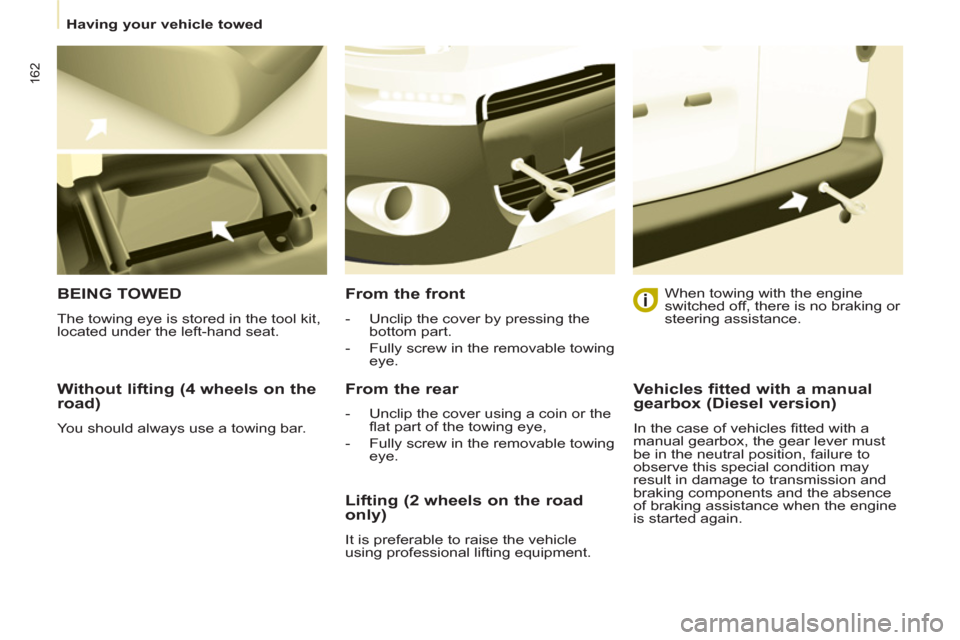

BEING TOWED

The towing eye is stored in the tool kit,
located under the left-hand seat.

From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable towing
eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable towing
eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.


Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

163
QUICK HELP
Precautions
77

164


Dimensions

165
Dimensions
TECHNICAL DAT
A
8

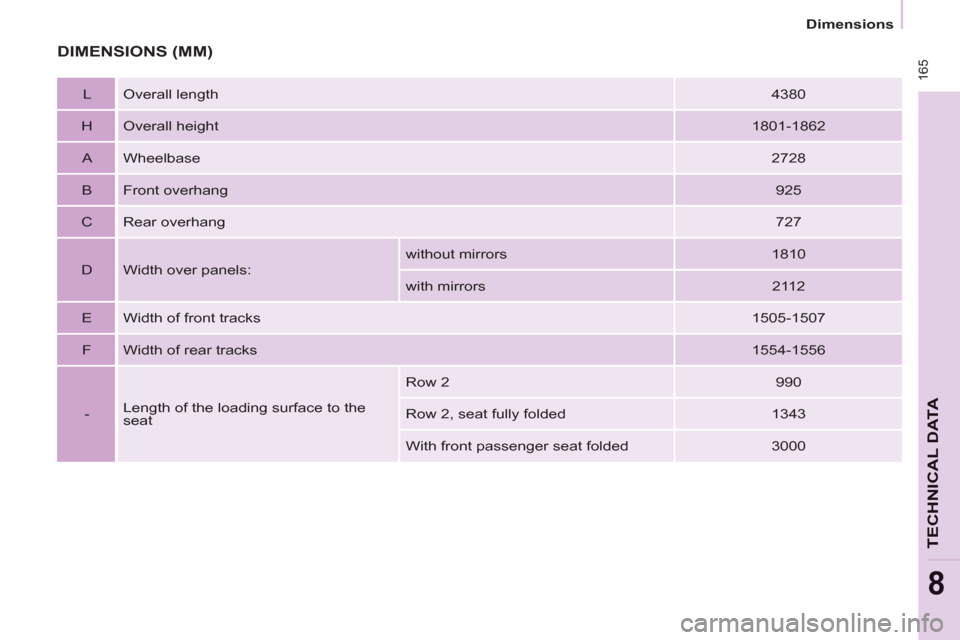

DIMENSIONS (MM)


L Overall length

4380

H Overall height

1801-1862

A Wheelbase

2728

B Front overhang

925

C Rear overhang

727

D Width over panels: without mirrors
1810
with mirrors
2112

E Width of front tracks
1505-1507

F Width of rear tracks
1554-1556

- Length of the loading surface to the
seat Row 2
990
Row 2, seat fully folded
1343
With front passenger seat folded
3000

166


Dimensions

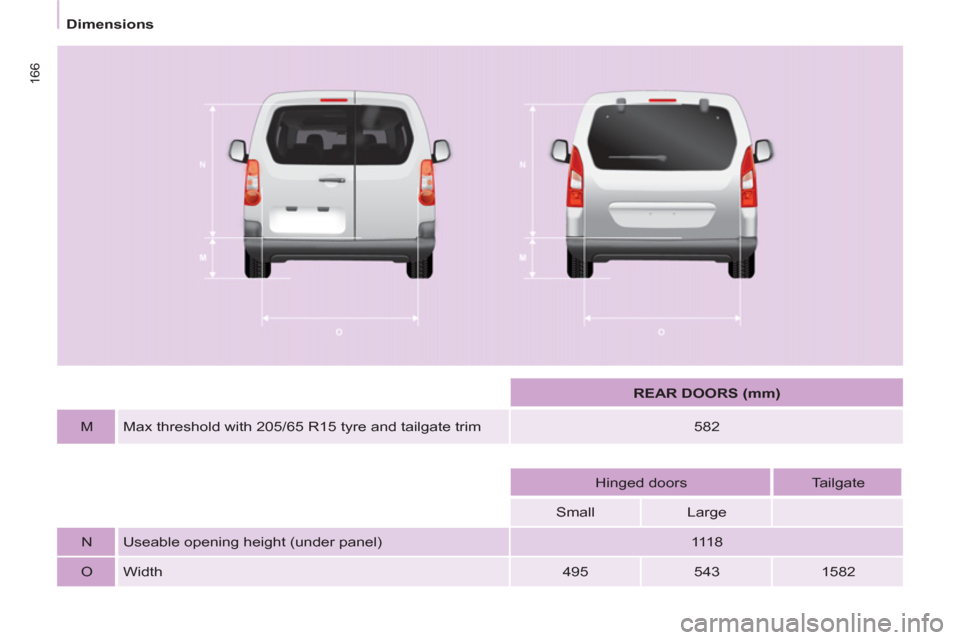

REAR DOORS (mm)



M
Max threshold with 205/65 R15 tyre and tailgate trim
582






Hinged doors
Tailgate

Small
Large




N Useable opening height (under panel)
111 8

O Width
495
543
1582

16
7
Dimensions
TECHNICAL DAT
A
8

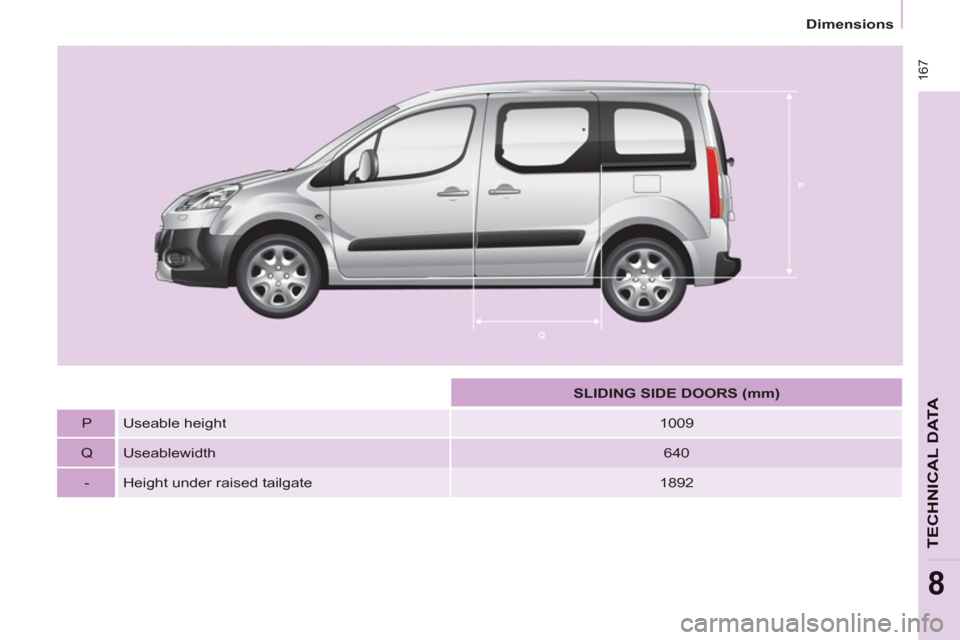

SLIDING SIDE DOORS (mm)



P Useable height
1009

Q Useablewidth
640

- Height under raised tailgate
1892

168

Weights

WEIGHTS AND TOWED LOADS (KG)


General points

For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
PEUGEOT dealer. With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
with a lightly loaded towing vehicle
may have an adverse effect on its road
holding.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country). High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres; the towed load
mentioned must be reduced by 10 %
for each additional 1000 metres.
