Peugeot Partner Tepee 2013 Owner's Guide

19


Access

READY TO SET OFF
2

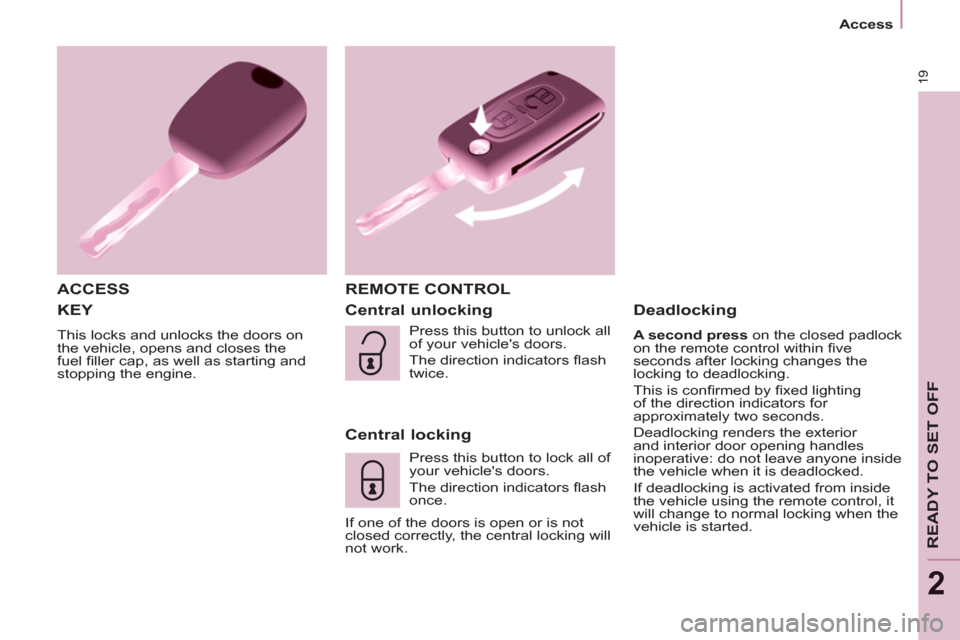

KEY

This locks and unlocks the doors on
the vehicle, opens and closes the
fuel fi ller cap, as well as starting and
stopping the engine.

ACCESS REMOTE CONTROL

Central unlocking

Central locking

Press this button to lock all of
your vehicle's doors.
The direction indicators fl ash
once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.


Deadlocking


A second press
on the closed padlock
on the remote control within fi ve
seconds after locking changes the
locking to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started. Press this button to unlock all
of your vehicle's doors.
The direction indicators fl ash
twice.

20


Access

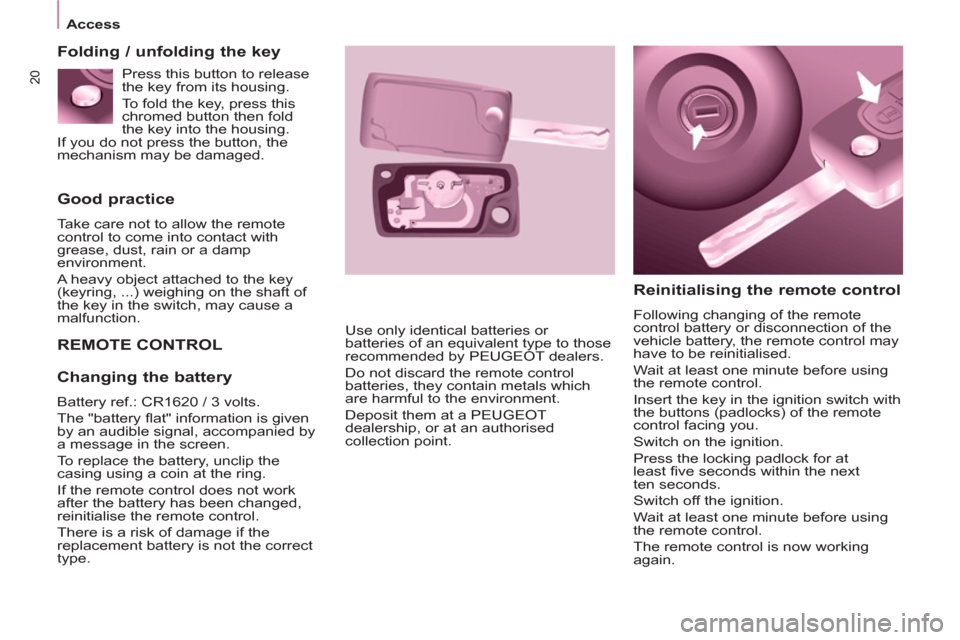

Good practice

Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.

REMOTE CONTROL
Reinitialising the remote control

Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reinitialised.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at
least fi ve seconds within the next
ten seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again. Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at an authorised
collection point.


Folding / unfolding the key

Changing the battery

Battery ref.: CR1620 / 3 volts.
The "battery fl at" information is given
by an audible signal, accompanied by
a message in the screen.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
There is a risk of damage if the
replacement battery is not the correct
type. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.

21


Access

READY TO SET OFF
2

When leaving the vehicle, check that
the lamps are off and nothing of value
is visible.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.


Good practice

Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.

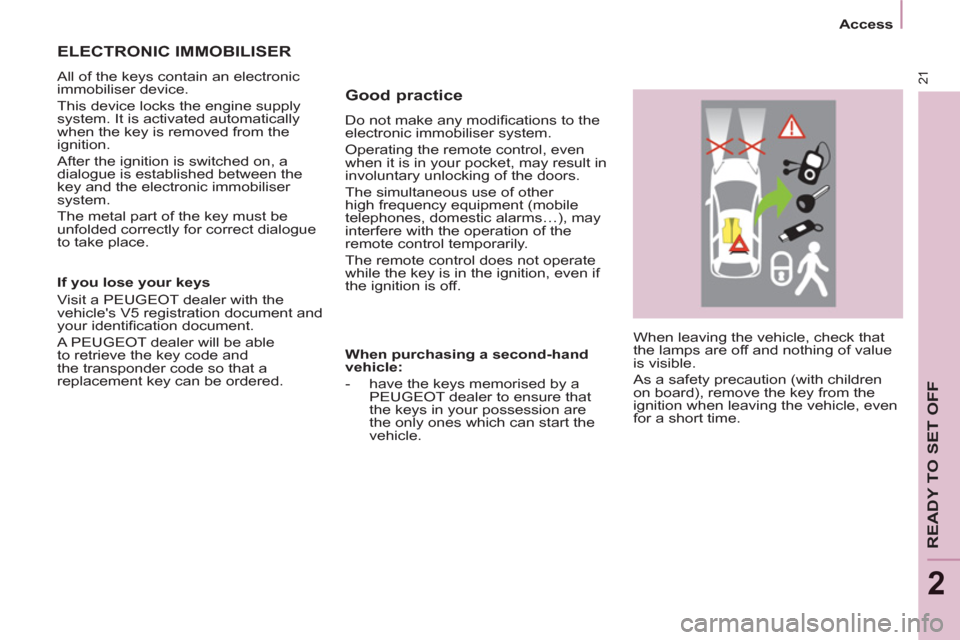

ELECTRONIC IMMOBILISER

All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.

If you lose your keys
Visit a PEUGEOT dealer with the
vehicle's V5 registration document and
your identifi cation document.
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.

When purchasing a second-hand
vehicle:



- have the keys memorised by a
PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.

22


Access

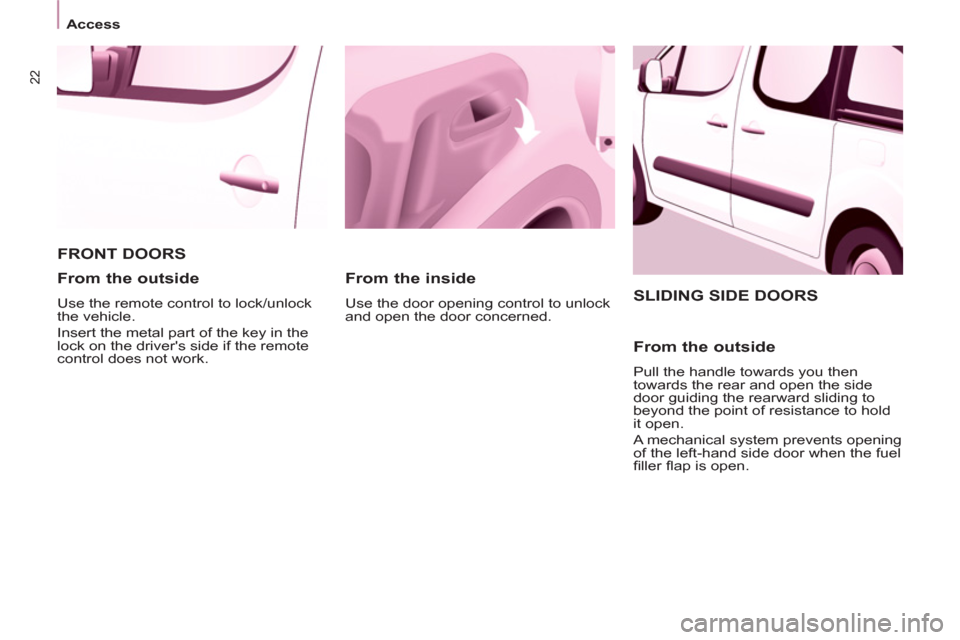

SLIDING SIDE DOORS

From the outside

Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it open.
A mechanical system prevents opening
of the left-hand side door when the fuel
fi ller fl ap is open.
FRONT DOORS

From the inside

Use the door opening control to unlock
and open the door concerned.


From the outside

Use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.

23


Access

READY TO SET OFF
2

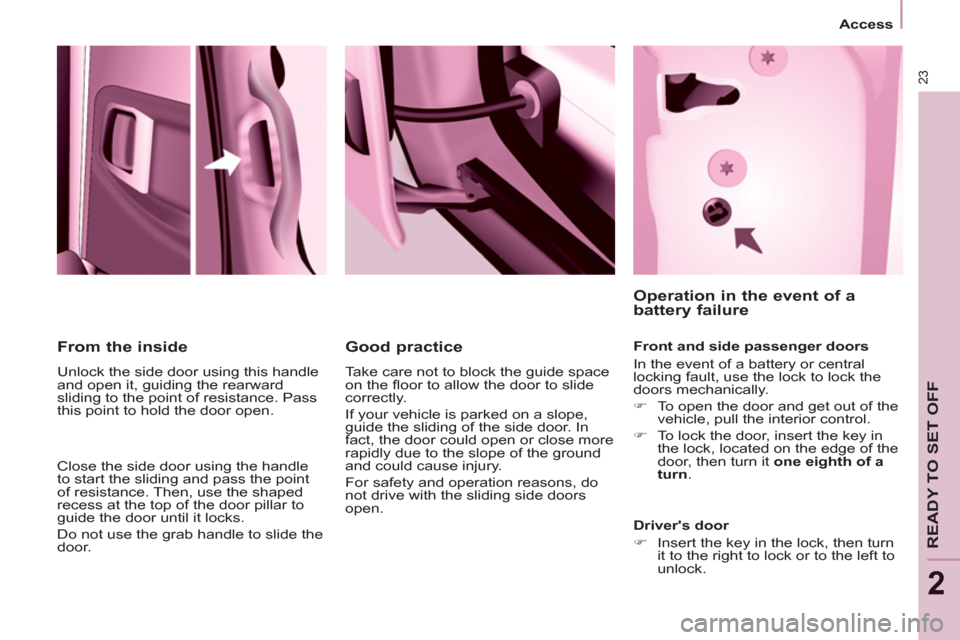

From the inside

Unlock the side door using this handle
and open it, guiding the rearward
sliding to the point of resistance. Pass
this point to hold the door open.

Close the side door using the handle
to start the sliding and pass the point
of resistance. Then, use the shaped
recess at the top of the door pillar to
guide the door until it locks.
Do not use the grab handle to slide the
door.


Good practice

Take care not to block the guide space
on the fl oor to allow the door to slide
correctly.
If your vehicle is parked on a slope,
guide the sliding of the side door. In
fact, the door could open or close more
rapidly due to the slope of the ground
and could cause injury.
For safety and operation reasons, do
not drive with the sliding side doors
open.







Operation in the event of a
battery failure

Front and side passenger doors
In the event of a battery or central
locking fault, use the lock to lock the
doors mechanically.


)
To open the door and get out of the
vehicle, pull the interior control.

)
To lock the door, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn
.


Driver's door


)
Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.

24


Access

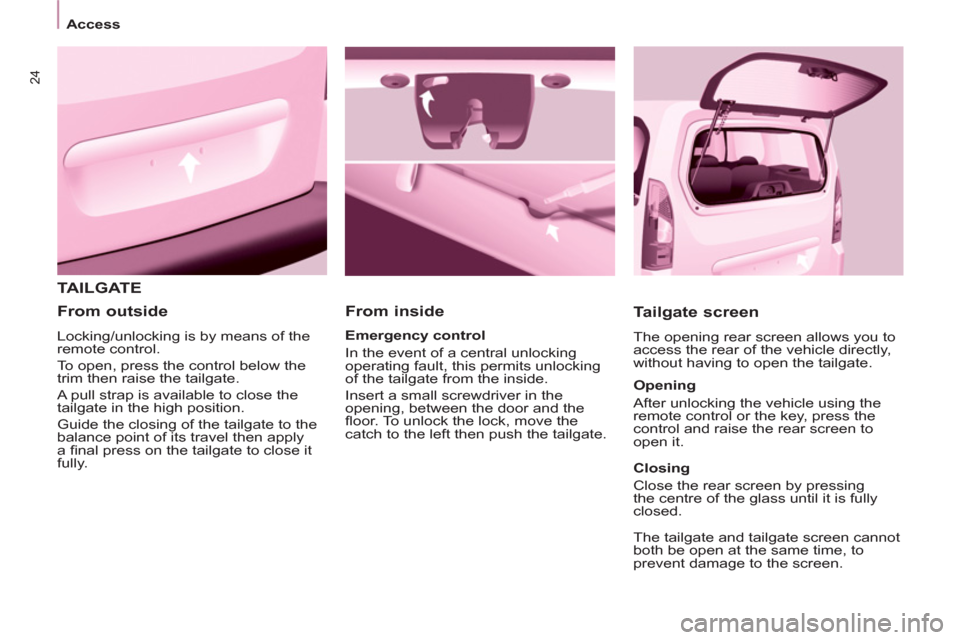

TAILGATE

From inside

Tailgate screen

The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.



From outside

Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a fi nal press on the tailgate to close it
fully.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.

Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.

The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the screen.

25


Access

READY TO SET OFF
2

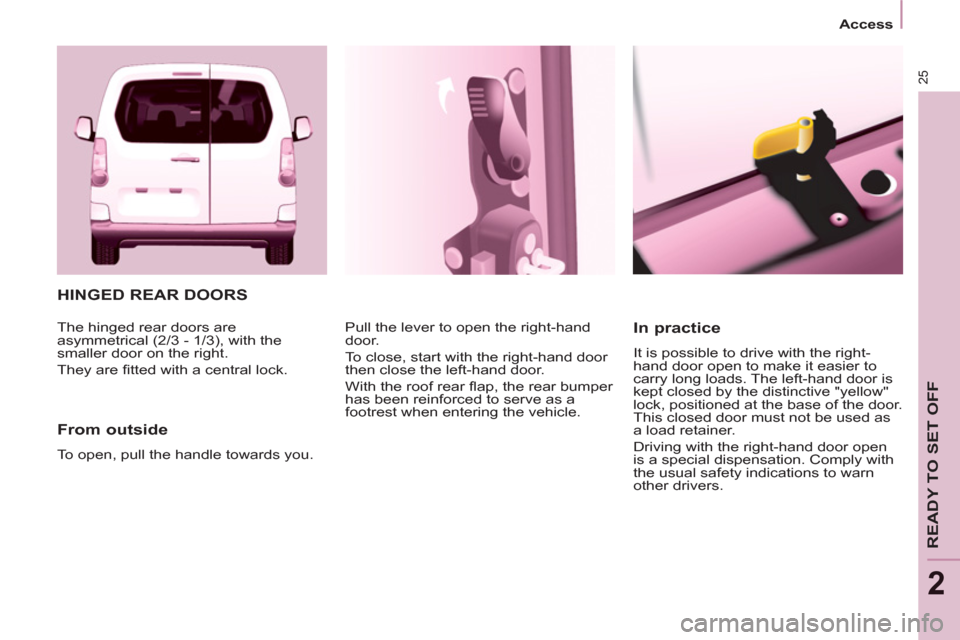

HINGED REAR DOORS

From outside

To open, pull the handle towards you. Pull the lever to open the right-hand
door.
To close, start with the right-hand door
then close the left-hand door.
With the roof rear fl ap, the rear bumper
has been reinforced to serve as a
footrest when entering the vehicle.


In practice

It is possible to drive with the right-
hand door open to make it easier to
carry long loads. The left-hand door is
kept closed by the distinctive "yellow"
lock, positioned at the base of the door.
This closed door must not be used as
a load retainer.
Driving with the right-hand door open
is a special dispensation. Comply with
the usual safety indications to warn
other drivers. The hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fi tted with a central lock.

26


Access

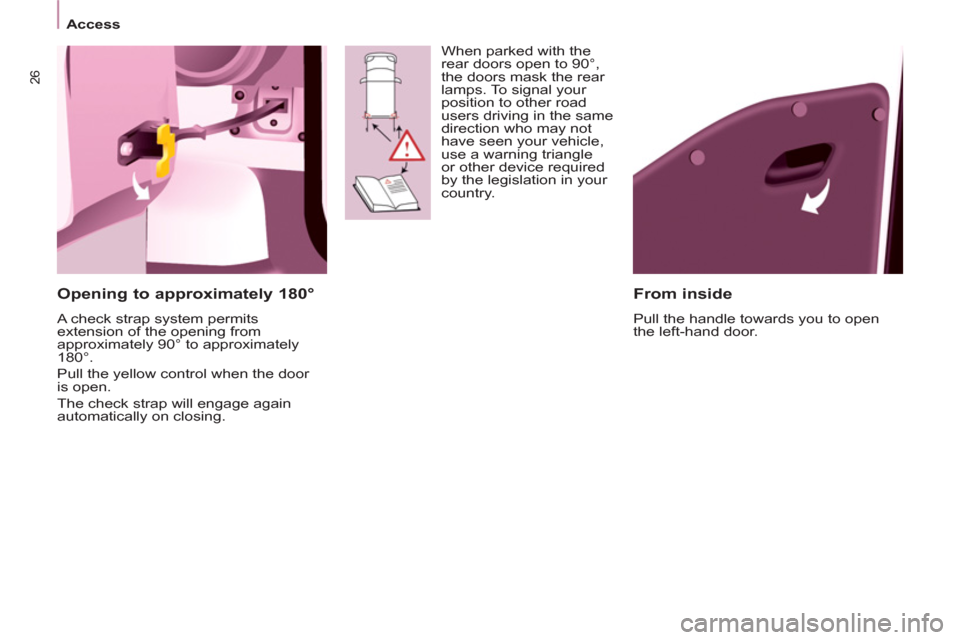

From inside

Pull the handle towards you to open
the left-hand door.


Opening to approximately 180°

A check strap system permits
extension of the opening from
approximately 90° to approximately
180°.
Pull the yellow control when the door
is open.
The check strap will engage again
automatically on closing. When parked with the
rear doors open to 90°,
the doors mask the rear
lamps. To signal your
position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your
country.

27


Access

READY TO SET OFF
2

REAR ROOF FLAP

Support bar

A support bar is provided for
transporting long loads, after opening
the rear roof fl ap.
Fold back the support bar by lifting the
lever.
Support it to the door pillar.
Support the long loads to be
transported, lift them and reposition the
support bar with one hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads fi rmly.
The rear bumper has been
reinforced to serve as a footrest
when entering the vehicle.
The rear doors only lock when the
support bar is installed.
When the rear roof fl ap is open, take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications,
to warn other drivers.
Reserve the use of the rear roof fl ap
for short journeys. The side supports can be used as
hooking points.
- lower the black paddle to secure
the rear roof fl ap.
Securing the rear roof fl ap places it on
the seal correctly and ensures sealing
without noise.
This rear roof fl ap is only compatible
with the hinged doors.
To open the rear roof fl ap:


- raise the black paddle of the toggle,

- relieve the toggle by pressing the
rear roof fl ap (downwards) then
release the hook,

- lift the rear roof fl ap,

- pass the point of resistance to
secure the rear roof fl ap using the
support stays.

Never drive without the stays in place.
To close the rear roof fl ap:


- check that the support bar is
secured correctly,

- lower the rear roof fl ap,

- while pressing the rear roof fl ap
(downwards), take hold of the two
loops of the spring then place the
hook in its housing,
Never attach any load to the rear roof
fl ap.

Never drive without the support bar in
place.

28


Access


CENTRAL LOCKING


An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits
central unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
The doors can still be opened from the
inside.
Door open warning lamp


Driving with the doors locked may
make access to the interior more
diffi cult in an emergency.



Anti-intrusion security

If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.

Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
The characteristic central locking noise
is heard. The LED in the switch on the
dashboard central switch panel comes
on.
During the journey, opening a door
results in complete unlocking of the
vehicle.

Activating / deactivating
the function
With the ignition on, press
and hold this switch to
activate or deactivate the
function. The control switch LED:


- fl ashes when the doors are locked
with the vehicle stationary and the
engine off,

- comes on when the doors are locked
and from the time the ignition is
switched on.
