Peugeot Partner Tepee 2014 Owner's Manual - RHD (UK, Australia)

HANDBOOK
PARTNERTepee

On-line handbook
You can find your handbook on the PEUGEOT website, under "Personal space". Referring to the handbook on-line also gives you access to the latest information available, easily identified by the bookmark, associated with this symbol:
If the "Personal space" function is not available on the PEUGEOT public website for your country, you can find your handbook at the following address: http://public.servicebox.peugeot.com
The Vehicle documentation link in the home page (no registration is needed), the language, the vehicle, its body style, the print edition of your handbook appropriate for the date of registration of your vehicle.
Select:
You have access to your handbook on line, together with the latest information, identified by the symbol:

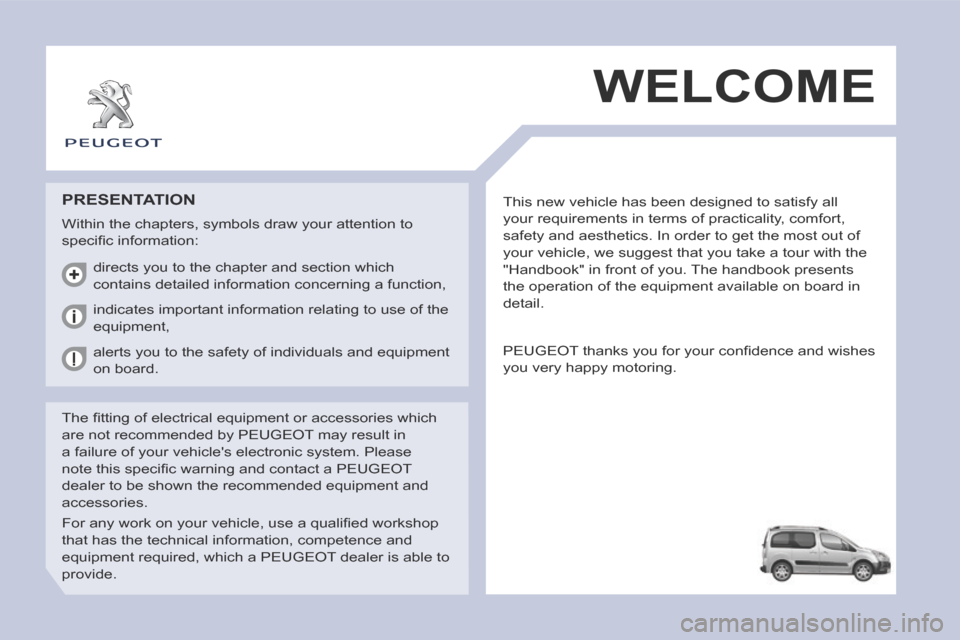

This new vehicle has been designed to satisfy all
your requirements in terms of practicality, comfort,
safety and aesthetics. In order to get the most out of
your vehicle, we suggest that you take a tour with the
"Handbook" in front of you. The handbook presents
the operation of the equipment available on board in
detail.
WELCOME
The fi tting of electrical equipment or accessories which
are not recommended by PEUGEOT may result in
a failure of your vehicle's electronic system. Please
note this specifi c warning and contact a PEUGEOT
dealer to be shown the recommended equipment and
accessories. PEUGEOT thanks you for your confi dence and wishes
you very happy motoring.
For any work on your vehicle, use a qualifi ed workshop
that has the technical information, competence and
equipment required, which a PEUGEOT dealer is able to
provide.
Within the chapters, symbols draw your attention to
specifi c information:
PRESENTATION
directs you to the chapter and section which
contains detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipment
on board.

2

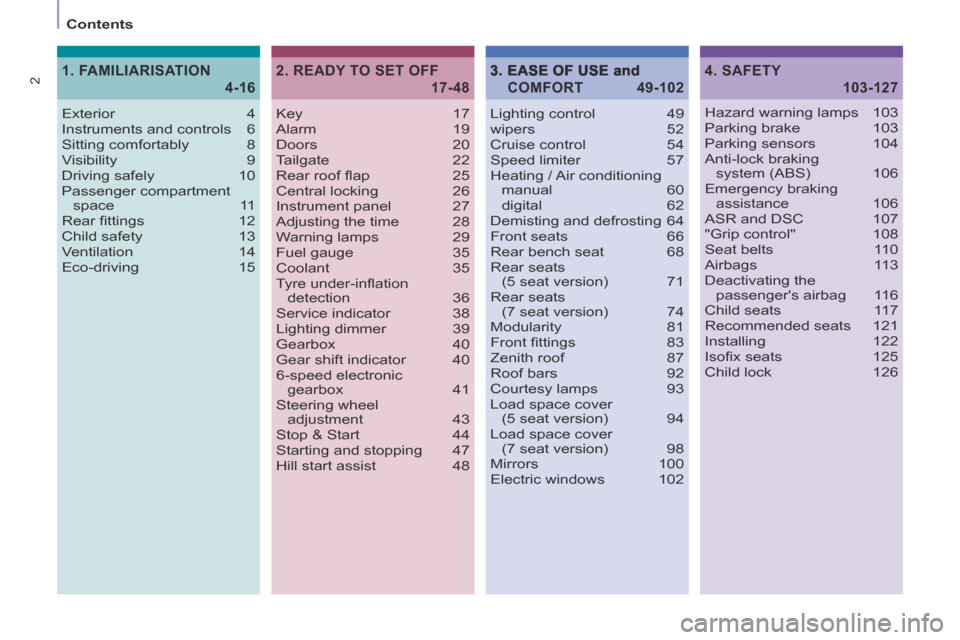

Contents Key 17
Alarm 19
Doors 20
Tailgate 22
Rear roof fl ap 25
Central locking 26
Instrument panel 27
Adjusting the time 28
Warning lamps 29
Fuel gauge 35
Coolant 35
Tyre under-infl ation detection 36
Service indicator 38
Lighting dimmer 39
Gearbox 40
Gear shift indicator 40
6-speed electronic gearbox 41
Steering wheel adjustment 43
Stop & Start 44
Starting and stopping 47
Hill start assist 48 Lighting control 49
wipers
52
Cruise control 54
Speed limiter 57
Heating / Air conditioning manual 60
digital 62
Demisting and defrosting 64
Front seats 66
Rear bench seat 68
Rear seats (5 seat version) 71
Rear seats (7 seat version) 74
Modularity 81
Front fi ttings 83
Zenith roof 87
Roof bars 92
Courtesy lamps 93
Load space cover (5 seat version) 94
Load space cover (7 seat version) 98
Mirrors 100
Electric windows 102
2. READY TO SET OFF
17-48
4. SAFETY
103-127
Exterior 4
Instruments and controls 6
Sitting comfortably 8
Visibility 9
Driving safely 10
Passenger compartment space 11
Rear fi ttings 12
Child safety 13
Ventilation 14
Eco-driving 15
1. FAMILIARISATION
4-16
Hazard warning lamps 103
Parking brake 103
Parking sensors 104
Anti-lock braking
system (ABS) 106
Emergency braking assistance 106
ASR and DSC 107
"Grip control" 108
Seat belts 110
Airbags 113
Deactivating the passenger's airbag 116
Child seats 117
Recommended seats 121
Installing 122
Isofi x seats 125
Child lock 126
3. EASE OF USE and
COMFORT 49-102

3
Contents
CONTENTS
corresponds to
a left hand drive
vehicle. corresponds to
a right hand drive
vehicle.

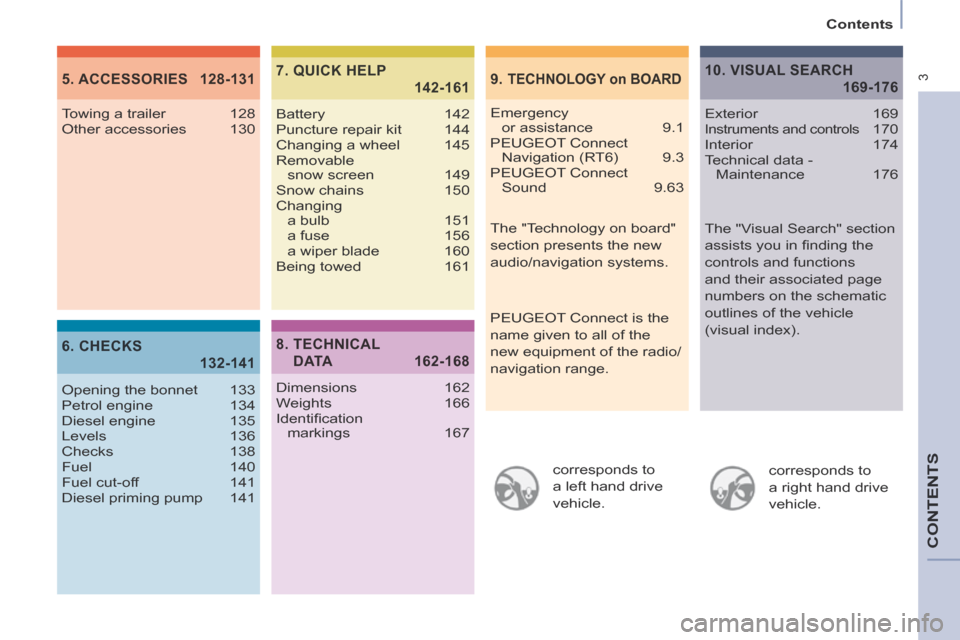

9. TECHNOLOGY on BOARD5. ACCESSORIES 128-131
6. CHECKS
132-141
7. QUICK HELP
142-161
Emergency
or assistance 9.1
PEUGEOT Connect Navigation (RT6) 9.3
PEUGEOT Connect Sound 9.63
Towing a trailer 128
Other accessories 130
Opening the bonnet 133
Petrol engine 134
Diesel engine 135
Levels 136
Checks 138
Fuel 140
Fuel cut-off
141
Diesel priming pump 141 Battery 142
Puncture repair kit 144
Changing a wheel 145
Removable
snow screen 149
Snow chains 150
Changing a bulb 151
a fuse 156
a wiper blade 160
Being towed 161
8. TECHNICAL
DATA 162-168
Dimensions 162
Weights 166
Identifi cation
markings 167
10. VISUAL SEARCH
169-176
Exterior 169Instruments and controls 170
Interior 174
Technical data - Maintenance 176
The "Visual Search" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle
(visual index).
The "Technology on board"
section presents the new
audio/navigation systems.
PEUGEOT Connect is the
name given to all of the
new equipment of the radio/
navigation range.

2a
6a
2b
6b
7a
7b
2c
2e
4
4
2d
4

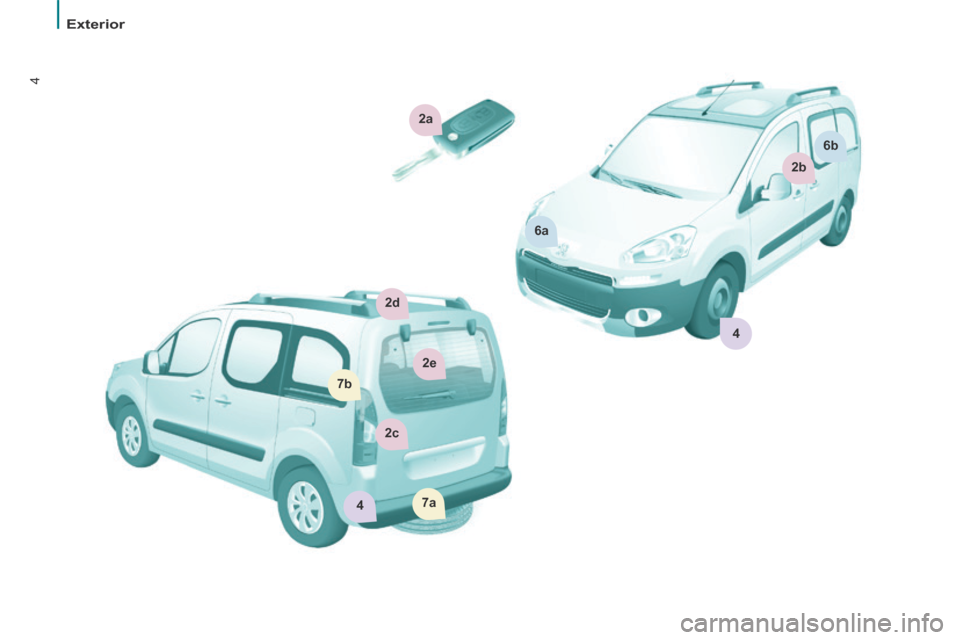

Exterior

2c
2e
2b7a4
6a
7b
2a6b
4
2d
17
2322
104
108
151 140
133
21
25
144,
1455
1
FAMILIARISATION

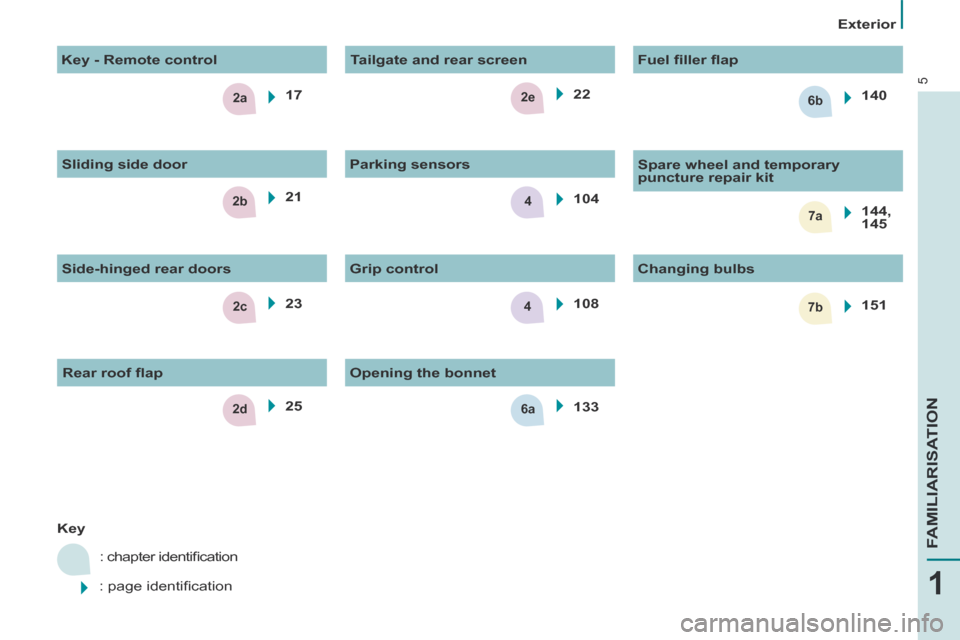

Exterior
Key : chapter identifi cation
: page identifi cation Grip control
Changing bulbs Fuel fi ller fl ap
Parking sensors
Opening the bonnet
Key - Remote control
Side-hinged rear doors Sliding side door Tailgate and rear screen
Spare wheel and temporary
puncture repair kit
Rear roof fl ap

6

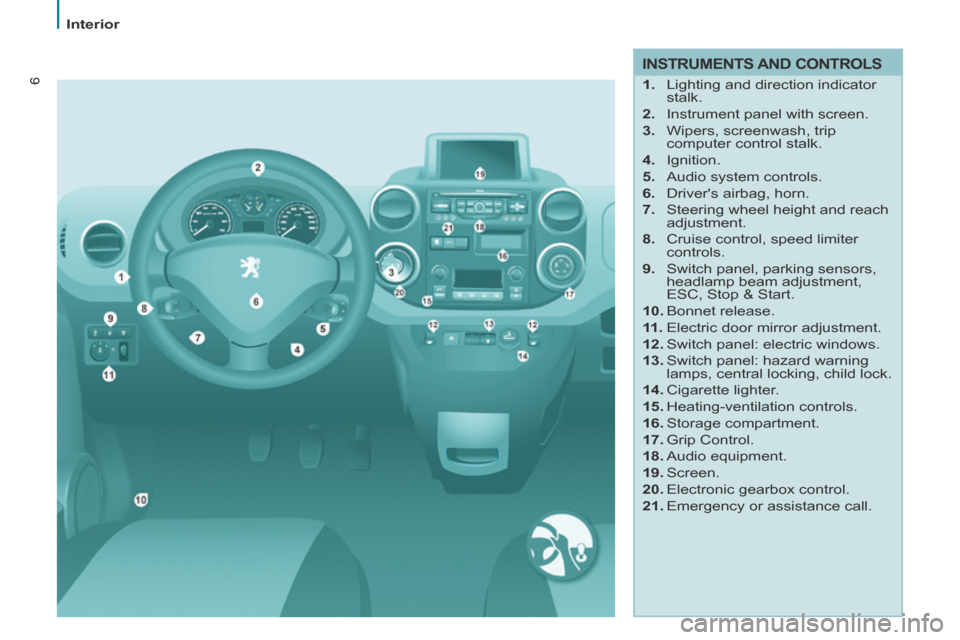

Interior
6 INSTRUMENTS AND CONTROLS
1. Lighting and direction indicator stalk.
2. Instrument panel with screen.
3. Wipers, screenwash, trip computer control stalk.
4. Ignition.
5. Audio system controls.
6. Driver's airbag, horn.
7. Steering wheel height and reach adjustment.
8. Cruise control, speed limiter controls.
9. Switch panel, parking sensors, headlamp beam adjustment,
ESC, Stop & Start.
10. Bonnet release.
11 . Electric door mirror adjustment.
12. Switch panel: electric windows.
13. Switch panel: hazard warning lamps, central locking, child lock.
14. Cigarette lighter.
15. Heating-ventilation controls.
16. Storage compartment.
17. Grip Control.
18. Audio equipment.
19. Screen.
20. Electronic gearbox control.
21. Emergency or assistance call.

7
Interior
7
111
FAMILIARISATIONFAMILIARISATIONFAMILIARISATION

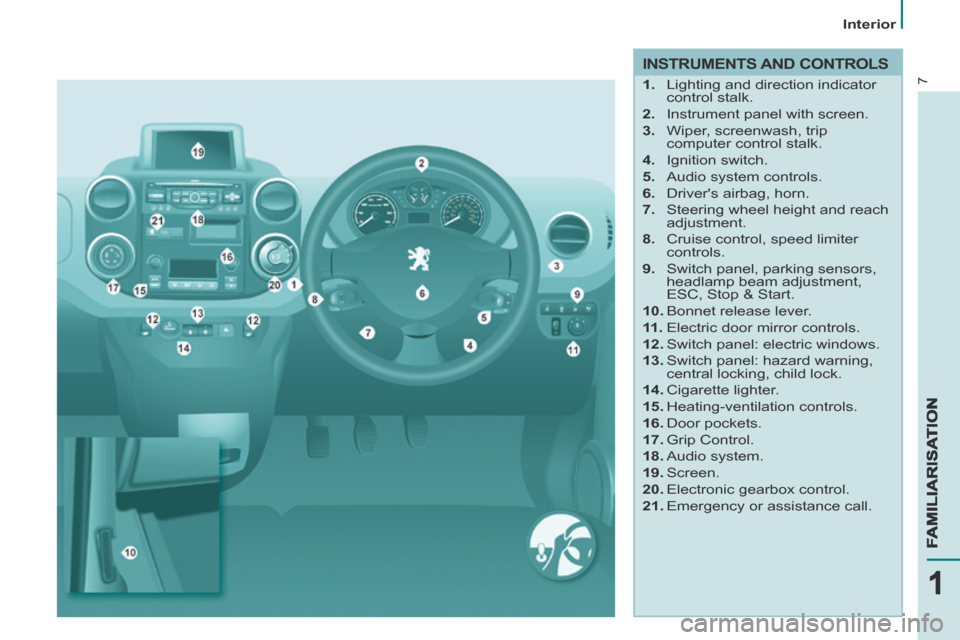

INSTRUMENTS AND CONTROLS
1. Lighting and direction indicator control stalk.
2. Instrument panel with screen.
3. Wiper, screenwash, trip computer control stalk.
4. Ignition switch.
5. Audio system controls.
6. Driver's airbag, horn.
7. Steering wheel height and reach adjustment.
8. Cruise control, speed limiter controls.
9. Switch panel, parking sensors, headlamp beam adjustment,
ESC, Stop & Start.
10. Bonnet release lever.
11 . Electric door mirror controls.
12. Switch panel: electric windows.
13. Switch panel: hazard warning, central locking, child lock.
14. Cigarette lighter.
15. Heating-ventilation controls.
16. Door pockets.
17. Grip Control.
18. Audio system.
19. Screen.
20. Electronic gearbox control.
21. Emergency or assistance call.

2
34
3
36643
85
11 0 100
8
Interior
8

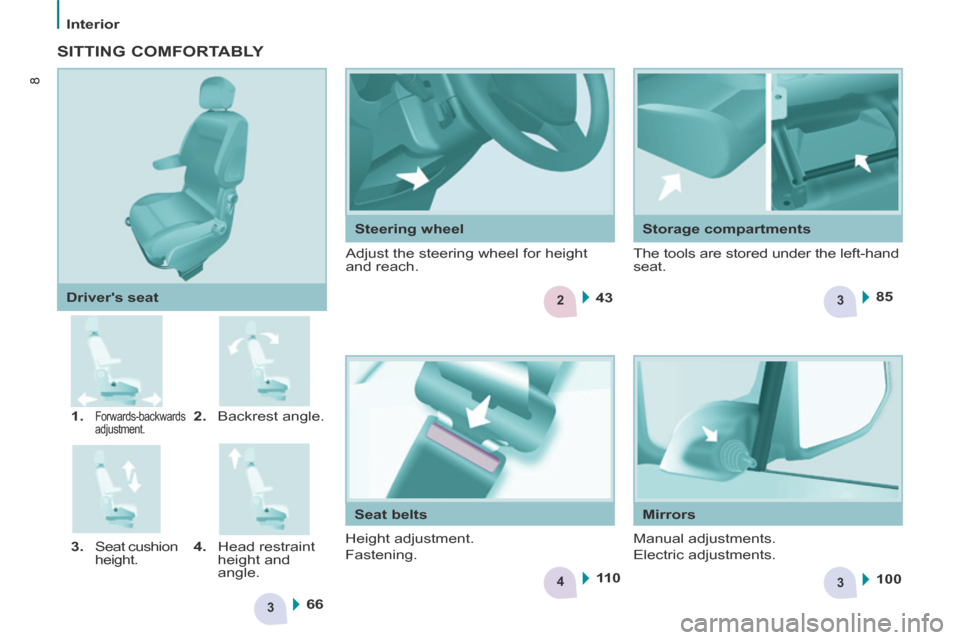

Steering wheel Storage compartments
1.
Forwards-backwards
adjustment. 2. Backrest angle.
3. Seat cushion height. 4. Head restraint
height and
angle.
Driver's seat
SITTING COMFORTABLY
The tools are stored under the left-hand
seat.
Adjust the steering wheel for height
and reach.
Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.
