Snow screen
149
QUICK HELP
7

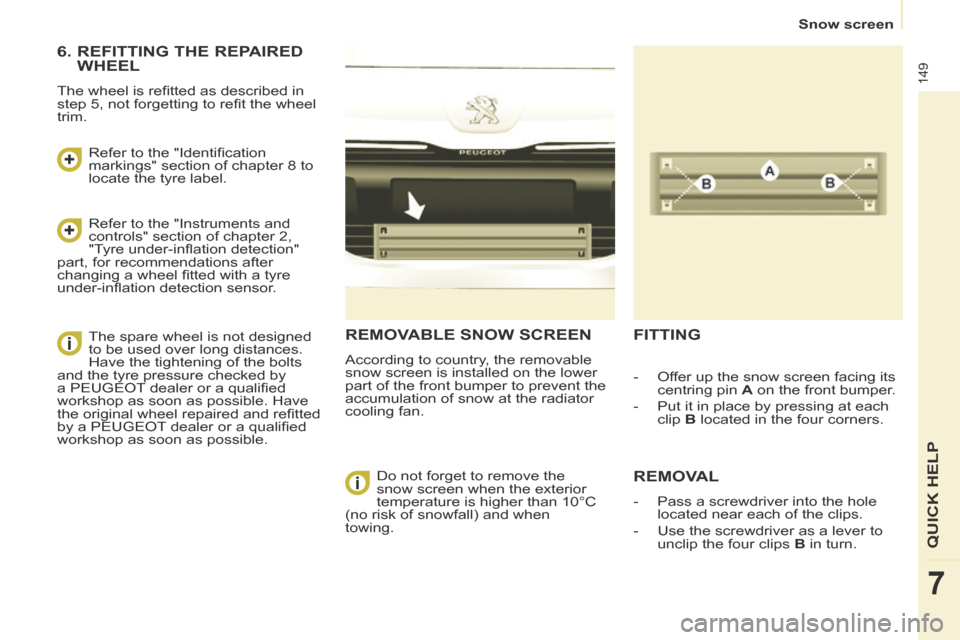

REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
FITTING
REMOVAL
- Pass a screwdriver into the hole located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
Do not forget to remove the
snow screen when the exterior
temperature is higher than 10°C
(no risk of snowfall) and when
towing.
6. REFITTING THE REPAIRED WHEEL
The wheel is refi tted as described in
step 5, not forgetting to refi t the wheel
trim.
Refer to the "Identifi cation
markings" section of chapter 8 to
locate the tyre label.
Refer to the "Instruments and
controls" section of chapter 2,
"Tyre under-infl ation detection"
part, for recommendations after
changing a wheel fi tted with a tyre
under-infl ation detection sensor.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by
a PEUGEOT dealer or a qualifi ed
workshop as soon as possible. Have
the original wheel repaired and refi tted
by a PEUGEOT dealer or a qualifi ed
workshop as soon as possible.

Snow chains
150

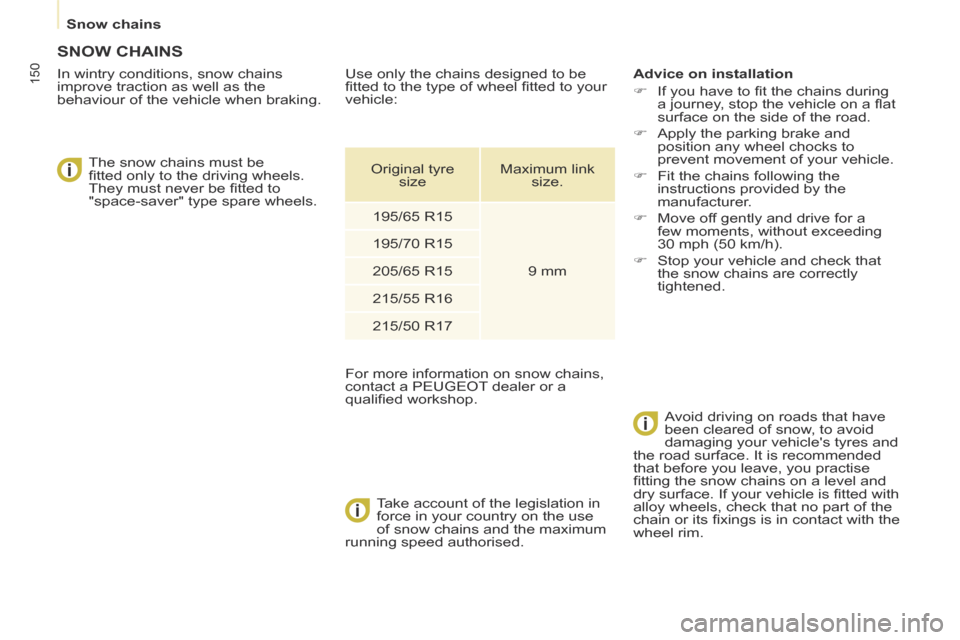

SNOW CHAINS
In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking. The snow chains must be
fi tted only to the driving wheels.
They must never be fi tted to
"space-saver" type spare wheels.
Take account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised. Advice on installation
 If you have to fi t the chains during
a journey, stop the vehicle on a fl at
surface on the side of the road.
 Apply the parking brake and position any wheel chocks to
prevent movement of your vehicle.
 Fit the chains following the instructions provided by the
manufacturer.
 Move off gently and drive for a few moments, without exceeding
30 mph (50 km/h).
 Stop your vehicle and check that the snow chains are correctly
tightened.
Avoid driving on roads that have
been cleared of snow, to avoid
damaging your vehicle's tyres and
the road surface. It is recommended
that before you leave, you practise
fi tting the snow chains on a level and
dry surface. If your vehicle is fi tted with
alloy wheels, check that no part of the
chain or its fi xings is in contact with the
wheel rim.
Use only the chains designed to be
fi tted to the type of wheel fi tted to your
vehicle:
For more information on snow chains,
contact a PEUGEOT dealer or a
qualifi ed workshop.
Original tyre
size Maximum link
size.
195/65 R15
9 mm
195/70 R15
205/65 R15
215/55 R16
215/50 R17

Changing a bulb
151
QUICK HELP
7

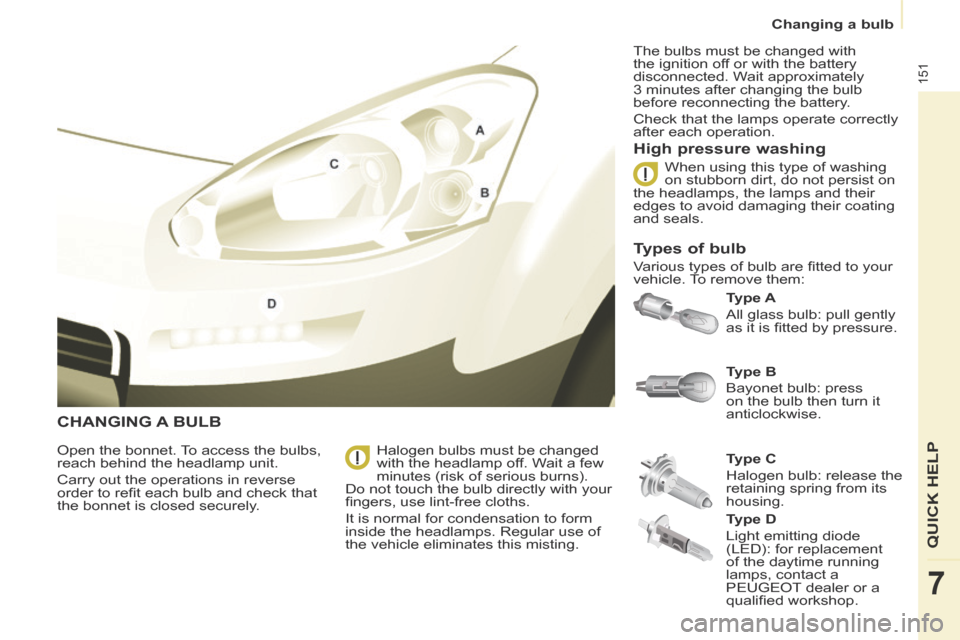

CHANGING A BULB
Type A
All glass bulb: pull gently
as it is fi tted by pressure.
High pressure washing
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refi t each bulb and check that
the bonnet is closed securely. Type C
Halogen bulb: release the
retaining spring from its
housing. Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi ngers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.
Types of bulb
Various types of bulb are fi tted to your
vehicle. To remove them:
Type D
Light emitting diode
(LED): for replacement
of the daytime running
lamps, contact a
PEUGEOT dealer or a
qualifi ed workshop.

Changing a bulb
152
3. Direction indicators
Type B , PY21W - 21W (amber)
- Remove the cover by pulling the fl exible rubber tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.
2. Sidelamps

Type A , W5W - 5W
- Remove the cover by pulling the fl exible rubber tab.
- Remove the bulb holder fi tted by pressure by pulling the connector.
- Change the bulb.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.

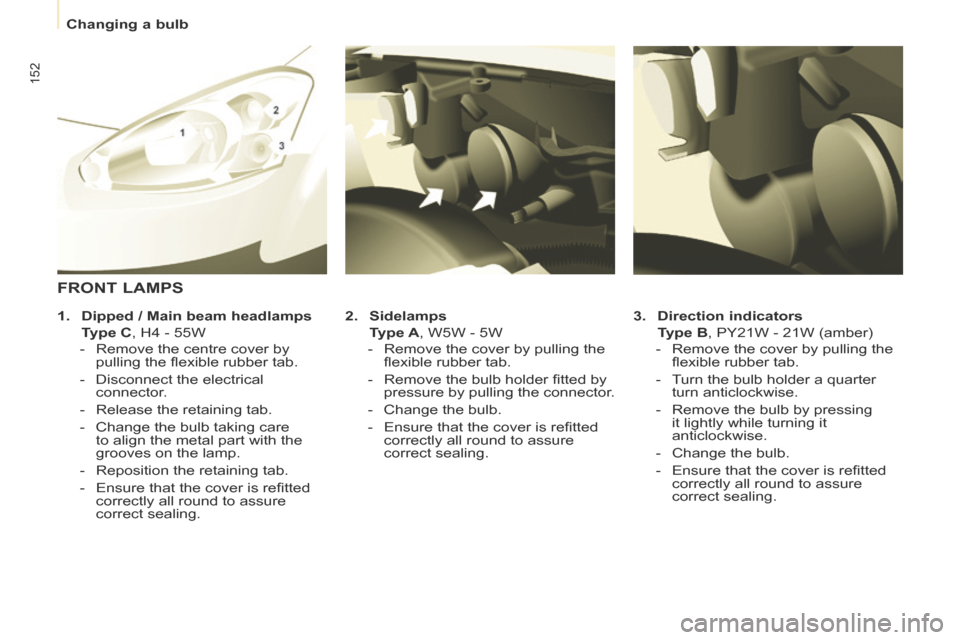

FRONT LAMPS
1. Dipped / Main beam headlamps
Type C , H4 - 55W
- Remove the centre cover by pulling the fl exible rubber tab.
- Disconnect the electrical connector.
- Release the retaining tab.
- Change the bulb taking care to align the metal part with the
grooves on the lamp.
- Reposition the retaining tab.
- Ensure that the cover is refi tted correctly all round to assure
correct sealing.

Changing a bulb
153
QUICK HELP
7

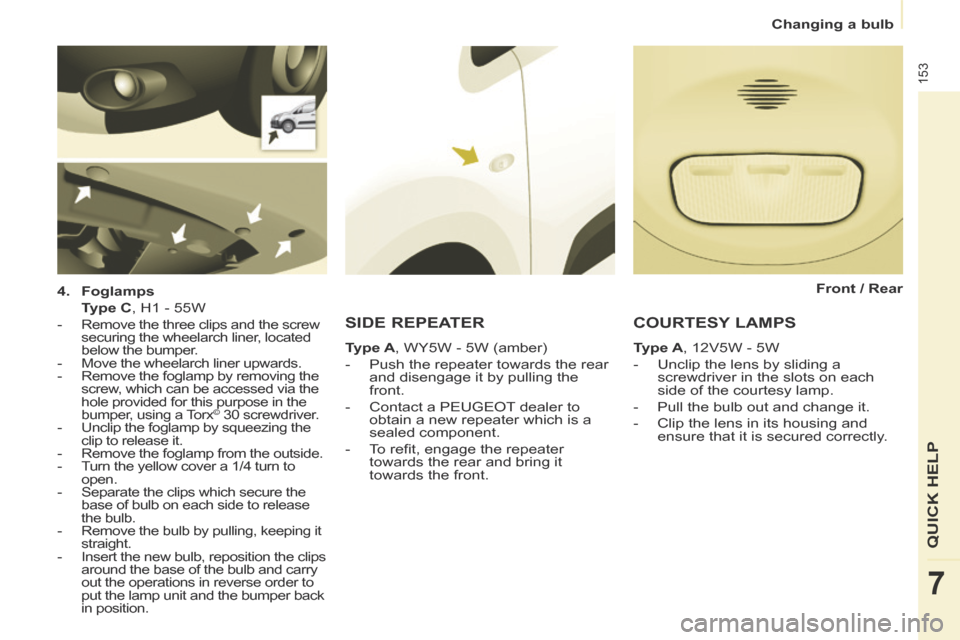

4. Foglamps
Type C , H1 - 55W
-
Remove the three clips and the screw
securing the wheelarch liner, located
below the bumper.

- Move the wheelarch liner upwards.
- Remove the foglamp by removing the screw, which can be accessed via the
hole provided for this purpose in the
bumper, using a Torx
© 30 screwdriver.
- Unclip the foglamp by squeezing the clip to release it.

- Remove the foglamp from the outside.
- Turn the yellow cover a 1/4 turn to open.

- Separate the clips which secure the base of bulb on each side to release
the bulb.

- Remove the bulb by pulling, keeping it straight.

- Insert the new bulb, reposition the clips around the base of the bulb and carry
out the operations in reverse order to
put the lamp unit and the bumper back
in position.
SIDE REPEATER
Type A , WY5W - 5W (amber)
- Push the repeater towards the rear and disengage it by pulling the
front.
- Contact a PEUGEOT dealer to obtain a new repeater which is a
sealed component.
- To refi t, engage the repeater towards the rear and bring it
towards the front.
COURTESY LAMPS
Type A , 12V5W - 5W
- Unclip the lens by sliding a screwdriver in the slots on each
side of the courtesy lamp.
- Pull the bulb out and change it.
- Clip the lens in its housing and ensure that it is secured correctly. Front / Rear

Changing a bulb
154

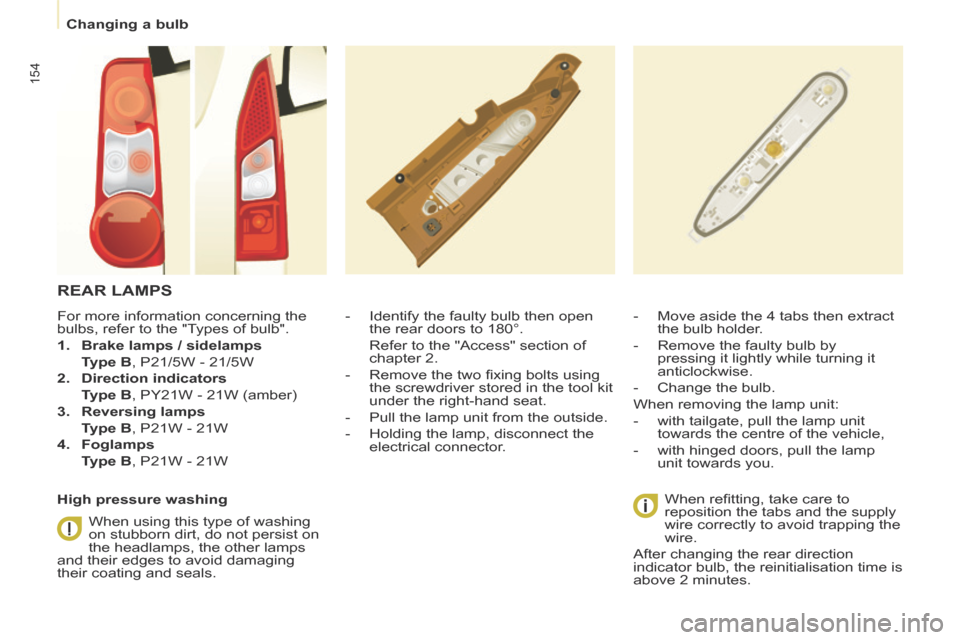

REAR LAMPS
- Identify the faulty bulb then open the rear doors to 180°.
Refer to the "Access" section of chapter 2.
- Remove the two fi xing bolts using the screwdriver stored in the tool kit
under the right-hand seat.
- Pull the lamp unit from the outside.
- Holding the lamp, disconnect the electrical connector.
When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes. - Move aside the 4 tabs then extract the bulb holder.
- Remove the faulty bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.
When removing the lamp unit:
- with tailgate, pull the lamp unit towards the centre of the vehicle,
- with hinged doors, pull the lamp unit towards you.
For more information concerning the
bulbs, refer to the "Types of bulb".
1. Brake lamps / sidelamps

Type B , P21/5W - 21/5W
2. Direction indicators
Type B , PY21W - 21W (amber)
3. Reversing lamps
Type B , P21W - 21W
4. Foglamps
Type B , P21W - 21W
High pressure washing When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

Changing a bulb
155
QUICK HELP
7

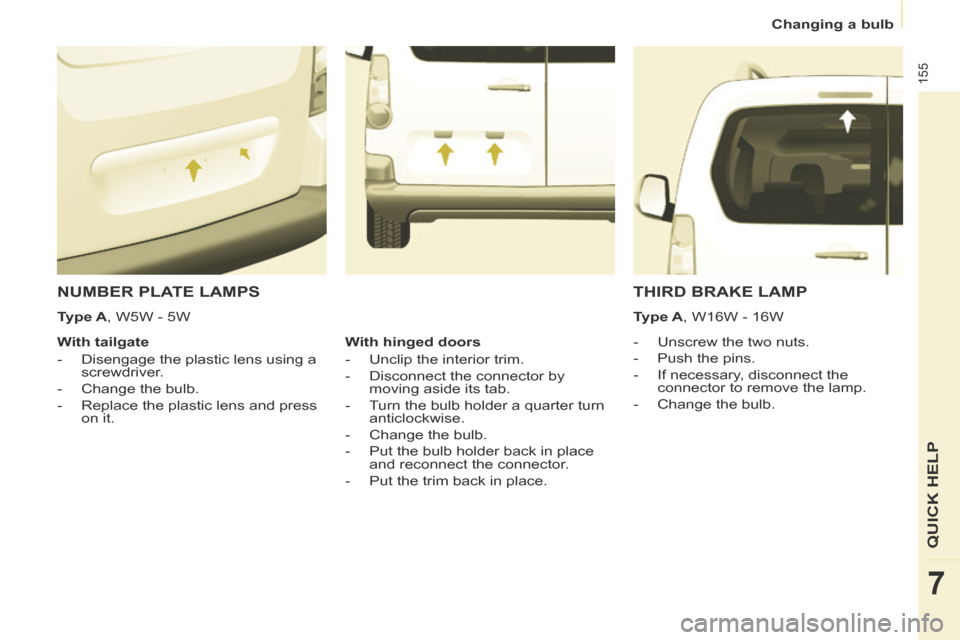

NUMBER PLATE LAMPS
- Unscrew the two nuts.
- Push the pins.
- If necessary, disconnect the connector to remove the lamp.
- Change the bulb.
With tailgate
- Disengage the plastic lens using a
screwdriver.
- Change the bulb.
- Replace the plastic lens and press on it.
THIRD BRAKE LAMP
Type A , W16W - 16W
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.
- Put the bulb holder back in place and reconnect the connector.
- Put the trim back in place.
Type A , W5W - 5W

Changing a fuse
156

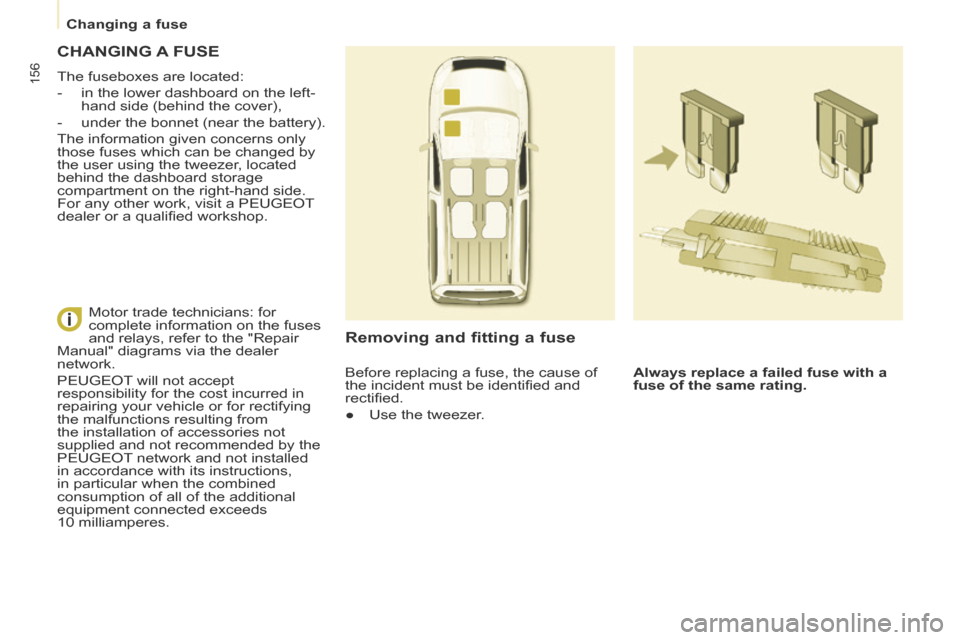

CHANGING A FUSE
The fuseboxes are located:
- in the lower dashboard on the left-hand side (behind the cover),
- under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a PEUGEOT
dealer or a qualifi ed workshop.
Removing and fitting a fuse
Always replace a failed fuse with a
fuse of the same rating.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Before replacing a fuse, the cause of
the incident must be identifi ed and
rectifi ed.
● Use the tweezer.

Changing a fuse
157
QUICK HELP
7
DASHBOARD FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes

A Allocation
1 15 Rear wiper
2 - Spare
3 5 Airbag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free phone kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors demist/defrost

Changing a fuse
158

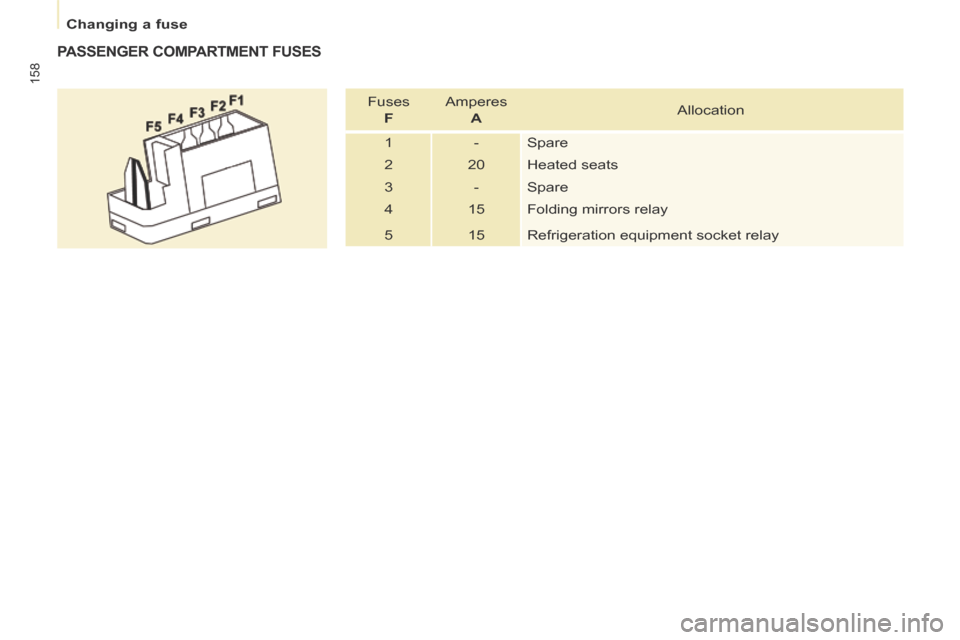

PASSENGER COMPARTMENT FUSES
Fuses
F Amperes

A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
