Peugeot Partner Tepee 2014 User Guide

3
3
7
3
4952151
53,
160
9

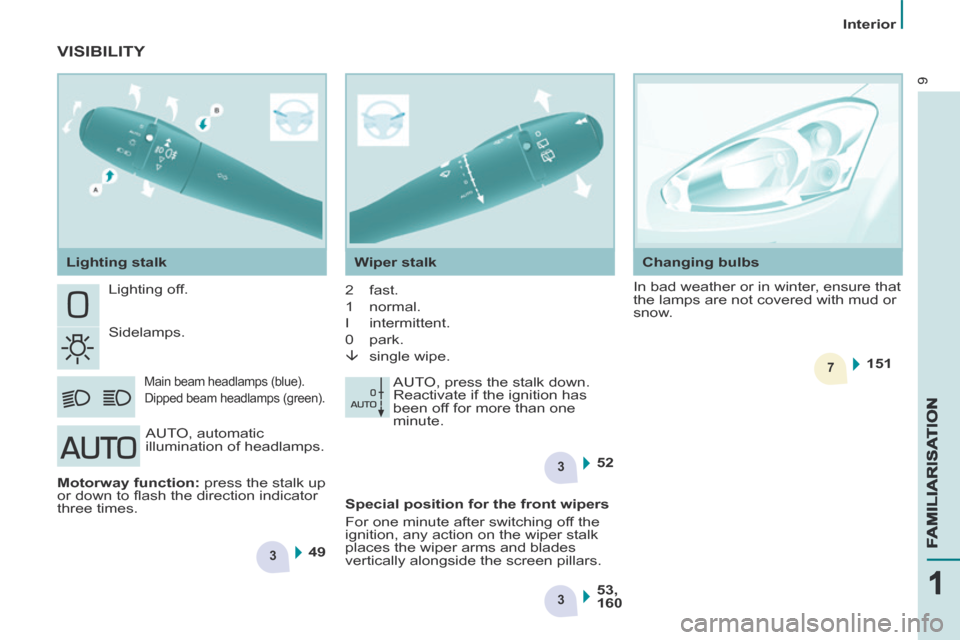

Interior
9
111
FAMILIARISATIONFAMILIARISATIONFAMILIARISATION
Lighting off.
Sidelamps.
Main beam headlamps (blue).
Dipped beam headlamps (green).
2 fast.
1 normal.
I intermittent.
0 park.
 single wipe. AUTO, press the stalk down.
Reactivate if the ignition has
been off for more than one
minute.
AUTO, automatic
illumination of headlamps.
VISIBILITY
Motorway function: press the stalk up
or down to fl ash the direction indicator
three times. Lighting stalk
Wiper stalk Changing bulbs
In bad weather or in winter, ensure that
the lamps are not covered with mud or
snow.
Special position for the front wipers
For one minute after switching off the
ignition, any action on the wiper stalk
places the wiper arms and blades
vertically alongside the screen pillars.

3
2
3
9 9
4
5448
57 9.1
9.3,
9.63
108
10

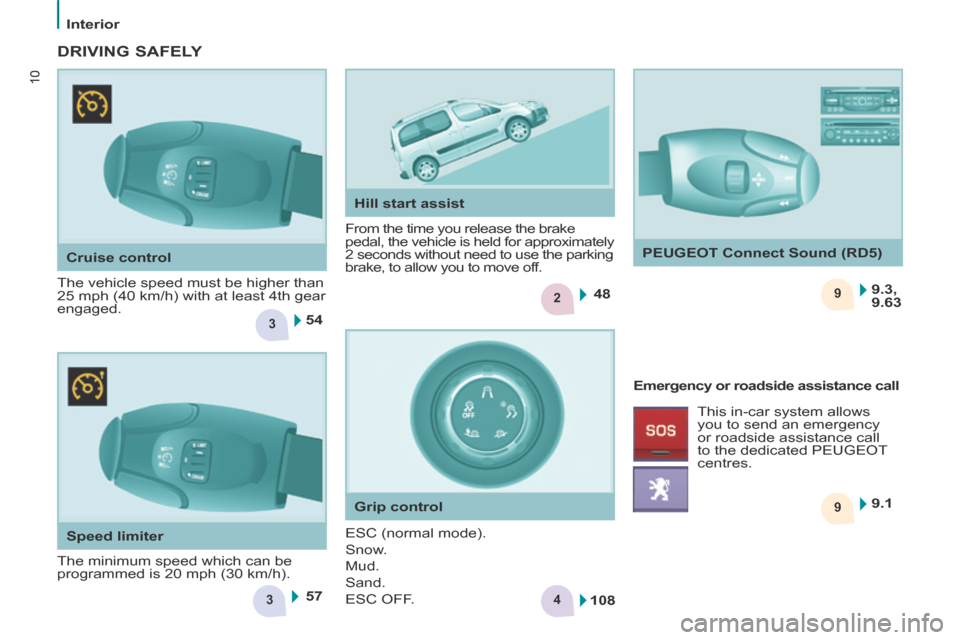

Interior
10
Cruise control
The vehicle speed must be higher than
25 mph (40 km/h) with at least 4th gear
engaged. From the time you release the brake
pedal, the vehicle is held for approximately
2 seconds without need to use the parking
brake, to allow you to move off.
DRIVING SAFELY
The minimum speed which can be
programmed is 20 mph (30 km/h). Emergency or roadside assistance call
Hill start assist
PEUGEOT Connect Sound (RD5)
Grip control
Speed limiter This in-car system allows
you to send an emergency
or roadside assistance call
to the dedicated PEUGEOT
centres.
ESC (normal mode).
Snow.
Mud.
Sand.
ESC OFF.

3
3
99.42,
9.7067 87,
89
11
Interior
11
111

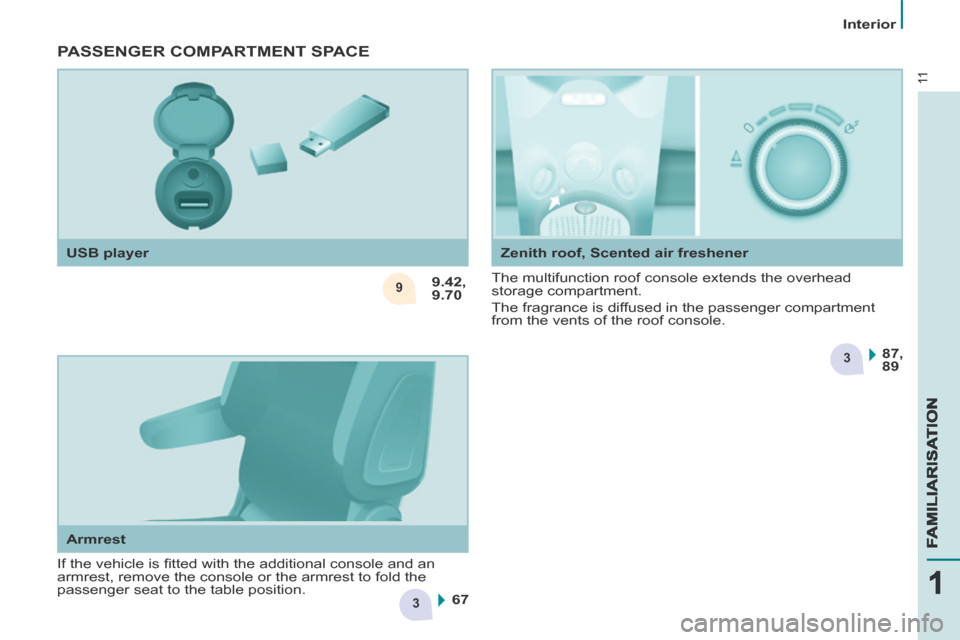

FAMILIARISATIONFAMILIARISATIONFAMILIARISATION Armrest Zenith roof, Scented air freshener
PASSENGER COMPARTMENT SPACE
The multifunction roof console extends the overhead
storage compartment.
The fragrance is diffused in the passenger compartment
from the vents of the roof console.
USB player
If the vehicle is fi tted with the additional console and an
armrest, remove the console or the armrest to fold the
passenger seat to the table position.

3
3
3
3
71
74 94
98
12

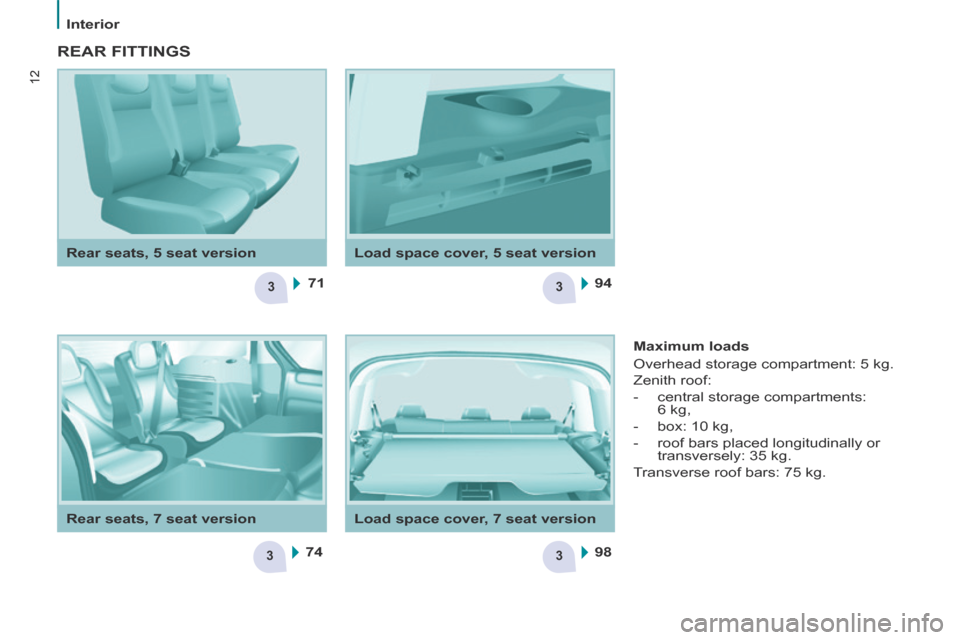

Interior
12
Load space cover, 5 seat version
Rear seats, 5 seat version
REAR FITTINGS
Maximum loads
Overhead storage compartment: 5 kg.
Zenith roof:
- central storage compartments:
6 kg,
- box: 10 kg,
- roof bars placed longitudinally or transversely: 35 kg.
Transverse roof bars: 75 kg.
Load space cover, 7 seat version
Rear seats, 7 seat version

3
3
4
4
4126
102101
11 7
11 6
13
Interior
13
111

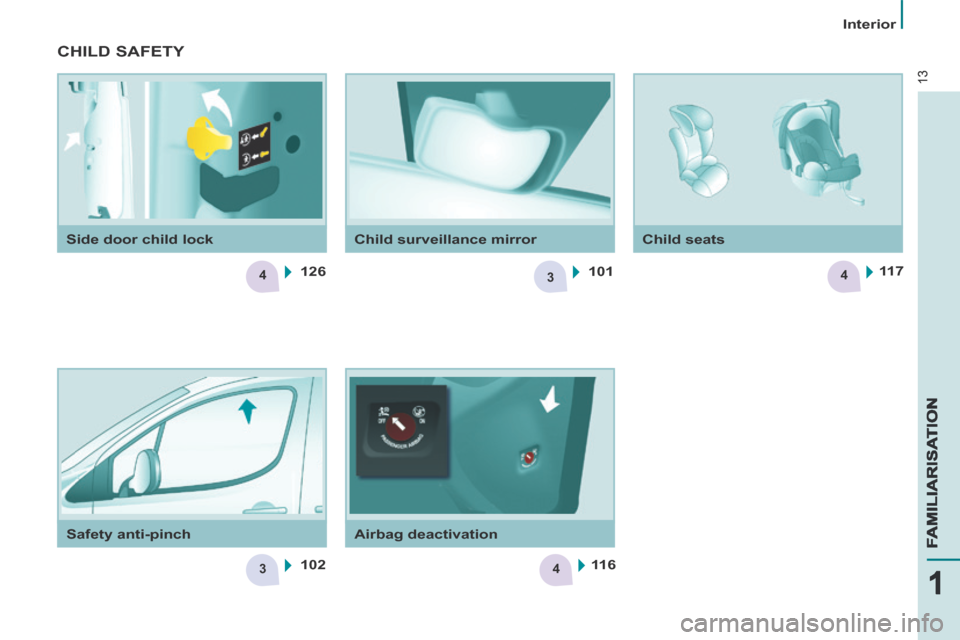

FAMILIARISATIONFAMILIARISATIONFAMILIARISATION Safety anti-pinch Airbag deactivation Child seats
Side door child lock Child surveillance mirror
CHILD SAFETY

3
3
3
364
60
62
60
14
Interior
14

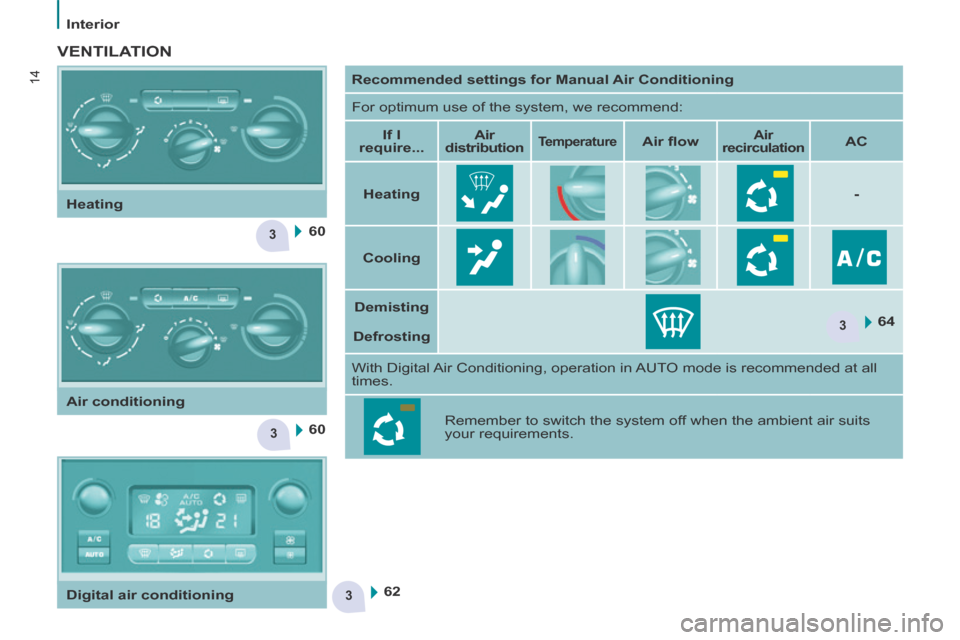

VENTILATION
Recommended settings for Manual Air Conditioning
For optimum use of the system, we recommend:
If I
require... Air
distribution
Temperature Air fl ow Air
recirculation AC
Heating -
Cooling
Demisting

Defrosting
With Digital Air Conditioning, operation in AUTO mode is recommended at all
times.
Remember to switch the system off when the ambient air suits
your requirements.
Heating
Air conditioning
Digital air conditioning

15
15
111
FAMILIARISATIONFAMILIARISATIONFAMILIARISATION

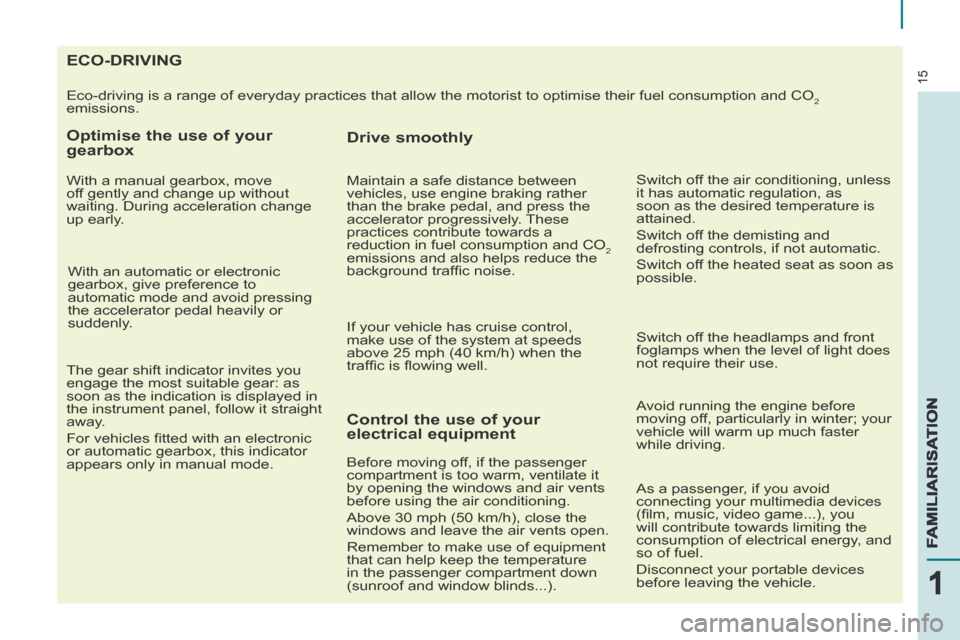

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to \
optimise their fuel consumption and CO2
emissions.
Optimise the use of your
gearbox
With a manual gearbox, move
off gently and change up without
waiting. During acceleration change
up early.
With an automatic or electronic
gearbox, give preference to
automatic mode and avoid pressing
the accelerator pedal heavily or
suddenly.
Control the use of your
electrical equipment
Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...). Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster
while driving.
Drive smoothly
Maintain a safe distance between
vehicles, use engine braking rather
than the brake pedal, and press the
accelerator progressively. These
practices contribute towards a
reduction in fuel consumption and CO
2
emissions and also helps reduce the
background traffi c noise.
If your vehicle has cruise control,
make use of the system at speeds
above 25 mph (40 km/h) when the
traffi c is fl owing well.
As a passenger, if you avoid
connecting your multimedia devices
(fi lm, music, video game...), you
will contribute towards limiting the
consumption of electrical energy, and
so of fuel.
Disconnect your portable devices
before leaving the vehicle. Switch off the air conditioning, unless
it has automatic regulation, as
soon as the desired temperature is
attained.
Switch off the demisting and
defrosting controls, if not automatic.
Switch off the heated seat as soon as
possible.
The gear shift indicator invites you
engage the most suitable gear: as
soon as the indication is displayed in
the instrument panel, follow it straight
away.
For vehicles fi tted with an electronic
or automatic gearbox, this indicator
appears only in manual mode.

16
16

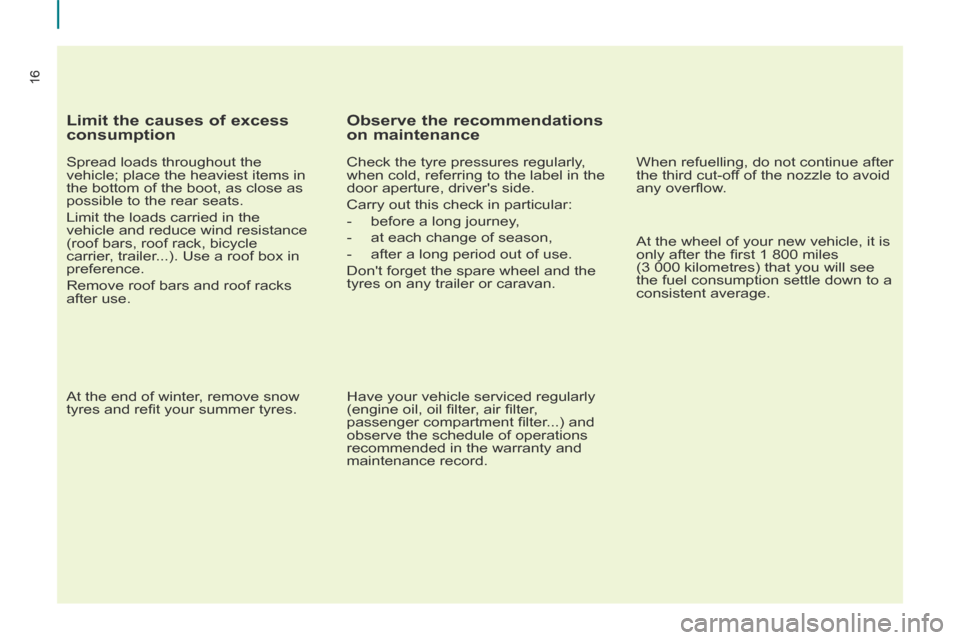

Limit the causes of excess
consumption
Spread loads throughout the
vehicle; place the heaviest items in
the bottom of the boot, as close as
possible to the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks
after use.
At the end of winter, remove snow
tyres and refi t your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter,
passenger compartment fi lter...) and
observe the schedule of operations
recommended in the warranty and
maintenance record. When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overfl ow.
At the wheel of your new vehicle, it is
only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

17

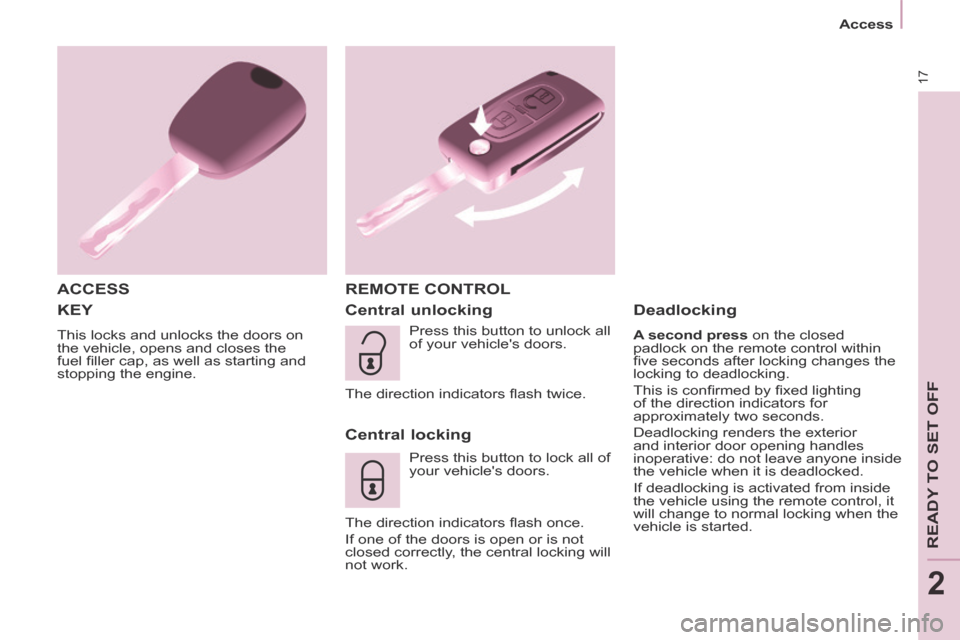

Access
READY TO SET OFF
2
KEY
This locks and unlocks the doors on
the vehicle, opens and closes the
fuel fi ller cap, as well as starting and
stopping the engine.
ACCESS REMOTE CONTROL
Central unlocking
Central locking
Press this button to lock all of
your vehicle's doors.
The direction indicators fl ash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
fi ve seconds after locking changes the
locking to deadlocking.
This is confi rmed by fi xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
Press this button to unlock all
of your vehicle's doors.
The direction indicators fl ash twice.

18

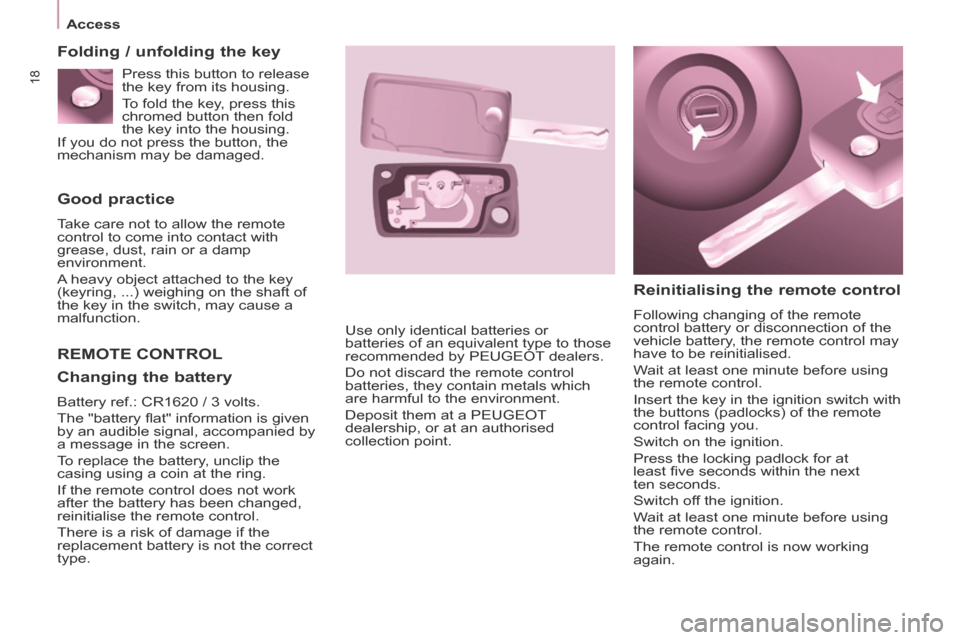

Access
Good practice
Take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.
REMOTE CONTROL
Reinitialising the remote control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reinitialised.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at
least fi ve seconds within the next
ten seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.
Use only identical batteries or
batteries of an equivalent type to those
recommended by PEUGEOT dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a PEUGEOT
dealership, or at an authorised
collection point.
Folding / unfolding the key
Changing the battery
Battery ref.: CR1620 / 3 volts.
The "battery fl at" information is given
by an audible signal, accompanied by
a message in the screen.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
There is a risk of damage if the
replacement battery is not the correct
type. Press this button to release
the key from its housing.
To fold the key, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.
