remote control Peugeot Partner Tepee 2015 Owner's Manual

5
Partner_2_VP_en_Chap01_vue-ensemble_ed02-2014

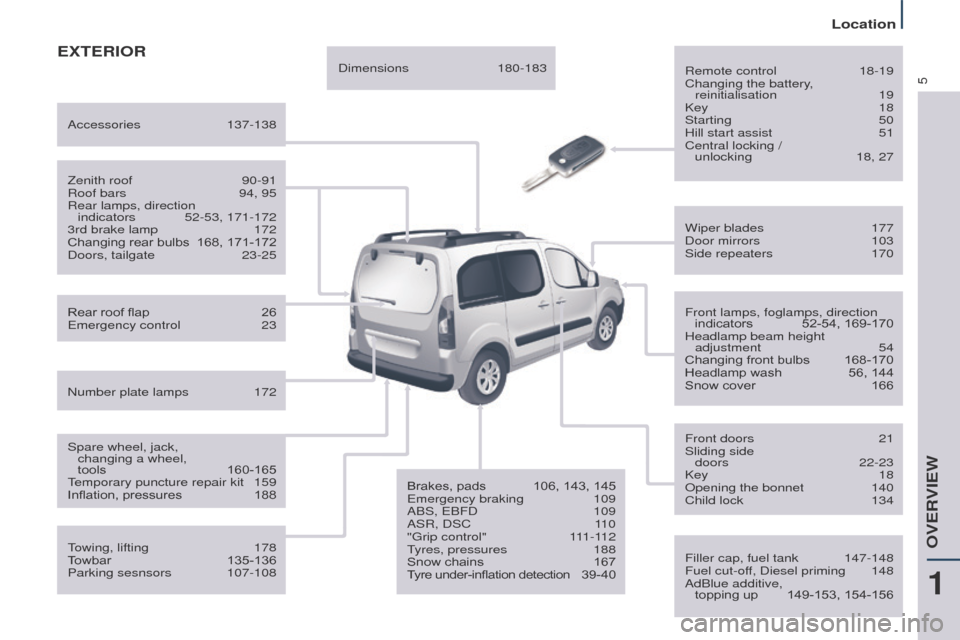

EXTERIOR
Remote control 18-19
Changing the battery ,
reinitialisation

19
Key


18
Starting

50
Hill start assist

51
Central locking /


unlocking

18, 27
Filler cap, fuel tank


147-148
Fuel cut-of

f, Diesel priming
148
AdBlue additive,


topping up

149-153, 154-156
Wiper blades


177
Door mirrors


103
Side repeaters


170
Front lamps, foglamps, direction indicators


52-54, 169-170
Headlamp beam height adjustment


54
Changing front bulbs


168-170
Headlamp wash


56, 144
Snow cover


166
Front doors


21
Sliding side


doors

22-23
Key


18
Opening the bonnet


140
Child lock


134
towing, lifting


178
T

owbar

135-136
Parking sesnsors


107-108
Rear roof flap


26e

mergency control

23
Spare wheel, jack,


changing a wheel,
tools

160-165temporary puncture repair kit


159
Inflation, pressures


188
Zenith roof


90-91
Roof bars


94, 95
Rear lamps, direction


indicators

52-53, 171-172
3rd brake lamp


172
Changing rear bulbs


168, 171-172
Doors, tailgate


23-25
Accessories


137-138
Number plate lamps


172 Dimensions


180-183
Brakes, pads

106, 143, 145e

mergency braking

109
ABS,

e
BFD

109
ASR, DSC


1

10
"
g
rip control"

1

11-112
tyres, pressures


188
Snow chains


167
T

yre under-inflation detection

3

9-40
1
OVeRVIeW
Location

18
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
this locks and unlocks the doors on
the vehicle, opens and closes the
fuel filler cap, as well as starting and
stopping the engine.
KEY REMOTE CONTROL
Central unlocking
Central locking
Press this button to lock all of
your vehicle's doors.
The direction indicators flash once.
If one of the doors is open or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed
padlock on the remote control within
five seconds after locking changes the
locking to deadlocking.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
Press this button to unlock all
of your vehicle's doors.
The direction indicators flash twice.
Access

19
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Good practice
take care not to allow the remote
control to come into contact with
grease, dust, rain or a damp
environment.
A
heavy object attached to the key
(keyring, ...) weighing on the shaft of
the key in the switch, may cause a
malfunction.
REMOTE CONTROL Reinitialising the remote control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have to be reinitialised.
Wait at least one minute before using
the remote control.
Insert the key in the ignition switch with
the buttons (padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at
least five seconds within the next
ten
seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
t

he remote control is now working
again.u
se only identical batteries or
batteries of an equivalent type to those
recommended by P
euge
O
t
dealers.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Deposit them at a P

euge
O
t

dealership, or at an authorised
collection point.
Folding / unfolding the key
Changing the battery
Battery ref.: CR1620 / 3 volts.
The "battery flat" information is given
by an audible signal, accompanied by
a message in the screen.
to replace the battery

, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
reinitialise the remote control.
t

here is a risk of damage if the
replacement battery is not the correct
type. Press this button to release
the key from its housing.
to fold the key

, press this
chromed button then fold
the key into the housing.
If you do not press the button, the
mechanism may be damaged.
Access
ReADY tO Set OFF
3

20
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
When leaving the vehicle, check that
the lamps are off and nothing of value
is visible.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
Good practice
Do not make any modifications to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
t
he simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
t

he remote control does not operate
while the key is in the ignition, even if
the ignition is off.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
t

his device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
t

he metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a P
euge O t
dealer with the
vehicle's V5 registration document and
your identification document.
A

P euge O t
dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. When purchasing a second-hand
vehicle:
-


have the keys memorised by a
P

euge O t
dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
ALARM
If fitted on your vehicle, this provides
two types of protection:
-

exterior protection: it sounds if a
front/rear door or the bonnet is
opened.
-


interior protection: it sounds if
the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
If

your vehicle is fitted with a separation
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch of f the ignition and get out of
the vehicle.
-

Set the alarm within five minutes of
getting out of the vehicle, by locking
or deadlocking using the remote
control.
t

he red L e D, located in the
button, flashes once per second.
Access

21
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
FRONT DOORS
From the inside
use the door opening control to unlock
and open the door concerned.
From the outside
use the remote control to lock/unlock
the vehicle.
Insert the metal part of the key in the
lock on the driver's side if the remote
control does not work.
Disarming
- unlock the vehicle with the remote
control or switch on the ignition, the
red L
e D goes off.
Locking the vehicle with
exterior protection only
If, while you are away from the
vehicle, you wish to leave a window
partially open or a pet inside the
vehicle, you should choose exterior
protection only.
-

Switch of
f the ignition.
-

In the next ten seconds,
press the button until
the red L

e D is on
continuously.
-
g et out of the vehicle.
-

Within the next five minutes, set
the alarm by locking or deadlocking
using the remote control (the red
LED flashes once a second).
Triggering
the siren sounds, the direction indicators
flash for approximately 30 seconds and
the red LED flashes rapidly.
-
t
o switch it of
f, insert the key and
switch on the ignition.
When the alarm has been triggered ten
times in succession (when triggered for
the eleventh time) it is deactivated. Repeat
the procedure for setting the alarm.
Locking the vehicle without
alarm
- Insert the key in the lock on the
driver's door and lock it.
Do not set the alarm when washing
your vehicle.
Failure of the remote control
When the alarm is set but the remote
control does not operate:
-
u nlock the doors with the key and
open the door.
t

he alarm is triggered.
-

Switch on the ignition in the next

ten
seconds.
t
he alarm is disarmed.
Incorrect operation
When the ignition is switched on, if the
red Le D remains on for ten seconds,
there is a fault in the siren connection.
Contact a P
euge O t
dealer to have
the system checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
automatically approximately 2 minutes
after the last door is closed.
to prevent triggering of the alarm when
a door is opened, you have to press
the remote control unlocking button
again.
Do not make any modifications
to the alarm system as this could
cause faults.
Access
ReADY tO Set OFF
3

23
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
Operation in the event of a
battery failure
Front and side passenger doors
In the event of a battery or of the
central locking fault, use the lock to
lock the doors mechanically.
- t
o open the door and get out of the
vehicle, pull the interior control.
-

t
o lock the door
, insert the key in
the lock, located on the edge of the
door, then turn it one eighth of a
turn.
Driver's door
-

Insert the key in the lock, then turn
it to the right to lock or to the left to
unlock.
TAILGATE From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the tailgate and the
floor. To unlock the lock, move the
catch to the left then push the tailgate.
From outside
Locking/unlocking is by means of the
remote control.
to open, press the control below the
trim then raise the tailgate.
A

pull strap is available to close the
tailgate in the high position.
g

uide the closing of the tailgate to the
balance point of its travel then apply
a final press on the tailgate to close it
fully.
Access
ReADY tO Set OFF
3

24
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
HINGED REAR DOORS
From outside
to open, pull the handle towards you.Pull the lever to open the right-hand
door
.
to close, start with the right-hand door
then close the left-hand door
.
With the roof rear flap, the rear bumper
has been reinforced to serve as a
footrest when entering the vehicle.
t
he hinged rear doors are
asymmetrical (2/3 - 1/3), with the
smaller door on the right.
They are fitted with a central lock.
Tailgate screen
the opening rear screen allows you to
access the rear of the vehicle directly ,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.


t he tailgate and tailgate screen
cannot both be open at the
same time, to prevent damage to
the
screen.
Access

27
Partner_2_VP_en_Chap03_Pret-a-partir_ed02-2014
CENTRAL LOCKING
An initial press permits
central locking of the vehicle,
when all of the doors are
closed.
A second press permits
central unlocking of the vehicle.
t

he control is inactive when the vehicle
has been locked using the remote
control or the key from the outside.
t

he doors can still be opened from the
inside. Door open warning lampt
he control switch L e D:
-
flashes when the doors are locked with
the vehicle stationary and the engine off,
- comes on when the doors are
locked and from the time the
ignition is switched on.
Anti-intrusion security
If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
t

he characteristic central locking noise
is heard.
t
he L e D in the switch on
the dashboard central switch panel
comes

on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
Activating / deactivating the
function
With the ignition on, press
and hold this switch to
activate or deactivate the
function.
Driving with the doors locked may
make access to the interior more
difficult in an emergency.
Access
ReADY tO Set OFF
3

96
Partner_2_VP_en_Chap04_ergonomie_ed02-2014
Automatic switching on/off
t
he front courtesy lamp comes on
when the key is removed from the
ignition, when the vehicle is unlocked,
when one of the front doors is opened
and for location of the vehicle using the
remote control.
It goes off gradually after the ignition
is switched on and when the vehicle is
locked. Front seats: comes on when
one of the front doors is
opened.t
hese are switched on and off by
means of a manual switch, with
the ignition on.
Rear seats: comes on when
one of the rear doors is
opened.
If the doors remain open for
a few minutes, the courtesy
lamps go off.
Permanently off.
Permanently on, ignition on.
Front courtesy lamp
COURTESY LAMPS
Rear courtesy lamp
Front individual reading lamps
Practical information
