Peugeot Partner Tepee 2016 Owner's Guide

Instruments and controls
29

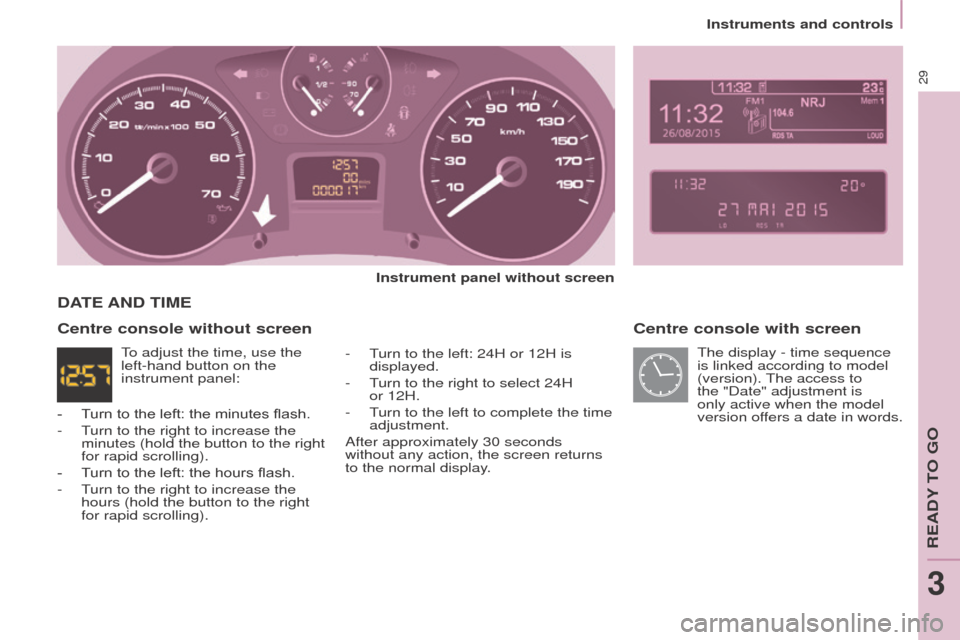

Centre console with screen
Instrument panel without screen
-

T
urn to the left: 24H or 12H is
displayed.
-

T
urn to the right to select 24H
or
12H.
-

T
urn to the left to complete the time
adjustment.
After approximately 30 seconds
without any action, the screen returns
to the normal display.
DAte AND t IM e
Centre console without screen
The display - time sequence
is linked according to model
(version). The access to
the "Date" adjustment is
only active when the model
version offers a date in words.
To adjust the time, use the
left-hand button on the
instrument panel:
-

T

urn to the left: the minutes flash.
-

T

urn to the right to increase the
minutes (hold the button to the right
for rapid scrolling).
-

T

urn to the left: the hours flash.
-

T

urn to the right to increase the
hours (hold the button to the right
for rapid scrolling).
ReADY to go
3

Instruments and controls
30
Screen C
Press the M
e
N
u
button.
u

sing the arrows, select
P
e
RS
o
NALISA
t

I
o
N
C
o
NFI
gu
RA
t

I
o
N.
Press to confirm the
selection.
u

sing the arrows, select
DISPLAY C
o
NFI
gu
RA
t

I
o
N.
Press to confirm the
selection.
u

sing the arrows, select
ADJ
u
S
t
DA
te

AND
t
IM
e
. Press to confirm the
selection.
Adjust the settings one by
one confirming by pressing
the
o K button.
Then select the
o K tab in the
screen and confirm.

Instruments and controls
31

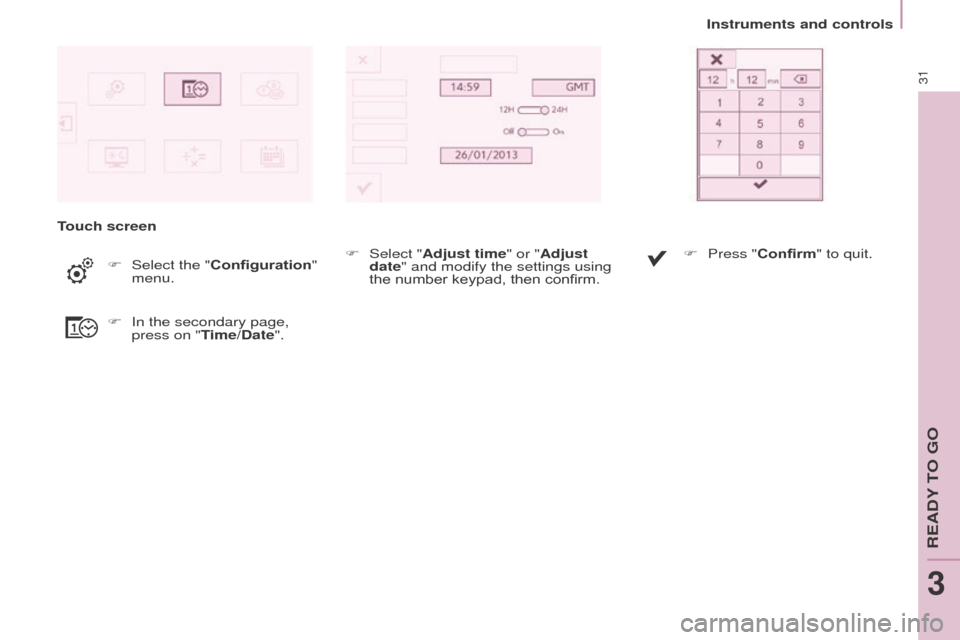

touch screenF
Select the "
Configuration"
menu.
F

In the secondary page,
press on "

t
ime/Date
".F

Select "
Adjust time" or "Adjust
date" and modify the settings using
the number keypad, then confirm. F

Press "
Confirm" to quit.
ReADY to go
3

Instruments and controls
32

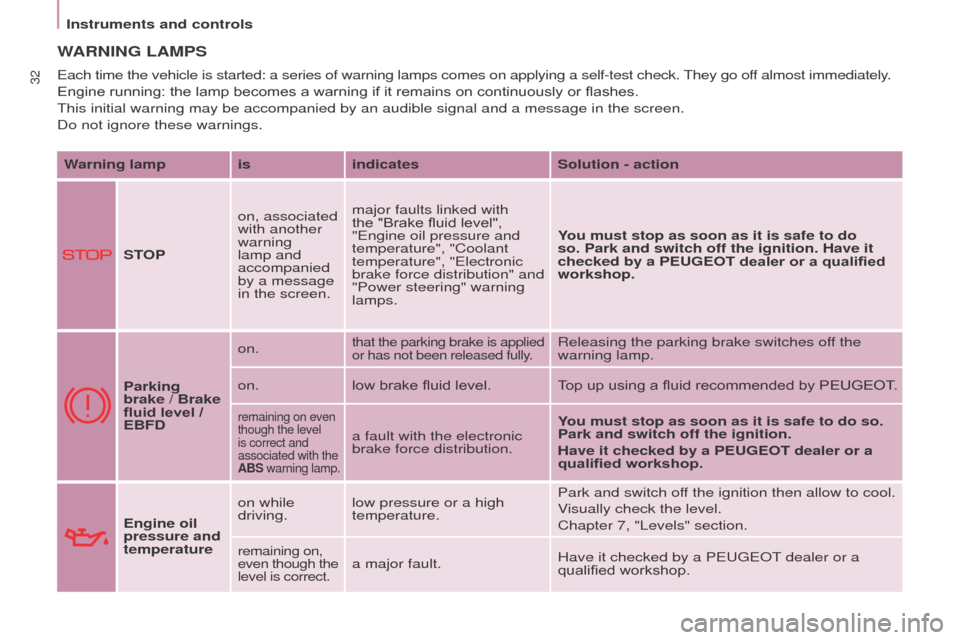

WARNINg LAMPS
Warning lamp is indicatesSolution - action
S to Pon, associated
with another
warning
lamp and
accompanied
by a message
in the screen. major faults linked with
the "Brake fluid level",
"
e ngine oil pressure and
temperature", "Coolant
temperature", "
e lectronic
brake force distribution" and
"Power steering" warning
lamps. You must stop as soon as it is safe to do
so. Park and switch off the ignition. Have it
checked by a P
eugeot dealer or a qualified
workshop.
Parking
brake
/ Brake
fluid level /
e

BFD on.
that the parking brake is applied
or has not been released fully.Releasing the parking brake switches off the
warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution.You must stop as soon as it is safe to do so.
Park and switch off the ignition.
Have it checked by a P
eugeot dealer or a
qualified workshop.
e

ngine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to cool.
Visually check the level.
Chapter 7, "Levels" section.
remaining on,
even though the
level is correct.a major fault.
Have it checked by a P eugeo T dealer or a
qualified workshop.
e

ach time the vehicle is started: a series of warning lamps comes on appl\
ying a self-test check. They go off almost immediately.
Engine running: the lamp becomes a warning if it remains on continuously or flashes.
This initial warning may be accompanied by an audible signal and a messa\
ge in the screen.
Do not ignore these warnings.

Instruments and controls
33Warning lamp isindicatesSolution - action

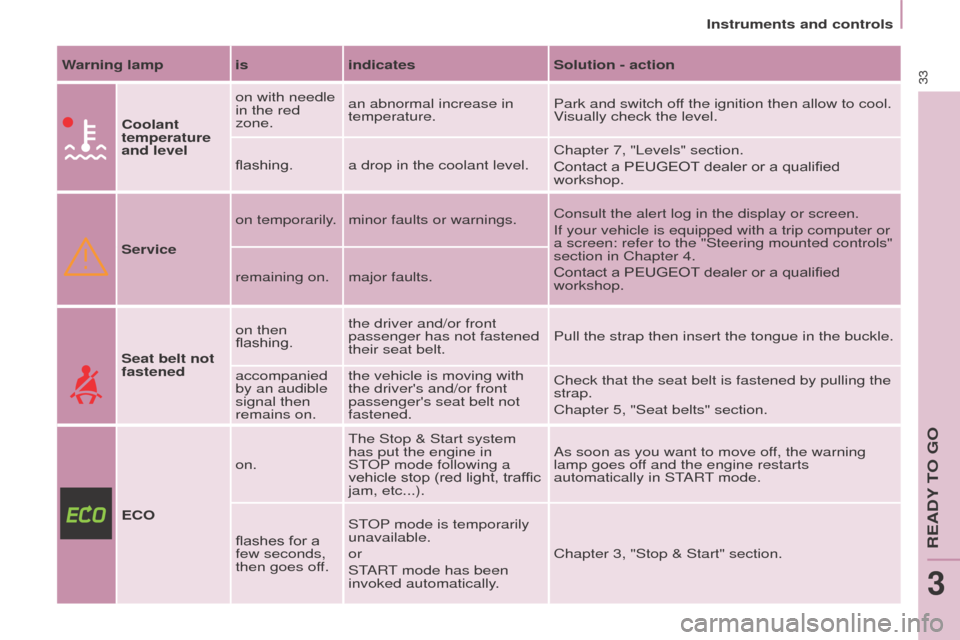

Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
flashing. a drop in the coolant level. Chapter 7, "Levels" section.
Contact a PEUGEOT


dealer or a qualified
workshop.
Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen.
If your vehicle is equipped with a trip computer or
a screen: refer to the "Steering mounted controls"
section in Chapter 4.
Contact a PEUGEOT dealer or a qualified
workshop.
remaining on. major faults.
Seat belt not
fastened on then
flashing.
the driver and/or front
passenger has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's and/or front
passenger's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap.
Chapter 5, "Seat belts" section.
e

C o
on. The Stop & Start

system
has put the engine in
ST
o

P mode following a
vehicle stop (red light, traffic
jam,
etc...).As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
flashes for a
few seconds,
then goes off. ST
o

P mode is temporarily
unavailable.
or
START mode has been
invoked automatically. Chapter 3, "Stop & Start" section.
ReADY to go
3

Instruments and controls
34
Warning lamp isindicatesSolution - action

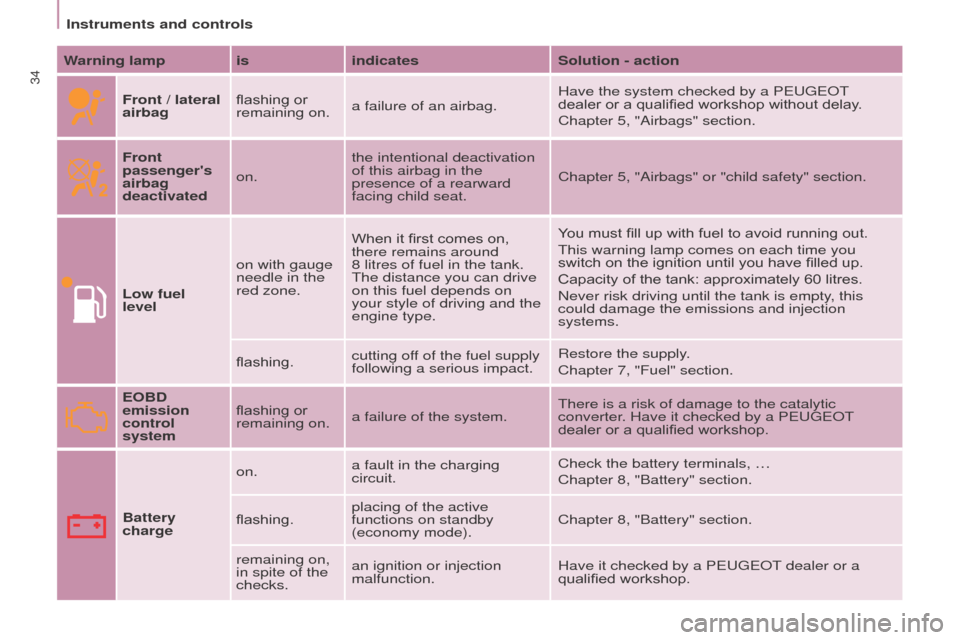

Front / lateral
airbag flashing or
remaining on.
a failure of an airbag. Have the system checked by a P
eugeo T
dealer or a qualified workshop without delay.
Chapter 5, "Airbags" section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing child seat. Chapter 5, "Airbags" or "child safety" section.
Low fuel
level on with gauge
needle in the
red zone. When it first comes on,
there remains around
8
litres of fuel in the tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine type. You must fill up with fuel to avoid running out.
This warning lamp comes on each time you
switch on the ignition until you have filled up.
Capacity of the tank: approximately 60 litres.
Never risk driving until the tank is empty, this
could damage the emissions and injection
systems.
flashing. cutting off of the fuel supply
following a serious impact. Restore the supply.
Chapter 7, "Fuel" section.
eo

BD
emission
control
system flashing or
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have it checked by a P
eugeo T
dealer or a qualified workshop.
Battery
charge on.
a fault in the charging
circuit. Check the battery terminals, …
Chapter 8, "Battery" section.
flashing. placing of the active
functions on standby
(economy mode). Chapter 8, "Battery" section.
remaining on,
in spite of the
checks. an ignition or injection
malfunction.
Have it checked by a P
eugeo T dealer or a
qualified workshop.

+
ABS
Instruments and controls
35Warning lamp isindicatesSolution - action

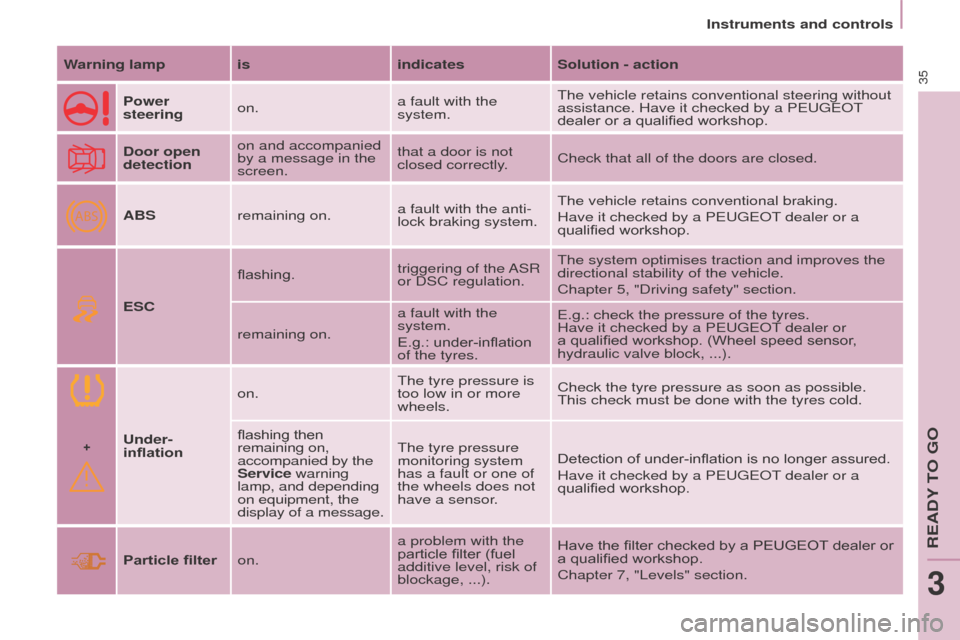

Power
steering on. a fault with the
system.The vehicle retains conventional steering without
assistance. Have it checked by a P
eugeo T
dealer or a qualified workshop.
Door open
detection on and accompanied
by a message in the
screen. that a door is not
closed correctly.
Check that all of the doors are closed.
ABS remaining on. a fault with the anti-
lock braking system.The vehicle retains conventional braking.
Have it checked by a P
eugeo T dealer or a
qualified workshop.
e

SC flashing.
triggering of the ASR
or DSC regulation.The system optimises traction and improves the
directional stability of the vehicle.
Chapter 5, "Driving safety" section.
remaining on. a fault with the
system.
E.g.: under-inflation
of the tyres.
e

.g.: check the pressure of the tyres.
Have it checked by a P
eugeo T dealer or
a qualified workshop. (Wheel speed sensor,
hydraulic valve block, ...).
u

nder-
inflation on.
The tyre pressure is
too low in or more
wheels.Check the tyre pressure as soon as possible.
This check must be done with the tyres cold.
flashing then
remaining on,
accompanied by the
Service warning
lamp, and depending
on equipment, the
display of a message. The tyre pressure
monitoring system
has a fault or one of
the wheels does not
have a sensor.
Detection of under-inflation is no longer assured.
Have it checked by a P
eugeo T dealer or a
qualified workshop.
Particle filter on. a problem with the
particle filter (fuel
additive level, risk of
blockage,
...).Have the filter checked by a PEUGEOT dealer or
a qualified workshop.
Chapter 7, "Levels" section.
ReADY to go
3

Instruments and controls
36Warning lamp isindicatesSolution - action

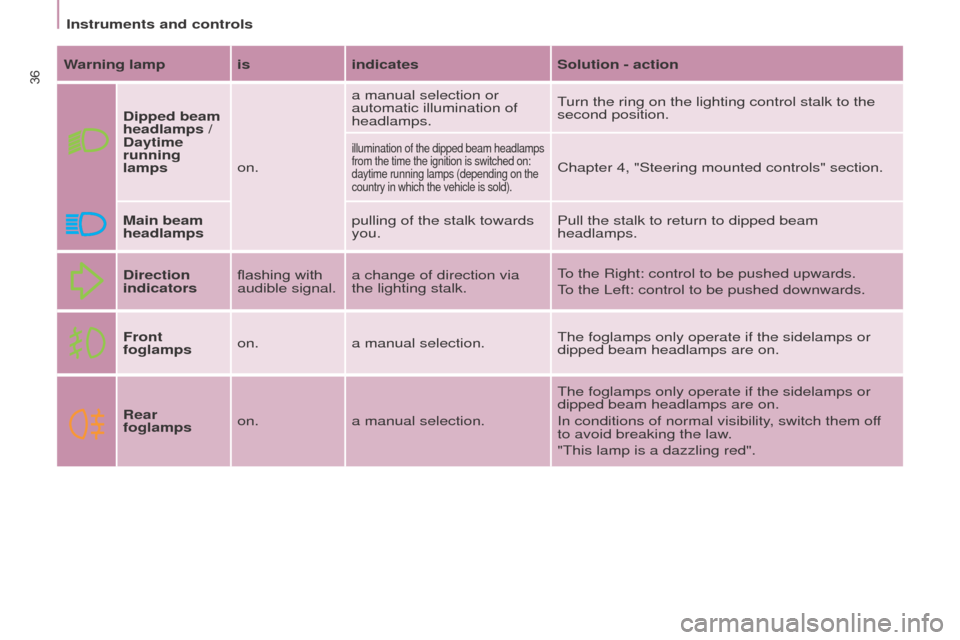

Dipped beam
headlamps
/
Daytime
running
lamps on.a manual selection or
automatic illumination of
headlamps.
Turn the ring on the lighting control stalk to the
second position.
illumination of the dipped beam headlamps
from the time the ignition is switched on:
daytime running lamps (depending on the
country in which the vehicle is sold).
Chapter 4, "Steering mounted controls" section.
Main beam
headlamps pulling of the stalk towards
you.Pull the stalk to return to dipped beam
headlamps.
Direction
indicators flashing with
audible signal.a change of direction via
the lighting stalk. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front
foglamps on.
a manual selection. The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
Rear
foglamps on.
a manual selection. The foglamps only operate if the sidelamps or
dipped beam headlamps are on.
In conditions of normal visibility, switch them off
to avoid breaking the law.
"This lamp is a dazzling red".

Instruments and controls
37

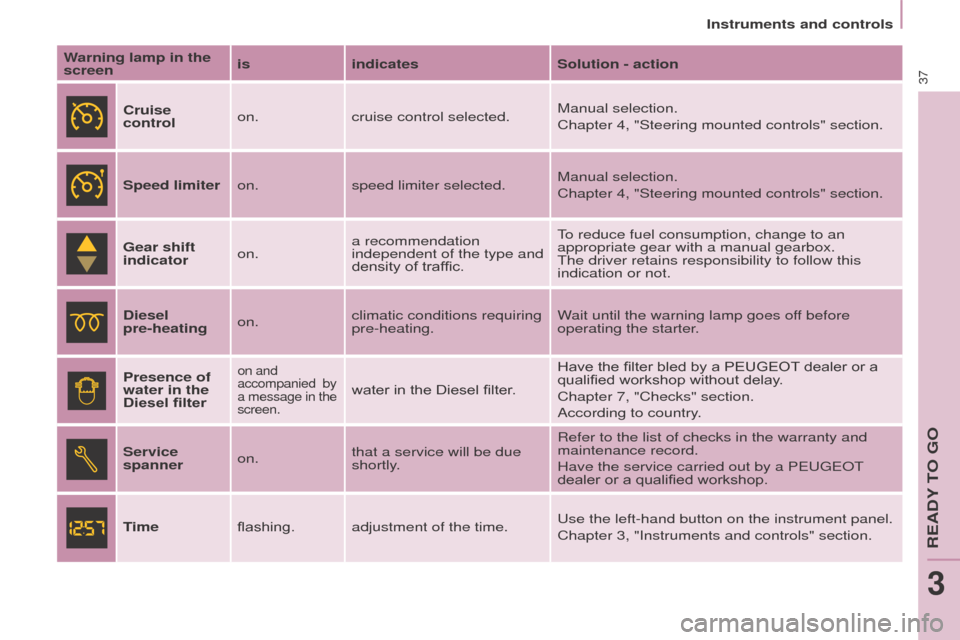

Warning lamp in the
screenis
indicates Solution - action
Cruise
control on.
cruise control selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
Speed limiter on.speed limiter selected. Manual selection.
Chapter 4, "Steering mounted controls" section.
g

ear shift
indicator on.a recommendation
independent of the type and
density of traffic. To reduce fuel consumption, change to an
appropriate gear with a manual gearbox.
The driver retains responsibility to follow this
indication or not.
Diesel
pre-heating on.climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.
Presence of
water in the
Diesel filter
on and
accompanied by
a message in the
screen.
water in the Diesel filter. Have the filter bled by a PEUGEOT dealer or a
qualified workshop without delay.
Chapter 7, "Checks" section.
According to country.
Service
spanner on.that a service will be due
shortly. Refer to the list of checks in the warranty and
maintenance record.
Have the service carried out by a P
eugeo T
dealer or a qualified workshop.
time flashing. adjustment of the time.u

se the left-hand button on the instrument panel.
Chapter 3, "Instruments and controls" section.
ReADY to go
3

+
Instruments and controls
38

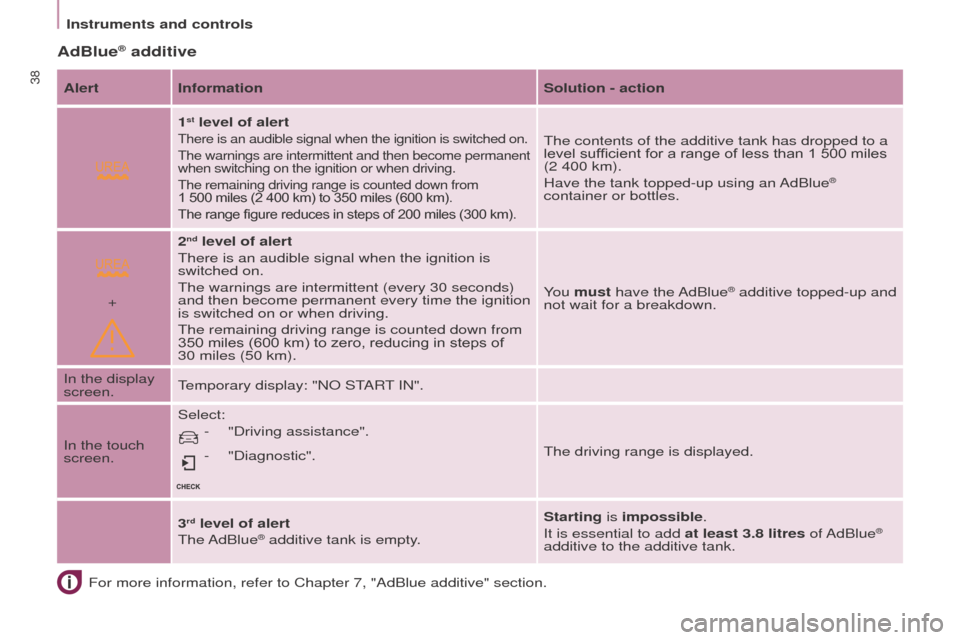

AdBlue® additive
For more information, refer to Chapter 7, "AdBlue additive" section.
Alert
Information Solution - action
1
st level of alert
There is an audible signal when the ignition is switched on.
The warnings are intermittent and then become permanent
when switching on the ignition or when driving.
The remaining driving range is counted down from
1
500 miles (2 400 km) to 350 miles (600 km).
The range figure reduces in steps of 200 miles (300 km).The contents of the additive tank has dropped to a
level sufficient for a range of less than 1 500 miles
(2 400 km).
Have the tank topped-up using an AdBlue
®
container or bottles.
2
nd level of alert
There is an audible signal when the ignition is
switched on.
The warnings are intermittent (every 30 seconds)
and then become permanent every time the ignition
is switched on or when driving.
The remaining driving range is counted down from
350 miles (600 km) to zero, reducing in steps of
30
miles (50 km). You
must have the AdBlue
® additive topped-up and
not wait for a breakdown.
In the display
screen. Temporary display: "N
o
START IN".
In the touch
screen. Select:
-

"Driving assistance".
-


"Diagnostic". The driving range is displayed.
3
rd level of alert
The AdBlue® additive tank is empty. Starting is impossible.
It is essential to add at least 3.8 litres of AdBlue®
additive to the additive tank.
