Peugeot Partner Tepee 2016 Manual PDF

69

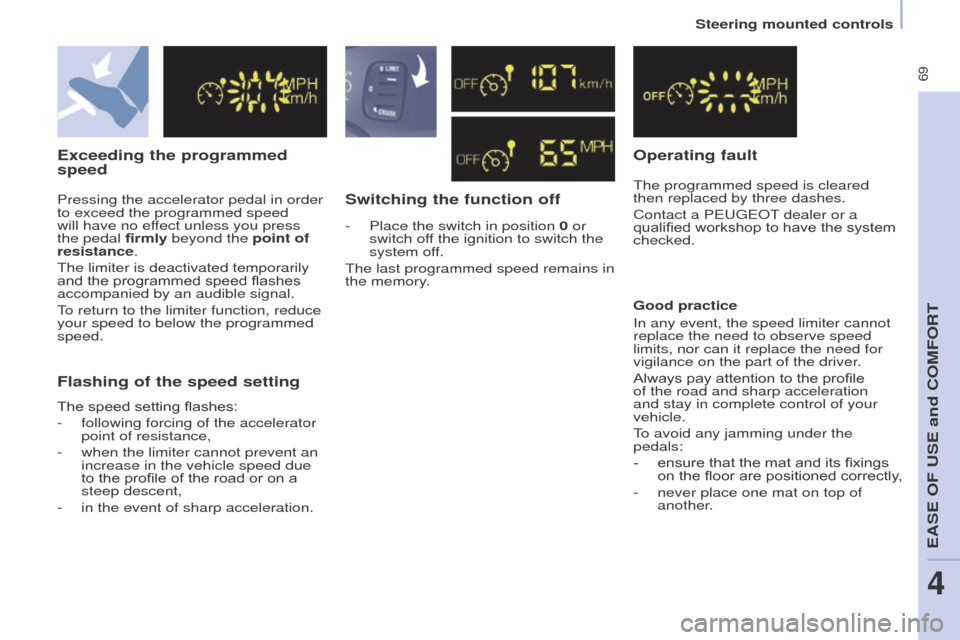

exceeding the programmed
speed
Switching the function offo perating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a P
eugeo T dealer or a
qualified workshop to have the system
checked.
Flashing of the speed setting
good practice
In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance on the part of the driver
.
Always pay attention to the profile
of the road and sharp acceleration
and stay in complete control of your
vehicle.
To avoid any jamming under the
pedals:
-

ensure that the mat and its fixings
on the floor are positioned correctly

,
-

never place one mat on top of
another

.
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal firmly beyond the point of
resistance.
The limiter is deactivated temporarily
and the programmed speed flashes
accompanied by an audible signal.
To return to the limiter function, reduce
your speed to below the programmed
speed.
The speed setting flashes:
-

following forcing of the accelerator
point of resistance,
-


when the limiter cannot prevent an
increase in the vehicle speed due
to the profile of the road or on a
steep descent,
-


in the event of sharp acceleration. -


Place the switch in position

0 or
switch off the ignition to switch the
system off.
The last programmed speed remains in
the memory.
Steering mounted controls
eASe oF uSe and CoMFoRt
4

70

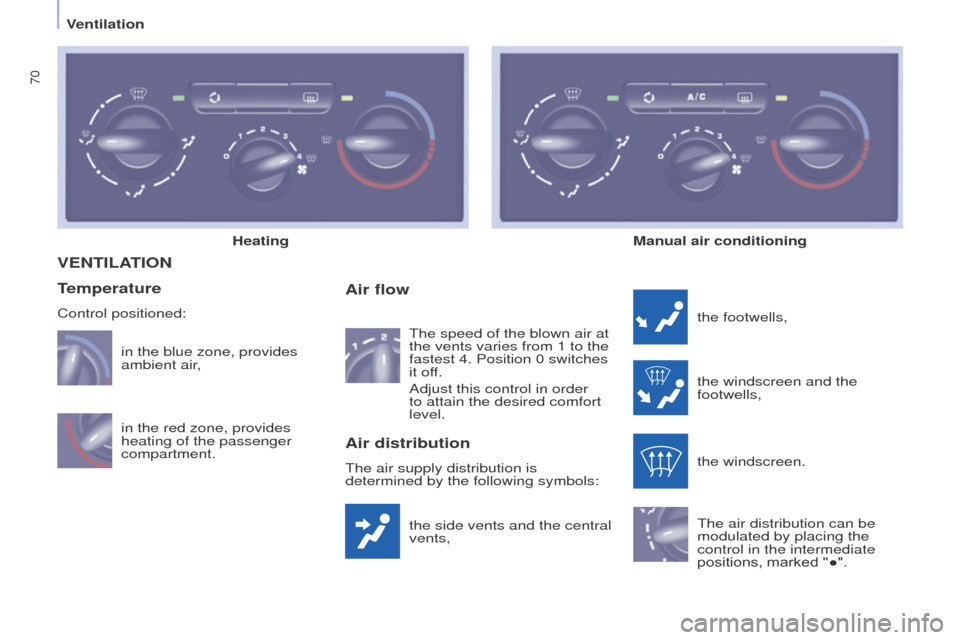

VeNtILAtI o N
the side vents and the central
vents,
Air flow
the footwells,
the windscreen and the
footwells,
the windscreen.
The air distribution can be
modulated by placing the
control in the intermediate
positions, marked "●".
Air distribution
The air supply distribution is
determined by the following symbols:
in the red zone, provides
heating of the passenger
compartment. in the blue zone, provides
ambient air,
The speed of the blown air at
the vents varies from 1 to the
fastest 4. Position 0 switches
it off.
Adjust this control in order
to attain the desired comfort
level.
Heating
Manual air conditioning
temperature
Control positioned:
Ventilation

71

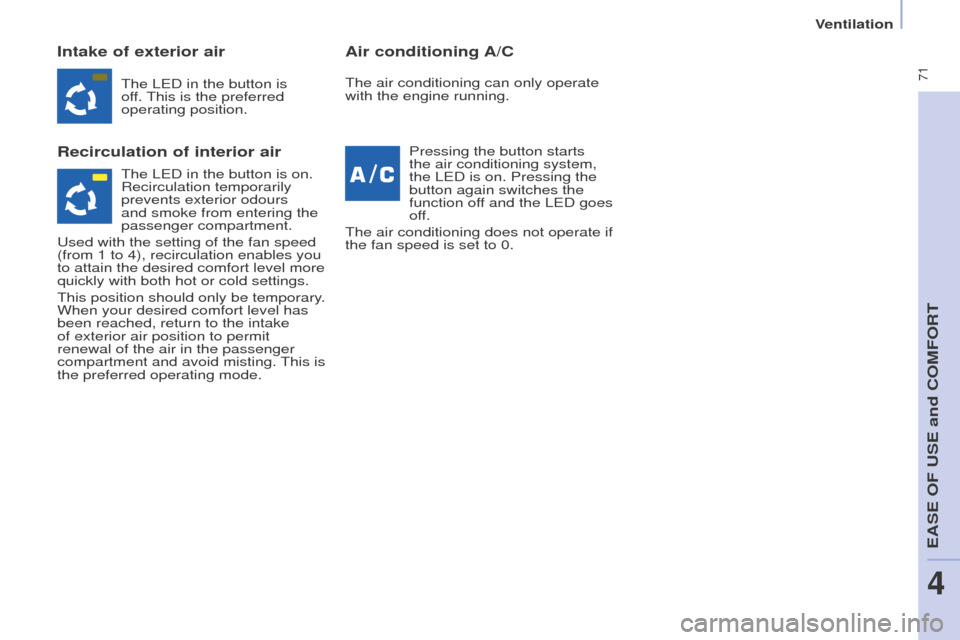

Intake of exterior air
Recirculation of interior airAir conditioning A/C
The LeD in the button is
of f. This is the preferred
operating position.
Pressing the button starts
the air conditioning system,
the L
e D is on. Pressing the
button again switches the
function off and the L
e D goes
off.
The air conditioning does not operate if
the fan speed is set to 0. The air conditioning can only operate
with the engine running.
The L
e D in the button is on.
Recirculation temporarily
prevents exterior odours
and smoke from entering the
passenger compartment.
u

sed with the setting of the fan speed
(from 1 to 4), recirculation enables you
to attain the desired comfort level more
quickly with both hot or cold settings.
This position should only be temporary.
When your desired comfort level has
been reached, return to the intake
of exterior air position to permit
renewal of the air in the passenger
compartment and avoid misting. This is
the preferred operating mode.
eASe oF uSe and CoMFoRT
4
Ventilation

72
good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
Lo is displayed or the value 27 by
turning until HI is displayed.
o

n entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance to
reach the comfort value set.

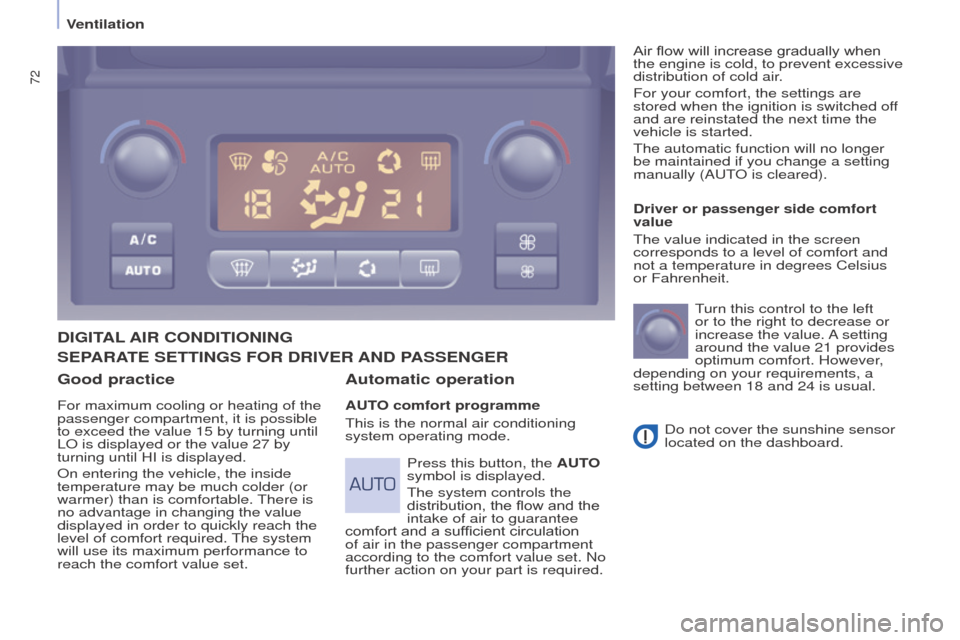

DIgItAL AIR C o NDI t I o NIN g
Automatic operation
Auto comfort programme
This is the normal air conditioning
system operating mode. Driver or passenger side comfort
value
The value indicated in the screen
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.
T urn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is usual.
Do not cover the sunshine sensor
located on the dashboard.
Press this button, the A
uto
symbol is displayed.
The system controls the
distribution, the flow and the
intake of air to guarantee
comfort and a sufficient circulation
of air in the passenger compartment
according to the comfort value set. No
further action on your part is required. Air flow will increase gradually when
the engine is cold, to prevent excessive
distribution of cold air.
For your comfort, the settings are
stored when the ignition is switched off
and are reinstated the next time the
vehicle is started.
The automatic function will no longer
be maintained if you change a setting
manually (A
u T
o
is cleared).
SePARAte
S ett IN g S F o R DRIV e R AND PASS e N ge R
Ventilation

73
Manual operation
You can, according to your
requirements, make a different selection
from that offered by the system by
changing a setting. The other functions
will still be controlled automatically.
Pressing the Auto button restores fully
automatic operation.
Air distribution
Pressing this button several
times in succession directs
the air flow towards:
-

the windscreen,
-


the windscreen and footwells,
-


the footwells,
-


the side vents, central vents and
footwells,
-


the side vents and central vents. Air flow
Press the

small fan button to
reduce the flow or the large
fan button to increase the
flow.
On the display, the blades of the fan fill
when the flow is increased.
Switching the air
conditioning
o n / o ff
Press this button, the A/C
symbol is displayed and the
air conditioning is activated.
Deactivating the system
Press the air flow small fan
button until the fan symbol
disappears from the display.
This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen
demisting (if fitted on your vehicle).
Your comfort setting is no longer
maintained and is switched off. Intake of exterior air /
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.
Pressing the large fan
button or the A
uto button
reactivates the system with
the values set before it was
deactivated. Recirculation prevents exterior odours
and smoke from entering the passenger
compartment. Avoid prolonged operation
in interior air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Pressing this button again switches off
the air conditioning.
The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is
on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.
For your comfort, do not deactivate the
system for long periods.
eASe oF uSe and CoMFoRT
4
Ventilation

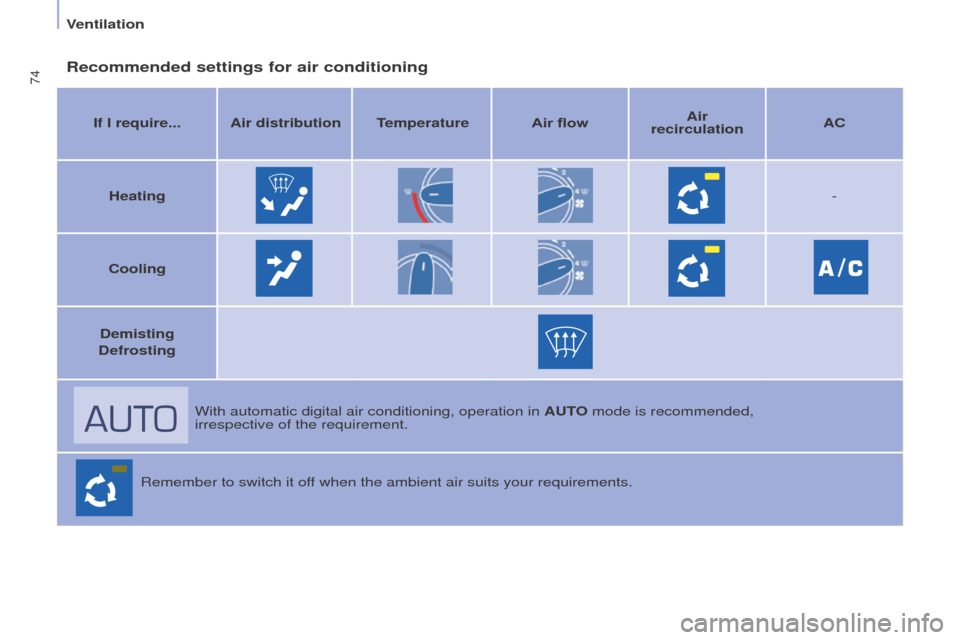

74Recommended settings for air conditioning
If I require... Air distributiontemperatureAir flow Air
recirculation AC
Heating -
Cooling
Demisting
Defrosting
With automatic digital air conditioning, operation in A
uto mode is recommended,
irrespective of the requirement.
Remember to switch it off when the ambient air suits your requirements.
Ventilation

75

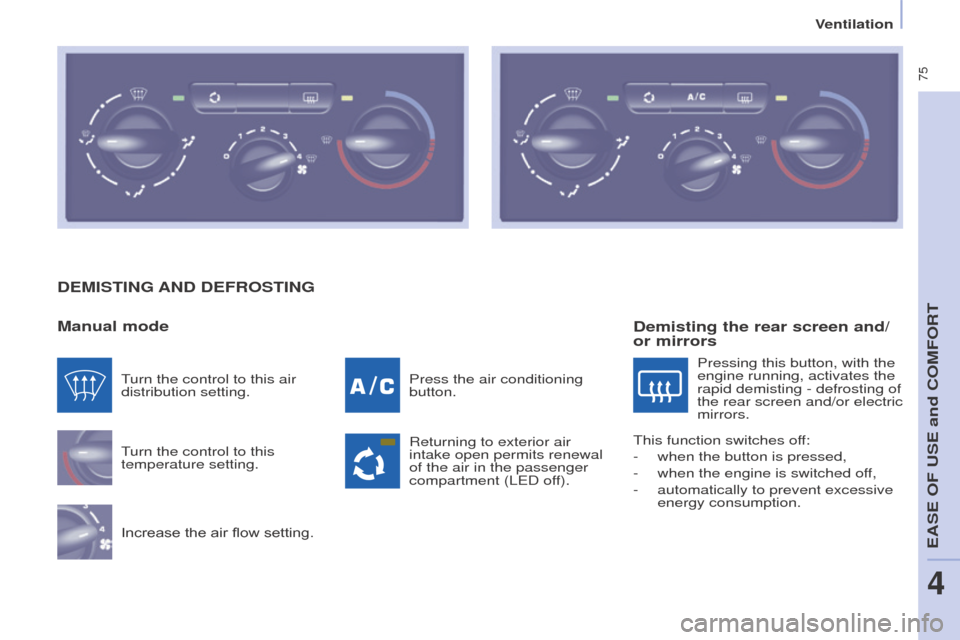

DeMIStINg AND De FR o S t IN g
Manual mode
Turn the control to this
temperature setting.
Increase the air flow setting. Press the air conditioning
button.
Returning to exterior air
intake open permits renewal
of the air in the passenger
compartment (L
e D off).
Turn the control to this air
distribution setting.
Demisting the rear screen and/
or mirrors
Pressing this button, with the
engine running, activates the
rapid demisting - defrosting of
the rear screen and/or electric
mirrors.
This function switches off:
-

when the button is pressed,
-


when the engine is switched of
f,
-

automatically to prevent excessive
energy consumption.
eASe oF uSe and CoMFoRT
4
Ventilation

76

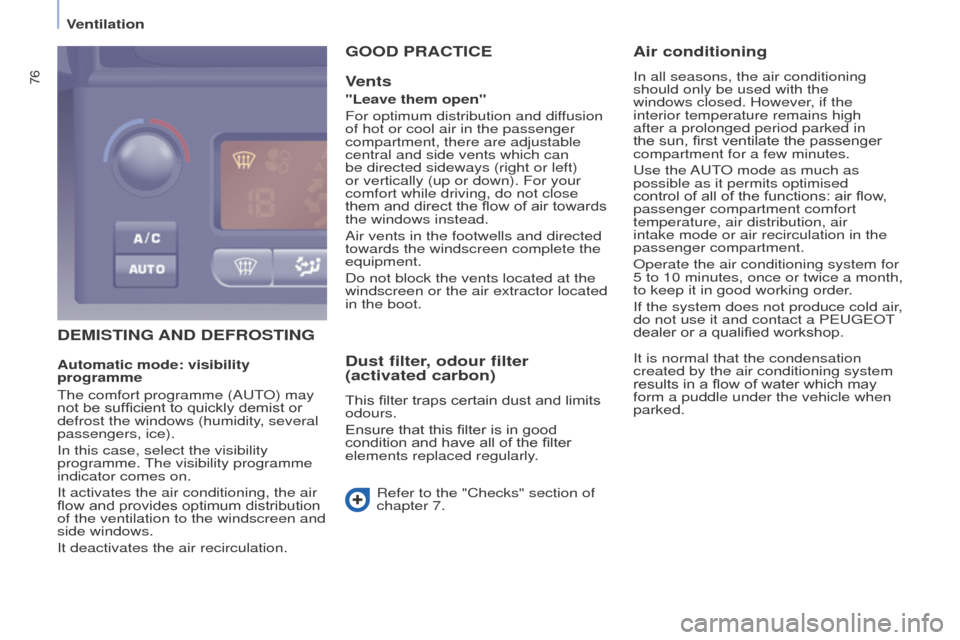

DeMIStINg AND De FR o S t IN g
g
oo D PRAC t IC e
Vents
"Leave them open"
For optimum distribution and diffusion
of hot or cool air in the passenger
compartment, there are adjustable
central and side vents which can
be directed sideways (right or left)
or vertically (up or down). For your
comfort while driving, do not close
them and direct the flow of air towards
the windows instead.
Air vents in the footwells and directed
towards the windscreen complete the
equipment.
Do not block the vents located at the
windscreen or the air extractor located
in the boot.
Dust filter, odour filter
(activated carbon)
This filter traps certain dust and limits
odours.
Ensure that this filter is in good
condition and have all of the filter
elements replaced regularly.
Refer to the "Checks" section of
chapter 7.
Air conditioning
In all seasons, the air conditioning
should only be used with the
windows closed. However, if the
interior temperature remains high
after a prolonged period parked in
the sun, first ventilate the passenger
compartment for a few minutes.
u

se the A u T
o
mode as much as
possible as it permits optimised
control of all of the functions: air flow,
passenger compartment comfort
temperature, air distribution, air
intake mode or air recirculation in the
passenger compartment.
o

perate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in good working order.
If the system does not produce cold air,
do not use it and contact a P
eugeo T
dealer or a qualified workshop.
Automatic mode: visibility
programme
The comfort programme (A
u
T
o

) may
not be sufficient to quickly demist or
defrost the windows (humidity, several
passengers, ice).
In this case, select the visibility
programme. The visibility programme
indicator comes on.
It activates the air conditioning, the air
flow and provides optimum distribution
of the ventilation to the windscreen and
side windows.
It deactivates the air recirculation. It is normal that the condensation
created by the air conditioning system
results in a flow of water which may
form a puddle under the vehicle when
parked.
Ventilation

77
Seats
FRoNt SeAtS
Forwards/backwards Seat height (driver)
To raise the seat, pull the control
upwards then take your weight off the
seat cushion.
To lower the seat, pull the control
upwards then push on the seat
cushion.
Seat backrest angle
Lift the bar and slide the seat forwards
or backwards.
The following adjustments are
available: With your back pressed against the
seat backrest, move the lever forwards
and set the required angle.
eASe oF uSe and CoMFoRT
4

78

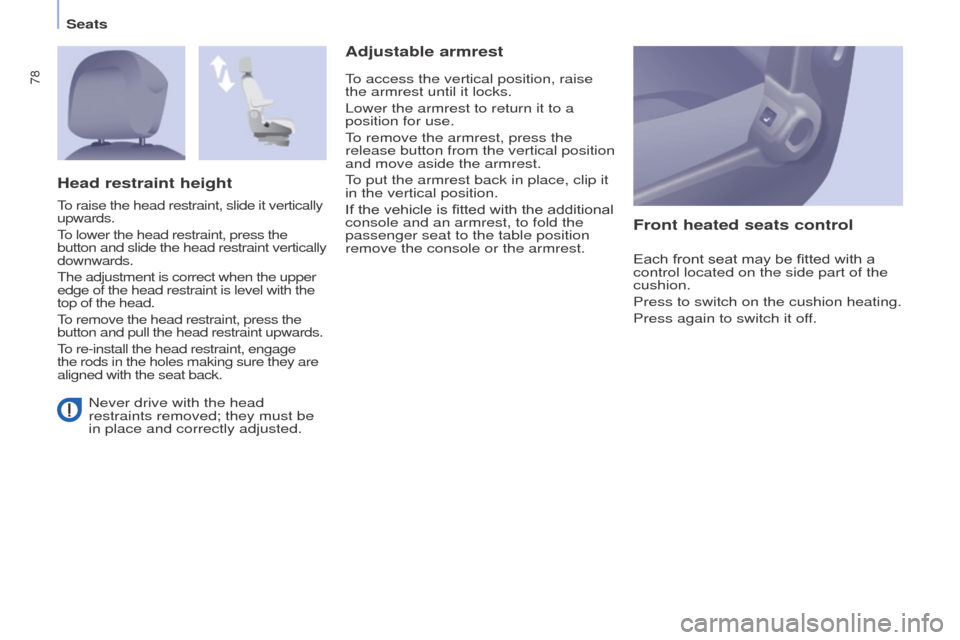

SeatsNever drive with the head
restraints removed; they must be
in place and correctly adjusted.
Adjustable armrest Front heated seats control
Each front seat may be fitted with a
control located on the side part of the
cushion.
Press to switch on the cushion heating.
Press again to switch it off.
Head restraint height
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint vertically
downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install the head restraint, engage
the rods in the holes making sure they are
aligned with the seat back.
To access the vertical position, raise
the armrest until it locks.
Lower the armrest to return it to a
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.
To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fitted with the additional
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
