ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
certificate.
These characteristics correspond
to the values type-approved
on a test bed, under conditions
defined in European legislation
(Directive

1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a PEUGEOT dealer or a qualified
workshop.
WEIGHTS AND TOWED LOADS
These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on
the vehicle's registration certificate.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When the
ambient temperature is higher than
37
°C, limit the towed weight.Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country). The recommended nose weight is
the downward force on the towball
(removable with or without tools).
GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
The location of the manufacturer's
plate is given in chapter 9,
"Identification markings" section.
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with. To find out your vehicle's towing
capacities and its gross train weight,
consult a PEUGEOT dealer.
TECHNICAL DATA
9
Weights

198
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016
Petrol Engines / Weights
5-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 110 hp 5-speed manual 3.25750 55
1.6 VTi 100 hp 5-speed manual 4.25600 70
1.6 VTi 120 hp 5-speed manual 4.25690 70
1.6 VTi 120 hp Euro 6 5-speed manual
4.25600 70
1.2 PureTech S&S 110 hp Euro 6 5-speed manual
3.45600 70
7-seat Engine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 110 hp 5-speed manual 3.25750 70
Weights

199
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016
Diesel Engines / Weights
5-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 HDi 75 hp 5-speed manual -600 70
1.6 HDi 75 hp FAP 5-speed manual -715 70
BlueHDi 75 hp Euro
65-speed manual
-720 70
1.6 HDi 90 hp 5-speed manual 3.75735 70
1.6 HDi 92 hp FAP 5-speed manual 3.75715 70
1.6 e-HDi 92 hp FAP 5-speed manual 3.75690 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp S&S 5-speed manual
3.75600
70
6-speed electronic 60070
1.6 HDi 115 hp FAP 5-speed manual 3.75735 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FAP: particle filter.
e-HDi: model equipped with Stop & Start.
TECHNICAL DATA
9
Weights

200
Partner2VP_en_Chap09_Caract-technique_ed02-2016Partner2VP_en_Chap09_Caract-technique_ed02-2016

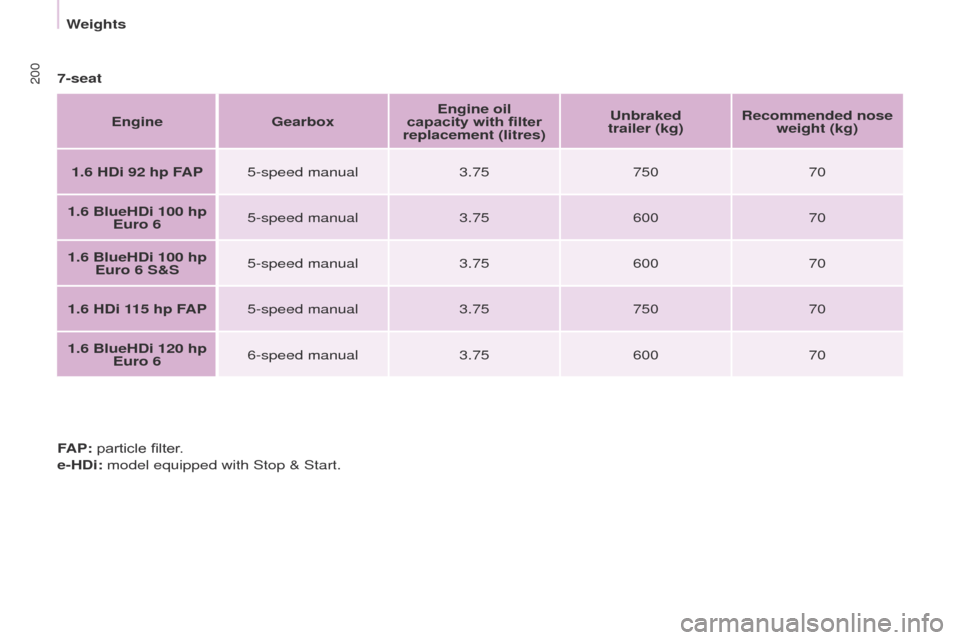

7-seatEngine Gearbox Engine oil
capacity with filter
replacement (litres) Unbraked
trailer (kg) Recommended nose
weight (kg)
1.6 HDi 92 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 100 hp Euro 6 5-speed manual
3.75600 70
1.6 BlueHDi 100 hp Euro 6 S&S 5-speed manual
3.75600 70
1.6 HDi 115 hp FAP 5-speed manual 3.75750 70
1.6 BlueHDi 120 hp Euro 6 6-speed manual
3.75600 70
FAP: particle filter.
e-HDi: model equipped with Stop & Start.
Weights

261
