Peugeot Partner VU 2007 Owner's Guide

33Audio equipment-
RDS
Using the RDS (Radio Data
System) function on FM
Radio Data System allows you to
continue listening to the same sta-
tion, whatever frequency it is using
for the region you are going through.Traffic information programme Regional following mode (REG)
RDS station following
The display indicates the name of the
station selected. The radio is contin-
ually searching for the station which
has the best reception and which is
transmitting the same programme. Press the
"TA" button
to switch the function
on or off.
The multi-function display will show:
- "TA" if the function is selected,
- "(TA)" if the function is selected but
not available.
Any traffic information flash will be
given priority, whatever source you
are listening to (radio, cassette, CD
or CD changer).
If you wish to interrupt a message,
press the "TA" button; this switches
the function off.
Note: the volume of traffic informa-
tion announcements is independ-
ent of the volume of normal radio
listening. You can adjust it using
the volume button. The setting will
be stored and will be used when
the next messages are broadcast.
Briefly press the
"RDS"
button to
switch the function on
or off.
The multi-function dis-
play will show:
- "RDS" if the function is selected.
- "(RDS)" if the function is selected
but not available. When they are part
of a network, certain
stations broadcast re-
gional programmes in
the various areas they serve. With re-
gional following mode you can keep
listening to the same programme.
Press the "RDS" button for more
than two seconds to switch the REG
function on or off.

Audio equipment34 -
EON system: Audio RD3
This connects stations which are part
of the same network. It enables the
broadcast of traffic information, by a
station that is part of the same net-
work as the station to which you are
listening.
This service is available when you
have selected the TA traffic informa-
tion programme or the PTY function.
PTY function: Audio RD3
This allows you to listen to stations
broadcasting a specific type of pro-
gramme (news, culture, sport, rock,
etc.).
To search for a
PTY programme:
With FM selected,
press the "TA" but-
ton for more than two
seconds to switch this
function on or off. - select the
PTY function,
- briefly press button L or N to scroll
down the list of the various types of
programmes offered.
- when the programme of your choice is displayed, keep button
L or N pressed for more than two
seconds to carry out an automatic
search (after an automatic search
the PTY function is switched off).
In PTY mode the different types of
programmes can be stored in the
memory. To do this, press the prese-
lection buttons "1" to "6" for more
than two seconds.
Briefly press the corresponding but-
ton to recall the type of programme
stored in the memory.

35Audio equipment-
CASSETTE: AUDIO RB3
Selecting cassette modeRecommendations for using
casssettes
- Use good quality cassettes.
- Avoid the use of cassettes which
play for longer than 90 minutes.
- Never expose the cassettes to heat or the direct rays of the sun.
- Re-tighten the tape if necessary before inserting the cassette in the
player.
- Clean the playing head regularly with a damp type cleaning cas-
sette.
When a cassette is
inserted, the cassette
player will start auto-
matically.
If a cassette is already inserted,
press button "SRC" several times to
select cassette mode.
Note: before inserting the cassette,
ensure that the tape is taut.
Ejecting the cassette Direction of play
The player will play sides 1 and 2 of
the cassette alternately, by automati-
cally reversing the direction of play at
the end of a side.
To manually reverse the direction of
play, press the 2 buttons
F and G half
way.
Fully press buttons F
and G to eject the cas-
sette from the player. Fast forward/rewind
Fully press button
F or G to fast for-
ward or rewind the cassette. At the
end of the fast forward/rewind, the
set plays the current side.

Audio equipment28 -
AUDIO RD3

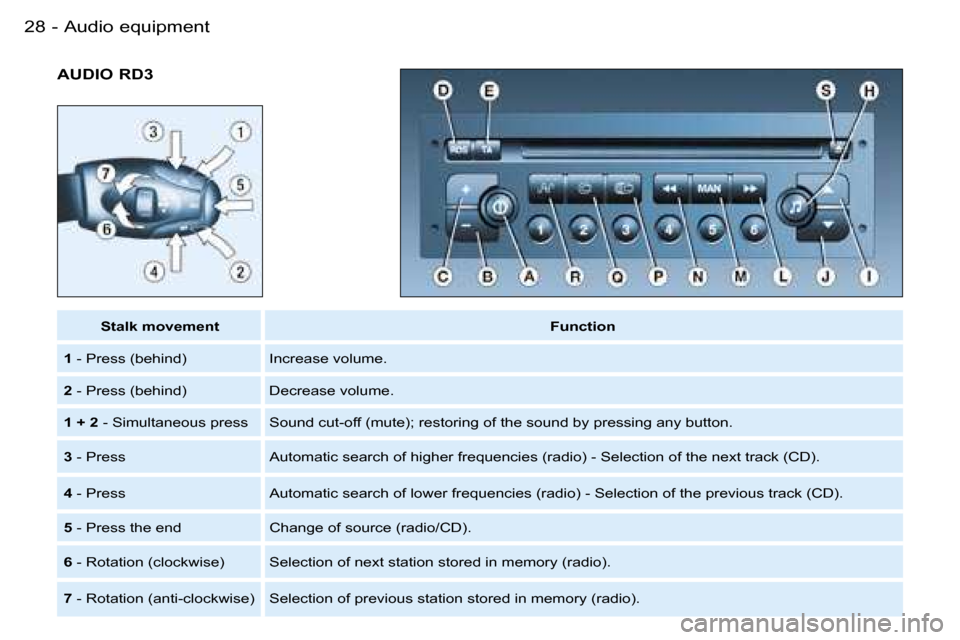

Stalk movementFunction
1 - Press (behind) Increase volume.
2 - Press (behind) Decrease volume.
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound b y pressing any button.
3 - Press Automatic search of higher frequencies (radio) - Selection of t he next track (CD).
4 - Press Automatic search of lower frequencies (radio) - Selection of th e previous track (CD).
5 - Press the end Change of source (radio/CD).
6 - Rotation (clockwise) Selection of next station stored in memory (radio).
7 - Rotation (anti-clockwise) Selection of previous station stored in memory (radio).

29Audio equipment-

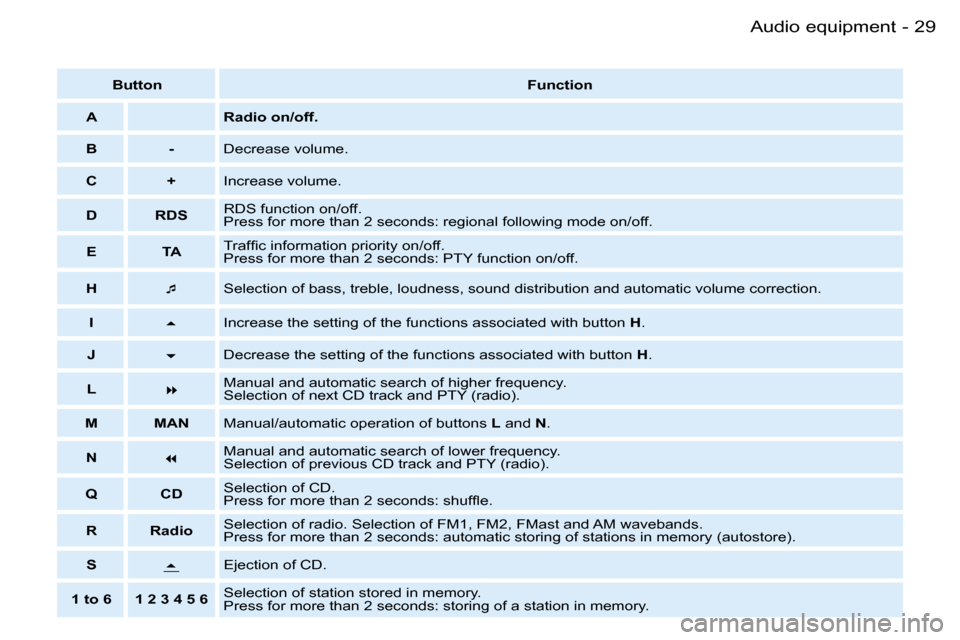

ButtonFunction
A Radio on/off.
B - Decrease volume.
C + Increase volume.
D RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
E TA Traffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
H Selection of bass, treble, loudness, sound distribution and a
utomatic volume correction.
I Increase the setting of the functions associated with button
H .
J Decrease the setting of the functions associated with button
H .
L Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
M MAN Manual/automatic operation of buttons L and N.
N Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
Q CD Selection of CD.
Press for more than 2 seconds: shuffle.
R Radio Selection of radio. Selection of FM1, FM2, FMast and AM waveban
ds.
Press for more than 2 seconds: automatic storing of stations in memory (autostore).
S
 Ejection of CD.
1 to 6 1 2 3 4 5 6 Selection of station stored in memory.
Press for more than 2 seconds: storing of a station in memory.

Audio equipment36 -
Ejection of a discShuffle
When the CD player is selected, keep
button
Q pressed for two seconds.
The tracks will be played in random
sequence. Pressing the button again
for two seconds returns you to nor-
mal play.
Shuffle mode is de-activated each
time the audio system is switched
off.
After insertion of a
disc, printed face
upwards, the player
starts automatically.
If a disc is already inserted, press
button Q.
COMPACT DISC: AUDIO RD3
Selecting CD mode
The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
Selecting a track
Press button
L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
Press button S to
eject the disc from the
player. Accelerated play
Keep button
L or N pressed for for-
wards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.

38 -Ventilation

39
-Ventilation

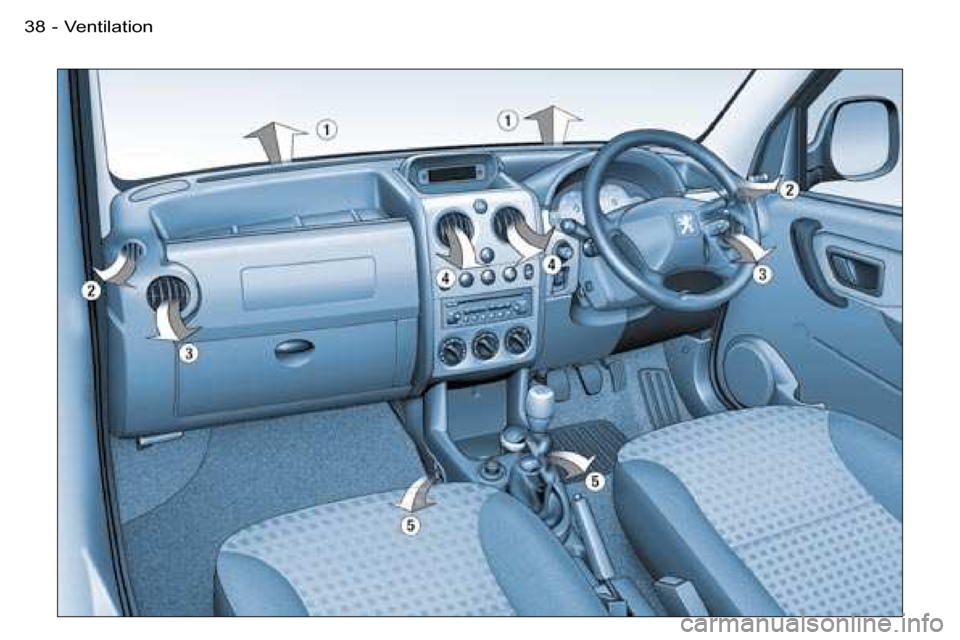

VENTILATION
1. Windscreen de-icing or
demisting vents.
2. Front window de-icing or
demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlets to front footwells. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water created by the air condi-
tioning condensation is discharged
via an opening provided for this pur-
pose. Therefore, a puddle of water
may form underneath the vehicle
when stationary.
If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
De-icing the rear screen and
mirrors
With the engine running, pressing
the control de-ices the rear screen
and mirrors.
It switches off automatically after ap-
proximately twelve minutes.
Pressing the control again switch-
es the de-icing system on again for
twelve minutes.
It is possible to switch off the de-
icing by pressing the control before
the twelve minutes have elapsed.
Advice on operation
Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually adjust the temperature
setting for your comfort.
Position the air control in the "Out-
side Air" position.
For perfectly even air distribution,
take care not to obstruct the exterior
air intake grille and the vents.
Check that the passenger compart-
ment filter is in good condition.
When the engine is cold, to prevent
too great a distribution of cold air, the
ventilation will increase to its opti-
mum level gradually.
In order to be effective, the air condi-
tioning (
A/C button), should only be
used with the windows closed.
If the interior temperature remains
very high following a prolonged peri-
od parked in the sun, do not hesitate
to ventilate the passenger compart-
ment for a few minutes.

40 -Ventilation
Intake of exterior air.

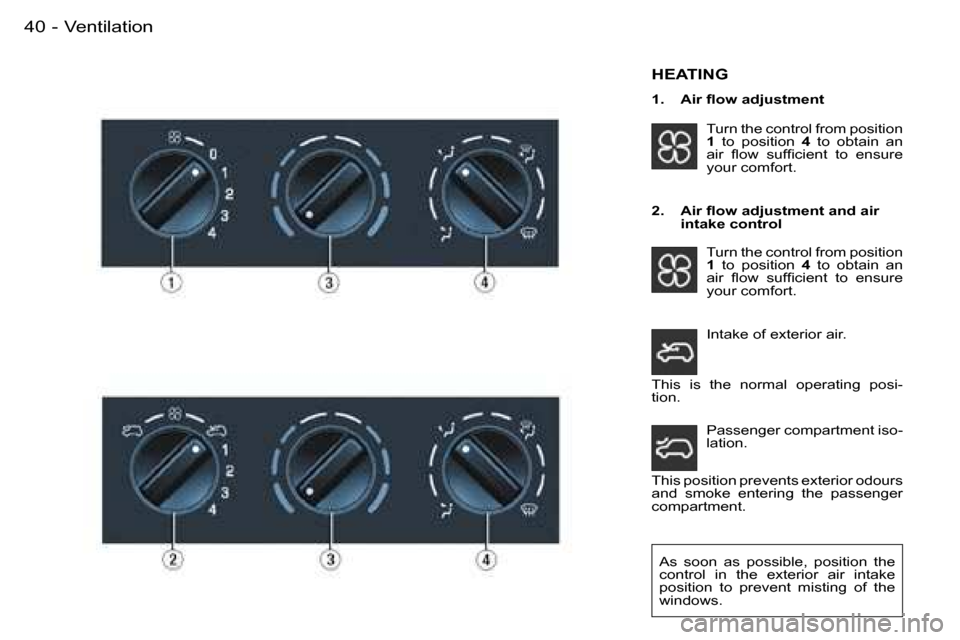

HEATING
1. Air flow adjustmentTurn the control from position
1 to position 4 to obtain an
air flow sufficient to ensure
your comfort.
2. Air flow adjustment and air intake control
Turn the control from position
1 to position 4 to obtain an
air flow sufficient to ensure
your comfort.
As soon as possible, position the
control in the exterior air intake
position to prevent misting of the
windows.
This is the normal operating posi-
tion. Passenger compartment iso-
lation.
This position prevents exterior odours
and smoke entering the passenger
compartment.

41
-Ventilation
These settings are recommended for
cold climates.
3. Temperature adjustment
To be adjusted to your requirements.
From blue (exterior temperature) to
red (hot).
4. Air distribution adjustment
This setting is recommended for high
temperatures.
Windscreen and side win-
dows (de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:
- position the air intake control in the "Outside Air" position,
- turn the temperature and air flow controls to maximum,
- close the centre vents. Windscreen, side windows
and footwells.
Footwells.
Centre and side vents.
