VISIBILITY

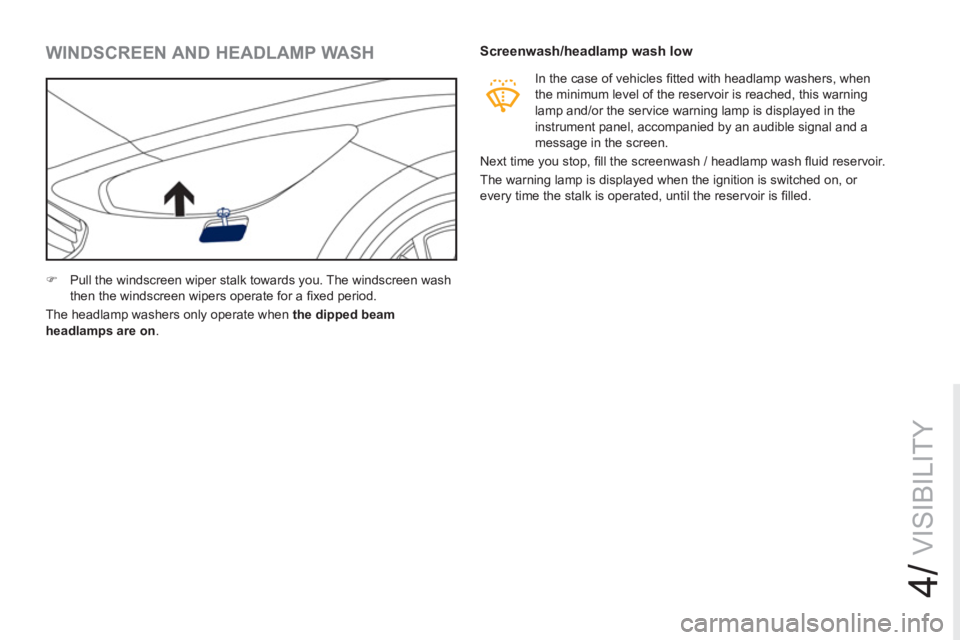

WINDSCREEN AND HEADLAMP WASH
)
Pull the windscreen wiper stalk towards you. The windscreen wash
then the windscreen wipers operate for a fi xed period.
The headlamp washers only operate when the dipped beam
headlamps are on
.
Screenwash/headlamp wash low
In the case of vehicles fi tted with headlamp washers, when
the minimum level of the reservoir is reached, this warning
lamp and/or the service warning lamp is displayed in the
instrument panel, accompanied by an audible signal and a
message in the screen.
Next time you stop, fi ll the screenwash / headlamp wash fl uid reservoir.
The warning lamp is displayed when the ignition is switched on, or
every time the stalk is operated, until the reservoir is fi lled.
Page 102 of 336
100

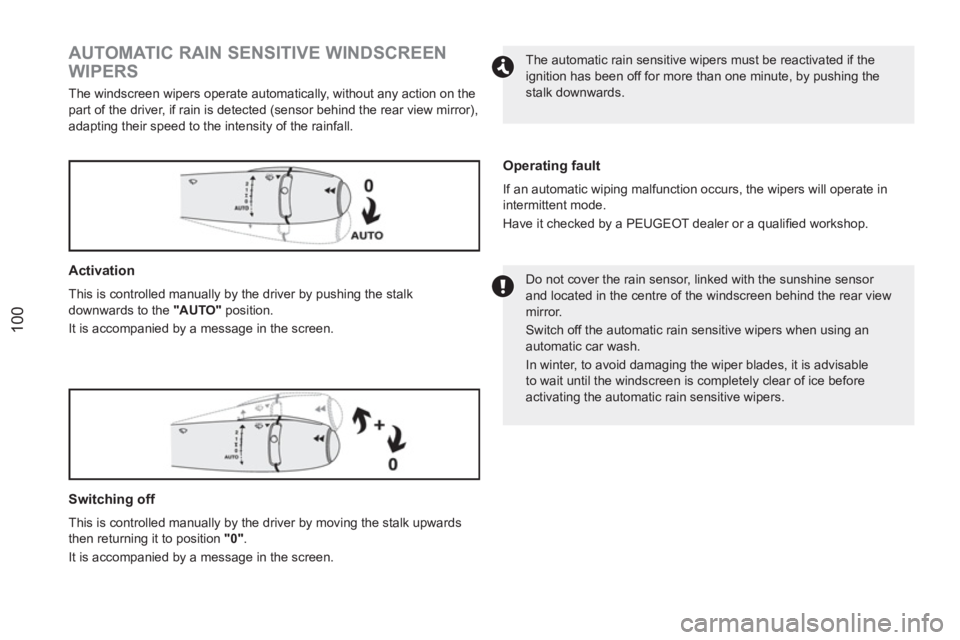

AUTOMATIC RAIN SENSITIVE WINDSCREEN
WIPERS
The windscreen wipers operate automatically, without any action on the
part of the driver, if rain is detected (sensor behind the rear view mirror),
adapting their speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver by pushing the stalk
downwards to the "AUTO"
position.
It is accompanied by a message in the screen.
Switching off
This is controlled manually by the driver by moving the stalk upwards
then returning it to position "0"
.
It is accompanied by a message in the screen.
Operating fault
If an automatic wiping malfunction occurs, the wipers will operate in
intermittent mode.
Have it checked by a PEUGEOT dealer or a qualifi ed workshop. The automatic rain sensitive wipers must be reactivated if the
ignition has been off for more than one minute, by pushing the
stalk downwards.
Do not cover the rain sensor, linked with the sunshine sensor
and located in the centre of the windscreen behind the rear view
mirror.
Switch off the automatic rain sensitive wipers when using an
automatic car wash.
In winter, to avoid damaging the wiper blades, it is advisable
to wait until the windscreen is completely clear of ice before
activating the automatic rain sensitive wipers.
Page 103 of 336
4/
VISIBILITY

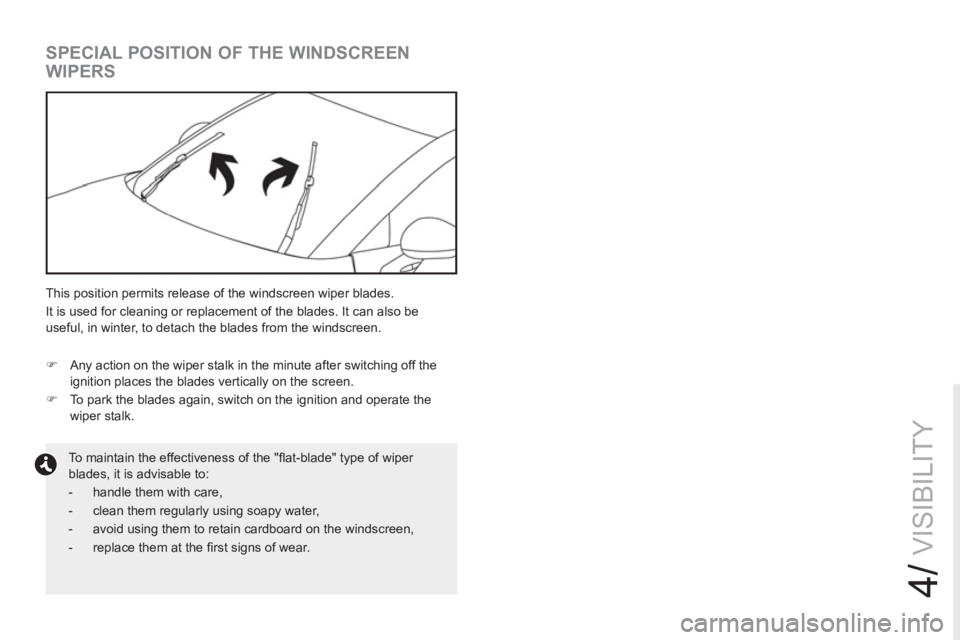

SPECIAL POSITION OF THE WINDSCREEN
WIPERS
To maintain the effectiveness of the "fl at-blade" type of wiper
blades, it is advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain cardboard on the windscreen,
- replace them at the fi rst signs of wear.
This position permits release of the windscreen wiper blades.
It is used for cleaning or replacement of the blades. It can also be
useful, in winter, to detach the blades from the windscreen.
)
Any action on the wiper stalk in the minute after switching off the
ignition places the blades vertically on the screen.
)
To park the blades again, switch on the ignition and operate the
wiper stalk.
Page 104 of 336
102

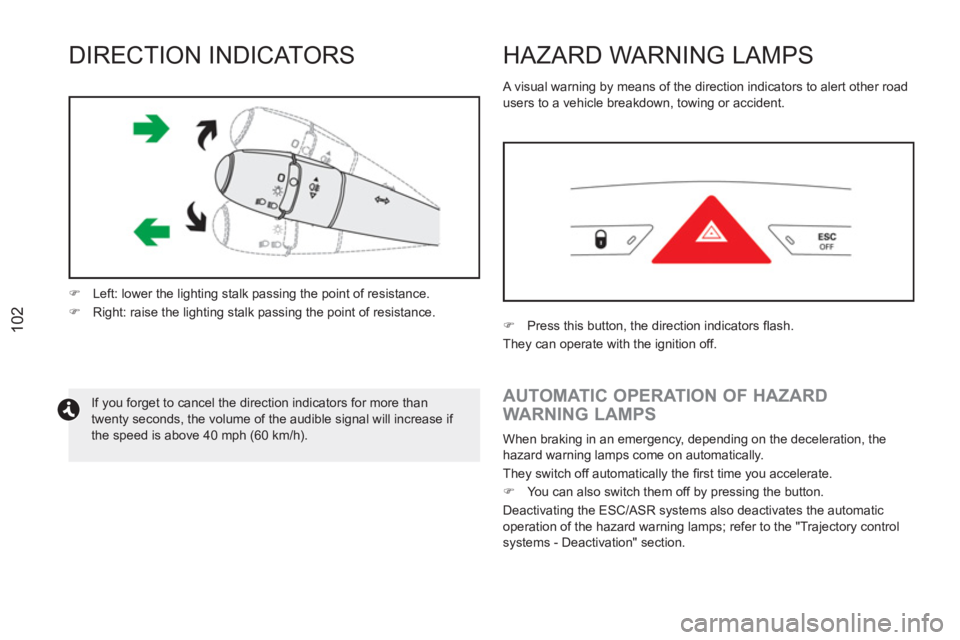

DIRECTION INDICATORS
If you forget to cancel the direction indicators for more than
twenty seconds, the volume of the audible signal will increase if
the speed is above 40 mph (60 km/h).
)
Left: lower the lighting stalk passing the point of resistance.
)
Right: raise the lighting stalk passing the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the direction indicators to alert other road
users to a vehicle breakdown, towing or accident.
)
Press this button, the direction indicators fl ash.
They can operate with the ignition off.
AUTOMATIC OPERATION OF HAZARD
WARNING LAMPS
When braking in an emergency, depending on the deceleration, the
hazard warning lamps come on automatically.
They switch off automatically the fi rst time you accelerate.
)
You can also switch them off by pressing the button.
Deactivating the ESC/ASR systems also deactivates the automatic
operation of the hazard warning lamps; refer to the "Trajectory control
systems - Deactivation" section.
Page 105 of 336
5/
SAFETY

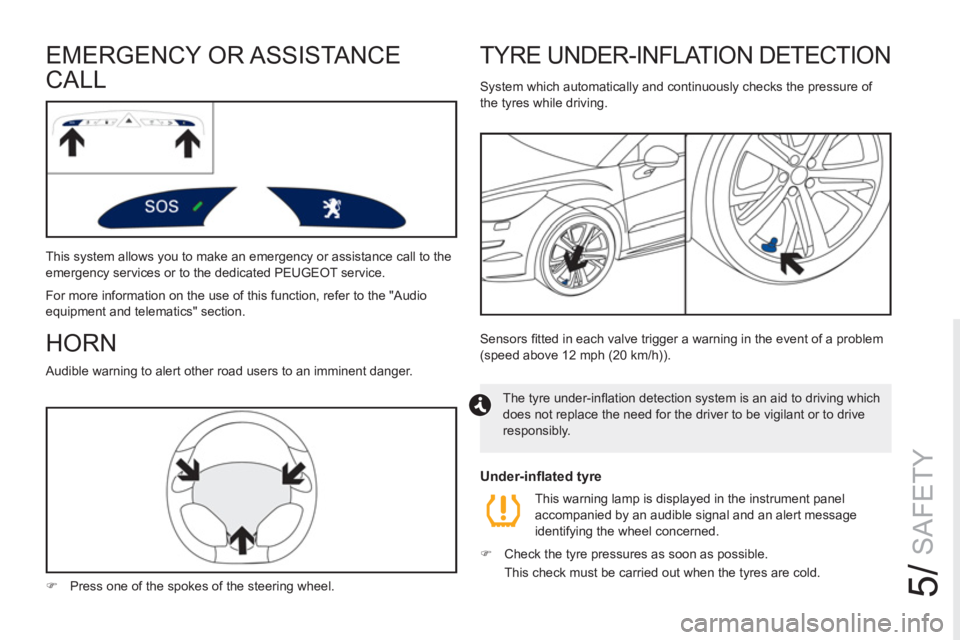

TYRE UNDER-INFLATION DETECTION
System which automatically and continuously checks the pressure of
the tyres while driving.
The tyre under-infl ation detection system is an aid to driving which
does not replace the need for the driver to be vigilant or to drive
responsibly. Sensors fi tted in each valve trigger a warning in the event of a problem
(speed above 12 mph (20 km/h)).
Under-inflated tyre
This warning lamp is displayed in the instrument panel
accompanied by an audible signal and an alert message
identifying the wheel concerned.
)
Check the tyre pressures as soon as possible.
This check must be carried out when the tyres are cold.
HORN
Audible warning to alert other road users to an imminent danger.
)
Press one of the spokes of the steering wheel.
EMERGENCY OR ASSISTA NCE
CALL
This system allows you to make an emergency or assistance call to the
emergency services or to the dedicated PEUGEOT service.
For more information on the use of this function, refer to the "Audio
equipment and telematics" section.
Page 106 of 336
104
All repairs and changing of tyres on a wheel fi tted with this
system must be carried out by a PEUGEOT dealer or a qualifi ed
workshop.
If, when changing a tyre, you install a wheel which is not detected
by your vehicle (example: fi tting of snow tyres), you must have
the system reinitialised by a PEUGEOT dealer or a qualifi ed
workshop.
This system does not avoid the need to have the tyre pressures
checked regularly (refer to the "Identifi cation markings" section)
to ensure that the optimum dynamic performance of the vehicle is
maintained and prevent premature wear of the tyres, particularly in
arduous driving conditions (heavy load, high speed).
The tyre pressures must be checked cold, at least once a month.
Remember to also check the pressure of the spare wheel if your
vehicle has one.
The tyre under-infl ation detection system may experience
temporary interference due to electro-magnetic signals on a
frequency close to that used by the system.

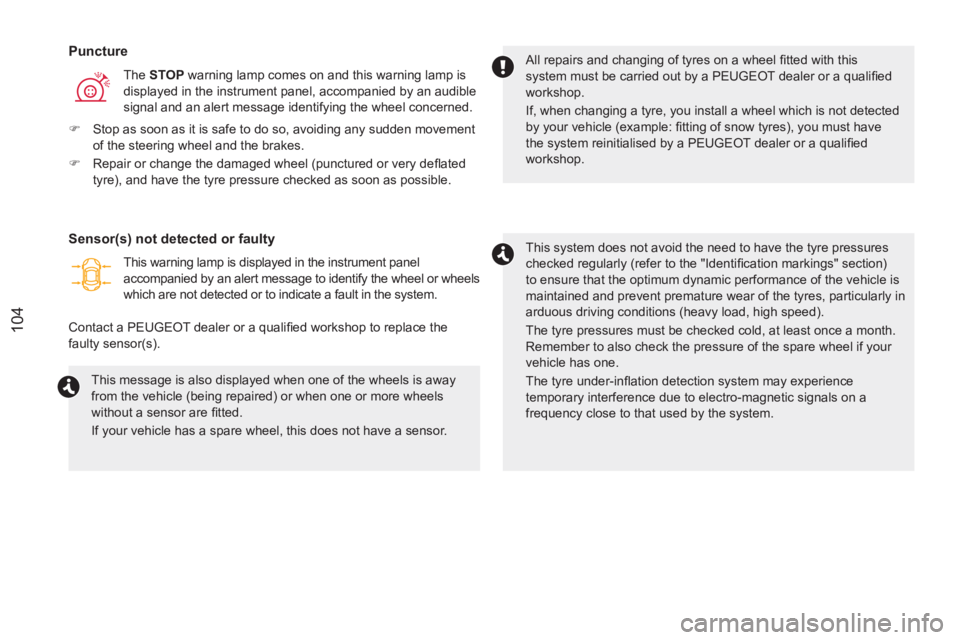

Puncture
The STOP
warning lamp comes on and this warning lamp is
displayed in the instrument panel, accompanied by an audible
signal and an alert message identifying the wheel concerned.
)
Stop as soon as it is safe to do so, avoiding any sudden movement
of the steering wheel and the brakes.
)
Repair or change the damaged wheel (punctured or very defl ated
tyre), and have the tyre pressure checked as soon as possible.
Sensor(s) not detected or faulty
This warning lamp is displayed in the instrument panel
accompanied by an alert message to identify the wheel or wheels
which are not detected or to indicate a fault in the system.
Contact a PEUGEOT dealer or a qualifi ed workshop to replace the
faulty sensor(s).
This message is also displayed when one of the wheels is away
from the vehicle (being repaired) or when one or more wheels
without a sensor are fi tted.
If your vehicle has a spare wheel, this does not have a sensor.
Page 107 of 336
5/
SAFETY

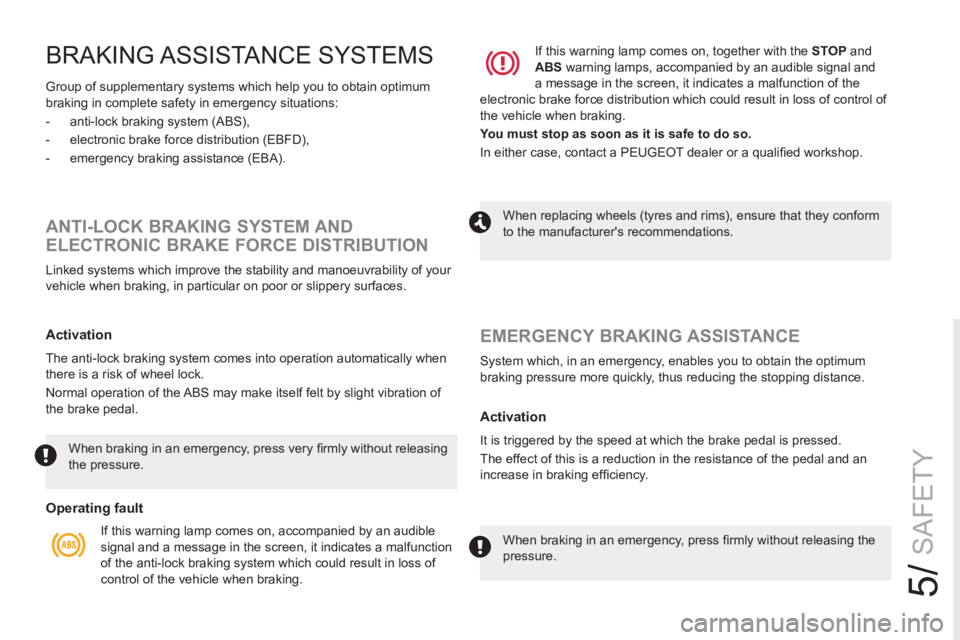

BRAKING ASSISTA NCE SYSTEMS
Group of supplementary systems which help you to obtain optimum
braking in complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
ANTI-LOCK BRAKING SYSTEM AND
ELECTRONIC BRAKE FORCE DISTRIBUTION
Linked systems which improve the stability and manoeuvrability of your
vehicle when braking, in particular on poor or slippery surfaces.
Activation
The anti-lock braking system comes into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may make itself felt by slight vibration of
the brake pedal.
When braking in an emergency, press very fi rmly without releasing
the pressure.
Operating fault
If this warning lamp comes on, accompanied by an audible
signal and a message in the screen, it indicates a malfunction
of the anti-lock braking system which could result in loss of
control of the vehicle when braking. If this warning lamp comes on, together with the STOP
and
ABS
warning lamps, accompanied by an audible signal and
a message in the screen, it indicates a malfunction of the
electronic brake force distribution which could result in loss of control of
the vehicle when braking.
You must stop as soon as it is safe to do so.
In either case, contact a PEUGEOT dealer or a qualifi ed workshop.
When replacing wheels (tyres and rims), ensure that they conform
to the manufacturer's recommendations.
When braking in an emergency, press fi rmly without releasing the
pressure.
EMERGENCY BRAKING ASSISTANCE
System which, in an emergency, enables you to obtain the optimum
braking pressure more quickly, thus reducing the stopping distance.
Activation
It is triggered by the speed at which the brake pedal is pressed.
The effect of this is a reduction in the resistance of the pedal and an
increase in braking effi ciency.
Page 108 of 336
106

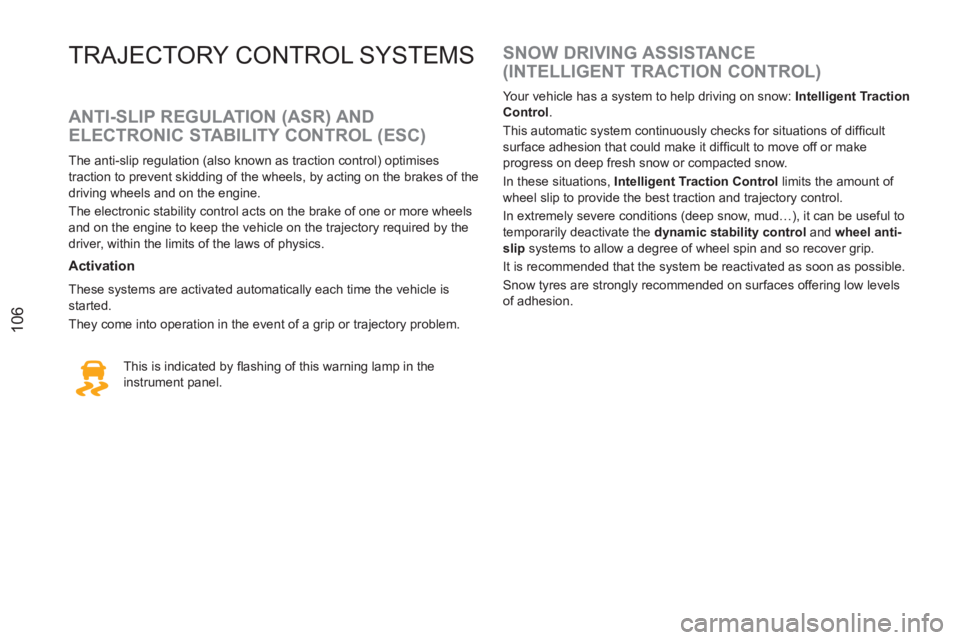

TRAJECTORY CONTROL SYSTEMS
ANTI-SLIP REGULATION (ASR) AND
ELECTRONIC STABILITY CONTROL (ESC)
The anti-slip regulation (also known as traction control) optimises
traction to prevent skidding of the wheels, by acting on the brakes of the
driving wheels and on the engine.
The electronic stability control acts on the brake of one or more wheels
and on the engine to keep the vehicle on the trajectory required by the
driver, within the limits of the laws of physics.
Activation
These systems are activated automatically each time the vehicle is
started.
They come into operation in the event of a grip or trajectory problem.
This is indicated by fl ashing of this warning lamp in the
instrument panel.
SNOW DRIVING ASSISTANCE
(INTELLIGENT TRACTION CONTROL)
Your vehicle has a system to help driving on snow: Intelligent Traction
Control.
This automatic system continuously checks for situations of diffi cult
surface adhesion that could make it diffi cult to move off or make
progress on deep fresh snow or compacted snow.
In these situations, Intelligent Traction Control
limits the amount of
wheel slip to provide the best traction and trajectory control.
In extremely severe conditions (deep snow, mud…), it can be useful to
temporarily deactivate the dynamic stability control and wheel anti-
slip
systems to allow a degree of wheel spin and so recover grip.
It is recommended that the system be reactivated as soon as possible.
Snow tyres are strongly recommended on surfaces offering low levels
of adhesion.
Page 109 of 336
5/
SAFETY

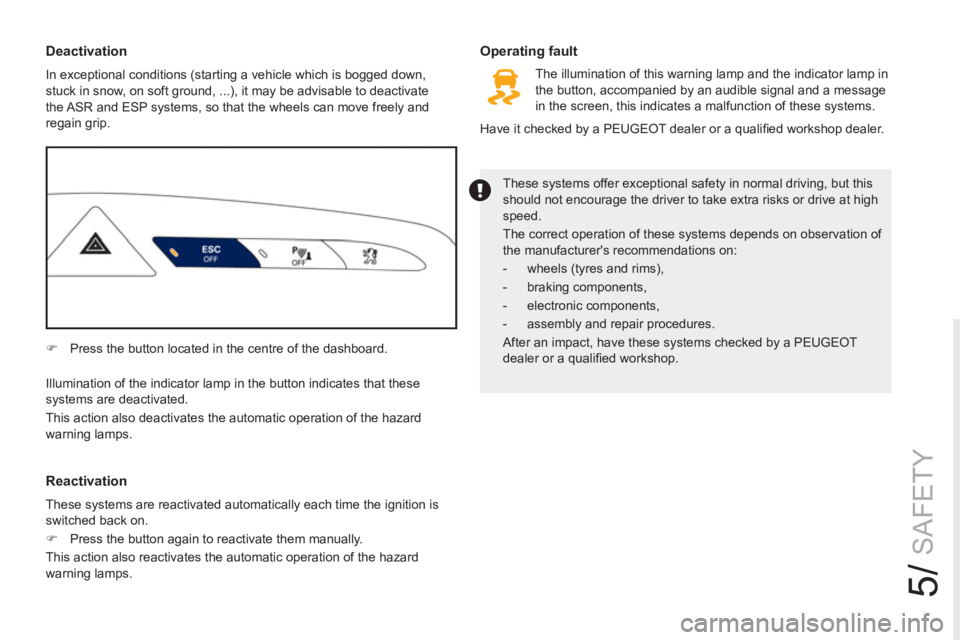

Deactivation
In exceptional conditions (starting a vehicle which is bogged down,
stuck in snow, on soft ground, ...), it may be advisable to deactivate
the ASR and ESP systems, so that the wheels can move freely and
regain grip.
)
Press the button located in the centre of the dashboard.
Illumination of the indicator lamp in the button indicates that these
systems are deactivated.
This action also deactivates the automatic operation of the hazard
warning lamps.
Reactivation
These systems are reactivated automatically each time the ignition is
switched back on.
)
Press the button again to reactivate them manually.
This action also reactivates the automatic operation of the hazard
warning lamps.
Operating fault
These systems offer exceptional safety in normal driving, but this
should not encourage the driver to take extra risks or drive at high
speed.
The correct operation of these systems depends on observation of
the manufacturer's recommendations on :
- wheels (tyres and rims),
- braking components,
- electronic components,
- assembly and repair procedures.
After an impact, have these systems checked by a PEUGEOT
dealer or a qualifi ed workshop.
The illumination of this warning lamp and the indicator lamp in
the button, accompanied by an audible signal and a message
in the screen, this indicates a malfunction of these systems.
Have it checked by a PEUGEOT dealer or a qualifi ed workshop dealer.
Page 110 of 336
108

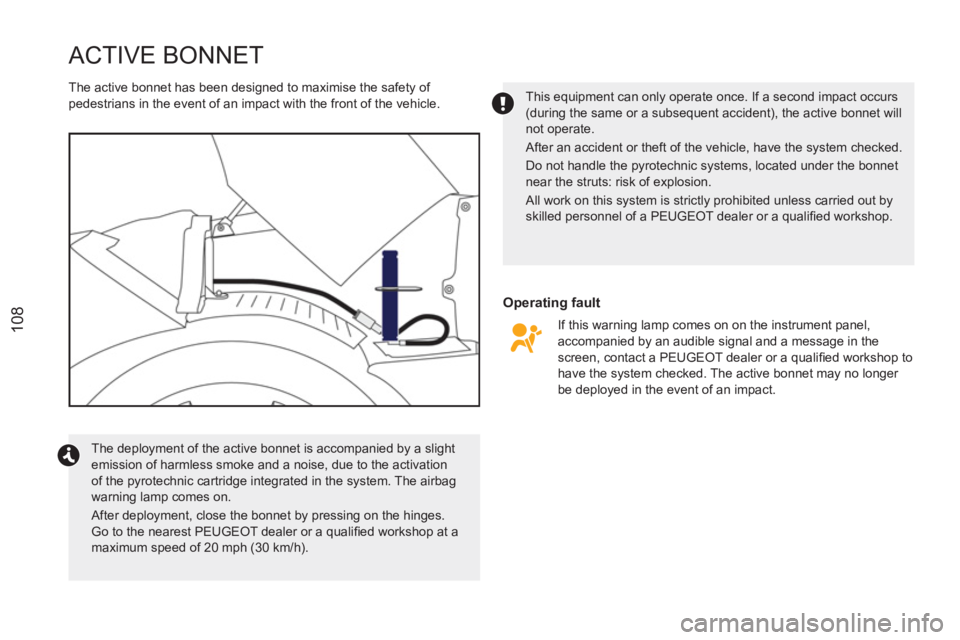

ACTIVE BONNET
Operating fault
The active bonnet has been designed to maximise the safety of
pedestrians in the event of an impact with the front of the vehicle.
The deployment of the active bonnet is accompanied by a slight
emission of harmless smoke and a noise, due to the activation
of the pyrotechnic cartridge integrated in the system. The airbag
warning lamp comes on.
After deployment, close the bonnet by pressing on the hinges.
Go to the nearest PEUGEOT dealer or a qualifi ed workshop at a
maximum speed of 20 mph (30 km/h). This equipment can only operate once. If a second impact occurs
(during the same or a subsequent accident), the active bonnet will
not operate.
After an accident or theft of the vehicle, have the system checked.
Do not handle the pyrotechnic systems, located under the bonnet
near the struts: risk of explosion.
All work on this system is strictly prohibited unless carried out by
skilled personnel of a PEUGEOT dealer or a qualifi ed workshop.
If this warning lamp comes on on the instrument panel,
accompanied by an audible signal and a message in the
screen, contact a PEUGEOT dealer or a qualifi ed workshop to
have the system checked. The active bonnet may no longer
be deployed in the event of an impact.
