2/
ACCESS

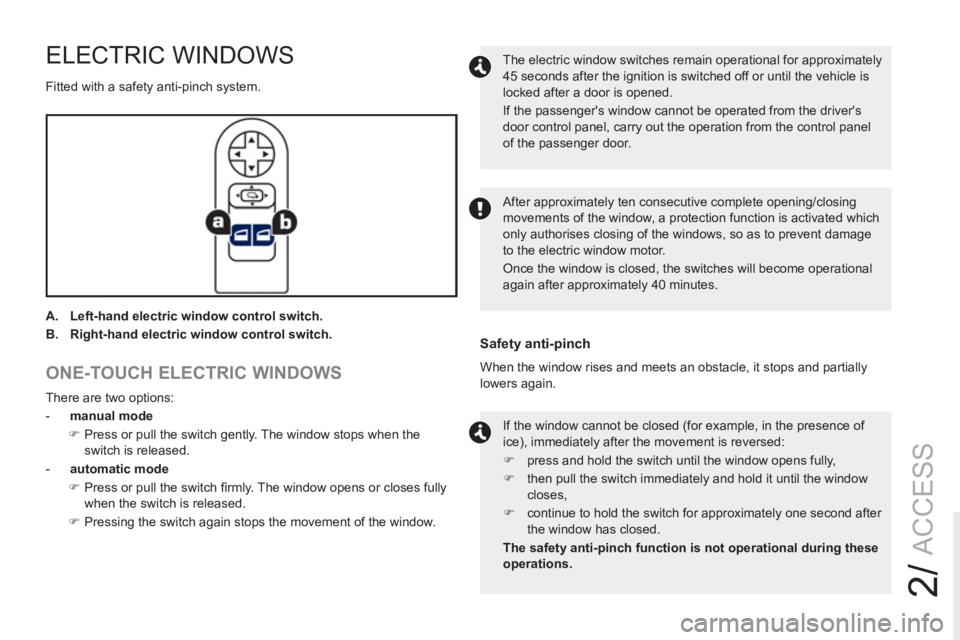

ELECTRIC WINDOWS
Fitted with a safety anti-pinch system.
A.
Left-hand electric window control switch.
B.
Right-hand electric window control switch.
ONE-TOUCH ELECTRIC WINDOWS
There are two options:
- manual mode
)
Press or pull the switch gently. The window stops when the
switch is released.
- automatic mode
)
Press or pull the switch fi rmly. The window opens or closes fully
when the switch is released.
)
Pressing the switch again stops the movement of the window.
The electric window switches remain operational for approximately
45 seconds after the ignition is switched off or until the vehicle is
locked after a door is opened.
If the passenger's window cannot be operated from the driver's
door control panel, carry out the operation from the control panel
of the passenger door.
After approximately ten consecutive complete opening/closing
movements of the window, a protection function is activated which
only authorises closing of the windows, so as to prevent damage
to the electric window motor.
Once the window is closed, the switches will become operational
again after approximately 40 minutes.
Safety anti-pinch
When the window rises and meets an obstacle, it stops and partially
lowers again.
If the window cannot be closed (for example, in the presence of
ice), immediately after the movement is reversed:
)
press and hold the switch until the window opens fully,
)
then pull the switch immediately and hold it until the window
closes,
)
continue to hold the switch for approximately one second after
the window has closed.
The safety anti-pinch function is not operational during these
operations.
Page 62 of 336
60

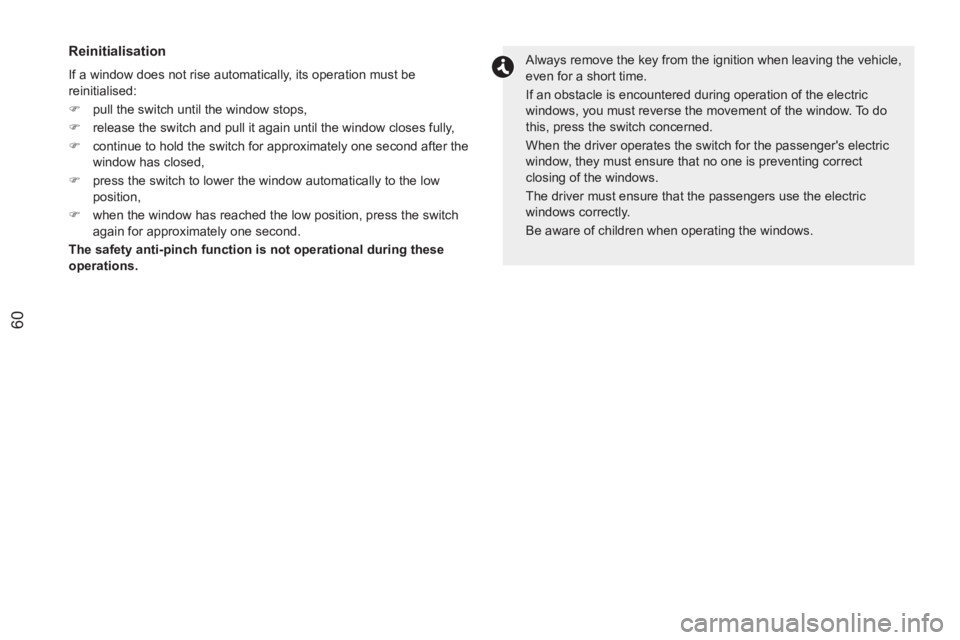

Reinitialisation
If a window does not rise automatically, its operation must be
reinitialised:
)
pull the switch until the window stops,
)
release the switch and pull it again until the window closes fully,
)
continue to hold the switch for approximately one second after the
window has closed,
)
press the switch to lower the window automatically to the low
position,
)
when the window has reached the low position, press the switch
again for approximately one second.
The safety anti-pinch function is not operational during these
operations.
Always remove the key from the ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during operation of the electric
windows, you must reverse the movement of the window. To do
this, press the switch concerned.
When the driver operates the switch for the passenger's electric
window, they must ensure that no one is preventing correct
closing of the windows.
The driver must ensure that the passengers use the electric
windows correctly.
Be aware of children when operating the windows.
Page 63 of 336
2/
ACCESS

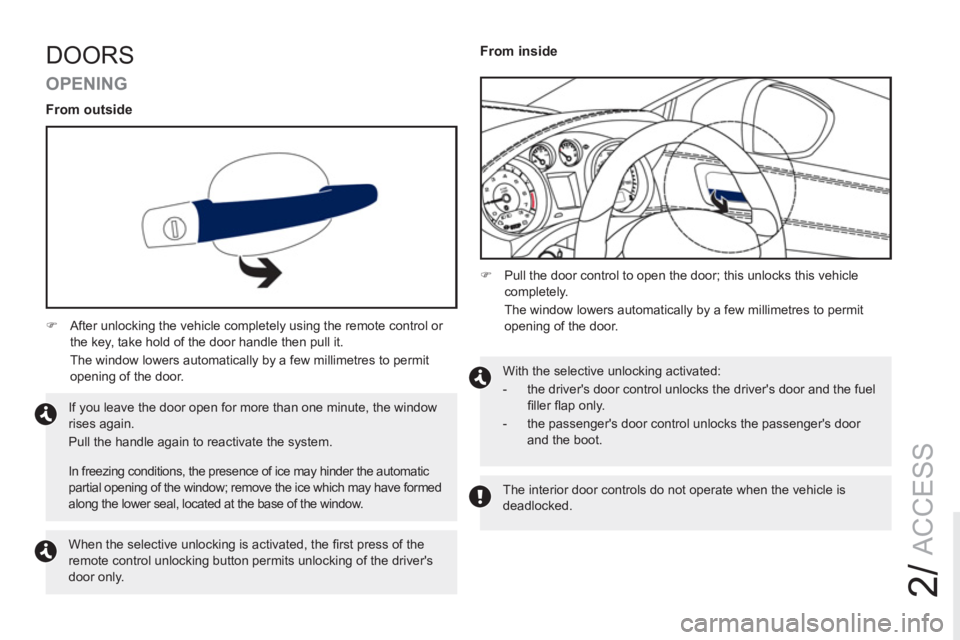

DOORS
OPENING
From outside
)
After unlocking the vehicle completely using the remote control or
the key, take hold of the door handle then pull it.
The window lowers automatically by a few millimetres to permit
opening of the door.
In freezing conditions, the presence of ice may hinder the automatic
partial opening of the window; remove the ice which may have formed
along the lower seal, located at the base of the window.
When the selective unlocking is activated, the fi rst press of the
remote control unlocking button permits unlocking of the driver's
door only.
From inside
)
Pull the door control to open the door; this unlocks this vehicle
completely.
The window lowers automatically by a few millimetres to permit
opening of the door.
With the selective unlocking activated:
- the driver's door control unlocks the driver's door and the fuel
fi ller fl ap only.
- the passenger's door control unlocks the passenger's door
and the boot.
The interior door controls do not operate when the vehicle is
deadlocked. If you leave the door open for more than one minute, the window
rises again.
Pull the handle again to reactivate the system.
Page 64 of 336
62
CLOSING
The window rises automatically after a few seconds and adjusts to
provide perfect sealing when closed.
- when the engine is running
, this warning lamp comes on,
accompanied by a message in the screen for a few seconds,

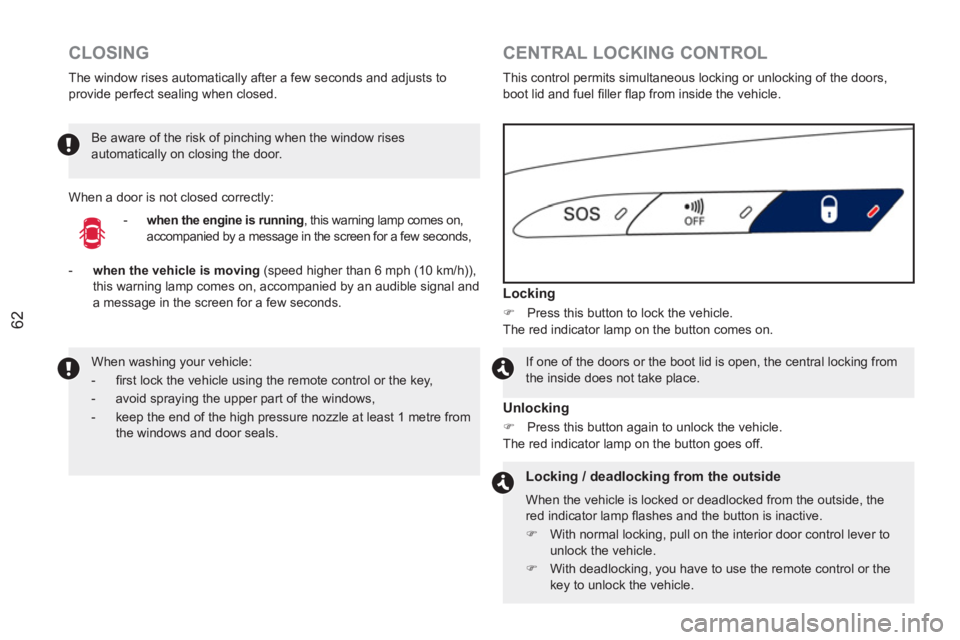

CENTRAL LOCKING CONTROL
This control permits simultaneous locking or unlocking of the doors,
boot lid and fuel fi ller fl ap from inside the vehicle.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp on the button comes on.
If one of the doors or the boot lid is open, the central locking from
the inside does not take place.
Unlocking
)
Press this button again to unlock the vehicle.
The red indicator lamp on the button goes off.
Locking / deadlocking from the outside
When the vehicle is locked or deadlocked from the outside, the
red indicator lamp fl ashes and the button is inactive.
)
With normal locking, pull on the interior door control lever to
unlock the vehicle.
)
With deadlocking, you have to use the remote control or the
key to unlock the vehicle.
When washing your vehicle:
- fi rst lock the vehicle using the remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pressure nozzle at least 1 metre from
the windows and door seals.
When a door is not closed correctly: Be aware of the risk of pinching when the window rises
automatically on closing the door.
- when the vehicle is moving
(speed higher than 6 mph (10 km/h)),
this warning lamp comes on, accompanied by an audible signal and
a message in the screen for a few seconds.
Page 65 of 336
2/
ACCESS
Pressing the central locking control unlocks the vehicle.
Opening a door from the inside, when stationary, also unlocks
the vehicle, but the vehicle will be locked again when the speed
exceeds 6 mph (10 km/h).
Activation / Deactivation
You can activate or deactivate this function.
)
With the ignition on, press the button for more than two seconds.
A confi rmation message appears in the screen.
In the event of a serious impact with deployment of an airbag, the
vehicle's doors unlock automatically to allow the occupants to leave the
vehicle.

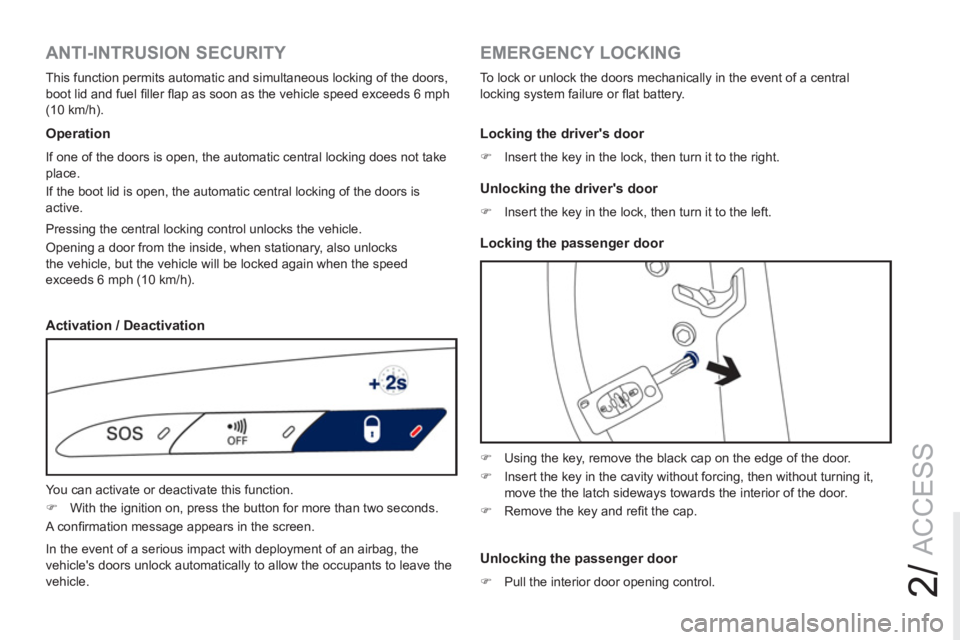

EMERGENCY LOCKING
To lock or unlock the doors mechanically in the event of a central
locking system failure or fl at battery.
Locking the driver's door
)
Insert the key in the lock, then turn it to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it to the left.
Locking the passenger door
)
Using the key, remove the black cap on the edge of the door.
)
Insert the key in the cavity without forcing, then without turning it,
move the the latch sideways towards the interior of the door.
)
Remove the key and refi t the cap.
Unlocking the passenger door
)
Pull the interior door opening control.
ANTI-INTRUSION SECURITY
This function permits automatic and simultaneous locking of the doors,
boot lid and fuel fi ller fl ap as soon as the vehicle speed exceeds 6 mph
(10 km/h).
Operation
If one of the doors is open, the automatic central locking does not take
place.
If the boot lid is open, the automatic central locking of the doors is
active.
Page 66 of 336
64
BOOT
OPENING
)
Press this button for more than two seconds to unlock
the boot lid. The boot lid opens slightly.
)
Lift the boot lid.
This action also unlocks the doors and the fuel fi ller fl ap.
Using the manual control; vehicle unlocked
)
Press the opening control above the number plate.
)
Lift the boot lid.
CLOSING
)
Lower the boot lid using one of the interior grab handles.
)
If necessary, press the top of the boot lid to close it fully.
If the boot lid is not closed correctly:
- when the engine is running
, this warning lamp comes on,
accompanied by a message in the screen for a few seconds,
When selective unlocking is activated, the boot can also be
opened by a second press on the open padlock on the remote
control.
Using the remote control
Emergency locking
If the central locking system fails (fl at battery), you are advised to
disconnect the battery.
- when the vehicle is moving
(speed above 6 mph (10 km/h)), this
warning lamp comes on, accompanied by an audible signal and a
message in the screen for a few seconds.
Page 67 of 336
3/
EASE OF USE and COMFORT
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a seat
back which can be adjusted to adapt your position for ease of driving
and comfort.

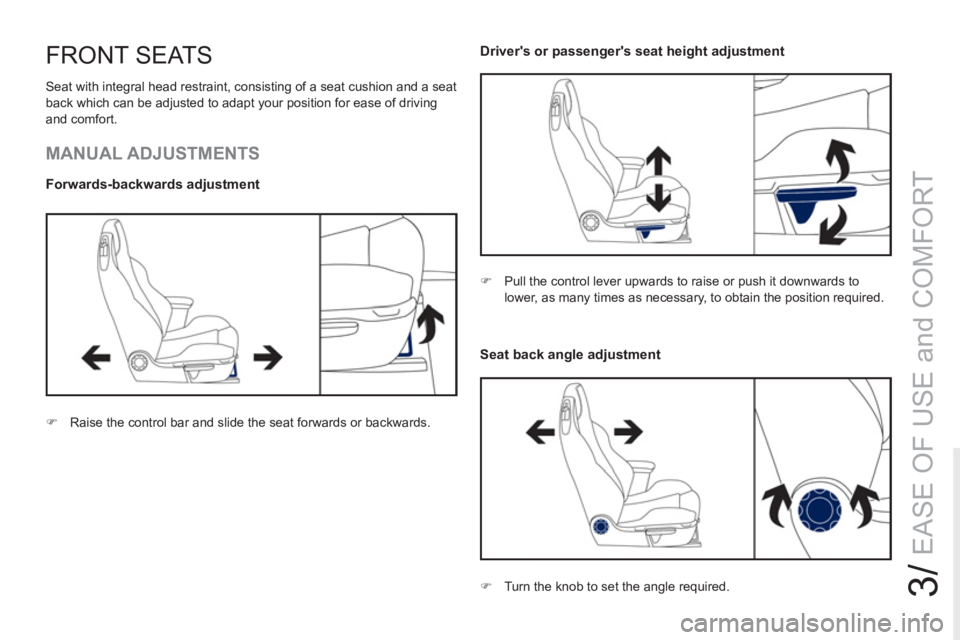

MANUAL ADJUSTMENTS
Forwards-backwards adjustment
Driver's or passenger's seat height adjustment
Seat back angle adjustment
)
Raise the control bar and slide the seat forwards or backwards.
)
Pull the control lever upwards to raise or push it downwards to
lower, as many times as necessary, to obtain the position required.
)
Turn the knob to set the angle required.
Page 68 of 336
66
FRONT SEATS
Seat with integral head restraint, consisting of a seat cushion and a
seat back which can be adjusted to adapt your position for ease of
driving and comfort.

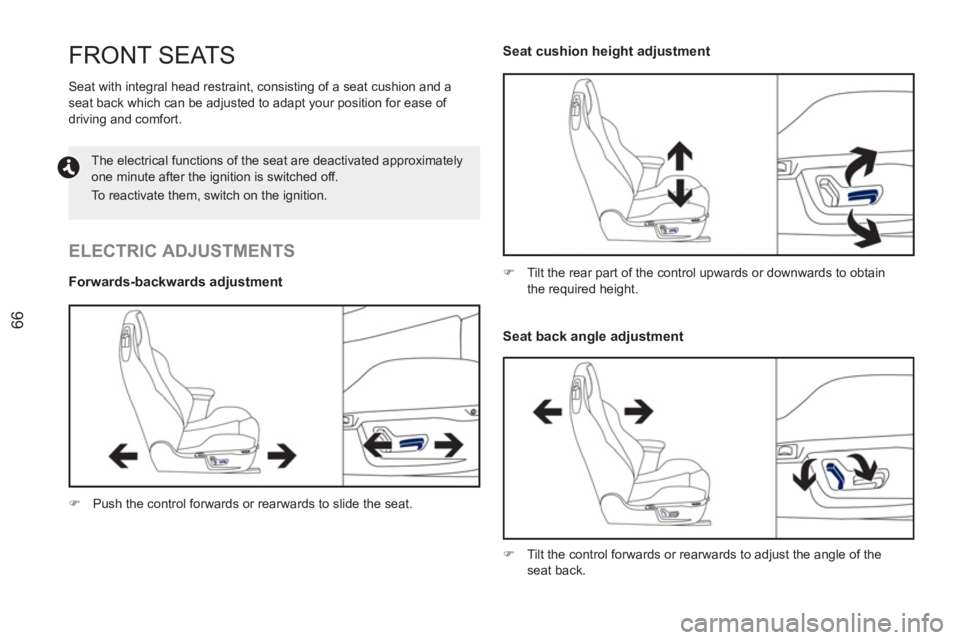

ELECTRIC ADJUSTMENTS
Forwards-backwards adjustment
Seat cushion height adjustment
)
Push the control forwards or rearwards to slide the seat.
)
Tilt the rear part of the control upwards or downwards to obtain
the required height.
The electrical functions of the seat are deactivated approximately
one minute after the ignition is switched off.
To reactivate them, switch on the ignition.
Seat back angle adjustment
)
Tilt the control forwards or rearwards to adjust the angle of the
seat back.
Page 69 of 336
3/
EASE OF USE and COMFORT

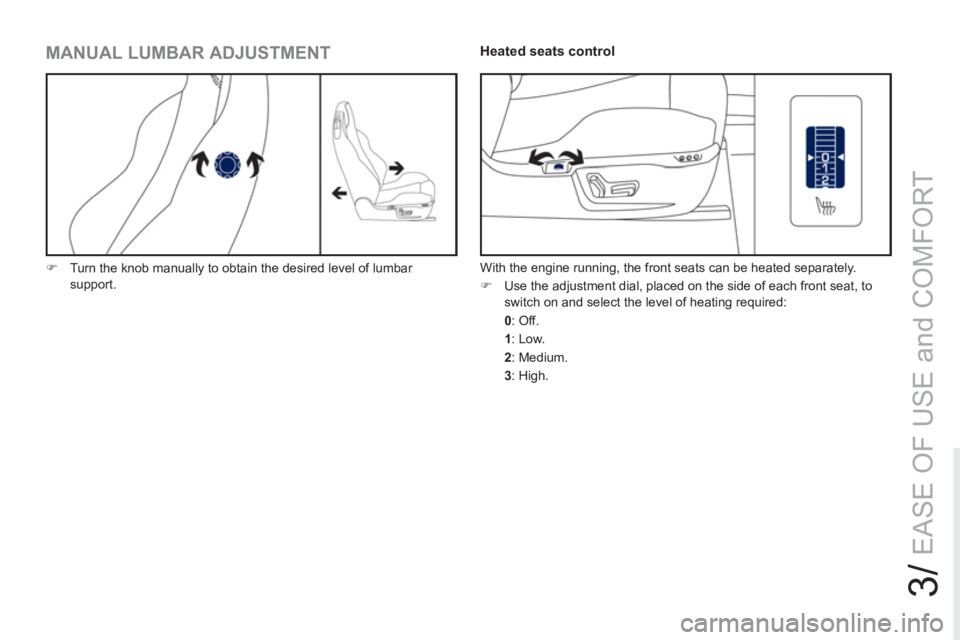

MANUAL LUMBAR ADJUSTMENT
)
Turn the knob manually to obtain the desired level of lumbar
support.
Heated seats control
With the engine running, the front seats can be heated separately.
)
Use the adjustment dial, placed on the side of each front seat, to
switch on and select the level of heating required:
0
:
Off.
1
:
Low.
2
:
Medium.
3
:
High.
Page 70 of 336
68

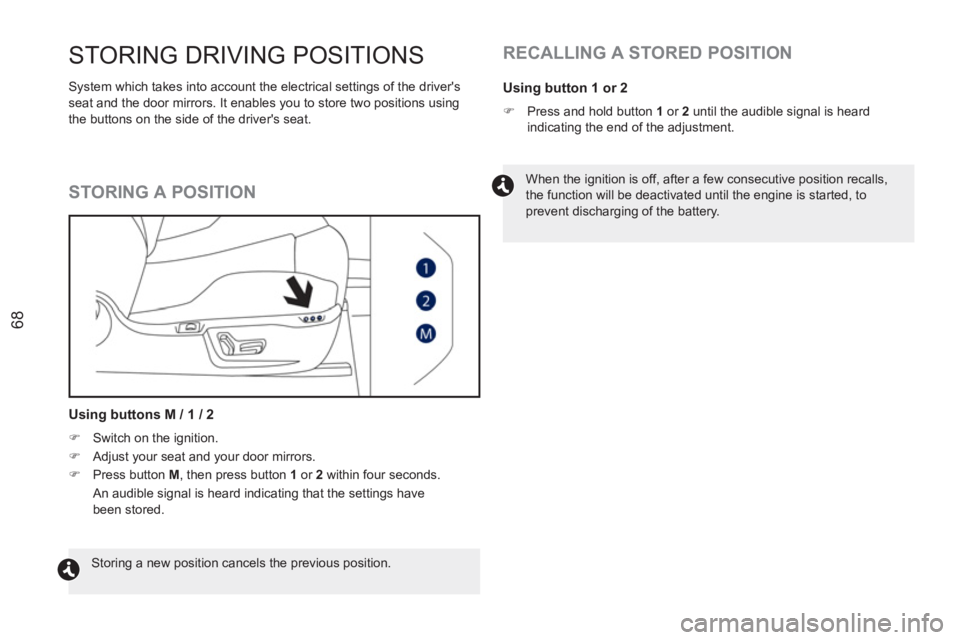

STORING DRIVING POSITIONS
System which takes into account the electrical settings of the driver's
seat and the door mirrors. It enables you to store two positions using
the buttons on the side of the driver's seat.
STORING A POSITION
Using buttons M / 1 / 2
)
Switch on the ignition.
)
Adjust your seat and your door mirrors.
)
Press button M
, then press button 1
or 2
within four seconds.
An audible signal is heard indicating that the settings have
been stored.
RECALLING A STORED POSITION
Storing a new position cancels the previous position.
Using button 1 or 2
)
Press and hold button 1
or 2
until the audible signal is heard
indicating the end of the adjustment.
When the ignition is off, after a few consecutive position recalls,
the function will be deactivated until the engine is started, to
prevent discharging of the battery.
