PONTIAC BONNEVILLE 1993 Owners Manual

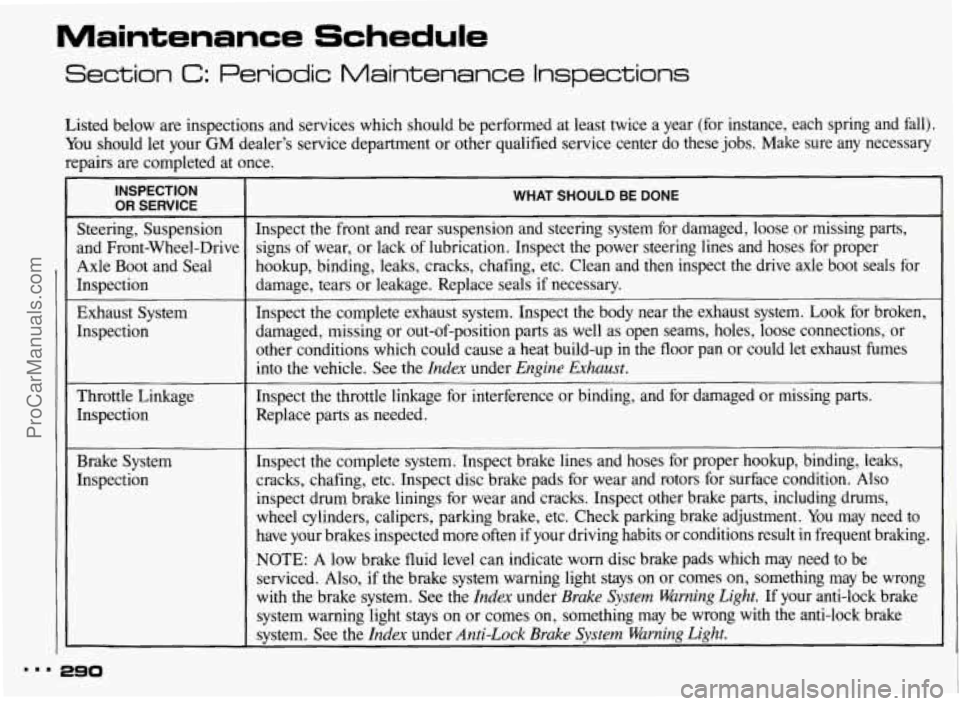

Maintenance Schedule
Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least twice a year (for instance\
, each spring and fall).
You should let your GM dealer’s service department
or other qualified service center do these jobs. Make sure any necessary
repairs are completed at once.
INSPECTION
OR SERVICE
Steering, Suspension
and Front-Wheel-Drive
Axle Boot and Seal
Inspection
Exhaust System Inspection
Throttle Linkage
Inspection
Brake System
Inspection
I
-
WHAT SHOULD BE DONE
Inspect the front and rear suspension and steering system for damaged, loose or missing pa\
rts,
signs of wear,
or lack of lubrication. Inspect the power steering lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals
if necessary.
Inspect the complete exhaust system. Inspect the body near the exhaust system.
Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up
in the floor pan or could let exhaust fumes
into the vehicle. See
the Index under Engine Exhaust.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts as needed.
Inspect the complete system. Inspect brake lines and hoses for proper hooku\
p, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, \
including drums,
wheel cylinders, calipers, parking brake, etc. Check parking brake adjustment.
You may need to
have your brakes inspected more often if your driving habits or conditions result
in frequent braking.
NOTE: A low brake fluid level can indicate worn disc brake pads which may need to be
serviced. Also, if the brake system warning light
stays on or comes on, something may be wrong
with the brake system. See the
Index under Brake System Warning Light. If your anti-lock brake
system warning light stays
on or comes on, something may be wrong with the anti-lock brake
system. See the
Index under Anti-Lock Brake System Warning Light.
ProCarManuals.com

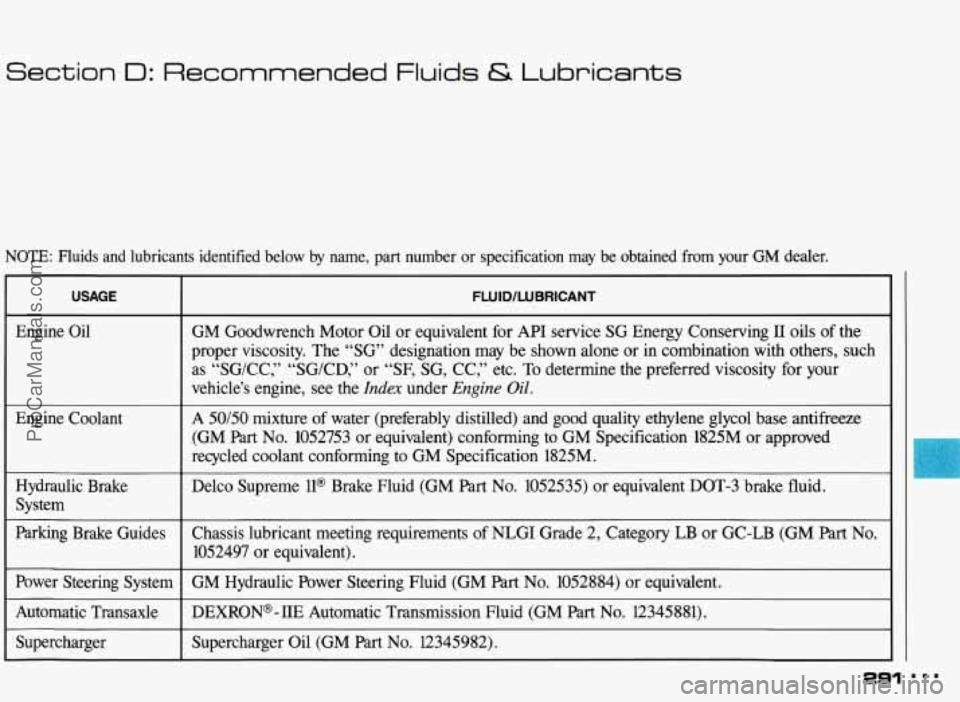

Section I: Recommended Fluids & Lubricants
NOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer.
I Engine Oil
Hydraulic Brake System
Parking Brake Guides
t
Power Steering System
Automatic Transaxle
Supercharger
FWID/WBRICANT
GM Goodwrench Motor Oil or equivalent for API service SG Energy Conserving II oils of the
proper viscosity. The “SG” designation may be shown alone or in combination with others, such
as “SG/CC,” “SG/CD,” or “SF, SG, CC,” etc.
To determine the preferred viscosity for your
vehicle’s engine, see the
Index under Engine Oil.
A 50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM
Part No. 1052753 or equivalent) conforming to GM Specification 1825M or approved
recycled coolant conforming to GM Specification 1825M.
Delco Supreme
ll@ Brake Fluid (GM Part No. 1052535) or equivalent DOT-3 brake fluid.
Chassis lubricant meeting requirements
of NLGI Grade 2, Category LB or GC-LB (GM Part No.
1052497 or equivalent).
GM Hydraulic Power Steering Fluid (GM
Part No. 1052884) or equivalent.
DEXRON@-IIE Automatic Transmission Fluid (GM
Part No. 12345881). ~~~ ~~
Supercharger Oil (GM Part No. 12345982).
~~~ ~~
291
ProCarManuals.com

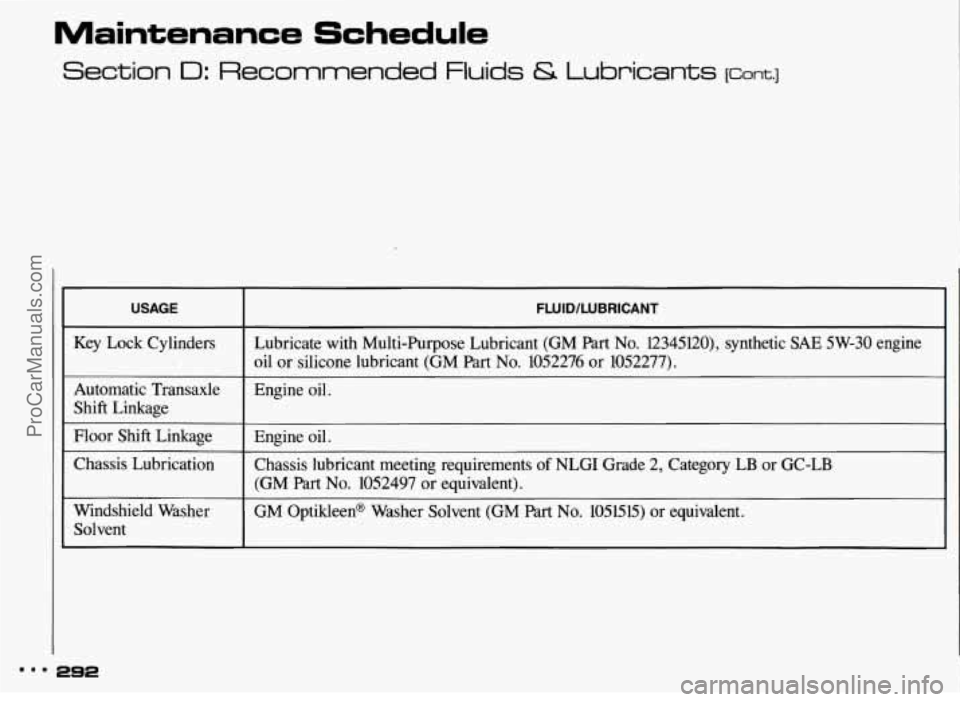

Maintenance Schedule
Section I: Recommended Fluids & Lubricants lcont.1
USAGE FLUD/UIBRICANT
Key Lock Cylinders Lubricate with Multi-Purpose Lubricant (GM Part No. l2345l20), synthetic SAE 5W-30 engine
I oil or silicone lubricant (GM Part No. 1052276 or 1052277).
I
Automatic Transaxle
Shift Linkage Engine
oil.
Floor Shift Linkage
Chassis lubricant meeting requirements
of NLGI Grade 2, Category LB or GC-LB
Chassis Lubrication Engine
oil.
(GM Part No. 1052497 or equivalent).
Windshield Washer Solvent GM Optikleen@ Washer Solvent (GM
Part No. 1051515)
or equivalent.
ProCarManuals.com

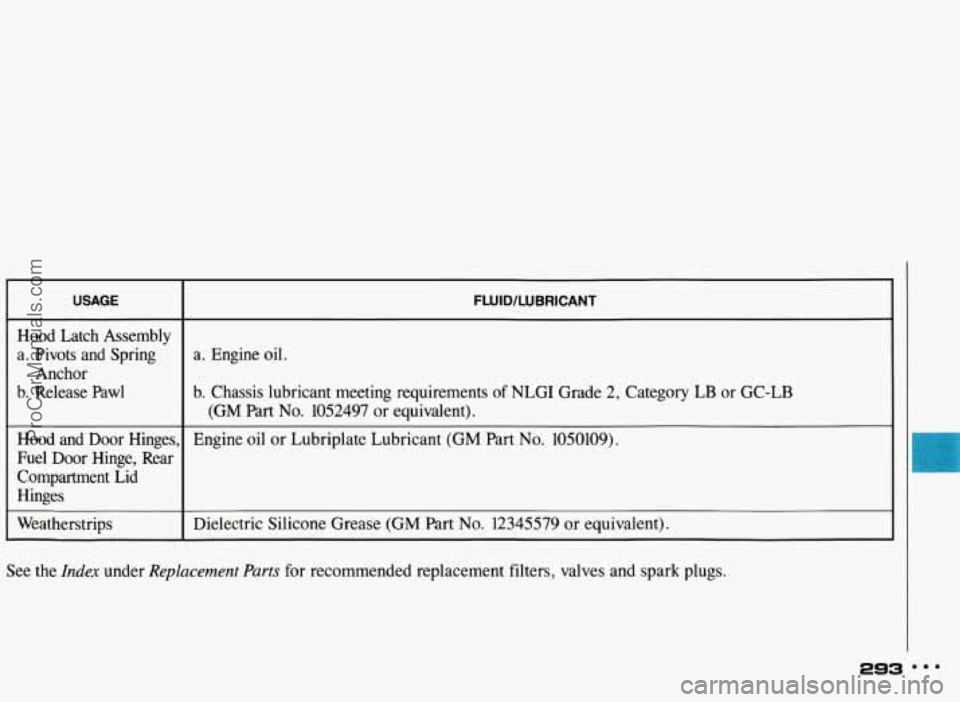

USAGE
Hood Latch Assembly
a. Pivots and Spring
b. Release
Pawl
Anchor
Hood and Door Hinges,
Fuel Door Hinge, Rear
Compartment Lid
Hinges
Weatherstrips
FLUID/LUBRICANT
a. Engine oil.
b. Chassis lubricant meeting requirements of NLGI Grade
2, Category LB or GC-LB
(GM Part No. 1052497 or equivalent).
Engine oil or Lubriplate Lubricant
(GM Part No. 1050109).
Dielectric Silicone Grease (GM Part No. 12345579
or equivalent).
See the
Index under Replacement Parts for recommended replacement filters, valves and spark plugs.
293
ProCarManuals.com

Maintenance Schedule

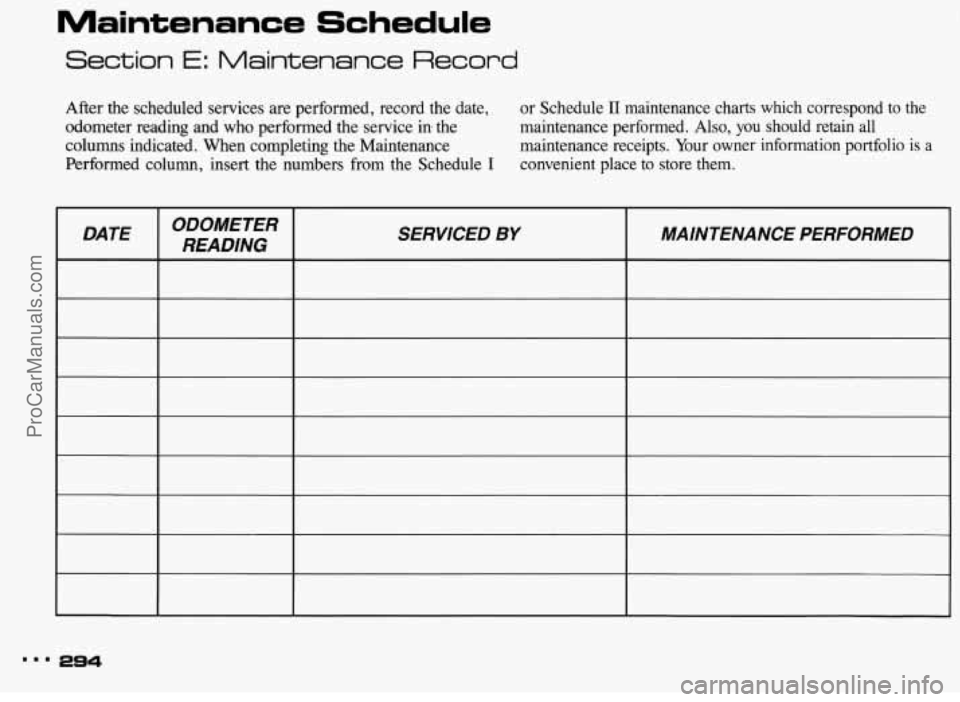

Section E: Maintenance Record
After the scheduled services are performed, record the date,
odometer reading and who performed the service in the
columns indicated. When completing the Maintenance
Performed column, insert the numbers from the Schedule
I
or Schedule I1 maintenance charts which correspond to the
maintenance performed. Also,
you should retain all
maintenance receipts. Your owner information portfolio
is a
convenient place to store them.
DATE ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED
ProCarManuals.com

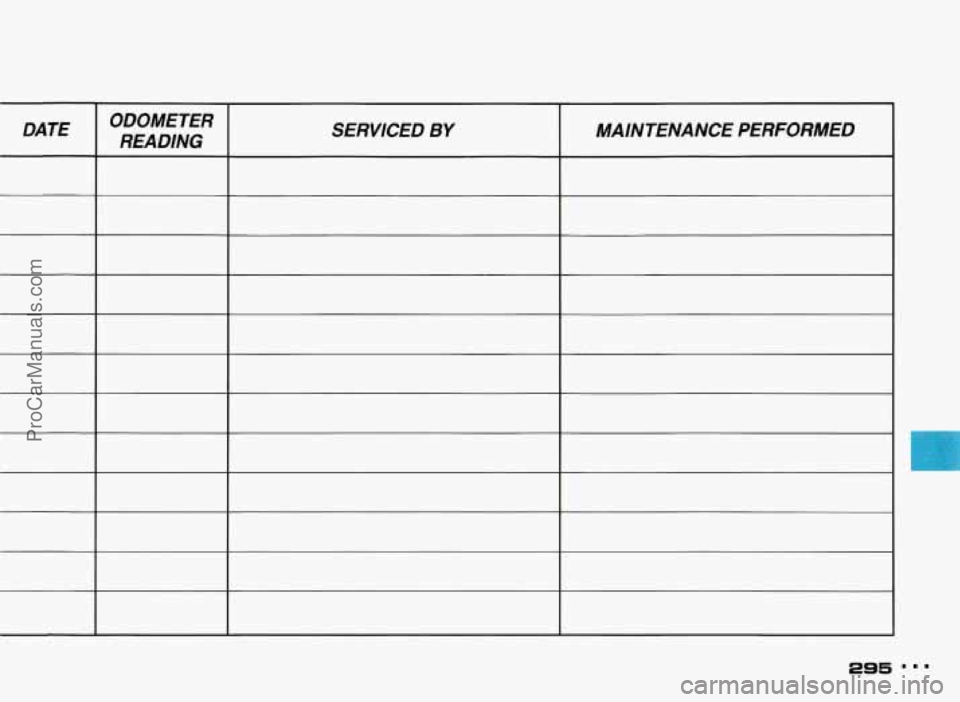

DATE ODOMETER
READING SERVICED BY MAINTENANCE
PERFORMED
ProCarManuals.com

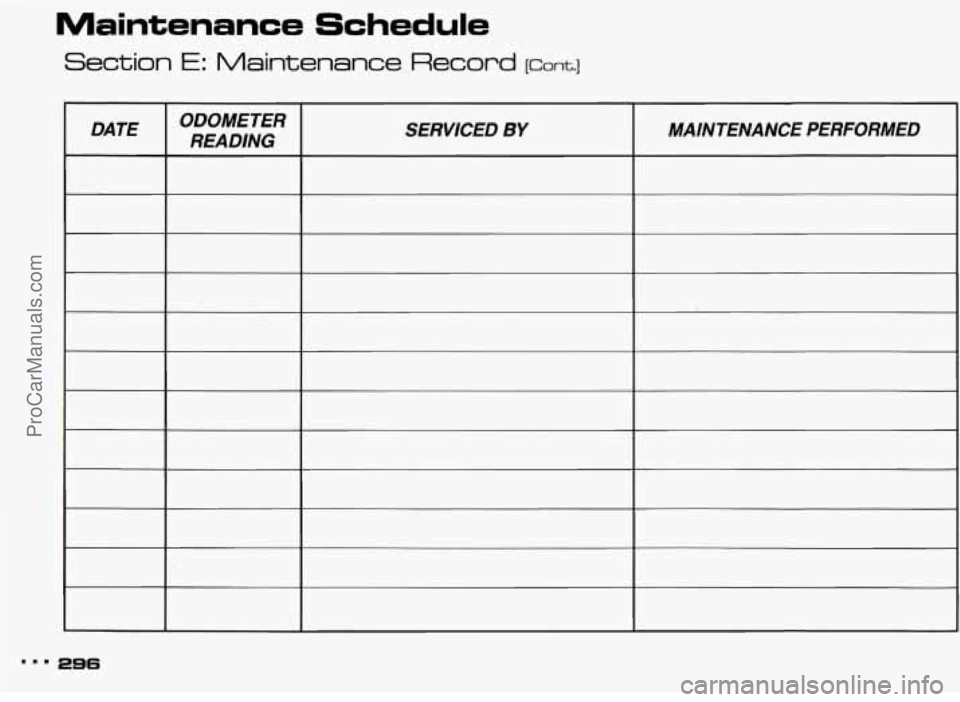

Maintenance Schedule
Section E: Maintenance Record [cant.]
DATE ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED
ProCarManuals.com

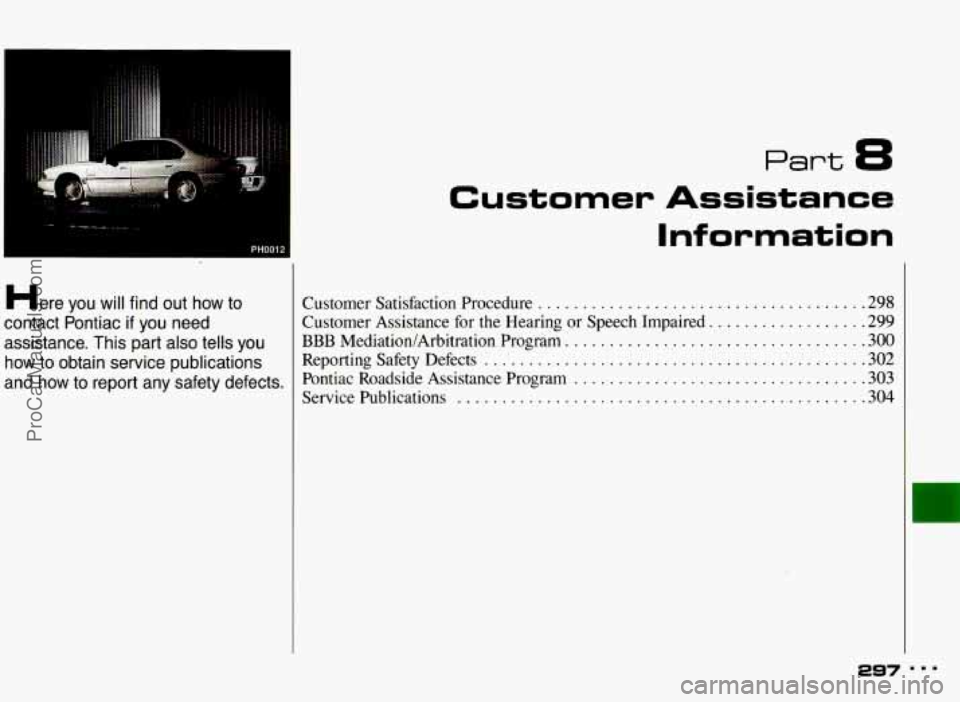

Here you will find out how to
contact Pontiac
if you need
assistance. This part also tells you
how to obtain service publications
and how
to report any safety defects.
Part 8
Customer Assistance
Information
Customer Satisfaction Procedure .................................... .298
Customer Assistance for the Hearing or Speech Impaired.
................ .299
BBB MediatiodArbitration Program ................................. .300
Reporting Safety Defects .......................................... .302
Pontiac Roadside Assistance Program ................................ .303
Service Publications ............................................. .304
c
297 ...
ProCarManuals.com

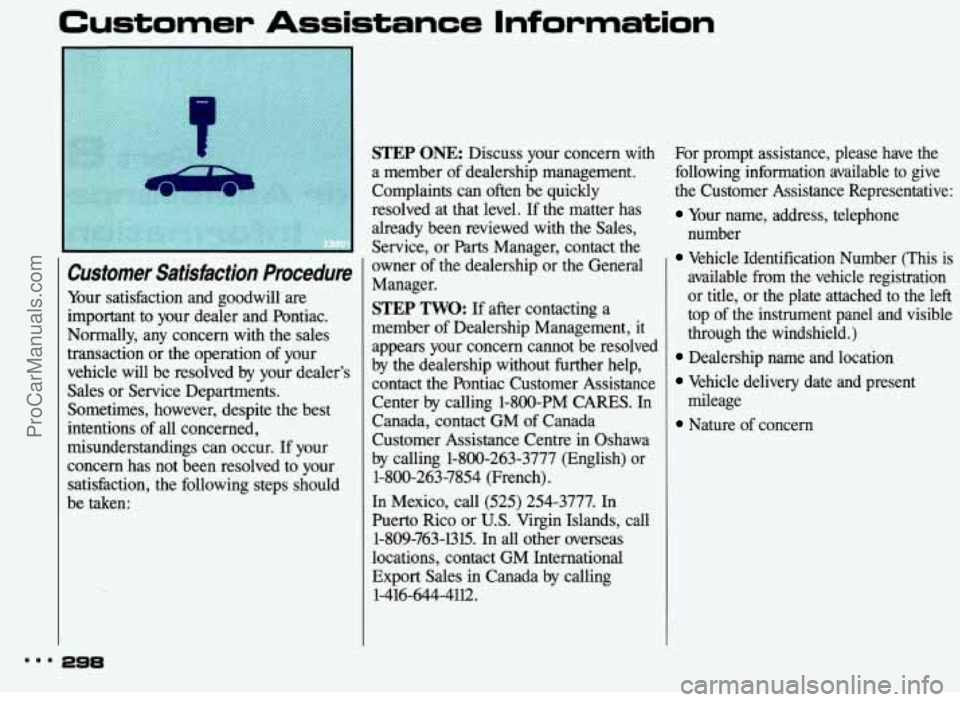

Customer Assistance Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are
important to your dealer and Pontiac.
Normally, any concern with the sales
transaction or the operation of your
vehicle will be resolved by your dealer’s
Sales or Service Departments.
Sometimes, however, despite the best
intentions of all concerned,
misunderstandings can occur. If your
concern has not been resolved to your satisfaction, the following steps should
be taken:
STEP ONE: Discuss your concern with
a member of dealership management.
Complaints can often be quickly
resolved at that level. If the matter has
already been reviewed with the Sales,
Service, or Parts Manager, contact the
owner of the dealership or the General
Manager.
STEP TWO: If after contacting a
member of Dealership Management,
it
appears your concern cannot be resolved
by the dealership without further help,
contact the Pontiac Customer Assistance
Center by calling 1-800-PM CARES. In
Canada, contact
GM of Canada
Customer Assistance Centre in Oshawa
by calling 1-800-263-3777 (English) or
1-800-263-7854 (French).
In Mexico, call (525) 254-3777. In
Puerto Rico or
U.S. Virgin Islands, call
1-809-763-1315. In all other overseas
locations, contact GM International
Export Sales in Canada by calling
1-416-644-4112. For prompt assistance, please have the
following information available to give
the Customer Assistance Representative:
Your name, address, telephone
number
Vehicle Identification Number (This is
available from the vehicle registration
or title, or the plate attached to the left
top of the instrument panel and visible
through the windshield.)
Dealership name and location
Vehicle delivery date and present
Nature of concern
mileage
... 298
ProCarManuals.com

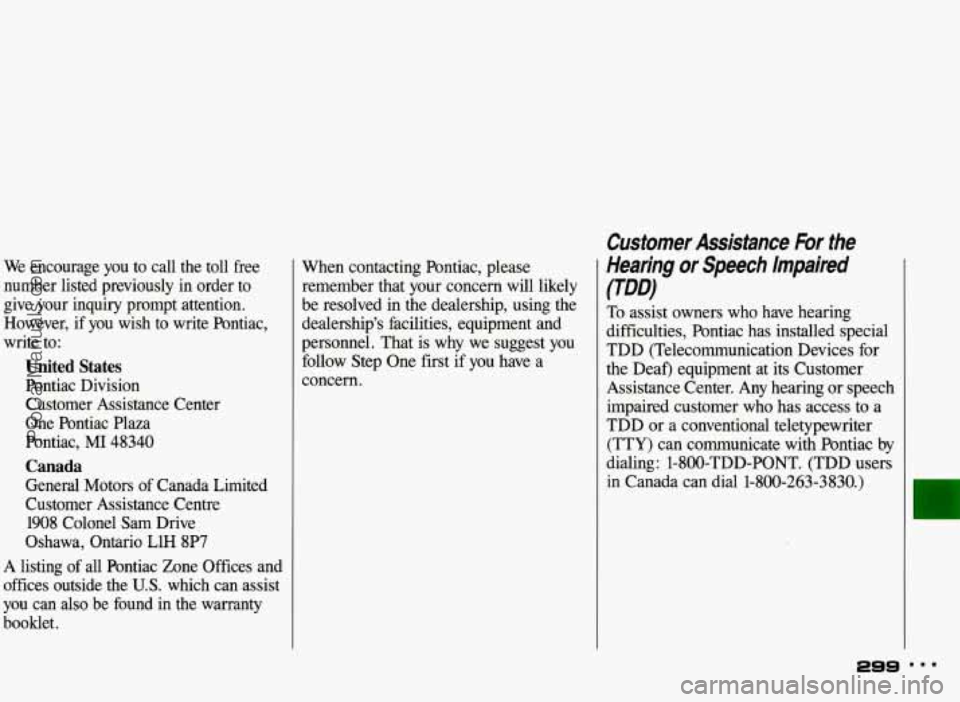

We encourage you to call the toll free
number listed previously in order to
give your inquiry prompt attention.
However, if
you wish to write Pontiac,
write to:
United States
Pontiac Division Customer Assistance Center
One Pontiac Plaza
Pontiac,
MI 48340
Canada
General Motors of Canada Limited
Customer Assistance Centre 1908 Colonel
Sam Drive
Oshawa, Ontario L1H 8P7
A listing of all Pontiac Zone Offices and
offices outside the U.S. which can assist
you can also be found in the warranty
booklet. When contacting Pontiac,
please
remember that your concern will likely
be resolved in the dealership, using the
dealership’s facilities, equipment and
personnel. That is why we suggest you
follow Step One first if you have a
concern.
Customer Assistance Fior the
Hearing or Speech Impaired
0
To assist owners who have hearing
difficulties, Pontiac has installed special
TDD (Telecommunication Devices for
the Deaf) equipment at its Customer
Assistance Center. Any hearing or speech
impaired customer who has access to a
TDD or a conventional teletypewriter
(TTY) can communicate with Pontiac by
dialing: 1-800-TDD-PONT. (TDD users
in Canada can dial 1-800-263-3830.)
299
r
