Page 61 of 322

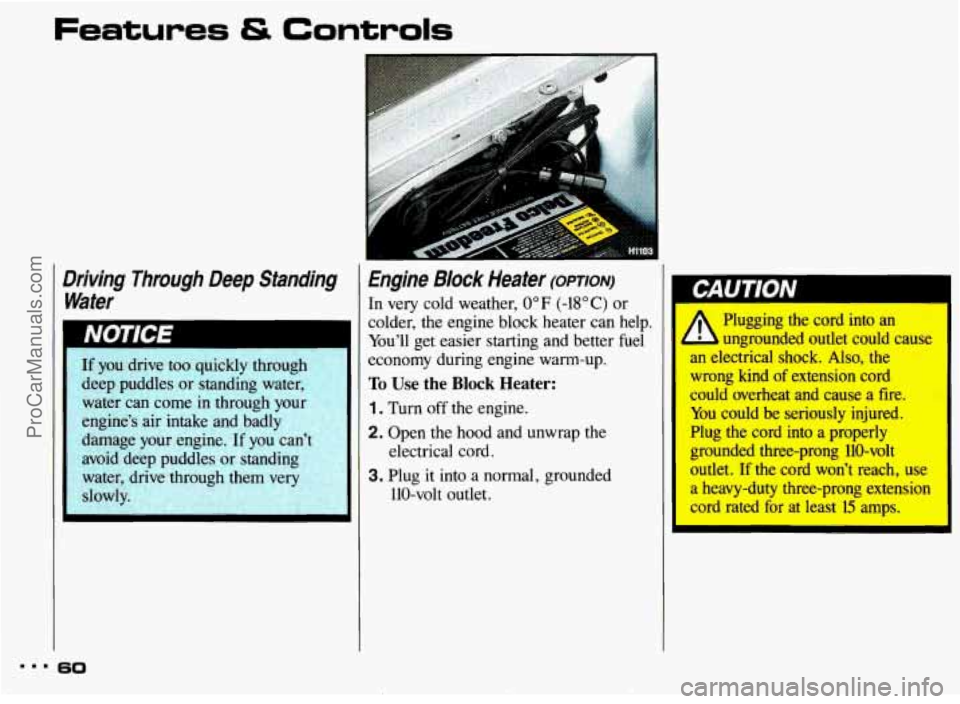

Features & Controls
Driving Through Deep Standing Water
.. - .
If you drive too quickly through
deep puddles or standing water,
water can come in through your
engine’s air intake and badly
damage
your engine. If you can’t
avoid deep puddles or standing
water, drive through them very
slowly.
Engine Block Heater (opTIoN)
In very cold weather, 0°F (-18” C) or
colder,
the engine block heater can help.
You’ll get easier starting and better fuel
economy during engine warm-up.
To Use the Block Heater:
1 . Turn off the engine.
2. Open the hood and unwrap the
3. Plug it into a normal, grounded
electrical
cord.
110-volt outlet.
b!!
A
Plugging the cord into an
ungrounded outlet could cause
an electrical shock. Also, the
wrong kind of extension cord
could overheat and cause a fire. You could be seriously injured.
Plug the cord into a properly
grounded three-prong 110-volt
outlet. If the cord won’t reach, use
a heavy-duty three-prong extension
cord rated for at least 15 amps.
... 60
ProCarManuals.com

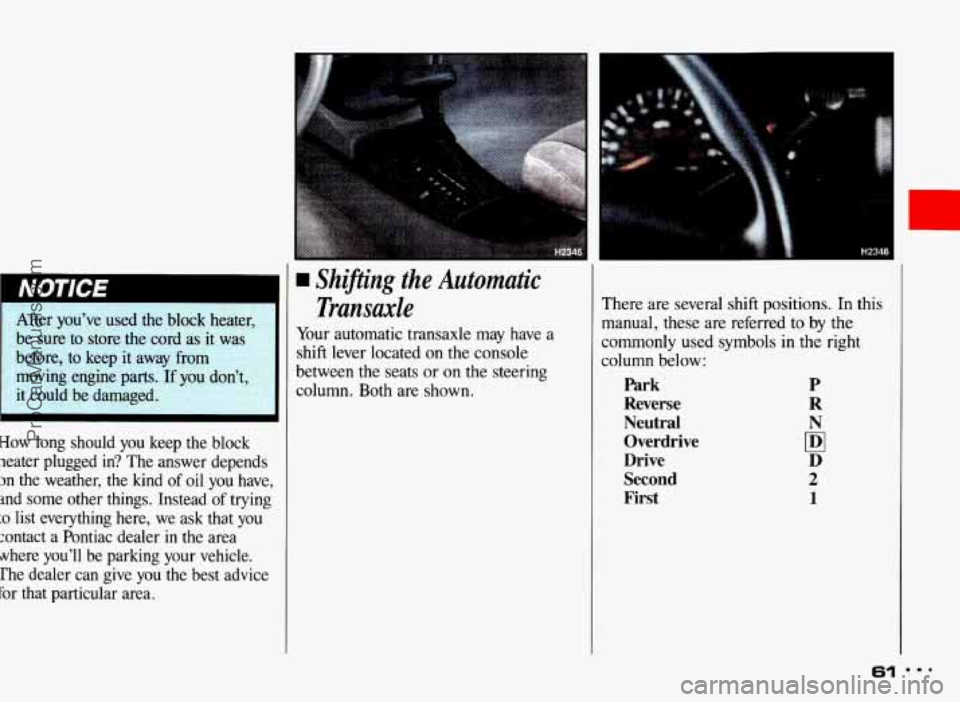

Page 62 of 322
‘-- Transaxle
Shiftins
the Automatic I After you’ve used the block heater, __
be sure to store the cord as it was
column. Both are shown.
it could be damaged. between the seats
or on the steering
moving engine parts. If
you don’t, shift lever located on
the console
before, to keep it away from Your
automatic transaxle may have a
How long should you keep the block
Ieater plugged
in? The answer depends
In the weather, the kind of oil you have,
md some other things. Instead of trying
:o list everything here, we ask that you
:ontact a Pontiac dealer
in the area
ahere you’ll be parking your vehicle.
The dealer can give you the best advice
For that particular area. There are
several shift positions.
In this
manual, these are referred to
by the
commonly used symbols
in the right
column below:
Park
Reverse
Neutral Overdrive
Drive
Second
First P
R
N
IDI
D
2
1
61
ProCarManuals.com

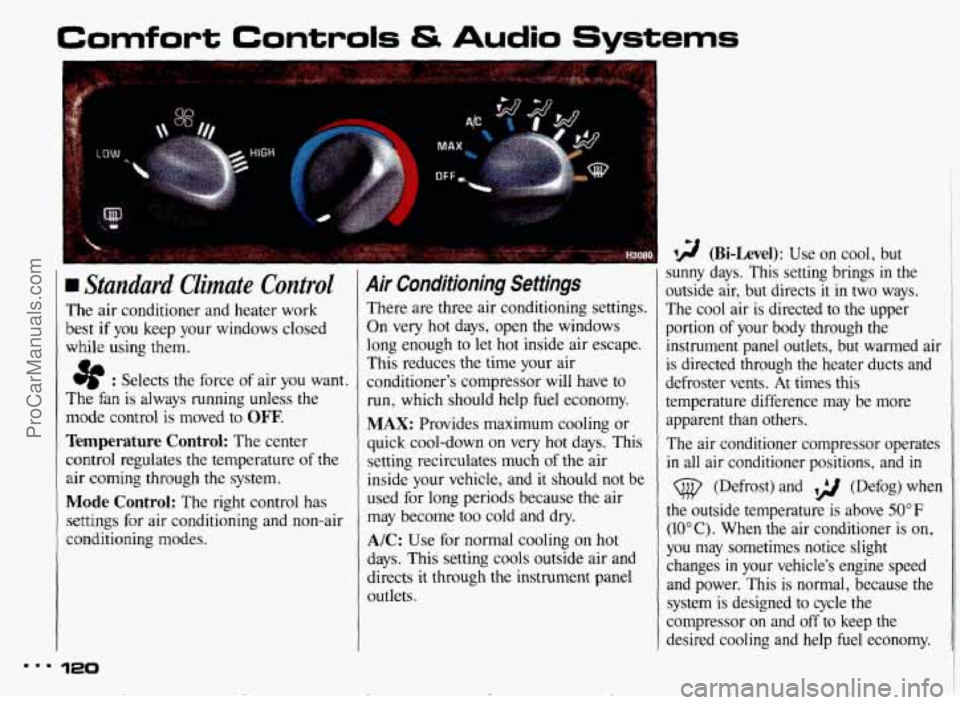

Page 121 of 322
Comfort Controls & Audio Systems ~ ~~
I
Standard Climate Control
The air conditioner and heater work
best
if you keep your windows closed
while using them.
e : Selects the force of air you want.
The fan is always running unless the
mode control
is moved to OFF.
Temperature Control: The center
control regulates the temperature
of the
air coming through the system.
Mode Control: The right control has
settings for air conditioning and non-air
conditioning modes.
120
Air Conditioning Settings
There are three air conditioning settings.
On very hot days, open the windows
long enough to let hot inside air escape.
This reduces the time your air
conditioner's compressor
will have to
run, which should help fuel economy.
MAX: Provides maximum cooling or
quick cool-down on very hot days. This
setting recirculates much
of the air
inside your vehicle, and it should not be
used for long periods because
the air
may become too cold and dry.
A/C: Use for normal cooling on hot
days. This setting cools outside air and
directs it through the instrument panel
outlets.
I 9 (Bi-Level): Use on cool, but
sunny days. This setting brings
in the
outside air, but directs
it in two ways.
The cool air
is directed to the upper
portion
of your body through the
instrument panel outlets, but warmed air
1
is directed through the heater ducts and ~
defroster vents. At times this
temperature difference may be more
apparent than others.
The air conditioner compressor operates
in all air conditioner positions, and in
(@ (Defrost) and ,> (Defog) when
the outside temperature is above 50°F
(IOOC). When the air conditioner is on,
you may sometimes notice slight
changes
in your vehicle's engine speed
and power. This is normal, because the system
is designed to cycle the
compressor on and off to keep the
desired cooling and help fuel economy.
I
c ProCarManuals.com
Page 122 of 322

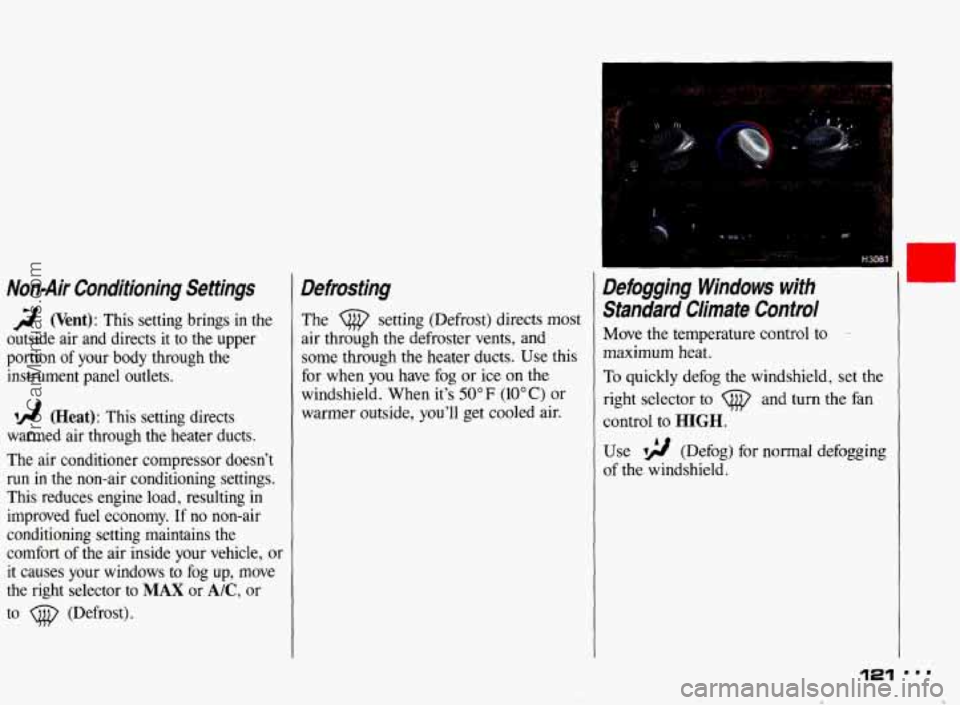

Non-Air Conditioning Settings
2 (Vent): This setting brings in the
outside air and directs it to the upper
portion of your body through the
instrument panel outlets.
A! (Heat): This setting directs
warmed air through the heater ducts.
The air conditioner compressor doesn’t
run in the non-air conditioning settings.
This reduces engine load, resulting in
improved fuel economy. If no non-air
conditioning setting maintains the
comfort of the air inside your vehicle, or
it causes your windows to fog
up, move
the right selector to
MAX or A/C, or
to
(@ (Defrost).
Defrosting
The setting (Defrost) directs most
air through the defroster vents, and
some through the heater ducts. Use this
for when you have fog or ice on the
windshield. When it’s
50°F (10°C) or
warmer outside, you’ll get cooled air.
Defogging Windows with
Standard Climate Control
Move the temperature control to --
maximum heat.
To quickly defog the windshield, set the
right selector to
(@ and turn the fan
control to
HIGH.
Use ~2 (Defog) for normal defogging
of the windshield.
U
121 smm
* ProCarManuals.com
Page 126 of 322

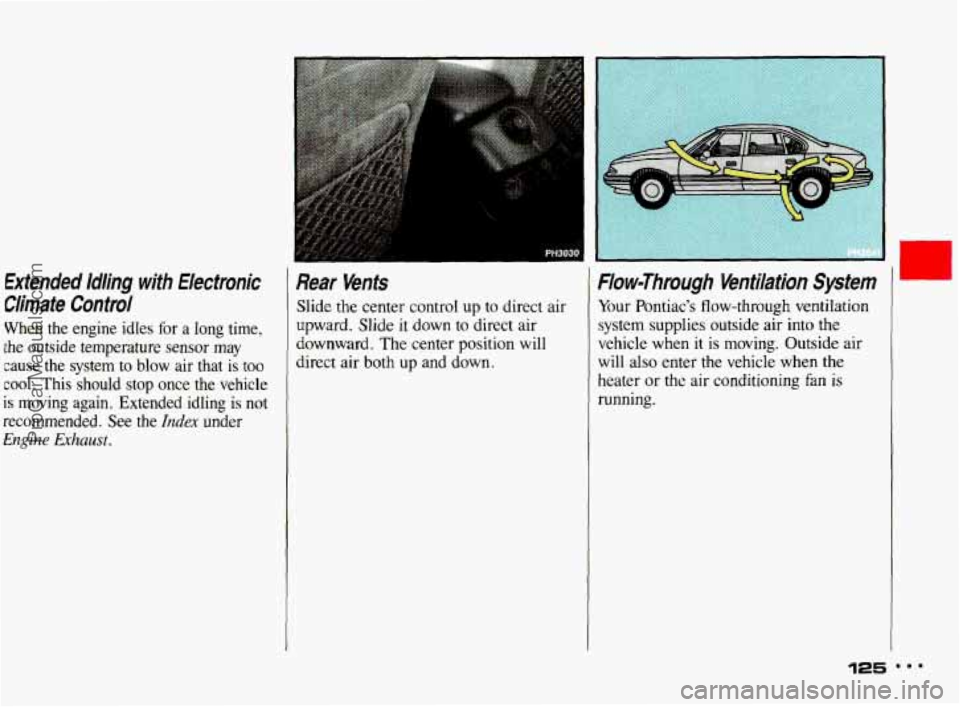

Extended Idling with Electronic Rear Venfs
Ciimate Control Slide the center control up to direct air
When the engine idles for
a long time, Upward.
Slide it down to direct air
the outside temperature sensor
may
cool. This should stop once the vehicle
cause the system to blow air that is too direct air both UP and dOwn.
downward.
The center position will
recommended. See
the Index under
is moving again. Extended idling is not
Engine Exhaust.
Flow-Through Ventilation System
Your Pontiac's flow-through ventilation
system supplies outside air into the
vehicle when it is moving. Outside air
will also enter the vehicle when the
heater or the air conditioning
fan is
running.
125
ProCarManuals.com
Page 127 of 322
..I

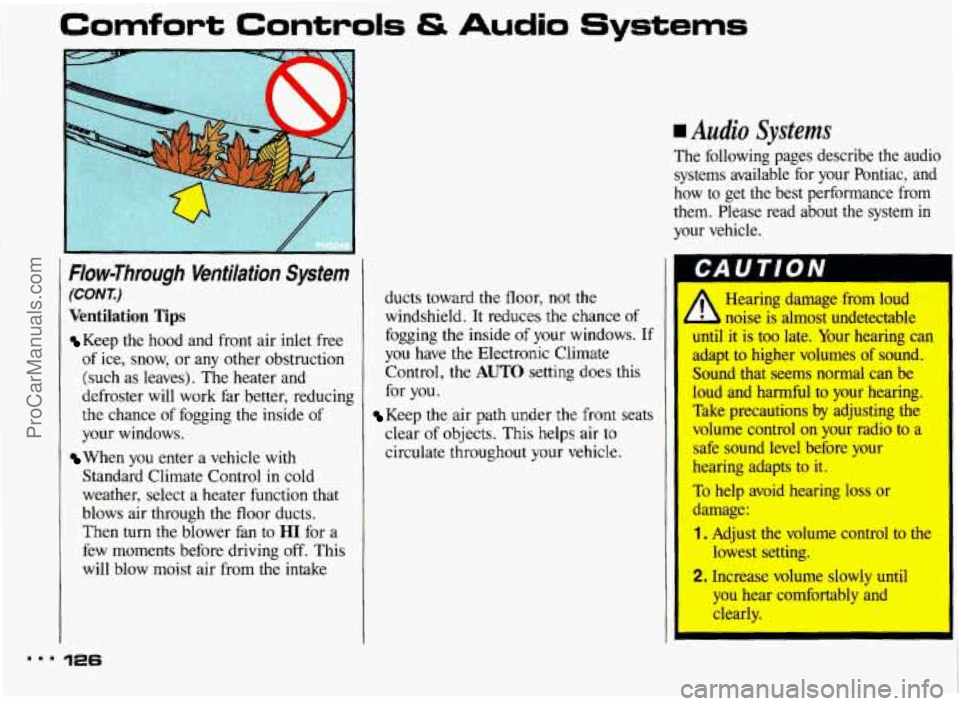

Comfort Controls & Audio
Flow-Through Ventilation System
(CONT)
Ventilation Tips
Keep the hood and front air inlet free
of ice, snow, or any other obstruction
(such as leaves). The heater and
defroster will work far better, reducing
the chance of fogging
the inside of
your windows.
Standard Climate Control in cold
weather, select a heater function that
blows air through
the floor ducts.
Then turn the blower fan to
HI for a
few moments before driving off. This
will blow moist air from the intake
When you enter a vehicle with
126
ducts toward the floor, not the
windshield. It reduces the chance of
fogging the inside of your windows. If
you have the Electronic Climate
Control,
the AUTO setting does this
for you.
Keep the air path under the front seats
clear of objects. This helps air to
circulate throughout your vehicle.
rn Audio Systems
The following pages describe the audio systems available for your Pontiac, and
how to get the best performance from
them. Please read about the system
in
your vehicle.
Hearing damage from loud
noise is almost undetectable
until it
is too late. Your hearing can
adapt to higher volumes of sound.
Sound that seems normal can be
loud and harmful to your hearing.
Take precautions by adjusting the
volume control on your radio to a
safe sound level before your
hearing adapts to it.
To help avoid hearing loss or
damage:
1. Adjust the volume control to the
lowest setting.
2. Increase volume slowly until
you he: :omfortably and
clearly.
I
ProCarManuals.com
Page 183 of 322

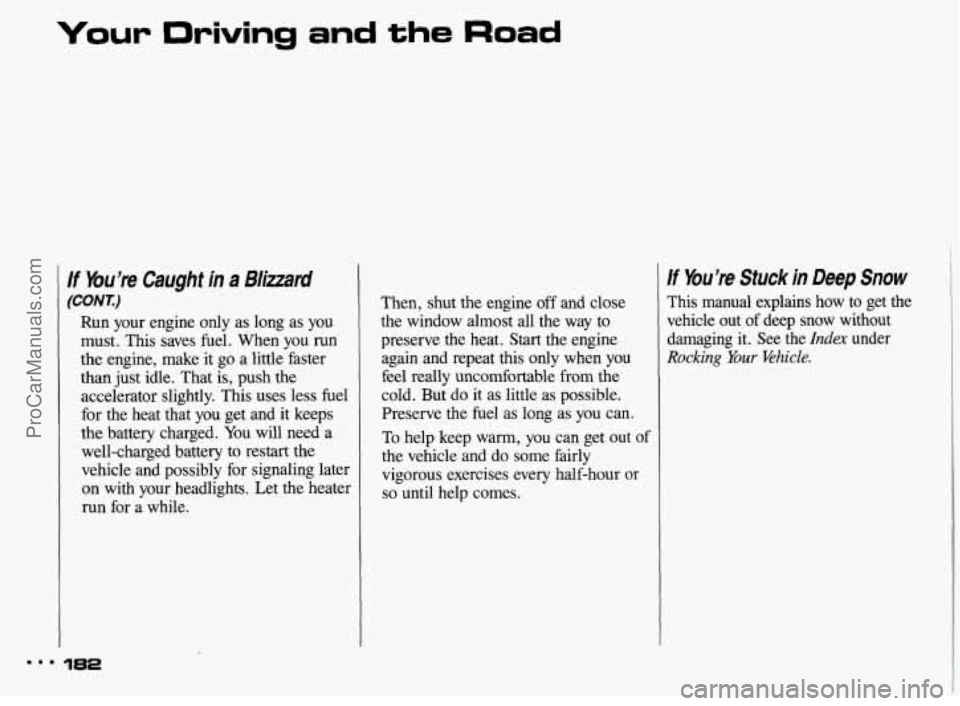

Your Driving and the Road
If bu’re Caught in a Blizzard
(CONT)
Run your engine only as long as you
must. This saves fuel. When you run
the engine, make it go a little faster
than just idle. That
is, push the
accelerator slightly. This uses less fuel
for the heat that you get and it keeps
the battery charged. You will need a
well-charged battery to restart the
vehicle and possibly for signaling later
on with your headlights. Let the heater
run for a while. Then,
shut the engine off and close
the window almost all the way to
preserve the heat.
Start the engine
again
and repeat this only when you
feel really uncomfortable from the
cold. But do it as little as possible.
Preserve the fuel as long as you can.
To help keep warm, you can get out of
the vehicle and do some fairly
vigorous exercises every half-hour
or
so until help comes.
If You’re Stuck in Deep Snow
This manual explains how to get the
vehicle out of deep snow without
damaging it. See the
Index under
Rocking Your Whicle.
ProCarManuals.com
Page 204 of 322

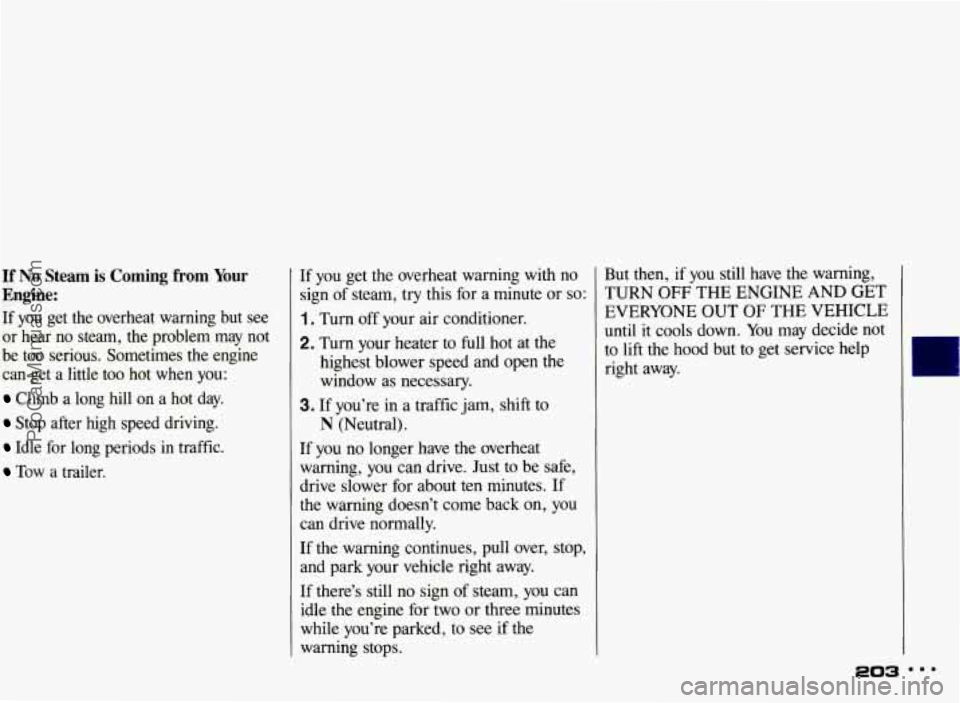

If No Steam is Coming from Your
Engine:
If you get the overheat warning but see
or hear no steam, the problem may not
be too serious. Sometimes the engine
can get a little too hot when you:
Climb a long hill on a hot day.
Stop after high speed driving.
Idle for long periods in traffic.
Tow a trailer. If you
get the overheat warning with no
sign of steam, try this for a minute or
so:
1 . Turn off your air conditioner.
2. Turn your heater to full hot at the
highest blower speed and open the
window as necessary.
N (Neutral).
3. If you’re in a traffic jam, shift to
If you no longer have the overheat
warning, you can drive. Just
to be safe,
drive slower for about ten minutes.
If
the warning doesn’t come back on, you
can drive normally.
If the warning continues, pull over, stop,
and park your vehicle right away.
If there’s still no sign
of steam, you can
idle the engine for two or three minutes
while you’re parked, to see if the
warning stops. But
then,
if you still have the warning,
TURN
OFF THE ENGINE AND GET
EVERYONE OUT
OF THE VEHICLE
until it cools down. You may decide not
to lift the hood but to get service help
right away.
203
ProCarManuals.com
Page 205 of 322
Problems on the Road
Engine Overheating (CONK)
Cooling System
When you decide it’s safe to
lift the
hood, here’s what you’ll see:
(A) Coolant recovery tank
(B) Radiator pressure cap
(C) Electric engine fan
An
electric fan under the hood
h can start up even when the
engine is not running and can
injure
you. Keep hands, clothing
and tools away from any
underhood electric fan.
If the coolant inside the coolant
recovery tank is boiling, don’t do
anything else
until it cools down.
The coolant level should be at or above
the
FULL COLD mark. If it isn’t, you
may have a leak
in the radiator hoses,
heater hoses, radiator, water pump or
somewhere else
in the cooling system.
I I 1 Heater and radiator hoses, anc
- other engine parts, can be
very hot. Don’t touch them.
If you
do, you can be burned.
Don’t run the engine if there is a
leak.
If you run the engine, it
could lose all coolant. That could
cause an engine fire, and you could
be burned. Get any leak fixed
before you drive the vehicle.
I
Engine damage from running your
engine without coolant isn’t
covered by your warranty.
.. . 204
ProCarManuals.com
Page 206 of 322
should be running. If it isn’t, your
vehicle needs service.

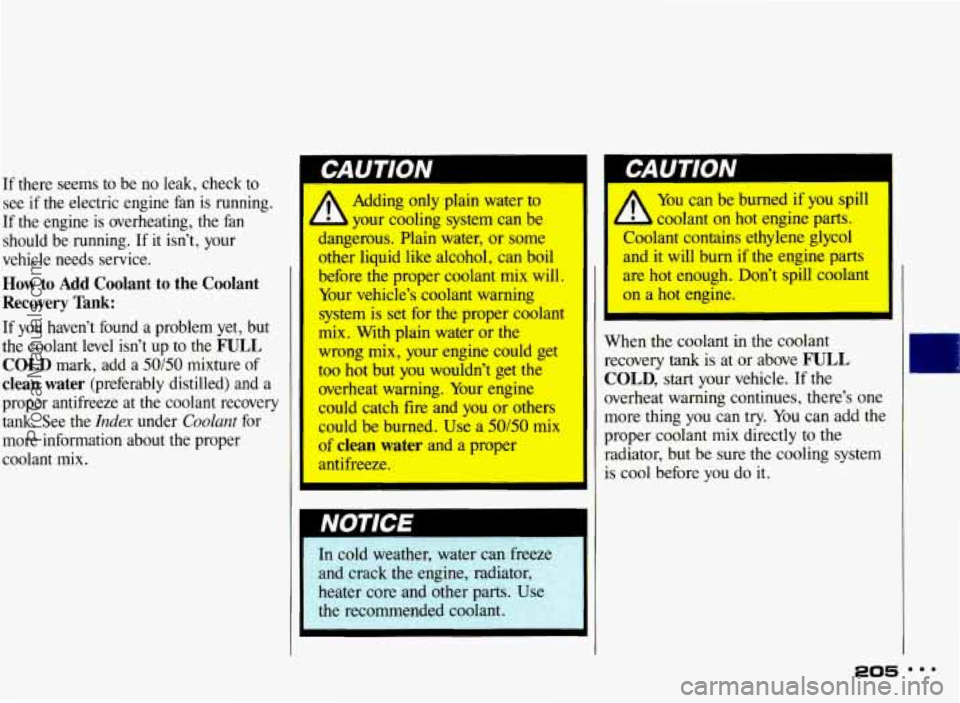

How
to Add Coolant to the Coolant
Recovery Tank:
If you haven’t found a problem yet, but
the coolant level isn’t up to the
FULL
COLD mark, add a 50/50 mixture of
clean water (preferably distilled) and a
proper antifreeze at the coolant recovery
tank. See the Index under Coolant for
more information about the proper
coolant mix.
I b-Au I IUN If there seems to be no leak, check to
see
if the electric engine fan is running. Adding only plain water to
If the engine is overheating, the fan L your cooling system can be
dangerous. Plain water, or some
other liquid like alcohol, can boil
before the proper coolant
mix will.
Your vehicle’s coolant
warning
,k L
You can be burned if you spill
coolant on
hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are
hot enough. Don’t spill coolant
on a hot engine.
system is set for the proper coolant
I
mix. With plain water or the
too hot but you wouldn’t get the
overheat warning. Your engine
could catch fm and you or others
be Use a mix
of clean water and a proper
antifreeze. When
the coolant in the coolant
COLD, start your vehicle. If the
overheat warning continues, there’s one
proper coolant mix directly
to the
more
thing you can try. You can add the
radiator, but be sure the cooling system
is cool before
you do it.
wrong
mix, Your
engine could get recovery tank is at or above FULL
I
In cold weather, water can freeze II
and crack the engine, radiator,
heater core and other
parts. Use
the recommended coolant.
I
r
205 ”
ProCarManuals.com
