Page 81 of 290
Features & Controls

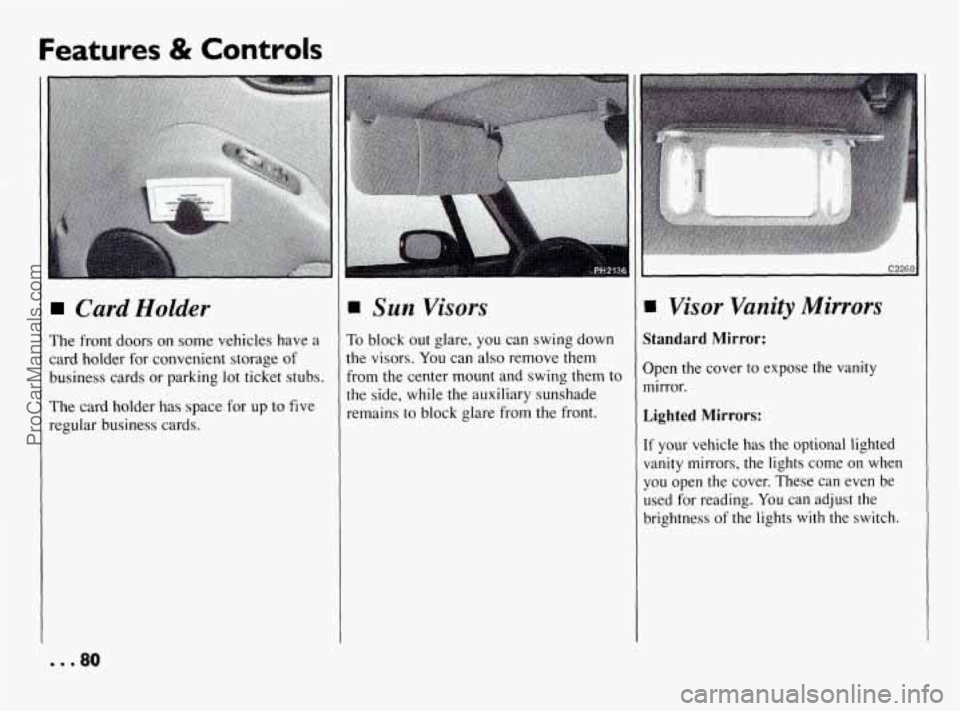

Card Holder
The front doors on some vehicles have a
card holder for convenient storage of
business cards or parking lot ticket stubs.
The card holder has space for up to five
regular business cards.
H Sun Visors
To block out glare, you can swing down
the visors. You can also remove them
from the center mount and swing them to
the side, while the auxiliary sunshade
remains
to block glare from the front.
Visor Vanity Mirrors
Standard Mirror:
Open the cover to expose the vanity
mirror.
Lighted Mirrors:
If your vehicle has the optional lighted
vanity mirrors, the lights come on when
you open the cover. These can even be
used for reading.
You can adjust the
brightness
of the lights with the switch.
... 80
ProCarManuals.com
Page 82 of 290

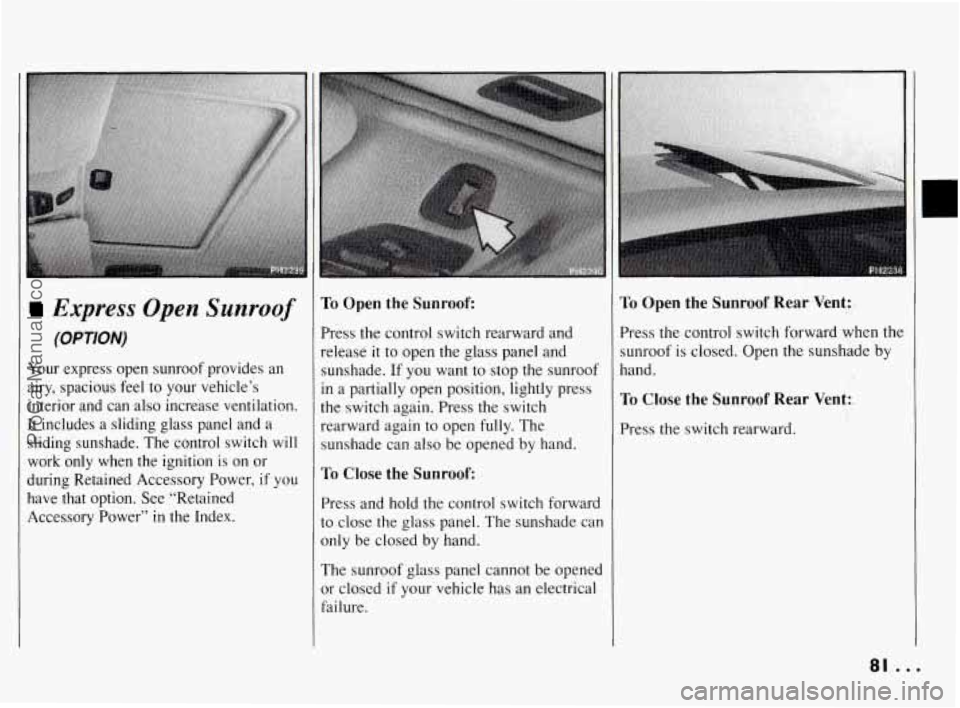

Express Open Sunroof
(OPTION)
Your express open sunroof provides an
airy, spacious feel to your vehicle’s
interior and can also increase ventilation.
It includes a sliding glass panel and a
sliding sunshade. The control switch will
work only when the ignition is on or
during Retained Accessory Power, if
you
have that option. See “Retained
Accessory Power”
in the Index.
I
To Open the Sunroof:
Press the control switch rearward and
release
it to open the glass panel and
sunshade. If
you want to stop the sunroof
in
a partially open position, lightly press
the switch again. Press the switch
rearward again to open fully. The
sunshade can also be opened by hand.
To Close the Sunroof:
Press and hold the control switch forward
to close the glass panel. The sunshade can
only be closed by hand.
The sunroof glass panel cannot be opened
or closed
if your vehicle has an electrical
failure.
To Open the Sunroof Rear Vent:
Press the control switch forward when the
sunroof is closed. Open the sunshade by
hand.
To Close the Sunroof Rear Vent:
Press the switch rearward.
81 ...
ProCarManuals.com
Page 83 of 290
Features & Controls
Storage Armrest (OPTION)
Console Shift Models:
Press the button at the front edge to open
the armrest storage area for cassette tapes,
gloves, etc.
A cup holder flips forward for
use.
There’s also a bin for storage underneath
the armrest storage area.
Column Shift Models:
The front armrest opens into a storage
area for cassette tapes, gloves, etc.
To
open it, hold down the base and lift the
lid.
A cup holder flips forward and
unfolds
to hold two cups.
1 Door Cup Holder
The front doors provide space for holding
a cup or soft drink.
. ,..82
ProCarManuals.com
Page 84 of 290

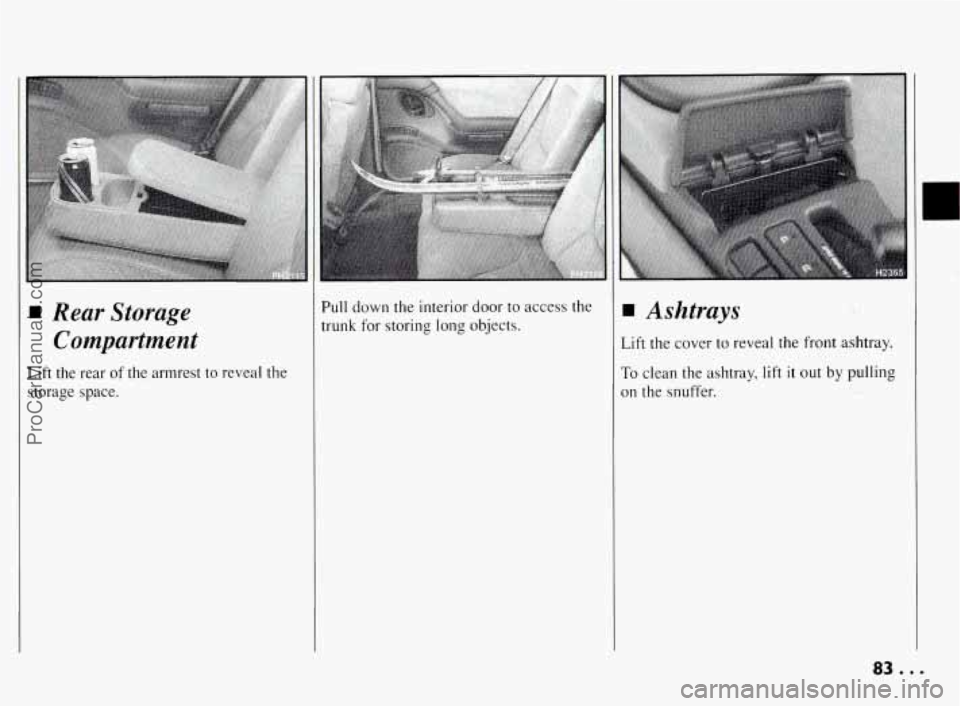

Rear Storage
Compartment
Lift the rear of the armrest to reveal the
storage space. Pull down the interior
door to access the
trunk for storing long objects.
Ashtrays
Lift the cover to reveal the front ashtray.
To clean the ashtray, lift it out by pulling
on the snuffer.
ProCarManuals.com
Page 85 of 290
Features 8t Controls

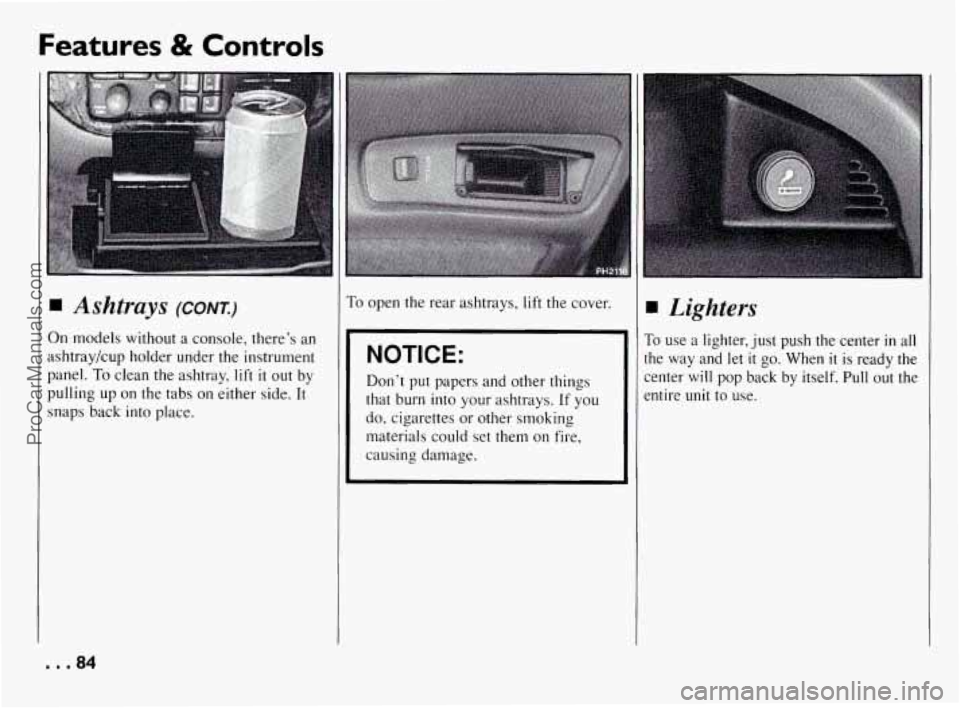

Ashtrays (CONT.)
On models without a console, there’s an
ashtray/cup holder under the instrument
panel.
To clean the ashtray, lift it out by
pulling up on the tabs on either side.
It
snaps back into place.
... 84
To open the rear ashtrays, lift the cover.
NOTICE:
Don’t put papers and other things
that burn into your ashtrays.
If you
do, cigarettes or other smoking
inaterials could set them
on fire,
causing damage.
Lighters
To use a lighter, just push the center in all
the way and let
it go. When it is ready the
center
will pop back by itself. Pull out the
entire
unit to use.
ProCarManuals.com
Page 86 of 290

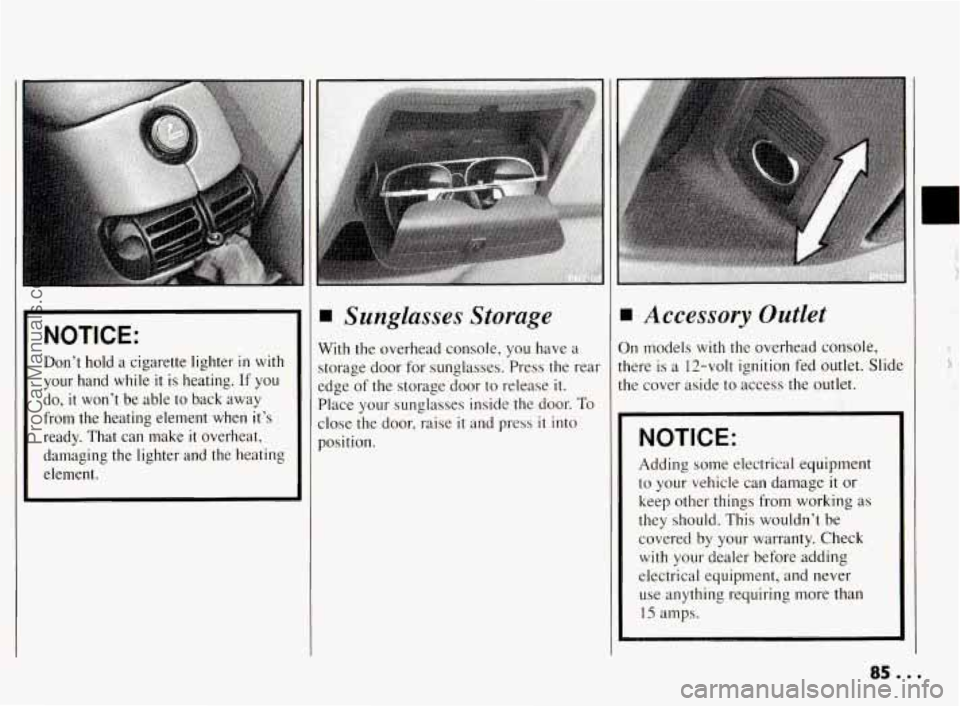

NOTICE:
Don’t hold a cigarette lighter in with
your hand while
it is heating. If you
do, it won’t be able to back away
from the heating element when it’s
ready. That can make
it overheat,
damaging the lighter and the heating
element.
Sunglasses Storage
With the overhead console, you have a
storage door for sunglasses. Press the rear
edge of the storage door
to release it.
Place your sunglasses inside the door. To
close the door, raise
it and press it into
position.
Accessory Outlet
On models with the overhead console,
there is a 12-volt ignition fed outlet. Slide
the cover aside to access the outlet.
NOTICE:
Adding some electrical equipment
to your vehicle can damage
it or
keep other things from working
as
they should. This wouldn’t be
covered by your warranty. Check
with your dealer before adding
electrical equipment, and never use anything requiring more than
15 amps.
ProCarManuals.com
Page 87 of 290
Features & Controls
... 86
ProCarManuals.com
Page 88 of 290

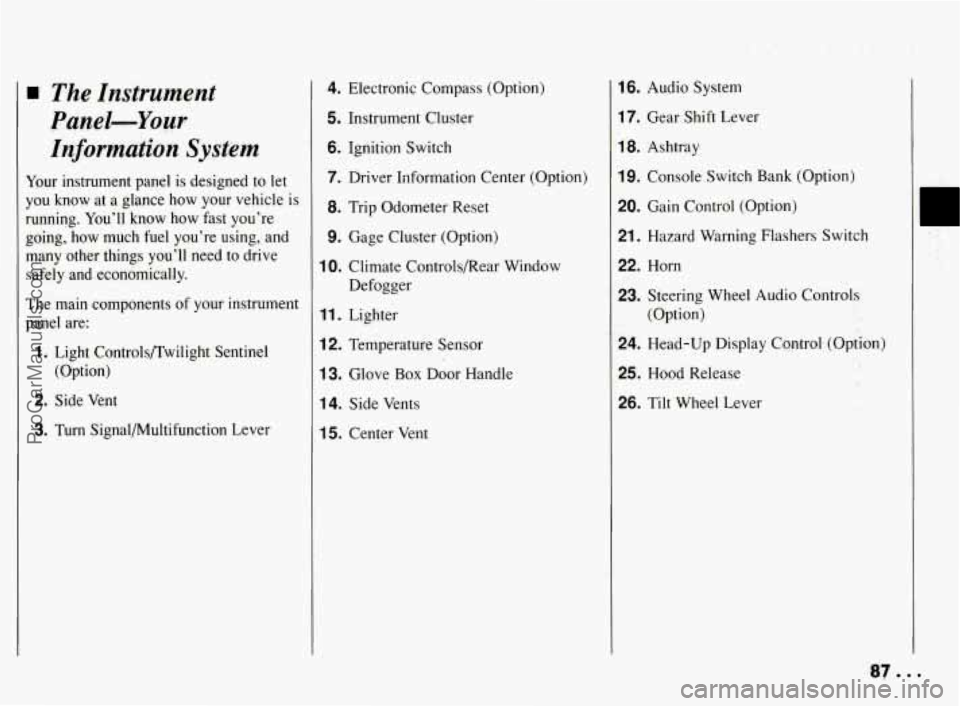

The Instrument
Panel-Your
Information System
Your instrument panel is designed to let
you
know at a glance how your vehicle is
running.
You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically;
.. .L .

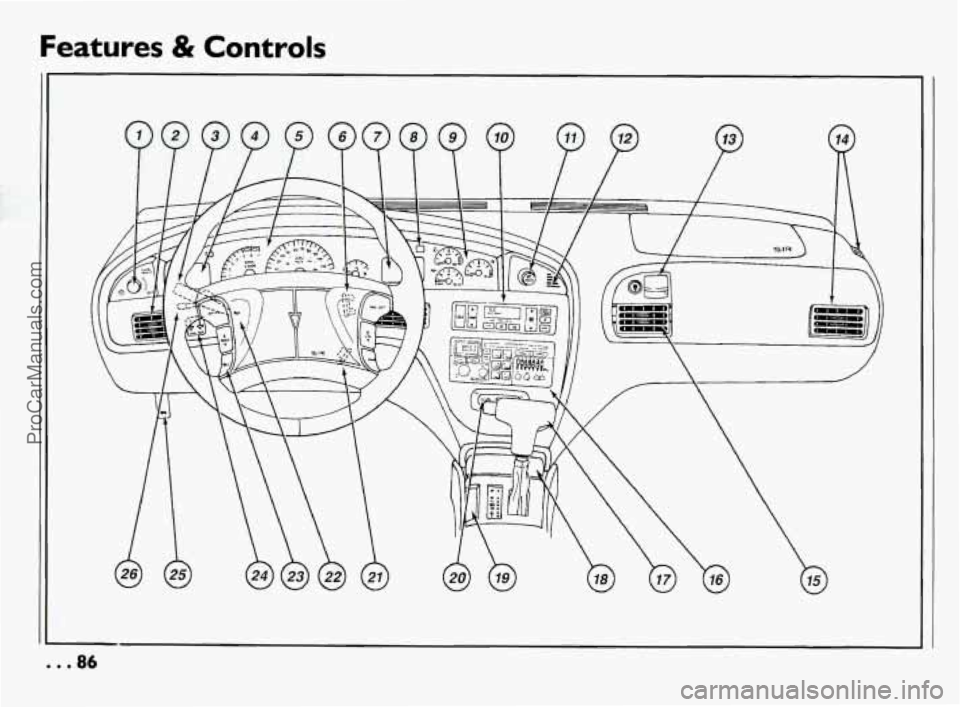

The main components of your instrument
panel are:
1. Light Controls/Twilight Sentinel
(Option)
2. Side Vent
3. Turn Signal/Multifunction Lever
4. Electronic Compass (Option)
5. Instrument Cluster
6. Ignition Switch
7. Driver Information Center (Option)
8. Trip Odometer Reset
9. Gage Cluster (Option)
10. Climate Controls/Rear Window
Defogger
11. Lighter
12. Temperature Sensor
13. Glove Box Door Handle
14. Side Vents
15. Center Vent
16. Audio System
17. Gear Shift Lever
18. Ashtray
19. Console Switch Bank (Option)
20. Gain Control (Option)
21. Hazard Warning Flashers Switch
22. Horn
23. Steering Wheel Audio Controls
(Option)
24. Head-Up Display Cqntrol. (Option)
25. Hood Release
26. Tilt Wheel Lever
I
ProCarManuals.com
Page 89 of 290
Features 8t Controls

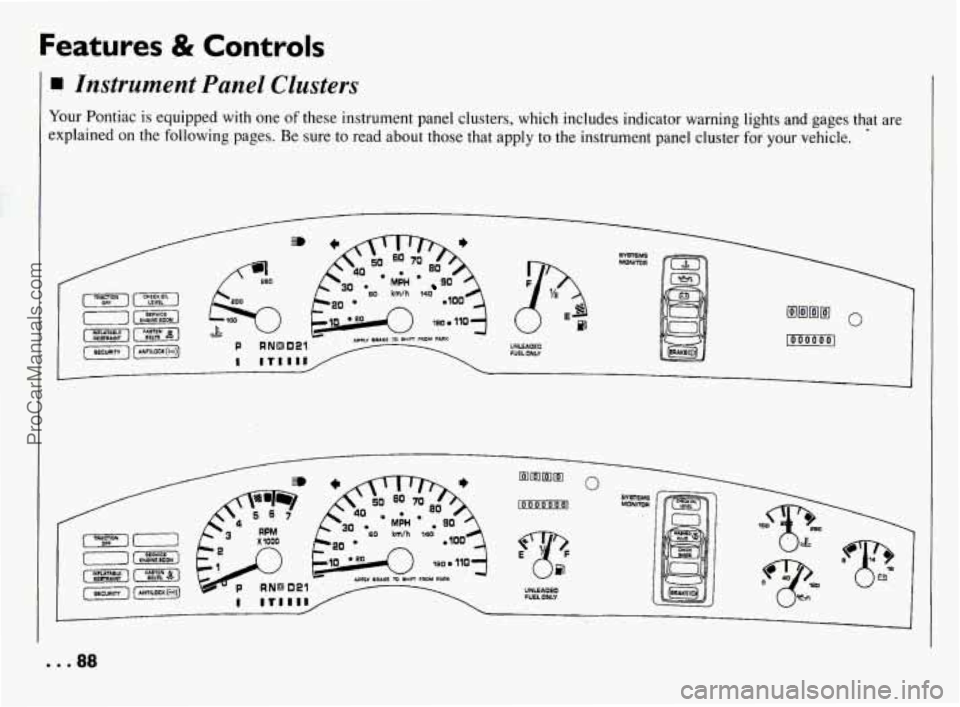

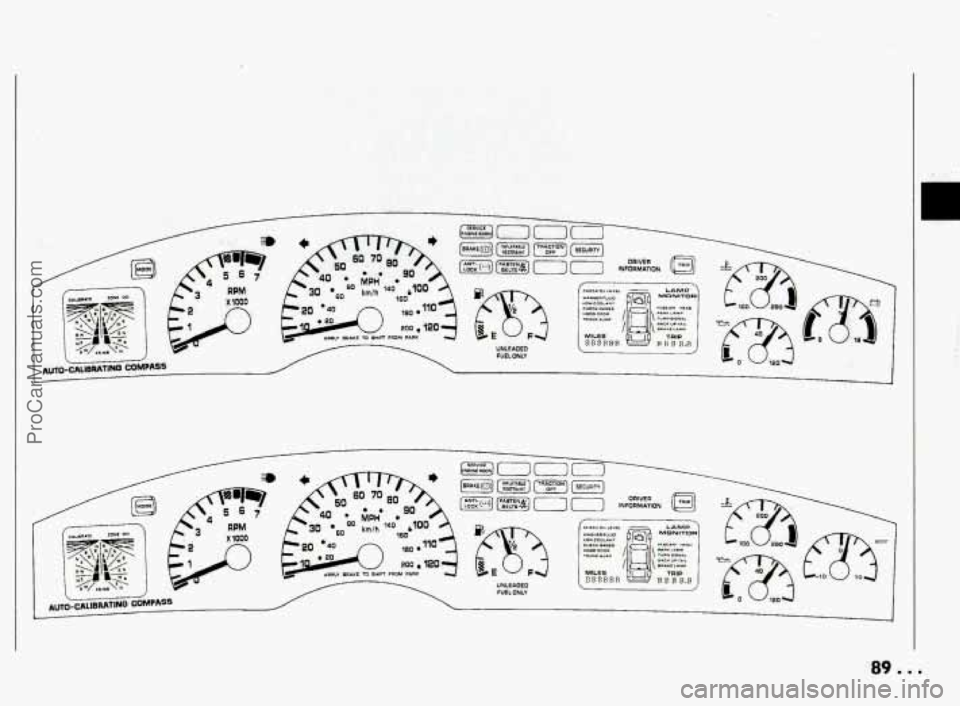

Instrument Panel Clusters
Your Pontiac is equipped with one of these instrument panel clusters, which \
includes indicator warning lights and gages that are
explained
on the following pages. Be sure to read about those that apply to the instrument panel cluster for your vehicle.
30 *60 kmlh (40 MPH 90
eo '
I
UNLEADED NELONLV
loooooool
UNLEAOEO
FUEL ONLY
ProCarManuals.com
