PONTIAC BONNEVILLE 1995 Owners Manual

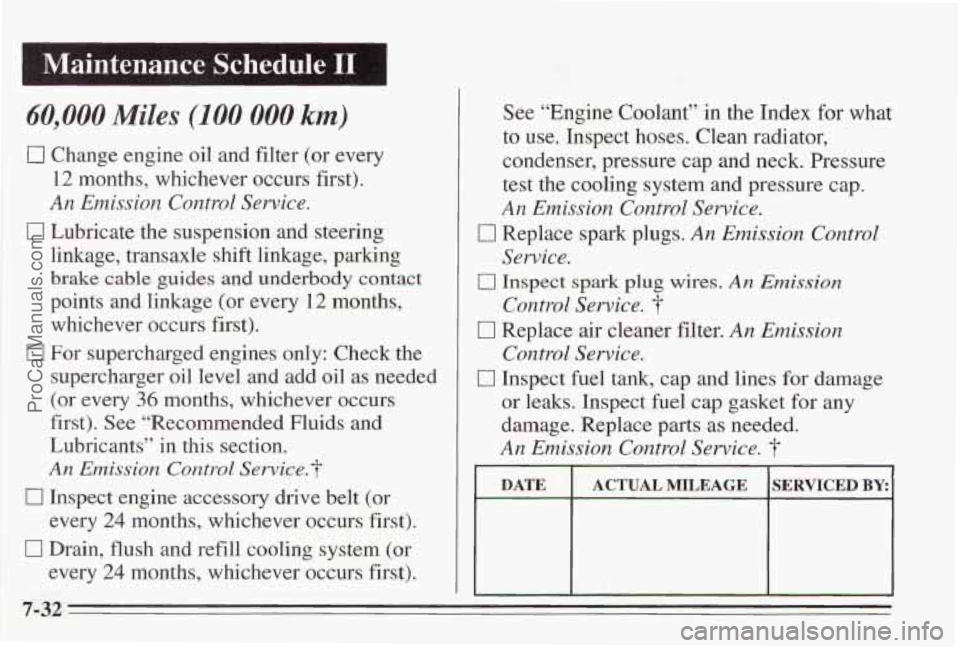

60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parlung
brake cable guides and underbody contact
points and linkage (or every 12 months,
whichever occurs first).
0 For supercharged engines only: Check the
supercharger oil level and add oil
as needed
(or every
36 months, whichever occurs
first).
See “Recommended Fluids and
Lubricants” in this section.
An Emission Control Service.?
0 Inspect engine accessory drive belt (or
every
24 months, whichever occurs first).
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first). See
“Engine Coolant” in the Index
for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Sewice.
0 Replace spark plugs. An Emission Control
Sewice.
0 Inspect spark plug wires. An Emission
Control Service.
0 Replace air cleaner filter. An Emission
Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts
as needed.
An Emission Control Service.
DATE SERVICED BY: ACTUAL MILEAGE
7-32
ProCarManuals.com

I Maintenance Schedule I1

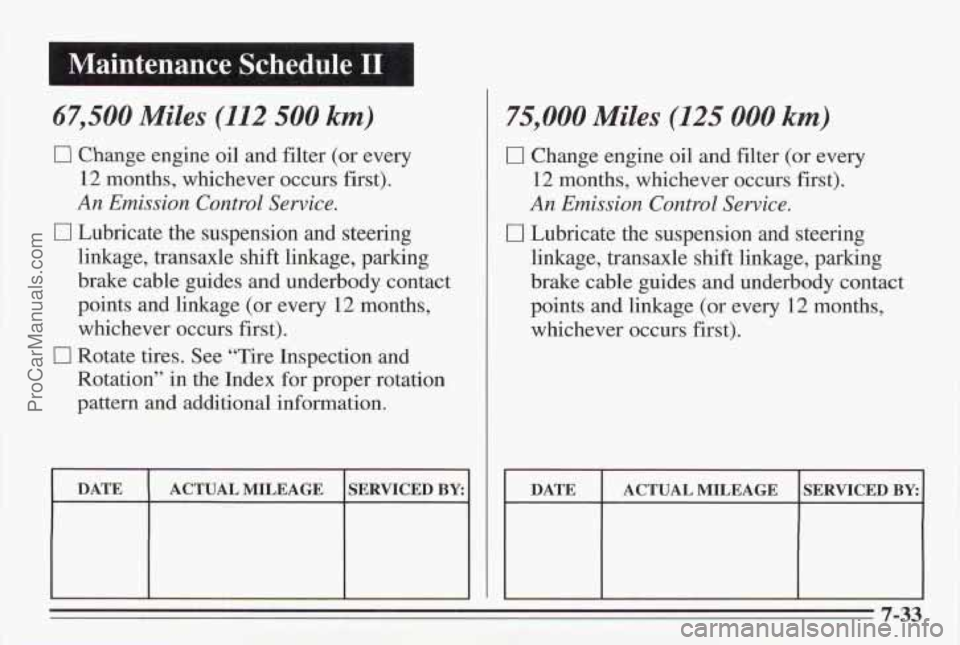

67,500 Miles (112 500 km)
El Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every
12 months,
whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information.
DATE
SERVICED BY: ACTUAL MILEAGE
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable guides and underbody contact
points and linkage (or every
12 months,
whichever occurs first).
r I I 1
DATE
SERVICED BY: ACTUAL MILEAGE
ProCarManuals.com

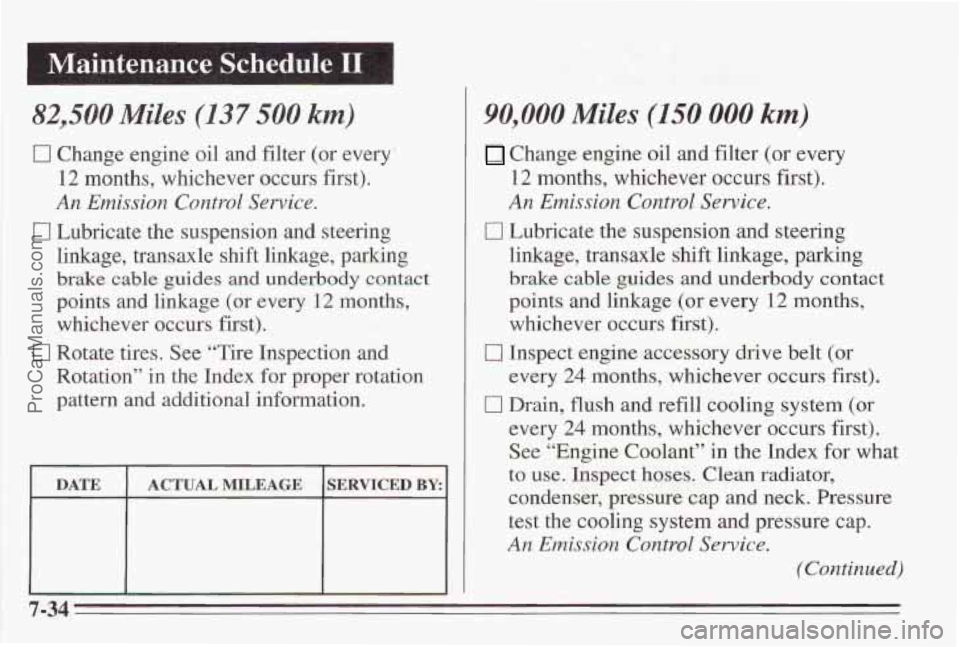

82,500 Miles (137 500 km)
0 Change engine oil and filter (or every’
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parkmg
brake cable guides and underbody contact
points
and linkage (or every 12 months,
whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation”
in the Index for proper rotation
pattern and additional information.
DATE SERVICED BY: ACTUAL MILEAGE
90,000 Miles (150 000 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parking
brake cable
guides and underbody contact
points and linkage
(or every 12 months,
whichever occurs first).
0 Inspect engine accessory drive belt (or
every
24 months, whichever occurs first).
0 Drain, flush and refill cooling system (or
every
24 months, whichever occurs first).
See “Engine Coolant”
in the Index for what
to use. Inspect hoses. Clean radiator,
condenser, pressure cap and neck. Pressure
test the cooling system and pressure cap.
An Emission Control Service.
(Continued)
7-34
ProCarManuals.com

Maintenance Schedule I1 I

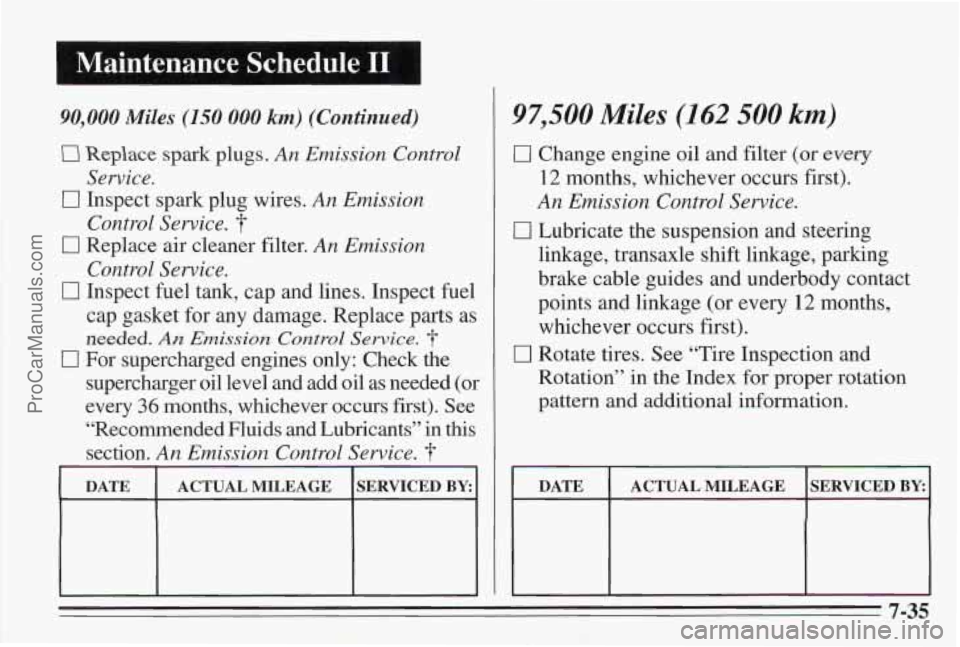

90,000 Miles (150 000 km) (Continued)
0 Replace spark plugs. An Emission Control
Service.
0 Inspect spark plug wires. An Emission
Control Service.
0 Replace air cleaner filter. An Emission
Control Service.
0 Inspect fuel tank, cap and lines. Inspect fuel
cap gasket for
any damage. Replace parts as
needed. An Emission Control Service.
0 For supercharged engines only: Check the
supercharger oil level and add oil as needed (or
every
36 months, whichever occurs first). See
“Recommended Fluids and Lubricants’’ in this
section.
An Emission Control Service. ?
DATE SERVICED BY ACTUAL MILEAGE
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the suspension and steering
linkage, transaxle shift linkage, parkmg
brake cable guides and underbody contact
points and linkage
(or every 12 months,
whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information.
DATE SERVICED BY ACTUAL MILEAGE
7-35
ProCarManuals.com

I Maintenance Schedule I1

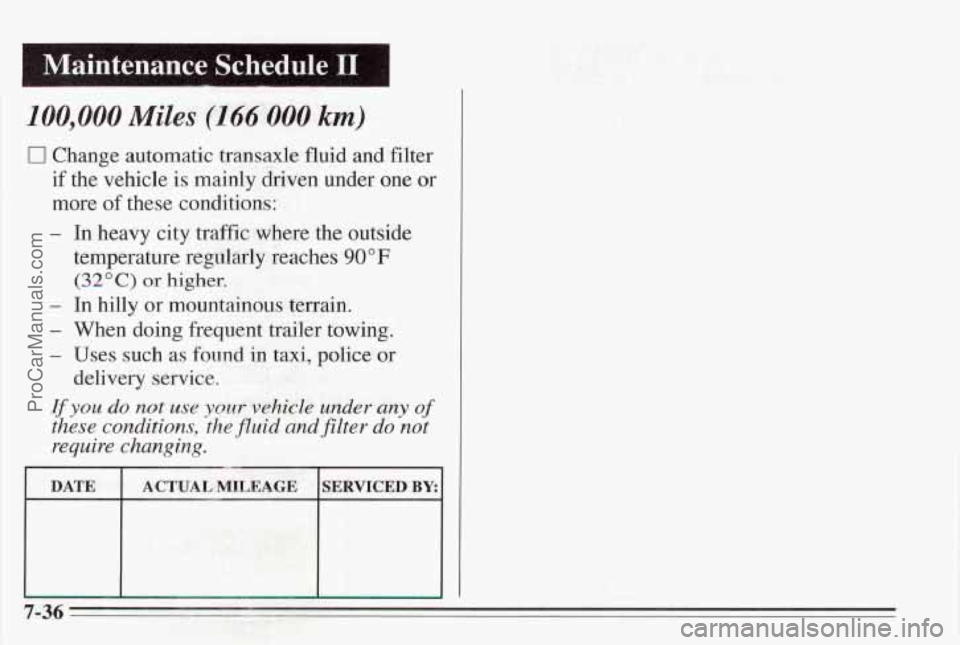

100,000 Miles (1 66' 000 km)
0 Change automatic transaxle fluid and filter
if the vehicle
is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32 O C) OT higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi., police or
If you do not use yow vehicle under any of
these conditions, the fluid and filter do not
require
changirg.
delivery service.
I DATE I ACTUAL MILEAGE SERVICED BY: I
7-36
ProCarManuals.com

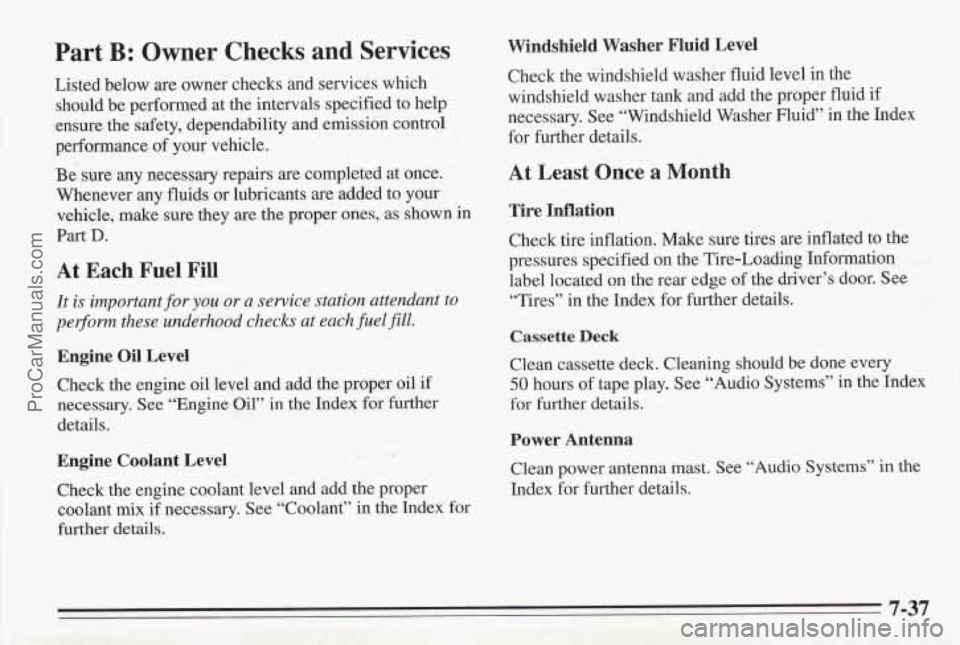

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform- these underhood checks at eachfuelfill.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil”
in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Coolant” in the Index for
further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label located on the rear edge of the driver’s door.
See
“Tires” in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
Power Antenna
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-37
ProCarManuals.com

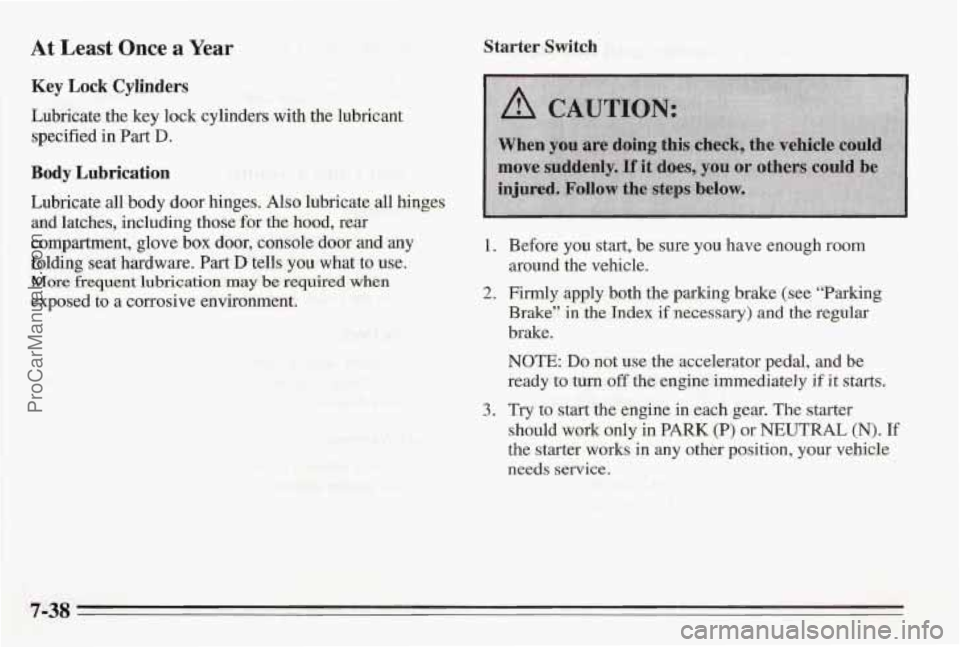

At Least Once a Year Starter Switch
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified
in Payt D.
Body
Lubrication
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those
for the hood, rear
compartment, glove box
door, console door and any
folding seat hardware. Part D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.
1. Before you stat, be sure you have enough mom
around the vehicle.
NOTE: Do not me the amelerator pedal, md be
ready to turn off the engine immediately if it starts.
should work only in PARR (P) or NEUTRAL (N). If
the starter works in any otherposition, your vehicle
needs seruice.
3. Try to sm’hs! engine in each gear. The starter
7-38
ProCarManuals.com

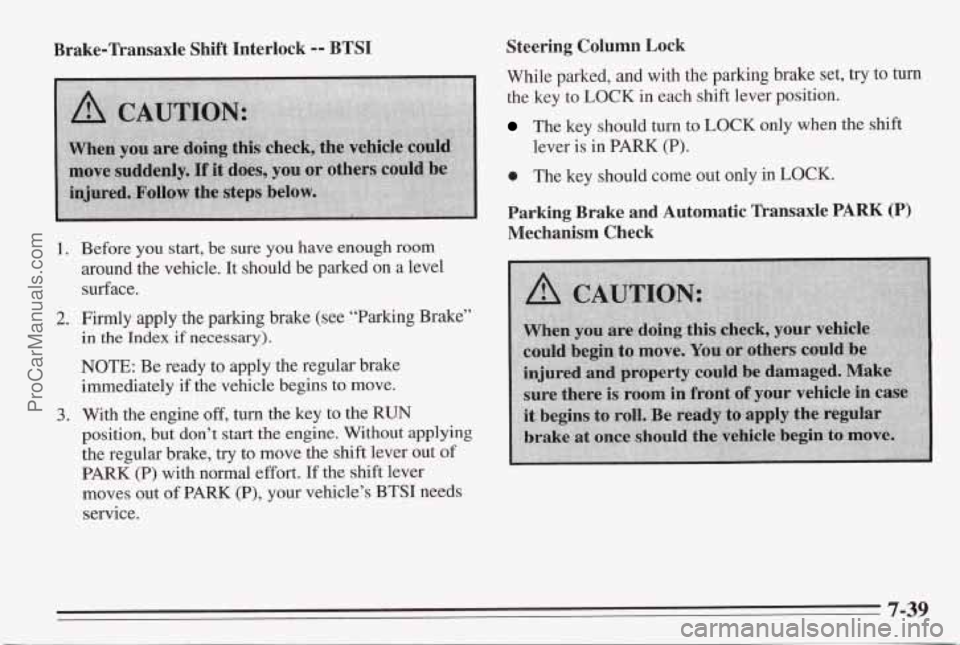

Brake-Transaxle Shift Interlock -- BTSI Steering Column Lock
While
parked, and with the parlung brake set, try to turn
the key to
LOCK in each shift lever position.
The key should turn to LOCK only when the shift
0 The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
lever is in PARK (P).
Mechanism Check
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t
start the engine. Without applying
the regular brake, try to move the shift lever out
of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI needs
service.
ProCarManuals.com

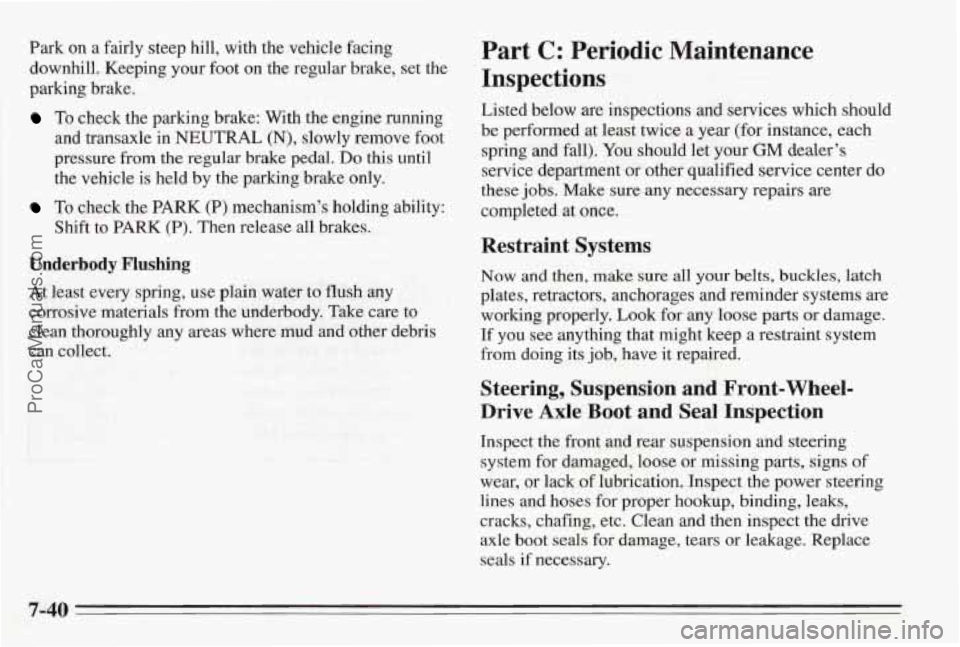

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake: With the engine running
and transaxle in
NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
Shift to PARK
(P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials
from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring
and fall). You should let your GM dealer’s
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly.
Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its
job, have it repaired.
Steering, Suspension and Front-Wheel-
Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack
of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding,
leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
7-40
ProCarManuals.com

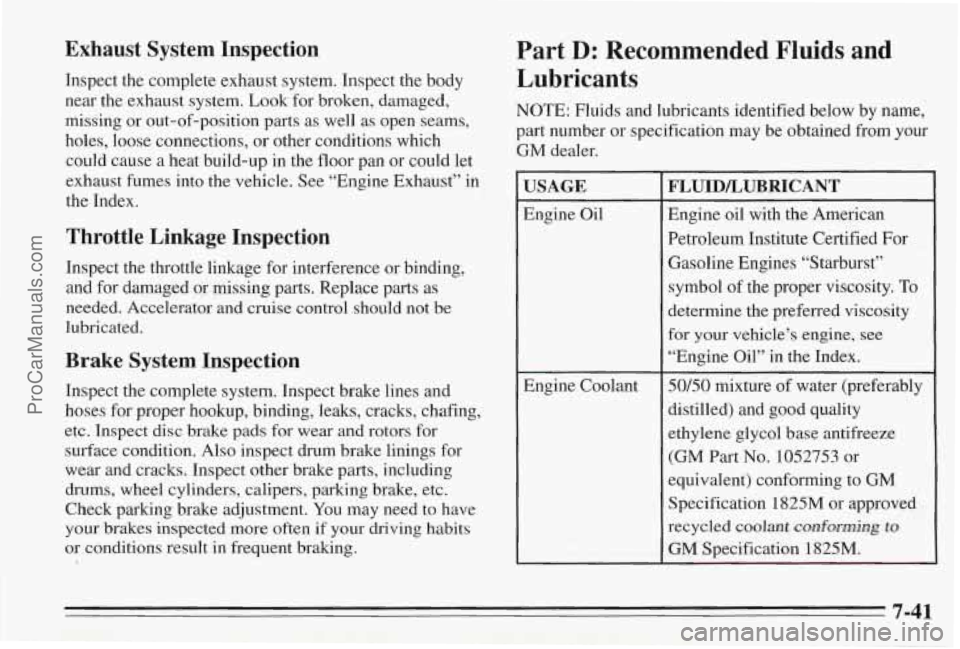

Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections, or other conditions which
could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Accelerator and cruise control should not
be
lubricated.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Also inspect drum brake linings for
wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more
often if your driving habits
or conditions result in frequent braking.
I.
...
Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified
For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine,
see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part
No. 1052753 or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant
conforming ta
GM Specification 1825M.
ProCarManuals.com
