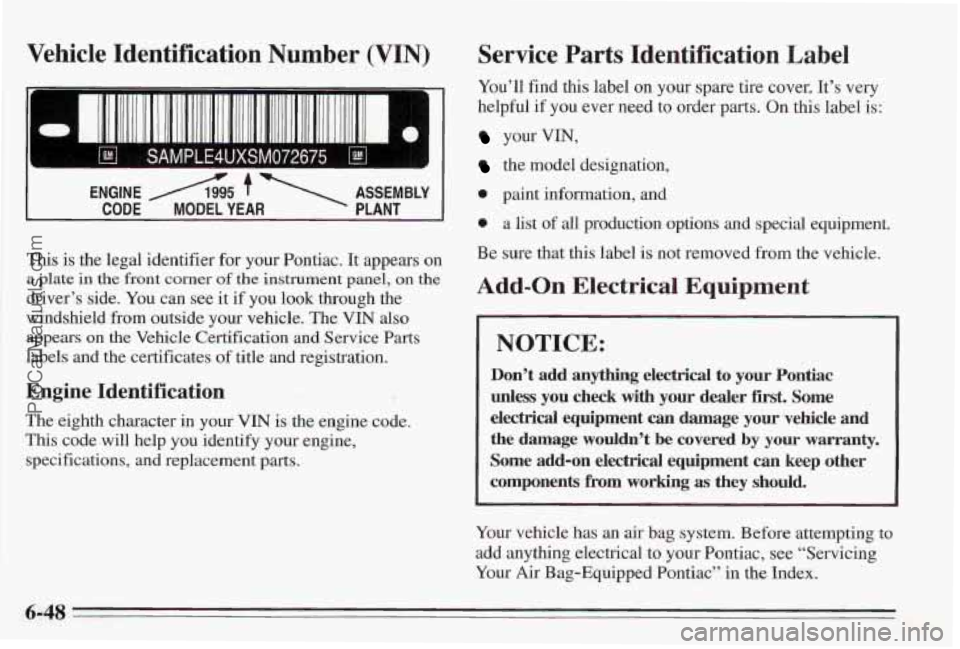

Vehicle Identification Number (VIN)
I ENGINE A5 f ASSEMBLY I
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications, and replacement parts.
Service Parts Identification Label
You’ll find this label on your spare tire cover. It’s very
helpful
if you ever need to order parts. On this label is:
your VIN,
the model designation,
0 paint information, and
0 a list of all production options and special equipment.
Be sure that this label is not removed
from the vehicle.
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from
working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Your
Air Bag-Equipped Pontiac” in the Index.
6-48
ProCarManuals.com

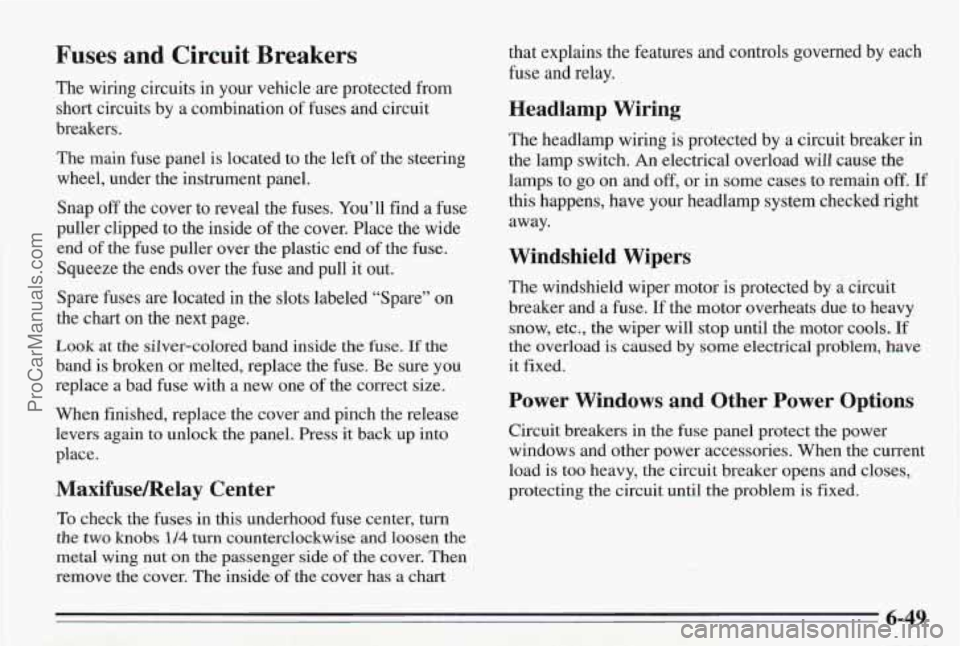

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers.
The main fuse panel is located to the left of the steering
wheel, under the instrument panel. that
explains the features and controls governed by each
fuse and relay.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will
cause the
lamps to
go on and off, or in some cases to remain off. If
Snap off the cover to reveal the fuses. You’ll find
a fuse this happens,
have your headlamp system checked right
puller clipped to the inside of the cover. Place the wide away.
end of the fuse puller over the plastic end of the fuse.
Squeeze the ends over the fuse and pull it out.
Spare fuses
are located in the slots labeled “Spare” on
the chart on the next page.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
When finished, replace the cover and pinch the release
levers again
to unlock the panel. Press it back up into
place.
Maxifusemelay Center
To check the fuses in this underhood fuse center, turn
the two knobs 1/4 turn counterclockwise and loosen the
metal wing nut on the passenger side of the cover. Then
remove the cover. The inside of the cover has a chart
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
6-49
ProCarManuals.com

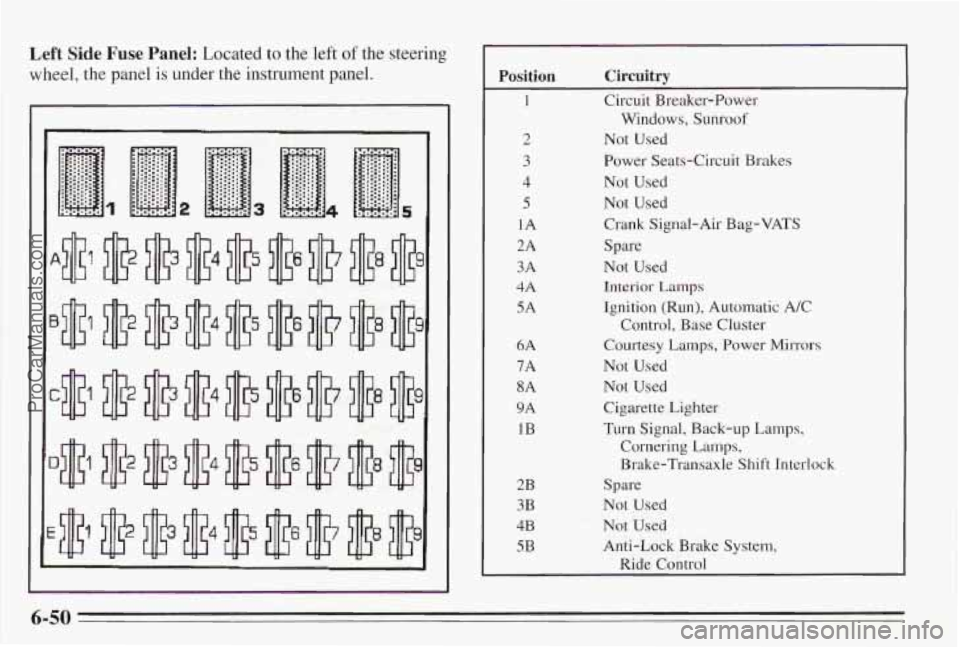

Left Side Fuse Panel: Located to the left of the steering
wheel, the panel
is under the instrument panel. Position Circuitry
1 Circuit Breaker-Power
2 Not Used
3 Power Seats-Circuit Brakes
4 Not Used
5 Not Used
1A Crank Signal-Air Bag-VATS
2A Spare
3A Not Used
4A Interior Lamps
5A Ignition (Run), Automatic A/C
6A Courtesy Lamps, Power Mirrors
7A Not Used
8A Not Used
9A Cigarette Light.er
1B Turn Signal, Back-up Lamps,
Windows, Sunroof
Control, Base Cluster
Cornering
Lamps,
Brake-Transaxle Shift Interlock
2B Spare
3B Not Used
4B Not Used
5B Anti-Lock Brake System,
Ride
Control
6-50
ProCarManuals.com

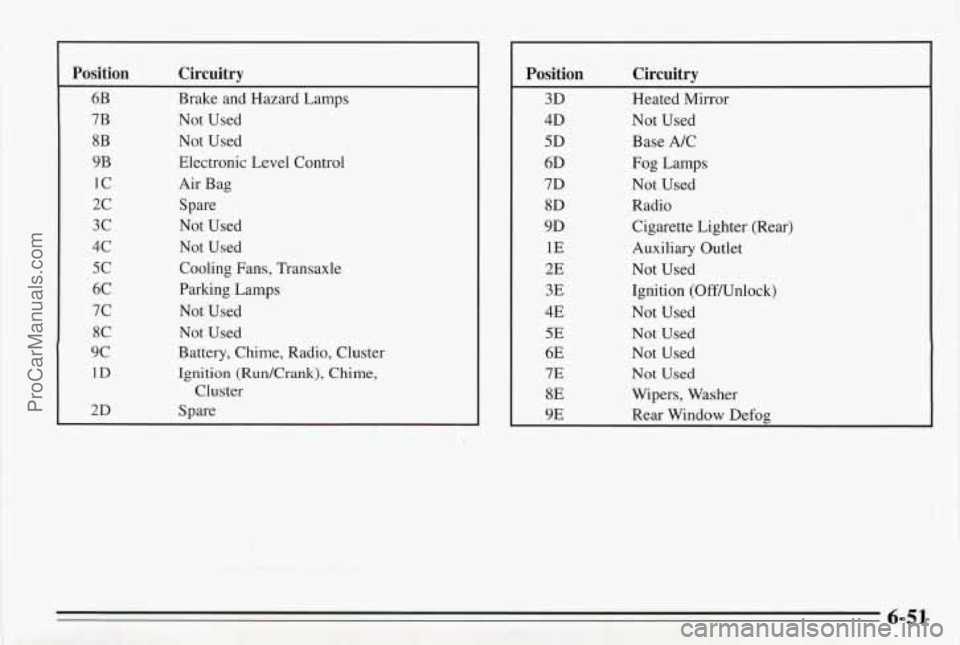

Position Circuitry
6B Brake and Hazard Lamps
7B Not Used
8B Not Used
9B Electronic Level Control
1c Air Bag
2c Spare
3c Not Used
4c Not Used
5c Cooling Fans, Transaxle
6C Parking Lamps
7c Not Used
8C Not Used
9c Battery, Chime, Radio, Cluster
1D Ignition (RudCrank), Chime,
2D Spare Cluster
Position Circuitry
3D Heated Mirror
4D Not Used
5D Base
A/C
6D Fog Lamps
7D Not Used
8D Radio
9D Cigarette Lighter (Rear)
1E Auxiliary Outlet
2E Not Used
3E Ignition (OffAJnlock)
4E Not Used
5E Not Used
6E Not Used
7E Not Used
8E Wipers, Washer
9E Rear Window Defog
ProCarManuals.com

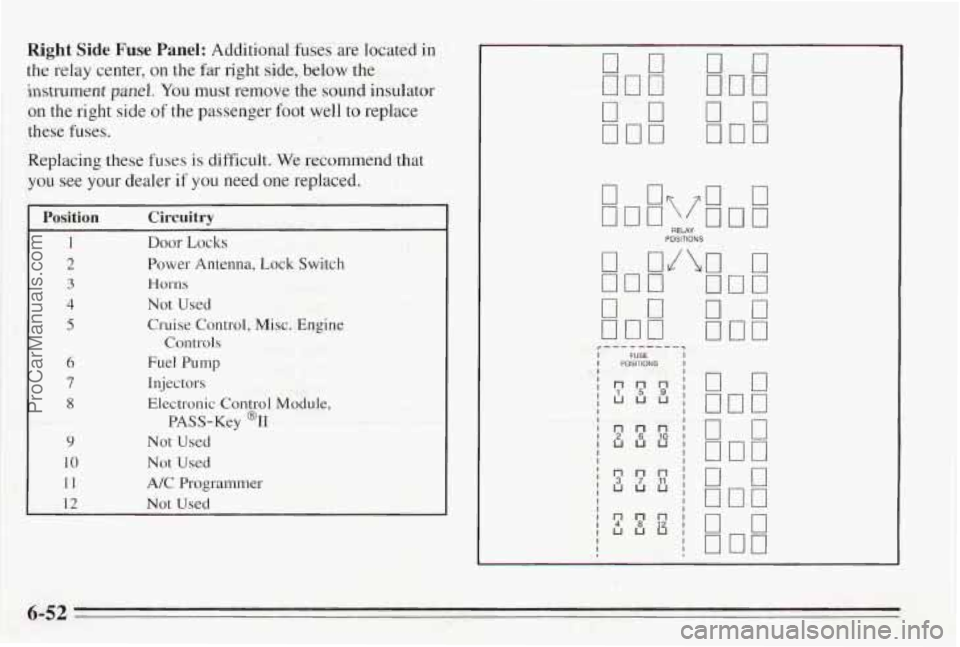

Right Side Fuse Panel: Additional fuses are located in
the relay center, on the far right side, below the
instrument panel.
You must remove the sound insulator
on the right side
of the passenger foot well to replace
these fuses.
Replacing these fuses
is difficult. We recommend that
you see your dealer
if you need one replaced.
Position Circuitry
1 Door Locks
2 Power Antenna, Lock Switch
3 Horns
4 Not Used
5 Cruise Control, Misc. Engine
Controls
6 Fuel Pump
7 Injectors
8 Electronic Control Module,
9 Not Used
10 Not Used
11 A/C Programmer PASS-Key
@I1
12 Not Used
POSITIONS
r---------- I FUSE I I POSITIONS I
6-52
ProCarManuals.com

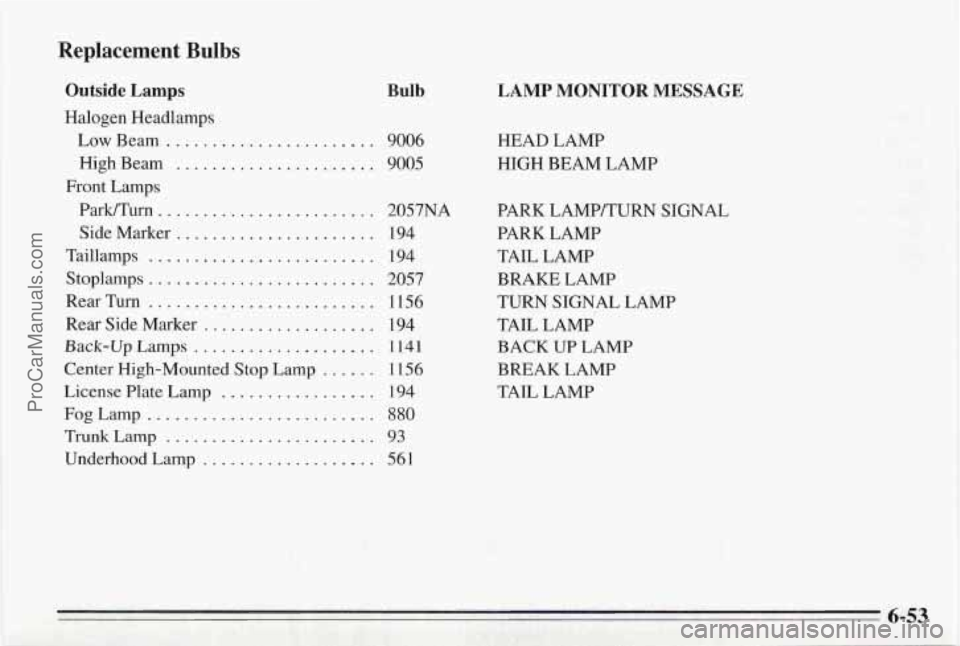

Replacement Bulbs
Outside Lamps Bulb
. 9006
. 9005
Halogen Headlamps
Low Beam
...........
High Beam ........
Front Lamps
Park/Turn
........................
Side Marker ......................
Taillamps .........................
Stoplamps .........................
RearTurn .........................
Rear Side Marker ...................
Back-up Lamps ....................
Center High-Mounted Stop Lamp ......
License Plate Lamp .................
FogLamp .........................
Trunk Lamp .......................
Underhood Lamp . . , ........
2057NA
194
194
2057
1156
194
1141
1156 194
880
93
561
LAMP MONITOR MESSAGE
HEAD LAMP
HIGH BEAM LAMP
PARK LAMP/TURN SIGNAL
PARK LAMP
TAIL LAMP
BRAKE LAMP
TURN SIGNAL LAMP
TAIL LAMP
BACK UP LAMP
BREAK LAMP
TAIL LAMP
6-53
ProCarManuals.com

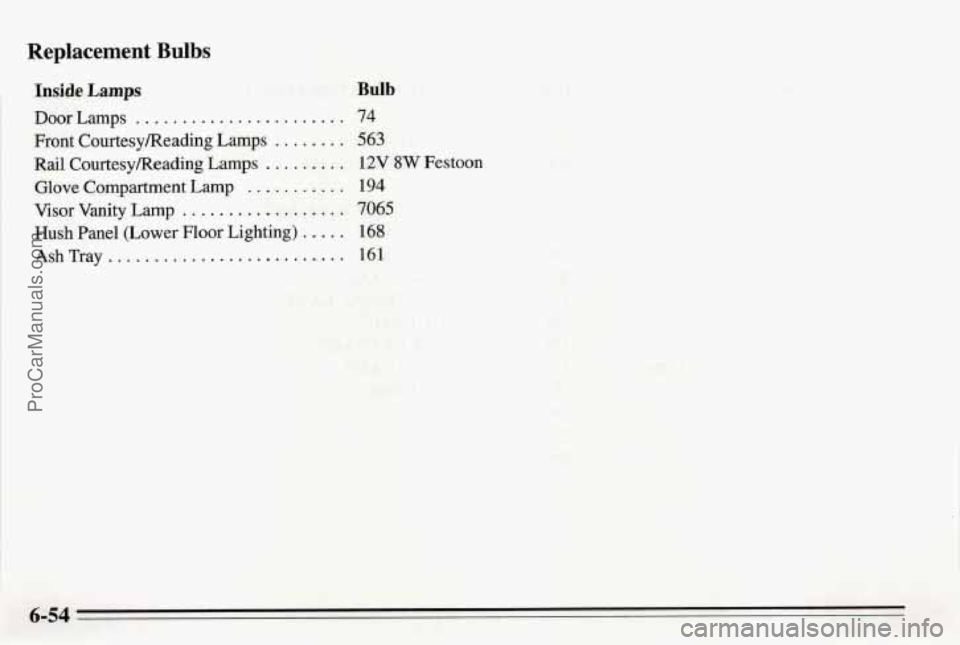

Replacement Bulbs
Inside Lamps
Door Lamps .......................
Front CourtesylReading Lamps ........
Rail CourtesyReading Lamps .........
Glove Compartment Lamp ...........
Visor Vanity Lamp ..................
Hush Panel (Lower Floor Lighting) .....
Ash Tray ..........................
Bulb
74
563
12V 8W Festoon
194
7065
168
161
6-54
ProCarManuals.com

Capacities and Specifications for Engine Code K (L36) and Code 1 (L67)
Automatic Transaxle AT 4T60E (Overdrive)
When draining or replacing torque convertec more fluid may be needed.
Pan Removal and Replacement .............................. 6 1/2 quarts 6.00 L
After Complete Overhaul ..................................... 11 quarts 10.50 L
Coolingsystem .............................................. 13 quarts 12.00 L
Air Conditioning Refrigerant (R134a) ........................... See refrigerant charge label under hood.
...............................
4.75 L
Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs refrigerant, be sure the
proper refrigerant is used.
If you’re not sure, ask your Pontiac dealel: For additional information see your “Warranty and
Owner Assistance Information
” booklet.
Enginecrankcase ........................................... 5 quarts
Fuel Tank ................. 18 gallons
Power Steering
Oil change with filter change.
Pump Only ..... ................. 1 pint 0.50 L
Complete System ........................................... 1 11’2 pints 0.75 L
68.00 L
Tire Pressures, Sizes .......................................... See Tire-Loading Information label on
Wheel Nut Torque ... 100 lb-ft
driver’s
door. ,.. ... (140 Nam)
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this manual.
ProCarManuals.com

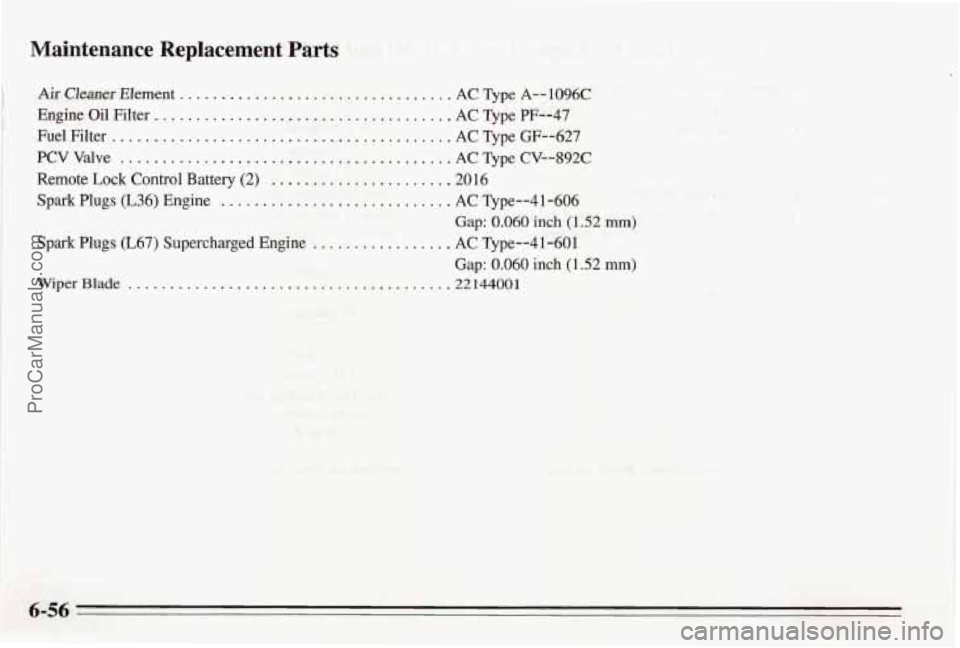

Maintenance Replacement Parts
' Air Cleaner Element ................................. AC Type A--1096C I
I ................................... Engine Oil Filter. AC 5pe PF--47
Fuel Filter ......................................... AC Qpe GF--627
PCV Valve ........................................ AC Type CV--892C-
Remote Lock Control Battery (2) ..................... -2016
Spark Plugs (236) Engine ............................ AC Qpe--41-606
Spark Plugs (L67) Supercharged Engine ................. AC Type--41 -601
WiperBlade ..................................... 22144001
Gap: 0.060 inch (1.52 m)
Gap: 0.060 inch (1.52 mm)
.... ..
6-56
ProCarManuals.com

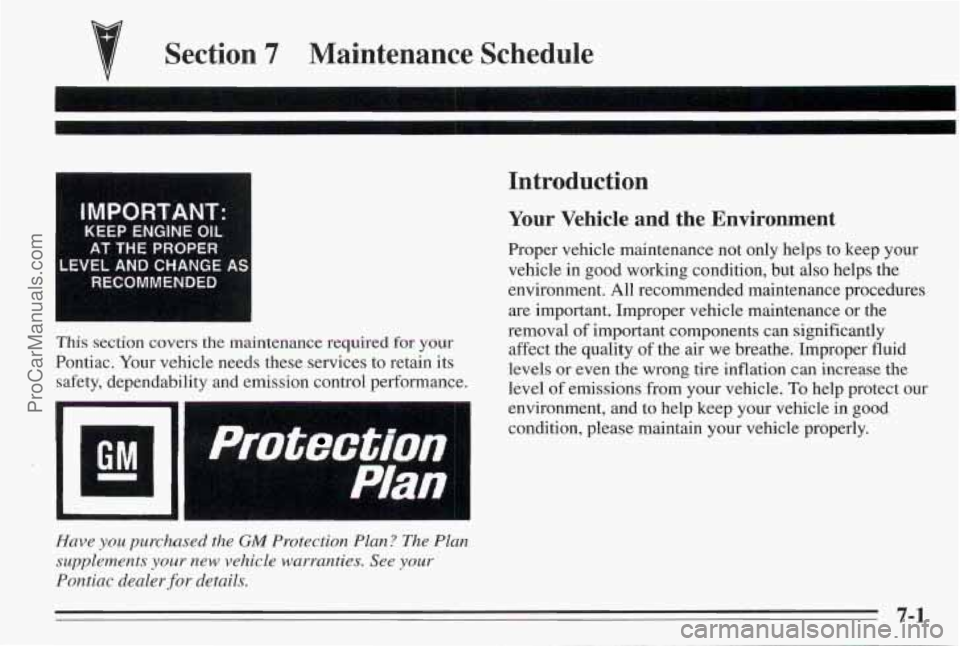

Section 7 Maintenance Schedule
