PONTIAC BONNEVILLE 1996 Owners Manual

Overhead Cormsole
S-es Storage Compartment (Option)
Some models have a storage
compartment for glasses
in
your overhead console.
Press the release
button to
lower the door. Place your
glasses inside the door.
To
close the door, raise it and
press it into position.
,
Door Cupholder
The front doors provide space for holding a cup or
soft drink.
2-50
ProCarManuals.com

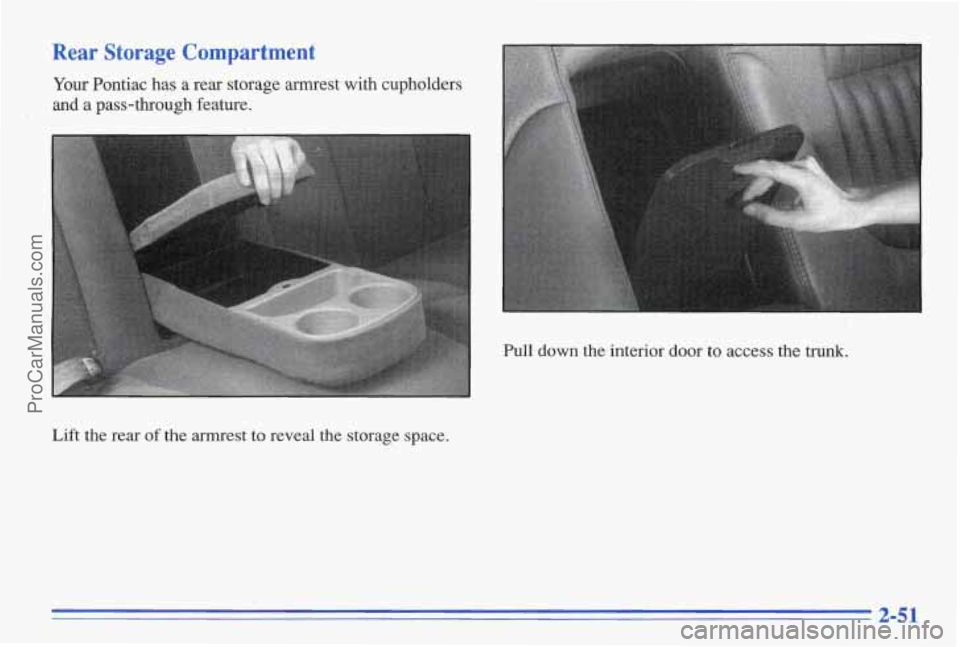

Rear Storage Compartment
Your Pontiac has a rear storage armrest with cupholders
and a pass-through feature.
Pull down the interior door
to access the trunk.
Lift the rear of the armrest to reveal the storage space.
2-51
ProCarManuals.com

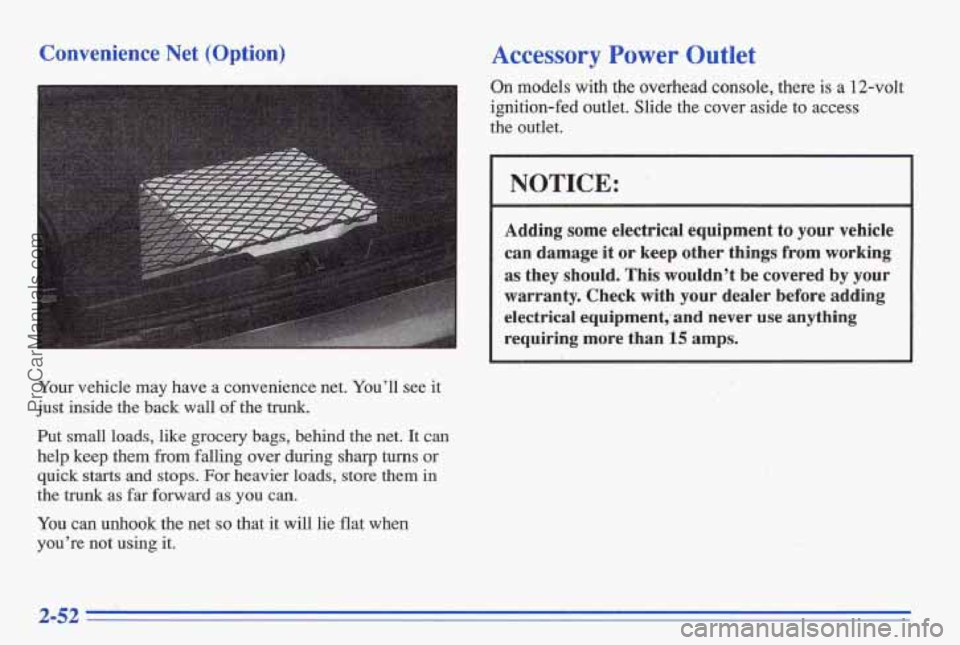

Your vehicle may have a convenience net. You'll see it
just inside the back wall
of the trunk.
Put small loads, like grocery bags, behind the net.
It can
help keep them from falling over during sharp turns or
quick starts and stops. For heavier loads, store them in
the trunk as far forward as YOU can.
You can unhook the net so that it will lie flat when
you're not using: it.
,Accessory Power Outlet
On models with the overhead console, there is a 12-volt
ignition-fed outlet. Slide the cover aside to access
the outlet.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty.
Check with your dealer before adding
electrical equipment;
and never use anything
requiring more than
15 amps.
~~
2-52
ProCarManuals.com

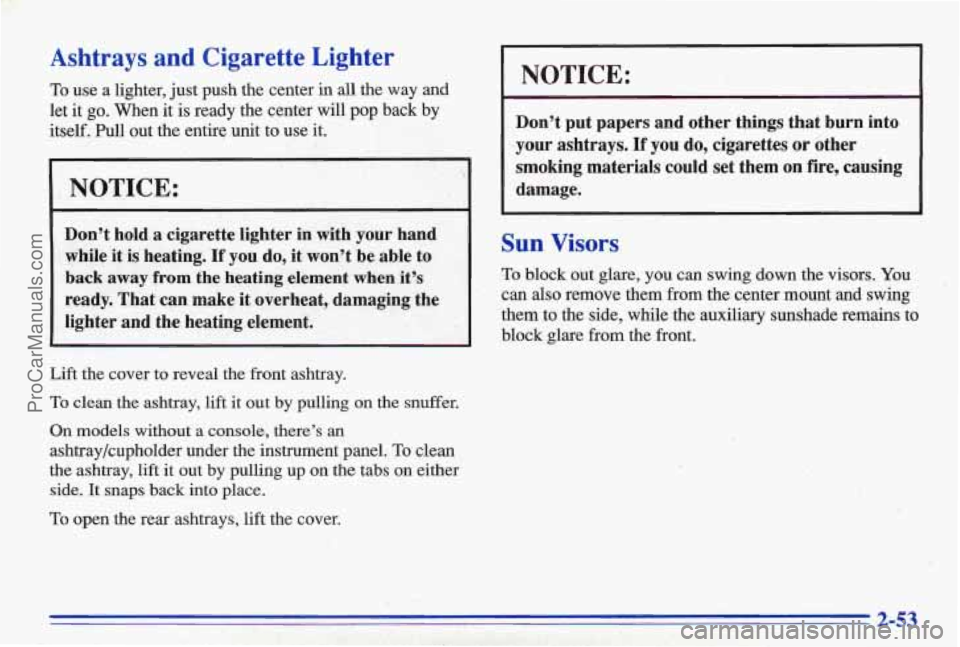

Ashtrays and Cigarette Lighter
To us6 a lighter, just push the center in all the way and
let it go. When it
‘is ready the center will pop back by
itself.
Pull out the entire unit to use it.
NOTICE:

Don’t hold a cigarette lighter in with your hand
while
it is heating. If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
Lift the cover to reveal the front ashtray.
To clean the ashtray, lift it out by pulling on the snuffer.
On models without a console, there’s
an
ashtray/cupholder under the instrument panel. To clean
the ashtray,
lift it out by pulling up on the tabs on either
side. It snaps back into place.
To open the rear ashtrays, lift the cover.
NOTICE:
Don’t put papers and other things that burn into
.your ashtrays.
If you do, cigarettes or other
smoking materials could set them
on fire, causing
damage.
Sun Visors
To block out glare, you can swing down the visors. You
can also remove them from the center mount and swing
them to the side, while the auxiliary sunshade remains to
block glare from the front.
2-53
ProCarManuals.com

Visor Vanity Mirror Air Inflator System
Open the cover to expose the vanity mirror.
If your vehicle has the optional lighted vanity mirrors,
the lamps come on when you open the cover. You can
adjust the brightness of the lamps by moving the switch, Some vehicles have an air inflator
for use
in maintaining
proper air pressure
for the tires. The air inflator is
located in the trunk. The ON switch will work only with
the ignition
on.
ProCarManuals.com

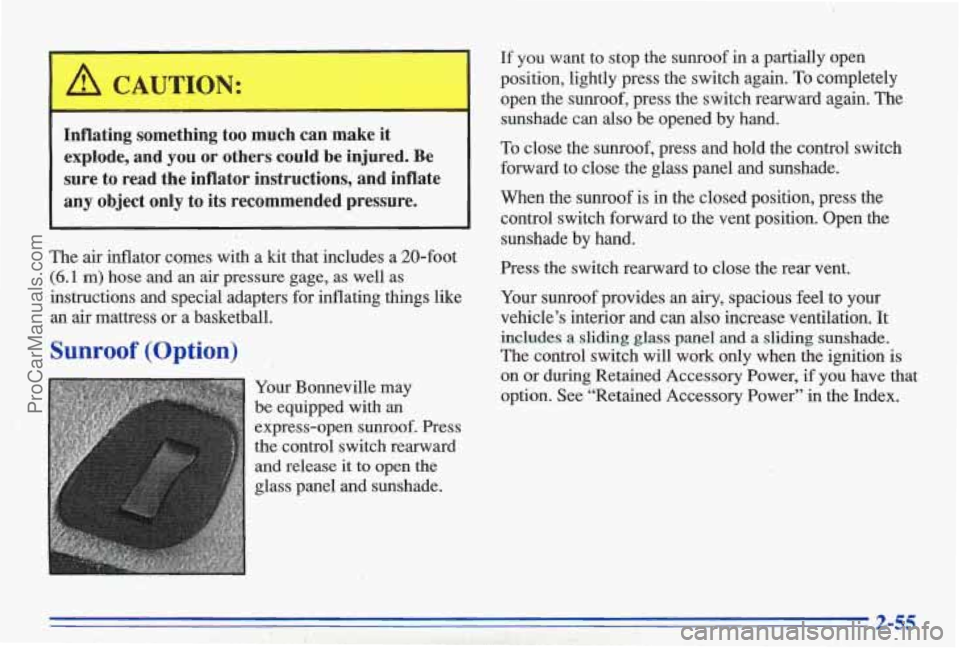

Inflating something too much can make it explode, and
you or others could be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.
c I
The air inflator comes with a kit that includes a 20-foot
(6.1 m) hose and ,an air pressure gage, as well as
instructions and special adapters for inflating things like
an
air mattress or a basketball.
Sunroof (Option)
Your Bonneville may
be equipped with
an
express-open sunroof. Press
the control switch rearward
and release
it to open the
glass panel and sunshade. If you want
to stop the sunroof in a partially open
position, lightly press the switch again.
To completely
open the sunroof, press the switch rearward again.
The
sunshade can also be opened by hand.
To close the sunroof, press and hold the control switch
forward to close the glass panel and sunshade.
When the sunroof
is in the closed position, press the
control switch forward to the vent position. Open the
sunshade by hand.
Press the switch rearward to close the rear vent.
Your sunroof provides an airy, spacious feel to your
vehicle's interior and can also increase ventilation. It
includes
a sliding glass panel and a sliding sunshade.
The control switch will work only when the ignition is
on
or during Retained Accessory Power, if you have that
option. See "Retained Accessory Power"
in the Index.
ProCarManuals.com

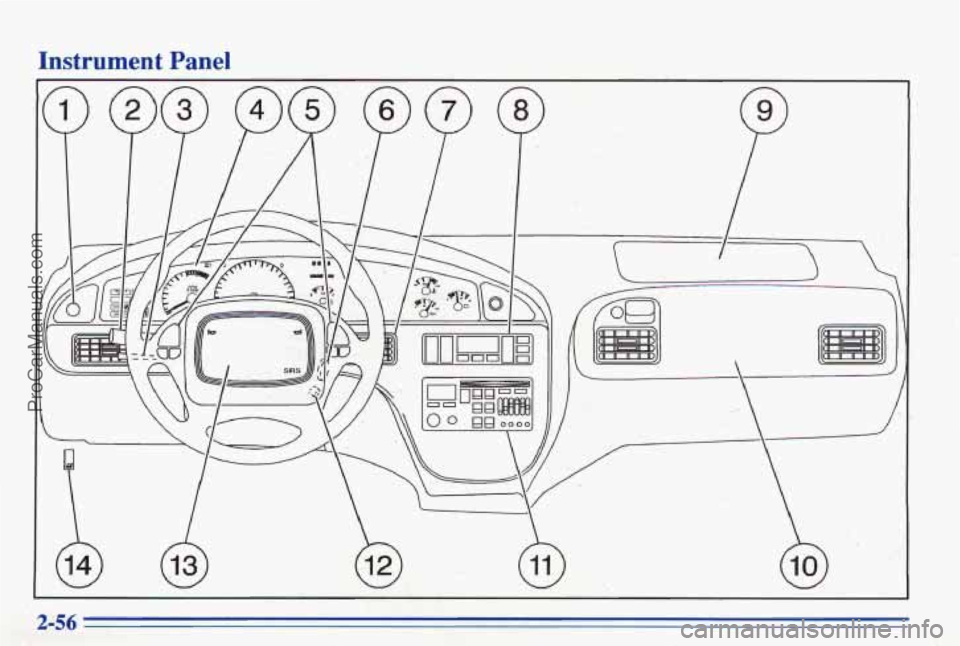

Instrument Panel
2-56
ProCarManuals.com

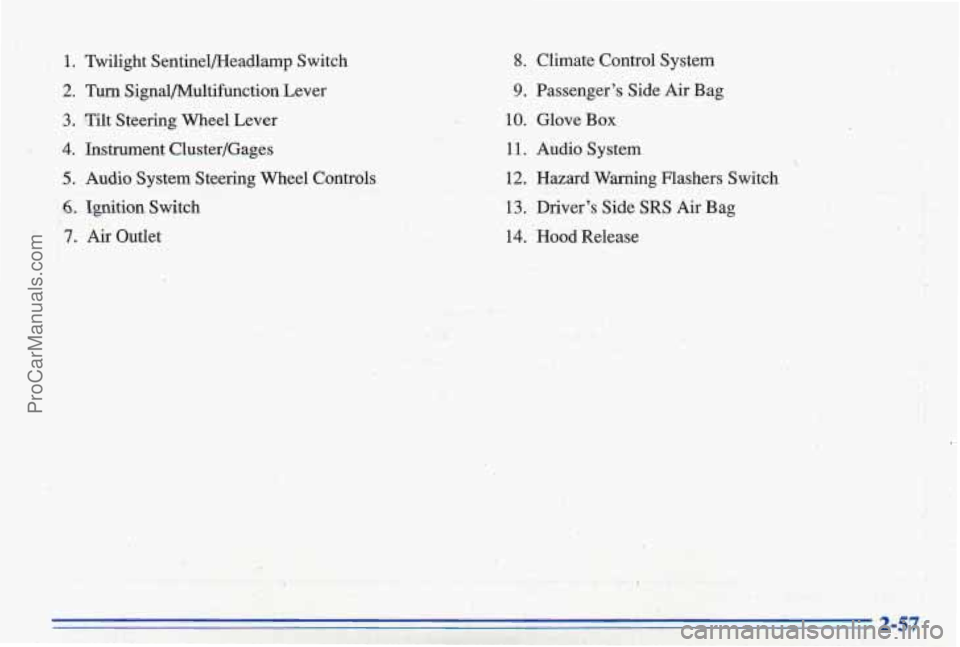

1. Twilight Sentinelmeadlamp Switch
2.
Turn Signal/Multifunction Lever
3. Tilt Steering Wheel Lever
I 2 ,,: '14. Instrument Cluster/Gages
c3; ;,5. Audio System Steering Wheel Controls
. ..
6. Ignition Switch
7. Air Outlet
8. Climate Control System
9. Passenger's Side Air Bag
10. Glove Box
11. Audio System
12. Hazard Warning Flashers Switch
.' -
13. Driver's Side SRS Air Bag
14. Hood Release
. .. .;: I . ,.< , , . I. . .. , , , ..
i: .
. I.
i
2-57
ProCarManuals.com

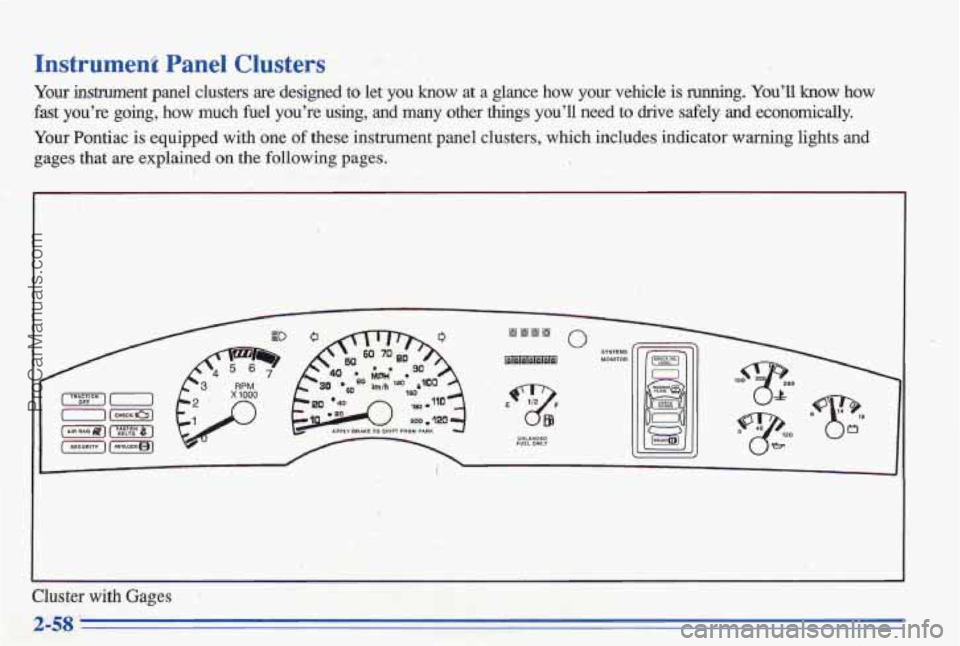

Instrument Panel Clusters
Your -ent panel clusters are designed to let you know at a glance how your vehicle is running. You’ll how how
fast you’re
going, how much fuel you’re using, and many other things you’ll need to drive safely and economically.
Your Pontiac
is equipped with one of these instrument panel clusters, which includes indicator warning\
lights and
gages that
are explained on the following pages.
m111
izlamam
0
FUEL ONLY UNLEIDEO 5%
Cluster with Gages
ProCarManuals.com

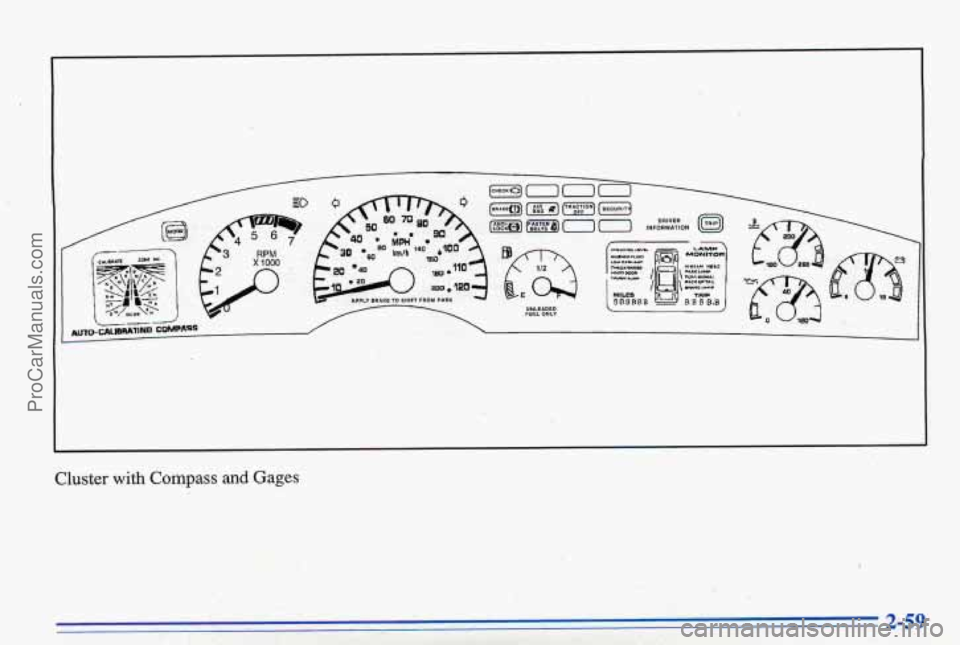

Cluster with Compass and Gages
2-59
